BMW X1
Date of manufacture
6/2015 – 2019 (Medium SUV)
Platform
UKL2 platform
Manufacturing locations
Regensburg, Germany
Born, Netherlands
Designer
-
Tags
Compact SUV
German cars

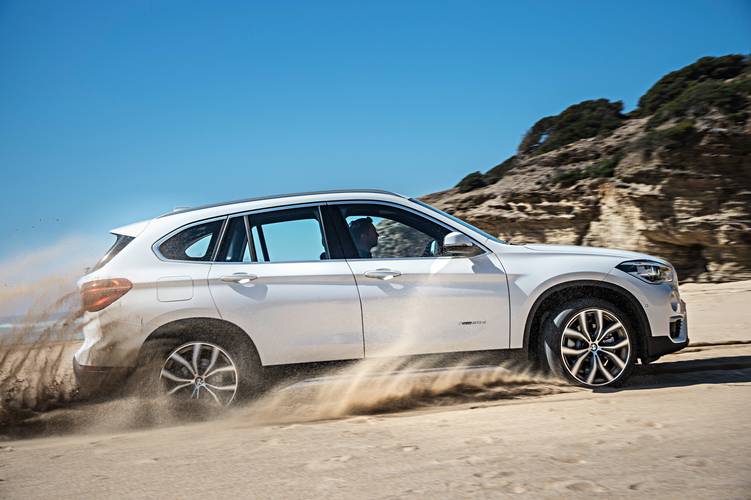

The BMW X1 is manufactured as a mid-size SUV. The vehicle has been produced since 2015. Countries of production include Germany and the Netherlands. The vehicle is built on the UKL2 platform. The list of engines has petrol and diesel engines. The highest power is achieved by the X1 xDrive25d (170 kW). The highest speed is achieved by the X1 xDrive25d at 235 km/h. The lowest combined consumption is 3.9 l/100 km for the X1 sDrive16d. CO2 emissions are 104 g/km. The size of the luggage compartment is 505 l. The vehicle underwent EURONCAP safety tests in 2015 and received a rating of 5 out of 5.
Car body style
Medium SUV
Date of manufacture
6/2015 – 2019Internal designation
F48Engine size
Petrol
Diesel
Technical data
Medium SUV
| X1 sDrive18i | X1 sDrive18i | X1 sDrive18i | X1 sDrive18i | X1 sDrive20i | X1 sDrive20i | |
|---|---|---|---|---|---|---|
| Date of sale | from 11/2015 to 9/2018 | from 11/2015 to 9/2018 | from 9/2018 to | from 9/2018 to | from to 9/2018 | from 9/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 100/4400 | 100/4400 | 103/4600-6500 | 103/4600-6500 | 141/5000-6000 | 141/5000-6000 |
| Maximum torque [Nm/min-1] | 220/1250 | 220/1250 | 220/1480-4200 | 220/1480-4200 | 280/1250-4600 | 280/1350-4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0 :1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 204 | 200 | 205 | 203 | 225 | 226 |
| Acceleration 0–100 km/h [s] | 9.7 | 9.7 | 9.7 | 9.7 | 7.7 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5-6.3 | 6.7-6.4 | 6.9 | 7.0 | 7.2-7.1 | 7.5 |
| Out of town [l] | 4.7-4.5 | 4.9-4.7 | 5.1 | 5.1 | 5.3-5.1 | 5.1 |
| Combined [l] | 5.3-5.1 | 5.6-5.3 | 5.8 | 5.8 | 6.0-5.9 | 6.0 |
| CO2 emissions [g/km] | 124-119 | 129-124 | 132 | 133 | 139-136 | 136 |
| Emission standard | EU6 | EU6 | EU6d-TEMP | EU6d-TEMP | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1505 | 1495 | 1505 | 1560 | 1560 |
| Overall weight [kg] | 1990 | 2005 | 2000 | 2025 | 2075 | 2065 |
| Maximum trailer weight unbraked/braked [kg] | 740/1700 | 740/1700 | 735 /1700 | 740/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1010 | 1040/ 1010 | 990/ 1035 | 1020/1035 | 1090/1025 | 1050/1045 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |

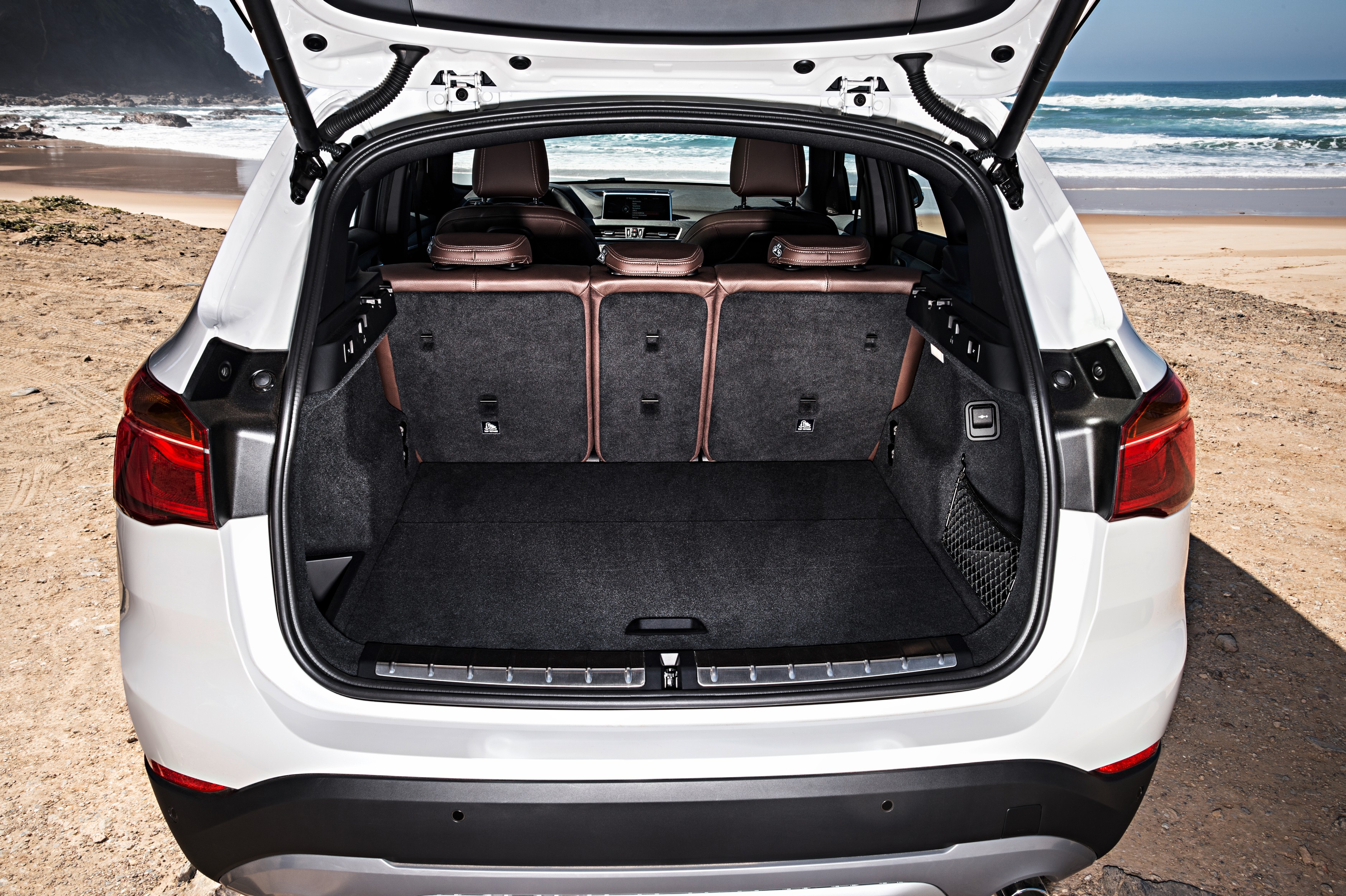

| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.29 | 0.28 | 0.28 | 0.30 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4439 | 4439 | 4439 | 4439 | 4439 | 4439 |
| Overall width without/including mirrors [mm] | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 |
| Overall height [mm] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Clearance [mm] | 183 | 183 | 183 | 183 | 183 | 183 |
| Wading depth [mm] | 250 | 250 | - | - | 250 | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X1 xDrive20i | X1 xDrive20i | X1 xDrive25i | X1 xDrive25i | X1 sDrive16d | X1 sDrive18d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 3/2019 to | from to 9/2018 | from 3/2019 to | from 11/2015 to 9/2018 | from to 9/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4 /16 | 4/16 | 3/12 | 4 /16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1496 | 1995 |
| Maximum output / speed [kW/min-1] | 141/5000 -6000 | 141/5000-6000 | 170/5000 -6000 | 170/5000-6000 | 85/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 280/1250 -4600 | 280/1350-4600 | 350/1250-4500 | 350/1350-4500 | 270/1750 | 330/1750-2750 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0 :1 | 11.0:1 | 11.0:1 | 10.2:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 4.4 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 223 | 223 | 235 | 235 | 190 | 205 |
| Acceleration 0–100 km/h [s] | 7.4 | 7.9 | 6.5 | 6.6 | 11.1 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | 9.9 |
| City [l] | 7.7-7.6 | 7.7 | 7.8-7.7 | 8.0 | 4.9-4.6 | 5.1-4.9 |
| Out of town [l] | 5.7-5.6 | 6.1 | 5.8-5.7 | 6.1 | 3.7-3.6 | 3.9-3.7 |
| Combined [l] | 6.4-6.3 | 6.7 | 6.6-6.4 | 6.8 | 4.1-3.9 | 4.3-4.1 |
| CO2 emissions [g/km] | 149-146 | 152 | 152-149 | 155 | 109-104 | 114-109 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1645 | 1615 | 1655 | 1500 | 1505 |
| Overall weight [kg] | 2140 | 2155 | 2140 | 2160 | 2020 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | 1120/1075 | 1080/ 1100 | 1120/1075 | 1090/ 1095 | 1030/1020 | 1050/1020 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.28 | 0.31 | 0.28 | 0.28 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4439 | 4439 | 4439 | 4439 | 4439 | 4439 |
| Overall width without/including mirrors [mm] | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 |
| Overall height [mm] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Clearance [mm] | 183 | 183 | 183 | 183 | 183 | 183 |
| Wading depth [mm] | 250 | - | 250 | - | 250 | 250 |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X1 sDrive18d | X1 xDrive18d | X1 xDrive18d | X1 sDrive18d | X1 sDrive18d | X1 xDrive18d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 11/2015 to 9/2018 | from 11/2015 to 9/2018 | from 9/2018 to | from 9/2018 to | from 9/2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4 /16 | 4 /16 | 4 /16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 330/1750-2750 | 330/1750-2750 | 330/1750-2750 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 205 | 204 | 204 | 205 | 205 | 204 |
| Acceleration 0–100 km/h [s] | 9.2 | 9.2 | 9.3 | 9.3 | 9.4 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 9.9 | - | - |
| City [l] | 5.3-5.1 | 5.7-5.5 | 5.7-5.5 | 5.3 | 5.2 | 5.8 |
| Out of town [l] | 4.1-3.9 | 4.5-4.3 | 4.5-4.3 | 4.2 | 4.2 | 4.5 |
| Combined [l] | 4.5-4.3 | 4.9-4.7 | 4.9-4.7 | 4.6 | 4.6 | 5.0 |
| CO2 emissions [g/km] | 119-114 | 129-124 | 129-124 | 120 | 121 | 132 |
| Emission standard | EU6 | EU6 | EU6 | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1605 | 1615 | 1580 | 1615 | 1655 |
| Overall weight [kg] | 2065 | 2120 | 2135 | 2090 | 2125 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/1020 | 1090/1070 | 1110/1070 | 1055/1065 | 1095/1060 | 1095/1105 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | 20.5 | 20.5 | 12.5 |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4439 | 4439 | 4439 | 4439 | 4439 | 4439 |
| Overall width without/including mirrors [mm] | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 |
| Overall height [mm] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Clearance [mm] | 183 | 183 | 183 | 183 | 183 | 183 |
| Wading depth [mm] | 250 | 250 | 250 | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X1 xDrive18d | X1 sDrive20d | X1 sDrive20d | X1 xDrive20d | X1 xDrive20d | X1 sDrive20d | |
|---|---|---|---|---|---|---|
| Date of sale | from 9/2018 to | from 7/2016 to 9/2018 | from 7/2016 to 9/2018 | from to 9/2018 | from to 9/2018 | from 9/2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4 /16 | 4 /16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 204 | 225 | 222 | 220 | 219 | 222 |
| Acceleration 0–100 km/h [s] | 9.4 | 7.9 | 7.8 | 7.6 | 7.6 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.5-5.3 | 5.5-5.2 | 5.9-5.7 | 5.8-5.6 | 5.3 |
| Out of town [l] | 4.5 | 4.2-4.0 | 4.2-4.1 | 4.5-4.3 | 4.6-4.4 | 4.2 |
| Combined [l] | 4.8 | 4.7-4.5 | 4.7-4.5 | 5.0-4.8 | 5.1-4.9 | 4.6 |
| CO2 emissions [g/km] | 127 | 123-118 | 123-118 | 132-127 | 133-129 | 122 |
| Emission standard | EU6d-TEMP | EU6 | EU6 | EU6 | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680 | 1555 | 1575 | 1615 | 1625 | 1615 |
| Overall weight [kg] | 2190 | 2055 | 2070 | 2130 | 2145 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | 1115/1105 | 1080/1020 | 1110/ 1020 | - | 1130/1070 | 1095/ 1075 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 61 | 61 | 51 |
| AdBlue tank volume [l] | 12.5 | - | - | - | - | 20.5 |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4439 | 4439 | 4439 | 4439 | 4439 | 4439 |
| Overall width without/including mirrors [mm] | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 | 1821/2060 |
| Overall height [mm] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Clearance [mm] | 183 | 183 | 183 | 183 | 183 | 183 |
| Wading depth [mm] | - | 250 | 250 | 250 | 250 | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Rear elbow/shoulder width [mm] | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- | 1453/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| X1 xDrive20d | X1 xDrive25d | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 9/2018 to | from to 9/2018 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4 /16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 140/4000 | 170/4400 | ||||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 450/1500-3000 | ||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | 5.0 | 5.0 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 219 | 235 | ||||
| Acceleration 0–100 km/h [s] | 7.8 | 6.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.4 | 5.9-5.8 | ||||
| Out of town [l] | 4.4 | 4.8-4.6 | ||||
| Combined [l] | 4.8 | 5.2-5.0 | ||||
| CO2 emissions [g/km] | 126 | 137-132 | ||||
| Emission standard | EU6d-TEMP | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1690 | 1650 | ||||
| Overall weight [kg] | 2205 | 2170 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | 1115/1120 | 1130/1075 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | ||||
| Boot volume [l] | 505 | 505 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 51 | 51 | ||||
| AdBlue tank volume [l] | 12.5 | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | ||||
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | ||||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | ||||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | ||||
| Overall length [mm] | 4439 | 4439 | ||||
| Overall width without/including mirrors [mm] | 1821/2060 | 1821/2060 | ||||
| Overall height [mm] | 1598 | 1598 | ||||
| Wheelbase [mm] | 2670 | 2670 | ||||
| Front wheel track [mm] | 1561 | 1561 | ||||
| Rear wheel track [mm] | 1562 | 1562 | ||||
| Forward overhang [mm] | 842 | 842 | ||||
| Rear overhang [mm] | 927 | 927 | ||||
| Clearance [mm] | 183 | 183 | ||||
| Wading depth [mm] | - | 250 | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1065 | 1065 | ||||
| Headroom rear [mm] | 1002 | 1002 | ||||
| Front elbow/shoulder width [mm] | 1440/- | 1440/- | ||||
| Rear elbow/shoulder width [mm] | 1453/- | 1453/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
