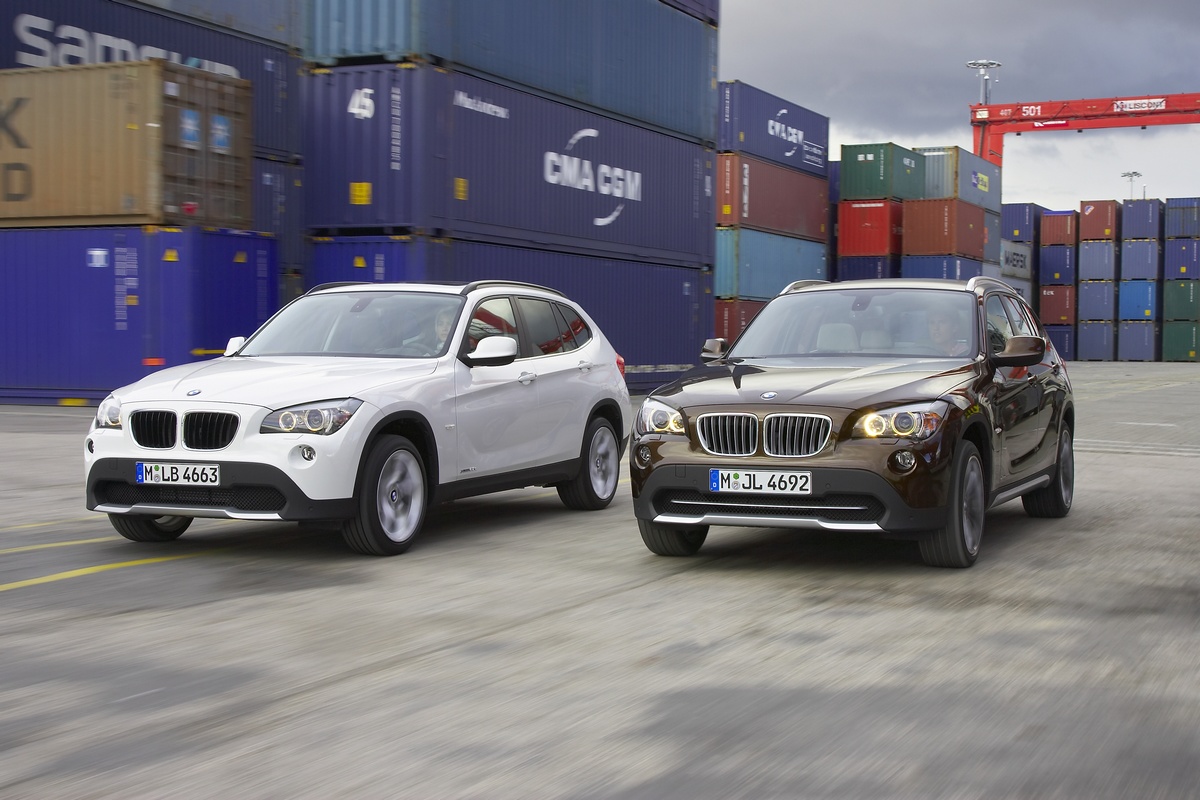

BMW X1
Date of manufacture
9/2009 – 2012 (SUV)
Platform
-
Manufacturing locations
Leipzig, Germany
Kaliningrad, Russia
Designer
Richard Kim
Tags
Compact SUV
German cars
The BMW X1 is an SUV that has been manufactured since 2009. The vehicle is made in countries such as Germany or Russia and offers petrol and diesel engines. The most powerful model is the xDrive28i with 190 kW and a top speed of 240 km/h. The xDrive28i also has the best acceleration from 0-100 km/h in 6.1 seconds. The most efficient version, the sDrive18d, has a combined fuel consumption of 5.2 l/100 km and CO2 emissions of 136 g/km. The luggage compartment has a capacity of 420 litres. The BMW X1 underwent EURONCAP safety tests in 2012 and achieved a rating of 5 out of 5.
Car body style
Technical data
SUV
| sDrive18i | sDrive18i | sDrive20i | sDrive20i | xDrive20i | xDrive20i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 110/6400 | 110/6400 | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 |
| Maximum torque [Nm/min-1] | 200/36000 | 200/36000 | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 202 | 200 | 220 | 220 | 215 | 215 |
| Acceleration 0–100 km/h [s] | 9.7 | 10.4 | 7.4 | 7.7 | 7.8 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.3 | 11.5 | 9.1 | 9.4 | 9.7 | 10.1 |
| Out of town [l] | 6.4 | 6.6 | 5.9 | 5.8 | 6.5 | 6.1 |
| Combined [l] | 8.2 | 8.4 | 7.1 | 7.1 | 7.7 | 7.6 |
| CO2 emissions [g/km] | 191 | 195 | 165 | 165 | 179 | 177 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1530 | 1560 | 1585 | 1650 | 1665 |
| Overall weight [kg] | 1990 | 2010 | 2035 | 2060 | 2125 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.33 | 0.33 | 0.34 | 0.34 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Tyre dimensions rear | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.3 | -/11.3 | -/11.3 | -/11.3 | -/11.8 | -/11.8 |
| Overall length [mm] | 4454 | 4454 | 4454 | 4454 | 4454 | 4454 |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- |
| Overall height [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 791 | 791 | 791 | 791 | 791 | 791 |
| Rear overhang [mm] | 903 | 903 | 903 | 903 | 903 | 903 |
| Clearance [mm] | 194 | 194 | 194 | 194 | 194 | 194 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 |
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
| Transition angle [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| xDrive25i | xDrive28i | xDrive28i | xDrive28i | sDrive18d | sDrive18d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2996 | 1997 | 1997 | 2996 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 160/6100 | 180/5000 | 180/5000 | 190/6600 | 105/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 280/2500 | 350/1250 | 350/1250 | 310/2600-3000 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 84,0 x 90,1 | 84,0 x 90,1 | 85,0 x 88,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,7:1 | 10,0:1 | 10,0:1 | 10,7:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 223 | 240 | 240 | 230 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 7.9 | 6.1 | 6.5 | 6.8 | 9.6 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.9 | 9.9 | 10.4 | 13.0 | 6.1 | 7.1 |
| Out of town [l] | 7.2 | 6.7 | 6.4 | 7.3 | 4.7 | 5.2 |
| Combined [l] | 9.3 | 7.9 | 7.9 | 9.4 | 5.2 | 5.9 |
| CO2 emissions [g/km] | 217 | 183 | 183 | 219 | 136 | 155 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1675 | 1655 | 1670 | 1685 | 1545 | 1570 |
| Overall weight [kg] | 2180 | 2130 | 2150 | 2180 | 2030 | 2055 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.34 | 0.34 | 0.33 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Tyre dimensions rear | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 300 x 20 | 330 x 20 | 330 x 20 | 336 x 22 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.8 | -/11.8 | -/11.8 | -/11.8 | -/11.3 | -/11.3 |
| Overall length [mm] | 4454 | 4454 | 4454 | 4454 | 4454 | 4454 |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- |
| Overall height [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 791 | 791 | 791 | 791 | 791 | 791 |
| Rear overhang [mm] | 903 | 903 | 903 | 903 | 903 | 903 |
| Clearance [mm] | 194 | 194 | 194 | 194 | 194 | 194 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 |
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | 22.2 | 22.2 |
| Transition angle [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| xDrive18d | xDrive18d | sDrive20d | sDrive20d | xDrive20d | xDrive20d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 195 | 195 | 218 | 218 | 213 | 213 |
| Acceleration 0–100 km/h [s] | 10.1 | 10.3 | 8.1 | 8.3 | 8.4 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7 | 7.7 | 6.4 | 7.1 | 7.0 | 7.7 |
| Out of town [l] | 5.1 | 5.4 | 4.7 | 5.2 | 5.1 | 5.4 |
| Combined [l] | 5.7 | 6.2 | 5.3 | 5.9 | 5.8 | 6.2 |
| CO2 emissions [g/km] | 150 | 164 | 139 | 155 | 153 | 164 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1650 | 1565 | 1575 | 1650 | 1660 |
| Overall weight [kg] | 2120 | 2140 | 2045 | 2060 | 2130 | 2145 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 | -/1350 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.32 | 0.32 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Tyre dimensions rear | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H | 225/50 R17 94H |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.8 | -/11.8 | -/11.3 | -/11.3 | -/11.8 | -/11.8 |
| Overall length [mm] | 4454 | 4454 | 4454 | 4454 | 4454 | 4454 |
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- | 1798/- |
| Overall height [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 791 | 791 | 791 | 791 | 791 | 791 |
| Rear overhang [mm] | 903 | 903 | 903 | 903 | 903 | 903 |
| Clearance [mm] | 194 | 194 | 194 | 194 | 194 | 194 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 | 18,0 |
| Approach angle rear [°] | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 | 22.2 |
| Transition angle [°] | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| xDrive23d | xDrive23d | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 150/4400 | 150/4400 | ||||
| Maximum torque [Nm/min-1] | 400/2000-2500 | 400/2000-2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 6 gear manual | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 223 | 223 | ||||
| Acceleration 0–100 km/h [s] | 7.3 | 7.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.3 | 7.8 | ||||
| Out of town [l] | 5.2 | 5.5 | ||||
| Combined [l] | 6.0 | 6.3 | ||||
| CO2 emissions [g/km] | 158 | 167 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1660 | 1670 | ||||
| Overall weight [kg] | 2150 | 2160 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 420 | 420 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1350 | -/1350 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 61 | 61 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.33 | 0.33 | ||||
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/50 R17 94H | 225/50 R17 94H | ||||
| Tyre dimensions rear | 225/50 R17 94H | 225/50 R17 94H | ||||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | ||||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | ||||
| Brake dimensions front | 330 x 24 | 330 x 24 | ||||
| Brake dimensions rear | 300 x 20 | 300 x 20 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.8 | -/11.8 | ||||
| Overall length [mm] | 4454 | 4454 | ||||
| Overall width without/including mirrors [mm] | 1798/- | 1798/- | ||||
| Overall height [mm] | 1545 | 1545 | ||||
| Wheelbase [mm] | 2760 | 2760 | ||||
| Front wheel track [mm] | 1500 | 1500 | ||||
| Rear wheel track [mm] | 1529 | 1529 | ||||
| Forward overhang [mm] | 791 | 791 | ||||
| Rear overhang [mm] | 903 | 903 | ||||
| Clearance [mm] | 194 | 194 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 18,0 | 18,0 | ||||
| Approach angle rear [°] | 22.2 | 22.2 | ||||
| Transition angle [°] | 16.8 | 16.8 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1048 | 1048 | ||||
| Headroom rear [mm] | 1008 | 1008 | ||||
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | ||||
| Rear elbow/shoulder width [mm] | 1443/- | 1443/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
