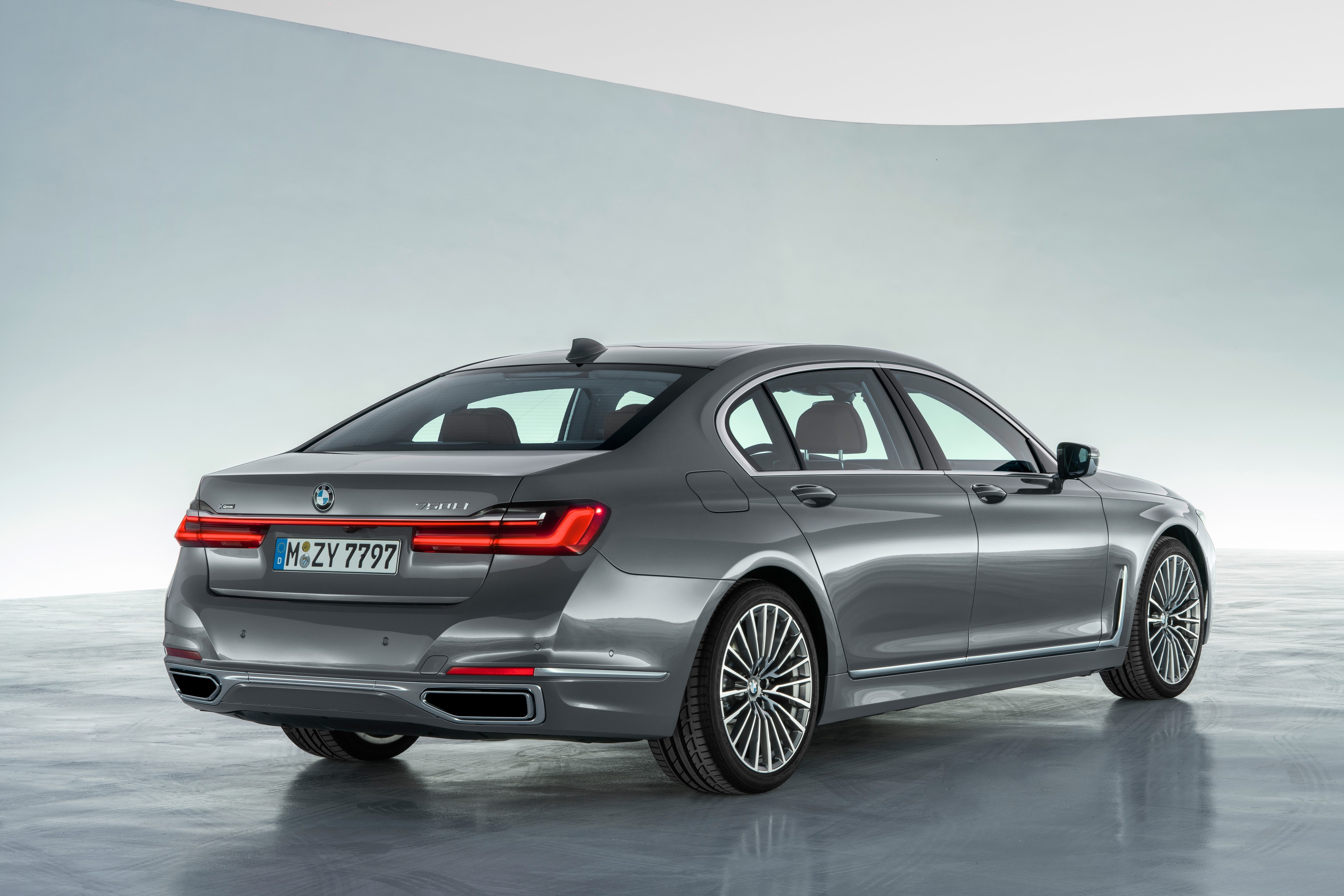

BMW 7
Date of manufacture
2019 – to this day (Sedan)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
-
Tags
F-segment
German cars
Since 2019, BMW 7 is only available in the sedan version. The car is manufactured in Germany and offers hybrid and plug-in hybrid versions. The engine list includes petrol, diesel and hybrid models. The most powerful unit M760Li xDrive has a power of 430 kW and the fastest model is also M760Li xDrive, which reaches a maximum speed of 250 km/h. The most economical model is the 745e with a combined consumption of 2.1 l/100 km and CO2 emissions of 48 g/km. The luggage compartment volume is 420 l.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
G11Engine size
Technical data
Sedan
| 730i | 730Li | 740i | 740Li | 740Li xDrive | 750i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 11/2020 | from to 11/2020 | from to 11/2020 | from to 11/2020 | from to 11/2020 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 1998 | 1998 | 2998 | 2998 | 2998 | 4395 |
| Maximum output / speed [kW/min-1] | 195/5000-6500 | 195/5000-6500 | 250/5500-6500 | 250/5500-6500 | 250/5500-6500 | 390/5500-6000 |
| Maximum torque [Nm/min-1] | 400/1550-4500 | 400/1550-4500 | 450/1500-5200 | 450/1500-5200 | 450/1500-5200 | 750/1800-4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 89.0 x 88.3 |
| Compression ratio | 10.2:1 | 10.2:1 | 11.0 :1 | 11.0 :1 | 11.0 :1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | 10.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.2 | 6.3 | 5.5 | 5.6 | 5.1 | 4.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8-7.6 | 8.0-7.6 | 9.2-9.0 | 9.4-9.0 | 9.9-9.2 | 13.2-13.1 |
| Out of town [l] | 5.8-5.4 | 5.8-5.5 | 6.3-5.9 | 6.5-6.1 | 6.9-6.7 | 7.4 |
| Combined [l] | 6.5-6.2 | 6.6-6.3 | 7.3-7.0 | 8.0-7.6 | 8.0-7.6 | 9.5 |
| CO2 emissions [g/km] | 149-142 | 150-143 | 168-161 | 172-164 | 182-174 | 217 |
| Emission standard | EU6d-temp | EU6d-temp | EU6d-temp | EU6d-temp | EU6d-temp | EU6d-temp - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1790 | 1840 | 1835 | 1880 | 1935 | 2040-2045 |
| Overall weight [kg] | 2385 | 2445 | 2445 | 2500 | 2555 | 26302640 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/2100 | 750/2100 | 750/2300 | 750/2300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | 1330/1380 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100 /- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4/5 | 5 | 4/5 | 4/5 | 5 |
| Fuel tank volume [l] | 78 | 78 | 78 | 78 | 78 | 78 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/45 R19 102Y XL |
| Tyre dimensions rear | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 245/45 R19 102Y XL |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 8.5J x 19 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 8.5J x 19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.3/- | 12.8/- | 12.3/- | 12.8/- | 12.9/- | 12.5/- |
| Overall length [mm] | 5120 | 5260 | 5120 | 5260 | 5260 | 5120 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1467 | 1479 | 1467 | 1479 | 1479 | 1467 |
| Wheelbase [mm] | 3070 | 3210 | 3070 | 3210 | 3210 | 3070 |
| Front wheel track [mm] | 1618 | 1618 | 1618 | 1618 | 1617 | 1621 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1646 | 1646 | 1650 |
| Forward overhang [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | - | 135 | - | - | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1009 | 1013 | 1009 | 1013 | 1013 | 1009 |
| Headroom rear [mm] | 977 | 989 | 977 | 989 | 989 | 977 |
| Front elbow/shoulder width [mm] | 1554/- | 1554/- | 1554/- | 1554/- | 1554/- | 1554/- |
| Rear elbow/shoulder width [mm] | 1544/- | 1550/- | 1544/- | 1550/- | 1550/- | 1544/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 750Li xDrive | M760Li xDrive | 745e | 745e | 745Le | 745Le | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 11/2020 | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 8/32 | 12/48 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 4395 | 6592 | 2998 | 2998 | 2998 | 2998 |
| Maximum output / speed [kW/min-1] | 390/5500-6000 | 430/5250-5750 | 210/5000-6000 83/3170 el. 290 total | 210/5000-6000 83/3170 el. 290 total | 210/5000-6000 83/3170 el. 290 total | 210/5000-6000 83/3170 el. 290 total |
| Maximum torque [Nm/min-1] | 750/1800-4600 | 850/1600-4500 | 450/1500-3500 265/0-2700 el. 600 total | 450/1500-3500 265/0-2700 el. 600 total | 450/1500-3500 265/0-2700 el. 600 total | 450/1500-3500 265/0-2700 el. 600 total |
| Bore and stroke [mm x mm] | 89.0 x 88.3 | 89.0 x 88.3 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 10.5:1 | 10.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 10.5 | 12.0 | 6.5 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 [140 el.] | 250 [140 el.] | 250 [140 el.] | 250 [140 el.] |
| Acceleration 0–100 km/h [s] | 4.1 | 3.8 | 5,2 | 5,2 | 5,3 | 5,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.2-13.0 | 18.3-18.1 | - | - | - | - |
| Out of town [l] | 7.5-7.4 | 9.2-8.9 | - | - | - | - |
| Combined [l] | 9.6-9.5 | 12.5-12.4 | 2.2-2.1 [15.4-15.0 kWh] | 2.2-2.1 [16.6-16.3 kWh] | 2.3-2.2 [15.4-15.1 kWh] | 2.2 [17.6-16.9 kWh] |
| CO2 emissions [g/km] | 218-217 | 285-282 | 52-48 | 50-49 | 53-50 | 53-50 |
| Emission standard | EU6d-temp - EU6d | EU6d-temp | EU6d-TEMP | EU6d | EU6d-TEMP | EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 354 | 354 | 354 | 354 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 12 kWh | Lithium-Ionen-Akkumulator, 12 kWh | Lithium-Ionen-Akkumulator, 12 kWh | Lithium-Ionen-Akkumulator, 12 kWh |
| Range with fully charged battery [km] | - | - | 54-58 | 49-56 | 52-55 | 47-55 |
| Charging time | - | - |
|
|
|
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2075-2095 | 2295 | 2070 | 2075 | 2110 | 2120 |
| Overall weight [kg] | 2675 | 2840 | 2655 | 2635 | 2670 | 2670 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | -/ | - | - | - | - |
| Maximum front/rear axle load [kg] | 1340/1395 | 1410/1490 | 1225/1480 | 1225/1480 | 1245/1500 | 1245/1500 |
| Maximum vertical load on the tow bar [kg] | 100 | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100 /- | 100/- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 515 | 515 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4/5 | 5 | 5 | 5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 78 | 78 | 46 | 46 | 46 | 46 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.30 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/45 R19 102Y XL | 245/40 ZR20 99Y XL | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y |
| Tyre dimensions rear | 245/45 R19 102Y XL | 275/35 ZR20 102Y XL | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y |
| Wheel size front | 8.5J x 18 | 8.5J x 20 | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 |
| Wheel size rear | 8.5J x 18 | 10J x 20 | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.9/- | 12.9/- | 12.3/- | 12.3/- | 12.8/- | 12.8/- |
| Overall length [mm] | 5260 | 5260 | 5120 | 5120 | 5260 | 5260 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1479 | 1479 | 1467 | 1467 | 1479 | 1479 |
| Wheelbase [mm] | 3210 | 3210 | 3070 | 3070 | 3210 | 3210 |
| Front wheel track [mm] | 1621 | 1621 | 1611 | 1611 | 1611 | 1611 |
| Rear wheel track [mm] | 1650 | 1618 | 1640 | 1640 | 1640 | 1640 |
| Forward overhang [mm] | - | 902 | 902 | 902 | 902 | 902 |
| Rear overhang [mm] | - | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | 1013 | 1009 | 1009 | 1013 | 1013 |
| Headroom rear [mm] | - | 989 | 977 | 977 | 989 | 989 |
| Front elbow/shoulder width [mm] | - | 1554/- | 1554/- | 1554/- | 1554/- | 1554/- |
| Rear elbow/shoulder width [mm] | - | 1550/- | 1544/- | 1544/- | 1550/- | 1550/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 745Le xDrive | 745Le xDrive | 730d | 730Ld | 730d xDrive | 730Ld xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 11/2020 | from to 11/2020 | from to 11/2020 | from to 11/2020 |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2998 | 2998 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 210/5000-6000 83/3170 el. 290 total | 210/5000-6000 83/3170 el. 290 total | 195/4000 | 195/4000 | 195/4000 | 195/4000 |
| Maximum torque [Nm/min-1] | 450/1500-3500 265/0-2700 el. 600 total | 450/1500-3500 265/0-2700 el. 600 total | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 [140 el.] | 250 [140 el.] | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.1 | 5.1 | 6.1 | 6.2 | 5.8 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | 6.5-6.2 | 6.4-6.3 | 6.5-6.3 | 6.7-6.5 |
| Out of town [l] | - | - | 5.0-4.6 | 5.0-4.8 | 5.2-5.0 | 5.3-5.1 |
| Combined [l] | 2.6-2.3 [16.3-15.8 kWh] | 2.5-2.4 [17.9-17.8 kWh] | 5.5-5.3 | 5.5-5.3 | 5.7-5.5 | 5.8-5.6 |
| CO2 emissions [g/km] | 59-52 | 59-52 | 144-138 | 145-139 | 150-143 | 153-147 |
| Emission standard | EU6d-TEMP | EU6d | EU6d-temp | EU6d-temp | EU6d-temp | EU6d-temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 354 | 354 | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 12 kWh | Lithium-Ionen-Akkumulator, 12 kWh | - | - | - | - |
| Range with fully charged battery [km] | 50-54 | 45-50 | - | - | - | - |
| Charging time |
|
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2160 | 2180 | 1900 | 1945 | 1955 | 2005 |
| Overall weight [kg] | 2705 | 2705 | 2510 | 2560 | 2560 | 2625 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | 1300/1500 | 1300/1500 | 1200/1380 | 1225/1400 | 1245/1375 | 1275/1415 |
| Maximum vertical load on the tow bar [kg] | - | - | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 420 | 420 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4/5 | 4/5 | 5 | 4/5 | 5 | 4/5 |
| Fuel tank volume [l] | 46 | 46 | 78 | 78 | 78 | 78 |
| AdBlue tank volume [l] | - | - | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | 0.27 | 0.27 | 0.24 | 0.24 | 0.25 | 0.25 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Tyre dimensions rear | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Wheel size front | 8J x 18 | 8J x 18 | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7,5J x 17 |
| Wheel size rear | 8J x 18 | 8J x 18 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.9/- | 12.9/- | 12.3/- | 12.8/- | 12.5/- | 12.9/- |
| Overall length [mm] | 5260 | 5260 | 5120 | 5260 | 5120 | 5260 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1479 | 1479 | 1467 | 1479 | 1467 | 1479 |
| Wheelbase [mm] | 3210 | 3210 | 3070 | 3210 | 3070 | 3210 |
| Front wheel track [mm] | 1611 | 1611 | 1618 | 1618 | 1617 | 1617 |
| Rear wheel track [mm] | 1640 | 1640 | 1646 | 1646 | 1646 | 1646 |
| Forward overhang [mm] | 902 | 902 | 902 | 902 | - | 902 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | - | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1009 | 1013 | - | 1013 |
| Headroom rear [mm] | 989 | 989 | 977 | 989 | - | 989 |
| Front elbow/shoulder width [mm] | 1554/- | 1554/- | 1554/- | 1554/- | - | 1554/- |
| Rear elbow/shoulder width [mm] | 1550/- | 1550/- | 1544/- | 1550/- | - | 1550/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 740d xDrive | 740Ld xDrive | 750d xDrive | 750Ld xDrive | 730d | 730Ld | |
|---|---|---|---|---|---|---|
| Date of sale | from to 11/2020 | from to 11/2020 | from to 11/2020 | from to 11/2020 | from 11/2020 to | from 11/2020 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 235/4400 | 235/4400 | 294/4400 | 294/4400 | 210/4000 8 el. | 210/4000 8 el. |
| Maximum torque [Nm/min-1] | 680/1750-2250 | 680/1750-2250 | 760/2000-3000 | 760/2000-3000 | 650/1500-2500 | 650/1500-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 7.0 | 7.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.3 | 5.4 | 4.6 | 4.7 | 5.9 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2-6.9 | 7.4-7.0 | 6.9-6.7 | 7.2-6.8 | 6.0-5.9 | 6.2-6.0 |
| Out of town [l] | 5.3-4.9 | 5.2-4.8 | 5.5-5.3 | 5.5-5.4 | 4.2-4.0 | 4.3-4.1 |
| Combined [l] | 6.0-5.6 | 6.0-5.7 | 6.0-5.8 | 6.1-5.9 | 4.9-4.7 | 5.0-4.8 |
| CO2 emissions [g/km] | 158-148 | 158-149 | 157-152 | 160-155 | 128-123 | 130-126 |
| Emission standard | EU6d-temp | EU6d-temp | EU6d-temp | EU6d-temp | EU6d | EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | 48 |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1990 | 2025 | 2035 | 2075 | 1950 | 1990 |
| Overall weight [kg] | 2605 | 2645 | 2640 | 2690 | 2560 | 2585 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/2300 | 750/2300 | 750/2300 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | 1285/1390 | 1300/1415 | 1310/1390 | 1335/1415 | 1255/1400 | 1275/1420 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- | 100 /- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4/5 | 5 | 4/5 | 5 | 5 |
| Fuel tank volume [l] | 78 | 78 | 78 | 78 | 78 | 78 |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | 0.27 | 0.27 | 0.26 | 0.26 | 0.24 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Tyre dimensions rear | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Wheel size front | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 8J x 18 | 8J x 18 | 8J x 18 | 8J x 18 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.5/- | 12.9/- | 12.5/- | 12.9/- | 12.3/- | 12.8/- |
| Overall length [mm] | 5120 | 5260 | 5120 | 5260 | 5120 | 5260 |
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 |
| Overall height [mm] | 1467 | 1479 | 1467 | 1479 | 1467 | 1479 |
| Wheelbase [mm] | 3070 | 3210 | 3070 | 3210 | 3070 | 3210 |
| Front wheel track [mm] | 1611 | 1611 | 1611 | 1611 | 1618 | 1618 |
| Rear wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1646 | 1646 |
| Forward overhang [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Rear overhang [mm] | 1148 | 1148 | 1148 | 1148 | 1148 | 1148 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1009 | 1013 | 1009 | 1013 | 1009 | 1013 |
| Headroom rear [mm] | 977 | 989 | 977 | 989 | 977 | 989 |
| Front elbow/shoulder width [mm] | 1554/- | 1554/- | 1554/- | 1554/- | 1554/- | 1554/- |
| Rear elbow/shoulder width [mm] | 1544/- | 1550/- | 1544/- | 1550/- | 1544/- | 1550/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 730d xDrive | 730Ld xDrive | 740d xDrive | 740Ld xDrive | |||
|---|---|---|---|---|---|---|
| Date of sale | from 11/2020 to | from 11/2020 to | from 11/2020 to | from 11/2020 to | ||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | ||
| Maximum output / speed [kW/min-1] | 210/4000 8 el. | 210/4000 8 el. | 250/4400 8 el. | 250/4400 8 el. | ||
| Maximum torque [Nm/min-1] | 650/1500-2500 | 650/1500-2500 | 700/1750-2250 | 700/1750-2250 | ||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | ||
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | ||
| Oil volume [l] | 7.0 | 7.0 | 7.0 | 7.0 | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 250 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 5.6 | 5.7 | 5.0 | 5.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.5-6.3 | 6.5-6.3 | 6.7-6.4 | 6.7-6.5 | ||
| Out of town [l] | 4.5-4.3 | 4.5-4.3 | 4.6-4.4 | 4.7-4.5 | ||
| Combined [l] | 5.2-5.0 | 5.3-5.1 | 5.4-5.2 | 5.4-5.2 | ||
| CO2 emissions [g/km] | 138-133 | 139-133 | 142-136 | 143-137 | ||
| Emission standard | EU6d | EU6d | EU6d | EU6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | 48 | 48 | 48 | 48 | ||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 2010 | 2050 | 2030 | 2075 | ||
| Overall weight [kg] | 2600 | 2670 | 2640 | 2670 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2300 | 750/2300 | ||
| Maximum front/rear axle load [kg] | 1298/1400 | 1330/1435 | 1340/1420 | 1365/1425 | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 100 /- | 100 /- | 100 /- | 100 /- | ||
| Boot volume [l] | 515 | 515 | 515 | 515 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 78 | 78 | 78 | 78 | ||
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | ||
| Air resistance [Cd] | 0.24 | 0.24 | 0.27 | 0.27 | ||
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | ||
| Rear suspension | five-link | five-link | five-link | five-link | ||
| Tyre dimensions front | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | ||
| Tyre dimensions rear | 225/60 R17 99Y | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | ||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | ||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 12.6/- | 13.1/- | 12.6/- | 13.1/- | ||
| Overall length [mm] | 5120 | 5260 | 5120 | 5260 | ||
| Overall width without/including mirrors [mm] | 1902/2169 | 1902/2169 | 1902/2169 | 1902/2169 | ||
| Overall height [mm] | 1467 | 1479 | 1467 | 1479 | ||
| Wheelbase [mm] | 3070 | 3210 | 3070 | 3210 | ||
| Front wheel track [mm] | 1617 | 1617 | 1611 | 1611 | ||
| Rear wheel track [mm] | 1646 | 1646 | 1640 | 1640 | ||
| Forward overhang [mm] | - | 902 | 902 | 902 | ||
| Rear overhang [mm] | - | 1148 | 1148 | 1148 | ||
| Clearance [mm] | 135 | 135 | 135 | 135 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | 1013 | 1009 | 1013 | ||
| Headroom rear [mm] | - | 989 | 977 | 989 | ||
| Front elbow/shoulder width [mm] | - | 1554/- | 1554/- | 1554/- | ||
| Rear elbow/shoulder width [mm] | - | 1550/- | 1544/- | 1550/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
