BMW 6
Date of manufacture
2020 – to this day (Fastback)
Platform
Cluster Architecture (CLAR)
Manufacturing locations
Dingolfing, Germany
Designer
Hussein Al-Attar
Tags
E-segment
German cars
The BMW 6 is a new fastback developed and manufactured in Germany since 2020. It is built on the Cluster Architecture (CLAR) platform and offers only hybrid engines. The highest performance is achieved by the 540d xDrive with 250 kW and the best acceleration 0-100 km/h in 5.3 seconds. The most fuel-efficient model is the 520d with a combined consumption of 4.6 l/100 km and CO2 emissions of 120 g/km. The trunk has a capacity of 600 liters. The BMW 6 has been tested in the EURONCAP safety area, where it achieved a rating of 5 out of 5.
Car body style
Fastback (GT)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
G32Engine size
Technical data
Fastback (GT)
| 530i | 540i | 540i xDrive | 520d | 530d | 530d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1998 | 2998 | 2998 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 190/5000-6500 8 el. | 245/5500-6250 8 el. | 245/5500-6250 8 el. | 140/4000 8 el. | 210/4000 8 el. | 210/4000 8 el. |
| Maximum torque [Nm/min-1] | 400/1550-4400 | 450/1600-4800 | 450/1600-4800 | 400/1750-2500 | 650/1500-2500 | 650/1500-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 10.2:1 | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 6.5 | 6.5 | 5.5 | 7.0 | 7.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 220 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.5 | 5.5 | 5.4 | 7.9 | 6.1 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.2 | 8.9-8.7 | 9.5-9.4 | 5.1-5.0 | 6.2-6.1 | 6.7-6.4 |
| Out of town [l] | 5.4-5.2 | 5.9-5.7 | 6.2-6.0 | 4.2-4.1 | 4.4-4.2 | 4.6-4.4 |
| Combined [l] | 6.1-5.9 | 7.0-6.8 | 7.4-7.2 | 4.6-4.4 | 5.0-4.9 | 5.3-5.1 |
| CO2 emissions [g/km] | 139-135 | 160-155 | 170-166 | 120-116 | 133-128 | 140-135 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1860 | 1930 | 1985 | 1910 | 2005 | 2065 |
| Overall weight [kg] | 2450 | 2510 | 2575 | 2490 | 2575 | 2640 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | 1230/1380 | 1190/1400 | 1240/1420 | 1150/1420 | 1215/1425 | 1280/1445 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 600 | 600 | 600 | 600 | 600 | 600 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1800 | -/1800 | -/1800 | -/1800 | -/1800 | -/1800 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | 21,5 | 21,5 | 21,5 |
| Air resistance [Cd] | 0.25 | 0.27 | 0.27 | 0.25 | 0.25 | 0.25 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Tyre dimensions rear | 225/60 R17 99Y | 245/50 R18 100Y | 245/50 R18 100Y | 225/60 R17 99Y | 225/60 R17 99Y | 225/60 R17 99Y |
| Wheel size front | 7.5J x 17 | 8J x 18 | 8J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8J x 18 | 8J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.3/- | 12.3/- | 12.5/- | 12.3/- | 12.3/- | 12.5/- |
| Overall length [mm] | 5091 | 5091 | 5091 | 5091 | 5091 | 5091 |
| Overall width without/including mirrors [mm] | 1902/2158 | 1902/2158 | 1902/2158 | 1902/2158 | 1902/2158 | 1902/2158 |
| Overall height [mm] | 1538 | 1538 | 1540 | 1538 | 1538 | 1540 |
| Wheelbase [mm] | 3070 | 3070 | 3070 | 3070 | 3070 | 3070 |
| Front wheel track [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Rear wheel track [mm] | 1649 | 1649 | 1647 | 1647 | 1649 | 1647 |
| Forward overhang [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Rear overhang [mm] | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1053 | 1053 | 1053 | 1053 | 1053 | 1053 |
| Headroom rear [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Front elbow/shoulder width [mm] | 1549/- | 1549/- | 1549/- | 1549/- | 1549/- | 1549/- |
| Rear elbow/shoulder width [mm] | 1516/- | 1516/- | 1516/- | 1516/- | 1516/- | 1516/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 540d xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 250/4400 8 el. | |||||
| Maximum torque [Nm/min-1] | 700/1750-2250 | |||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | |||||
| Compression ratio | 16.5:1 | |||||
| Oil volume [l] | 7.0 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 5.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.9-6.7 | |||||
| Out of town [l] | 4.8-4.6 | |||||
| Combined [l] | 5.6-5.4 | |||||
| CO2 emissions [g/km] | 147-141 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11 A⋅h | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2085 | |||||
| Overall weight [kg] | 2685 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
| Maximum front/rear axle load [kg] | 1310/1465 | |||||
| Maximum vertical load on the tow bar [kg] | 100 | |||||
| Maximum load on roof/carrier [kg] | 75 /- | |||||
| Boot volume [l] | 600 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1800 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 66 | |||||
| AdBlue tank volume [l] | 21,5 | |||||
| Air resistance [Cd] | 0.27 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | five-link | |||||
| Tyre dimensions front | 245/50 R18 100Y | |||||
| Tyre dimensions rear | 245/50 R18 100Y | |||||
| Wheel size front | 8J x 18 | |||||
| Wheel size rear | 8J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical power steering Servotronic | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.5/- | |||||
| Overall length [mm] | 5091 | |||||
| Overall width without/including mirrors [mm] | 1902/2158 | |||||
| Overall height [mm] | 1540 | |||||
| Wheelbase [mm] | 3070 | |||||
| Front wheel track [mm] | 1615 | |||||
| Rear wheel track [mm] | 1647 | |||||
| Forward overhang [mm] | 871 | |||||
| Rear overhang [mm] | 1150 | |||||
| Clearance [mm] | 138 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1053 | |||||
| Headroom rear [mm] | 978 | |||||
| Front elbow/shoulder width [mm] | 1549/- | |||||
| Rear elbow/shoulder width [mm] | 1516/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

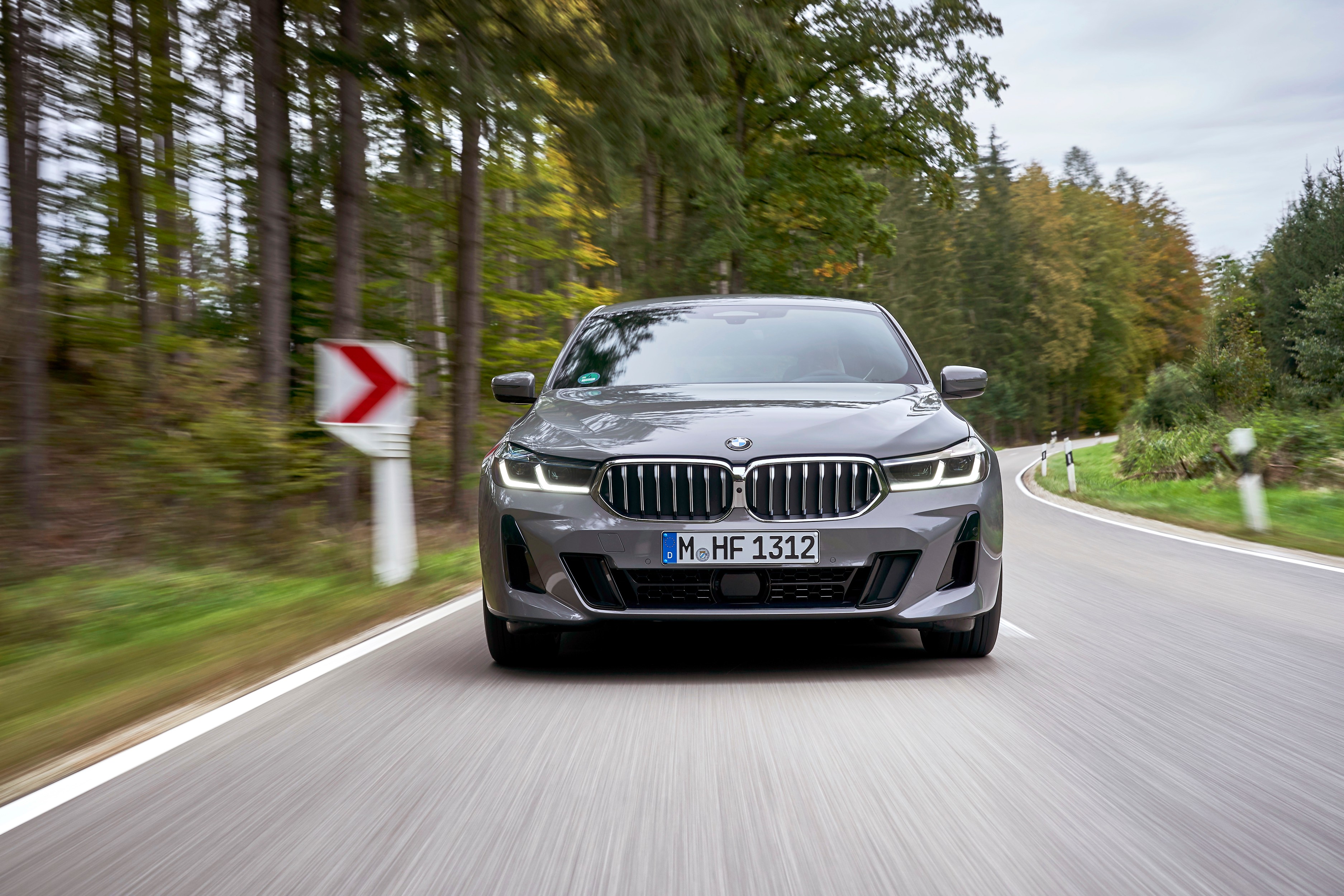

Gallery
