BMW 6
Date of manufacture
9/2011 – 2015 (Sedan)
11/2010 – 2015 (Coupé)
3/2011 – 2015 (Convertible)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
Nader Faghihzadeh
Tags
E-segment
S-segment
German cars
The BMW 6 can be purchased as a sedan, coupe and convertible. The car has been manufactured since 2010. The country in which the car is manufactured is Germany. The list of power units includes petrol and diesel engines. The M6 model has the most power (412 kW). The highest speed of the M6 version is 250 km/h. The lowest combined consumption is 5.4 l/100 km for the 640d model. CO2 emissions are 143 g/km. The coupe body has a luggage compartment volume of 460 l. The sedan body has a trunk size of 460 l. The convertible body has a trunk volume of 300-350 l.
Car body style
Sedan (Gran Coupe)
Date of manufacture
9/2011 – 2015Internal designation
F06Engine size
Coupé
Date of manufacture
11/2010 – 2015Internal designation
F13Engine size

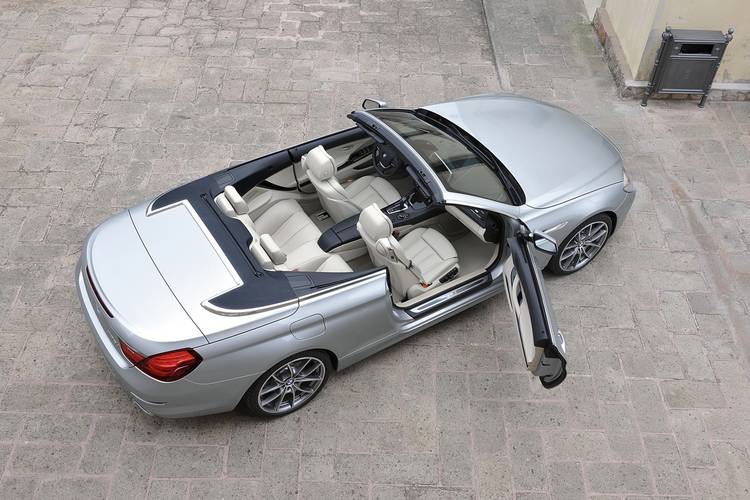

Convertible
Date of manufacture
3/2011 – 2015Internal designation
F12 Engine size
Technical data
Sedan (Gran Coupe)
| 640i | 640i xDrive | 650i | 650i xDrive | M6 | 640d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2012 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 6/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 2993 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 330/5500 | 330/5500 | 412/6000-7000 | 230/4000 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 650/2000-4500 | 650/2000-4500 | 680/1500-5750 | 630/1500-2500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,5:1 |
| Oil volume [l] | 6.5 | - | 8.0 | 8.0 | 8.4 | 7.2 |
| Coolant volume [l] | 10.0 | - | 14.4 | 14.4 | 18.5 | 8.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 4.6 | 4.4 | 4.2 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6-10.8 | 11.2-11.4 | 11.9-12.3 | 12.9-13.1 | 14.0 | 6.8-6.9 |
| Out of town [l] | 6.0-6.1 | 6.3-6.5 | 6.6-6.8 | 7.1-7.2 | 7.6 | 4.8-4.9 |
| Combined [l] | 7.7-7.8 | 8.1-8.3 | 8.6-8.8 | 9.2-9.4 | 9.9 | 5.5-5.7 |
| CO2 emissions [g/km] | 179-183 | 179-183 | 199-206 | 215-219 | 232 | 146-149 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU5/EU6 | EU5/EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1825 | 1900 | 1940 | 2015 | 1950 | 1885 |
| Overall weight [kg] | 2360 | 2430 | 2465 | 2550 | 2410 | 2410 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1130/1295 | - | 1210/1315 | 1260 / 1325 | 1180 / 1260 | 1140/1305 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1265 | -/1265 | -/1265 | -/1265 | -/1265 | -/1265 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.32 | 0.29 | 0.31 | 0.33 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 265/40 R19 102Y | 225/55 R17 97Y RSC |
| Tyre dimensions rear | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 295/35 R19 104Y | 225/55 R17 97Y RSC |
| Wheel size front | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 9.5J x 19 | 8J x 17 LM |
| Wheel size rear | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 10.5 J x19 | 8J x 17 LM |
| Brake dimensions front | 348 x 30 | 348 x 30 | 374 x 36 | 374 x 36 | 400 x 36 | 348 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 396 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.95 | -/11.95 | -/11.95 | -/11.95 | -/12.5 | -/11.95 |
| Overall length [mm] | 5007 | 5007 | 5007 | 5007 | 5011 | 5007 |
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | 1894/- | 1894/- | 1899/- | 1894/- |
| Overall height [mm] | 1392 | 1392 | 1392 | 1392 | 1393 | 1392 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2964 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1631 | 1600 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1612 | 1665 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 945 | 941 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1102 | 1098 |
| Clearance [mm] | 126 | 126 | 126 | 126 | 107 | 126 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Front elbow/shoulder width [mm] | 1517/- | 1517/- | 1517/- | 1517/- | 1517/- | 1517/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 640d xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 230/4000 | |||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | 7.2 | |||||
| Coolant volume [l] | 8.0 | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 5.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1-7.4 | |||||
| Out of town [l] | 5.0-5.2 | |||||
| Combined [l] | 5.8-6.0 | |||||
| CO2 emissions [g/km] | 152-158 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1945 | |||||
| Overall weight [kg] | 2470 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | 1210 / 1315 | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 460 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1265 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 70 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | Integral-V multilink axle | |||||
| Tyre dimensions front | 225/55 R17 97Y RSC | |||||
| Tyre dimensions rear | 225/55 R17 97Y RSC | |||||
| Wheel size front | 8J x 17 LM | |||||
| Wheel size rear | 8J x 17 LM | |||||
| Brake dimensions front | 348 x 30 | |||||
| Brake dimensions rear | 345 x 24 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | -/11.95 | |||||
| Overall length [mm] | 5007 | |||||
| Overall width without/including mirrors [mm] | 1894/- | |||||
| Overall height [mm] | 1392 | |||||
| Wheelbase [mm] | 2968 | |||||
| Front wheel track [mm] | 1600 | |||||
| Rear wheel track [mm] | 1665 | |||||
| Forward overhang [mm] | 941 | |||||
| Rear overhang [mm] | 1098 | |||||
| Clearance [mm] | 126 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1030 | |||||
| Headroom rear [mm] | 941 | |||||
| Front elbow/shoulder width [mm] | 1517/- | |||||
| Rear elbow/shoulder width [mm] | 1454/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| 640i | 640i xDrive | 650i | 650i xDrive | 650i | 650i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 8/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 300/5500-6400 | 300/5500-6400 | 330/5500 | 330/5500 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 600/1750-4500 | 600/1750-4500 | 650/2000-4500 | 650/2000-4500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6.5 | 6.5 | 8.5 | 8.5 | 9.0 | 9.0 |
| Coolant volume [l] | 10.2 | 9.9 | 14.6 | 14.6 | 14.4 | 14.4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.3 | 5.2 | 4.9 | 4.8 | 4.6 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 11.1-11.3 | 15.4-15.5 | 16.5 | 11.9-12.3 | 12.7-13.0 |
| Out of town [l] | 5.9-6.0 | 6.3-6.4 | 7.7 | 8.2-8.3 | 6.6-6.8 | 7.0-7.1 |
| Combined [l] | 7.6-7.8 | 8.1-8.2 | 10.5-10.6 | 11.3 | 8.6-8.8 | 9.1-9.3 |
| CO2 emissions [g/km] | 177-181 | 188-191 | 245-246 | 262-263 | 199-206 | 213-217 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU5 | EU5 | EU5/EU6 | EU5/EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1840 | 1845 | 1920 | 1870 | 1930 |
| Overall weight [kg] | 2180 | 2255 | 2280 | 2350 | 2290 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1090 / 1180 | 1180/1200 | 1165 / 1220 | - | 1165 / 1220 | 1210 / 1240 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.31 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC |
| Tyre dimensions rear | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC |
| Wheel size front | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM |
| Wheel size rear | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM |
| Brake dimensions front | 348 x 30 | 348 x 30 | 374 x 36 | 374 x 36 | - | - |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/11.7 |
| Overall length [mm] | 4894 | 4894 | 4894 | 4894 | 4894 | 4894 |
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | 1894/- | 1894/- | 1894/- | 1894/- |
| Overall height [mm] | 1369 | 1369 | 1369 | 1369 | 1369 | 1369 |
| Wheelbase [mm] | 2855 | 2855 | 2855 | 2855 | 2855 | 2855 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1665 | 1665 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1098 | 1098 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Headroom rear [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- |
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M6 | 640d | 640d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | - | - | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 8/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 4395 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 412/6000-7000 | 230/4000 | 230/4000 | |||
| Maximum torque [Nm/min-1] | 680/1500-5750 | 630/1500-2500 | 630/1500-2500 | |||
| Bore and stroke [mm x mm] | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 10,0:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 8.4 | 7.2 | 7.2 | |||
| Coolant volume [l] | 18.5 | 8.0 | 8.0 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | Rear | 4x4 | |||
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 4.2 | 5.3 | 5.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 14.0 | 6.6-6.7 | 6.9-7.1 | |||
| Out of town [l] | 7.6 | 4.8 | 5.0-5.1 | |||
| Combined [l] | 9.9 | 5.4-5.5 | 5.7-5.8 | |||
| CO2 emissions [g/km] | 232 | 143-145 | 149-153 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1925 | 1800 | 1870 | |||
| Overall weight [kg] | 2350 | 2220 | 2310 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | 1180 / 1220 | 1090 / 1200 | 1210/1315 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 460 | 460 | 460 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 80 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.32 | 0.29 | 0.3 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |||
| Tyre dimensions front | 265/40 R19 102Y | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | |||
| Tyre dimensions rear | 295/35 R19 104Y | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | |||
| Wheel size front | 9.5J x 19 | 8J x 17 LM | 8J x 17 LM | |||
| Wheel size rear | 10.5 J x19 | 8J x 17 LM | 8J x 17 LM | |||
| Brake dimensions front | 400 x 36 | 348 x 36 | 348 x 36 | |||
| Brake dimensions rear | 396 x 24 | 345 x 24 | 345 x 24 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/12.1 | -/11.7 | -/11.7 | |||
| Overall length [mm] | 4898 | 4894 | 4894 | |||
| Overall width without/including mirrors [mm] | 1899/- | 1894/- | 1894/- | |||
| Overall height [mm] | 1374 | 1369 | 1365 | |||
| Wheelbase [mm] | 2851 | 2855 | 2855 | |||
| Front wheel track [mm] | 1631 | 1600 | 1600 | |||
| Rear wheel track [mm] | 1612 | 1665 | 1665 | |||
| Forward overhang [mm] | 945 | 941 | 941 | |||
| Rear overhang [mm] | 1102 | 1098 | 1098 | |||
| Clearance [mm] | 106 | 124 | 124 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1017 | 1017 | 1017 | |||
| Headroom rear [mm] | 908 | 908 | 908 | |||
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | |||
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Convertible
| 640i | 640i xDrive | 650i | 650i xDrive | 650i | 650i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/24 | 8/24 | 8/24 | 8/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 235/5800-6000 | 235/5800-6000 | 300/5500-6400 | 300/5500-6400 | 330/5500 | 330/5500 |
| Maximum torque [Nm/min-1] | 450/1300-4500 | 450/1300-4500 | 600/1750-4500 | 600/1750-4500 | 650/2000-4500 | 650/2000-4500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 6.5 | 6.5 | 8.5 | - | 9.0 | 9.0 |
| Coolant volume [l] | 10.2 | 9.9 | 14.6 | - | 14.4 | 14.4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.5 | 5.3 | 5.0 | 4.9 | 4.6 | 4.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.7-10.9 | 11.4-11.5 | 15.5 | 16.6 | 12.4-12.8 | 13.0-13.2 |
| Out of town [l] | 6.0-6.2 | 6.4-6.5 | 7.9 | 8.4 | 6.9-7.3 | 7.1-7.3 |
| Combined [l] | 7.8-7.9 | 8.2-8.4 | 10.7 | 11.4 | 8.9-9.2 | 9.3-9.5 |
| CO2 emissions [g/km] | 181-185 | 192-195 | 249 | 266 | 208-214 | 217-221 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU5 | EU5 | EU5/EU6 | EU5/EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1915 | 1985 | 2015 | 2055 | 2015 | 2055 |
| Overall weight [kg] | 2320 | 2400 | 2390 | 2465 | 2420 | 2480 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1100 / 1290 | 1190/1310 | 1180 / 1310 | - | 1180 / 1310 | 1210/1350 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC |
| Tyre dimensions rear | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC | 245/45 R18 96Y RSC |
| Wheel size front | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM |
| Wheel size rear | 8J x 17 LM | 8J x 17 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM | 8J x 18 LM |
| Brake dimensions front | 348 x 30 | 348 x 30 | 374 x 36 | 374 x 36 | - | - |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/11.7 | -/11.7 |
| Overall length [mm] | 4894 | 4894 | 4894 | 4894 | 4894 | 4894 |
| Overall width without/including mirrors [mm] | 1894/- | 1894/- | 1894/- | 1894/- | 1894/- | 1894/- |
| Overall height [mm] | 1365 | 1365 | 1365 | 1365 | 1365 | 1365 |
| Wheelbase [mm] | 2855 | 2855 | 2855 | 2855 | 2855 | 2855 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1665 | 1665 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1098 | 1098 |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- | 1531/- |
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- | 1338/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M6 | 640d | 640d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | - | - | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 8/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 4395 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 412/6000-7000 | 230/4000 | 230/4000 | |||
| Maximum torque [Nm/min-1] | 680/1500-5750 | 630/1500-2500 | 630/1500-2500 | |||
| Bore and stroke [mm x mm] | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 10,0:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 8.4 | 7.2 | 7.2 | |||
| Coolant volume [l] | 18.5 | 8.0 | 8.0 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | Rear | 4x4 | |||
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 4.3 | 5.5 | 5.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 14.4 | 6.8-6.9 | 7.1-7.3 | |||
| Out of town [l] | 7.9 | 4.9 | 5.1-5.2 | |||
| Combined [l] | 10.3 | 5.6-5.7 | 5.9-6.0 | |||
| CO2 emissions [g/km] | 239 | 147-149 | 154-158 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2055 | 1935 | 2005 | |||
| Overall weight [kg] | 2410 | 2340 | 2440 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | 1200 / 1260 | 1120/1310 | 1180/1320 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 300-350 | 300-350 | 300-350 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 80 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.33 | 0.29 | 0.31 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |||
| Tyre dimensions front | 265/40 R19 102Y | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | |||
| Tyre dimensions rear | 295/35 R19 104Y | 225/55 R17 97Y RSC | 225/55 R17 97Y RSC | |||
| Wheel size front | 9.5J x 19 | 8J x 17 LM | 8J x 17 LM | |||
| Wheel size rear | 10.5 J x19 | 8J x 17 LM | 8J x 17 LM | |||
| Brake dimensions front | 400 x 36 | 348 x 36 | 348 x 36 | |||
| Brake dimensions rear | 396 x 24 | 345 x 24 | 345 x 24 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/12.1 | -/11.7 | -/11.7 | |||
| Overall length [mm] | 4898 | 4894 | 4894 | |||
| Overall width without/including mirrors [mm] | 1899/- | 1894/- | 1894/- | |||
| Overall height [mm] | 1368 | 1365 | 1365 | |||
| Wheelbase [mm] | 2851 | 2855 | 2855 | |||
| Front wheel track [mm] | 1631 | 1600 | 1600 | |||
| Rear wheel track [mm] | 1612 | 1665 | 1665 | |||
| Forward overhang [mm] | 945 | 941 | 941 | |||
| Rear overhang [mm] | 1102 | 1098 | 1098 | |||
| Clearance [mm] | 107 | 123 | 123 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1023 | 1023 | 1023 | |||
| Headroom rear [mm] | 927 | 927 | 927 | |||
| Front elbow/shoulder width [mm] | 1531/- | 1531/- | 1531/- | |||
| Rear elbow/shoulder width [mm] | 1338/- | 1338/- | 1338/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
