BMW 6
Date of manufacture
2007 – 2010 (Coupé)
2007 – 2010 (Convertible)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
Adrian van Hooydonk
Tags
E-segment
S-segment
German cars
The BMW 6 is a body style version that was released to the market in 2007. It is manufactured in Germany and offers a wide range of petrol and diesel engines. The most powerful model is the M6 with 373 kW of power, the fastest variant is also the M6 with a maximum speed of 250 km/h. The most comfortable variant is the 635d with the lowest fuel consumption of 6.9 l/100 km and emissions of 183 g/km. The coupe has a luggage compartment size of 450 l, while the convertible reaches 300-350 l.
Technical data
Coupé
| 630i | 630i | 650i | 650i | M6 | 635d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 10/40 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 4799 | 4799 | 4999 | 2993 |
| Maximum output / speed [kW/min-1] | 200/6700 | 200/6700 | 270/6300 | 270/6300 | 373/7750 | 210/4400 |
| Maximum torque [Nm/min-1] | 320/2750-3000 | 320/2750-3000 | 490/3400 | 490/3400 | 520/6100 | 580/1750-2250 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 93,0 x 88,3 | 93,0 x 88,3 | 75,2 x 92,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,5:1 | 10,5:1 | 12,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.2 | 6.4 | 5.2 | 5.2 | 4.6 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.2 | 11.0 | 17.8 | 15.9 | 21.4 | 9.2 |
| Out of town [l] | 6.0 | 5.8 | 8.1 | 7.4 | 10.2 | 5.6 |
| Combined [l] | 7.9 | 7.7 | 11.7 | 10.5 | 14.3 | 6.9 |
| CO2 emissions [g/km] | 188 | 184 | 279 | 249 | 342 | 183 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1615 | 1725 | 1725 | 1785 | 1725 |
| Overall weight [kg] | 1980 | 1990 | 2100 | 2100 | 2200 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1090/1200 | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.32 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 245/50 R17 99W | 245/50 R17 99W | 245/45 R18 96W | 245/45 R18 96W | 255/40 ZR19 | 245/50 R17 99W |
| Tyre dimensions rear | 245/50 R17 99W | 245/50 R17 99W | 245/45 R18 96W | 245/45 R18 96W | 285/35 ZR19 | 245/50 R17 99W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 8.5J x 19 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 9.5J x 19 | 7.5J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 36 | 348 x 36 | 374 x 36 | 348 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 370 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.4 | -/11.4 | -/11.4 | -/11.4 | -/12.5 | -/11.4 |
| Overall length [mm] | 4820 | 4820 | 4820 | 4820 | 4871 | 4820 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1374 | 1374 | 1374 | 1374 | 1372 | 1374 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2781 | 2780 |
| Front wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1567 | 1558 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1584 | 1596 |
| Forward overhang [mm] | 942 | 942 | 942 | 942 | 630 | 942 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1130 | 1098 |
| Clearance [mm] | 130 | 130 | 130 | 130 | - | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- |
| Rear elbow/shoulder width [mm] | 1334/- | 1334/- | 1334/- | 1334/- | 1334/- | 1334/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

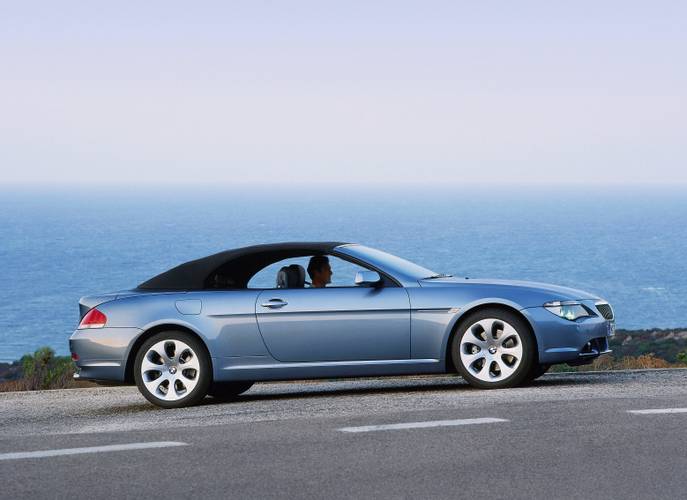

Convertible
| 630i | 630i | 650i | 650i | M6 | 635d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 10/40 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 4799 | 4799 | 4999 | 2993 |
| Maximum output / speed [kW/min-1] | 200/6700 | 200/6700 | 270/6300 | 270/6300 | 373/7750 | 210/4400 |
| Maximum torque [Nm/min-1] | 320/2750-3000 | 320/2750-3000 | 490/3400 | 490/3400 | 520/6100 | 580/1750-2250 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 93,0 x 88,3 | 93,0 x 88,3 | 75,2 x 92,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,5:1 | 10,5:1 | 12,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 7.0 | 5.5 | 5.6 | 4.8 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 11.6 | 19.2 | 16.5 | 22.0 | 9.6 |
| Out of town [l] | 6.3 | 6.0 | 8.8 | 7.7 | 10.6 | 5.8 |
| Combined [l] | 8.3 | 8.1 | 12.6 | 10.9 | 14.7 | 7.2 |
| CO2 emissions [g/km] | 198 | 192 | 299 | 258 | 352 | 190 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1815 | 1825 | 1935 | 1935 | 2005 | 1935 |
| Overall weight [kg] | 2140 | 2150 | 2260 | 2260 | 2380 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | 1120/1290 | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.34 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 245/50 R17 99W | 245/50 R17 99W | 245/45 R18 96W | 245/45 R18 96W | 255/40 ZR19 | 245/50 R17 99W |
| Tyre dimensions rear | 245/50 R17 99W | 245/50 R17 99W | 245/45 R18 96W | 245/45 R18 96W | 285/35 ZR19 | 245/50 R17 99W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 8.5J x 19 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 8J x 18 | 9.5J x 19 | 7.5J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 36 | 348 x 36 | 374 x 36 | 348 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 370 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.4 | -/11.4 | -/11.4 | -/11.4 | -/12.5 | -/11.4 |
| Overall length [mm] | 4820 | 4820 | 4820 | 4820 | 4871 | 4820 |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1374 | 1374 | 1374 | 1374 | 1377 | 1374 |
| Wheelbase [mm] | 2780 | 2780 | 2780 | 2780 | 2781 | 2780 |
| Front wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1567 | 1558 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1584 | 1596 |
| Forward overhang [mm] | 942 | 942 | 942 | 942 | 960 | 942 |
| Rear overhang [mm] | 1098 | 1098 | 1098 | 1098 | 1130 | 1098 |
| Clearance [mm] | 129 | 129 | 129 | 129 | - | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Headroom rear [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Front elbow/shoulder width [mm] | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- | 1493/- |
| Rear elbow/shoulder width [mm] | 1334/- | 1334/- | 1334/- | 1334/- | 1334/- | 1334/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
