BMW 5
Date of manufacture
11/2016 – 2020 (Sedan)
2017 – 2020 (Estate)
Platform
Cluster Architecture (CLAR)
Manufacturing locations
Dingolfing, Germany
Graz, Austria
Designer
Karim Hab
Tags
E-segment
German cars
The BMW 5 is available in sedan and estate body styles. The car has been produced since 2016. Countries of manufacture include Germany and Austria. The car is built on the Cluster Architecture (CLAR) platform. Plug-in hybrid vehicles are also available. The list of power units includes petrol, diesel and hybrid engines. The maximum power (460 kW) is the M5 F90 Competition model. The M5 F90 Competition model has a maximum speed of 250 km/h. The 530e has the lowest consumption of 2.1 l/100 km and emissions of 47 g/km. The sedan body offers a luggage compartment volume of 530 l. The estate model offers a trunk volume of 570 l. During EURONCAP safety tests, the model received a rating of 5 out of 5. Tested according to the 2017 methodology.

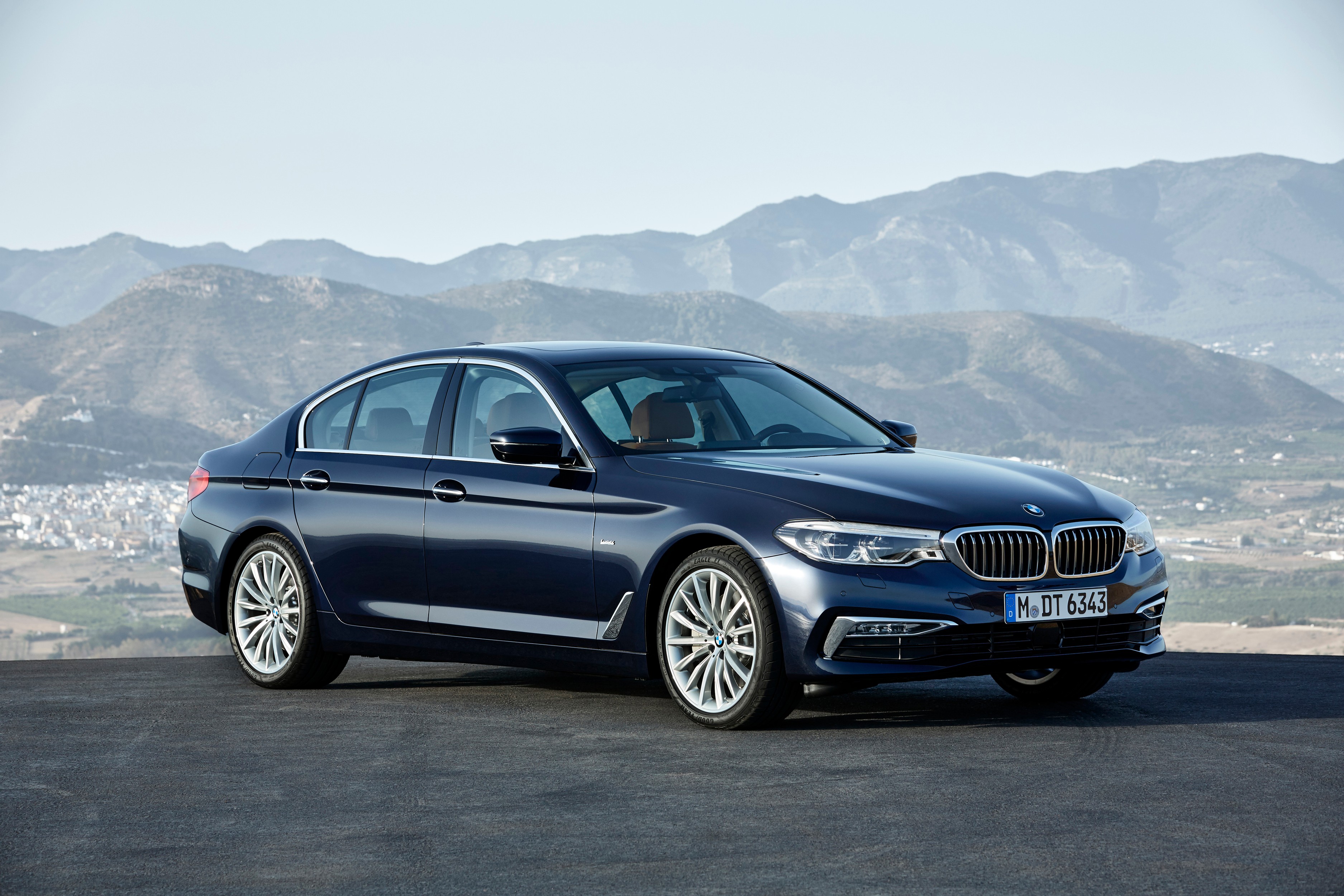

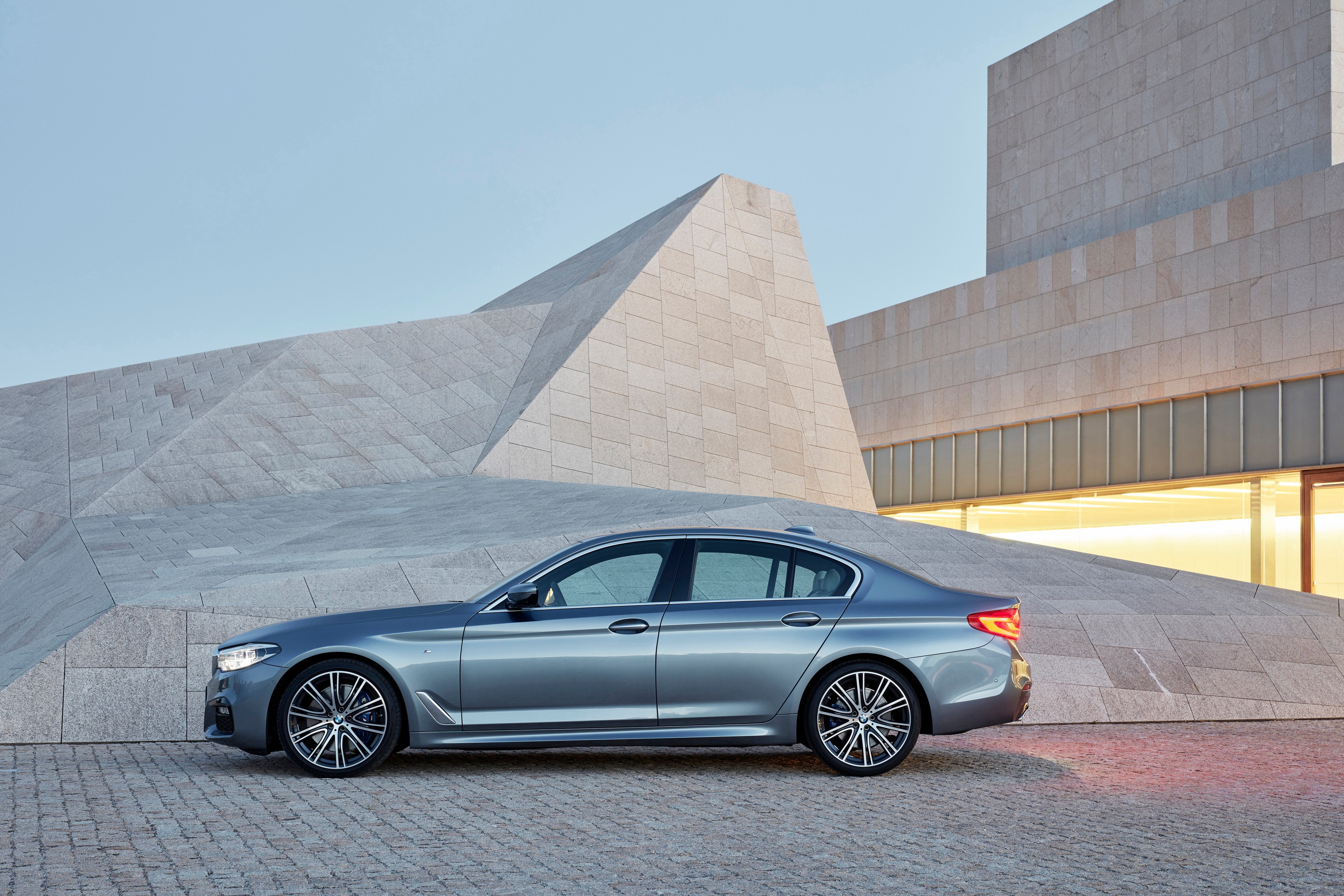

Car body style
Sedan
Date of manufacture
11/2016 – 2020Internal designation
G30Engine size
Petrol + ElectricDiesel
Diesel + Electric

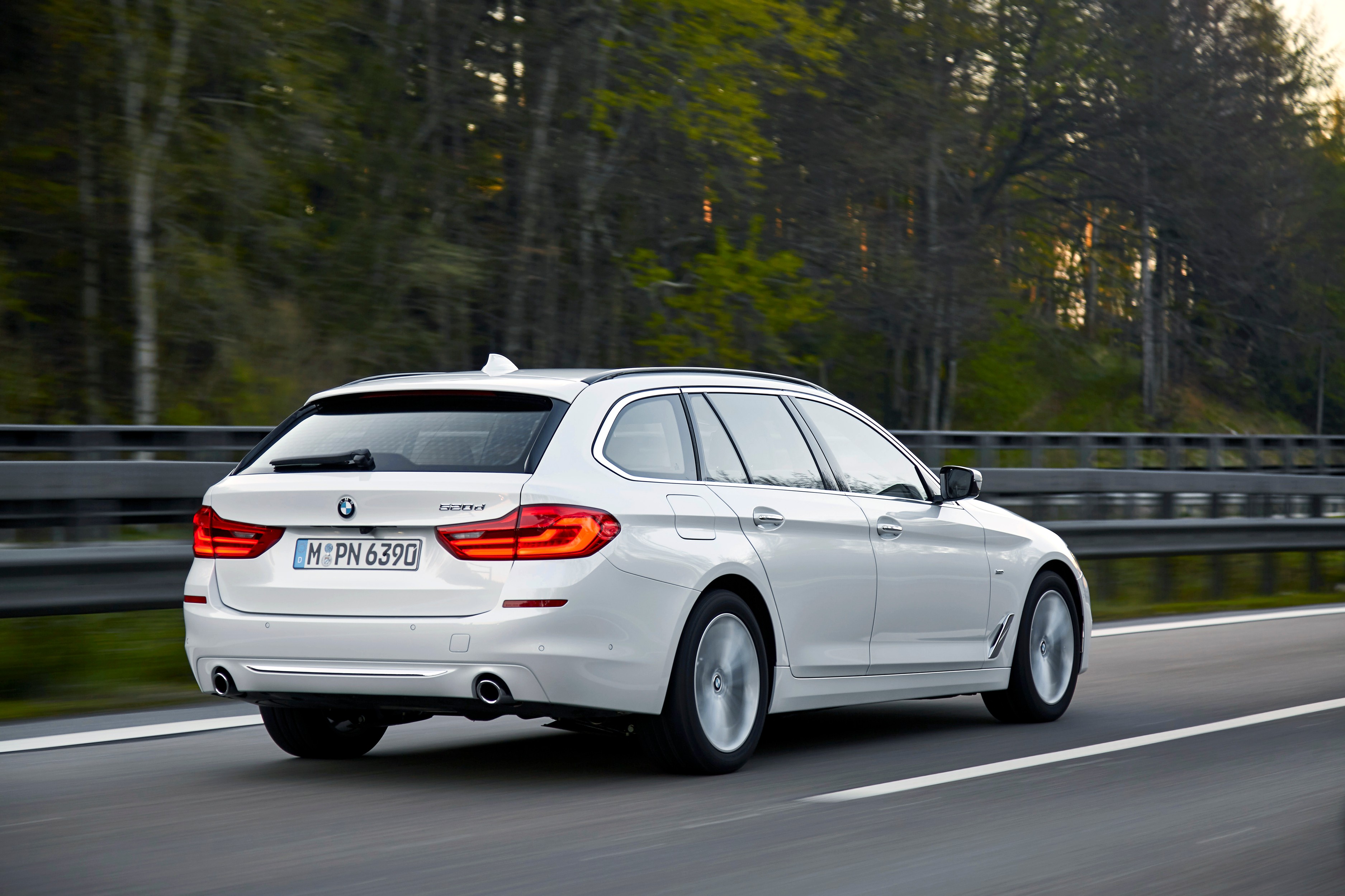

Estate (Touring)
Date of manufacture
2017 – 2020Internal designation
G31
Technical data
Sedan
| 520i | 520i | 530i | 530i | 530i xDrive | 530i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 9/2018 to | from to 9/2018 | from 9/2018 to | from to 9/2018 | from 9/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 | 135/5000-6500 | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 |
| Maximum torque [Nm/min-1] | 290/1350-4250 | 290/1350-4250 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 235 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 7.8 | 6.2 | 6.1 | 6.0 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2-6.9 | 7.0-6.9 | 7.3-6.9 | 7.4-7.2 | 7.8-7.4 | 7.9-7.8 |
| Out of town [l] | 5.1-4.6 | 5.4-5.1 | 5.2-4.7 | 5.3-5.0 | 5.6-5.2 | 5.6-5.3 |
| Combined [l] | 5.9-5.4 | 6.0-5.8 | 5.9-5.5 | 6.1-5.8 | 6.4-6.0 | 6.5-6.2 |
| CO2 emissions [g/km] | 134-124 | 137-132 | 136-126 | 139-132 | 147-137 | 147-142 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1615 | 1615 | 1615 | 1670 | 1670-1680 |
| Overall weight [kg] | 2200 | 2210 | 2200 | 2220 | 2270 | 2270-2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1045/ 1250 | 1045/ 1250 | 1065/1255 | 1065/1255 | 1110/ 1265 | 1110/ 1265 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.24 | 0.24 | 0.24 | 0.24 | 0.25 | 0.25 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.05/- | 12.05/- | 12.05/- | 12.05/- | 12.22/- | 12.22/- |
| Overall length [mm] | 4936 | 4936 | 4936 | 4936 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 144 | 144 | 144 | 144 | 139 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 540i | 540i | 540i xDrive | 540i xDrive | M550i xDrive | M5 F90 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 9/2018 to | from to 9/2018 | from 9/2018 to | from to 2018 | from 9/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2998 | 2998 | 2998 | 2998 | 4395 | 4395 |
| Maximum output / speed [kW/min-1] | 250/5500-6500 | 250/5500-6500 | 250/5500-6500 | 250/5500-6500 | 340/5500-6000 | 441/5600-6700 |
| Maximum torque [Nm/min-1] | 450/1380-5200 | 450/1380-5200 | 450/1380-5200 | 450/1380-5200 | 650/479/1800-4750 | 750/1800-5600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 89,0 x 88,3 | 89,0 x 88,3 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10,5:1 | 10.0:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 10,0 | 10.0 |
| Coolant volume [l] | - | - | - | - | - | 16.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 [305 subject to a surcharge] |
| Acceleration 0–100 km/h [s] | 5.1 | 5.1 | 4.8 | 4.8 | 4,0 | 3.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2-8.9 | 9.7-9,3 | 9.6-9.3 | 10.3-10.2 | 12,7 | 15.2-14.4 |
| Out of town [l] | 5.6-5.2 | 6.0-5.8 | 6.1-5.7 | 6.4-6.2 | 6,8 | 8.7-8.1 |
| Combined [l] | 6.9-6.5 | 7.4-7.1 | 7.4-6.9 | 7.9-7.7 | 8,9 | 10,8-10,7 |
| CO2 emissions [g/km] | 159-149 | 168-161 | 169-159 | 179-174 | 204 | 246-243 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP | EU6 | EU6 - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1670 | 1735 | 1735 | 1885 | 1940 |
| Overall weight [kg] | 2270 | 2270 | 2340 | 2340 | 2460 | 2440 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1110/1260 | 1110/1260 | 1160/1270 | 1160/1270 | 1230/1300 | 1215/1260 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.25 | 0.25 | 0.25 | 0.25 | 0,28 | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 98Y | 275/40 ZR19 102Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 275/35 R19 100Y | 285/40 ZR19 104Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8,0J x 19 | 9.5J x 19 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 9,0J x 19 | 10.5 J x 19 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering M Servotronic | Electro-mechanical power steering M Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.05/- | 12.05/- | 12.22/- | 12.22/- | 12,24/- | 12.6/- |
| Overall length [mm] | 4936 | 4936 | 4936 | 4936 | 4962 | 4965 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1903/2126 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1467 | 1473 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2982 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1600 | 1626 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1597 | 1595 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | - | - |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | - | - |
| Clearance [mm] | 144 | 144 | 139 | 139 | 131 | 132 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

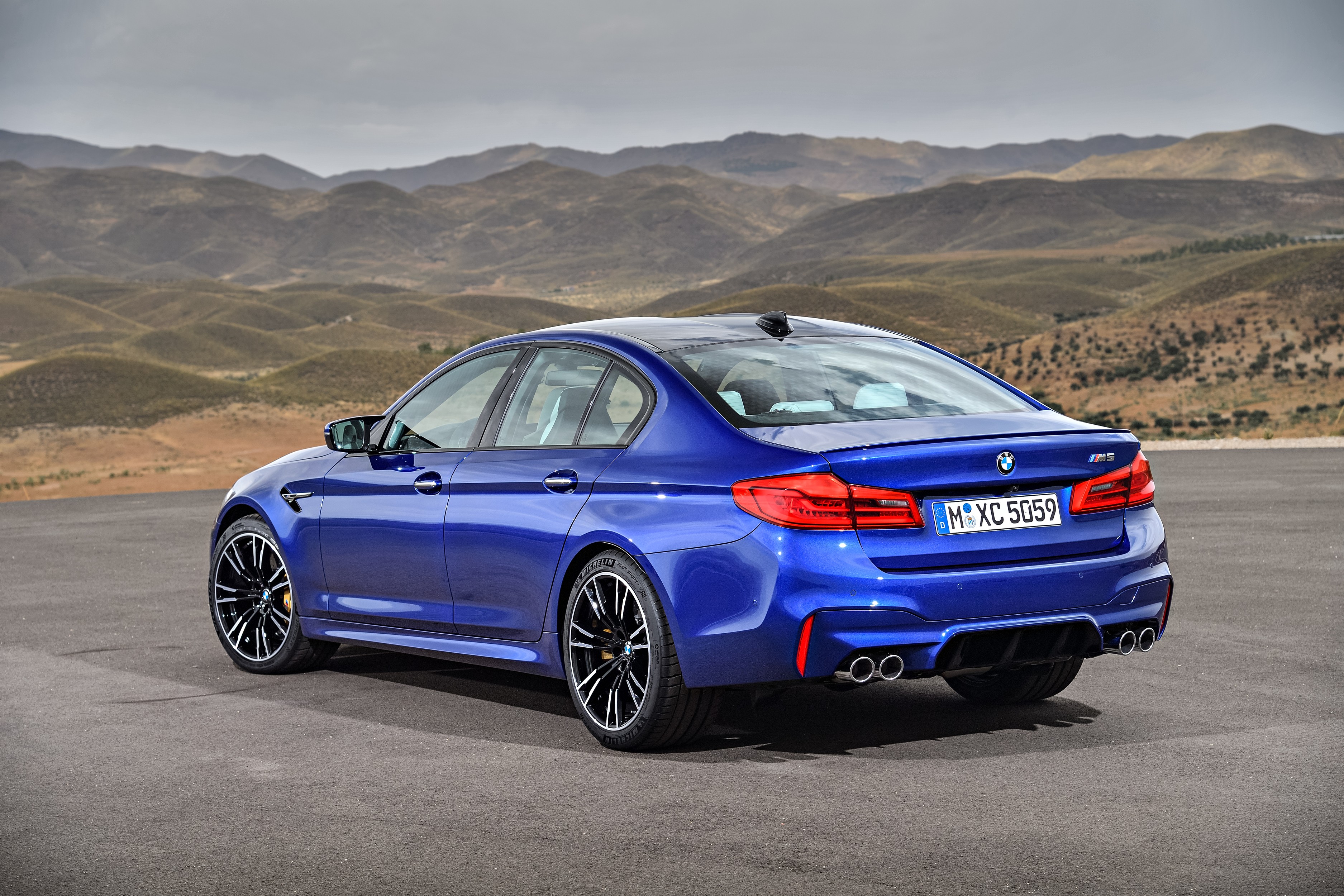

| M5 F90 Competition | 530e | 520d | 520d | 520d EfficientDynamics Edition | 520d | |
|---|---|---|---|---|---|---|
| Date of sale | from 9/2018 to | from 3/2017 to | from to 9/2018 | from to 9/2018 | from to 9/2018 | from 9/2018 to 11/2019 |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 4395 | 1998 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 460/6000 | 135/5000-6500 83/3170 el. 185 total | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 750/1800-5800 | 290/1350-4250 250/0-3170 el. 420 total | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 89,0 x 88,3 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 10.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 10.0 | 5.25 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | 16.0 | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 [305 subject to a surcharge] | 235 [140 el.] | 238 | 235 | 235 | 235 |
| Acceleration 0–100 km/h [s] | 3.3 | 6.2 | 7.7 | 7.5 | 7.5 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 15.2-14.4 | - | 5,2-4,9 | 5,0-4,7 | 4,7-4,4 | 5,1-5,0 |
| Out of town [l] | 8.7-8.1 | - | 4,1-3,7 | 5,1-3,8 | 4,1-3,6 | 4,3-4,1 |
| Combined [l] | 10,8-10,7 | 2.3-2.1 [13,9-13,3 kWh] | 4,5-4,2 | 4,5-4,1 | 4,3-3,9 | 4,6-4,5 |
| CO2 emissions [g/km] | 246-243 | 52-47 | 119-109 | 118-108 | 114-102 | 121-117 |
| Emission standard | EU6d-TEMP | EU6d-TEMP | EU6 | EU6 | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 351 | - | - | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 9.2 kWh | - | - | - | - |
| Range with fully charged battery [km] | - | 45-48 | - | - | - | - |
| Charging time | - |
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1940 | 1845 | 1615 | 1635 | 1615 | 1670 |
| Overall weight [kg] | 2440 | 2420 | 2230 | 2245 | 2245 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | - | 750/1800 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1215/1260 | 1120/ 1405 | 1045/1280 | 1055/1280 | 1055/1280 | 1065/1295 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 410 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 46 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | 21,5 |
| Air resistance [Cd] | - | 0.26 | 0.24 | 0.24 | 0.24 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 275/35 ZR20 102Y XL | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 285/35 ZR20 104Y XL | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 9.5J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 10.5 J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.6/- | 12.05/- | 12.05/- | 12.05/- | 12.05/- | 12.05/- |
| Overall length [mm] | 4969 | 4936 | 4936 | 4936 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1903/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1469 | 1483 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2982 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1625 | 1604 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1594 | 1631 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | - | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | - | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 128 | 150 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d xDrive | 520d xDrive | 525d | 530d | 530d xDrive | 530d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 9/2018 to 11/2019 | from to 5/2019 | from to 9/2018 | from to 9/2018 | from 9/2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 170/4400 | 195/4000 | 195/4000 | 195/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 500/2000 | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 232 | 232 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.3 | 6.6 | 5.7 | 5.4 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,4-5,1 | 5.5-5.3 | 6.0-5.6 | 5,6-5,3 | 6,2-5,8 | 6.4-6.1 |
| Out of town [l] | 4,6-4,2 | 4.6-4.4 | 4.6-4.4 | 4,4-4,1 | 4,9-4,6 | 4.6-4.3 |
| Combined [l] | 4,9-4,5 | 4.9-4.7 | 5.1-4.9 | 4,9-4,5 | 5,4-5,0 | 5.2-5.0 |
| CO2 emissions [g/km] | 129-119 | 129-124 | 135-128 | 128-118 | 142-132 | 138-131 |
| Emission standard | EU6 | EU6d-TEMP | EU6c | EU6 | EU6 | EU6c - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1695 | 1725 | 1670 | 1715 | 1770 | 1715-1735 |
| Overall weight [kg] | 2325 | 2330 | 2295 | 2345 | 2385 | 2345-2355 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100/1310 | 1115/1315 | 1080/1290 | 1125/1310 | 1175/1310 | 1125/1310 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | 21,5 | - | - | - | 21,5 |
| Air resistance [Cd] | 0.24 | 0.24 | 0.24 | 0.24 | 0.25 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.22/- | 12.22/- | 12.05/- | 12.05/- | 12.22/- | 12.05/- |
| Overall length [mm] | 4936 | 4936 | 4936 | 4936 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | 1099 | 1099 |
| Clearance [mm] | 139 | 139 | 144 | 144 | 139 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 530d xDrive | 540d xDrive | 540d xDrive | M550d xDrive | 520d | 520d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 9/2018 to | from 7/2017 to 9/2018 | from 9/2018 to | from 2017 to | from 11/2019 to | from 11/2019 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 195/4000 | 235/4400 | 235/4400 | 294/4400 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 620/2000-2500 | 680/1750-2250 | 680/1750-2250 | 760/2000-3000 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 235 | 232 |
| Acceleration 0–100 km/h [s] | 5.4 | 4.7 | 4.7 | 4.4 | 7.2 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0-6.5 | 6,6-6,4 | 7.2-6.8 | 8.0-7.6 | 4.8-4.6 | 5.3-5.1 |
| Out of town [l] | 5.0-4.7 | 5,0-4,6 | 5.2-4,8 | 5.8-5.6 | 4.0-3.8 | 4.3-4.1 |
| Combined [l] | 5.6-5.3 | 5,6-5,2 | 5.9-5.6 | 6.6-6.3 | 4.3-4.1 | 4.7-4.5 |
| CO2 emissions [g/km] | 147-141 | 147-138 | 156-147 | 173-166 | 112-108 | 123-117 |
| Emission standard | EU6c - EU6d-TEMP | EU6 | EU6c - EU6d-TEMP | EU6c - EU6d-TEMP | EU6d-TEMP | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1770-1795 | 1825 | 1810-1830 | 1920-1935 | 1725 | 1780 |
| Overall weight [kg] | 2385-2410 | 2440 | 2440 | 2470 | 2320 | 2370 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1175/1310 | 1200/1325 | 1200/1325 | 1230/1325 | 1110/1315 | 1150/ 1315 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 21,5 | - | 21,5 | 21,5 | 21,5 | 21,5 |
| Air resistance [Cd] | 0.25 | 0.25 | 0.25 | 0.26 | 0.23 | 0.24 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 98Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 275/35 R19 100Y XL | 225/55 R17 101Y XL | 225/55 R17 101Y XL |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 19 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 9J x 19 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.22/- | 12.22/- | 12.22/- | 12.24/- | 12.0/- | 12.2/- |
| Overall length [mm] | 4936 | 4936 | 4936 | 4962 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1467 | 1479 | 1479 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1599 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1596 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | - | - |
| Rear overhang [mm] | 1099 | 1099 | 1099 | 1099 | - | - |
| Clearance [mm] | 139 | 139 | 139 | 131 | 144 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate (Touring)
| 520i | 520i | 530i | 530i | 530i xDrive | 530i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 9/2018 to | from to 9/2018 | from 9/2018 to | from to 9/2018 | from 9/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 | 135/5000-6500 | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 |
| Maximum torque [Nm/min-1] | 290/1350-4250 | 290/1350-4250 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 225 | 225 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.2 | 6.4 | 6.4 | 6.3 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5-7.1 | 7.4-7.3 | 7.6-7.2 | 8.0-7.3 | 8.6-8.2 | 8.3-8.2 |
| Out of town [l] | 5.5-5.0 | 5.6-5.3 | 5.5-5.1 | 5.4-5.4 | 6.0-5.5 | 6.2-5.9 |
| Combined [l] | 7.5-5.8 | 6.3-6.1 | 6.3-5.8 | 6.3-6.1 | 6.7-6.5 | 7.0-6.7 |
| CO2 emissions [g/km] | 141-132 | 143-138 | 143-133 | 144-139 | 159-149 | 159-153 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1705 | 1710 | 1715 | 1715 | 1770 | 1775 |
| Overall weight [kg] | 2350 | 2350 | 2360 | 2360 | 2440 | 2440 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1055/ 1400 | 1055/ 1400 | 1065/1410 | 1065/1410 | 1115/ 1425 | 1115/ 1425 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | 570 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.29 | 0.29 | 0.28 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.05/- | 12.05/- | 12.05/- | 12.05/- | 12.22/- | 12.22/- |
| Overall length [mm] | 4942 | 4942 | 4942 | 4942 | 4942 | 4942 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1105 | 1105 | 1105 | 1105 | 1105 | 1105 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 540i xDrive | 540i xDrive | 520d | 520d | 520d | 520d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 9/2018 to | from to 9/2018 | from to 9/2018 | from 9/2018 to 11/2019 | from to 9/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2998 | 2998 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 250/5500-6500 | 250/5500-6500 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 450/1380-5200 | 450/1380-5200 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 5.0 | 5.0 | 5.0 | 5,0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 230 | 225 | 225 | 222 |
| Acceleration 0–100 km/h [s] | 5.1 | 5.1 | 8.0 | 7.8 | 7.6 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.9-9.5 | 10.6-10.0 | 5,6-5,2 | 5,2-4,9 | 5.4-5.2 | 5,9-5,5 |
| Out of town [l] | 6.5-6.1 | 6.6-6.6 | 4,6-4,1 | 4,4-4,0 | 4.6-4.4 | 4,9-4,5 |
| Combined [l] | 7.7-7.3 | 8.0-7.8 | 4,9-4,5 | 4,7-4,3 | 4.9-4.7 | 5,3-4,9 |
| CO2 emissions [g/km] | 177-167 | 183-178 | 129-119 | 124-114 | 128-123 | 139-129 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6 | EU6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1840 | 1840 | 1730 | 1735 | 1760 | 1810 |
| Overall weight [kg] | 2495 | 2495 | 2380 | 2390 | 2405 | 2465 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1185/ 1430 | 1185/ 1430 | 1060 /1430 | 1075/1430 | 1080/ 1435 | 1125/ 1450 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | 570 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 68 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | 21,5 | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.28 | 0.27 | 0.27 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.22/- | 12.22/- | 12.05/- | 12.05/- | 12.05/- | 12.22/- |
| Overall length [mm] | 4942 | 4942 | 4943 | 4943 | 4942 | 4942 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1105 | 1105 | 1105 | 1105 | 1105 | 1105 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d xDrive | 525d | 530d | 530d xDrive | 530d | 530d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 9/2018 to 11/2019 | from to 5/2019 | from to 9/2018 | from to 9/2018 | from 9/2018 to | from 9/2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 170/4400 | 195/4000 | 195/4000 | 195/4000 | 195/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 500/2000 | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 | 620/2000-2500 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 6,5 | 6.5 | 6,5 | 6,5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 222 | 245 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.6 | 6.8 | 5.8 | 5.6 | 5.8 | 5.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7-5.7 | 6.2-5.8 | 5,8-5,4 | 6,4-6,0 | 6,3-6.3 | 6,9-6.8 |
| Out of town [l] | 4.8-4.6 | 4.9-4.7 | 4,7-4,3 | 5,2-4,9 | 5,0-4.7 | 5,3-4.8 |
| Combined [l] | 5.2-5.0 | 5.4-5.1 | 5,1-4,7 | 5,7-5,3 | 5,5-5.3 | 5,9-5.6 |
| CO2 emissions [g/km] | 136-131 | 142-134 | 134-124 | 149-139 | 144-139 | 154-148 |
| Emission standard | EU6d-TEMP | EU6c | EU6 | EU6 | EU6c - EU6d-TEMP | EU6c - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1825 | 1765 | 1825 | 1875 | 1815 | 1865 |
| Overall weight [kg] | 2480 | 2425 | 2480 | 2530 | 2480 | 2530 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1130/ 1455 | 1090/1435 | 1140 /1455 | 1190 /1455 | 1140/ 1455 | 1190/ 1455 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | 570 |

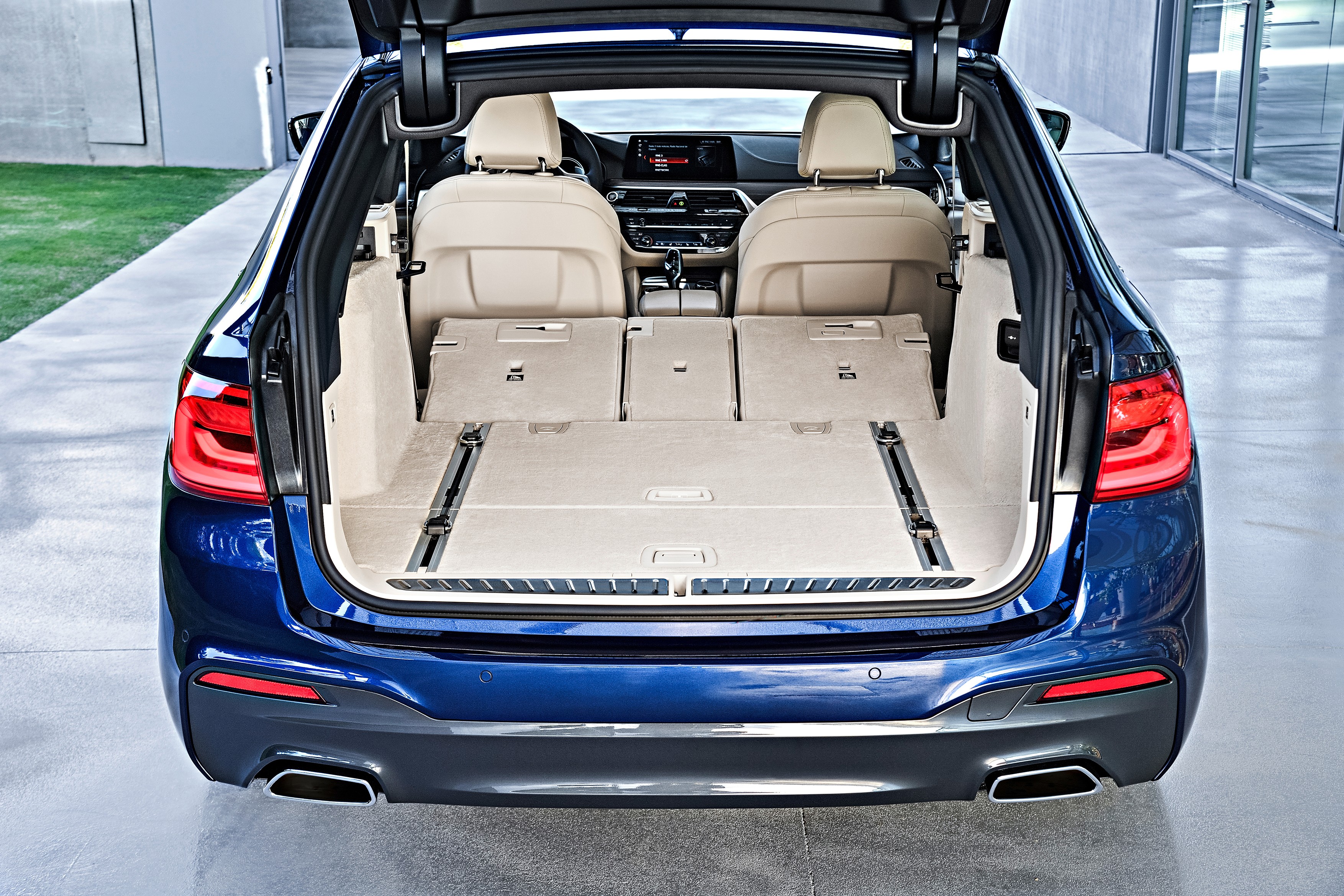

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 21,5 | - | - | - | 21,5 | 21,5 |
| Air resistance [Cd] | - | 0.27 | 0.27 | 0.28 | 0,27 | 0,28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | 12.05/- | 12,05/- | 12,22/- | 12,05/- | 12,22/- |
| Overall length [mm] | - | 4942 | 4942 | 4942 | 4942 | 4942 |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 |
| Overall height [mm] | - | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | - | 2975 | 2975 | 2975 | 2975 | 2975 |
| Front wheel track [mm] | - | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | - | 1630 | 1630 | 1630 | 1630 | 1630 |
| Forward overhang [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Rear overhang [mm] | 1105 | 1105 | 1105 | 1105 | 1105 | 1105 |
| Clearance [mm] | - | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 540d xDrive | 540d xDrive | M550d xDrive | 520d | 520d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | from 7/2017 to 9/2018 | from 9/2018 to | from 2017 to | from 11/2019 to | from 11/2019 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 1995 | 1995 | |
| Maximum output / speed [kW/min-1] | 235/4400 | 235/4400 | 294/4400 | 140/4000 | 140/4000 | |
| Maximum torque [Nm/min-1] | 680/1750-2250 | 680/1750-2250 | 760/2000-3000 | 400/1750-2500 | 400/1750-2500 | |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |
| Compression ratio | 16.5:1 | 16.5:1 | 16.0:1 | 16.5:1 | 16.5:1 | |
| Oil volume [l] | 6,5 | 6,5 | 6.5 | 5.5 | 5.5 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | Rear | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 250 | 250 | 225 | 222 | |
| Acceleration 0–100 km/h [s] | 4,9 | 4,9 | 4.6 | 7.5 | 7.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7,5-7.3 | 7,5-7.3 | 8.1-8.1 | 5.1-4.8 | 5.4-5.3 | |
| Out of town [l] | 5,5-5.2 | 5,5-5.2 | 6.0-5.9 | 4.2-4.1 | 4.5-4.4 | |
| Combined [l] | 6,2-6.0 | 6,2-6.0 | 6.8-6.7 | 4.5-4.3 | 4.9-4.7 | |
| CO2 emissions [g/km] | 164-157 | 164-157 | 178-176 | 118-114 | 128-124 | |
| Emission standard | EU6 | EU6c - EU6d-TEMP | EU6c - EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | 48 | 48 | |
| Battery type and capacity | - | - | - | - | - | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1920 | 1920 | 2030 | 1815 | 1880 | |
| Overall weight [kg] | 2565 | 2565 | 2620 | 2440 | 2515 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | 1215/ 1455 | 1215/ 1455 | 1255/ 1455 | 1100/ 1435 | 1150/ 1455 | |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | - | 21,5 | 21,5 | 21,5 | 21,5 | |
| Air resistance [Cd] | 0,29 | 0,29 | 0.31 | 0.27 | 0.28 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 98Y XL | 225/55 R17 101YXL | 225/55 R17 101YXL | |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 275/35 R19 100Y XL | 225/55 R17 101YXL | 225/55 R17 101YXL | |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 8J x 19 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 9J x 19 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12,22/- | 12,22/- | 12.24/- | 12.0/- | 12.2/- | |
| Overall length [mm] | 4942 | 4942 | 4962 | 4942 | 4942 | |
| Overall width without/including mirrors [mm] | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | 1868/2126 | |
| Overall height [mm] | 1498 | 1498 | 1488 | 1498 | 1498 | |
| Wheelbase [mm] | 2975 | 2975 | 2975 | 2975 | 2975 | |
| Front wheel track [mm] | 1605 | 1605 | 1600 | 1605 | 1605 | |
| Rear wheel track [mm] | 1630 | 1630 | 1598 | 1630 | 1630 | |
| Forward overhang [mm] | 862 | 862 | - | 862 | 862 | |
| Rear overhang [mm] | 1105 | 1105 | - | 1105 | 1105 | |
| Clearance [mm] | 140 | 140 | 130 | 140 | 140 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | |
| Front elbow/shoulder width [mm] | 1523/- | 1523/- | 1523/- | 1523/- | 1523/- | |
| Rear elbow/shoulder width [mm] | 1487/- | 1487/- | 1487/- | 1487/- | 1487/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
