BMW 5
Date of manufacture
2013 – 2016 (Sedan)
2013 – 2017 (Liftback)
2013 – 2017 (Estate)
Platform
-
Manufacturing locations
Dingolfing, Germany
Designer
Jacek Fröhlich
Jean-Francois
Alexandre Huet
Tags
E-segment
German cars
The BMW 5 is available in three different versions - sedan, liftback and estate. The car was first manufactured in 2013 and its country of origin is Germany. In addition to petrol and diesel engines, hybrid models are also available. The most powerful power unit is the M5 with 412 kW of power and a maximum speed of 250 km/h. The most economical model is the 520d with a consumption of 4.1 l/100 km and emissions of 109 g/km. The volume of the luggage compartment varies depending on the type of body: the sedan has a volume of 520 l, the estate 560 l and the liftback 500-610 l. The BMW 5 achieved the highest rating of 5 stars out of 5 possible in the EURONCAP safety tests according to the methodology from 2010.
Car body style

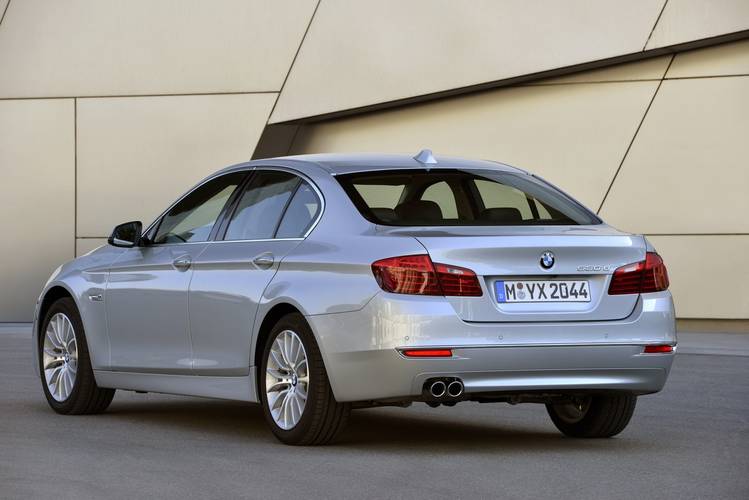

Sedan
after upgrade (facelift)
Date of manufacture
2013 – 2016Internal designation
F10Liftback (Gran Turismo)
after upgrade (facelift)
Date of manufacture
2013 – 2017Internal designation
F07Engine size
Estate (Touring)
after upgrade (facelift)
Date of manufacture
2013 – 2017Internal designation
F11
Technical data
Sedan
| 520i | 520i | 528i | 528i | 528i xDrive | 535i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 2979 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 | 225/5800-6400 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 89,6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,2:1 |
| Oil volume [l] | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 | 6,5 |
| Coolant volume [l] | 9,1 | 9,3 | 9,1 | 9,3 | 9,3 | 10.1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 235 | 233 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.9 | 7.9 | 6.2 | 6.2 | 6.3 | 5.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7,5 | - | 8,3 | - | - | 5.9 |
| City [l] | 8.4-9.0 | 8.1-8.6 | 8.8-9.4 | 8.0-8.6 | 8.4-9.0 | 11.0-11.6 |
| Out of town [l] | 5.2-5.5 | 4.7-5.1 | 5.3-5.6 | 5.0-5.3 | 5.2-5.6 | 6.2-6.5 |
| Combined [l] | 6.4-6.8 | 6.0-6.4 | 6.6-7.0 | 6.1-6.5 | 6.4-6.8 | 8.0-8.4 |
| CO2 emissions [g/km] | 149-159 | 139-149 | 154-164 | 142-152 | 149-159 | 186-196 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1690 | 1685 | 1700 | 1785 | 1750 |
| Overall weight [kg] | 2205 | 2225 | 2220 | 2235 | 2310 | 2285 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1070 / 1280 | 1070 / 1280 | 1070 / 1280 | 1070 / 1280 | 1100 / 1290 | 1100 / 1285 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.25 | 0.25 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | 330 x 24 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535i | 535i xDrive | 550i | 550i xDrive | M5 | ActiveHybrid 5 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 4395 | 2979 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 225/5800-6400 | 330/5500-6000 | 330/5500-6000 | 412/6000-7000 | 225/5800 40 el. 250 total |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 650/2000-4500 | 650/2000-4500 | 680/1500-5750 | 400/1200-5000 210 el. 450 total |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 89,0 x 88,3 | 84,0 x 89,6 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,2:1 |
| Oil volume [l] | 6,5 | 6,5 | 9,0 | 8,5 | 8,4 | 6,5 |
| Coolant volume [l] | 10.2 | 10,2 | 11,6 | 11,4 | 18,5 | 10,3 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 [60 el.] |
| Acceleration 0–100 km/h [s] | 5.7 | 5.6 | 4.6 | 4.4 | 4.3 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0-10.6 | 10.5-11.1 | 11.8-12.3 | 12.7-13.0 | 13.9 | 6.1-6.7 |
| Out of town [l] | 5.6-6.0 | 5.9-6.3 | 6.6-6.9 | 7.1-7.2 | 7.6 | 6.6-7.2 |
| Combined [l] | 7.2-7.7 | 7.6-8.1 | 8.6-8.8 | 9.2-9.3 | 9.9 | 6.4-7.0 |
| CO2 emissions [g/km] | 169-179 | 178-188 | 199-206 | 214-218 | 231 | 149-163 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 317 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 3-4 |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | -/96 |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1765 | 1840 | 1905 | 1955 | 1945 | 1925 |
| Overall weight [kg] | 2300 | 2365 | 2430 | 2480 | 2410 | 2400 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | - |
| Maximum front/rear axle load [kg] | 1100 / 1285 | 1170 / 1310 | 1195 / 1315 | 1250 / 1320 | 1180 / 1260 | 1140/1350 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 80 | 67 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.27 | 0.27 | 0.29 | 0.33 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 245/45 R18 96Y | 245/45 R18 96Y | 265/40 R19 102Y | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 245/45 R18 96Y | 245/45 R18 96Y | 295/35 R19 104Y | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 18 | 9J x 19 LM | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 18 | 10J x 19 LM | 8J x 17 |
| Brake dimensions front | 348 x 36 | 348 x 36 | 374 x 36 | 374 x 36 | 400 x 36 | 348 x 36 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 345 x 24 | 396 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.6 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4910 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1891/2119 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1456 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2964 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1627 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1582 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 836 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1110 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 117 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 518d | 518d | 518d | 518d | 520d | 520d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2014 | from to 7/2014 | from 7/2014 to | from 7/2014 to | from to 7/2014 | from to 7/2014 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | 110/4000 | 110/4000 | 135/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 360/1750-2500 | 360/1750-2500 | 360/1750-2500 | 360/1750-2500 | 380/1750-2750 | 380/1750-2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5,2 | 5,2 | 5,0 | 5,0 | 5,2 | 5,2 |
| Coolant volume [l] | 7,0 | 7,0 | 7,0 | 7,0 | 7,0 | 7,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 214 | 212 | 218 | 216 | 234 | 231 |
| Acceleration 0–100 km/h [s] | 9.7 | 9.6 | 9.5 | 9.4 | 8.1 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7,9 | - | 9,9 | - | 7,5 | - |
| City [l] | 5.4-5.8 | 5.3-5.7 | 5.1-5.6 | 4.9-5.2 | 5.4-5.8 | 5.2-5.7 |
| Out of town [l] | 4.0-4.4 | 4.1-4.4 | 3.9-4.2 | 3.8-4.2 | 4.0-4.4 | 4.1-4.5 |
| Combined [l] | 4.5-4.9 | 4.5-4.9 | 4.3-4.7 | 4.2-4.6 | 4.5-4.9 | 4.5-4.9 |
| CO2 emissions [g/km] | 119-129 | 119-129 | 114-124 | 110-120 | 119-129 | 119-129 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1700 | 1690 | 1700 | 1695 | 1705 |
| Overall weight [kg] | 2225 | 2235 | 2225 | 2235 | 2230 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/1800 | 750/2000 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | 1060 / 1275 | 1060 / 1275 | 1060 / 1275 | 1060 / 1275 | 1060 / 1275 | 1060 / 1275 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.25 | 0.25 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d xDrive | 520d | 520d | 520d xDrive | 525d | 525d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2014 | from 7/2014 to | from 7/2014 to | from 7/2014 to | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 135/4000 | 140/4000 | 140/4000 | 140/4000 | 160/4400 | 160/4400 |
| Maximum torque [Nm/min-1] | 380/1750-2750 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 450/1500-2500 | 450/1500-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5,2 | 5,0 | 5,0 | 5,0 | 5,2 | 5,2 |
| Coolant volume [l] | 7,0 | 7,0 | 7,0 | 7,0 | 8,0 | 8,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 228 | 236 | 233 | 230 | 248 | 243 |
| Acceleration 0–100 km/h [s] | 8.1 | 7.9 | 7.7 | 7.9 | 7.0 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 8,9 | - | - | 5,7 | - |
| City [l] | 5.7-6.2 | 5.1-5.6 | 4.9-5.3 | 5.6-6.1 | 5.9-6.3 | 5.6-6.0 |
| Out of town [l] | 4.4-4.8 | 3.9-4.2 | 3.7-4.1 | 4.2-4.5 | 4.3-4.7 | 4.1-4.5 |
| Combined [l] | 4.9-5.3 | 4.3-4.7 | 4.1-4.5 | 4.7-5.1 | 4.9-5.3 | 4.7-5.0 |
| CO2 emissions [g/km] | 129-139 | 114-124 | 109-119 | 124-134 | 129-139 | 123-133 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1805 | 1695 | 1705 | 1805 | 1725 | 1730 |
| Overall weight [kg] | 2330 | 2230 | 2240 | 2330 | 2260 | 2265 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1170 / 1300 | 1060 / 1275 | 1060 / 1275 | 1170 / 1300 | 1100 / 1290 | 1100 / 1290 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.25 | 0.25 | 0.25 | 0.25 | 0.26 | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.1 | -/11.95 | -/11.95 | -/12.0 | -/11.95 | -/11.95 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 525d xDrive | 530d | 530d xDrive | 535d | 535d xDrive | M550d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 160/4400 | 190/4000 | 190/4000 | 230/4400 | 230/4400 | 280/4000-4400 |
| Maximum torque [Nm/min-1] | 450/1500-2500 | 560/1500-3000 | 560/1500-3000 | 630/1500-2500 | 630/1500-2500 | 740/2000-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,0:1 |
| Oil volume [l] | 5,2 | 7.2 | 7,2 | 7.2 | 7,2 | 6.5 |
| Coolant volume [l] | 7,0 | 8.0 | 8,0 | 8.0 | 8,0 | 12,6 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 240 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.0 | 5.8 | 5.7 | 5.3 | 5.1 | 4.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8-6.3 | 6.0-6.5 | 6.4-6.8 | 6.2-6.7 | 6.8-7.2 | 7.5 |
| Out of town [l] | 4.6-5.0 | 4.6-4.9 | 4.9-5.2 | 4.7-5.1 | 4.9-5.2 | 5.4 |
| Combined [l] | 5.1-5.4 | 5.1-5.5 | 5.4-5.8 | 5.3-5.6 | 5.6-6.0 | 6.2 |
| CO2 emissions [g/km] | 133-143 | 134-144 | 142-152 | 138-148 | 147-157 | 162 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1840 | 1785 | 1885 | 1810 | 1915 | 1955 |
| Overall weight [kg] | 2365 | 2320 | 2410 | 2345 | 2440 | 2460 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1170 / 1320 | 1100 / 1290 | 1190 / 1325 | 1100 / 1310 | 1200 / 1330 | 1240 / 1130 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.3 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 245/40 R19 94Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 275/35 R19 96Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8.5J x 19 LM |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 9J x 19 LM |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 36 | 348 x 36 | 374 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 | 345 x 24 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.1 | -/12.0 | -/12.1 | -/12.0 | -/12.1 | -/12.1 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4910 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1454 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1594 |
| Rear wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1599 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1110 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 131 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Liftback (Gran Turismo)
| 535i | 535i xDrive | 550i | 550i xDrive | 520d | 530d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 | 6/24 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 4395 | 1995 | 2993 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 225/5800-6400 | 330/5500-6000 | 330/5500-6000 | 135/4000 | 190/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 650/2000-4500 | 650/2000-4500 | 380/1750-2750 | 560/1500-3000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 10,0:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 6.5 | 6.5 | 9.0 | 9.0 | 5.2 | 6.5 |
| Coolant volume [l] | 9.3 | 9.3 | 14.4 | 14.4 | 8.4 | 8.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 215 | 246 |
| Acceleration 0–100 km/h [s] | 6.1 | 6.1 | 5.0 | 4.8 | 8.9 | 6.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.2 | 11.7 | 12.4 | 13.0 | 6.2 | 6.8 |
| Out of town [l] | 6.5 | 6.7 | 7.3 | 7.7 | 5.0 | 5.2 |
| Combined [l] | 8.2 | 8.5 | 9.2 | 9.6 | 5.5 | 5.8 |
| CO2 emissions [g/km] | 192 | 199 | 214 | 224 | 144 | 153 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2015 | 2070 | 2145 | 2215 | 1990 | 2015 |
| Overall weight [kg] | 2570 | 2625 | 2670 | 2730 | 2545 | 2570 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | 1165 / 1490 | 1200 / 1500 | 1245 / 1500 | 1290 / 1500 | 1090 / 1500 | 1150 / 1500 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500-610 | 500-610 | 500-610 | 500-610 | 500-610 | 500-610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.31 | 0.31 | 0.31 | 0.29 | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 245/50 R18 100Y | 245/50 R18 100Y | 245/45 R19 98Y RSC | 245/45 R19 98Y RSC | 245/50 R18 100Y | 245/50 R18 100Y |
| Tyre dimensions rear | 245/50 R18 100Y | 245/50 R18 100Y | 275/40 R19 101Y RSC | 275/40 R19 101Y RSC | 245/50 R18 100Y | 245/50 R18 100Y |
| Wheel size front | 8J x 18 | 8J x 18 | 8.5J x 19 | 8.5J x 19 | 8J x 18 | 8J x 18 |
| Wheel size rear | 8J x 18 | 8J x 18 | 9.5 J x 19 | 9.5 J x 19 | 8J x 18 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.2 | -/12.5 | -/12.2 | -/12.0 | -/12.2 | -/12.2 |
| Overall length [mm] | 5004 | 5004 | 5004 | 5004 | 5004 | 5004 |
| Overall width without/including mirrors [mm] | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 | 1901/2132 |
| Overall height [mm] | 1599 | 1599 | 1599 | 1599 | 1599 | 1599 |
| Wheelbase [mm] | 3070 | 3070 | 3070 | 3070 | 3070 | 3070 |
| Front wheel track [mm] | 1611 | 1611 | 1621 | 1621 | 1611 | 1611 |
| Rear wheel track [mm] | 1654 | 1654 | 1636 | 1636 | 1654 | 1654 |
| Forward overhang [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Rear overhang [mm] | 1096 | 1096 | 1096 | 1096 | 1096 | 1096 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 530d xDrive | 535d | 535d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 190/4000 | 230/4400 | 230/4400 | |||
| Maximum torque [Nm/min-1] | 560/1500-3000 | 630/1500-2500 | 630/1500-2500 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 6.5 | 6.5 | 6.5 | |||
| Coolant volume [l] | 8.8 | 8.9 | 8.9 | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Rear | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 243 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 6.2 | 5.7 | 5.6 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.2 | 6.8 | 7.6 | |||
| Out of town [l] | 5.6 | 5.3 | 5.7 | |||
| Combined [l] | 6.2 | 5.9 | 6.4 | |||
| CO2 emissions [g/km] | 163 | 154 | 168 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2120 | 2045 | 2145 | |||
| Overall weight [kg] | 2665 | 2600 | 2670 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | |||
| Maximum front/rear axle load [kg] | 1220 / 1500 | 1170 / 1500 | 1235 / 1500 | |||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 500-610 | 500-610 | 500-610 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |||
| Tyre dimensions front | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | |||
| Tyre dimensions rear | 245/50 R18 100Y | 245/50 R18 100Y | 245/50 R18 100Y | |||
| Wheel size front | 8J x 18 | 8J x 18 | 8J x 18 | |||
| Wheel size rear | 8J x 18 | 8J x 18 | 8J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/12.5 | -/12.2 | -/12.5 | |||
| Overall length [mm] | 5004 | 5004 | 5004 | |||
| Overall width without/including mirrors [mm] | 1901/2132 | 1901/2132 | 1901/2132 | |||
| Overall height [mm] | 1599 | 1599 | 1599 | |||
| Wheelbase [mm] | 3070 | 3070 | 3070 | |||
| Front wheel track [mm] | 1611 | 1611 | 1611 | |||
| Rear wheel track [mm] | 1654 | 1654 | 1654 | |||
| Forward overhang [mm] | 838 | 838 | 838 | |||
| Rear overhang [mm] | 1096 | 1096 | 1096 | |||
| Clearance [mm] | 145 | 145 | 145 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1051 | 1051 | 1051 | |||
| Headroom rear [mm] | 985 | 985 | 985 | |||
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | |||
| Rear elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Touring)
| 520i | 520i | 528i | 528i | 528i xDrive | 535i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 2979 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 | 225/5800-6400 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 89,6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,2:1 |
| Oil volume [l] | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 | 6.5 |
| Coolant volume [l] | 9,1 | 9.3 | 9.1 | 9.3 | 9,3 | 10.1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 226 | 225 | 248 | 247 | 244 | 250 |
| Acceleration 0–100 km/h [s] | 8.3 | 8.3 | 6.4 | 6.5 | 6.6 | 5.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9-9.5 | 8.6-9.1 | 9.3-9.9 | 8.4-9.0 | 8.9-9.5 | 11.2-11.8 |
| Out of town [l] | 5.5-5.8 | 5.0-5.3 | 5.6-5.9 | 5.2-5.6 | 5.5-5.9 | 6.3-6.6 |
| Combined [l] | 6.7-7.2 | 6.3-6.7 | 7.0-7.4 | 6.4-6.8 | 6.7-7.2 | 8.1-8.5 |
| CO2 emissions [g/km] | 157-167 | 147-157 | 162-172 | 149-159 | 157-167 | 188-198 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1785 | 1805 | 1790 | 1810 | 1890 | 1845 |
| Overall weight [kg] | 2350 | 2370 | 2355 | 2375 | 2455 | 2420 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1070 / 1415 | 1070 / 1415 | 1070 / 1415 | 1070 / 1415 | 1100 / 1420 | 1100 / 1400 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | 330 x 24 | 348 x 36 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 345 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.0 | -/12.1 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535i | 535i xDrive | 550i | 518d | 518d | 518d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 7/2014 | from to 7/2014 | from 7/2014 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 4395 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 225/5800-6400 | 330/5500-6000 | 105/4000 | 105/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 650/2000-4500 | 360/1750-2500 | 360/1750-2500 | 360/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 6.5 | 6.5 | 9.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | 10.2 | 10.1 | 11.6 | 7.0 | 7.0 | 7.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 | 250 | 206 | 205 | 210 |
| Acceleration 0–100 km/h [s] | 5.8 | 5.7 | 4.7 | 10.1 | 10.0 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | 10,2 |
| City [l] | 10.3-10.9 | 11.1-11.7 | 12.3-12.7 | 5.8-6.2 | 5.7-6.2 | 5.6-5.9 |
| Out of town [l] | 5.8-6.2 | 6.3-6.6 | 6.9-7.1 | 4.3-4.6 | 4.4-4.8 | 4.1-4.5 |
| Combined [l] | 7.5-7.9 | 8.1-8.5 | 8.8-9.1 | 4.8-5.2 | 4.9-5.3 | 4.7-5.0 |
| CO2 emissions [g/km] | 174-184 | 188-198 | 206-213 | 127-137 | 129-139 | 122-132 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1860 | 1940 | 2000 | 1795 | 1805 | 1795 |
| Overall weight [kg] | 2435 | 2505 | 2555 | 2370 | 2380 | 2370 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100 / 1400 | 1140/1415 | 1195 / 1420 | 1060 / 1420 | 1060 / 1420 | 1060 / 1420 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | 0.29 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 245/45 R18 96Y | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 245/45 R18 96Y | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 18 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 348 x 36 | 348 x 36 | 374 x 36 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.1 | -/12.0 | -/12.0 | -/12.0 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 518d | 520d | 520d | 520d xDrive | 520d | 520d | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2014 to | from to 7/2014 | from to 7/2014 | from to 7/2014 | from 7/2014 to | from 7/2014 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 135/4000 | 135/4000 | 135/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 360/1750-2500 | 380/1750-2750 | 380/1750-2750 | 380/1750-2750 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5,2 | 5.0 | 5.0 |
| Coolant volume [l] | 7.0 | 7.0 | 7.0 | 7,0 | 7.0 | 7.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 209 | 227 | 224 | 218 | 229 | 226 |
| Acceleration 0–100 km/h [s] | 9.8 | 8.3 | 8.2 | 8.4 | 8.1 | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | 8,7 | - |
| City [l] | 5.2-5.7 | 5.8-6.3 | 5.7-6.1 | 6.1-6.6 | 5.5-5.9 | 5.2-5.7 |
| Out of town [l] | 4.1-4.4 | 4.4-4.7 | 4.5-4.8 | 4.7-5.1 | 4.1-4.5 | 4.1-4.4 |
| Combined [l] | 4.5-4.9 | 4.9-5.3 | 4.9-5.3 | 5.2-5.6 | 4.6-5.0 | 4.5-4.9 |
| CO2 emissions [g/km] | 118-132 | 129-139 | 129-139 | 138-148 | 122-132 | 118-128 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1805 | 1800 | 1810 | 1915 | 1800 | 1810 |
| Overall weight [kg] | 2380 | 2375 | 2385 | 2460 | 2375 | 2385 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | 1060 / 1420 | 1060 / 1420 | 1060 / 1420 | 1170 / 1420 | 1060 / 1420 | 1060 / 1420 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | - | - | - | 0.28 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.1 | -/12.0 | -/12.0 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 520d xDrive | 525d | 525d | 525d xDrive | 530d | 530d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2014 to | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 160/4400 | 160/4400 | 160/4400 | 190/4000 | 190/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 450/1500-2500 | 450/1500-2500 | 450/1500-2500 | 560/1500-3000 | 560/1500-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5,2 | 6.5 | 7.2 |
| Coolant volume [l] | 7.0 | 7.0 | 7.0 | 7,0 | 8.0 | 8.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 220 | 240 | 237 | 231 | 250 | 248 |
| Acceleration 0–100 km/h [s] | 8.2 | 7.2 | 7.1 | 7.3 | 5.9 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1-6.5 | 6.2-6.6 | 5.9-6.3 | 6.2-6.7 | 6.2-6.7 | 6.7-7.1 |
| Out of town [l] | 4.5-4.8 | 4.6-4.9 | 4.4-4.7 | 4.9-5.3 | 4.7-5.1 | 5.1-5.4 |
| Combined [l] | 5.1-5.4 | 5.2-5.6 | 4.9-5.3 | 5.4-5.8 | 5.3-5.7 | 5.7-6.0 |
| CO2 emissions [g/km] | 133-144 | 136-146 | 129-139 | 142-152 | 139-149 | 149-159 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1915 | 1825 | 1835 | 1945 | 1895 | 1995 |
| Overall weight [kg] | 2480 | 2400 | 2410 | 2480 | 2470 | 2530 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1170 / 1420 | 1100 / 1410 | 1100 / 1410 | 1170 / 1420 | 1125 / 1400 | 1160 / 1420 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 | -/1670 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | - | - | - | - | 0.26 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97Y | 225/55 R17 97Y |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 | 330 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/12.0 | -/12.0 | -/12.0 | -/12.1 | -/12.0 | -/12.1 |
| Overall length [mm] | 4907 | 4907 | 4907 | 4907 | 4907 | 4907 |
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 | 1860/2094 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2968 | 2968 | 2968 | 2968 | 2968 | 2968 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Rear overhang [mm] | 1107 | 1107 | 1107 | 1107 | 1107 | 1107 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 535d | 535d xDrive | M550d xDrive | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | |||
| Maximum output / speed [kW/min-1] | 230/4400 | 230/4400 | 280/4000-4400 | |||
| Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | 740/2000-3000 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,0:1 | |||
| Oil volume [l] | 6.5 | 7.2 | 6.5 | |||
| Coolant volume [l] | 8.0 | 8.0 | 12.6 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 4.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.5-7.0 | 7.1-7.6 | 7.7 | |||
| Out of town [l] | 4.9-5.2 | 5.2-5.5 | 5.5 | |||
| Combined [l] | 5.5-5.9 | 5.9-6.2 | 6.3 | |||
| CO2 emissions [g/km] | 144-154 | 154-164 | 166 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1925 | 2025 | 2065 | |||
| Overall weight [kg] | 2500 | 2550 | 2570 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | |||
| Maximum front/rear axle load [kg] | 1140 / 1415 | 1200 / 1420 | 1240 / 1450 | |||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 560 | 560 | 560 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1670 | -/1670 | -/1670 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | Integral-V multilink axle | Integral-V multilink axle | Integral-V multilink axle | |||
| Tyre dimensions front | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 94Y | |||
| Tyre dimensions rear | 225/55 R17 97Y | 225/55 R17 97Y | 245/40 R19 94Y | |||
| Wheel size front | 8J x 17 | 8J x 17 | 8.5J x 19 | |||
| Wheel size rear | 8J x 17 | 8J x 17 | 8.5J x 19 | |||
| Brake dimensions front | 348 x 36 | 348 x 36 | 374 x 36 | |||
| Brake dimensions rear | 345 x 24 | 345 x 24 | 345 x 24 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/12.0 | -/12.1 | -/12.1 | |||
| Overall length [mm] | 4907 | 4907 | 4910 | |||
| Overall width without/including mirrors [mm] | 1860/2094 | 1860/2094 | 1860/2094 | |||
| Overall height [mm] | 1462 | 1462 | 1462 | |||
| Wheelbase [mm] | 2968 | 2968 | 2968 | |||
| Front wheel track [mm] | 1600 | 1600 | 1600 | |||
| Rear wheel track [mm] | 1626 | 1626 | 1626 | |||
| Forward overhang [mm] | 832 | 832 | 832 | |||
| Rear overhang [mm] | 1107 | 1107 | 1110 | |||
| Clearance [mm] | 141 | 141 | 141 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1028 | 1028 | 1028 | |||
| Headroom rear [mm] | 993 | 993 | 993 | |||
| Front elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | |||
| Rear elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
