BMW 4
Date of manufacture
2017 – 2020 (Liftback)
2017 – 2020 (Coupé)
2017 – 2020 (Convertible)
Platform
-
Manufacturing locations
Munich, Germany
Regensburg, Germany
Dingolfing, Germany
Designer
Nicolas Huet
Tags
D-segment
German cars
The new BMW 4 model is available in three body variants - liftback, coupe and cabriolet. The car was first introduced in 2017 and is manufactured in Germany. The engine range includes petrol and diesel units with the highest power of 338 kW in the M4 F82 CS model, reaching a top speed of 280 km/h. The most economical engine 420d has a combined fuel consumption of 4 l/100 km and CO2 emissions of 106 g/km. The liftback offers a luggage compartment volume of 480 l, in the coupe version 445 l and in the cabriolet version 370 l.
Car body style

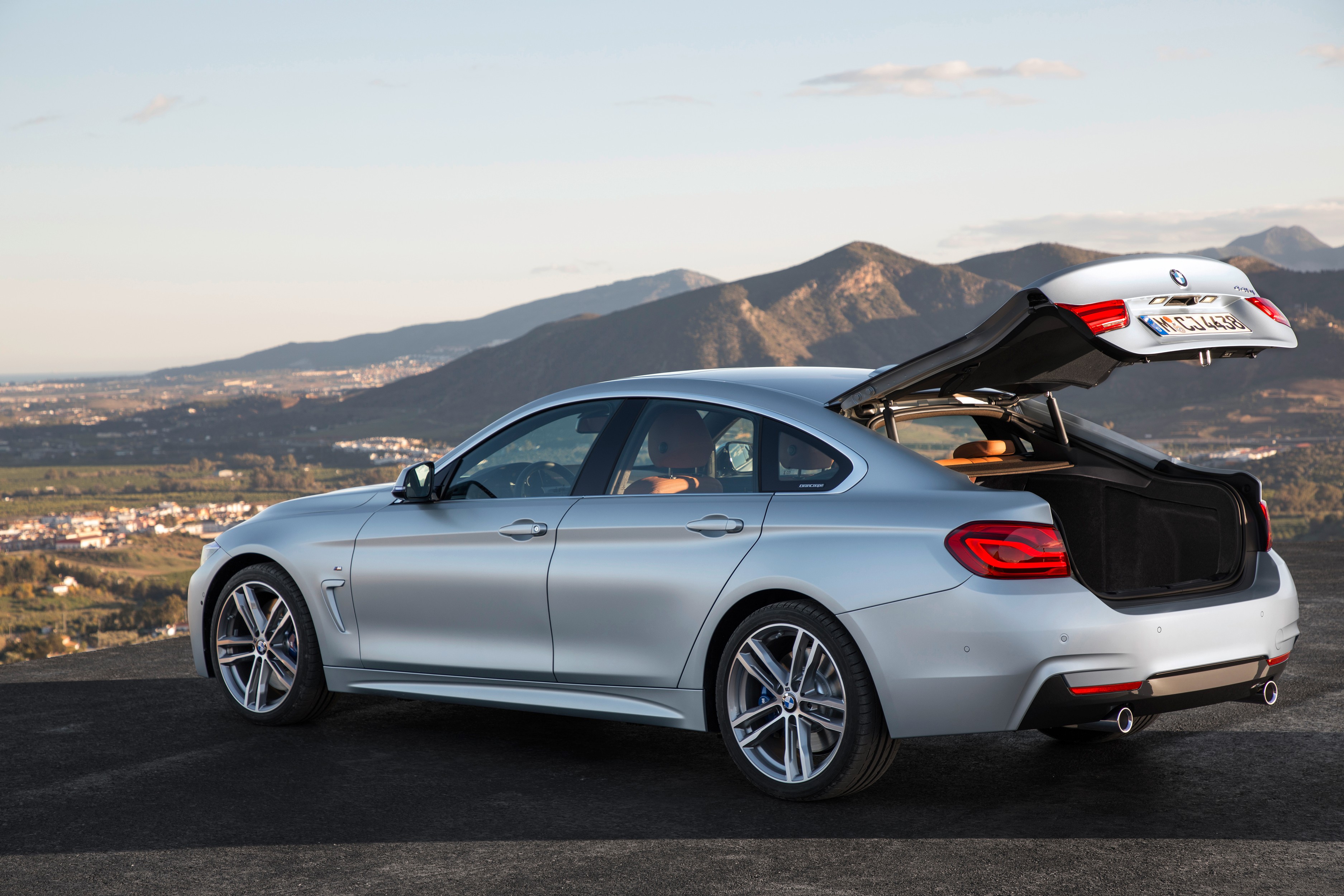

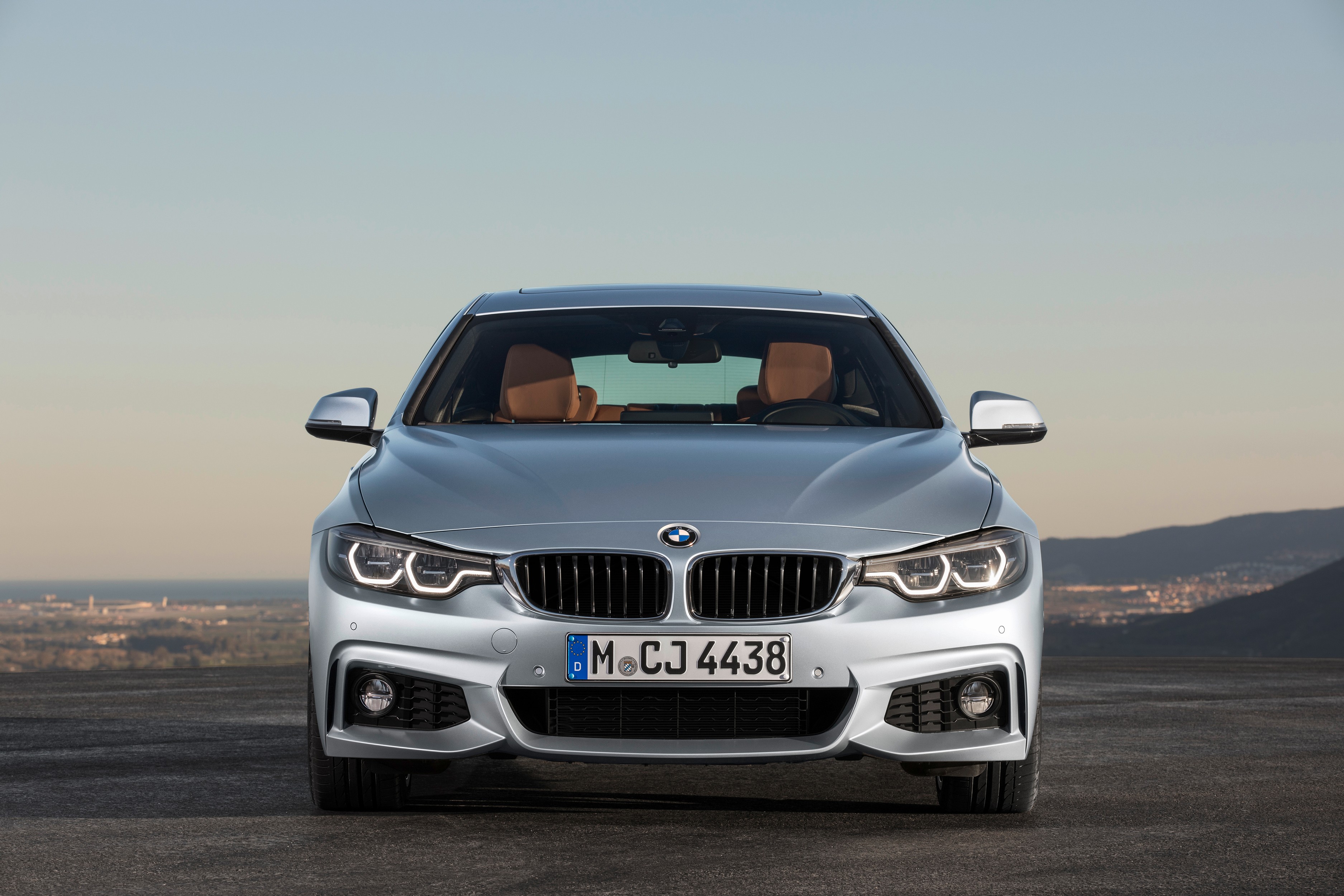

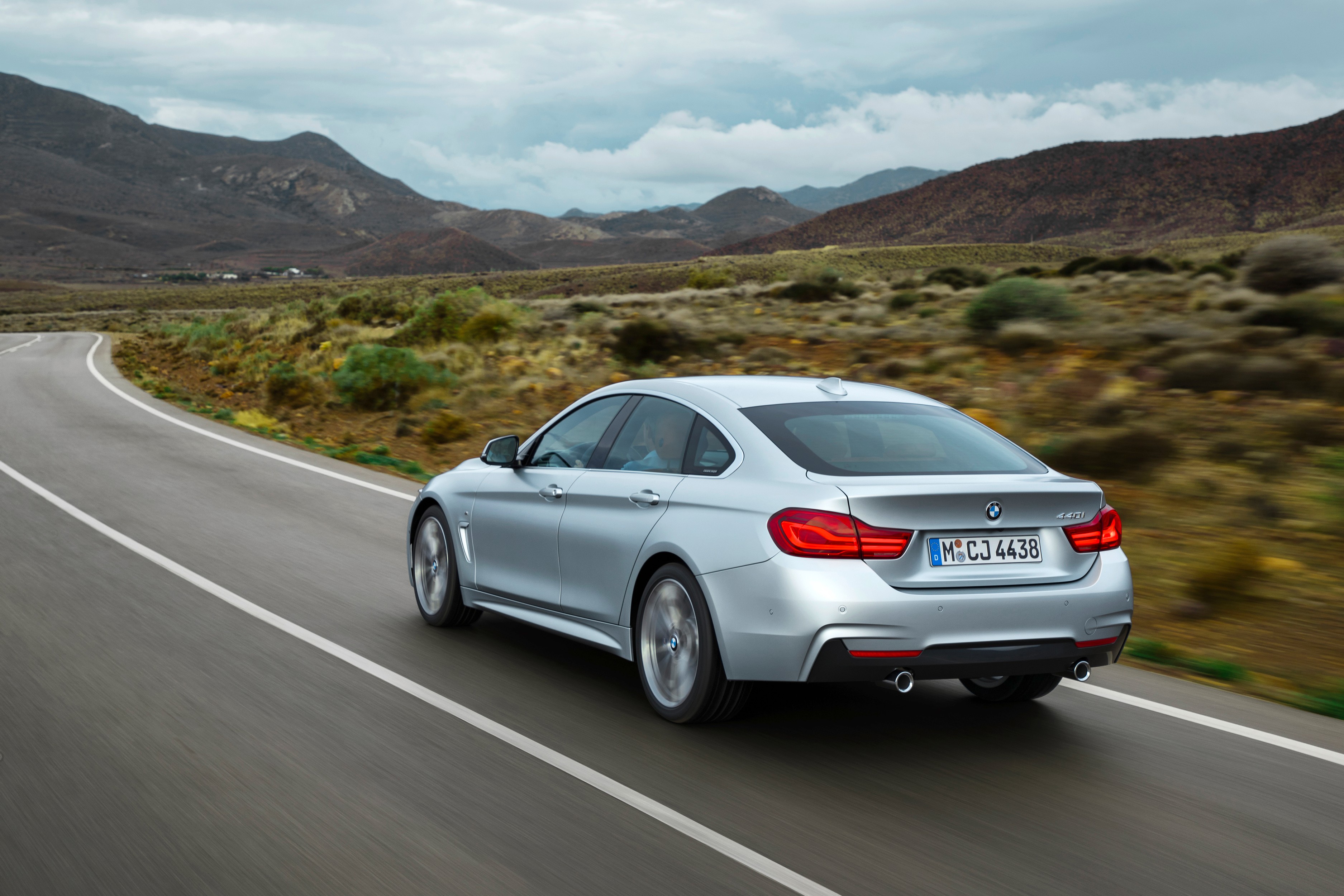

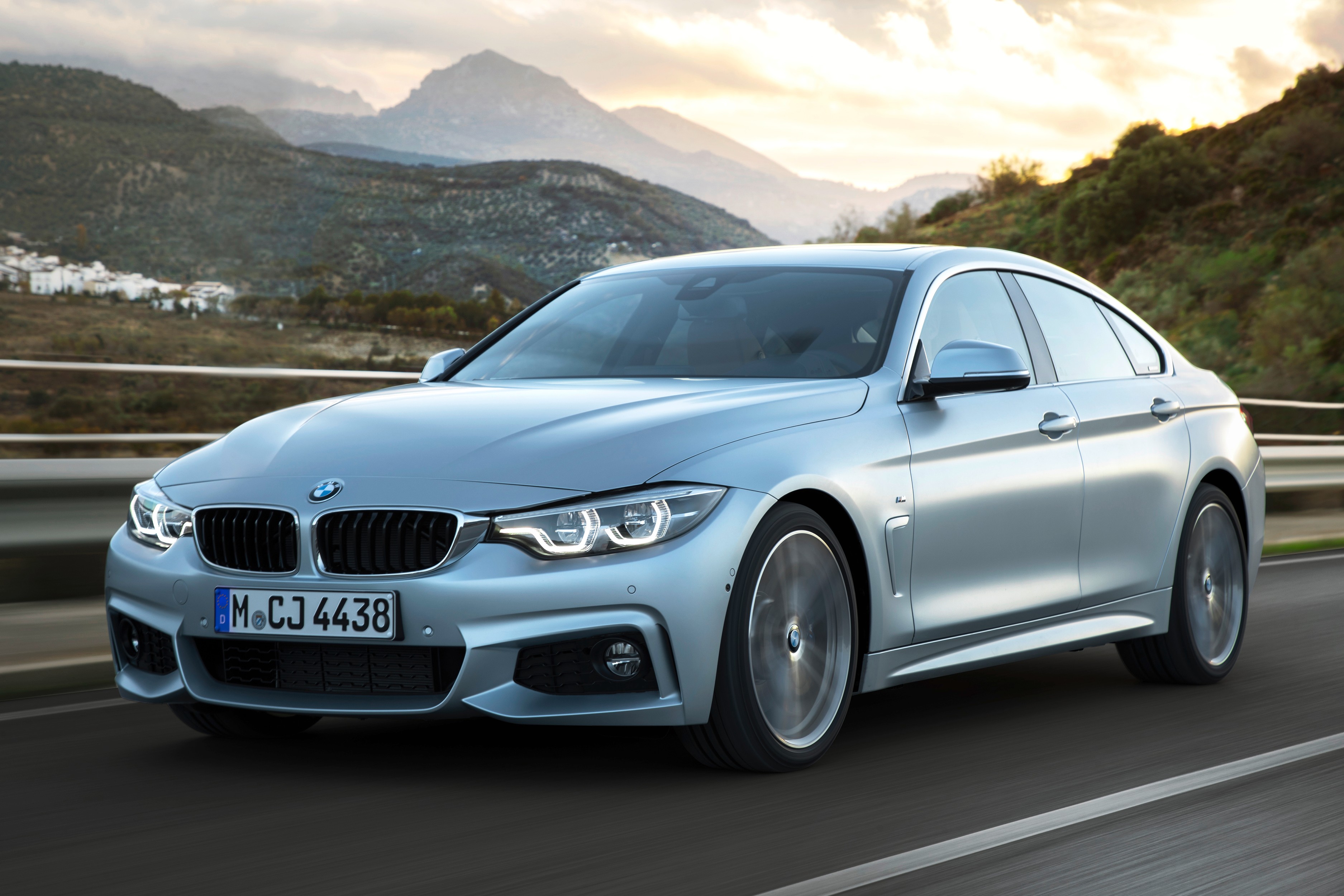

Liftback (Gran Coupe)
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation

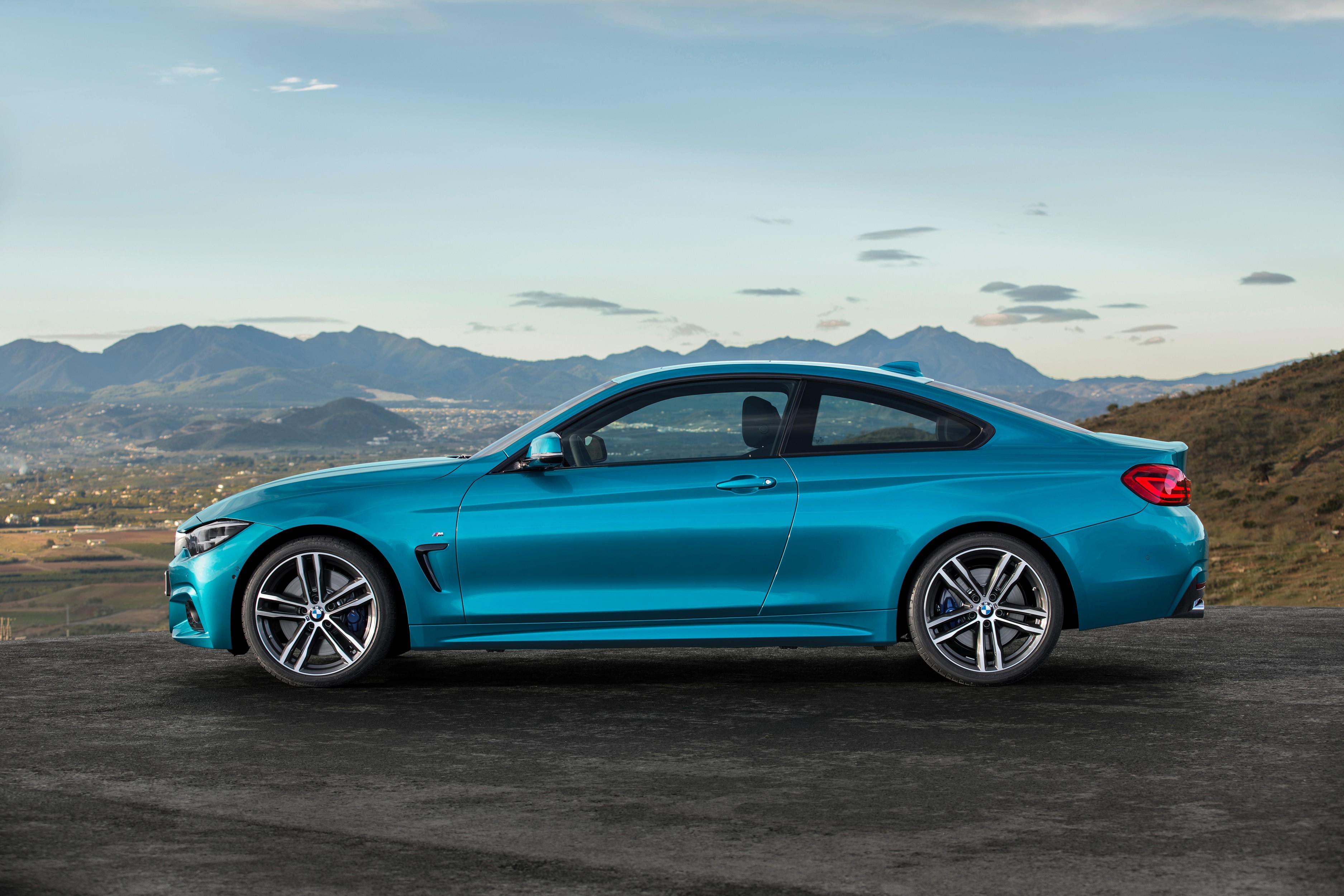

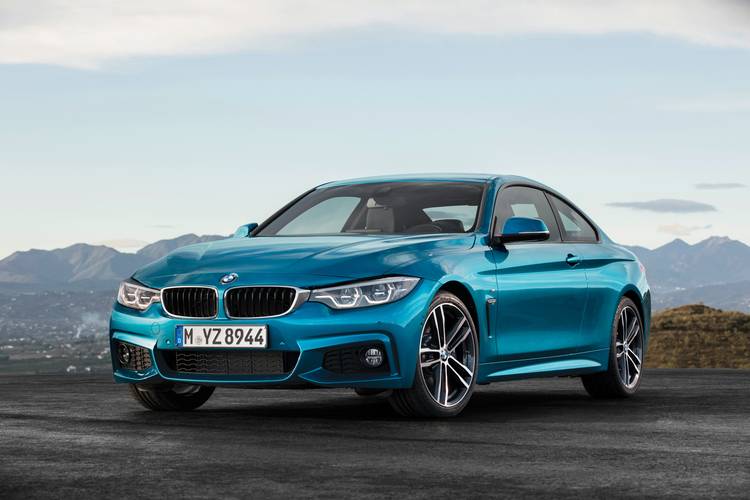

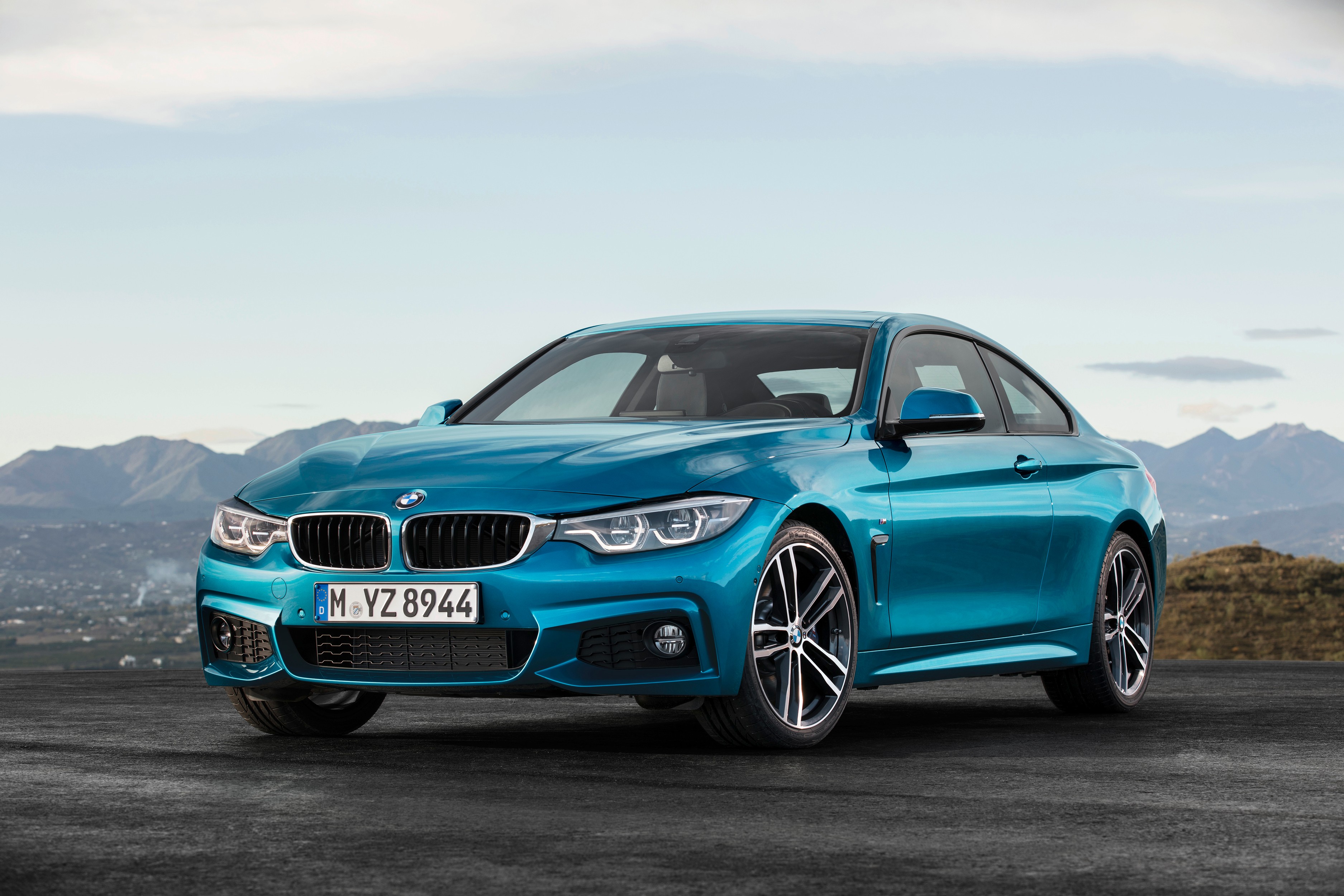

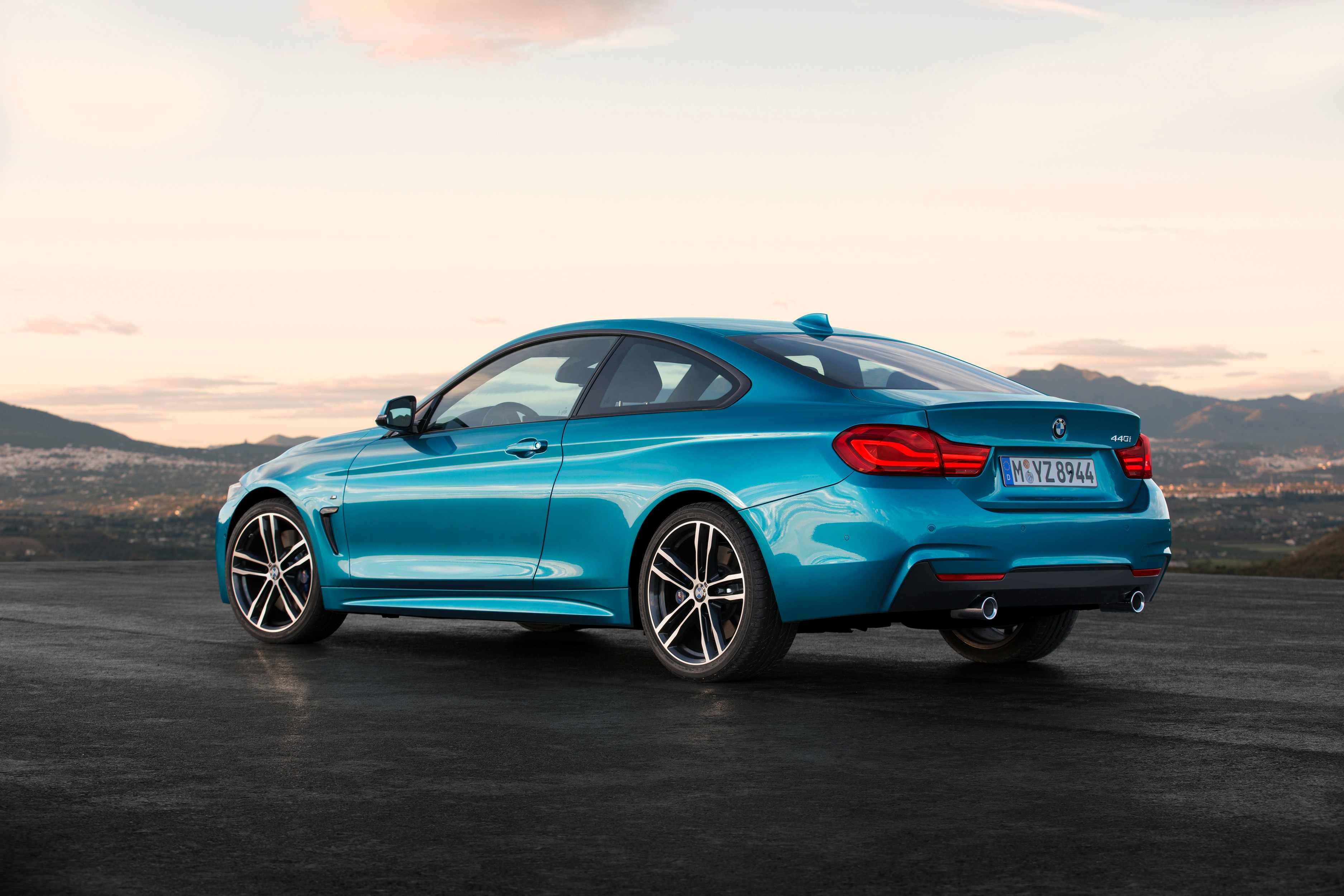

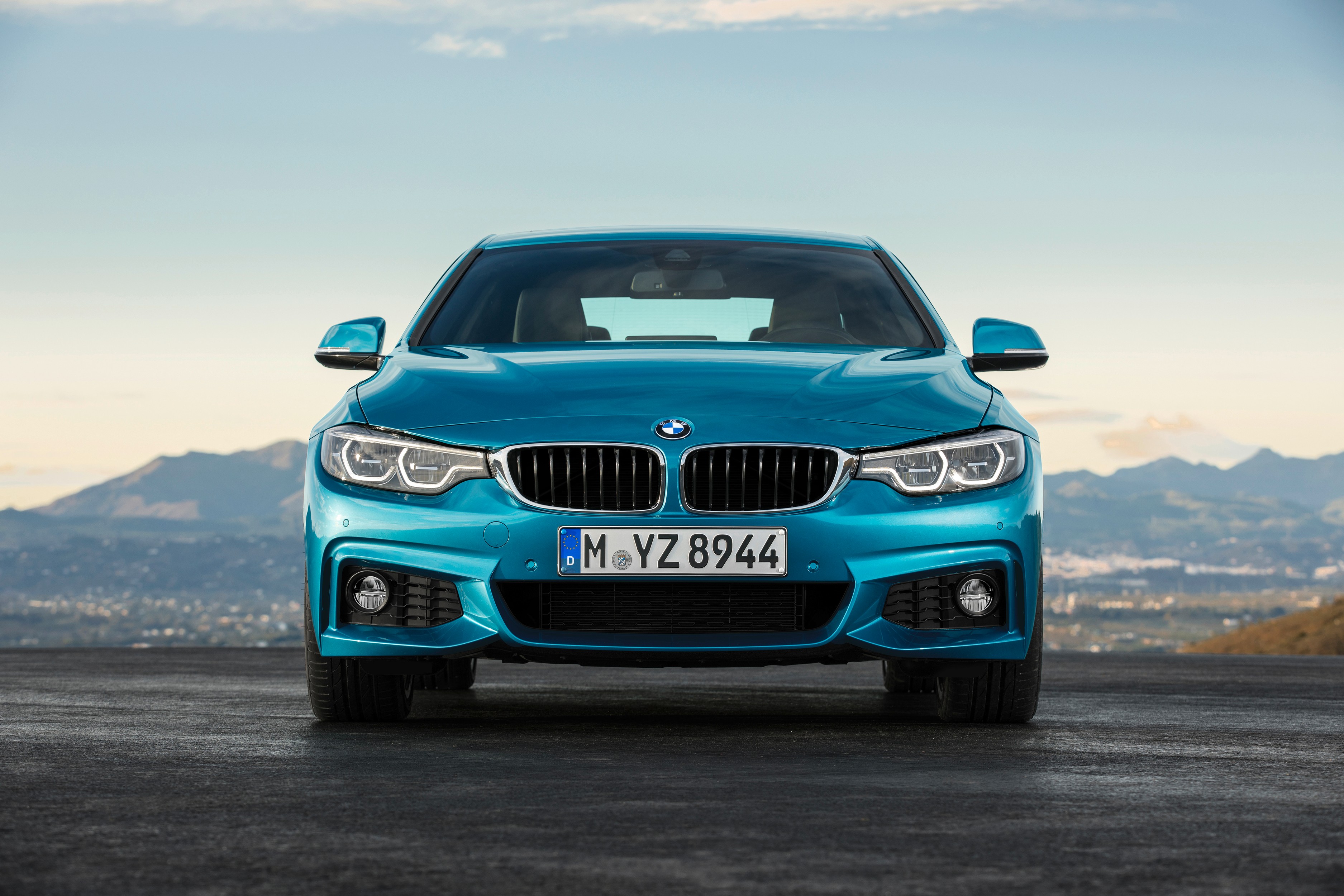

F36Coupé
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation

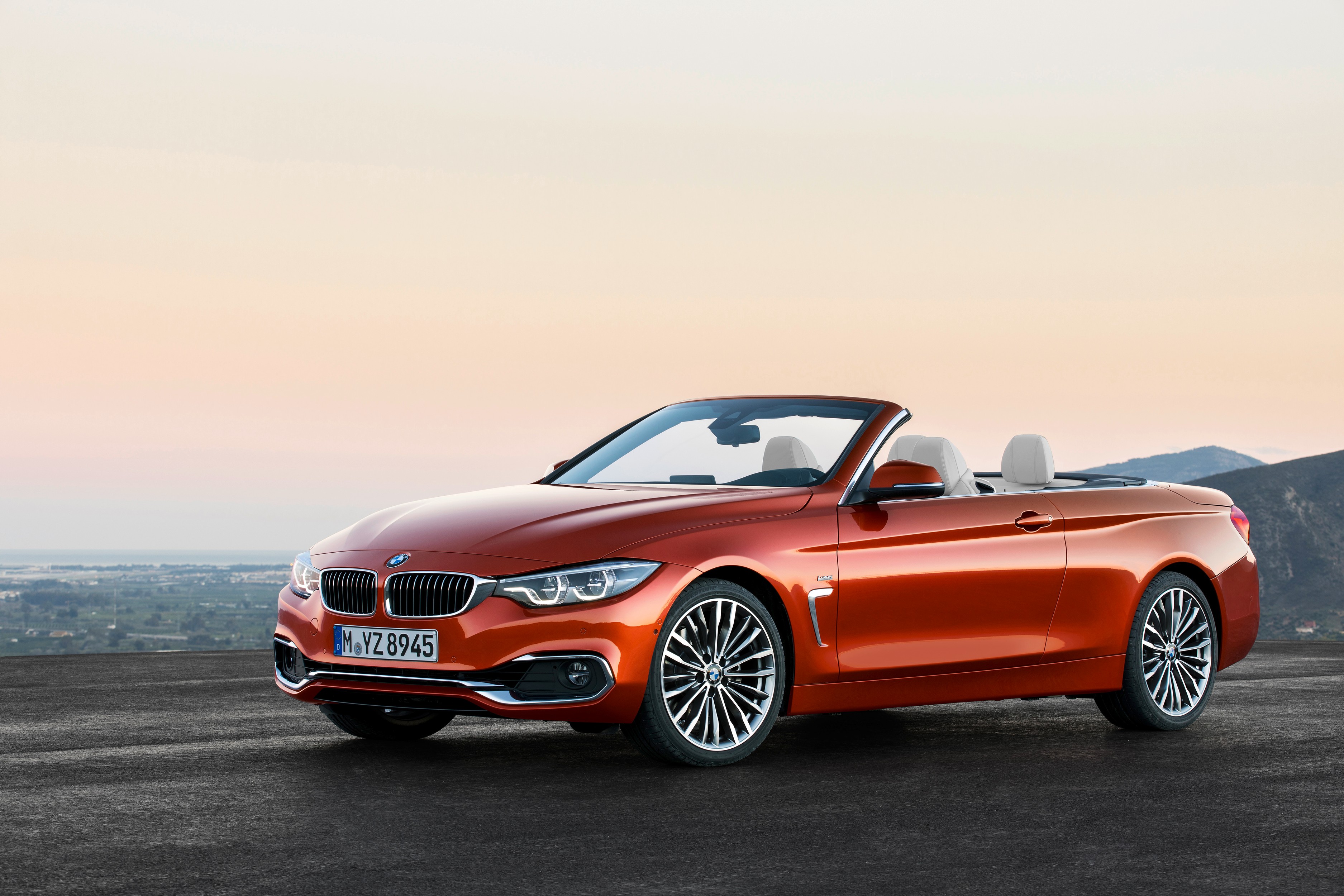

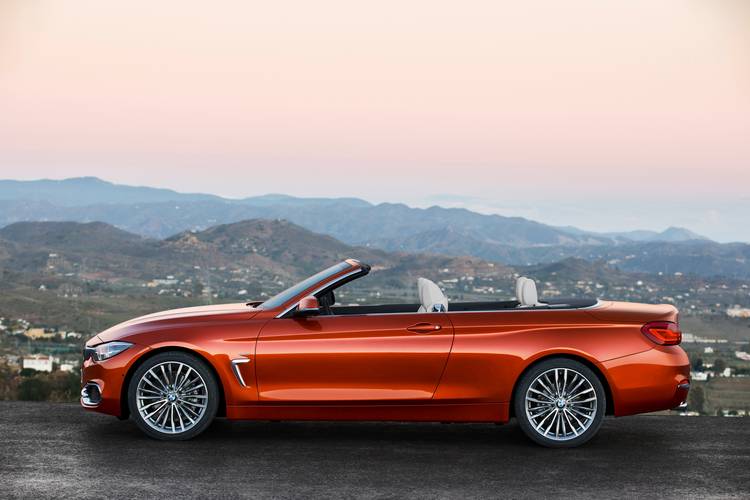

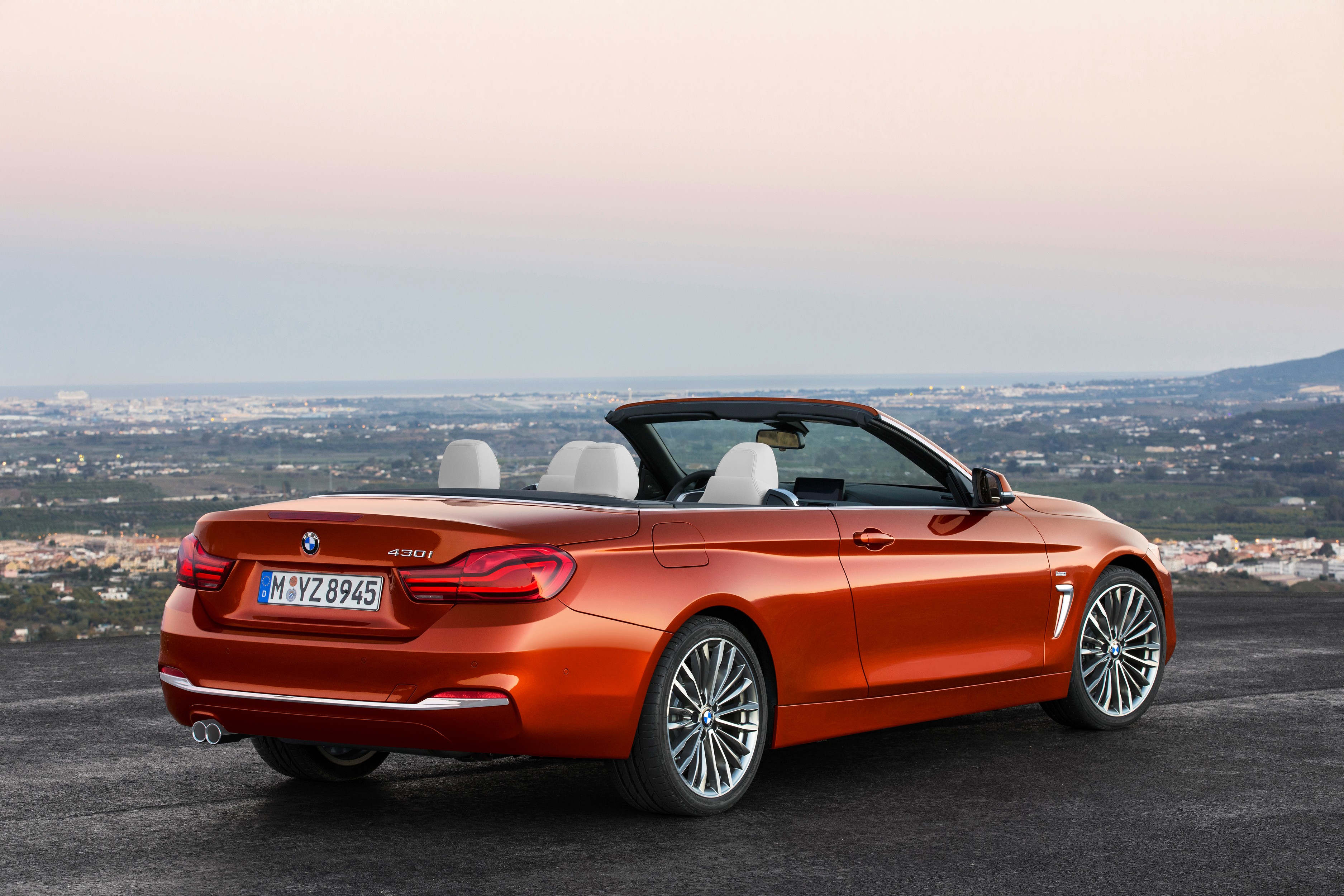

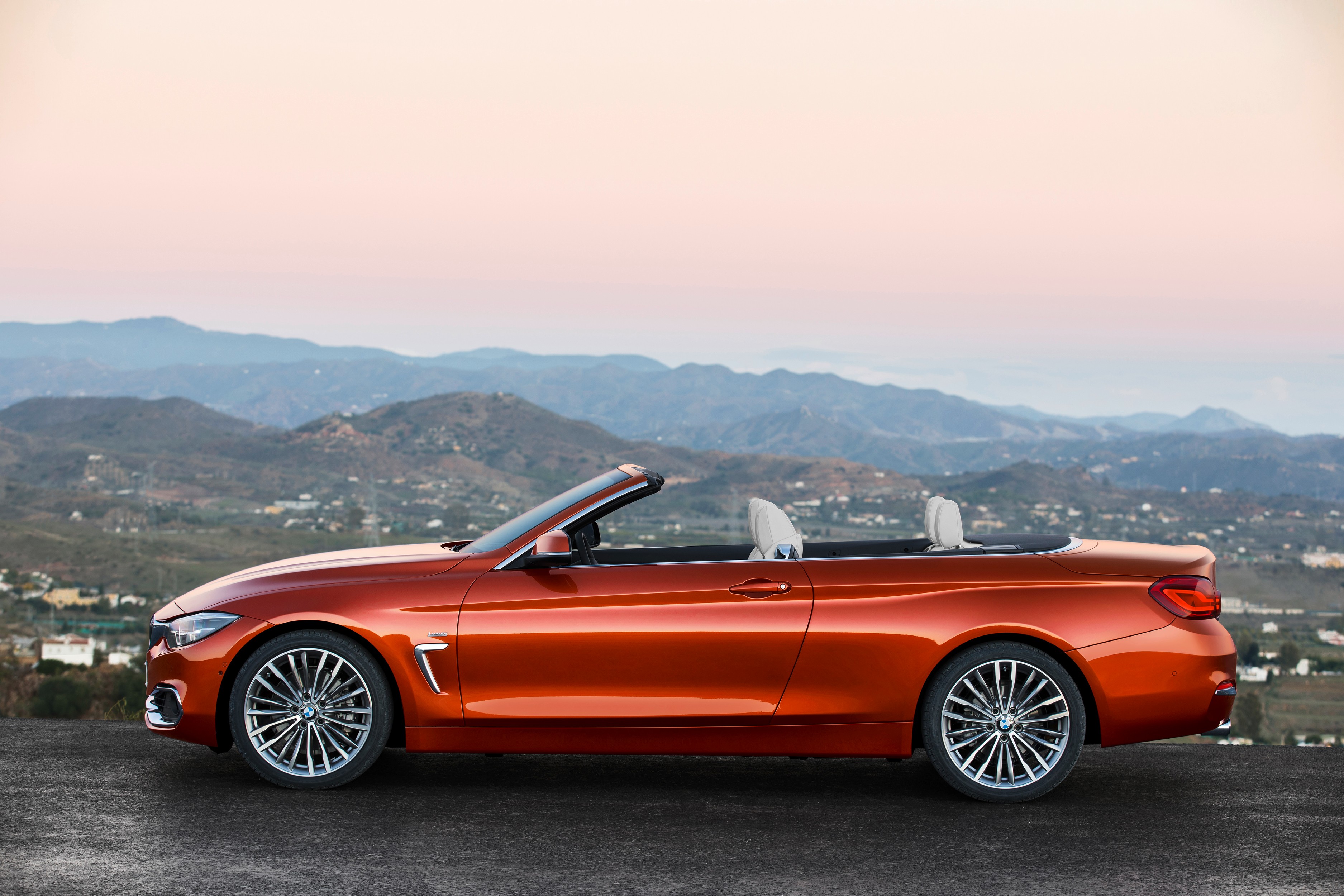

F32Convertible
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
F33Technical data
Liftback (Gran Coupe)
| 420i | 420i | 420i | 420i | 420i xDrive | 420i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from to 7/2018 | from 7/2018 to | from 7/2018 to | from to 7/2018 | from to 7/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 135/5000-6500 | 135/5000-6500 | 135/5000 | 135/5000 |
| Maximum torque [Nm/min-1] | 290/1350 -4600 | 270/1350 -4600 | 270/1350 -4600 | 290/1350 -4600 | 270/1350 -4600 | 270/1350 -4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 236 | 236 | 236 | 236 | 233 | 231 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.7 | 7,5 | 7,7 | 7.8 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7-8.1 | 7.1-7.6 | 8,3-8,2 | 7,3-6,9 | 8.7-9.0 | 7.7-8.1 |
| Out of town [l] | 4.7-4.9 | 4.5-4.7 | 5,5-5,3 | 5,6-5,3 | 5.4-5.7 | 4.8-5.1 |
| Combined [l] | 5.8-6.1 | 5.5-5.8 | 6,5-6,4 | 6,2-5,9 | 6.6-6.9 | 5.9-6.2 |
| CO2 emissions [g/km] | 134-141 | 127-134 | 149-146 | 141-135 | 154-161 | 137-144 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1615 | 1600 | 1615 | 1675 | 1690 |
| Overall weight [kg] | 2080 | 2100 | 2800 | 2100 | 2160 | 2175 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 750/1400 | 750/1500 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 945/1210 | 945/1210 | - | 945/1210 | 995/1230 | 995/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | - | - | 11.8/- | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420i xDrive | 430i | 430i | 430i | 430i xDrive | 430i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to | from to 7/2018 | from 7/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 | 185/5200 | 185/5200 | 185/5200-6500 | 185/5200 | 185/5200-6500 |
| Maximum torque [Nm/min-1] | 270/1350 -4600 | 350/1450 -4800 | 350/1450 -4800 | 350/1450-4800 | 350/1450 -4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0 :1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 231 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8,1 | 5.9 | 5.9 | 5,9 | 5.9 | 5,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,7 | 7.9-8.4 | 7.0-7.4 | 7,1-6,9 | 7.5-7.8 | 7,9-7,8 |
| Out of town [l] | 6,3-5,9 | 5.1-5.4 | 4.7-4.9 | 5,7-5,5 | 5.0-5.2 | 6,2-5,9 |
| Combined [l] | 6,8-6,6 | 6.1-6.5 | 5.5-5.8 | 6,2-6,0 | 5.9-6.2 | 6,9-6,6 |
| CO2 emissions [g/km] | 156-150 | 143-151 | 129-136 | 142-136 | 138-144 | 156-150 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1595 | 1615 | 1615 | 1690 | 1695 |
| Overall weight [kg] | 2175 | 2080 | 2100 | 2115 | 2175 | 2175 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 745/1600 | 745/1600 | 750/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 995/1230 | 955/1215 | 955/1215 | 955/1215 | 995/1230 | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.29 | 0.29 | 0.29 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | 11.3/- | 11.3/- | - | 11.8/- | - |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 130 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 440i | 440i xDrive | 440i | 440i xDrive | 418d | 418d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from to 7/2018 | from 7/2018 to | from 7/2018 to | from to 7/2018 | from to 7/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2998 | 2998 | 2998 | 2998 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 240/5500 | 240/5500 | 240/5500 | 240/5500 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 320/1500-3000 | 320/1500-3000 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 213 | 213 |
| Acceleration 0–100 km/h [s] | 5.1 | 5.0 | 5,1 | 5,0 | 9.0 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8-9.1 | 9.5-9.9 | 9,6-9,3 | 10,5-10,0 | 5.0-5.4 | 4.9-5.3 |
| Out of town [l] | 5.3-5.5 | 5.7-5.9 | 6,2-6,0 | 6,6-6,3 | 3.6-3.9 | 3.6-3.9 |
| Combined [l] | 6.6-6.8 | 7.1-7.4 | 7,5-7,2 | 8,0-7,6 | 4.1-4.5 | 4.1-4.4 |
| CO2 emissions [g/km] | 154-159 | 165-172 | 171-165 | 183-174 | 109-118 | 107-116 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1760 | 1695 | 1760 | 1585 | 1605 |
| Overall weight [kg] | 2175 | 2245 | 2175 | 2245 | 2070 | 2090 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1800 | 750/1700 | 750/1800 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 1000/1230 | 1065/1230 | - | 1065/1230 | 945/1215 | 945/1215 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.30 | 0.29 | 0.30 | 0.27 | 0.27 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/45 R18 91Y | 225/45 R18 91Y | 205/60 R16 92V | 205/60 R16 92V |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/45 R18 91Y | 225/45 R18 91Y | 205/60 R16 92V | 205/60 R16 92V |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8,0J x 18 | 8,0J x 18 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8,0J x 18 | 8,0J x 18 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.8/- | - | - | 11.3/- | 11.3/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 145 | 130 | 145 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 418d | 420d | 420d | 420d | 420d xDrive | 420d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to | from to 7/2018 | from to 7/2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 320/1500-3000 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 213 | 240 | 231 | 231 | 235 | 230 |
| Acceleration 0–100 km/h [s] | 9,0 | 7.5 | 7.3 | 7,4 | 7.6 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5-5,2 | 5.1-5.5 | 4.7-5.1 | 5,4-5,2 | 5.6-5.9 | 5.2-5.6 |
| Out of town [l] | 4,3-4,1 | 3.7-3.9 | 3.6-3.9 | 4,5-4,2 | 4.0-4.3 | 4.1-4.3 |
| Combined [l] | 4,8-4,5 | 4.2-4.5 | 4.0-4.3 | 4,8-4,6 | 4.6-4.9 | 4.5-4.8 |
| CO2 emissions [g/km] | 125-119 | 111-119 | 106-114 | 126-120 | 121-129 | 118-126 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1595 | 1615 | 1675 | 1670 | 1690 |
| Overall weight [kg] | 2120 | 2080 | 2100 | 2140 | 2155 | 2175 |
| Maximum trailer weight unbraked/braked [kg] | - | 745/1600 | 745/1600 | 760/1800 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | 945/1215 | 945/1215 | - | 1005/1230 | 1005/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | 21,9 | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | - | 11.8/- | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d xDrive | 430d | 430d | 430d xDrive | 430d xDrive | 435d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from 7/2018 to | from to 7/2018 | from 7/2018 to | from to 7/2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 190/4000 | 190/4000 | 190/4000 | 190/4000 | 230/4400 |
| Maximum torque [Nm/min-1] | 400/1750 -2500 | 560/1500 -3000 | 560/1500-3000 | 560/1500 -3000 | 560/1500-3000 | 630/1500 -2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16.5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.0 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 230 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,5 | 5.6 | 5,6 | 5.3 | 5,3 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,1-5,8 | 5.9-6.1 | 6,6-6,3 | 6.2-6.4 | 7,4-7,2 | 6.7-6.7 |
| Out of town [l] | 4,7-4,5 | 4.6-4.8 | 5,2-5,0 | 4.9-5.0 | 5,6-5,2 | 4.9-5.1 |
| Combined [l] | 5,2-5,0 | 5.1-5.3 | 5,7-5,5 | 5.3-5.5 | 6,2-6,0 | 5.6-5.7 |
| CO2 emissions [g/km] | 136-131 | 134-139 | 150-144 | 140-145 | 163-158 | 146-150 |
| Emission standard | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1690 | 1735 | 1755 | 1805 | 1775 |
| Overall weight [kg] | 2220 | 2175 | 2215 | 2240 | 2255 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | 760/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | 990/1225 | - | 1050/1230 | - | 1060/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | 21,9 | - | 21,9 | - | 21,9 | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | 11.3/- | - | 11.8/- | - | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 130 | 130 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 435d xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 230/4400 | |||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | 6.5 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4,8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,7-7,5 | |||||
| Out of town [l] | 5,6-5,4 | |||||
| Combined [l] | 6,3-6,2 | |||||
| CO2 emissions [g/km] | 167-162 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1825 | |||||
| Overall weight [kg] | 2275 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 480 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 57 | |||||
| AdBlue tank volume [l] | 21,9 | |||||
| Air resistance [Cd] | 0.30 | |||||
| Front suspension | MacPherson, lower cross arms | |||||
| Rear suspension | five-link | |||||
| Tyre dimensions front | 225/50 R17 94W | |||||
| Tyre dimensions rear | 225/50 R17 94W | |||||
| Wheel size front | 7.5J x 17 | |||||
| Wheel size rear | 7.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical power steering Servotronic | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | - | |||||
| Overall length [mm] | 4640 | |||||
| Overall width without/including mirrors [mm] | 1825/2017 | |||||
| Overall height [mm] | 1389 | |||||
| Wheelbase [mm] | 2810 | |||||
| Front wheel track [mm] | 1545 | |||||
| Rear wheel track [mm] | 1545 | |||||
| Forward overhang [mm] | 787 | |||||
| Rear overhang [mm] | 1041 | |||||
| Clearance [mm] | 145 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1011 | |||||
| Headroom rear [mm] | 944 | |||||
| Front elbow/shoulder width [mm] | 1447/- | |||||
| Rear elbow/shoulder width [mm] | 1444/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| 420i | 420i | 420i | 420i | 420i xDrive | 420i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from to 7/2018 | from 7/2018 to | from 7/2018 to | from to 7/2018 | from to 7/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 135/5000-6500 | 135/5000-6500 | 135/5000 | 135/5000 |
| Maximum torque [Nm/min-1] | 290/1350 -4600 | 270/1350 -4600 | 270/1350 -4600 | 290/1350 -4600 | 270/1350 -4600 | 270/1350 -4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 | 11.0 :1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 236 | 236 | 236 | 236 | 233 | 231 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.5 | 7.5 | 7.3 | 7.6 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7-8.1 | 7.1-7.6 | 7,2-6,8 | 8,3-8,2 | 8.7-9.0 | 7.7-8.1 |
| Out of town [l] | 4.7-4.9 | 4.5-4.7 | 5,5-5,3 | 5,5-5,3 | 5.4-5.7 | 4.8-5.1 |
| Combined [l] | 5.8-6.1 | 5.5-5.8 | 6,2-5,9 | 6,5-6,4 | 6.6-6.9 | 5.9-6.2 |
| CO2 emissions [g/km] | 134-141 | 127-134 | 140-134 | 148-145 | 154-161 | 137-144 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1570 | 1570 | 1550 | 1635 | 1645 |
| Overall weight [kg] | 1995 | 2015 | 2015 | 1995 | 2080 | 2090 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 750/1500 | 750/1400 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 940/ 1115 | 940/ 1115 | 940/ 1115 | 940/ 1115 | 995/1135 | 995/1135 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1377 | 1377 | 1392 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1543 | 1543 |
| Rear wheel track [mm] | 1593 | 1593 | 1593 | 1593 | 1589 | 1589 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420i xDrive | 430i | 430i | 430i | 430i xDrive | 430i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to | from to 7/2018 | from 7/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6500 | 185/5200 | 185/5200 | 185/5200-6500 | 185/5200 | 185/5200-6500 |
| Maximum torque [Nm/min-1] | 270/1350 -4600 | 350/1450 -4800 | 350/1450 -4800 | 350/1450-4800 | 350/1450 -4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0 :1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 231 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 5.9 | 5.8 | 5.8 | 5.8 | 5.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,7 | 7.9-8.4 | 7.0-7.4 | 7,1-6,9 | 7.5-7.8 | 7,9-7,8 |
| Out of town [l] | 6,2-5,9 | 5.1-5.4 | 4.7-4.9 | 5,7-5,5 | 5.0-5.2 | 6,2-5,9 |
| Combined [l] | 6,8-6,5 | 6.1-6.5 | 5.5-5.8 | 6,2-6,0 | 5.9-6.2 | 6,8-6,6 |
| CO2 emissions [g/km] | 155-149 | 143-151 | 129-136 | 142-136 | 138-144 | 156-150 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1565 | 1585 | 1585 | 1650 | 1650 |
| Overall weight [kg] | 2090 | 2010 | 2030 | 2030 | 2095 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 745/1600 | 745/1600 | 745/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 995/1135 | 940/ 1130 | 940/ 1130 | 940/ 1130 | 995/1140 | 995/1140 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.29 | 0.29 | 0.29 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.3/- | 11.3/- | 11.3/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1392 | 1377 | 1377 | 1377 | 1392 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1543 | 1547 | 1547 | 1547 | 1543 | 1543 |
| Rear wheel track [mm] | 1589 | 1593 | 1593 | 1593 | 1589 | 1589 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 130 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

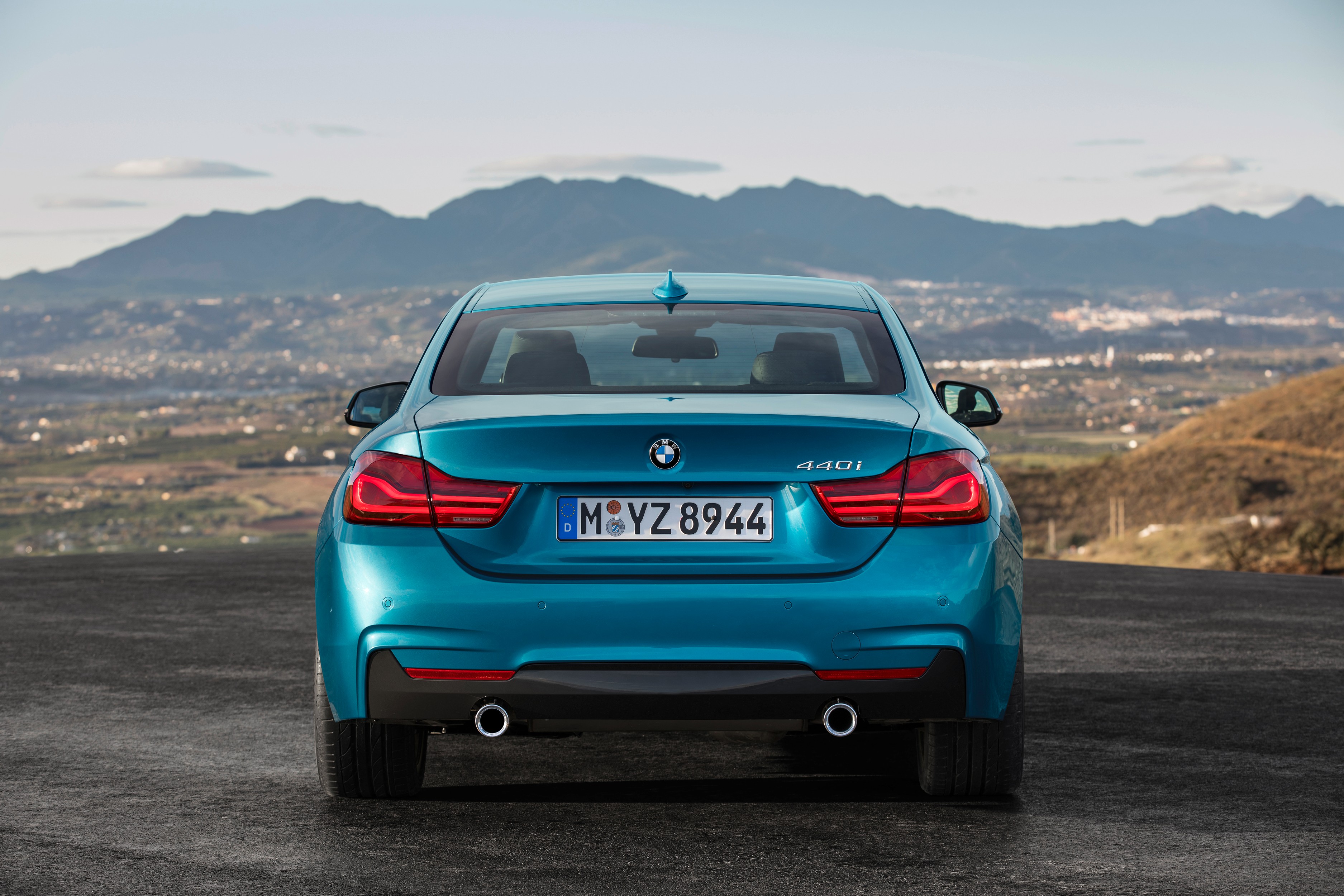

| 440i | 440i | 440i xDrive | 440i xDrive | 440i | 440i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from to 7/2018 | from to 7/2018 | from to 7/2018 | from 7/2018 to | from 7/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2998 | 2998 | 2998 | 2998 | 2998 | 2998 |
| Maximum output / speed [kW/min-1] | 240/5500 | 240/5500 | 240/5500 | 240/5500 | 240/5500 | 240/5500 |
| Maximum torque [Nm/min-1] | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.2 | 5.0 | 5.0 | 4.9 | 5.0 | 4.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0-10.4 | 8.8-9.1 | 10.4-10.7 | 9.3-9.7 | 9,6-9,3 | 10,2-9,7 |
| Out of town [l] | 5.9-6.1 | 5.3-5.5 | 6.1-6.3 | 5.6-5.9 | 6,2-6,0 | 6,5-6,2 |
| Combined [l] | 7.4-7.7 | 6.6-6.8 | 7.7-7.9 | 7.0-7.3 | 7,5-7,2 | 7,8-7,5 |
| CO2 emissions [g/km] | 172-179 | 154-159 | 179-185 | 162-169 | 170-164 | 179-170 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1630 | 1685 | 1700 | 1635 | 1700 |
| Overall weight [kg] | 2060 | 2075 | 2130 | 2145 | 2075 | 2145 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | 985/1130 | 985/1130 | 1040/1145 | 1040/1145 | 985/1130 | 1040/1145 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.29 | 0.31 | 0.31 | 0.29 | 0.31 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.8/- | 11.8/- | 11.3/- | 11.8/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1392 | 1392 | 1377 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1547 | 1547 | 1543 | 1543 | 1547 | 1543 |
| Rear wheel track [mm] | 1593 | 1593 | 1589 | 1589 | 1593 | 1589 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 145 | 130 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

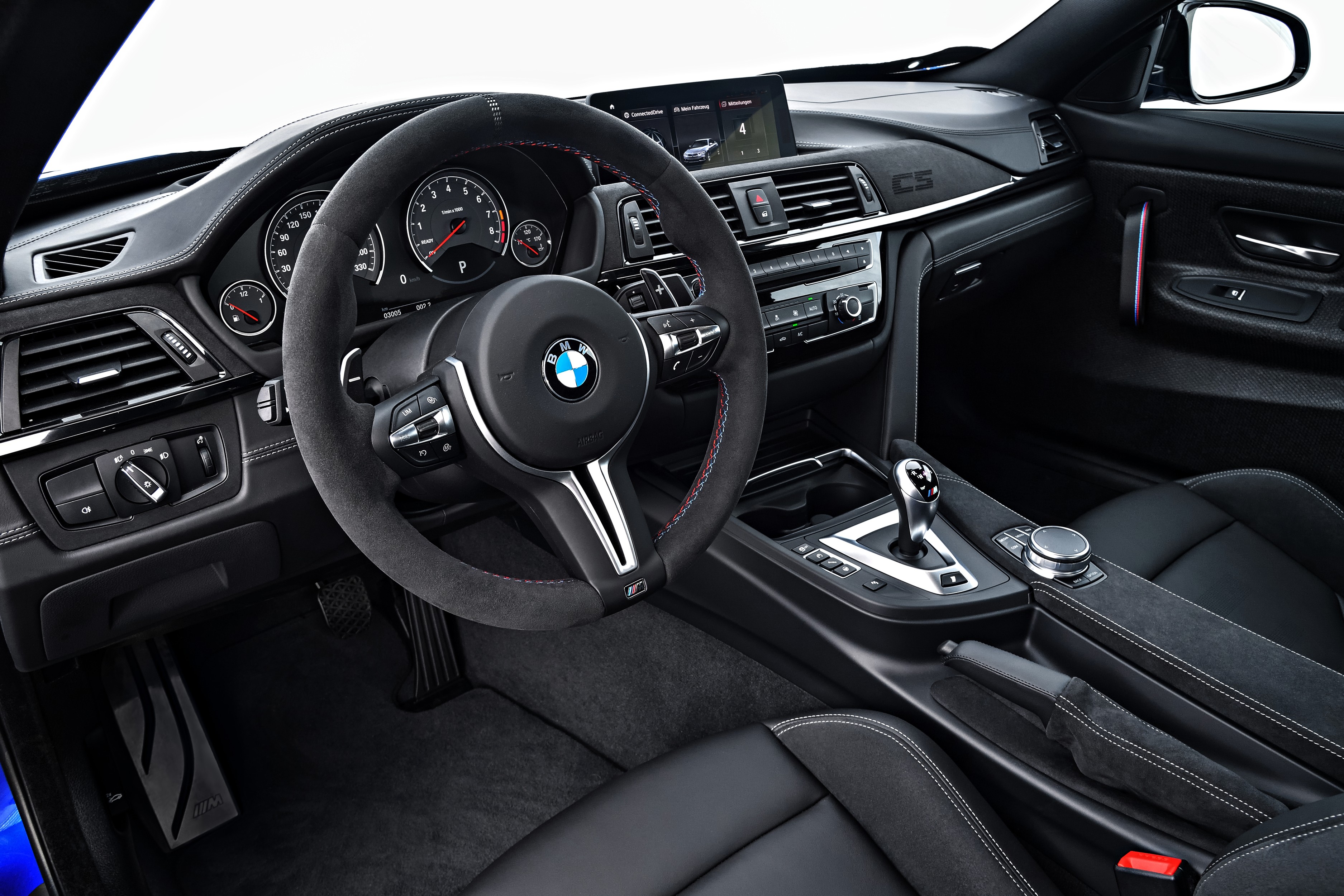

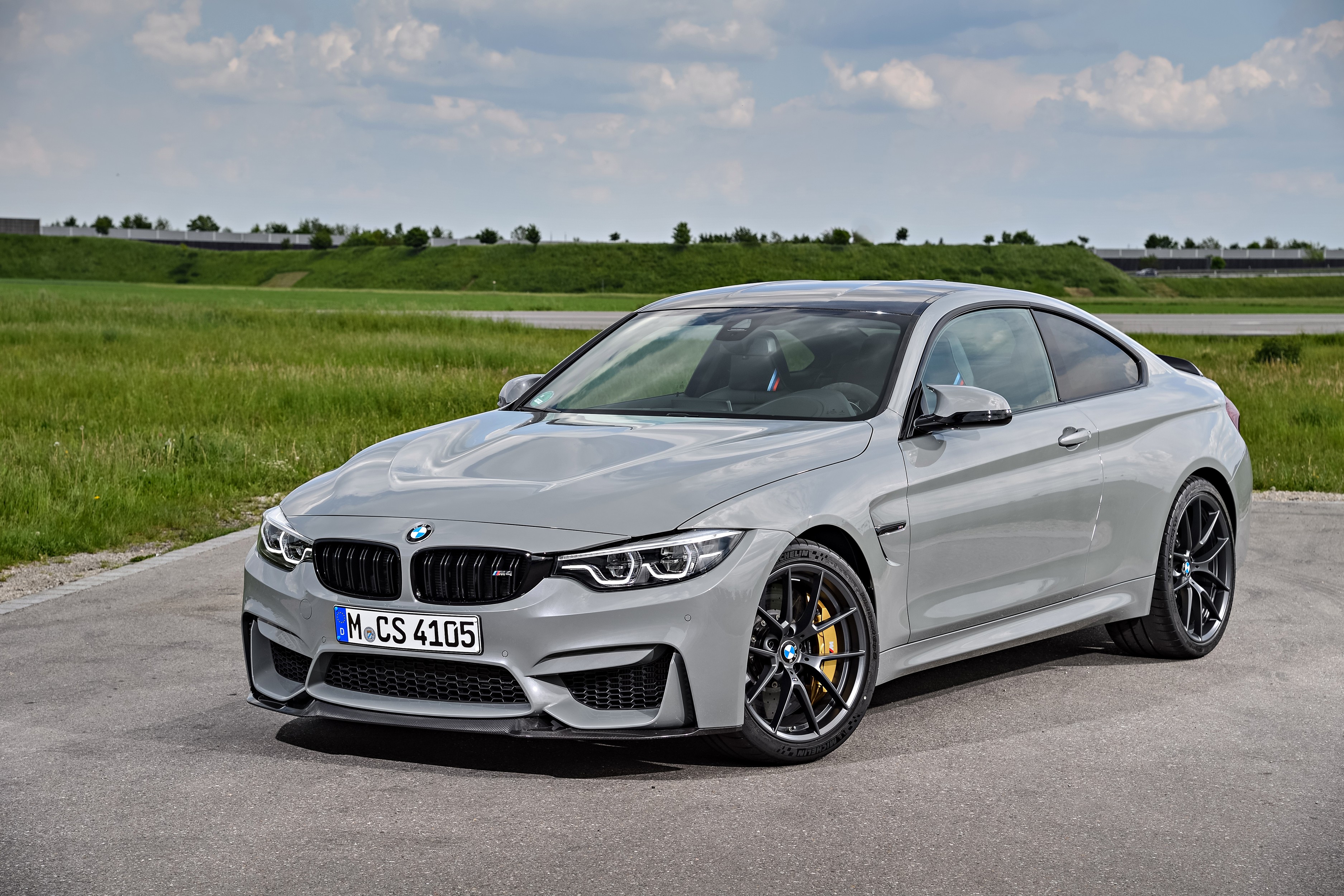

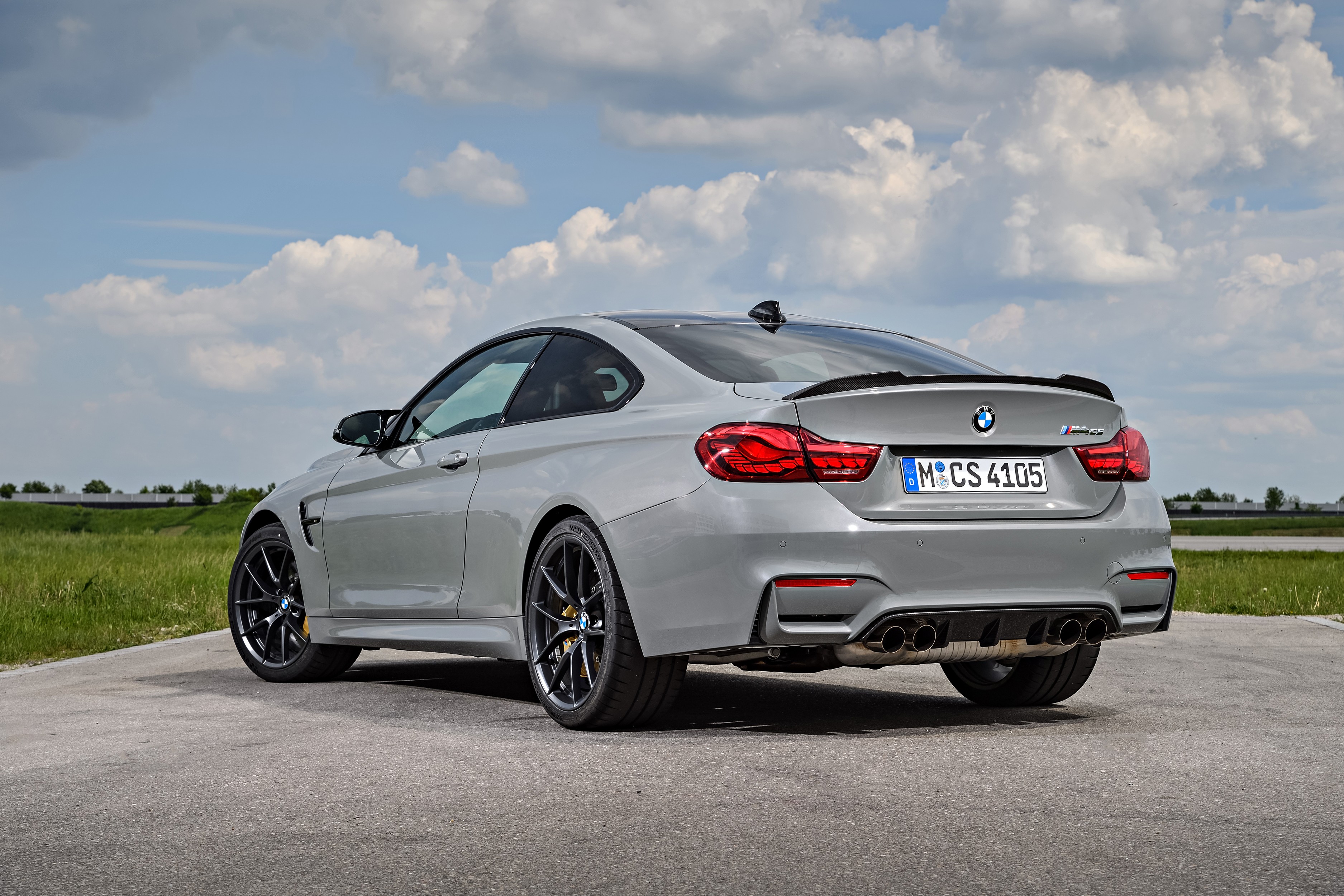

| M4 F82 | M4 F82 | M4 F82 CS | M4 F82 CS | M4 F82 CS | 420d | |
|---|---|---|---|---|---|---|
| Date of sale | from 8/2018 to | from 8/2018 to | from 8/2018 to | from 8/2018 to | from 4/2017 to 9/2018 | from to 7/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 2979 | 1995 |
| Maximum output / speed [kW/min-1] | 317/5550-6500 | 317/5550-6500 | 331/6250 | 331/6250 | 338/6250 | 140/4000 |
| Maximum torque [Nm/min-1] | 550/2350-5500 | 550/2350-5500 | 550/2350 -5500 | 550/2350 -5500 | 600/4000 -5380 | 400/1750 -2500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 16.5:1 |
| Oil volume [l] | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 5.0 |
| Coolant volume [l] | - | - | - | - | 10.0 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 280 | 240 |
| Acceleration 0–100 km/h [s] | 4.3 | 4.1 | 4.2 | 4.0 | 3.9 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.2 | 4.3 | - | - | 4.3 | - |
| City [l] | 12,6-12.6 | 11.7-11.6 | 12.6 -12.6 | 11,7-11,6 | 11.2 | 5.1-5.5 |
| Out of town [l] | 8.4-8.3 | 8.0-7.9 | 8.4 -8.3 | 8,0-7,9 | 6.8 | 3.7-3.9 |
| Combined [l] | 10.0-9.9 | 9.3-9.3 | 10.0 -9.9 | 9,3-9,3 | 8.4 | 4.2-4.5 |
| CO2 emissions [g/km] | 227-225 | 213 -211 | 227 -225 | 213-211 | 197 | 111-119 |
| Emission standard | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1670 | 1645 | 1670 | 1655 | 1550 |
| Overall weight [kg] | 2040 | 2040 | 2040 | 2040 | 2040 | 1995 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | 745/1600 |
| Maximum front/rear axle load [kg] | 970/ 1130 | 970/ 1130 | 970/1130 | 970/1130 | 970/1130 | 940/1120 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | - | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.36 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 255/40 ZR18 95Y | 255/40 ZR18 95Y | 265/30 ZR20 94Y XL TL | 265/30 ZR20 94Y XL TL | 265/35 ZR 19 98Y | 225/50 R17 94W |
| Tyre dimensions rear | 275/40 ZR18 99Y | 275/40 ZR18 99Y | 285/30 ZR20 99Y XL TL | 285/30 ZR20 99Y XL TL | 285/30 ZR 20 99Y | 225/50 R17 94W |
| Wheel size front | 9J x 18 | 9J x 18 | 9J x 20 | 9J x 20 | 9J x 19 | 7.5J x 17 |
| Wheel size rear | 10J x 18 | 10J x 18 | 10J x 20 | 10J x 20 | 10J x 20 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 11.3/- |
| Overall length [mm] | 4671 | 4671 | 4671 | 4671 | 4672 | 4640 |
| Overall width without/including mirrors [mm] | 1870/- | 1870/- | 1870/- | 1870/- | 1870/- | 1825/2017 |
| Overall height [mm] | 1383 | 1383 | 1392 | 1392 | 1392 | 1377 |
| Wheelbase [mm] | 2812 | 2812 | 2812 | 2812 | 2812 | 2810 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1547 |
| Rear wheel track [mm] | 1603 | 1603 | 1604 | 1604 | 1604 | 1593 |
| Forward overhang [mm] | 811 | 811 | 811 | 811 | - | 787 |
| Rear overhang [mm] | 1048 | 1048 | 1048 | 1048 | - | 1041 |
| Clearance [mm] | 120 | 120 | 121 | 121 | 121 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d | 420d | 420d xDrive | 420d xDrive | 420d xDrive | 430d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to | from to 7/2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 190/4000 |
| Maximum torque [Nm/min-1] | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 400/1750 -2500 | 560/1500 -3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16,5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 6.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 232 | 232 | 236 | 230 | 230 | 250 |
| Acceleration 0–100 km/h [s] | 7.1 | 7.2 | 7.4 | 7.2 | 7.3 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7-5.1 | 5,3-5,1 | 5.3-5.8 | 5.2-5.6 | 6,0-5,8 | 5.7-5.9 |
| Out of town [l] | 3.6-3.9 | 4,3-4,1 | 3.9-4.1 | 4.0-4.2 | 4,7-4,5 | 4.5-4.6 |
| Combined [l] | 4.0-4.3 | 4,7-4,5 | 4.4-4.7 | 4.4-4.7 | 5,2-5,0 | 4.9-5.1 |
| CO2 emissions [g/km] | 106-114 | 123-117 | 117-125 | 117-125 | 136-131 | 129-134 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1575 | 1615 | 1615 | 1635 | 1685 | 1615 |
| Overall weight [kg] | 2020 | 2065 | 2060 | 2080 | 2125 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | 940/1120 | - | 995/1125 | 995/1125 | - | 985/1120 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | 21,9 | - | - | 21,9 | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.8/- | 11.8/- | 11.8/- | 11.3/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1392 | 1392 | 1392 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1547 | 1547 | 1543 | 1543 | 1543 | 1547 |
| Rear wheel track [mm] | 1593 | 1593 | 1589 | 1589 | 1589 | 1593 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 145 | 145 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | 917 |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 430d | 430d xDrive | 430d xDrive | 435d xDrive | 435d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from 7/2018 to | from to 7/2018 | from 7/2018 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 190/4000 | 190/4000 | 190/4000 | 230/4400 | 230/4400 | |
| Maximum torque [Nm/min-1] | 560/1500-3000 | 560/1500 -3000 | 560/1500-3000 | 630/1500 -2500 | 630/1500-2500 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 5.5 | 5.2 | 5.2 | 4.7 | 4.7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,5-5,3 | 6.0-6.2 | 7,4-7,2 | 6.4-6.6 | 7,6-7,5 | |
| Out of town [l] | 5,3-5,1 | 4.8-4.9 | 5,7-5,3 | 4.9-5.0 | 5,6-5,5 | |
| Combined [l] | 5,8-5,5 | 5.2-5.4 | 6,2-6,1 | 5.4-5.6 | 6,4-6,2 | |
| CO2 emissions [g/km] | 151-145 | 137-142 | 163-159 | 143-147 | 167-163 | |
| Emission standard | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1695 | 1690 | 1755 | 1700 | 1770 | |
| Overall weight [kg] | 2105 | 2135 | 2180 | 2145 | 2190 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | - | 1040/1135 | - | 1050/1135 | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | |
| AdBlue tank volume [l] | 21,9 | - | 21,9 | - | 21,9 | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.30 | 0.30 | |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.3/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | |
| Overall height [mm] | 1392 | 1392 | 1392 | 1392 | 1392 | |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | |
| Front wheel track [mm] | 1547 | 1543 | 1543 | 1543 | 1543 | |
| Rear wheel track [mm] | 1593 | 1589 | 1589 | 1589 | 1589 | |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | |
| Clearance [mm] | 130 | 145 | 145 | 145 | 145 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | |
| Headroom rear [mm] | 917 | 917 | 917 | 917 | 917 | |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Convertible
| 420i | 420i | 420i | 430i | 430i | 430i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from to 7/2018 | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 135/5000-6500 | 185/5200 | 185/5200 | 185/5200-6500 |
| Maximum torque [Nm/min-1] | 290/1350 -4600 | 270/1350 -4600 | 290/1350 -4600 | 350/1450 -4800 | 350/1450 -4800 | 350/1450-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 11.0 :1 | 10.2:1 | 10.2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 230 | 230 | 230 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.4 | 8,4 | 6.4 | 6.3 | 6,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0-8.6 | 7.6-8.1 | 7,9-7,4 | 8.6-9.0 | 7.5-7.9 | 7,5-7,2 |
| Out of town [l] | 5.1-5.5 | 4.8-5.1 | 5,8-5,6 | 5.5-5.8 | 5.0-5.3 | 6,1-5,8 |
| Combined [l] | 6.2-6.6 | 5.8-6.2 | 6,6-6,3 | 6.6-7.0 | 5.9-6.3 | 6,6-6,3 |
| CO2 emissions [g/km] | 145-153 | 136-144 | 150-143 | 154-162 | 138-146 | 151-145 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1775 | 1790 | 1790 | 1785 | 1810 | 1810 |
| Overall weight [kg] | 2170 | 2185 | 2185 | 2170 | 2195 | 2195 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 750/1500 | 745/1600 | 745/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | 960/1250 | 960/1250 | 960/1250 | 965/1255 | 965/1255 | 965/1255 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 430i xDrive | 430i xDrive | 440i | 440i xDrive | 440i | 440i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 7/2018 | from 7/2018 to | from to 7/2018 | from to 7/2018 | from 7/2018 to | from 7/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1998 | 1998 | 2998 | 2998 | 2998 | 2998 |
| Maximum output / speed [kW/min-1] | 185/5200 | 185/5200-6500 | 240/5500 | 240/5500 | 240/5500 | 240/5500 |
| Maximum torque [Nm/min-1] | 350/1450 -4800 | 350/1450-4800 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 | 450/1380 -5000 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 10.2:1 | 10.2:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 5.25 | 5.25 | 6.5 | 6,5 | 6,5 | 6,5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.4 | 6,4 | 5.4 | 5.4 | 5,4 | 5,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1-8.5 | 8,2-8,0 | 9.1-9.5 | 9.8-10.3 | 9,9-9,6 | 10,9-10,4 |
| Out of town [l] | 5.4-5.7 | 6,7-6,3 | 5.5-5.8 | 5.8-6.1 | 6,4-6,2 | 6,9-6,5 |
| Combined [l] | 6.4-6.7 | 7,2-6,9 | 6.8-7.2 | 7.3-7.6 | 7,7-7,4 | 8,3-7,9 |
| CO2 emissions [g/km] | 149-156 | 165-158 | 159-167 | 169-177 | 176-169 | 190-181 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1880 | 1880 | 1845 | 1925 | 1845 | 1925 |
| Overall weight [kg] | 2255 | 2255 | 2230 | 2300 | 2230 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | 1035/1255 | 1035/1255 | 995/1255 | 1075/1255 | 995/1255 | 1075/1255 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.30 | 0.31 | 0.30 | 0.31 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.3/- | 11.8/- | 11.3/- | 11.8/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | - | 130 | 145 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M4 F82 | M4 F82 | M4 F82 CS | M4 F82 CS | 420d | 420d | |
|---|---|---|---|---|---|---|
| Date of sale | from 8/2018 to | from 8/2018 to | from 8/2018 to | from 8/2018 to | from to 7/2018 | from to 7/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 317/5550-6500 | 317/5550-6500 | 331/6250 | 331/6250 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 550/2350-5500 | 550/2350-5500 | 550/2350 -5500 | 550/2350 -5500 | 400/1750 -2500 | 400/1750 -2500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 6,5 | 6,5 | 6,5 | 6,5 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 250 [280 subject to a surcharge] | 235 | 228 |
| Acceleration 0–100 km/h [s] | 4.6 | 4.4 | 4.5 | 4.3 | 8.1 | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4.8 | 4.9 | - | - | - | - |
| City [l] | 12.9-12.8 | 12.0-11.9 | 12.9-12.8 | 12.0-11.9 | 5.7-6.1 | 5.2-5.6 |
| Out of town [l] | 8.7-8.5 | 8.2-8.0 | 8.7-8.5 | 8.2-8.0 | 4.3-4.5 | 3.9-4.2 |
| Combined [l] | 10.2-10.1 | 9.6-9.5 | 10.2-10.1 | 9.6-9.5 | 4.8-5.1 | 4.4-4.7 |
| CO2 emissions [g/km] | 233-230 | 218-215 | 233-230 | 218-215 | 127-134 | 116-124 |
| Emission standard | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | EU6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1865 | 1890 | 1865 | 1890 | 1775 | 1790 |
| Overall weight [kg] | 2250 | 2250 | 2250 | 2250 | 2170 | 2185 |
| Maximum trailer weight unbraked/braked [kg] | -/ | -/ | -/ | -/ | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 1050/ 1250 | 1050/ 1250 | 1050/ 1250 | 1050/ 1250 | 965/1255 | 965/1255 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | -/- | -/- | -/- | -/- | - | - |
| Boot volume [l] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0,28 | 0,28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 255/40 ZR18 95Y | 255/40 ZR18 95Y | 265/30 ZR20 94Y XL TL | 265/30 ZR20 94Y XL TL | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 275/40 ZR18 99Y | 275/40 ZR18 99Y | 285/30 ZR20 99Y XL TL | 285/30 ZR20 99Y XL TL | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 9J x 18 | 9J x 18 | 9J x 20 | 9J x 20 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 10J x 18 | 10J x 18 | 10J x 20 | 10J x 20 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4671 | 4671 | 4671 | 4671 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1870/- | 1870/- | 1870/- | 1870/- | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1386 | 1386 | 1392 | 1392 | 1384 | 1384 |
| Wheelbase [mm] | 2812 | 2812 | 2812 | 2812 | 2810 | 2810 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1545 | 1545 |
| Rear wheel track [mm] | 1603 | 1603 | 1604 | 1604 | 1594 | 1594 |
| Forward overhang [mm] | 811 | 811 | 811 | 811 | 787 | 787 |
| Rear overhang [mm] | 1048 | 1048 | 1048 | 1048 | 1041 | 1041 |
| Clearance [mm] | 120 | 120 | 119 | 119 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d | 430d | 430d | 435d xDrive | 435d xDrive | ||
|---|---|---|---|---|---|---|
| Date of sale | from 7/2018 to | from to 7/2018 | from 7/2018 to | from to 7/2018 | from 7/2018 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 1995 | 2993 | 2993 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 140/4000 | 190/4000 | 190/4000 | 230/4400 | 230/4400 | |
| Maximum torque [Nm/min-1] | 400/1750 -2500 | 560/1500 -3000 | 560/1500-3000 | 630/1500 -2500 | 630/1500-2500 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16.5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | 5.0 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 228 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 8,1 | 5.9 | 5,9 | 5.2 | 5,2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,6-5,4 | 6.1-6.3 | 6,9-6,6 | 6.8-7.0 | 7,9-7,7 | |
| Out of town [l] | 4,7-4,4 | 4.8-5.0 | 5,6-5,3 | 5.2-5.3 | 5,8-5,6 | |
| Combined [l] | 5,0-4,7 | 5.3-5.5 | 6,0-5,8 | 5.7-5.9 | 6,6-6,4 | |
| CO2 emissions [g/km] | 131-124 | 139 | 158-152 | 151-155 | 172-168 | |
| Emission standard | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1835 | 1845 | 1905 | 1925 | 1980 | |
| Overall weight [kg] | 2230 | 2220 | 2275 | 2290 | 2350 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | 965/1255 | 1025/1230 | - | 1095/1230 | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | 370 [220 folded roof] | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | |
| AdBlue tank volume [l] | 21,9 | - | 21,9 | - | 21,9 | |
| Air resistance [Cd] | 0,28 | 0.29 | 0.29 | 0.30 | 0.30 | |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | Electro-mechanical power steering Servotronic | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.8/- | 11.8/- | |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | |
| Clearance [mm] | - | 130 | - | 145 | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | |
| Front elbow/shoulder width [mm] | 1466/- | 1466/- | 1466/- | 1466/- | 1466/- | |
| Rear elbow/shoulder width [mm] | 1321/- | 1321/- | 1321/- | 1321/- | 1321/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
