BMW 4
Date of manufacture
2014 – 2017 (Liftback)
2013 – 2017 (Coupé)
2013 – 2017 (Convertible)
Platform
-
Manufacturing locations
Munich, Germany
Regensburg, Germany
Dingolfing, Germany
Designer
Nicolas Huet
Tags
D-segment
German cars
The new BMW 4 brings to the market the body variants liftback, coupe and convertible. Since 2013 it has been manufactured in Germany and offers a wide range of engines from petrol to diesel. The most powerful model is the M4 GTS F82 with 368 kW, the fastest model is also the M4 GTS F82 with a maximum speed of 305 km/h. The most economical car will be the 420d with a combined consumption of 4 l/100 km and CO2 emissions of 106 g/km. The liftback has a luggage compartment volume of 480 l, the coupe 445 l and the convertible 370 l.
Car body style

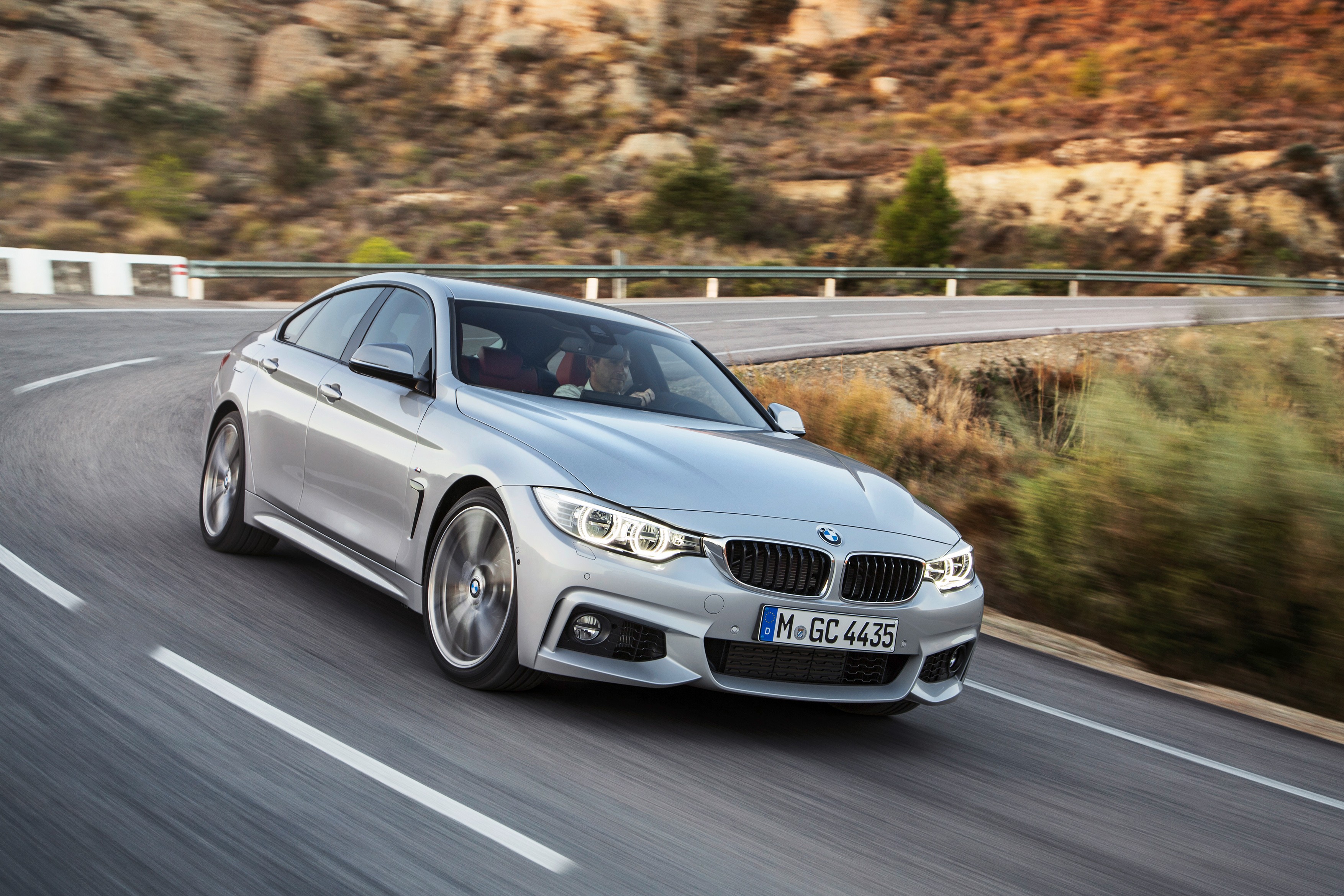

Liftback (Gran Coupe)
Date of manufacture
2014 – 2017Internal designation

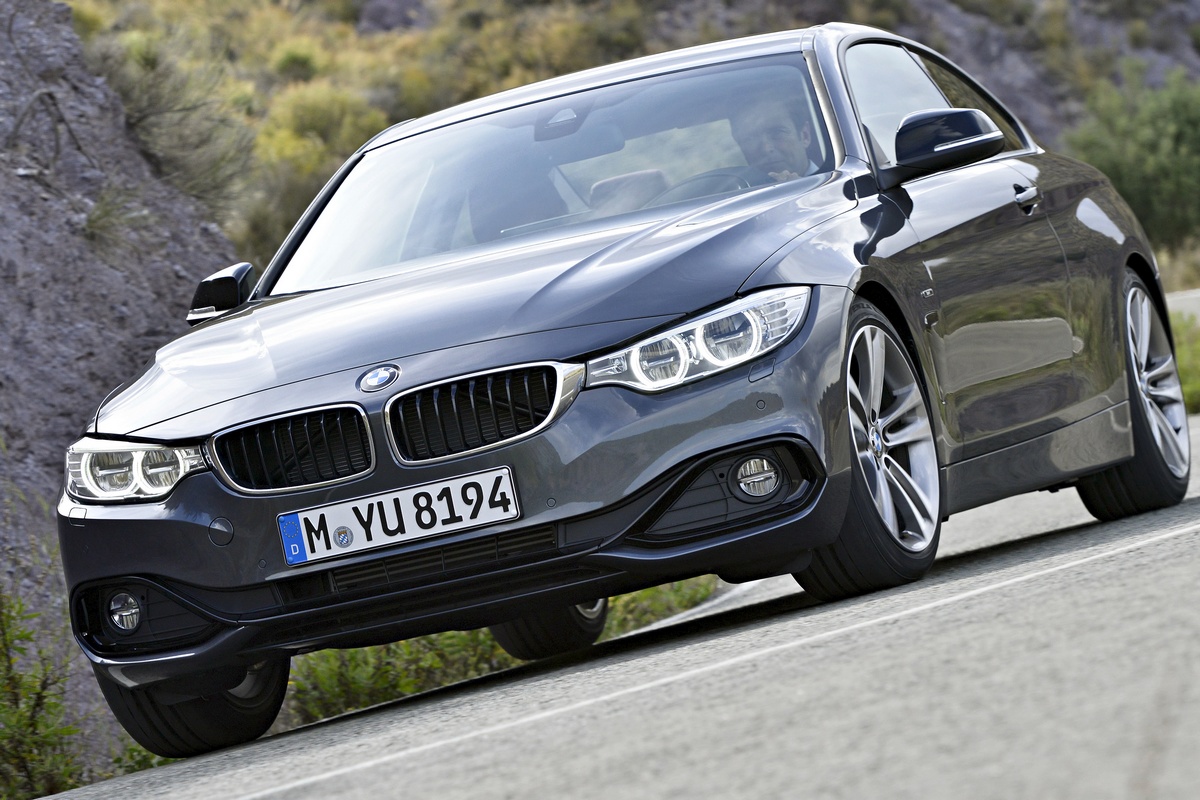

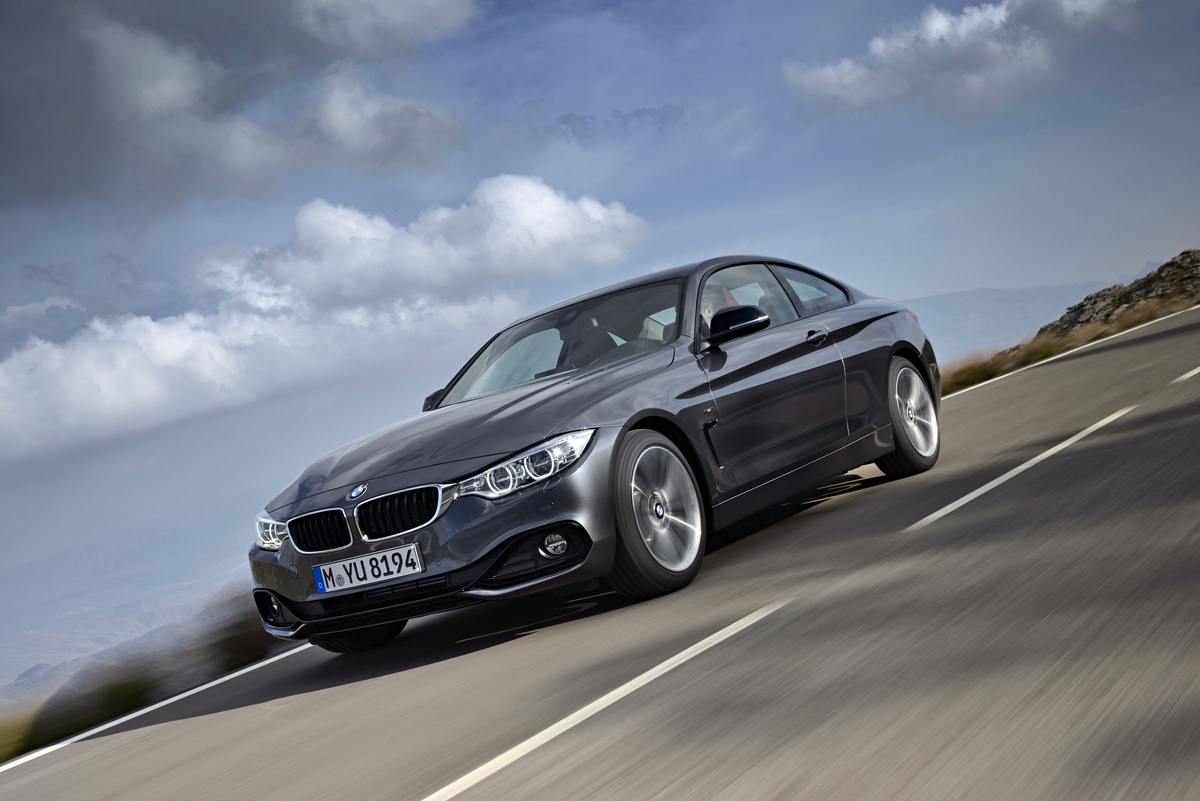

F36Coupé
Date of manufacture
2013 – 2017Internal designation
F32Engine size

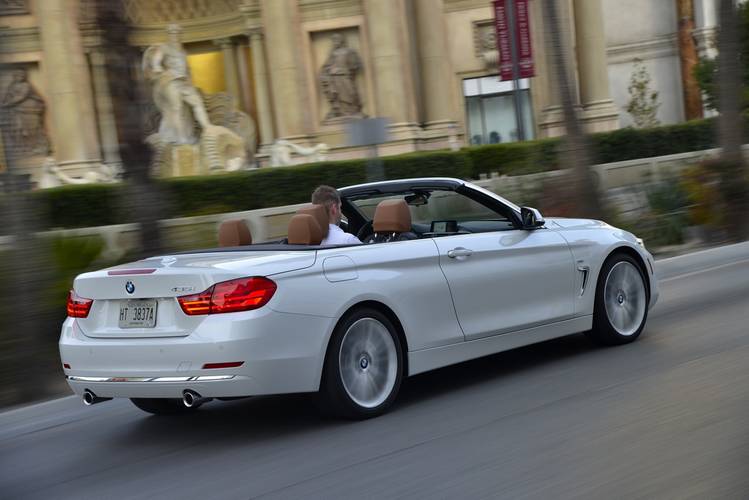

Convertible
Date of manufacture
2013 – 2017Internal designation
F33Technical data
Liftback (Gran Coupe)
| 420i | 420i | 420i xDrive | 420i xDrive | 420i | 420i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from to 3/2016 | from 7/2014 to 3/2016 | from 7/2014 to 3/2016 | from 3/2016 to | from 3/2016 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 135/5000 | 135/5000 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 270/1350 -4600 | 270/1350 -4600 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11.0:1 | 11.0:1 | 11.0 :1 | 11.0 :1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.25 | 5.25 |
| Coolant volume [l] | 7.6 | 7.6 | 6.9 | 7.6 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 236 | 236 | 233 | 231 | 236 | 236 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.6 | 7.6 | 7.9 | 7.5 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9,4 | - | 9.4 | - | 9.8 | - |
| City [l] | 8.7 | 8.2 | 9.1-9.3 | 8.6-8.8 | 7.7-8.1 | 7.1-7.6 |
| Out of town [l] | 5.1 | 4.9 | 5.7-5.8 | 5.1-5.2 | 4.7-4.9 | 4.5-4.7 |
| Combined [l] | 6.4 | 6.1 | 6.9-7.1 | 6.4-6.5 | 5.8-6.1 | 5.5-5.8 |
| CO2 emissions [g/km] | 149 | 142 | 161-164 | 149-152 | 134-141 | 127-134 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1580 | 1645 | 1660 | 1595 | 1615 |
| Overall weight [kg] | 2040 | 2065 | 2130 | 2145 | 2080 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 750/1700 | 750/1700 | 695/1400 | 695/1500 |
| Maximum front/rear axle load [kg] | 920/1195 | 920/1195 | 985/1215 | 985/1215 | 945/ 1210 | 945/ 1210 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |

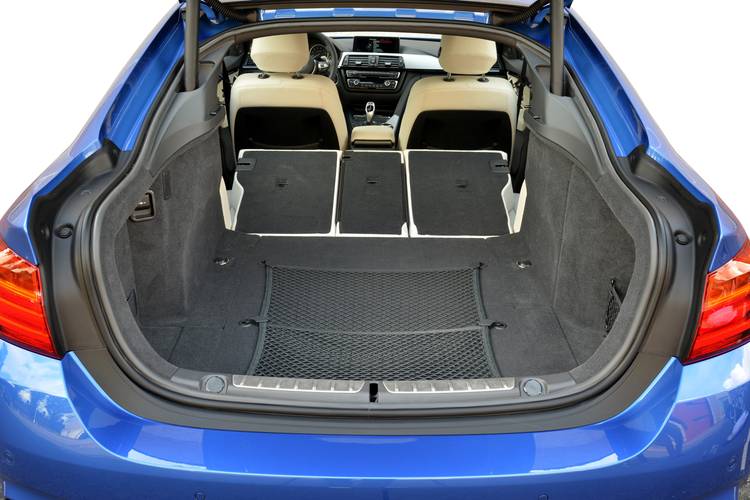

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.30 | 0.30 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.8/- | 11.8/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1404 | 1404 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1544 | 1544 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1590 | 1590 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 145 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420i xDrive | 420i xDrive | 428i | 428i | 428i xDrive | 428i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2016 to | from 3/2016 to | from to 3/2016 | from to 3/2016 | from to 3/2016 | from to 3/2016 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 |
| Maximum torque [Nm/min-1] | 270/1350 -4600 | 270/1350 -4600 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | - | - | 7.6 | 7.6 | 7.6 | 7.6 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 233 | 231 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 8.1 | 6.1 | 6.0 | 5.8 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9.6 | - | 7,1 | - | 6,8 | - |
| City [l] | 8.7-9.0 | 7.7-8.1 | 8.9 | 8.2 | 9.0 | 8.7 |
| Out of town [l] | 5.4-5.7 | 4.8-5.1 | 5.3 | 5.2 | 5.5 | 5.5 |
| Combined [l] | 6.6-6.9 | 5.9-6.2 | 6.6 | 6.3 | 6.8 | 6.7 |
| CO2 emissions [g/km] | 154-161 | 137-144 | 154 | 147 | 159 | 157 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1675 | 1690 | 1585 | 1605 | 1655 | 1670 |
| Overall weight [kg] | 2160 | 2175 | 2070 | 2090 | 2140 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 745/1600 | 745/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 995/ 1230 | 995/ 1230 | 930/1210 | 930/1210 | 990/1220 | 990/1220 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.29 | 0.29 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.3 | 11.3 | 11.8 | 11.8 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1404 | 1404 | 1389 | 1389 | 1404 | 1404 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1544 | 1544 | 1545 | 1545 | 1544 | 1544 |
| Rear wheel track [mm] | 1590 | 1590 | 1594 | 1594 | 1590 | 1590 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 145 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 430i | 430i | 430i xDrive | 435i | 435i | 435i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2016 to | from 3/2016 to | from 3/2016 to | - | - | from 7/2014 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2979 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 185/5200 | 185/5200 | 185/5200 | 225/5800-6400 | 225/5800-6400 | 225/5800-6400 |
| Maximum torque [Nm/min-1] | 350/1450 -4800 | 350/1450 -4800 | 350/1450 -4800 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10,2:1 | 10,2:1 | 10.2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 6.5 | 6.5 | 6.5 |
| Coolant volume [l] | - | - | - | 7.2 | 7.2 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.9 | 5.9 | 5.9 | 5.5 | 5.2 | 5.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.2 | - | - | 6,1 | - | 6.5 |
| City [l] | 7.9-8.4 | 7.0-7.4 | 7.5-7.8 | 11.4 | 10.7 | 11.7-11.9 |
| Out of town [l] | 5.1-5.4 | 4.7-4.9 | 5.0-5.2 | 6.2 | 5.6 | 6.4-6.5 |
| Combined [l] | 6.1-6.5 | 5.5-5.8 | 5.9-6.2 | 8.1 | 7.5 | 8.3-8.5 |
| CO2 emissions [g/km] | 143-151 | 129-136 | 138-144 | 189 | 174 | 194-198 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1615 | 1690 | 1650 | 1660 | 1715 |
| Overall weight [kg] | 2080 | 2100 | 2175 | 2135 | 2145 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 750/1700 | 750/1700 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | 940/ 1215 | 940/ 1215 | 995/ 1230 | 985/1220 | 985/1220 | 1040/1220 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.30 | 0.29 | 0.29 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.8/- | 11.3 | 11.3 | 11.8/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1404 | 1389 | 1389 | 1404 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1544 | 1545 | 1545 | 1544 |
| Rear wheel track [mm] | 1594 | 1594 | 1590 | 1594 | 1594 | 1590 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 130 | 130 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 435i xDrive | 440i | 440i xDrive | 418d | 418d | 418d | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2014 to | from 3/2016 to | from 3/2016 to | from to 7/2015 | from to 7/2015 | from 7/2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2998 | 2998 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 240/5500 | 240/5500 | 105/4000 | 105/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 450/1380 -5000 | 450/1380 -5000 | 320/1750-2500 | 320/1750-2500 | 320/1500-3000 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10.2:1 | 11.0:1 | 11.0:1 | 16,5:1 | 16,5:1 | 16.5:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 5.2 | 5.2 | 5.0 |
| Coolant volume [l] | 7.2 | - | - | 7.0 | 7.0 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 | 250 | 213 | 213 | 213 |
| Acceleration 0–100 km/h [s] | 5.0 | 5.1 | 5.0 | 9.2 | 9.1 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 10,2 | - | 10.2 |
| City [l] | 11.1-11.4 | 8.8-9.1 | 9.5-9.9 | 5.4 | 5.5 | 5.0-5.4 |
| Out of town [l] | 5.8-5.9 | 5.3-5.5 | 5.7-5.9 | 4.0 | 4.0 | 3.6-3.9 |
| Combined [l] | 7.8-7.9 | 6.6-6.8 | 7.1-7.4 | 4.5 | 4.5 | 4.1-4.5 |
| CO2 emissions [g/km] | 181-185 | 154-159 | 165-172 | 119 | 119 | 109-118 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1725 | 1690 | 1760 | 1565 | 1585 | 1585 |
| Overall weight [kg] | 2210 | 2175 | 2245 | 2050 | 2070 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1700 | 750/1800 | 745/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 1040/1220 | 1000/ 1230 | 1065/ 1230 | 920/1200 | 920/1200 | 935/ 1215 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.29 | 0.30 | 0,27-0,28 | 0,27-0,28 | 0.27 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 6.0J x 16 | 6.0J x 16 | 7J x 16 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 6.0J x 16 | 6.0J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.3/- | 11.8/- | 11.3 | 11.3 | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1404 | 1389 | 1404 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1544 | 1545 | 1544 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1590 | 1594 | 1590 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 130 | 145 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 418d | 420d | 420d | 420d xDrive | 420d xDrive | 420d | |
|---|---|---|---|---|---|---|
| Date of sale | from 7/2015 to | from to 3/2015 | from to 3/2015 | from to 3/2015 | from to 3/2015 | from 3/2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 135/4000 | 135/4000 | 135/4000 | 135/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 320/1500-3000 | 380/1750-2750 | 380/1750-2750 | 380/1750-2750 | 380/1750-2750 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16.5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.2 | 5.2 | 5.2 | 5.2 | 5.0 |
| Coolant volume [l] | - | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - | - |
|
| - |
| Top speed [km/h] | 213 | 236 | 231 | 234 | 229 | 240 |
| Acceleration 0–100 km/h [s] | 8.9 | 7.7 | 7.5 | 7.7 | 7.5 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 7,9 | - | 8,5 | - | 7.9 |
| City [l] | 4.9-5.3 | 5.8 | 5.4 | 6.1 | 5.7 | 5.1-5.5 |
| Out of town [l] | 3.6-3.9 | 4.1 | 4.1 | 4.2 | 4.3 | 3.7-3.9 |
| Combined [l] | 4.1-4.4 | 4.7 | 4.6 | 4.9 | 4.8 | 4.2-4.5 |
| CO2 emissions [g/km] | 107-116 | 124 | 121 | 129 | 127 | 111-119 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1585 | 1600 | 1660 | 1675 | 1595 |
| Overall weight [kg] | 2090 | 2070 | 2085 | 2145 | 2160 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 750/1600 | 750/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 935/ 1215 | 940/1200 | 940/1200 | 995/1215 | 995/1215 | 945/ 1215 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.28 | 0.29 | 0.29 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 205/60 R16 92V | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94V |
| Tyre dimensions rear | 205/60 R16 92V | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94V |
| Wheel size front | 7J x 16 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3 | 11.3 | 11.8 | 11.8 | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1389 | 1389 | 1404 | 1404 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1557 | 1545 | 1545 | 1544 | 1544 | 1545 |
| Rear wheel track [mm] | 1605 | 1594 | 1594 | 1590 | 1590 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 145 | 145 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d | 420d xDrive | 420d xDrive | 425d | 425d | 430d | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2015 to | from 3/2015 to | from 3/2015 to | from 3/2016 to | from 3/2016 to | from 7/2014 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 2993 |
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 165/4400 | 165/4400 | 190/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 450/1500-3000 | 450/1500-3000 | 560/1500 -3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 6.5 |
| Coolant volume [l] | 7.0 | 7.0 | 7.0 | - | - | 7.2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 231 | 235 | 230 | 247 | 247 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.6 | 7.4 | 6.7 | 6.3 | 5.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 8.5 | - | 6.5 | - | - |
| City [l] | 4.7-5.1 | 5.6-5.9 | 5.2-5.6 | 5.8-6.1 | 5.2-5.7 | 5.9-6.1 |
| Out of town [l] | 3.6-3.9 | 4.0-4.3 | 4.1-4.3 | 4.1-4.5 | 4.2-4.3 | 4.6-4.8 |
| Combined [l] | 4.0-4.3 | 4.6-4.9 | 4.5-4.8 | 4.7-5.1 | 4.6-4.8 | 5.1-5.3 |
| CO2 emissions [g/km] | 106-114 | 121-129 | 118-126 | 125-133 | 120-127 | 134-138 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1670 | 1690 | 1625 | 1635 | 1680 |
| Overall weight [kg] | 2100 | 2155 | 2175 | 2110 | 2120 | 2165 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | 945/ 1215 | 1005/ 1230 | 1005/ 1230 | 955/1230 | 955/1230 | 990/1225 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.8/- | 11.8/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1389 | 1404 | 1404 | 1389 | 1389 | 1389 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1544 | 1544 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1590 | 1590 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 145 | 145 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 430d xDrive | 435d xDrive | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 7/2014 to | from 7/2014 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2993 | 2993 | ||||
| Maximum output / speed [kW/min-1] | 190/4000 | 230/4400 | ||||
| Maximum torque [Nm/min-1] | 560/1500 -3000 | 630/1500 -2500 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | 6.5 | 6.5 | ||||
| Coolant volume [l] | 7.2 | 7.2 | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5.3 | 4.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.2-6.5 | 6.7-6.7 | ||||
| Out of town [l] | 4.9-4.9 | 4.9-5.1 | ||||
| Combined [l] | 5.3-5.5 | 5.6-5.7 | ||||
| CO2 emissions [g/km] | 140-144 | 146-149 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1750 | 1760 | ||||
| Overall weight [kg] | 2235 | 2245 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | ||||
| Maximum front/rear axle load [kg] | 1050/1230 | 1060/1230 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75 /- | 75/- | ||||
| Boot volume [l] | 480 | 480 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 57 | 57 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.30 | ||||
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | ||||
| Rear suspension | five-link | five-link | ||||
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | ||||
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | ||||
| Wheel size front | 7,5J x 17 | 7,5J x 17 | ||||
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | ||||
| Overall length [mm] | 4638 | 4638 | ||||
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | ||||
| Overall height [mm] | 1404 | 1404 | ||||
| Wheelbase [mm] | 2810 | 2810 | ||||
| Front wheel track [mm] | 1544 | 1544 | ||||
| Rear wheel track [mm] | 1590 | 1590 | ||||
| Forward overhang [mm] | 787 | 787 | ||||
| Rear overhang [mm] | 1041 | 1041 | ||||
| Clearance [mm] | 145 | 145 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1011 | 1011 | ||||
| Headroom rear [mm] | 944 | 944 | ||||
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | ||||
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Coupé
| 420i | 420i | 420i xDrive | 420i xDrive | 420i | 420i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from to 3/2016 | from to 3/2016 | from to 3/2016 | from 3/2016 to | from 3/2016 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 135/5000 | 135/5000 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 270/1350-4600 | 270/1350-4600 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11.0 :1 | 11.0 :1 |
| Oil volume [l] | 5,0 | 5,0 | 4,8 | 4,8 | 5.25 | 5.25 |
| Coolant volume [l] | 7,2 | 7,5 | 7,2 | 7,5 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 236 | 236 | 233 | 231 | 236 | 236 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.3 | 7.4 | 7.5 | 7.3 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9,0 | - | 8,7 | - | 9.5 | - |
| City [l] | 8.4-8.6 | 8.1-8.2 | 8.9-9.1 | 8.6-8.8 | 7.7-8.1 | 7.1-7.6 |
| Out of town [l] | 4.9-5.0 | 4.8-4.9 | 5.6-5.7 | 5.1-5.2 | 4.7-4.9 | 4.5-4.7 |
| Combined [l] | 6.1-6.3 | 6.0-6.1 | 6.8-7.0 | 6.4-6.5 | 5.8-6.1 | 5.5-5.8 |
| CO2 emissions [g/km] | 144-147 | 139-142 | 159-162 | 149-152 | 134-141 | 127-134 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1525 | 1595 | 1605 | 1550 | 1570 |
| Overall weight [kg] | 1950 | 1970 | 2040 | 2050 | 1995 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 750/1700 | 750/1700 | 695/1400 | 695/1500 |
| Maximum front/rear axle load [kg] | 910/1095 | 910/1095 | 975/1110 | 975/1110 | 940/ 1115 | 940/ 1115 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.3 | 0.3 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.8 | 11.8 | 11.3/- | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1392 | 1392 | 1377 | 1377 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 145 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420i xDrive | 420i xDrive | 428i | 428i | 428i xDrive | 428i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2016 to | from 3/2016 to | from to 3/2016 | from to 3/2016 | from to 3/2016 | from to 3/2016 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 | 180/5000-6500 |
| Maximum torque [Nm/min-1] | 270/1350-4600 | 270/1350-4600 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 11.0 :1 | 11.0 :1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.75 | 5.75 | 5.75 | 5.75 |
| Coolant volume [l] | - | - | 7,2 | 7,5 | 7.2 | 7.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 233 | 231 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.8 | 5.9 | 5.8 | 5.6 | 5.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9.1 | - | 6,9 | - | - | - |
| City [l] | 8.7-9.0 | 7.7-8.1 | 8.8-8.9 | 8.1-8.3 | 9.0-9.2 | 8.7-8.8 |
| Out of town [l] | 5.4-5.7 | 4.8-5.1 | 5.3 | 5.2-5.3 | 5.5-5.6 | 5.5-5.6 |
| Combined [l] | 6.6-6.9 | 5.9-6.2 | 6.6-6.7 | 6.3-6.4 | 6.8-6.9 | 6.7-6.8 |
| CO2 emissions [g/km] | 154-161 | 137-144 | 154-156 | 147-149 | 159-162 | 157-159 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1645 | 1525 | 1545 | 1605 | 1615 |
| Overall weight [kg] | 2080 | 2090 | 1970 | 1990 | 2050 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 745/1600 | 745/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 995/ 1135 | 995/ 1135 | 920/1105 | 920/1105 | 980/1115 | 980/1115 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.29 | 0.29 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.3 | 11.3 | 11.8 | 11.8 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1392 | 1392 | 1377 | 1377 | 1392 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1544 | 1544 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1590 | 1590 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 145 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 430i | 430i | 430i xDrive | 435i | 435i | 435i xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from 3/2016 to | from 3/2016 to | from 3/2016 to | from to 3/2016 | from to 3/2016 | from to 3/2016 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 2979 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 185/5200 | 185/5200 | 185/5200 | 225/5800-6400 | 225/5800-6400 | 225/5800-6400 |
| Maximum torque [Nm/min-1] | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10,2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 6,5 | 6,5 | 6.5 |
| Coolant volume [l] | - | - | - | 6,7 | 7,2 | 6.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.9 | 5.8 | 5.8 | 5.4 | 5.1 | 5.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.1 | - | - | 5,9 | - | - |
| City [l] | 7.9-8.4 | 7.0-7.4 | 7.5-7.8 | 11.1-11.4 | 10.2-10.6 | 11.6-11.9 |
| Out of town [l] | 5.1-5.4 | 4.7-4.9 | 5.0-5.2 | 6.1-6.2 | 5.5 | 6.3-6.5 |
| Combined [l] | 6.1-6.5 | 5.5-5.8 | 5.9-6.2 | 7.9-8.1 | 7.2-7.4 | 8.2-8.4 |
| CO2 emissions [g/km] | 143-151 | 129-136 | 138-144 | 185-189 | 169-172 | 193-197 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1585 | 1650 | 1585 | 1600 | 1655 |
| Overall weight [kg] | 2010 | 2030 | 2095 | 2030 | 2045 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 750/1700 | 750/1700 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | 940/ 1130 | 940/ 1130 | 995/ 1140 | 970/1120 | 970/1120 | 1030/1120 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.30 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.8/- | 11.3 | 11.3 | 11.8 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1392 | 1377 | 1377 | 1377 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1544 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1590 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 145 | 130 | 130 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 435i xDrive | 440i | 440i | 440i xDrive | 440i xDrive | M4 F82 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from 3/2016 to | from 3/2016 to | from 3/2016 to | from 3/2016 to | from 12/2013 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2979 | 2998 | 2998 | 2998 | 2998 | 2979 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 240/5500 | 240/5500 | 240/5500 | 240/5500 | 317/5500-7300 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 | 550/1850-5500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 89,6 |
| Compression ratio | 10,2:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10,2:1 |
| Oil volume [l] | 6.5 | 6,5 | 6,5 | 6.5 | 6.5 | 6,5 |
| Coolant volume [l] | 7,2 | - | - | - | - | 13,9 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.9 | 5,2 | 5,0 | 5.0 | 4.9 | 4.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 5,2 | - | 5.5 | - | 4,2 |
| City [l] | 10.8-11.1 | 10,0-10,4 | 8,8-9,1 | 10.4-10.7 | 9.3-9.7 | 12.0 |
| Out of town [l] | 5.8 | 5,9-6,1 | 5,3-5,5 | 6.1-6.3 | 5.6-5.9 | 6.9 |
| Combined [l] | 7.6-7.8 | 7,4-7,7 | 6,6-6,8 | 7.7-7.9 | 7.0-7.3 | 8.8 |
| CO2 emissions [g/km] | 178-181 | 172-179 | 154-159 | 179-185 | 162-169 | 204 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1615 | 1630 | 1685 | 1700 | 1572 |
| Overall weight [kg] | 2110 | 2060 | 2075 | 2130 | 2145 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1700 | 750/1700 | 750/1800 | 750/1800 | - |
| Maximum front/rear axle load [kg] | 1030/1120 | 985/ 1130 | 985/ 1130 | 1040/ 1145 | 1040/ 1145 | 970/1130 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0,30 | 0,30 | 0.30 | 0.30 | 0.34 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 255/40 ZR18 95Y |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 275/40 ZR18 99Y |
| Wheel size front | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 9 J x 18 |
| Wheel size rear | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 10 J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11,3/- | 11,3/- | 11.8/- | 11.8/- | 12.2 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4671 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1870/- |
| Overall height [mm] | 1377 | 1377 | 1377 | 1392 | 1392 | 1383 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1544 | 1544 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1590 | 1590 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 811 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1048 |
| Clearance [mm] | 145 | 130 | 130 | 145 | 145 | 121 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M4 F82 | M4 GTS F82 | 418d | 418d | 420d | 420d | |
|---|---|---|---|---|---|---|
| Date of sale | from 12/2013 to | from 10/2015 to | from 7/2015 to | from 7/2015 to | from to 3/2015 | from to 3/2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 317/5500-7300 | 368/6250 | 110/4000 | 110/4000 | 135/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 550/1850-5500 | 600/4000-5000 | 320/1500-3000 | 320/1500-3000 | 380/1750-2750 | 380/1750-2750 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 16.5:1 | 16.5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 6,5 | 7,0 | 5.0 | 5.0 | 5,2 | 5,2 |
| Coolant volume [l] | 13,9 | 10,0 | 7.0 | 7.0 | 7,0 | 7,0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
| - | - |
| Top speed [km/h] | 250 | 305 | 215 | 213 | 240 | 232 |
| Acceleration 0–100 km/h [s] | 4.1 | 3,8 | 8.6 | 8.6 | 7.5 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 4,3 | 3,8 | 9.9 | - | 7,5 | - |
| City [l] | 11.1 | 11,2 | 5.0-5.4 | 5.0-5.3 | 5.8-6.0 | 5.4-5.6 |
| Out of town [l] | 6.7 | 7,0 | 3.7-3.9 | 3.6-3.9 | 4.1 | 4.1-4.2 |
| Combined [l] | 8.3 | 8,5 | 4.2-4.5 | 4.1-4.4 | 4.7-4.8 | 4.6-4.7 |
| CO2 emissions [g/km] | 194 | 199 | 110-118 | 109-117 | 124-127 | 121-124 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1612 | 1585 | 1535 | 1560 | 1525 | 1540 |
| Overall weight [kg] | 2040 | 1900 | 1980 | 2005 | 1970 | 1985 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 7450/1600 | 7450/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 970/1130 | 975/1000 | 930/ 1115 | 930/ 1115 | 925/1100 | 925/1100 |
| Maximum vertical load on the tow bar [kg] | 75 | - | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | - | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 2 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 255/40 ZR18 95Y | 265/35 ZR19 98Y | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 275/40 ZR18 99Y | 285/30 ZR20 99Y | 225/50 R17 94V | 225/50 R17 94V | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 9 J x 18 | 9.5J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 10 J x 18 | 10.5J x 20 | 7.5J x 17 | 7.5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 11.3/- | 11.3/- | 11.3 | 11.3 |
| Overall length [mm] | 4671 | 4689 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1870/- | 1870/- | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1383 | 1383 | 1377 | 1377 | 1377 | 1377 |
| Wheelbase [mm] | 2810 | 2812 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1596 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1604 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 811 | - | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1048 | - | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 121 | 108 | 130 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | - | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | - | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | - | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | - | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d xDrive | 420d xDrive | 420d | 420d | 420d xDrive | 420d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2015 | from to 3/2015 | from 3/2015 to | from 3/2015 to | from 3/2015 to | from 3/2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 380/1750-2750 | 380/1750-2750 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5,2 | 5,2 | 5.0 | 5.0 | 5.0 | 5.0 |
| Coolant volume [l] | 7,0 | 7,0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 236 | 229 | 240 | 232 | 236 | 230 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.3 | 7.3 | 7.1 | 7.4 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8,1 | - | 7.7 | - | 8.1 | - |
| City [l] | 5.9-6.0 | 5.6-5.8 | 5.1-5.5 | 4.7-5.1 | 5.3-5.8 | 5.2-5.6 |
| Out of town [l] | 4.1-4.2 | 4.2-4.3 | 3.7-3.9 | 3.6-3.9 | 3.9-4.1 | 4.0-4.2 |
| Combined [l] | 4.8-4.9 | 4.7-4.9 | 4.2-4.5 | 4.0-4.3 | 4.4-4.7 | 4.4-4.7 |
| CO2 emissions [g/km] | 126-129 | 124-128 | 111-119 | 106-114 | 117-125 | 117-125 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1615 | 1550 | 1575 | 1615 | 1635 |
| Overall weight [kg] | 2050 | 2060 | 1995 | 2020 | 2060 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 745/1600 | 745/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | 980/1120 | 980/1120 | 940/ 1120 | 940/ 1120 | 995/ 1125 | 995/ 1125 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11.8 | 11.3/- | 11.3/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1392 | 1392 | 1377 | 1377 | 1392 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 145 | 145 | 130 | 130 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 425d | 425d | 425d | 425d | 430d | 430d xDrive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from to 3/2016 | from 3/2016 to | from 3/2016 to | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 160/4000 | 160/4000 | 165/4400 | 165/4400 | 190/4000 | 190/4000 |
| Maximum torque [Nm/min-1] | 450/1500 | 450/1500 | 450/1500-3000 | 450/1500-3000 | 560/2000-3000 | 560/2000-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16.5:1 | 16.5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5,2 | 5,2 | 5.0 | 5.0 | 6,5 | 6,5 |
| Coolant volume [l] | - | - | - | - | - | 7,2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 247 | 247 | 247 | 247 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.5 | 6.5 | 6.1 | 5.5 | 5.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6,8 | - | 6.4 | - | - | - |
| City [l] | 6.1-6.3 | 5.7-5.9 | 5.6-5.9 | 5.0-5.4 | 5.7-5.8 | 6.0-6.2 |
| Out of town [l] | 4.3-4.4 | 4.1-4.3 | 4.0-4.3 | 4.1-4.3 | 4.5-4.6 | 4.8-4.9 |
| Combined [l] | 5.0-5.1 | 4.7-4.9 | 4.6-4.9 | 4.4-4.7 | 4.9-5.0 | 5.2-5.4 |
| CO2 emissions [g/km] | 131-135 | 124-128 | 121-129 | 116-124 | 129-132 | 137-141 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1580 | 1580 | 1590 | 1615 | 1690 |
| Overall weight [kg] | 2010 | 2025 | 2070 | 2080 | 2060 | 2135 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 935/1120 | 935/1120 | 965/1180 | 965/1180 | 985/1120 | 1040/1135 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.29 | 0.29 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3/- | 11.3/- | 11.3 | 11.8 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1377 | 1377 | 1377 | 1377 | 1377 | 1392 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Headroom rear [mm] | 917/- | 917/- | 917/- | 917/- | 917/- | 917/- |
| Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
| Rear elbow/shoulder width [mm] | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- | 1400/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 435d xDrive | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 230/4400 | |||||
| Maximum torque [Nm/min-1] | 630/1500-2500 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | 6,5 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.4-6.6 | |||||
| Out of town [l] | 4.9-5.0 | |||||
| Combined [l] | 5.4-5.6 | |||||
| CO2 emissions [g/km] | 143-146 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1700 | |||||
| Overall weight [kg] | 2145 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | 1050/1135 | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 445 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 2 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 57 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.3 | |||||
| Front suspension | MacPherson, lower cross arms | |||||
| Rear suspension | five-link | |||||
| Tyre dimensions front | 225/50 R17 94W | |||||
| Tyre dimensions rear | 225/50 R17 94W | |||||
| Wheel size front | 7.5 J x 17 | |||||
| Wheel size rear | 7.5 J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.8 | |||||
| Overall length [mm] | 4638 | |||||
| Overall width without/including mirrors [mm] | 1825/2017 | |||||
| Overall height [mm] | 1392 | |||||
| Wheelbase [mm] | 2810 | |||||
| Front wheel track [mm] | 1545 | |||||
| Rear wheel track [mm] | 1594 | |||||
| Forward overhang [mm] | 787 | |||||
| Rear overhang [mm] | 1041 | |||||
| Clearance [mm] | 145 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1011 | |||||
| Headroom rear [mm] | 917/- | |||||
| Front elbow/shoulder width [mm] | 1465/- | |||||
| Rear elbow/shoulder width [mm] | 1400/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| 420i | 420i | 420i | 420i | 428i | 428i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from to 3/2016 | from 3/2016 to | from 3/2016 to | from to 3/2016 | from to 3/2016 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1998 | 1998 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 135/5000 | 135/5000 | 180/5000-6500 | 180/5000-6500 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1350-4600 | 270/1350-4600 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 11,0:1 | 11,0:1 | 11.0 :1 | 11.0 :1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5.0 | 5.0 | 5.25 | 5.25 | 5,0 | 5,0 |
| Coolant volume [l] | 6.9 | 6.9 | - | - | 8,2 | 9,1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 230 | 230 | 230 | 230 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.3 | 8.2 | 8.4 | 6.4 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10.0 | - | 10.7 | - | 7,9 | - |
| City [l] | 8.9-9.3 | 8.6-8.9 | 8.0-8.6 | 7.6-8.1 | 8.8-9.0 | 8.6-8.7 |
| Out of town [l] | 5.3-5.4 | 5.2-5.3 | 5.1-5.5 | 4.8-5.1 | 5.7-5.8 | 5.5 |
| Combined [l] | 6.6-6.8 | 6.4-6.6 | 6.2-6.6 | 5.8-6.2 | 6.8-7.0 | 6.6-6.7 |
| CO2 emissions [g/km] | 154-159 | 149-154 | 145-153 | 136-144 | 159-163 | 154-157 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1725/1750 | 1725/1750 | 1775/1790 | 1775/1790 | 1755 | 1775 |
| Overall weight [kg] | 2120 | 2145 | 2170 | 2185 | 2140 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 695/1400 | 695/1500 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | 940/1220 | 940/1220 | 960/ 1250 | 960/ 1250 | 960/1230 | 960/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | -/- | -/- | -/- | -/- | - | - |
| Boot volume [l] | 370 | 370 | 370 | 370 | 220-370 | 220-370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30 | 0.30 | 0.30 | 0.30 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3 | 11.3 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | - | - | - | - | 787 | 787 |
| Rear overhang [mm] | - | - | - | - | 1041 | 1041 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | 1025 | 1025 |
| Headroom rear [mm] | - | - | - | - | 942 | 942 |
| Front elbow/shoulder width [mm] | - | - | - | - | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | - | - | - | - | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 428i xDrive | 430i | 430i | 430i xDrive | 435i | 435i | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from 3/2016 to | from 3/2016 to | from 3/2016 to | from to 3/2016 | from to 3/2016 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1997 | 1998 | 1998 | 1998 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 180/5000-6500 | 185/5200 | 185/5200 | 185/5200 | 225/5800-6400 | 225/5800-6400 |
| Maximum torque [Nm/min-1] | 350/1250-4800 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 400/1200-5000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 10,0:1 | 10.2:1 | 10.2:1 | 10.2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | 5,75 | 5.25 | 5.25 | 5.25 | 6,5 | 6,5 |
| Coolant volume [l] | 9,1 | - | - | - | 6,7 | 7,2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | Rear | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.5 | 6.4 | 6.3 | 6.4 | 5.6 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 8.0 | - | - | 6,8 | - |
| City [l] | 9.0-9.3 | 8.6-9.0 | 7.5-7.9 | 8.1-8.5 | 11.4-11.7 | 10.8-11.1 |
| Out of town [l] | 5.8-5.9 | 5.5-5.8 | 5.0-5.3 | 5.4-5.7 | 6.2-6.4 | 5.6-5.7 |
| Combined [l] | 7.0-7.2 | 6.6-7.0 | 5.9-6.3 | 6.4-6.7 | 8.1-8.4 | 7.5-7.7 |
| CO2 emissions [g/km] | 163-167 | 154-162 | 138-146 | 149-156 | 190-195 | 176-180 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1785/1810 | 1785/1810 | 1880 | 1815 | 1825 |
| Overall weight [kg] | 2220 | 2170 | 2195 | 2255 | 2200 | 2210 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 745/1600 | 745/1600 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1020 / 1225 | 965/ 1255 | 965/ 1255 | 1035/1255 | 1015/1230 | 1015/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | -/- | -/- | - | - | - |
| Boot volume [l] | 220-370 | 370 | 370 | 370 | 220-370 | 220-370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.30 | 0.30 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Wheel size rear | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5 J x 17 | 7.5 J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11.3/- | 11.3/- | 11.8/- | 11.3 | 11.3 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1399 | 1384 | 1384 | 1399 | 1384 | 1384 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1544 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1590 | 1594 | 1594 |
| Forward overhang [mm] | 787 | - | - | - | 787 | 787 |
| Rear overhang [mm] | 1041 | - | - | - | 1041 | 1041 |
| Clearance [mm] | 145 | 130 | 130 | 145 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | - | - | - | 1025 | 1025 |
| Headroom rear [mm] | 942 | - | - | - | 942 | 942 |
| Front elbow/shoulder width [mm] | 1466/- | - | - | - | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | 1321/- | - | - | - | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 435i xDrive | 435i xDrive | 440i | 440i xDrive | M4 F82 | M4 F82 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2016 | from to 3/2016 | from 3/2016 to | from 3/2016 to | from to 3/2015 | from to 3/2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2979 | 2979 | 2998 | 2998 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 225/5800-6400 | 225/5800-6400 | 240/5500 | 240/5500 | 317/5500-7300 | 317/5500-7300 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 450/1380-5000 | 450/1380-5000 | 550/1850-5500 | 550/1850-5500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 10,2:1 | 10,2:1 | 11.0:1 | 11.0:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6,5 | 6,5 |
| Coolant volume [l] | 6.7 | 7.2 | - | - | 13,9 | 13,9 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.6 | 5.5 | 5.4 | 5.4 | 4.6 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.1 | - | - | - | 4,8 | 4,9 |
| City [l] | 11.9-12.3 | 11.3-11.6 | 9.1-9.5 | 9.8-10.3 | 12.4 | 11.5 |
| Out of town [l] | 6.6-6.7 | 5.9-6.1 | 5.5-5.8 | 5.8-6.1 | 7.2 | 7.1 |
| Combined [l] | 8.5-8.7 | 7.9-8.1 | 6.8-7.2 | 7.3-7.6 | 9.1 | 8.7 |
| CO2 emissions [g/km] | 199-204 | 184-189 | 159-167 | 169-177 | 213 | 203 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1885/1895 | 1885/1895 | 1845 | 1925 | 1825 | 1865 |
| Overall weight [kg] | 2260 | 2270 | 2230 | 2300 | 2250 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1700 | 750/1800 | - | - |
| Maximum front/rear axle load [kg] | 1080/1230 | 1080/1230 | 995/1255 | 1075/1255 | 1050/1250 | 1050/1250 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | -/- | -/- | - | - | - | - |
| Boot volume [l] | 370 | 370 | 370 | 370 | 220-370 | 220-370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.30 | 0.31 | 0.34 | 0.34 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 255/40 ZR18 95Y | 255/40 ZR18 95Y |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 98W XL | 225/50 R17 98W XL | 275/40 ZR18 99Y | 275/40 ZR18 99Y |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 9 J x 18 | 9 J x 18 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 10 J x 18 | 10 J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.3/- | 11.8/- | 12.2 | 12.2 |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4671 | 4671 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1870/- | 1870/- |
| Overall height [mm] | 1399 | 1399 | 1384 | 1399 | 1386 | 1386 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2812 | 2812 |
| Front wheel track [mm] | 1544 | 1544 | 1545 | 1544 | 1579 | 1579 |
| Rear wheel track [mm] | 1590 | 1590 | 1594 | 1590 | 1603 | 1603 |
| Forward overhang [mm] | - | - | - | - | 787 | 787 |
| Rear overhang [mm] | - | - | - | - | 1048 | 1048 |
| Clearance [mm] | 145 | 145 | 130 | 145 | 116 | 116 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | 1025 | 1025 |
| Headroom rear [mm] | - | - | - | - | 942 | 942 |
| Front elbow/shoulder width [mm] | - | - | - | - | 1466/- | 1466/- |
| Rear elbow/shoulder width [mm] | - | - | - | - | 1321/- | 1321/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 420d | 420d | 420d | 420d | 425d | 425d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 3/2015 | from to 3/2015 | from 3/2015 to | from 3/2015 to | from to 3/2016 | from to 3/2016 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 140/4000 | 140/4000 | 160/4000 | 160/4000 |
| Maximum torque [Nm/min-1] | 380/1750-2750 | 380/1750-2750 | 400/1750-2500 | 400/1750-2500 | 450/1500 | 450/1500 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16.5:1 | 16.5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5,2 | 5,2 | 5.0 | 5.0 | 5.2 | 5.2 |
| Coolant volume [l] | 7,0 | 7,0 | - | - | 7.0 | 7.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 235 | 228 | 235 | 228 | 241 | 241 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.2 | 8,1 | 8,0 | 7.3 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8,3 | - | 8,3 | - | 7.2 | - |
| City [l] | 6.0-6.2 | 5.7-5.9 | 5.7-6.1 | 5.2-5.6 | 6.5-6.6 | 6.0-6.2 |
| Out of town [l] | 4.5-4.7 | 4.3-4.4 | 4.3-4.5 | 3.9-4.2 | 4.5-4.7 | 4.4-4.5 |
| Combined [l] | 5.1-5.3 | 4.8-5.0 | 4.8-5.1 | 4.4-4.7 | 5.2-5.4 | 5.0-5.2 |
| CO2 emissions [g/km] | 133-138 | 127-131 | 127-134 | 116-124 | 138-142 | 132-136 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1755 | 1765 | 1775/1790 | 1775/1790 | 1790/1805 | 1790/1805 |
| Overall weight [kg] | 2150 | 2160 | 2170 | 2185 | 2165 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 965/1230 | 965/1230 | 965/1260 | 965/1260 | 980/1230 | 980/1230 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | -/- | -/- |
| Boot volume [l] | 220-370 | 220-370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.30 | 0.30 |
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
| Wheel size front | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7.5 J x 17 | 7.5 J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3 | 11.3 | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | 4638 | 4638 |
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1594 | 1594 | 1594 |
| Forward overhang [mm] | 787 | 787 | - | - | - | - |
| Rear overhang [mm] | 1041 | 1041 | - | - | - | - |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | - | - | - | - |
| Headroom rear [mm] | 942 | 942 | - | - | - | - |
| Front elbow/shoulder width [mm] | 1466/- | 1466/- | - | - | - | - |
| Rear elbow/shoulder width [mm] | 1321/- | 1321/- | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 425d | 425d | 430d | 435d xDrive | |||
|---|---|---|---|---|---|---|
| Date of sale | from 3/2016 to | from 3/2016 to | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 1995 | 1995 | 2993 | 2993 | ||
| Maximum output / speed [kW/min-1] | 165/4400 | 165/4400 | 190/4000 | 230/4400 | ||
| Maximum torque [Nm/min-1] | 450/1500-3000 | 450/1500-3000 | 560/2000-3000 | 630/1500-2500 | ||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 16.5:1 | 16.5:1 | 16,5:1 | 16,5:1 | ||
| Oil volume [l] | 5.0 | 5.0 | 6.5 | 6.5 | ||
| Coolant volume [l] | - | - | 7.2 | 7.2 | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | Rear | Rear | 4x4 | ||
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications | - |
|
|
| ||
| Top speed [km/h] | 241 | 241 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 7.1 | 6.7 | 5.9 | 5.2 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | 7.2 | - | - | - | ||
| City [l] | 6.1-6.5 | 5.5-5.9 | 6.1-6.5 | 6.8-7.0 | ||
| Out of town [l] | 4.5-4.7 | 4.4-4.7 | 4.8-4.9 | 5.2-5.3 | ||
| Combined [l] | 5.1-5.4 | 4.8-5.1 | 5.3-5.5 | 5.7-5.9 | ||
| CO2 emissions [g/km] | 133-141 | 127-135 | 139-144 | 151-155 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1810/1820 | 1810/1820 | 1845 | 1925 | ||
| Overall weight [kg] | 2230 | 2240 | 2220 | 2290 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
| Maximum front/rear axle load [kg] | 975/1290 | 975/1290 | 1025/1230 | 1095/1230 | ||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | ||
| Maximum load on roof/carrier [kg] | -/- | -/- | -/- | -/- | ||
| Boot volume [l] | 370 | 370 | 370 | 370 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.29 | 0.29 | 0.30 | 0.31 | ||
| Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | ||
| Rear suspension | five-link | five-link | five-link | five-link | ||
| Tyre dimensions front | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W | ||
| Tyre dimensions rear | 225/50 R17 98W XL | 225/50 R17 98W XL | 225/50 R17 94W | 225/50 R17 94W | ||
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | ||
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.8/- | ||
| Overall length [mm] | 4638 | 4638 | 4638 | 4638 | ||
| Overall width without/including mirrors [mm] | 1825/2017 | 1825/2017 | 1825/2017 | 1825/2017 | ||
| Overall height [mm] | 1384 | 1384 | 1384 | 1399 | ||
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | ||
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1544 | ||
| Rear wheel track [mm] | 1594 | 1594 | 1594 | 1590 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 130 | 130 | 130 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
