BMW 3
Date of manufacture
2015 – 2018 (Sedan)
2016 – 2020 (Liftback)
2015 – 2019 (Estate)
Platform
-
Manufacturing locations
Munich, Germany
Regensburg, Germany
Dingolfing, Germany
Designer
Christopher Weil
Jean-Francois Huet
Page Beermann
Tags
D-segment
German cars
The BMW 3 has been manufactured since 2015 and its country of origin is Germany. It is available in three body styles: sedan, liftback and estate. Plug-in hybrid vehicles and engines are available, including petrol, diesel and hybrid engines. The highest power is achieved by the M3 CS F80 (338 kW) with a maximum speed of 280 km/h. The most economical model is the 330e with a combined consumption of 1.9 l/100 km and CO2 emissions of 44 g/km. The sedan has a luggage compartment volume of 480 l, the estate 495 l and the liftback 520 l. The BMW 3 has successfully passed the EURONCAP 2012 safety tests and has been rated 5 out of 5 points.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2015 – 2018Internal designation
F30Engine size
Liftback (Gran Turismo)
after upgrade (facelift)
Date of manufacture
2016 – 2020Internal designation

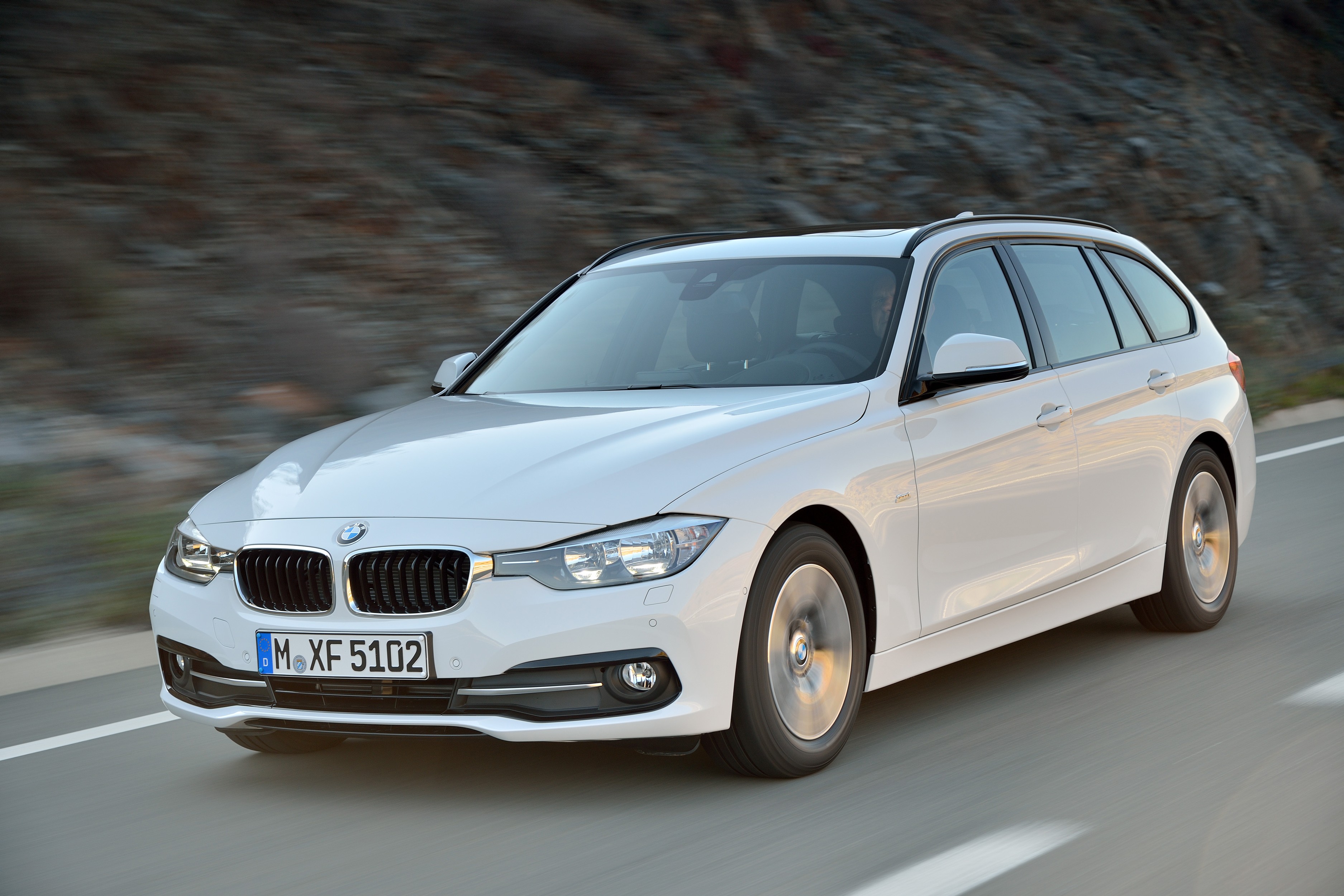

F34Estate (Touring)
after upgrade (facelift)
Date of manufacture
2015 – 2019Internal designation
F31Engine size
Diesel
Technical data
Sedan
318i | 318i | 320i | 320i | 320i xDrive | 320i xDrive | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1499 | 1499 | 1998 | 1998 | 1998 | 1998 |
Maximum output / speed [kW/min-1] | 100/4400-6000 | 100/4400-6000 | 135/5000-6500 | 135/5000-6500 | 135/5000-6500 | 135/5000-6500 |
Maximum torque [Nm/min-1] | 220/1250-4300 | 220/1250-4300 | 290/1350-4250 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 4.25 | 4.25 | 5.25 | 5.25 | 5.25 | 5.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
Drive specifications | - |
| - |
|
|
|
Top speed [km/h] | 210 | 210 | 235 | 235 | 232 | 230 |
Acceleration 0–100 km/h [s] | 8.9 | 9.1 | 7.2 | 7.3 | 7.5 | 7.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 11.5 | - | 9.2 | - | 8.9 | - |
City [l] | 7.0-6.4 | 6.7-6.2 | 7.9-7.3 | 7.6-6.9 | 9.0-8.4 | 8.0-7.4 |
Out of town [l] | 4.7-4.3 | 4.6-4.3 | 4.8-4.5 | 4.7-4.4 | 5.5-5.2 | 5.0-4.7 |
Combined [l] | 5.5-5.1 | 5.4-5.0 | 5.9-5.5 | 5.8-5.3 | 6.8-6.4 | 6.1-5.7 |
CO2 emissions [g/km] | 129-119 | 126-116 | 138-128 | 134-124 | 159-149 | 142-132 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1475 | 1500 | 1505 | 1525 | 1595 | 1605 |
Overall weight [kg] | 1975 | 2000 | 2005 | 2025 | 2095 | 2105 |
Maximum trailer weight unbraked/braked [kg] | 695/1300 | 695/1300 | 695/1700 | 695/1800 | 750/1700 | 750/1800 |
Maximum front/rear axle load [kg] | 905/1155 | 905/1155 | 935/1155 | 935/1155 | 990/1180 | 990/1180 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.27 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92W | 205/60 R16 92W |
Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92W | 205/60 R16 92W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.7/- | 11.7/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1429 | 1434 | 1434 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1542 | 1542 |
Rear wheel track [mm] | 1583 | 1583 | 1583 | 1583 | 1582 | 1582 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 140 | 145 | 145 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
330i | 330i | 330i xDrive | 340i | 340i | 340i xDrive | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 2998 | 2998 | 2998 |
Maximum output / speed [kW/min-1] | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 | 240/5500-6500 | 240/5500-6500 | 240/5500-6500 |
Maximum torque [Nm/min-1] | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 11.0:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 5.25 | 5.25 | 5.25 | 6.5 | 6.5 | 6.5 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
Drive specifications | - |
|
| - |
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 5.9 | 5.8 | 5.8 | 5.2 | 5.1 | 5.0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 6.9 | - | - | 5.2 | - | 5.5 |
City [l] | 8.4-7.9 | 7.4-7.0 | 7.8-7.5 | 10.4-10.0 | 9.1-8.6 | 10.7-10.4 |
Out of town [l] | 5.4-5.1 | 4.9-4.7 | 5.2-5.0 | 6.1-5.9 | 5.5-5.3 | 6.3-6.1 |
Combined [l] | 6.5-6.1 | 5.8-5.5 | 6.2-5.9 | 7.7-7.4 | 6.8-6.5 | 7.9-7.7 |
CO2 emissions [g/km] | 151-143 | 136-129 | 144-138 | 179-172 | 159-152 | 185-179 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1545 | 1570 | 1640 | 1605 | 1615 | 1675 |
Overall weight [kg] | 2045 | 2055 | 2115 | 2090 | 2100 | 2150 |
Maximum trailer weight unbraked/braked [kg] | 745/1800 | 745/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | 945/1180 | 945/1180 | 1010/1170 | 990/1175 | 990/1175 | 1055/1180 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.30 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W |
Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.7/- | 11.3/- | 11.3/- | 11.7/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1434 | 1429 | 1429 | 1434 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
Rear wheel track [mm] | 1572 | 1572 | 1570 | 1572 | 1572 | 1570 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 145 | 140 | 140 | 145 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
340i xDrive | M3 F80 | M3 F80 | M3 CS F80 | 330e | 316d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | from 5/2018 to | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
Engine displacement [cm³] | 2998 | 2979 | 2979 | 2979 | 1998 | 1995 |
Maximum output / speed [kW/min-1] | 240/5500-6500 | 317/5500-7300 | 317/5500-7300 | 338/6250 | 135/5000-6500 65/2500 el. 185 total | 85/4000 |
Maximum torque [Nm/min-1] | 450/1380-5000 | 550/1850-5500 | 550/1850-5500 | 600/4000-5380 | 290/1350-4250 250/0-2500 el. 420 total | 270/1250-2750 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 82.0 x 94.6 | 84.0 x 90.0 |
Compression ratio | 11.0:1 | 10,2:1 | 10,2:1 | 10,2:1 | 11.0:1 | 16.5:1 |
Oil volume [l] | 6.5 | 6,5 | 6,5 | 7,0 | 5.25 | 5.0 |
Coolant volume [l] | - | 13,9 | 13,9 | 10,0 | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
Gearbox | 8 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear manual |
Drive specifications |
| - |
|
|
| - |
Top speed [km/h] | 250 | 250 | 250 | 280 | 225 [120 el.] | 205 |
Acceleration 0–100 km/h [s] | 4.9 | 4.3 | 4.1 | 3,9 | 6,1 | 10.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | 4,2 | 4,3 | 4,3 | - | 11.8 |
City [l] | 9.7-9.2 | 12.0 | 11.1 | 11.2 | - | 5.1-4.6 |
Out of town [l] | 5.9-5.6 | 6.9 | 6.7 | 6.9 | - | 3.8-3.5 |
Combined [l] | 7.3-6.9 | 8.8 | 8.3 | 8.5 | 2,1-1,9 [11,9-11,0 el.] | 4.3-3.9 |
CO2 emissions [g/km] | 169-162 | 204 | 194 | 198 | 49-44 | 113-102 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | 293 | - |
Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 5.7 kWh | - |
Range with fully charged battery [km] | - | - | - | - | 37-40 | - |
Charging time | - | - | - | - |
| - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1690 | 1595 | 1635 | 1660 | 1735 | 1495 |
Overall weight [kg] | 2165 | 2100 | 2100 | 2100 | 2195 | 1995 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | - | - | - | 745/1700 |
Maximum front/rear axle load [kg] | 1055/1180 | 990/1170 | 990/1170 | 990/1170 | 1000/1260 | 910/1150 |
Maximum vertical load on the tow bar [kg] | 75 | - | - | - | - | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 445 | 370 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 41 | 57 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.30 | 0.34 | 0.34 | 0.355 | 0.27 | 0.26 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/50 R17 94W | 255/40 ZR18 95Y | 255/40 ZR18 95Y | 265/35 ZR19 98Y | 205/60 R16 92W | 205/60 R16 92H |
Tyre dimensions rear | 225/50 R17 94W | 275/40 ZR18 99Y | 275/40 ZR18 99Y | 285/30 ZR20 99Y | 205/60 R16 92W | 205/60 R16 92H |
Wheel size front | 7.5J x 17 | 9 J x 18 | 9 J x 18 | 9 J x 19 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.5J x 17 | 10 J x 18 | 10 J x 18 | 10 J x 20 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | - | - | - | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.7/- | 12.2 | 12.2 | 12.2 | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4671 | 4671 | 4671 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1877/- | 1877/- | 1877/- | 1811/2031 | 1811/2031 |
Overall height [mm] | 1434 | 1430 | 1430 | 1424 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2812 | 2812 | 2812 | 2810 | 2810 |
Front wheel track [mm] | 1531 | 1579 | 1579 | 1579 | 1543 | 1543 |
Rear wheel track [mm] | 1570 | 1603 | 1603 | 1604 | 1583 | 1583 |
Forward overhang [mm] | 779 | 811 | 811 | 811 | 779 | 779 |
Rear overhang [mm] | 1044 | 1048 | 1048 | 1048 | 1044 | 1044 |
Clearance [mm] | 145 | 120 | 120 | 119 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
316d | 318d | 318d | 318d xDrive | 320d EfficientDynamics Edition | 320d EfficientDynamics Edition | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 85/4000 | 110/4000 | 110/4000 | 110/4000 | 120/4000 | 120/4000 |
Maximum torque [Nm/min-1] | 270/1250-2750 | 320/1500-3000 | 320/1500-3000 | 320/1500-3000 | 400/1750-2250 | 400/1750-2250 |
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | Rear | Rear |
Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
Drive specifications |
| - |
|
| - |
|
Top speed [km/h] | 204 | 215 | 212 | 212 | 230 | 225 |
Acceleration 0–100 km/h [s] | 10.6 | 8.6 | 8.4 | 8.8 | 7.9 | 7.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | 9.9 | - | 9.9 | 8.9 | - |
City [l] | 5.1-4.6 | 5.3-4.9 | 5.3-4.8 | 5.9-5.4 | 5.2-4.7 | 5.0-4.6 |
Out of town [l] | 3.8-3.5 | 3.9-3.5 | 3.9-3.6 | 4.2-3.9 | 3.8-3.4 | 3.6-3.3 |
Combined [l] | 4.3-3.9 | 4.4-4.0 | 4.4-4.0 | 4.8-4.5 | 4.3-3.9 | 4.1-3.8 |
CO2 emissions [g/km] | 113-102 | 116-106 | 116-106 | 127-117 | 113-102 | 109-99 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1505 | 1505 | 1525 | 1575 | 1495 | 1505 |
Overall weight [kg] | 2005 | 2050 | 2070 | 2075 | 1970 | 1980 |
Maximum trailer weight unbraked/braked [kg] | 745/1700 | 745/1600 | 745/1800 | 750/1600 | n.b. /n.b | n.b. /n.b |
Maximum front/rear axle load [kg] | 910/1150 | 920/1210 | 920/1210 | 965/1170 | 915/1140 | 915/1140 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | n.b | n.b |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.27 | 0.24 | 0.24 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V |
Wheel size front | 7.0J x 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.0J x 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.7/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1434 | 1416 | 1416 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1543 | 1542 | 1543 | 1543 |
Rear wheel track [mm] | 1583 | 1583 | 1583 | 1582 | 1586 | 1586 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 145 | 127 | 127 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
320d | 320d | 320d xDrive | 320d xDrive | 325d | 325d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | from to 1/2016 | from to 1/2016 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 160/4400 | 160/4400 |
Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 450/1500-2500 | 450/1500-2500 |
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.2 | 5.2 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
Drive specifications | - |
| - |
| - |
|
Top speed [km/h] | 235 | 230 | 233 | 228 | 245 | 245 |
Acceleration 0–100 km/h [s] | 7.3 | 7.2 | 7.4 | 7.3 | 6.8 | 6.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 7.5 | - | 8.1 | - | - | - |
City [l] | 5.3-4.9 | 5.2-4.8 | 5.8-5.3 | 5.5-5.1 | 6.2-6.1 | 5.8-5.7 |
Out of town [l] | 3.9-3.5 | 3.9-3.6 | 4.2-3.9 | 4.2-3.8 | 4.3-4.3 | 4.2-4.0 |
Combined [l] | 4.4-4.0 | 4.4-4.0 | 4.8-4.4 | 4.7-4.3 | 5.0-4.9 | 4.8-4.6 |
CO2 emissions [g/km] | 116-106 | 116-106 | 126-116 | 123-112 | 132-129 | 125-122 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1505 | 1525 | 1590 | 1610 | 1550 | 1565 |
Overall weight [kg] | 2005 | 2025 | 2090 | 2110 | 2035 | 2050 |
Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | 925/1145 | 925/1145 | 990/1180 | 990/1180 | 955/1160 | 955/1160 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.26 | 0.26 | 0.27 | 0.27 | 0.28 | 0.28 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 94W | 225/50 R17 94W |
Tyre dimensions rear | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 94W | 225/50 R17 94W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.7/- | 11.7/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1434 | 1434 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1542 | 1542 | 1531 | 1531 |
Rear wheel track [mm] | 1583 | 1583 | 1582 | 1582 | 1572 | 1572 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 145 | 145 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
325d | 325d | 330d | 330d xDrive | 335d xDrive | ||
---|---|---|---|---|---|---|
Date of sale | from 1/2016 to | from 1/2016 to | - | - | - | |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | |
Engine displacement [cm³] | 1995 | 1995 | 2993 | 2993 | 2993 | |
Maximum output / speed [kW/min-1] | 165/4400 | 165/4400 | 190/4000 | 190/4000 | 230/4400 | |
Maximum torque [Nm/min-1] | 450/1500-3000 | 450/1500-3000 | 560/1500-3000 | 560/1500-3000 | 630/1500-2500 | |
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
Oil volume [l] | 5.0 | 5.0 | 6.5 | 6.5 | 6.5 | |
Coolant volume [l] | - | - | - | - | - | |
Technical specifications |
|
|
|
|
| |
Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | |
Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
Drive specifications | - |
|
|
|
| |
Top speed [km/h] | 245 | 245 | 250 | 250 | 250 | |
Acceleration 0–100 km/h [s] | 6.5 | 6.1 | 5.6 | 5.3 | 4.8 | |
Acceleration 0–80 km/h [s] | - | - | - | - | - | |
Acceleration 80–120 km/h [s] | 6.4 | - | - | - | - | |
City [l] | 5,9-5,6 | 5,4-5,0 | 6.0-5.8 | 6.1-6.0 | 6.5-6.4 | |
Out of town [l] | 4,3-4,0 | 4,3-4,1 | 4.6-4.3 | 4.8-4.8 | 4.9-4.9 | |
Combined [l] | 4,9-4,6 | 4,7-4,4 | 5.0-4.9 | 5.3-5.2 | 5.5-5.4 | |
CO2 emissions [g/km] | 129-121 | 124-116 | 131-129 | 139-137 | 145-143 | |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
Standard for fuel consumption measurement | - | - | - | - | - | |
Energy class | - | - | - | - | - | |
Stationary vehicle noise [dB] | - | - | - | - | - | |
Driving noise [dB] | - | - | - | - | - | |
Standby weight [kg] | 1570 | 1580 | 1615 | 1690 | 1705 | |
Overall weight [kg] | 2055 | 2065 | 2090 | 2165 | 2180 | |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | |
Maximum front/rear axle load [kg] | 960/1180 | 96 /1180 | 990/1170 | 1050/1180 | 1060/1190 | |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
Boot volume [l] | 480 | 480 | 480 | 480 | 480 | |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
Boot length [mm] | - | - | - | - | - | |
Boot length with rear seats folded [mm] | - | - | - | - | - | |
Boot width between wheels/max [mm] | - | - | - | - | - | |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
Loading edge height [mm] | - | - | - | - | - | |
Height of the open boot door [mm] | - | - | - | - | - | |
Boot opening height [mm] | - | - | - | - | - | |
Boot opening width min/max [mm] | - | - | - | - | - | |
Number of doors | 4 | 4 | 4 | 4 | 4 | |
Number of seats | 5 | 5 | 5 | 5 | 5 | |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | |
AdBlue tank volume [l] | - | - | - | - | - | |
Air resistance [Cd] | 0,28 | 0,28 | 0.28 | 0.29 | 0.29 | |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | |
Rear suspension | five-link | five-link | five-link | five-link | five-link | |
Tyre dimensions front | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
Tyre dimensions rear | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | 225/50 R17 94W | |
Wheel size front | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
Brake dimensions front | - | - | - | - | - | |
Brake dimensions rear | - | - | - | - | - | |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | |
Number of steering wheel turns | - | - | - | - | - | |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.7/- | 11.7/- | |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | |
Overall height [mm] | 1429 | 1429 | 1429 | 1434 | 1434 | |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | |
Rear wheel track [mm] | 1572 | 1572 | 1572 | 1570 | 1570 | |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | |
Clearance [mm] | 140 | 140 | 140 | 145 | 145 | |
Wading depth [mm] | - | - | - | - | - | |
Approach angle front [°] | - | - | - | - | - | |
Approach angle rear [°] | - | - | - | - | - | |
Transition angle [°] | - | - | - | - | - | |
Climbing rate [°] | - | - | - | - | - | |
Maximum side tilt [°] | - | - | - | - | - | |
Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | |
Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | |
Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | |
Legroom front knees/total [mm] | - | - | - | - | - | |
Legroom rear knees/total [mm] | - | - | - | - | - |
Liftback (Gran Turismo)
320i | 320i | 320i | 320i xDrive | 320i xDrive | 320i xDrive | |
---|---|---|---|---|---|---|
Date of sale | from to 6/2018 | from to 6/2018 | from 6/2018 to | from to 6/2018 | from to 6/2018 | from 6/2018 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 135/5000 | 135/5000 | 135/5000 | 135/5000 |
Maximum torque [Nm/min-1] | 290/1350-4250 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | 4x4 |
Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
Drive specifications | - |
|
|
|
|
|
Top speed [km/h] | 230 | 229 | 229 | 227 | 224 | 224 |
Acceleration 0–100 km/h [s] | 8.0 | 8.1 | 8.1 | 8.1 | 8.4 | 8.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 10.6 | - | - | 10.3 | - | - |
City [l] | 8.1-7.7 | 7.3-6.9 | 7,8-7,7 | 9.0-8.6 | 8.1-7.8 | 8.1-8,0 |
Out of town [l] | 5.4-5.1 | 5.4-5.1 | 5,4-5,3 | 5.9-5.6 | 5.7-5.4 | 6,0-5,9 |
Combined [l] | 6.4-6.1 | 6.1-5.8 | 6,3-6,2 | 7.1-6.7 | 6.6-6.3 | 6,8-6,7 |
CO2 emissions [g/km] | 146-139 | 139-132 | 139-132 | 161-154 | 151-144 | 156-152 |
Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1655 | 1675 | 1675 | 1735 | 1750 | 1750 |
Overall weight [kg] | 2155 | 2170 | 2170 | 2230 | 2245 | 2245 |
Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1500 | 695/1500 | 750/1700 | 750/1700 | 750/1700 |
Maximum front/rear axle load [kg] | 970/1255 | 970/1255 | 970/1255 | 1030/1275 | 1030/1275 | 1030/1275 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Tyre dimensions rear | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 12.3/- | 12.3/- | 12.3/- |
Overall length [mm] | 4824 | 4824 | 4824 | 4824 | 4824 | 4824 |
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 |
Overall height [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1101 |
Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
330i | 330i | 330i xDrive | 330i xDrive | 340i | 340i | |
---|---|---|---|---|---|---|
Date of sale | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 2998 | 2998 |
Maximum output / speed [kW/min-1] | 185/5200 | 185/5200 | 185/5200 | 185/5200 | 240/5500 | 240/5500 |
Maximum torque [Nm/min-1] | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 450/1380-5000 | 450/1380-5000 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 1620/1695 | 1620/1695 | 5.25 | 5.25 | 1660/1735 | 1660/1735 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 6.1 | 6.1 | 6.2 | 6.2 | 5.1 | 5.1 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.7-7.3 | 8,0-7,6 | 8.3-7.9 | 8,5-8,3 | 9.8-9.5 | 9,7-9,5 |
Out of town [l] | 5.3-5.0 | 5,6 | 5.7-5.4 | 6,3-6,2 | 5.8-5.5 | 6,4-6,3 |
Combined [l] | 6.2-5.9 | 6,5-6,3 | 6.7-6.3 | 7,1-7,0 | 7.3-7.0 | 7,6-7,5 |
CO2 emissions [g/km] | 141-134 | 147-144 | 152-145 | 161-159 | 166-159 | 173-170 |
Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1695 | 1700 | 1760 | 1765 | 1735 | 1735 |
Overall weight [kg] | 2190 | 2190 | 2255 | 2255 | 2230 | 2230 |
Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
Maximum front/rear axle load [kg] | 975/1275 | 975/1275 | 1030/1275 | 1030/1275 | 1010/1275 | 1010/1275 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 12.3/- | 12.3/- | 11.8/- | 11.8/- |
Overall length [mm] | 4824 | 4824 | 4824 | 4824 | 4824 | 4824 |
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 |
Overall height [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1101 |
Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
340i xDrive | 340i xDrive | 318d | 318d | 318d | 318d | |
---|---|---|---|---|---|---|
Date of sale | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to |
Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 2998 | 2998 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 240/5500 | 240/5500 | 110/4000 | 110/4000 | 110/4000 | 110/4000 |
Maximum torque [Nm/min-1] | 450/1380-5000 | 450/1380-5000 | 320/1500-3000 | 320/1500-3000 | 320/1500-3000 | 320/1500-3000 |
Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 6.5 | 6.5 | 5.0 | 5.0 | 5.0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | Rear |
Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
Drive specifications |
|
| - | - |
|
|
Top speed [km/h] | 250 | 250 | 210 | 210 | 210 | 210 |
Acceleration 0–100 km/h [s] | 5.0 | 5.0 | 9.3 | 9.4 | 9.2 | 9.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | 10.8 | - | - | - |
City [l] | 10.1-9.6 | 10,6-10,4 | 5.6-5.3 | 5,8-5,7 | 5.2-4.9 | 5,4-5,3 |
Out of town [l] | 6.3-6.0 | 6,6-6,5 | 4.1-4.0 | 4,4-4,3 | 4.1-3.9 | 4,5-4,3 |
Combined [l] | 7.7-7.4 | 8,1-7,9 | 4.7-4.5 | 4,9-4,8 | 4.5-4.3 | 4,8-4,7 |
CO2 emissions [g/km] | 175-168 | 184-180 | 123-117 | 129-126 | 119-112 | 128-124 |
Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1800 | 1805 | 1645 | 1690 | 1670 | 1715 |
Overall weight [kg] | 2295 | 2295 | 2140 | 2185 | 2165 | 2210 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 745/1600 | 745/1600 | 745/1600 | 745/1600 |
Maximum front/rear axle load [kg] | 1010/1275 | 1010/1275 | 965/1260 | - | 965/1260 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | - | - | 21,9 | - | 21,9 |
Air resistance [Cd] | 0.29 | 0.29 | 0.28 | 0.28 | 0.28 | 0.28 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 12.3/- | 12.3/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- |
Overall length [mm] | 4824 | 4824 | 4824 | 4824 | 4824 | 4824 |
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 |
Overall height [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1101 |
Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
320d | 320d | 320d | 320d | 320d xDrive | 320d xDrive | |
---|---|---|---|---|---|---|
Date of sale | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to | from to 6/2018 | from to 6/2018 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
Drive specifications | - | - |
|
| - |
|
Top speed [km/h] | 230 | 230 | 226 | 226 | 230 | 225 |
Acceleration 0–100 km/h [s] | 7.8 | 7.9 | 7.7 | 7.8 | 7.8 | 7.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 8.6 | - | 8,6 | - | 8,9 | - |
City [l] | 5.7-5.5 | 6,1 | 5.4-5.0 | 5.4 | 6.0-5.7 | 5.6-5.3 |
Out of town [l] | 4.3-4.1 | 4,6-4,5 | 4.1-3.9 | 4,8-4,6 | 4.5-4.3 | 4.3-4.1 |
Combined [l] | 4.8-4.6 | 5,2-5,0 | 4.6-4.3 | 5,0-4,9 | 5.1-4.8 | 4.8-4.5 |
CO2 emissions [g/km] | 127-120 | 136-133 | 120-113 | 131-128 | 133-126 | 126-119 |
Emission standard | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1655 | 1705 | 1670 | 1725 | 1720 | 1735 |
Overall weight [kg] | 2150 | 2200 | 2165 | 2220 | 2215 | 2230 |
Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 750/1600 | 750/1600 |
Maximum front/rear axle load [kg] | 965/1260 | - | 965/1260 | - | 1020/1280 | 1020/1280 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | 21,9 | - | 21,9 | - | - |
Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Tyre dimensions rear | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V | 225/55 R17 97V |
Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 12.3/- | 12.3/- |
Overall length [mm] | 4824 | 4824 | 4824 | 4824 | 4824 | 4824 |
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 |
Overall height [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1101 |
Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
320d xDrive | 325d | 330d | 330d | 330d xDrive | 330d xDrive | |
---|---|---|---|---|---|---|
Date of sale | from 6/2018 to | from to 6/2018 | from to 6/2018 | from 6/2018 to | from to 6/2018 | from 6/2018 to |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 1995 | 1995 | 2993 | 2993 | 2993 | 2993 |
Maximum output / speed [kW/min-1] | 140/4000 | 160/4400 | 190/4000 | 190/4000 | 190/4000 | 190/4000 |
Maximum torque [Nm/min-1] | 400/1750-2500 | 450/1500-2500 | 560/1500-3000 | 560/1500-3000 | 560/1500-3000 | 560/1500-3000 |
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5.0 | 57 | 57 | 57 | 57 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | Rear | 4x4 | 4x4 |
Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 225 | 240 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 7.8 | 6.4 | 5.7 | 5.7 | 5.4 | 5.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6,1-6,0 | 5.5-5.3 | 6.3-6.1 | 6,7-6,6 | 6.6-6.4 | 7,1 |
Out of town [l] | 4,9-4,8 | 4.7-4.4 | 4.7-4.6 | 5,2-5,1 | 5.0-4.8 | 5,4-5,3 |
Combined [l] | 5,3-5,2 | 5.0-4.7 | 5.3-5.1 | 5,8-5,6 | 5.6-5.4 | 6,0-5,9 |
CO2 emissions [g/km] | 141-138 | 131-124 | 139-135 | 152-148 | 146-142 | 158-156 |
Emission standard | Euro 6c/Euro 6d-TEMP | EU6 | EU6 | Euro 6c | EU6 | Euro 6c |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1790 | 1705 | 1735 | 1790 | 1805 | 1845 |
Overall weight [kg] | 2285 | 2200 | 2230 | 2285 | 2300 | 2340 |
Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | 990/1280 | 1030/1260 | - | 1080/1280 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | 21,9 | - | - | 21,9 | - | 21,9 |
Air resistance [Cd] | 0.28 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/55 R17 97V | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
Tyre dimensions rear | 225/55 R17 97V | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 12.3/- | 11,8/- | 11,8/- | 11,8/- | 12,3/- | 12,3/- |
Overall length [mm] | 4824 | 4824 | 4824 | 4824 | 4824 | 4824 |
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 | 1828/2047 |
Overall height [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Rear overhang [mm] | 1101 | 1101 | 1101 | 1101 | 1101 | 1101 |
Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
Front elbow/shoulder width [mm] | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- | 1465/- |
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
335d xDrive | 335d xDrive | |||||
---|---|---|---|---|---|---|
Date of sale | from to 6/2018 | from 6/2018 to | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 6/24 | 6/24 | ||||
Engine displacement [cm³] | 2993 | 2993 | ||||
Maximum output / speed [kW/min-1] | 230/4400 | 230/4400 | ||||
Maximum torque [Nm/min-1] | 630/1500-2500 | 630/1500-2500 | ||||
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
Compression ratio | 16.5:1 | 16.5:1 | ||||
Oil volume [l] | 57 | 57 | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | 4x4 | 4x4 | ||||
Gearbox | 8 gear automatic | 8 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 250 | 250 | ||||
Acceleration 0–100 km/h [s] | 4.9 | 4.9 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 6.7-6.6 | 7,7,-7,6 | ||||
Out of town [l] | 5.2-5.1 | 5,6-5,5 | ||||
Combined [l] | 5.7-5.6 | 6,4-6,3 | ||||
CO2 emissions [g/km] | 151-148 | 168-165 | ||||
Emission standard | EU6 | Euro 6c | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1820 | 1855 | ||||
Overall weight [kg] | 2315 | 2350 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | ||||
Maximum front/rear axle load [kg] | 1095/1280 | - | ||||
Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 520 | 520 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | ||||
Boot length [mm] | - | - | ||||
Boot length with rear seats folded [mm] | - | - | ||||
Boot width between wheels/max [mm] | - | - | ||||
Boot height to headliner/ceiling [mm] | - | - | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 4 | 4 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 57 | 57 | ||||
AdBlue tank volume [l] | 57 | 21,9 | ||||
Air resistance [Cd] | 0.29 | 0.29 | ||||
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | ||||
Rear suspension | five-link | five-link | ||||
Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | ||||
Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | ||||
Wheel size front | 8.0J x 17 | 8.0J x 17 | ||||
Wheel size rear | 8.0J x 17 | 8.0J x 17 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | Electric power steering EPS | Electric power steering EPS | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 12,3/- | 12,3/- | ||||
Overall length [mm] | 4824 | 4824 | ||||
Overall width without/including mirrors [mm] | 1828/2047 | 1828/2047 | ||||
Overall height [mm] | 1508 | 1508 | ||||
Wheelbase [mm] | 2920 | 2920 | ||||
Front wheel track [mm] | 1541 | 1541 | ||||
Rear wheel track [mm] | 1586 | 1586 | ||||
Forward overhang [mm] | 803 | 803 | ||||
Rear overhang [mm] | 1101 | 1101 | ||||
Clearance [mm] | 165 | 165 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 1048 | 1048 | ||||
Headroom rear [mm] | 974 | 974 | ||||
Front elbow/shoulder width [mm] | 1465/- | 1465/- | ||||
Rear elbow/shoulder width [mm] | 1455/- | 1455/- | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Estate (Touring)
318i | 318i | 318i | 318i | 320i | 320i | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | - | from to 7/2018 | - | from to 7/2018 | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1998 | 1998 |
Maximum output / speed [kW/min-1] | 100/4400-6000 | 100/4400-6000 | 100/4400-6000 | 100/4400-6000 | 135/5000-6500 | 135/5000-6500 |
Maximum torque [Nm/min-1] | 220/1250-4300 | 220/1250-4300 | 220/1250-4300 | 220/1250-4300 | 290/1350-4250 | 290/1350-4250 |
Bore and stroke [mm x mm] | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 |
Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 5.25 | 5.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
Drive specifications | - | - |
|
| - | - |
Top speed [km/h] | 210 | 210 | 210 | 210 | 230 | 230 |
Acceleration 0–100 km/h [s] | 9.2 | 9.2 | 9.3 | 9.3 | 7.5 | 7.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 11.9 | 11.9 | - | - | 9.9 | 9.9 |
City [l] | 7.4-6.8 | 7,8 | 7.2-6.6 | 7,6-7,4 | 8.4-7.8 | 8,6 |
Out of town [l] | 5.0-4.6 | 5,5-5,4 | 5.0-4.6 | 5,4-5,2 | 5.1-4.8 | 5,6-5,5 |
Combined [l] | 5.9-5.4 | 6,4-6,3 | 5.8-5.3 | 6,2-6,0 | 6.3-5.9 | 6,7-6,6 |
CO2 emissions [g/km] | 137-126 | 146-143 | 134-124 | 140-136 | 147-137 | 153-151 |
Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1545 | 1545 | 1565 | 1565 | 1585 | 1585 |
Overall weight [kg] | 2065 | 2065 | 2085 | 2090 | 2105 | 2105 |
Maximum trailer weight unbraked/braked [kg] | 695/1300 | 695/1300 | 695/1300 | 695/1300 | 695/1700 | 695/1700 |
Maximum front/rear axle load [kg] | 900/1240 | 900/1240 | 900/1240 | 900/1240 | 925/1250 | 925/1250 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.30 | 0.30 | 0.31 | 0.31 | 0.31 | 0.31 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92W | 205/60 R16 92W |
Tyre dimensions rear | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92V | 205/60 R16 92W | 205/60 R16 92W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1429 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
Rear wheel track [mm] | 1583 | 1583 | 1583 | 1583 | 1583 | 1583 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
320i | 320i | 320i xDrive | 320i xDrive | 320i xDrive | 330i | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | - | from to 7/2018 | from to 7/2018 | - | from to 7/2018 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
Maximum output / speed [kW/min-1] | 135/5000-6500 | 135/5000-6500 | 135/5000-6500 | 135/5000-6500 | 135/5000-6500 | 185/5200-6500 |
Maximum torque [Nm/min-1] | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 | 270/1350-4600 | 350/1450-4800 |
Bore and stroke [mm x mm] | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 |
Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10.2:1 |
Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 | 5.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | Rear |
Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
Drive specifications |
|
|
|
|
| - |
Top speed [km/h] | 228 | 228 | 225 | 223 | 223 | 250 |
Acceleration 0–100 km/h [s] | 7.5 | 7.5 | 7.7 | 7.9 | 7.9 | 6,0 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | 9.4 | - | - | 7.4 |
City [l] | 7.8-7.3 | 7,7-7,5 | 9.5-9.0 | 8.5-8.0 | 8,0-7,9 | 8.7-8.3 |
Out of town [l] | 4.8-4.5 | 5,4-5,3 | 6.0-5.5 | 5.3-5.0 | 6,0-5,9 | 5.6-5.3 |
Combined [l] | 5.9-5.5 | 6,2-6,1 | 7.3-6.8 | 6.5-6.1 | 6,7-6,6 | 6.7-6.4 |
CO2 emissions [g/km] | 138-129 | 142-140 | 169-159 | 151-141 | 154-151 | 157-149 |
Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1595 | 1595 | 1675 | 1685 | 1685 | 1615 |
Overall weight [kg] | 2115 | 2115 | 2175 | 2185 | 2185 | 2115 |
Maximum trailer weight unbraked/braked [kg] | 695/1700 | 695/1700 | 750/1700 | 750/1700 | 750/1700 | 745/1800 |
Maximum front/rear axle load [kg] | 925/1250 | 925/1250 | 990/1255 | 990/1255 | 990/1255 | 945/1250 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.30 | 0.30 | 0.31 | 0.31 | 0.31 | 0.32 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 98W |
Tyre dimensions rear | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 98W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.7/- | 11.7/- | 11.7/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1434 | 1434 | 1434 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1542 | 1542 | 1542 | 1531 |
Rear wheel track [mm] | 1583 | 1583 | 1582 | 1582 | 1582 | 1572 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 145 | 145 | 145 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
330i | 330i | 330i xDrive | 330i xDrive | 340i | 340i | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | - | from to 7/2018 | - | from to 7/2018 | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
Engine displacement [cm³] | 1998 | 1998 | 1998 | 1998 | 2998 | 2998 |
Maximum output / speed [kW/min-1] | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 | 185/5200-6500 | 240/5500-6500 | 240/5500-6500 |
Maximum torque [Nm/min-1] | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 350/1450-4800 | 450/1380-5000 | 450/1380-5000 |
Bore and stroke [mm x mm] | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 |
Compression ratio | 10.2:1 | 10.2:1 | 10.2:1 | 10.2:1 | 11.0:1 | 11.0:1 |
Oil volume [l] | 5.25 | 5.25 | 5.25 | 5.25 | 6,5 | 6,5 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic |
Drive specifications |
|
|
|
| - |
|
Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
Acceleration 0–100 km/h [s] | 5,9 | 5,9 | 6,0 | 6,0 | 5.1 | 5.1 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.7-7.3 | 7,5 | 8.3-7.8 | 8,0 | 9.3-9.0 | 9,7 |
Out of town [l] | 5.2-4.9 | 5,7 | 5.5-5.2 | 6,0 | 5.7-5.5 | 6,4 |
Combined [l] | 6.1-5.8 | 6,3 | 6.5-6.2 | 6,7 | 7.0-6.8 | 7,7 |
CO2 emissions [g/km] | 143-135 | 145 | 152-144 | 154 | 164-158 | 174 |
Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1640 | 1640 | 1705 | 1705 | 1690 | 1690 |
Overall weight [kg] | 2125 | 2135 | 2180 | 2195 | 2175 | 2200 |
Maximum trailer weight unbraked/braked [kg] | 745/1800 | 745/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | 945/1250 | - | 1005/1240 | - | 990/1250 | 990/1250 |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W |
Tyre dimensions rear | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W |
Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.7/- | 11.7/- | 11,3/- | 11,3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1434 | 1434 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
Rear wheel track [mm] | 1572 | 1572 | 1570 | 1570 | 1572 | 1572 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 145 | 145 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
340i | 340i xDrive | 340i xDrive | 340i xDrive | 316d | 316d | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | from to 7/2018 | from to 7/2018 | - | from to 7/2018 | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 |
Engine displacement [cm³] | 2998 | 2998 | 2998 | 2998 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 240/5500-6500 | 240/5500-6500 | 240/5500-6500 | 240/5500-6500 | 85/4000 | 85/4000 |
Maximum torque [Nm/min-1] | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 | 450/1380-5000 | 270/1250-2750 | 270/1250-2750 |
Bore and stroke [mm x mm] | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 94.6 x 82.0 | 90.0 x 84.0 | 90.0 x 84.0 |
Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 6,5 | 6,5 | 6,5 | 6,5 | 5.0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | 4x4 | 4x4 | 4x4 | Rear | Rear |
Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
Drive specifications |
|
|
|
| - | - |
Top speed [km/h] | 250 | 250 | 250 | 250 | 200 | 200 |
Acceleration 0–100 km/h [s] | 5.1 | 5.0 | 5.0 | 5.0 | 11.2 | 11.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | 12.8 | - |
City [l] | 9.3-9.0 | 10.1-9.6 | 10.1-9.6 | 10,7 | 5.5-4.9 | 5.5-5,3 |
Out of town [l] | 5.7-5.5 | 6.1-5.8 | 6.1-5.8 | 6,9 | 4.0-3.7 | 4,4-4,1 |
Combined [l] | 7.0-6.8 | 7.6-7.2 | 7.6-7.2 | 8,3 | 4.6-4.1 | 4,8-4,6 |
CO2 emissions [g/km] | 164-158 | 176-168 | 176-168 | 189 | 120-109 | 126-120 |
Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1690 | 1755 | 1755 | 1760 | 1570 | 1615 |
Overall weight [kg] | 2175 | 2230 | 2230 | 2235 | 2090 | 2135 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 745/1600 | 745/1600 |
Maximum front/rear axle load [kg] | 990/1250 | 1050/1250 | 1050/1250 | 1050/1250 | 925/1255 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 60 | 60 | 57 | 57 |
AdBlue tank volume [l] | - | - | - | - | - | 21,9 |
Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.29 | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 205/60 R16 92H | 205/60 R16 92H |
Tyre dimensions rear | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 205/60 R16 92H | 205/60 R16 92H |
Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11,3/- | 11,7/- | 11,7/- | 11,7/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1434 | 1434 | 1434 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1543 | 1543 |
Rear wheel track [mm] | 1572 | 1570 | 1570 | 1570 | 1583 | 1583 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 145 | 145 | 145 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
316d | 316d | 318d | 318d | 318d | 318d | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | - | from to 7/2018 | - | from to 7/2018 | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 |
Maximum torque [Nm/min-1] | 270/1250-2750 | 270/1250-2750 | 320/1500-3000 | 320/1500-3000 | 320/1500-3000 | 320/1500-3000 |
Bore and stroke [mm x mm] | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
Drive specifications |
|
| - | - |
|
|
Top speed [km/h] | 198 | 198 | 210 | 210 | 210 | 210 |
Acceleration 0–100 km/h [s] | 11.1 | 11.3 | 8.9 | 9,0 | 8.8 | 8.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | 10.3 | 10.3 | - | - |
City [l] | 5.5-5.0 | 5,3-5,2 | 5.6-5.2 | 5,5-5,2 | 5.4-4.9 | 5,3-5,2 |
Out of town [l] | 4.0-3.6 | 4,4-4,2 | 4.0-3.8 | 4,3-4,1 | 4.0-3.7 | 4,4-4,2 |
Combined [l] | 4.6-4.1 | 4,7-4,6 | 4.6-4.3 | 4,7-4,5 | 4.5-4.1 | 4,7-4,6 |
CO2 emissions [g/km] | 120-109 | 124-120 | 122-112 | 125-118 | 119-109 | 124-121 |
Emission standard | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1585 | 1645 | 1575 | 1615 | 1595 | 1645 |
Overall weight [kg] | 2105 | 2165 | 2140 | 2135 | 2160 | 2165 |
Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 745/1800 | 745/1800 |
Maximum front/rear axle load [kg] | 925/1255 | - | 920/1260 | - | 920/1260 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | 21,9 | - | 21,9 | - | 21,9 |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0Jx 16 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0Jx 16 | 7.0Jx 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1429 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
Rear wheel track [mm] | 1583 | 1583 | 1583 | 1583 | 1583 | 1583 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
318d xDrive | 320d EfficientDynamics Edition | 320d EfficientDynamics Edition | 320d EfficientDynamics Edition | 320d EfficientDynamics Edition | 320d | |
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | from to 7/2018 | - | from to 7/2018 | - | from to 7/2018 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 110/4000 | 120/4000 | 120/4000 | 120/4000 | 120/4000 | 140/4000 |
Maximum torque [Nm/min-1] | 320/1500-3000 | 400/1750-2250 | 400/1750-2250 | 400/1750-2250 | 400/1750-2250 | 400/1750-2500 |
Bore and stroke [mm x mm] | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.0 | 5,0 | 5,0 | 5,0 | 5,0 | 5.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
Drive specifications |
| - | - |
|
| - |
Top speed [km/h] | 206 | 222 | 222 | 222 | 222 | 230 |
Acceleration 0–100 km/h [s] | 9.2 | 8,2 | 8,3 | 8,1 | 8,2 | 7.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 10.6 | 9,4 | 9,4 | - | - | 7.9 |
City [l] | 6.2-5.7 | 5.5–5.0 | 5,4-5,3 | 5.3–4.8 | 5,4-5,2 | 5.7-5.2 |
Out of town [l] | 4.4-4.1 | 3.9–3.6 | 4,3-4,1 | 3,9-3,5 | 4,5-4,2 | 4.1-3.8 |
Combined [l] | 5.1-4.7 | 4.5–4.1 | 4,7-4,5 | 4,4-4,0 | 4,8-4,6 | 4.7-4.3 |
CO2 emissions [g/km] | 133-123 | 118–107 | 125-119 | 116-104 | 127-120 | 123-113 |
Emission standard | EU6 | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1645 | 1575 | 1635 | 1585 | 1645 | 1585 |
Overall weight [kg] | 2145 | 2050 | 2110 | 2060 | 2130 | 2105 |
Maximum trailer weight unbraked/braked [kg] | 750/1600 | - | 745/1800 | 745/1800 | - | 745/1600 |
Maximum front/rear axle load [kg] | 975/1250 | 920/1225 | - | 920/1225 | - | 930/1260 |
Maximum vertical load on the tow bar [kg] | 75 | - | - | - | - | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | - | 21,9 | - | 21,9 | - |
Air resistance [Cd] | 0.30 | - | - | - | - | 0.29 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Tyre dimensions rear | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.7/- | 11,3/- | 11,3/- | 11,3/- | 11,3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1434 | 1429 | 1429 | 1429 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1542 | - | - | - | - | 1543 |
Rear wheel track [mm] | 1582 | - | - | - | - | 1583 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 145 | - | - | - | - | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
320d | 320d | 320d | 320d xDrive | 320d xDrive | 320d xDrive | |
---|---|---|---|---|---|---|
Date of sale | - | from to 7/2018 | - | from to 7/2018 | from to 7/2018 | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 |
Bore and stroke [mm x mm] | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5,0 | 5,0 | 5.0 | 5.05.0 | 5.05.0 | 5.05.0 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | 4x4 |
Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
Drive specifications | - |
|
| - |
|
|
Top speed [km/h] | 230 | 226 | 226 | 228 | 222 | 222 |
Acceleration 0–100 km/h [s] | 7.7 | 7.4 | 7.5 | 7,6 | 7,6 | 7,7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | 7.9 | 8,6 | - | - |
City [l] | 5,8-5,6 | 5,4-4.9 | 5,4-5,3 | 6,1-5,7 | 5,8-5,4 | 6,0-5,9 |
Out of town [l] | 4,5-4,2 | 4,0-3.7 | 4,9-4,6 | 4,4-4,1 | 4,4-4,0 | 4,9-4,7 |
Combined [l] | 5,0-4,8 | 4,5-4.1 | 5,1-4,8 | 5,0-4,7 | 4,9-4,5 | 5,3-5,1 |
CO2 emissions [g/km] | 131-125 | 119-109 | 133-127 | 133-123 | 129-119 | 140-136 |
Emission standard | Euro 6c/Euro 6d-TEMP | EU6 | Euro 6c/Euro 6d-TEMP | EU6 | EU6 | Euro 6c/Euro 6d-TEMP |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1645 | 1605 | 1655 | 1655 | 1680 | 1725 |
Overall weight [kg] | 2165 | 2125 | 2175 | 2155 | 2180 | 2225 |
Maximum trailer weight unbraked/braked [kg] | 745/1800 | 745/1800 | 745/1600 | 750/1600 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | - | 930/1260 | - | 990/1260 | 990/1260 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | 21,9 | - | 21,9 | - | - | 21,9 |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.28 | 0.28 | 0.28 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Tyre dimensions rear | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11,3/- | 11,3/- | 11.3/- | 11.7/- | 11.7/- | 11.7/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1434 | 1434 | 1434 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
Rear wheel track [mm] | 1583 | 1583 | 1583 | 1586 | 1586 | 1586 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 145 | 145 | 145 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
325d | 325d | 325d | 325d | 330d | 330d | |
---|---|---|---|---|---|---|
Date of sale | from to 1/2016 | from to 1/2016 | from 1/2016 to 7/2018 | from 1/2016 to 7/2018 | from to 7/2018 | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2993 | 2993 |
Maximum output / speed [kW/min-1] | 160/4400 | 160/4400 | 165/4400 | 165/4400 | 190/4000 | 190/4000 |
Maximum torque [Nm/min-1] | 450/1500-2500 | 450/1500-2500 | 450/1500-3000 | 450/1500-3000 | 560/1500-3000 | 560/1500-3000 |
Bore and stroke [mm x mm] | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 |
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
Oil volume [l] | 5.2 | 5.2 | 5.0 | 5.0 | 6.5 | 6.5 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
Drive specifications | - |
| - |
|
|
|
Top speed [km/h] | 238 | 238 | 240 | 240 | 250 | 250 |
Acceleration 0–100 km/h [s] | 6.9 | 6.7 | 6.7 | 6.3 | 5.6 | 5.6 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | 7.2 | - | 6.7 | - | - | - |
City [l] | 6.4-6.3 | 6.0-5.9 | 6.3-5,9 | 5.7-5,3 | 6.1-5.9 | 6,6 |
Out of town [l] | 4.5-4.4 | 4.3-4.3 | 4.6-4,3 | 4.6-4,3 | 4.8-4.7 | 5,1 |
Combined [l] | 5.2-5.1 | 4.9-4.8 | 5.2-4,9 | 5.0-4,7 | 5.3-5.1 | 5,6 |
CO2 emissions [g/km] | 137-134 | 130-127 | 137-129 | 131-123 | 138-135 | 148 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | Euro 6c |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1615 | 1635 | 1640 | 1650 | 1685 | 1735 |
Overall weight [kg] | 2100 | 2120 | 2125 | 2135 | 2160 | 2220 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
Maximum front/rear axle load [kg] | 950/1245 | 950/1245 | 965/1255 | 965/1255 | 1000/1245 | - |
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
AdBlue tank volume [l] | - | - | - | - | - | 21,9 |
Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms |
Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
Tyre dimensions front | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W |
Tyre dimensions rear | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W |
Wheel size front | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 |
Overall height [mm] | 1429 | 1429 | 1429 | 1429 | 1429 | 1429 |
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
Rear wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
Forward overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
330d xDrive | 330d xDrive | 335d xDrive | 335d xDrive | |||
---|---|---|---|---|---|---|
Date of sale | from to 7/2018 | - | from to 7/2018 | - | ||
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | ||
Maximum output / speed [kW/min-1] | 190/4000 | 190/4000 | 230/4400 | 230/4400 | ||
Maximum torque [Nm/min-1] | 560/1500-3000 | 560/1500-3000 | 630/1500-2500 | 630/1500-2500 | ||
Bore and stroke [mm x mm] | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | 90.0 x 84.0 | ||
Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | ||
Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | ||
Coolant volume [l] | - | - | - | - | ||
Technical specifications |
|
|
|
| ||
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
Drive specifications |
|
|
|
| ||
Top speed [km/h] | 250 | 250 | 250 | 250 | ||
Acceleration 0–100 km/h [s] | 5.4 | 5.4 | 4.9 | 4.9 | ||
Acceleration 0–80 km/h [s] | - | - | - | - | ||
Acceleration 80–120 km/h [s] | - | - | - | - | ||
City [l] | 6.4-6.2 | 7,1 | 6.8-6.7 | 7,6 | ||
Out of town [l] | 5.0-4.9 | 5,3 | 5.2-5.1 | 5,5 | ||
Combined [l] | 5.5-5.4 | 6,0 | 5.7-5.6 | 6,3 | ||
CO2 emissions [g/km] | 145-142 | 157 | 151-148 | 165 | ||
Emission standard | EU6 | Euro 6c | EU6 | Euro 6c | ||
Standard for fuel consumption measurement | - | - | - | - | ||
Energy class | - | - | - | - | ||
Stationary vehicle noise [dB] | - | - | - | - | ||
Driving noise [dB] | - | - | - | - | ||
Standby weight [kg] | 1755 | 1795 | 1770 | 1810 | ||
Overall weight [kg] | 2230 | 2290 | 2245 | 2295 | ||
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
Maximum front/rear axle load [kg] | 1050/1255 | - | 1060/1260 | - | ||
Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | ||
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
Boot volume [l] | 495 | 495 | 495 | 495 | ||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | ||
Boot length [mm] | - | - | - | - | ||
Boot length with rear seats folded [mm] | - | - | - | - | ||
Boot width between wheels/max [mm] | - | - | - | - | ||
Boot height to headliner/ceiling [mm] | - | - | - | - | ||
Loading edge height [mm] | - | - | - | - | ||
Height of the open boot door [mm] | - | - | - | - | ||
Boot opening height [mm] | - | - | - | - | ||
Boot opening width min/max [mm] | - | - | - | - | ||
Number of doors | 5 | 5 | 5 | 5 | ||
Number of seats | 5 | 5 | 5 | 5 | ||
Fuel tank volume [l] | 57 | 57 | 57 | 57 | ||
AdBlue tank volume [l] | - | 21,9 | - | 21,9 | ||
Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | ||
Front suspension | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | MacPherson, lower cross arms | ||
Rear suspension | five-link | five-link | five-link | five-link | ||
Tyre dimensions front | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | ||
Tyre dimensions rear | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | 225/50 R17 98W | ||
Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | ||
Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | ||
Brake dimensions front | - | - | - | - | ||
Brake dimensions rear | - | - | - | - | ||
Steering | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | Electric power steering EPS | ||
Number of steering wheel turns | - | - | - | - | ||
Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | ||
Overall length [mm] | 4633 | 4633 | 4633 | 4633 | ||
Overall width without/including mirrors [mm] | 1811/2031 | 1811/2031 | 1811/2031 | 1811/2031 | ||
Overall height [mm] | 1434 | 1434 | 1434 | 1434 | ||
Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | ||
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | ||
Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | ||
Forward overhang [mm] | 779 | 779 | 779 | 779 | ||
Rear overhang [mm] | 1044 | 1044 | 1044 | 1044 | ||
Clearance [mm] | 145 | 145 | 145 | 145 | ||
Wading depth [mm] | - | - | - | - | ||
Approach angle front [°] | - | - | - | - | ||
Approach angle rear [°] | - | - | - | - | ||
Transition angle [°] | - | - | - | - | ||
Climbing rate [°] | - | - | - | - | ||
Maximum side tilt [°] | - | - | - | - | ||
Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | ||
Headroom rear [mm] | 973 | 973 | 973 | 973 | ||
Front elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | ||
Rear elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | ||
Legroom front knees/total [mm] | - | - | - | - | ||
Legroom rear knees/total [mm] | - | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
