BMW 3

3 F30 F34 F31 2011

Date of manufacture

10/2011 – 2015 (Sedan)

3/2013 – 2016 (Liftback)

10/2011 – 2015 (Estate)

Platform

-

Manufacturing locations

Munich, Germany

Regensburg, Germany

Dingolfing, Germany

Designer

Christopher Weil

Jean-Francois Huet

Page Beermann

Tags

D-segment

German cars

The BMW 3 is available in sedan, liftback and estate body styles. The car has been produced since 2011. The country of origin where the car is manufactured is Germany. The engine range includes petrol, diesel and hybrid engines. The M3 model has a maximum power of 317 kW. The M3 version has a maximum speed of 250 km/h. The 320d EfficientDynamics has the lowest consumption of 4.1 l/100 km and emissions of 109 g/km. The sedan body style has a trunk size of 480 l. The liftback body style offers a luggage compartment capacity of 520 l. The estate body style offers a luggage compartment size of 495 l. During the EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the 2012 methodology.

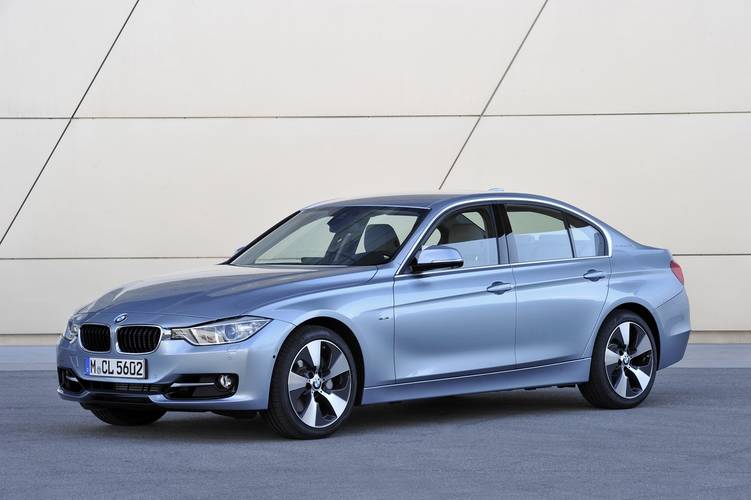

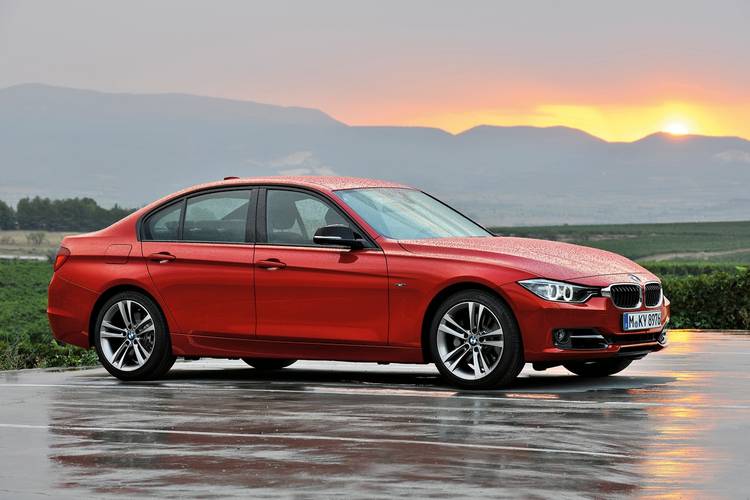

Car body style

Sedan

Date of manufacture

10/2011 – 2015

Internal designation

F30

Engine size

Petrol

320i EfficientDynamics

320i EfficientDynamics

Petrol + Electric

Diesel

320d EfficientDynamics

320d EfficientDynamics

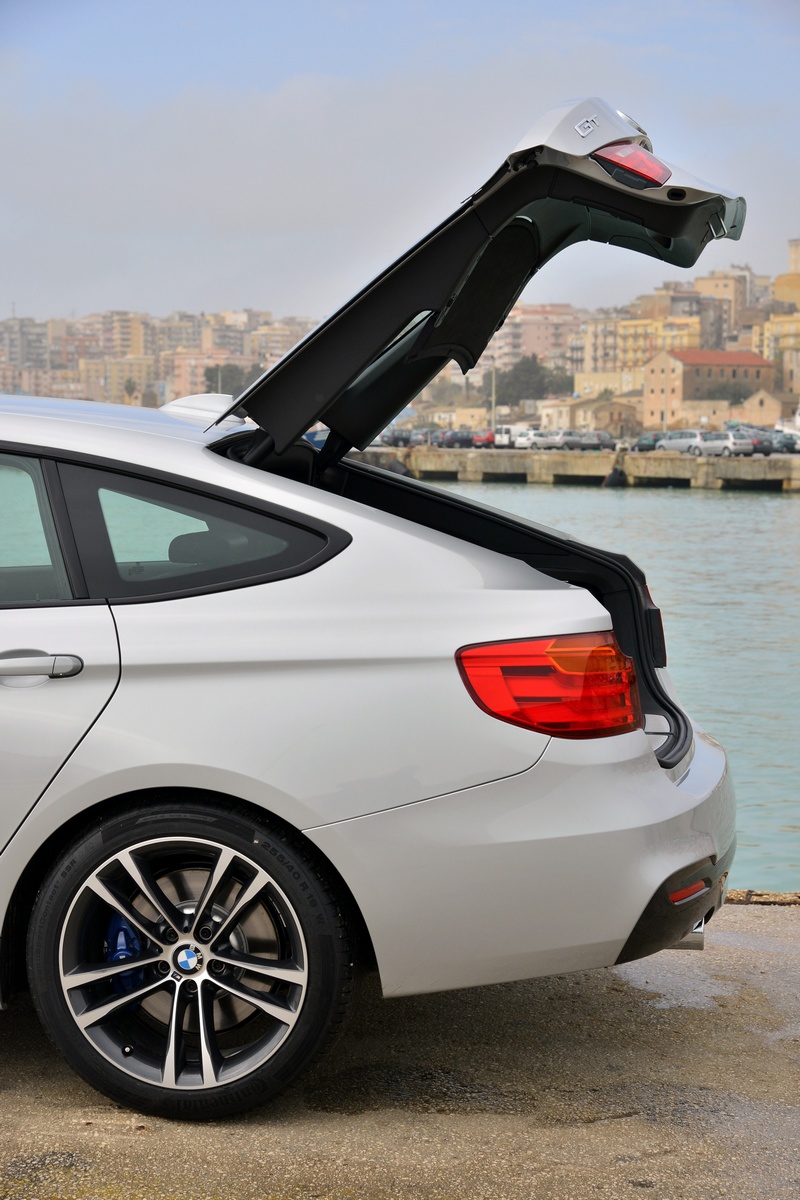

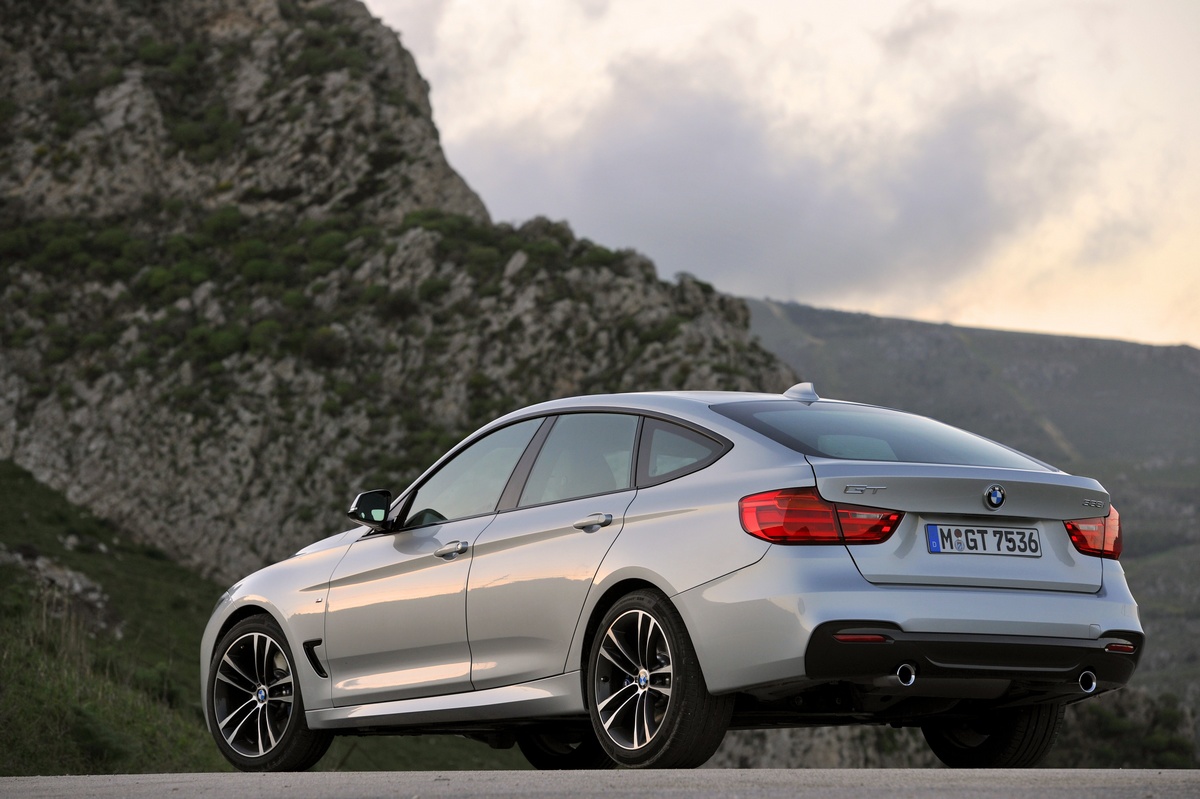

Liftback (Gran Turismo)

Date of manufacture

3/2013 – 2016

Internal designation

F34

Engine size

Petrol

Diesel

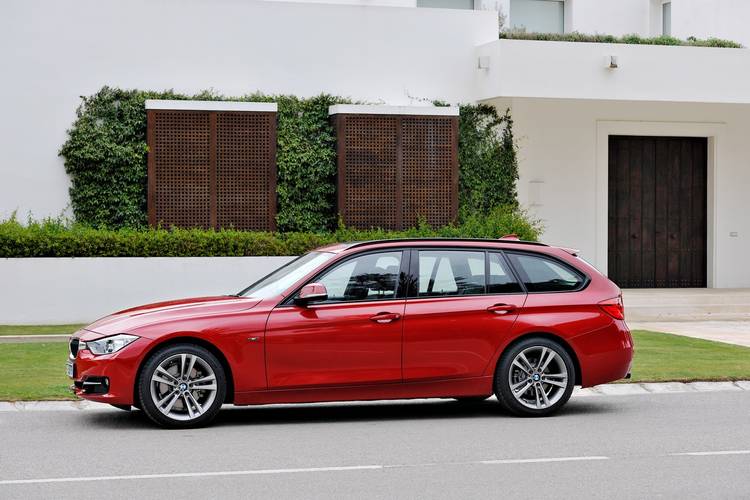

Estate (Touring)

Date of manufacture

10/2011 – 2015

Internal designation

F31

Engine size

Petrol

Diesel

320d EfficientDynamics

320d EfficientDynamics

Euro NCAP

Technical data

Sedan

	316i	316i	320i EfficientDynamics	320i EfficientDynamics	320i	320i
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1997	1997
Maximum output / speed [kW/min-1]	100/4400-6450	100/4400-6450	125/4800-6450	125/4800-6450	135/5000	135/5000
Maximum torque [Nm/min-1]	220/1350-4300	220/1350-4300	250/1500-4500	250/1500-4500	270/1250-4500	270/1250-4500
Bore and stroke [mm x mm]	77,0 x 85,8	77,0 x 85,8	77,0 x 85,8	77,0 x 85,8	84,0 x 90,1	84,0 x 90,1
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	11,0:1	11,0:1
Oil volume [l]	-	-	-	-	5,75	5,75
Coolant volume [l]	-	-	-	-	6,7	7,6
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	-	-	-	automatic gearbox Steptronic

Top speed [km/h]	210	210	230	230	235	235
Acceleration 0–100 km/h [s]	8.9	9.2	7.6	7.6	7.3	7.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.6-7.7	7.5-7.6	7.0-7.3	7.3-7.6	8.4-8.6	8.0-8.1
Out of town [l]	4.7-4.8	4.8-4.9	4.4-4.6	4.4-4.6	4.9-5.0	4.8-4.9
Combined [l]	5.8-5.9	5.8-5.9	5.3-5.6	5.4-5.7	6.1-6.3	5.9-6.0
CO2 emissions [g/km]	134-137	134-137	124-130	127-133	144-147	138-141

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1460	1480	1465	1485	1475	1495
Overall weight [kg]	1935	1955	1940	1960	1950	1970
Maximum trailer weight unbraked/braked [kg]	695/1100	695/1100	695/1100	695/1100	695/1400	695/1500
Maximum front/rear axle load [kg]	-	-	-	-	905/1125	905/1125
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.27	0.27	0.26	0.26	0,29	0,29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 H	205/60 R16 H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 H	205/60 R16 H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92W	205/60 R16 92W
Wheel size front	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.3	11.3

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1416	1416	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1583	1583	1583	1583	1583	1583
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	140	140	127	127	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320i xDrive	320i xDrive	328i	328i	328i xDrive	328i xDrive
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1997	1997	1997	1997	1997	1997
Maximum output / speed [kW/min-1]	135/5000	135/5000	180/5000-6500	180/5000-6500	180/5000-6500	180/5000-6500
Maximum torque [Nm/min-1]	270/1250-4500	270/1250-4500	350/1250-4800	350/1250-4800	350/1250-4800	350/1250-4800
Bore and stroke [mm x mm]	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1
Compression ratio	11,0:1	11,0:1	10,0:1	10,0:1	10,0:1	10,0:1
Oil volume [l]	-	-	5,75	5,75	-	-
Coolant volume [l]	-	-	7,0	7,6	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	4x4	4x4	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	232	230	250	250	250	250
Acceleration 0–100 km/h [s]	7.4	7.5	5.9	5.9	5.7	5.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.9-9.0	8.6-8.8	8.5	8.1	9.0	8.7
Out of town [l]	5.5-5.6	5.1-5.2	5.1	5.2	5.5	5.5
Combined [l]	6.8	6.4-6.5	6.4	6.3	6.8	6.7
CO2 emissions [g/km]	158-159	149-152	149	147	159	157

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1560	1580	1505	1530	1595	1615
Overall weight [kg]	2025	2045	1980	2005	2060	2080
Maximum trailer weight unbraked/braked [kg]	695/1400	695/1500	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	-	-	920/1140	920/1140	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.29	0.29	0.3	0.3
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 V	205/60 R16 V	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	205/60 R16 V	205/60 R16 V	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7 J x 16	7 J x 16	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Wheel size rear	7 J x 16	7 J x 16	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.7	11.7	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1434	1434	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1531	1531	1543	1543
Rear wheel track [mm]	1582	1582	1572	1572	1582	1582
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	145	145	140	140	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	335i	335i	335i xDrive	335i xDrive	M3	M3
Date of sale	-	-	-	-	from 12/2013 to	from 12/2013 to
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	6/24	6/24
Engine displacement [cm³]	2979	2979	2979	2979	2979	2979
Maximum output / speed [kW/min-1]	225/5800-6000	225/5800-6000	225/5800-6000	225/5800-6000	317/5500-7300	317/5500-7300
Maximum torque [Nm/min-1]	400/1200-5000	400/1200-5000	400/1200-5000	400/1200-5000	550/1850-5500	550/1850-5500
Bore and stroke [mm x mm]	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6
Compression ratio	10,2:1	10,2:1	10,2:1	10,2:1	10,2:1	10,2:1
Oil volume [l]	6,5	6,5	-	-	6,5	6,5
Coolant volume [l]	6,7	7,2	-	-	13,9	13,9
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic	-	dual-clutch automatic gearbox Drivelogic

Top speed [km/h]	250	250	250	250	250	250
Acceleration 0–100 km/h [s]	5.5	5.2	5.3	5.0	4.3	4.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	4,2	4,3

City [l]	11.2	10.4	11.6	11.0	12.0	11.1
Out of town [l]	6.1	5.4	6.3	5.7	6.9	6.7
Combined [l]	7.9	7.2	8.2	7.6	8.8	8.3
CO2 emissions [g/km]	186	169	193	178	204	194

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1585	1595	1655	1665	1595	1635
Overall weight [kg]	2060	2070	2120	2130	2100	2100
Maximum trailer weight unbraked/braked [kg]	750/1700	750/1700	750/1700	750/1700	-	-
Maximum front/rear axle load [kg]	965/1145	965/1145	-	-	990/1170	990/1170
Maximum vertical load on the tow bar [kg]	75	75	75	75	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.34	0.34
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	255/40 ZR18 95Y	255/40 ZR18 95Y
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	275/40 ZR18 99Y	275/40 ZR18 99Y
Wheel size front	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	9 J x 18	9 J x 18
Wheel size rear	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	10 J x 18	10 J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.7	11.7	12.2	12.2

Overall length [mm]	4624	4624	4624	4624	4671	4671
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1877/-	1877/-
Overall height [mm]	1429	1429	1434	1434	1430	1430
Wheelbase [mm]	2810	2810	2810	2810	2812	2812
Front wheel track [mm]	1531	1531	1543	1543	1579	1579
Rear wheel track [mm]	1572	1572	1582	1582	1603	1603
Forward overhang [mm]	776	776	776	776	811	811
Rear overhang [mm]	1038	1038	1038	1038	1048	1048
Clearance [mm]	140	140	145	145	120	120
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	ActiveHybrid 3	316d	316d	318d	318d	318d xDrive
Date of sale	-	-	-	-	-	-
Engine type	Petrol supercharged + Electric	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2979	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	225/5800-6000 40 el. 250 total	85/4000	85/4000	105/4000	105/4000	105/4000
Maximum torque [Nm/min-1]	400/1200-5000 210 el. 450 total	260/1750-2500	260/1750-2500	320/1750-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	84,0 x 89,6	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	10,2:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	6,5	5,2	5,2	5,2	5,2	-
Coolant volume [l]	9,3	7,6	7,7	7,6	7,7	-
Technical specifications	Mild Hybrid direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	4x4
Gearbox	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual
Drive specifications	automatic gearbox Steptronic	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive

Top speed [km/h]	250 [75 el.]	202	202	212	212	212
Acceleration 0–100 km/h [s]	5.3	10.9	10.8	9.0	8.9	9.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.5	5.4-5.5	5.3-5.4	5.3-5.5	5.3-5.4	5.7-5.9
Out of town [l]	6.2	3.7-3.9	3.8-3.9	3.8-3.9	3.8-3.9	4.1-4.2
Combined [l]	5.9	4.3-4.5	4.3-4.4	4.3-4.5	4.3-4.5	4.7-4.8
CO2 emissions [g/km]	139	114-118	114-117	114-118	114-118	123-127

Emission standard	EU6	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	317	-	-	-	-	-
Battery type and capacity	Lithium-Ionen-Akkumulator, 0,675 kWh	-	-	-	-	-
Range with fully charged battery [km]	3-4	-	-	-	-	-
Charging time	-	-	-	-	-	-
Number of modules/cells	-/96	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1730	1485	1505	1485	1505	1565
Overall weight [kg]	2185	1960	1980	1960	1980	2030
Maximum trailer weight unbraked/braked [kg]	-	745/1600	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	1020/1230	905/1130	905/1130	905/1130	905/1130	-
Maximum vertical load on the tow bar [kg]	-	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	390	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.26	0.26	0.26	0.26	0.27
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92V
Tyre dimensions rear	225/50 R17 94W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92V
Wheel size front	7.5 J x 17	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7.5 J x 17	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.3	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1429	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1543	1543	1543	1543	1543
Rear wheel track [mm]	1572	1583	1583	1583	1583	1583
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	140	140	140	140	140	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d EfficientDynamics	320d EfficientDynamics	320d	320d	320d xDrive	320d xDrive
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	120/4000	120/4000	135/4000	135/4000	135/4000	135/4000
Maximum torque [Nm/min-1]	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	5,2	5,2	5,2	5,2	-	-
Coolant volume [l]	7,0	7,0	7,0	7,0	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	230	225	235	230	233	228
Acceleration 0–100 km/h [s]	8.0	7.9	7.5	7.4	7.5	7.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.2	5.0	5.8	5.4	6.0-6.3	5.6-5.8
Out of town [l]	3.5	3.6	3.8	3.9	3.9-4.1	4.1-4.2
Combined [l]	4.1	4.1	4.5-4.6	4.4-4.5	4.7-4.9	4.6-4.8
CO2 emissions [g/km]	109	109	119-120	117-118	124-128	122-125

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1495	1505	1495	1505	1585	1595
Overall weight [kg]	1970	1980	1970	1980	2050	2060
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	905/1120	905/1120	905/1120	905/1120	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,26	0,26	0.27	0.27	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Tyre dimensions rear	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Wheel size front	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1416	1416	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1543	1543
Rear wheel track [mm]	1583	1583	1583	1583	1582	1582
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	-	-	140	140	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	325d	325d	330d	330d xDrive	335d xDrive
Date of sale	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1995	1995	2993	2993	2993
Maximum output / speed [kW/min-1]	160/4400	160/4400	190/4000	190/4000	230/4400
Maximum torque [Nm/min-1]	450/1500-2500	450/1500-2500	560/1500-3000	560/1500-3000	630/1500-2500
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	245	245	250	250	250
Acceleration 0–100 km/h [s]	6.8	6.6	5.6	5.3	4.8
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.2	5.4	6.0	6.4	6.4
Out of town [l]	4.2	4.6	4.3	4.6	4.9
Combined [l]	4.9	4.6	4.9	5.2	5.4
CO2 emissions [g/km]	129	122	129	137	143

Emission standard	EU5	EU5	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1550	1565	1615	1685	1705
Overall weight [kg]	2025	2040	2090	2150	2170
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0.28	0.29	0.3
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Wheel size rear	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1531	1531
Rear wheel track [mm]	1583	1583	1582	1570	1570
Forward overhang [mm]	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038
Clearance [mm]	140	140	140	145	145
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1023	1023	1023	1023	1023
Headroom rear [mm]	957	957	957	957	957
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1458/-	1458/-	1458/-	1458/-	1458/-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Liftback (Gran Turismo)

	320i	320i	320i xDrive	320i xDrive	328i	328i
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1997	1997	1997	1997	1997	1997
Maximum output / speed [kW/min-1]	135/5000-6250	135/5000-6250	135/5000-6250	135/5000-6250	180/5000-6500	180/5000-6500
Maximum torque [Nm/min-1]	270/1250-4500	270/1250-4500	270/1250-4500	270/1250-4500	350/1250-4800	350/1250-4800
Bore and stroke [mm x mm]	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1
Compression ratio	11,0:1	11,0:1	11,0:1	11,0:1	10,0:1	10,0:1
Oil volume [l]	5,75	5,75	5,75	5,75	5,75	5,75
Coolant volume [l]	7,1	7,7	7,1	7,7	7,2	7,5
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic

Top speed [km/h]	230	229	227	224	250	250
Acceleration 0–100 km/h [s]	7.9	7.9	8.0	8.3	6.1	6.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	9,8	-	10,1	-	7,7	-

City [l]	8.7-8.9	8.2-8.3	9.2-9.4	8.7-8.8	8.8	8.3-8.5
Out of town [l]	5.3-5.4	5.1	5.8-5.9	5.4-5.5	5.5-5.6	5.3-5.4
Combined [l]	6.6-6.7	6.2-6.3	7.0-7.2	6.6-6.7	6.7-6.8	6.4-6.5
CO2 emissions [g/km]	153-156	145-147	164-167	154-156	156-158	149-151

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1615	1635	1700	1715	1645	1670
Overall weight [kg]	2110	2130	2195	2210	2140	2165
Maximum trailer weight unbraked/braked [kg]	695/1400	695/1500	750/1400	750/1500	745/1600	745/1600
Maximum front/rear axle load [kg]	935/1240	935/1240	1010/1240	1010/1240	950/1260	950/1260
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.29	0.29	0,29	0,29	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W
Wheel size front	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Wheel size rear	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.8	11.8	12.3	12.3	11.8	11.8

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	328i xDrive	335i	335i	335i xDrive	318d	318d
Date of sale	-	-	-	-	from to 5/2015	from to 5/2015
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	1997	2979	2979	2979	1995	1995
Maximum output / speed [kW/min-1]	180/5000-6500	225/5800-6000	225/5800-6000	225/5800-6000	105/4000	105/4000
Maximum torque [Nm/min-1]	350/1250-4800	400/1200-5000	400/1200-5000	400/1200-5000	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	84,0 x 90,1	84,0 x 89,6	84,0 x 89,6	84,0 x 89,6	84,0 x 90,0	84,0 x 90,0
Compression ratio	10,0:1	10,2:1	10,2:1	10,2:1	16,5:1	16,5:1
Oil volume [l]	4,8	6,5	6,5	6,5	5,2	5,2
Coolant volume [l]	-	6,9	7,1	-	7,0	7,0
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	4x4	Rear	Rear	4x4	Rear	Rear
Gearbox	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic

Top speed [km/h]	247	250	250	250	210	210
Acceleration 0–100 km/h [s]	6.2	5.7	5.4	5.3	9.7	9.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	6,5	-	-	10,8	-

City [l]	8.9-9.0	11.1-11.2	10.7	11.6	5.5-5.6	5.6-5.7
Out of town [l]	5.6-5.7	6.3	5.9	5.9-6.0	4.0-4.1	4.4
Combined [l]	6.8-6.9	8.1	7.7	8.0-8.1	4.5-4.6	4.8-4.9
CO2 emissions [g/km]	159-161	188-189	178-179	187-188	119-122	127-129

Emission standard	EU6	EU6	EU6	EU6	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1735	1715	1725	1790	1615	1635
Overall weight [kg]	2230	2210	2220	2285	2110	2130
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1700	750/1700	750/1700	745/1600	745/1600
Maximum front/rear axle load [kg]	1025/1250	1000/1265	1000/1265	1070/1260	940/1240	940/1240
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0,29	0.3	0.3	0,30	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W	225/55 R17 97V	225/55 R17 97V
Wheel size front	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Wheel size rear	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.3	11.8	11.8	12.3	11.8	11.8

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	318d	318d	320d	320d	320d	320d
Date of sale	from 5/2015 to	from 5/2015 to	from to 5/2015	from to 5/2015	from 5/2015 to	from 5/2015 to
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	110/4000	110/4000	135/4000	135/4000	140/4000	140/4000
Maximum torque [Nm/min-1]	320/1500-3000	320/1500-3000	380/1750-2750	380/1750-2750	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	90.0 x 84.0	90.0 x 84.0	84,0 x 90,0	84,0 x 90,0	90.0 x 84.0	90.0 x 84.0
Compression ratio	16.5:1	16.5:1	16,5:1	16,5:1	16.5:1	16.5:1
Oil volume [l]	5.0	5.0	5,2	5,2	5.0	5.0
Coolant volume [l]	-	-	7,0	7,0	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic

Top speed [km/h]	210	210	230	226	230	226
Acceleration 0–100 km/h [s]	9.3	9.2	8.0	7.9	7.8	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	10.8	-	8,6	-	8.6	-

City [l]	5,6-5,3	5,2-4,9	5.8-5.9	5.9	5,7-5,5	5,4-5,0
Out of town [l]	4,1-4,0	4,1-3,9	4.4	4.4	4,3-4,1	4,1-3,9
Combined [l]	4,7-4,5	4,5-4,3	4.9-5.0	4.9-5.0	4,8-4,6	4,6-4,3
CO2 emissions [g/km]	123-117	119-112	129-131	129-131	127-120	120-113

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1645/1670	1645/1670	1640	1650	1655/1670	1655/1670
Overall weight [kg]	2140	2165	2135	2145	2150	2165
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	965/1260	965/1260	950/1245	950/1245	965/1260	965/1260
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.28	0.28	0.28	0.28	0.28	0.28
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Wheel size front	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Wheel size rear	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.8	11.8	11.8	11.8	11.8	11.8

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d xDrive	320d xDrive	320d xDrive	320d xDrive	325d	325d
Date of sale	-	-	from 5/2015 to	from 5/2015 to	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	135/4000	135/4000	140/4000	140/4000	160/4400	160/4400
Maximum torque [Nm/min-1]	380/1750-2750	380/1750-2750	400/1750-2500	400/1750-2500	450/1500-2500	450/1500-2500
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	90.0 x 84.0	90.0 x 84.0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16.5:1	16.5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4	4x4	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive	automatically controlled all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic

Top speed [km/h]	230	225	230	225	240	240
Acceleration 0–100 km/h [s]	8.0	7.9	7.8	7.7	7.1	6.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	8.6	-	-	-

City [l]	6.0	6.1-6.2	6,0-5,7	5,6-5,3	6.2-6.3	5.8-5.9
Out of town [l]	4.5-4.6	4.5	4,5-4,3	4,3-4,1	4.5-4.6	4.5-4.6
Combined [l]	5.1	5.1	5,1-4,8	4,8-4,5	5.1-5.2	5.0-5.1
CO2 emissions [g/km]	133-134	134-135	133-126	126-119	134-137	131-134

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1715	1725	1655	1670	1675	1690
Overall weight [kg]	2210	2220	2150	2165	2170	2185
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1600	745/1600	745/1600	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	965/1260	965/1260	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	520	520	520	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97W	225/55 R17 97W
Wheel size front	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Wheel size rear	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17	8 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.3	12.3	12.3	12.3	11.8	11.8

Overall length [mm]	4824	4824	4824	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508	1508	1508	1508
Wheelbase [mm]	2920	2920	2920	2920	2920	2920
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586	1586	1586	1586
Forward overhang [mm]	803	803	803	803	803	803
Rear overhang [mm]	1101	1101	1101	1101	1101	1101
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1048	1048	1048	1048	1048	1048
Headroom rear [mm]	974	974	974	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	330d	330d xDrive	335d xDrive
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24
Engine displacement [cm³]	2993	2993	2993
Maximum output / speed [kW/min-1]	190/4000	190/4000	230/4400
Maximum torque [Nm/min-1]	560/1500-3000	560/1500-3000	600/1300-3000
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16,5:1
Oil volume [l]	7,2	7,2	7,2
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	Rear	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	250	250	250
Acceleration 0–100 km/h [s]	5.7	5.4	4,9
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	6.1	6.4	6.6
Out of town [l]	4.6	4.8-4.9	5.1
Combined [l]	5.1-5.2	5.4	5.6-5.7
CO2 emissions [g/km]	135-136	142-143	148-149

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1735	1805	1820
Overall weight [kg]	2230	2300	2315
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1015/1260	1080/1280	1095/1280
Maximum vertical load on the tow bar [kg]	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-

Boot volume [l]	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1600	-/1600	-/1600
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	57	57	57
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.28	0.29	0.29
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link
Tyre dimensions front	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Tyre dimensions rear	225/55 R17 97W	225/55 R17 97W	225/55 R17 97W
Wheel size front	8 J x 17	8 J x 17	8 J x 17
Wheel size rear	8 J x 17	8 J x 17	8 J x 17
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	11.8	12.3	12.3

Overall length [mm]	4824	4824	4824
Overall width without/including mirrors [mm]	1828/2047	1828/2047	1828/2047
Overall height [mm]	1508	1508	1508
Wheelbase [mm]	2920	2920	2920
Front wheel track [mm]	1541	1541	1541
Rear wheel track [mm]	1586	1586	1586
Forward overhang [mm]	803	803	803
Rear overhang [mm]	1101	1101	1101
Clearance [mm]	165	165	165
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1048	1048	1048
Headroom rear [mm]	974	974	974
Front elbow/shoulder width [mm]	1465/-	1465/-	1465/-
Rear elbow/shoulder width [mm]	1455/-	1455/-	1455/-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Estate (Touring)

	316i	316i	320i	320i	320i xDrive	320i xDrive
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1997	1997	1997	1997
Maximum output / speed [kW/min-1]	100/4400-6450	100/4400-6450	135/5000-6250	135/5000-6250	135/5000-6250	135/5000-6250
Maximum torque [Nm/min-1]	220/1350-4300	220/1350-4300	270/1250-4500	270/1250-4500	270/1250-4500	270/1250-4500
Bore and stroke [mm x mm]	77,0 x 85,8	77,0 x 85,8	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1
Compression ratio	10,5:1	10,5:1	11,0:1	11,0:1	11,0:1	11,0:1
Oil volume [l]	-	-	5,75	5,75	-	-
Coolant volume [l]	-	-	11,3	11,3	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	210	210	233	228	225	223
Acceleration 0–100 km/h [s]	9.4	9.3	7.5	7.5	7.6	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	9,6	9,6	-	-

City [l]	7.8-8.1	7.6-7.9	8.7-8.8	8.3-8.4	9.0	8.8-8.9
Out of town [l]	4.9-5.0	4.9-5.1	5.1-5.2	4.9-5.0	5.6	5.2-5.3
Combined [l]	5.9-6.2	5.9-6.2	6.4-6.5	6.1-6.2	6.8-6.9	6.5-6.6
CO2 emissions [g/km]	138-143	138-143	149-152	143-145	159-160	152-164

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1525	1545	1545	1570	1630	1650
Overall weight [kg]	2000	2020	2020	2045	2105	2125
Maximum trailer weight unbraked/braked [kg]	695/1100	695/1100	695/1400	695/1500	695/1400	695/1500
Maximum front/rear axle load [kg]	-	-	900/1190	900/1190	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.32	0.32	0.33	0.33
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92H	205/60 R16 92H	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Tyre dimensions rear	205/60 R16 92H	205/60 R16 92H	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W	205/60 R16 92W
Wheel size front	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1542	1542
Rear wheel track [mm]	1583	1583	1583	1583	1582	1582
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	140	140	140	140	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	328i	328i	328i xDrive	328i xDrive	335i	335i
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	6/24	6/24
Engine displacement [cm³]	1997	1997	1997	1997	2979	2979
Maximum output / speed [kW/min-1]	180/5000-6500	180/5000-6500	180/5000-6500	180/5000-6500	225/5800-6000	225/5800-6000
Maximum torque [Nm/min-1]	350/1250-4800	350/1250-4800	350/1250-4800	350/1250-4800	400/1200-5000	400/1200-5000
Bore and stroke [mm x mm]	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 90,1	84,0 x 89,6	84,0 x 89,6
Compression ratio	10,0:1	10,0:1	10,0:1	10,0:1	10,2:1	10,2:1
Oil volume [l]	5,75	5,75	-	-	-	-
Coolant volume [l]	6,9	7,6	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation

Drive axle	Rear	Rear	4x4	4x4	Rear	Rear
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic

Top speed [km/h]	250	250	250	246	250	250
Acceleration 0–100 km/h [s]	6.0	6.0	5.9	6.1	5.5	5.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	7,2	-	-	-	-	-

City [l]	9.2	8.4	9.4	9.0	11.4	10.9
Out of town [l]	5.5	5.4	5.7	5.8	6.2	5.7
Combined [l]	6.8	6.5	7.1	6.9	8.1	7.6
CO2 emissions [g/km]	159	152	166	162	189	177

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1585	1615	1665	1685	1650	1660
Overall weight [kg]	2060	2090	2140	2160	2125	2135
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	750/1700	750/1700
Maximum front/rear axle load [kg]	915/1210	915/1210	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.32	0.32	0.33	0.33	0.32	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Wheel size rear	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.7	11.7	11.3	11.3

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1434	1434	1429	1429
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1531	1531	1531	1531	1531
Rear wheel track [mm]	1572	1572	1570	1570	1572	1572
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	140	140	145	145	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	335i xDrive	316d	316d	318d	318d	318d xDrive
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2979	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	225/5800-6000	85/4000	85/4000	105/4000	105/4000	105/4000
Maximum torque [Nm/min-1]	400/1200-5000	260/1750-2500	260/1750-2500	320/1750-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	84,0 x 89,6	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	10,2:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	5,2	5,2	5,2	5,2	5,2
Coolant volume [l]	-	7,0	7,0	7,0	7,0	7,0
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	4x4	Rear	Rear	Rear	Rear	4x4
Gearbox	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual
Drive specifications	all-wheel drive xDrive automatic gearbox Steptronic	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive

Top speed [km/h]	250	200	198	210	210	206
Acceleration 0–100 km/h [s]	5.1	11.2	11.1	9.2	9.2	9.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	13,6	13,6	10,3	10,3	10,5

City [l]	11.3	5.6-5.8	5.5-5.7	5.6-5.8	5.5-5.7	6.0-6.1
Out of town [l]	5.9	3.9-4.1	4.0-4.1	3.9-4.1	4.0-4.1	4.3-4.4
Combined [l]	7.9	4.5-4.7	4.5-4.7	4.5-4.7	4.5-4.7	4.9-5.0
CO2 emissions [g/km]	184	119-123	119-123	119-123	119-123	128-132

Emission standard	EU6	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1730	1555	1575	1555	1575	1635
Overall weight [kg]	2205	2030	2050	2030	2050	2110
Maximum trailer weight unbraked/braked [kg]	750/1700	745/1600	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	-	905/1195	905/1195	905/1195	905/1195	955/1210
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.32	0.3	0.3	0.3	0.3	0.31
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	205/60 R16 92H	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Tyre dimensions rear	225/50 R17 94W	205/60 R16 92H	205/60 R16 92H	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Wheel size front	7.5 J x 17	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7.5 J x 17	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.7	11.3	11.3	11.3	11.3	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1434	1429	1429	1429	1429	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1531	1543	1543	1543	1543	1543
Rear wheel track [mm]	1570	1583	1583	1583	1583	1583
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	145	140	140	140	140	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	320d EfficientDynamics	320d EfficientDynamics	320d	320d	320d xDrive	320d xDrive
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1995	1995	1995	1995	1995	1995
Maximum output / speed [kW/min-1]	120/4000	120/4000	135/4000	135/4000	135/4000	135/4000
Maximum torque [Nm/min-1]	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750	380/1750-2750
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	5,2	-	5,2	5,2	-	-
Coolant volume [l]	7,5	-	7,0	7,0	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic	6 gear manual	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	-	automatic gearbox Steptronic	all-wheel drive xDrive	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	222	222	230	226	228	222
Acceleration 0–100 km/h [s]	8.3	8.2	7.7	7.6	7.8	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	9,6	-	7,9	-	-	-

City [l]	5.3	5.1	5.9-6.0	5.7	6.3-6.5	6.0-6.1
Out of town [l]	3.6	3.8	4.0	4.1	4.1-4.2	4.3-4.4
Combined [l]	4.3	4.3	4.7-4.8	4.7	4.9-5.1	4.9-5.1
CO2 emissions [g/km]	112	112	124-125	124	129-133	129-133

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1570	1585	1570	1585	1650	1660
Overall weight [kg]	2045	2060	2045	2060	2125	2135
Maximum trailer weight unbraked/braked [kg]	745/1600	745/1600	745/1600	745/1600	745/1600	745/1600
Maximum front/rear axle load [kg]	940/1160	-	910/1195	910/1195	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.27	0.3	0.31	0.31	0.32	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	205/60 R16 92W	205/60 R16 92W	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Tyre dimensions rear	205/60 R16 92W	205/60 R16 92W	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Wheel size front	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Wheel size rear	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16	7 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1416	1416	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1543	1542	1542
Rear wheel track [mm]	1583	1583	1583	1583	1582	1582
Forward overhang [mm]	776	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038	1038
Clearance [mm]	127	127	140	140	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	325d	325d	330d	330d xDrive	335d xDrive
Date of sale	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1995	1995	2993	2993	2993
Maximum output / speed [kW/min-1]	160/4400	160/4400	190/4000	190/4000	230/4400
Maximum torque [Nm/min-1]	450/1500-2500	450/1500-2500	560/1500-3000	560/1500-3000	630/1500-2500
Bore and stroke [mm x mm]	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	7,2	-	7,2
Coolant volume [l]	-	-	7,2	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by twin turbochargers particulate filter start&stop system brake energy recuperation

Drive axle	Rear	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	-	automatic gearbox Steptronic	automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic	all-wheel drive xDrive automatic gearbox Steptronic

Top speed [km/h]	238	238	250	250	250
Acceleration 0–100 km/h [s]	6.7	6.9	5.6	5.4	4.9
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.4	5.6	6.3	6.6	6.7
Out of town [l]	4.3	4.4	4.5	4.7	5.1
Combined [l]	5.1	4.8	5.1	5.4	5.6
CO2 emissions [g/km]	134	127	135	142	148

Emission standard	EU5	EU5	EU5	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1615	1635	1685	1750	1765
Overall weight [kg]	2090	2110	2160	2225	2240
Maximum trailer weight unbraked/braked [kg]	750/1800	750/1800	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	-	-	985/1220	-	1060/1230
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	495	495	495	495	495
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1500	-/1500	-/1500	-/1500	-/1500
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	57	57	57	57	57
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.31	0.31	0.31	0.32	0.32
Front suspension	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms	MacPherson, lower cross arms
Rear suspension	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	225/50 R17 94W	225/50 R17 94W	225/50 R17 92W	225/50 R17 94W	225/50 R17 94W
Tyre dimensions rear	225/50 R17 94W	225/50 R17 94W	225/50 R17 92W	225/50 R17 94W	225/50 R17 94W
Wheel size front	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Wheel size rear	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	11.3	11.3	11.3	11.7	11.7

Overall length [mm]	4624	4624	4624	4624	4624
Overall width without/including mirrors [mm]	1811/2031	1811/2031	1811/2031	1811/2031	1811/2031
Overall height [mm]	1429	1429	1429	1434	1434
Wheelbase [mm]	2810	2810	2810	2810	2810
Front wheel track [mm]	1543	1543	1543	1531	1531
Rear wheel track [mm]	1583	1583	1582	1570	1570
Forward overhang [mm]	776	776	776	776	776
Rear overhang [mm]	1038	1038	1038	1038	1038
Clearance [mm]	140	140	140	145	145
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1026	1026	1026	1026	1026
Headroom rear [mm]	973	973	973	973	973
Front elbow/shoulder width [mm]	1451/-	1451/-	1451/-	1451/-	1451/-
Rear elbow/shoulder width [mm]	1460/-	1460/-	1460/-	1460/-	1460/-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

BMW 3 F30 interior

BMW 3 F31 Touring rear folding seats

BMW 3 F34 Gran Turismo rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
