BMW 3
Date of manufacture
2008 – 2012 (Sedan)
2008 – 2012 (Estate)
2010 – 2013 (Coupé)

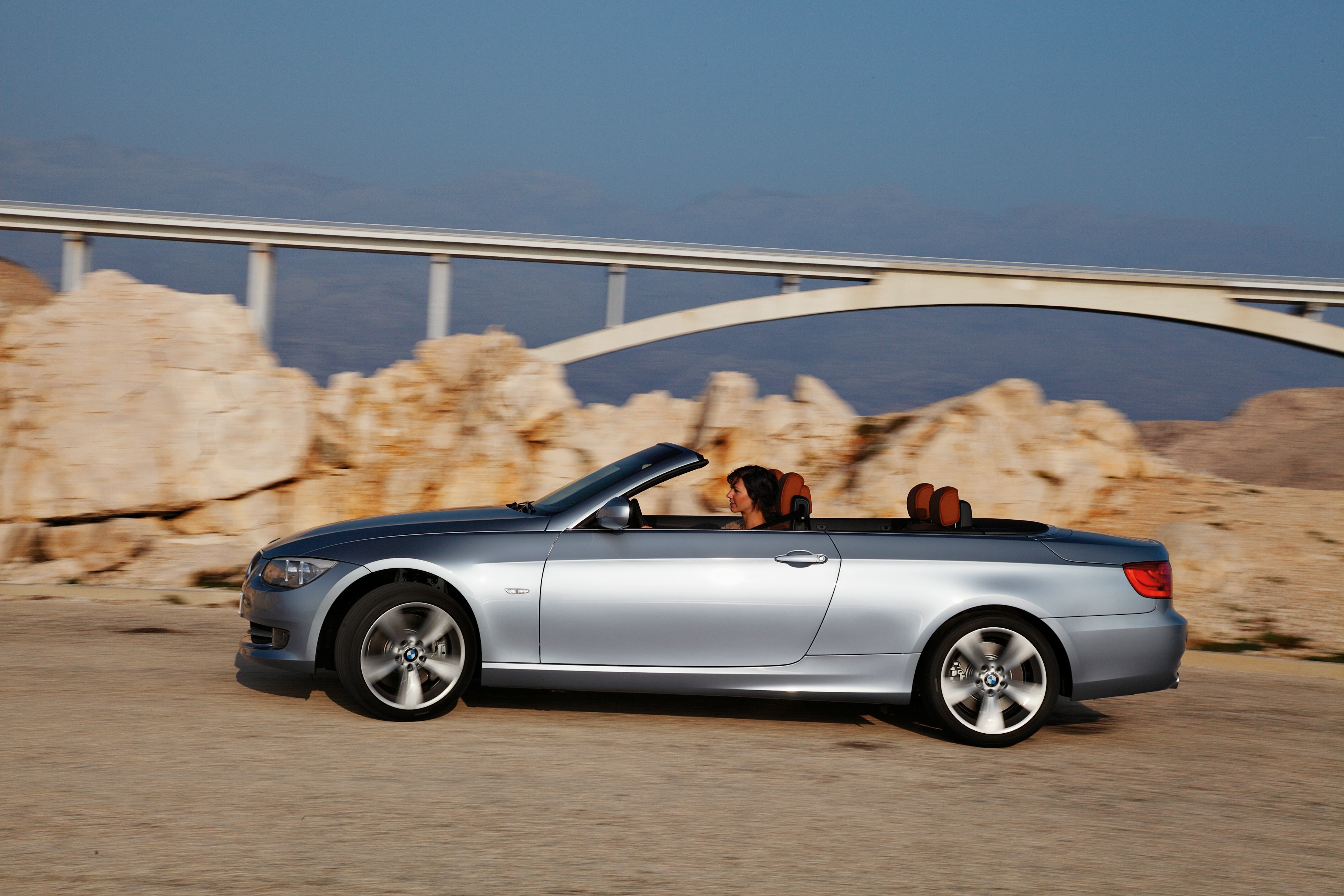

2010 – 2013 (Convertible)
Platform
-
Manufacturing locations
Leipzig, Germany
Munich, Germany
Regensburg, Germany
Designer
Joji Nagashima
Marc Michael Markefka
Tags
D-segment
German cars
The BMW 3 is available in four different body styles - sedan, estate, coupe and convertible. It has been manufactured in Germany since 2008 and offers a wide range of petrol and diesel engines. The most powerful version, the M3, has 309 kW (420 PS) and a top speed of 250 km/h. The most economical model, the 316d, has a fuel consumption of 4.5 l/100 km and CO2 emissions of 119 g/km. The luggage compartment capacity varies depending on the body type. For the sedan and estate it is 460 l, for the coupe 440 l and for the convertible 210-350 l.
Car body style

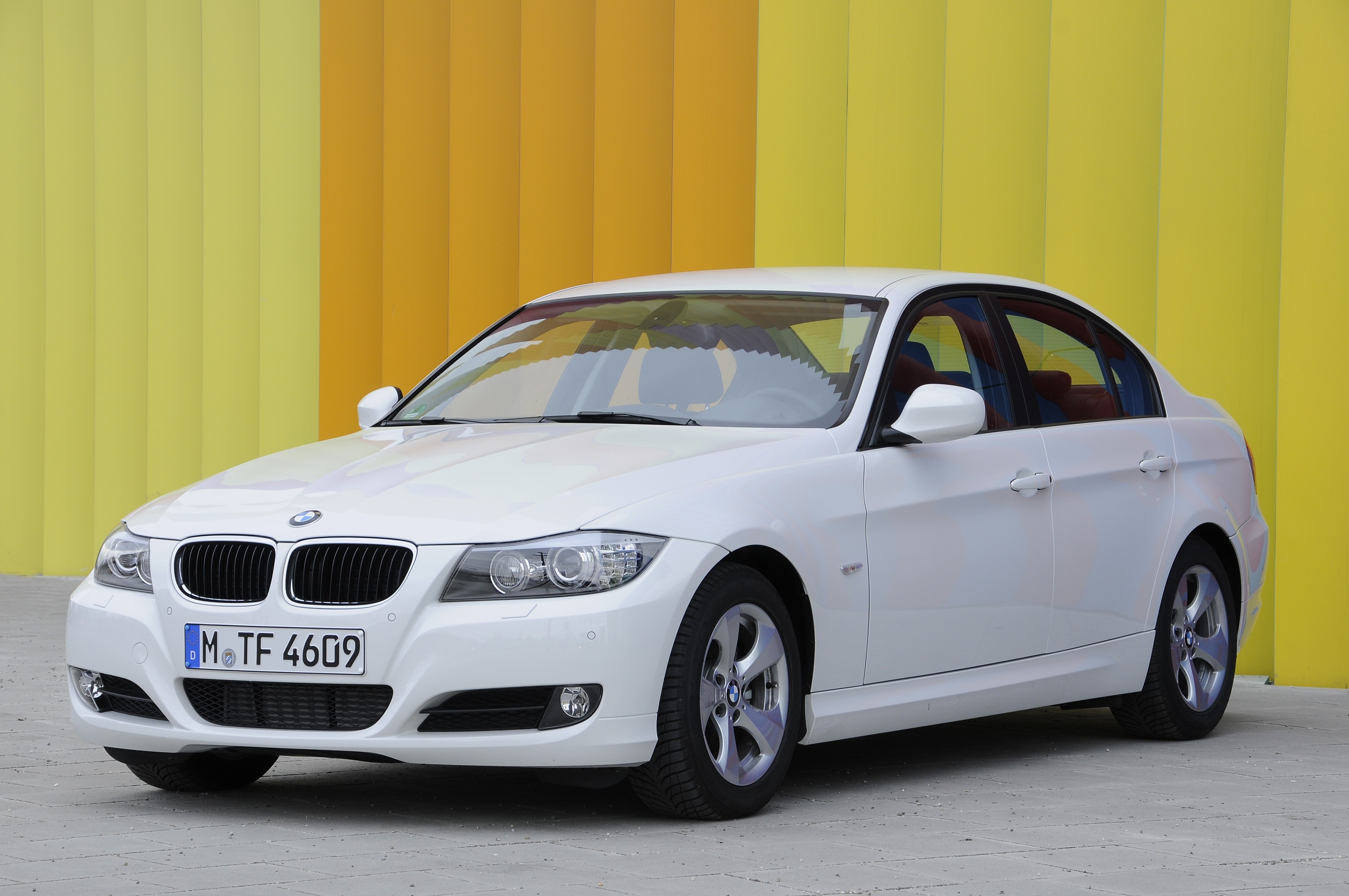

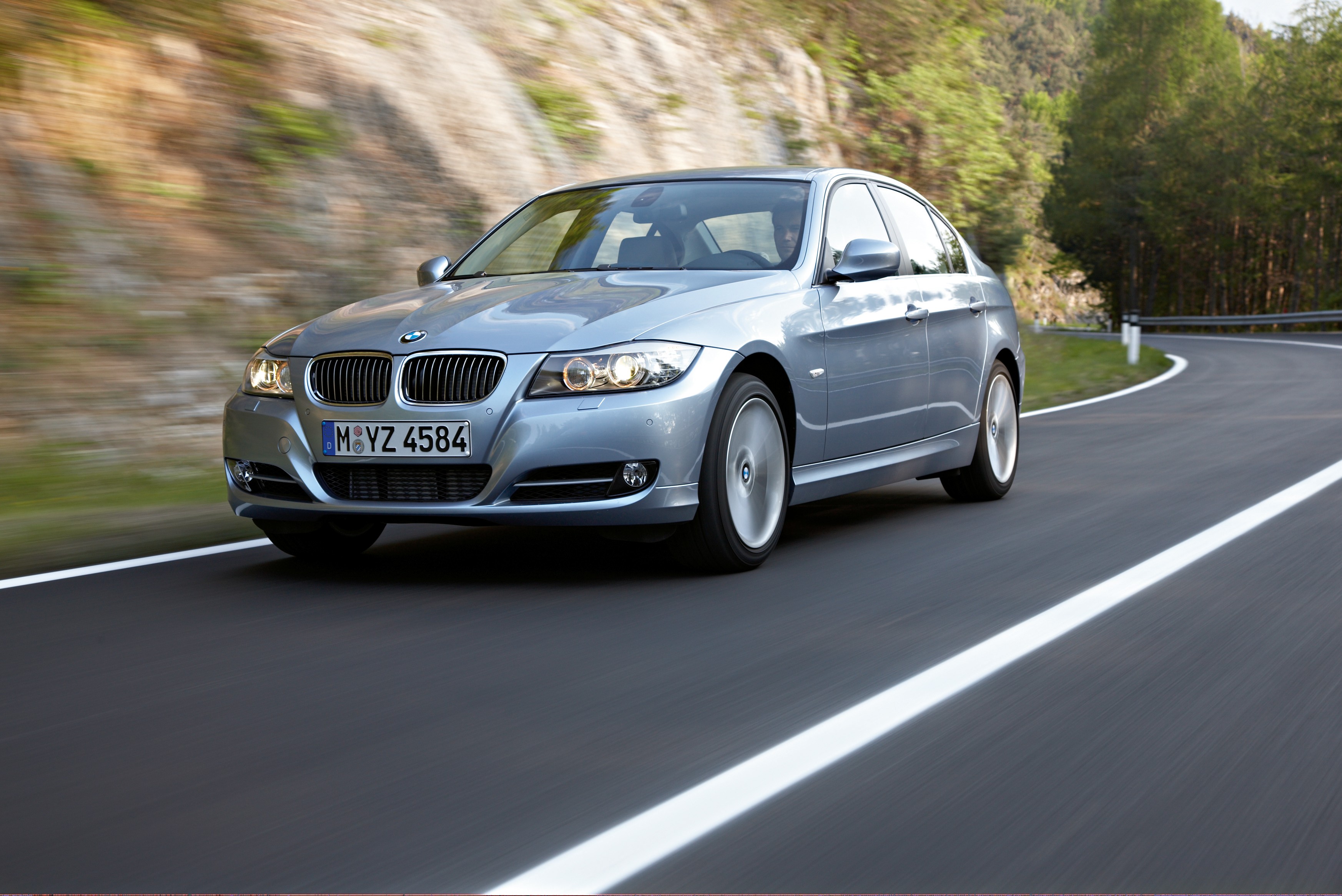

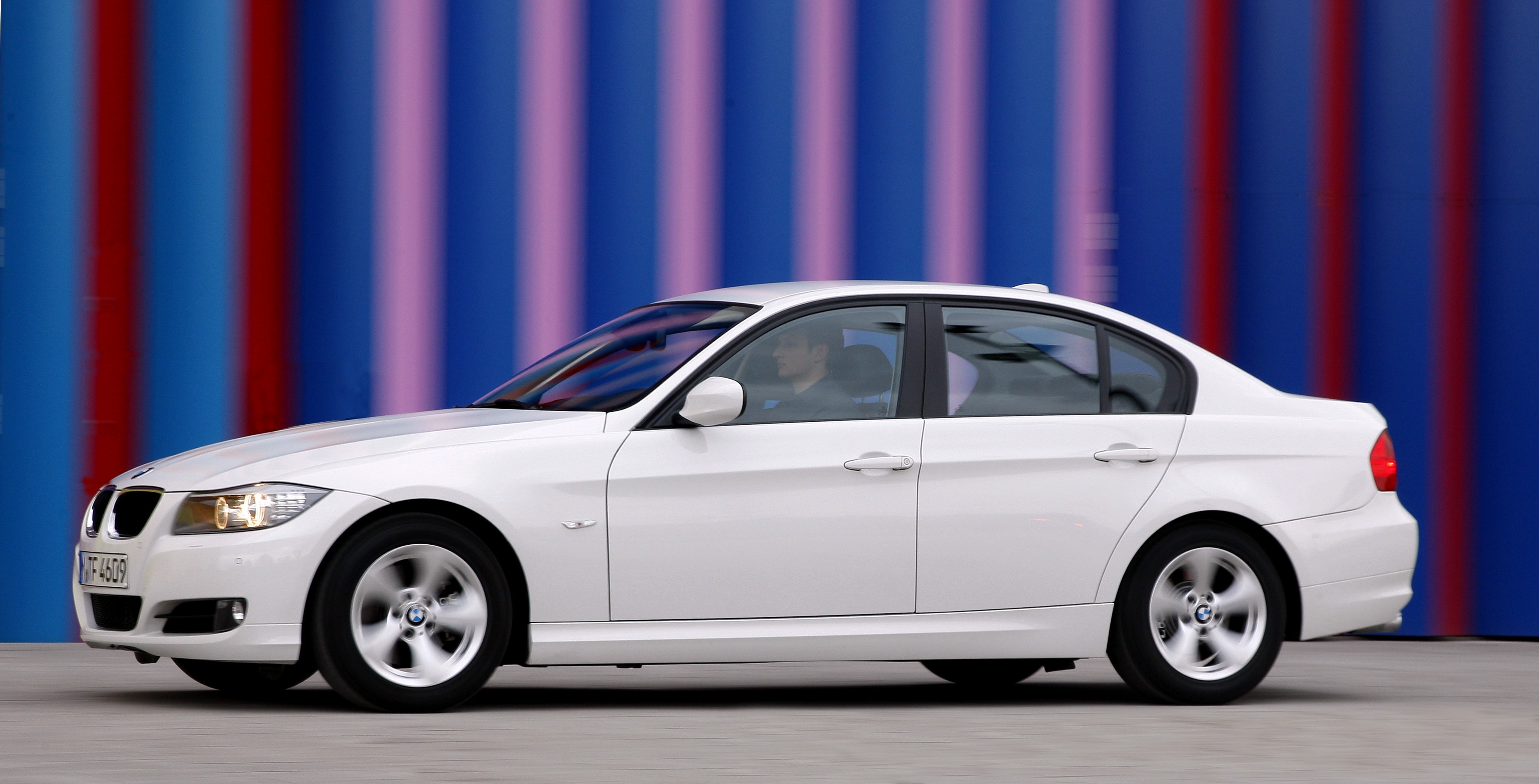

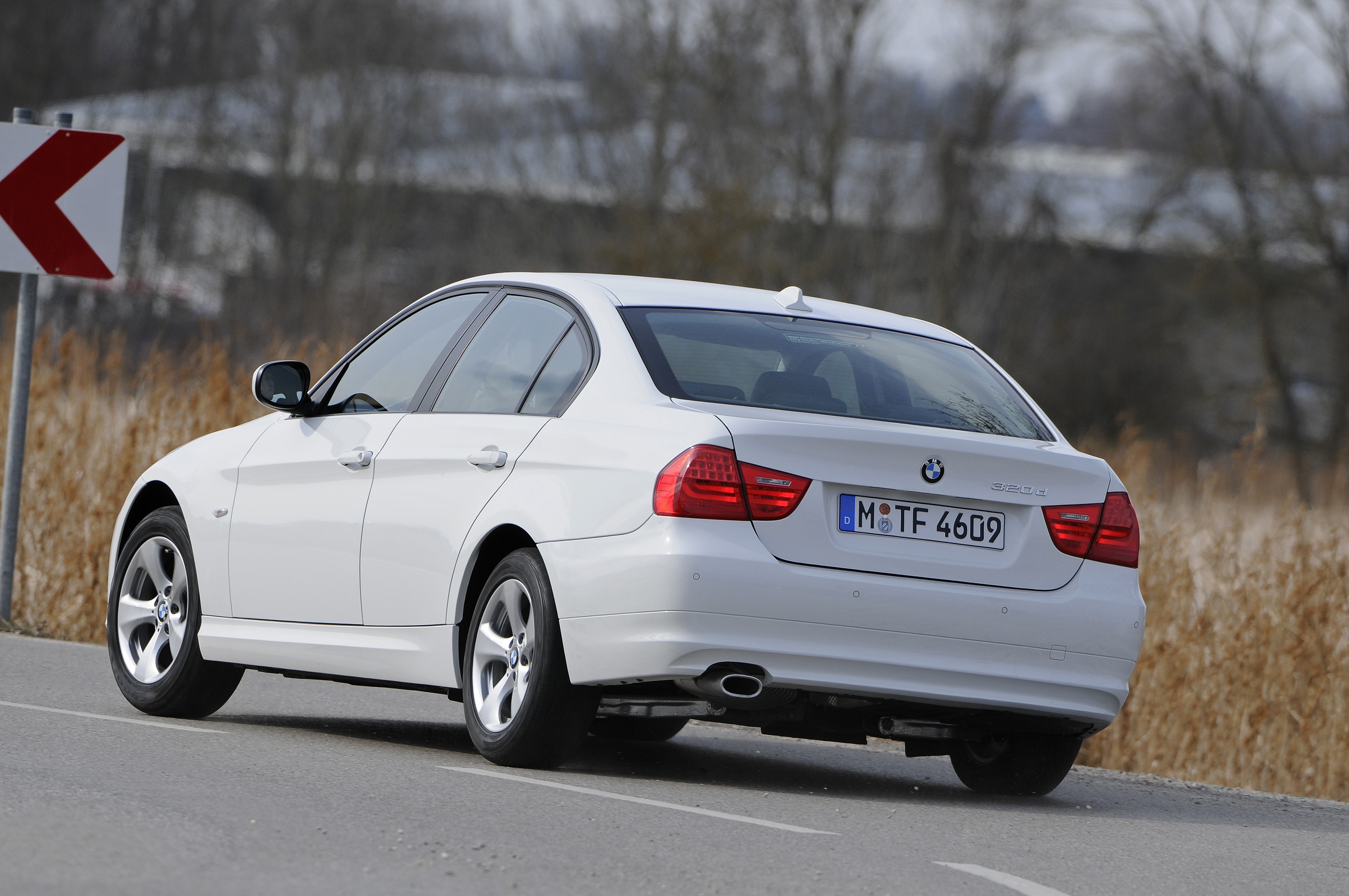

Sedan
after upgrade (facelift)
Date of manufacture
2008 – 2012Internal designation

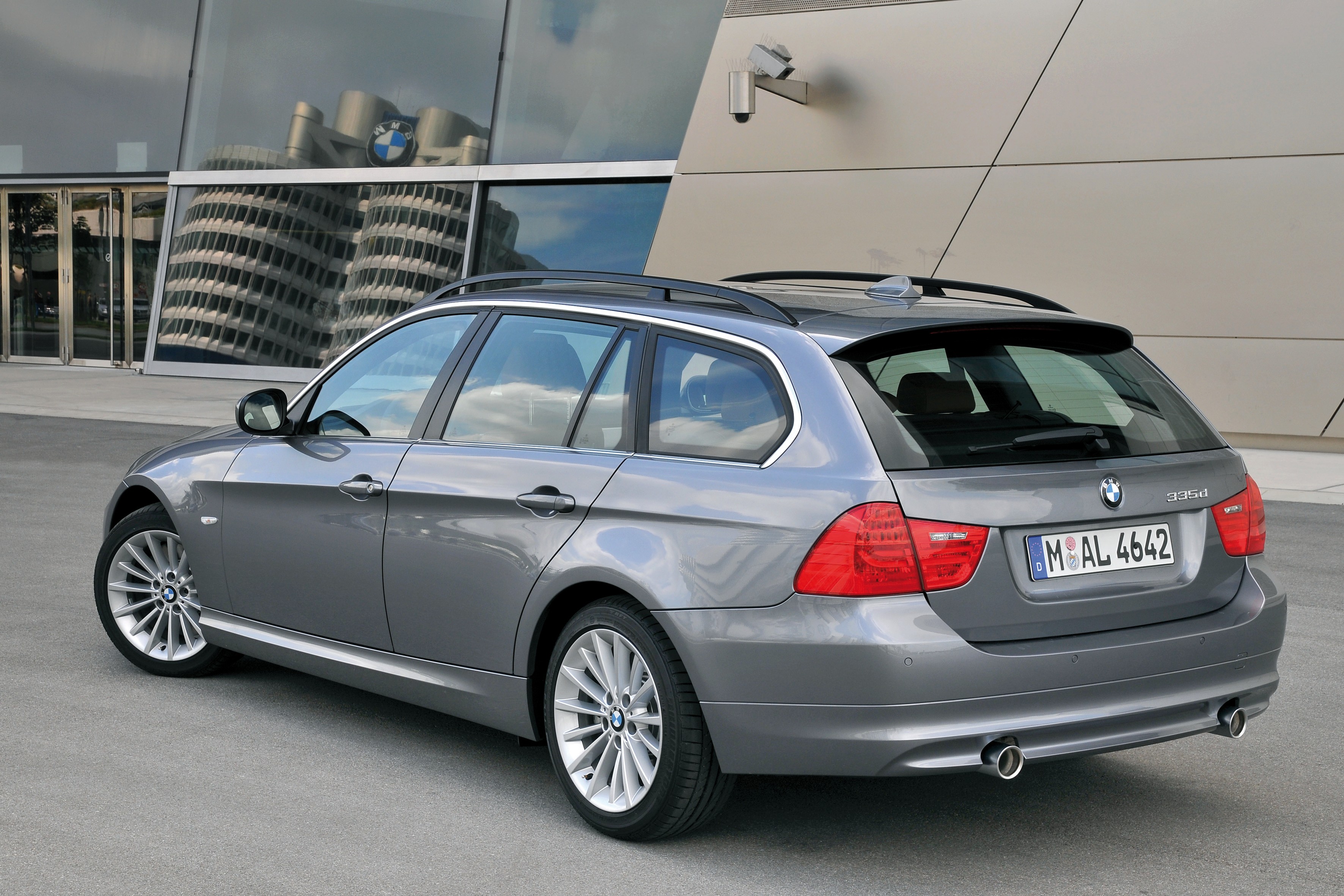

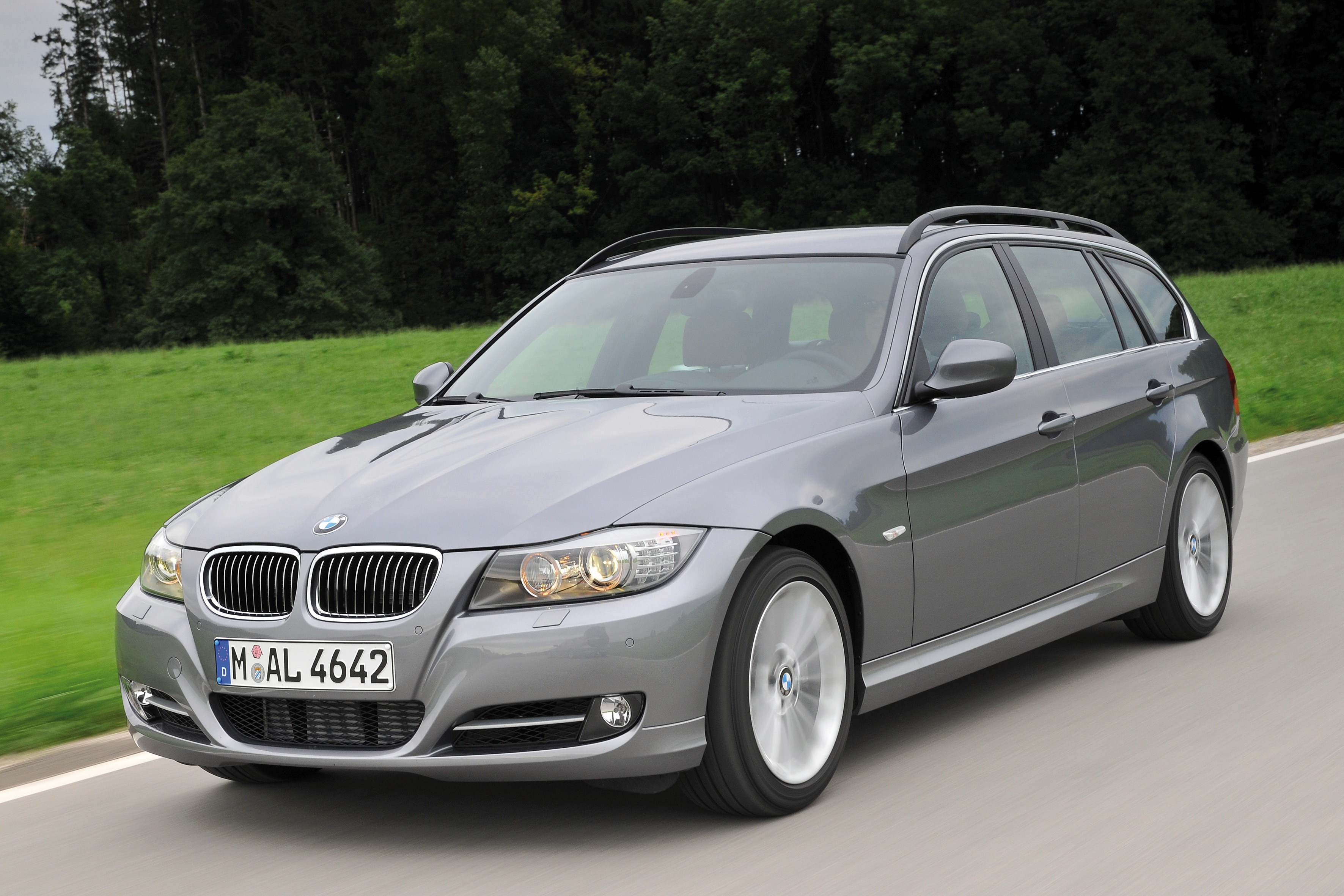

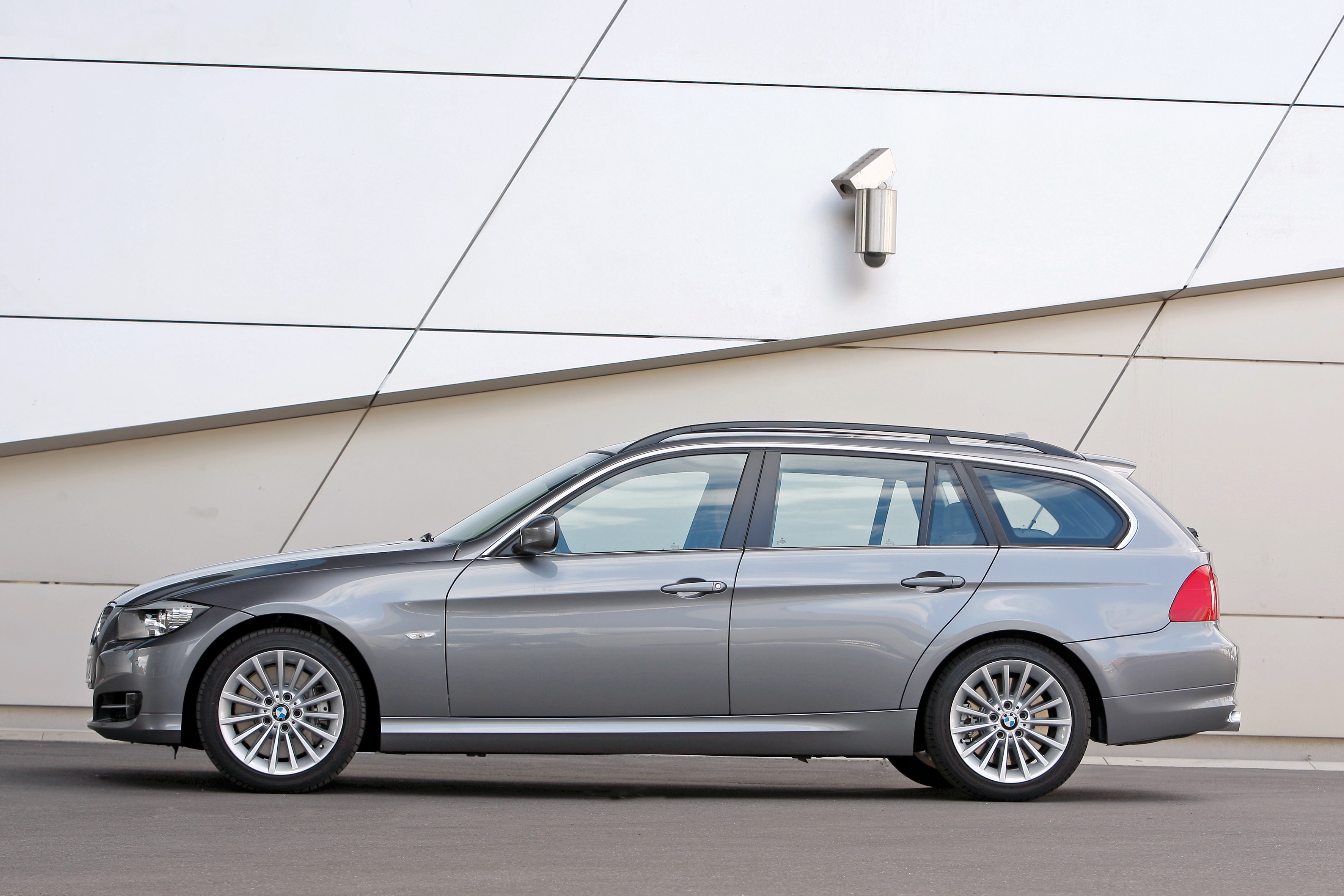

E90 Estate
after upgrade (facelift)
Date of manufacture
2008 – 2012Internal designation

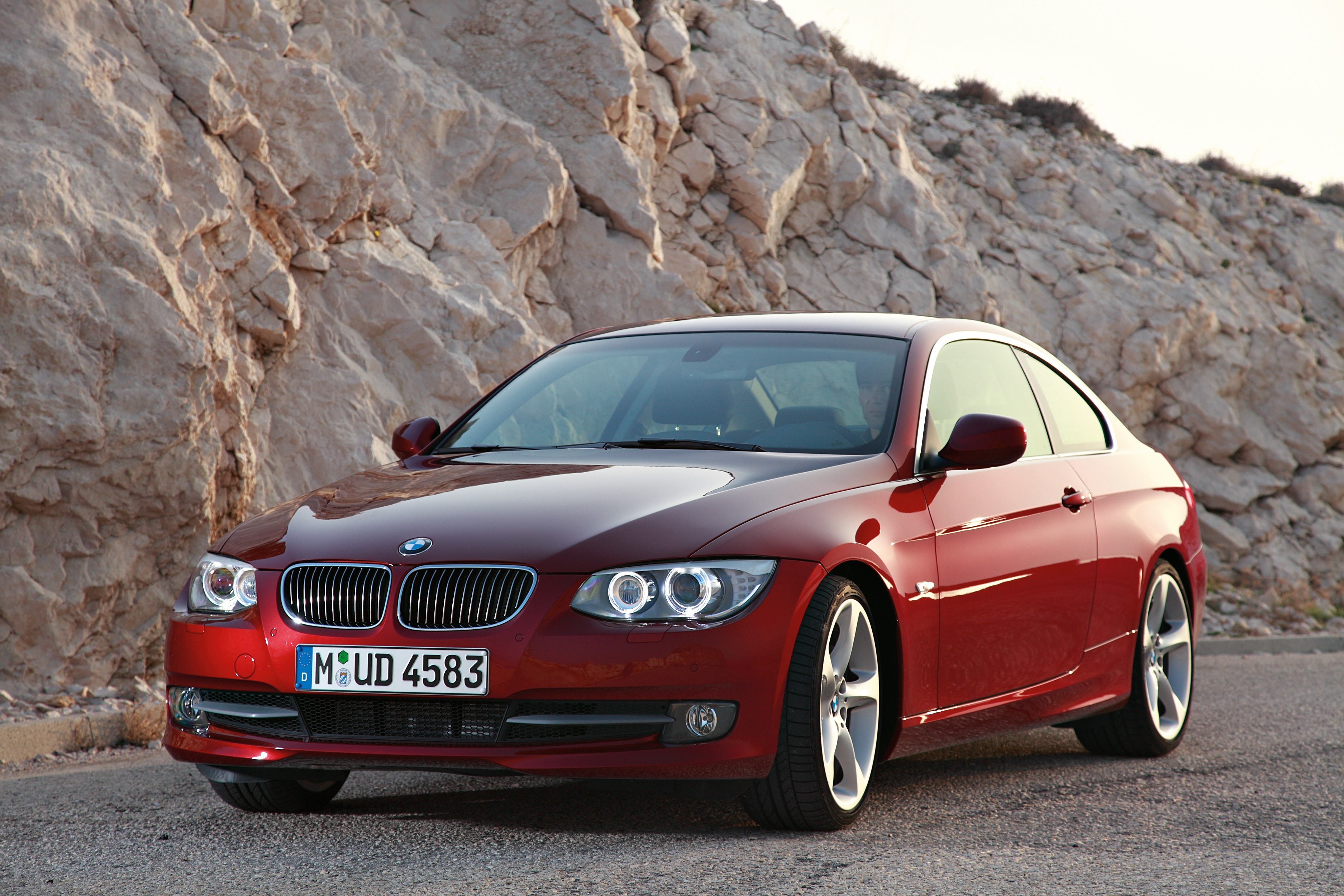

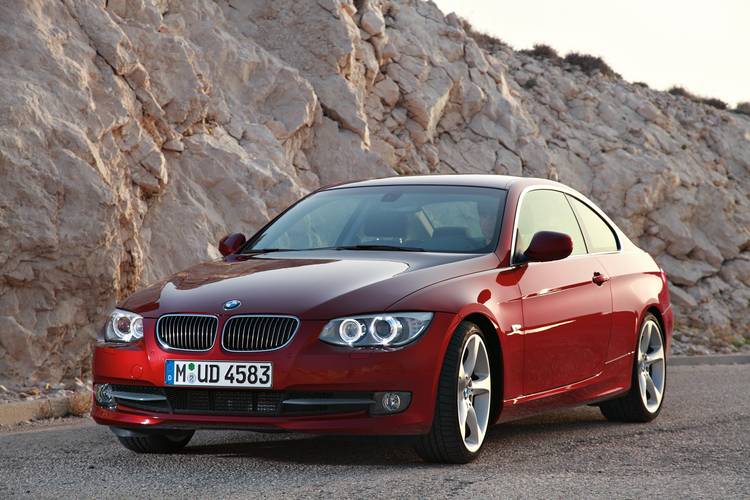

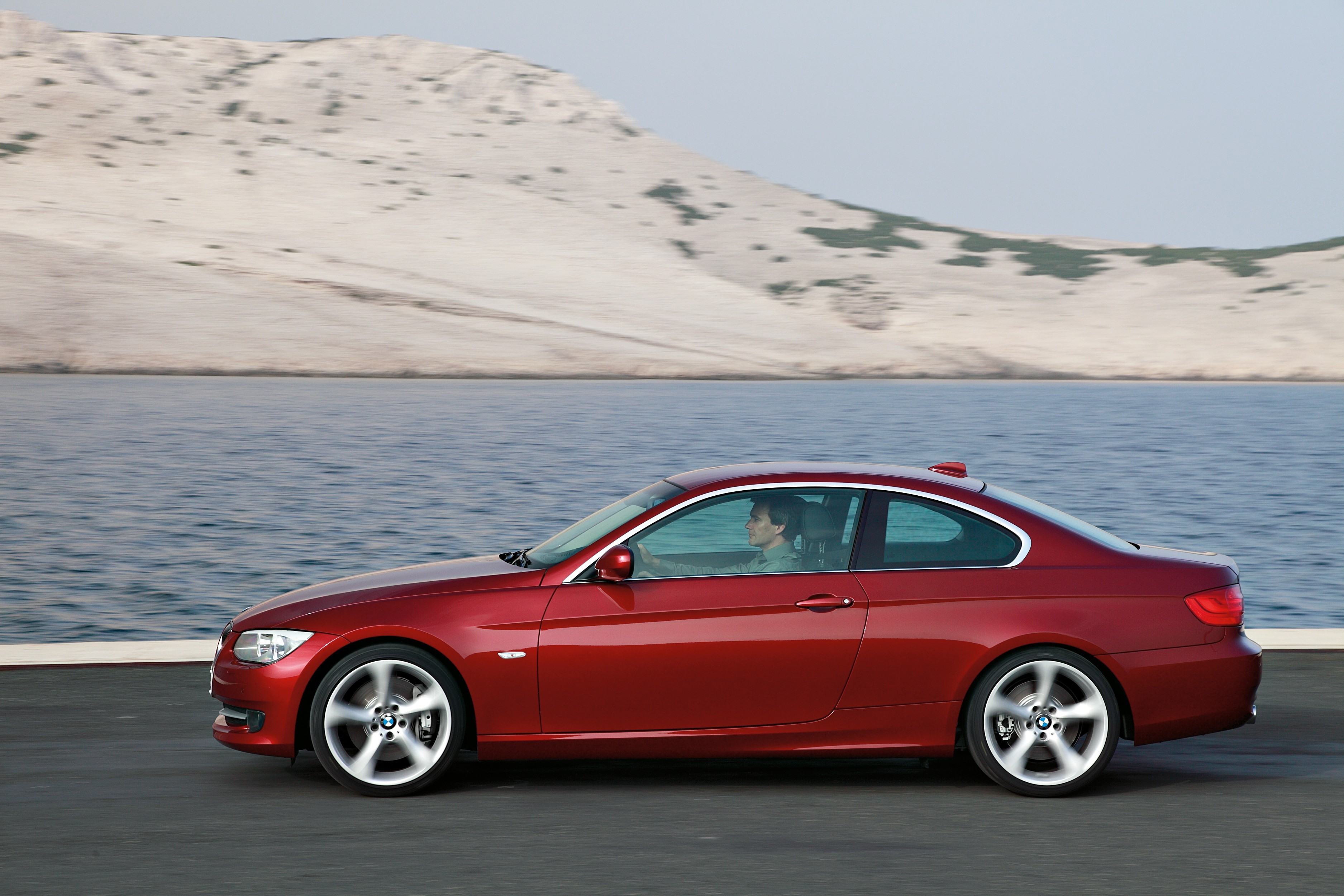

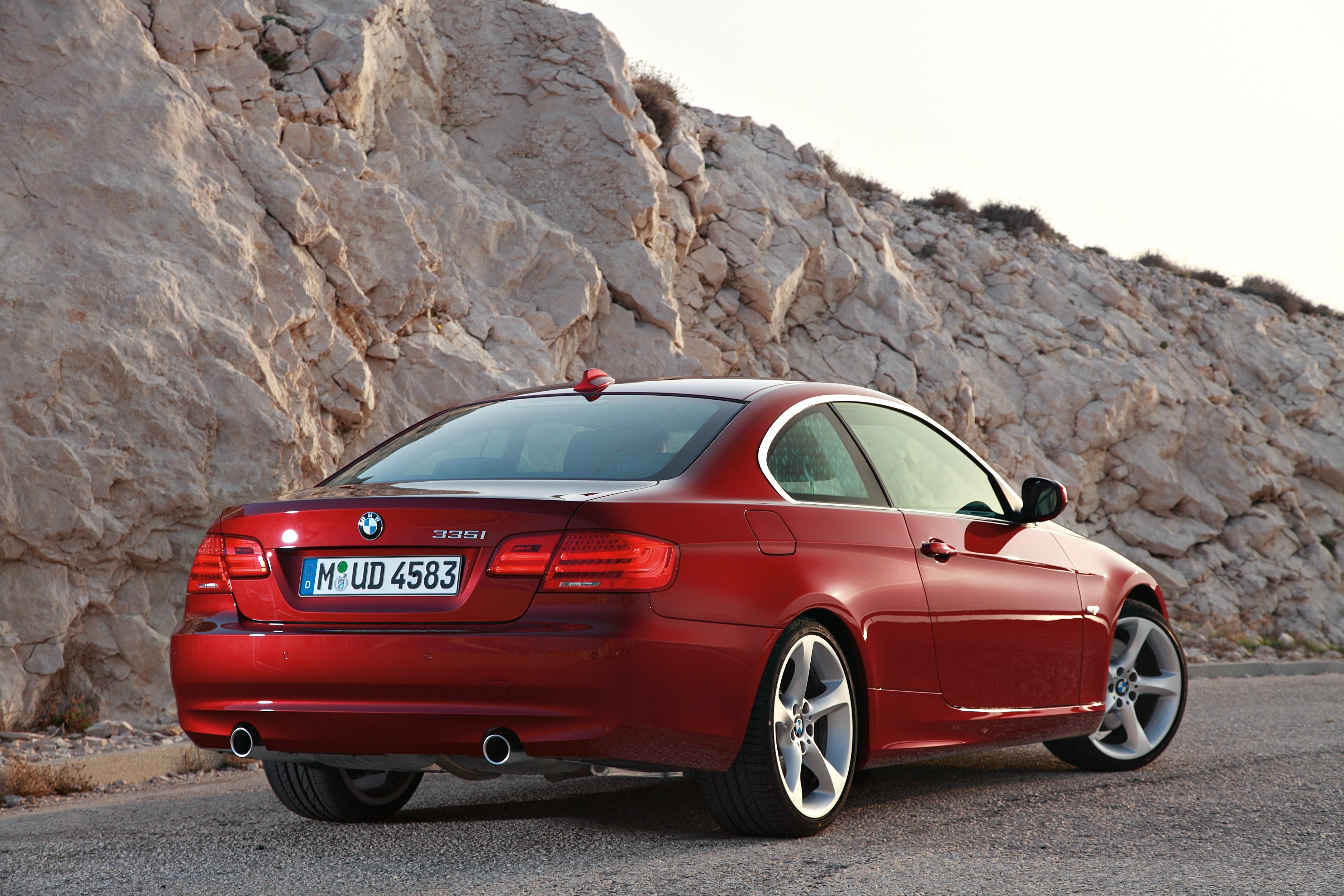

E91 Coupé
after upgrade (facelift)
Date of manufacture
2010 – 2013Internal designation
E92 Technical data
Sedan
| 316i | 316i | 318i | 318i | 320i | 320i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1599 | 1599 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 105/6000 | 105/6000 | 125/6700 | 125/6700 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 190/4250 | 190/4250 | 210/4250 | 210/4250 |
| Bore and stroke [mm x mm] | 75,7 x 82,0 | 75,7 x 82,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | - | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 207 | 210 | 210 | 228 | 226 |
| Acceleration 0–100 km/h [s] | 10.8 | 11.9 | 9.1 | 9.9 | 8.2 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 8.9 | 8.1 | 8.7 | 8.3 | 9.3 |
| Out of town [l] | 5.3 | 5.5 | 5.3 | 5.4 | 5.3 | 5.3 |
| Combined [l] | 6.3 | 6.8 | 6.3 | 6.6 | 6.4 | 6.8 |
| CO2 emissions [g/km] | 146 | 159 | 146 | 155 | 148 | 159 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1425 | 1455 | 1435 | 1465 | 1445 | 1475 |
| Overall weight [kg] | 1870 | 1900 | 1880 | 1910 | 1890 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 695/1100 | 695/1100 | 695/1250 | 695/1400 | 695/1400 | 695/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | - | - | 300 x 24 | 300 x 24 | 300 x 24 | 300 x 24 |
| Brake dimensions rear | - | - | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11 | 11 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 325i | 325i | 325i | 325i | 330i | 330i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 2996 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 160/6100 | 160/6100 | 160/6100 | 160/6100 | 200/6700 | 200/6700 |
| Maximum torque [Nm/min-1] | 270/2400-4200 | 270/2400-4200 | 270/2400-4200 | 270/2400-4200 | 320/2750-3000 | 320/2750-3000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 250 | 248 | 244 | 242 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 7.1 | 7.3 | 7.7 | 6.1 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.8 | 10.0 | 11.0 | 11.1 | 10.0 | 10.2 |
| Out of town [l] | 5.7 | 5.9 | 6.4 | 6.5 | 5.9 | 5.9 |
| Combined [l] | 7.2 | 7.4 | 8.1 | 8.2 | 7.4 | 7.5 |
| CO2 emissions [g/km] | 168 | 174 | 188 | 192 | 173 | 175 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1535 | 1615 | 1635 | 1550 | 1565 |
| Overall weight [kg] | 1950 | 1980 | 2060 | 2080 | 2000 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.3 | 0.3 | 0.27 | 0.27 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11.8 | 11.8 | 11 | 11 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1500 | 1500 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 140 | 140 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330i | 330i | 335i | 335i | 335i | 335i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 2979 | 2979 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 200/6700 | 200/6700 | 225/5800 | 225/5800 | 225/5800 | 225/5800 |
| Maximum torque [Nm/min-1] | 320/2750-3000 | 320/2750-3000 | 400/1300-5000 | 400/1300-5000 | 400/1300-5000 | 400/1300-5000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.2 | 6.4 | 5.6 | 5.8 | 5.5 | 5.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.1 | 11.2 | 13.2 | 13.1 | 14.1 | 13.8 |
| Out of town [l] | 6.5 | 6.6 | 6.7 | 6.9 | 7.1 | 7.3 |
| Combined [l] | 8.2 | 8.3 | 9.1 | 9.2 | 9.7 | 9.7 |
| CO2 emissions [g/km] | 191 | 193 | 218 | 221 | 232 | 232 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1665 | 1610 | 1625 | 1720 | 1735 |
| Overall weight [kg] | 2100 | 2115 | 2055 | 2070 | 2165 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.3 | 0.3 | 0.32 | 0.32 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11.8 | 11 | 11 | 11.8 | 11.8 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 140 | 140 | 144 | 144 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 335i | 335i | 335i | 335i | M3 | M3 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 2979 | 3999 | 3999 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 225/5800 | 309/8300 | 309/8300 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/3900 | 400/3900 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 75,2 x 92,0 | 75,2 x 92,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.6 | 5.8 | 5.4 | 5.5 | 4.9 | 4.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.0 | 12.6 | 12.4 | 13.1 | 17.9 | 17.0 |
| Out of town [l] | 6.3 | 6.5 | 6.7 | 6.8 | 9.2 | 9.0 |
| Combined [l] | 8.4 | 8.7 | 8.8 | 9.1 | 12.4 | 11.9 |
| CO2 emissions [g/km] | 196 | 202 | 205 | 212 | 295 | 285 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1625 | 1690 | 1705 | 1680 | 1700 |
| Overall weight [kg] | 2055 | 2070 | 2135 | 2150 | 2150 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.32 | 0.32 | 0.31 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 245/40 ZR18 | 245/40 ZR18 |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 265/40 ZR18 | 265/40 ZR18 |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8.5 J x 18 | 8.5 J x 18 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 9.5 J x 18 | 9.5 J x 18 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 360 x 30 | 360 x 30 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 350 x 24 | 350 x 24 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11.8 | 11.8 | 11.7 | 11.7 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4580 | 4580 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1447 | 1447 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2761 | 2761 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1540 | 1540 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1539 | 1539 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 805 | 805 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 140 | 140 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| M3 | M3 | 316d | 318d | 318d | 318d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 3999 | 3999 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 309/8300 | 309/8300 | 85/4000 | 105/4000 | 105/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 400/3900 | 400/3900 | 260/1750-2500 | 300/1750-2500 | 300/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 75,2 x 92,0 | 75,2 x 92,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 250 | 250 | 202 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 4.9 | 4.7 | 10.9 | 9.3 | 9.4 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 17.7 | 15.9 | 5.4 | 5.7 | 7.1 | 5.4 |
| Out of town [l] | 9.3 | 8.5 | 4.0 | 4.1 | 4.4 | 4.0 |
| Combined [l] | 12.4 | 11.2 | 4.5 | 4.7 | 5.4 | 4.5 |
| CO2 emissions [g/km] | 290 | 263 | 118 | 123 | 144 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680 | 1700 | 1475 | 1505 | 1520 | 1490 |
| Overall weight [kg] | 2150 | 2150 | 1920 | 1950 | 1965 | 1935 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 695/1600 | 745/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 245/40 R18 | 245/40 R18 | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Tyre dimensions rear | 265/40 R18 | 265/40 R18 | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Wheel size front | 8.5 J x 18 | 8.5 J x 18 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 9.5 J x 18 | 9.5 J x 18 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | 360 x 30 | 360 x 30 | 300 x 24 | 300 x 24 | 300 x 24 | 300 x 24 |
| Brake dimensions rear | 350 x 24 | 350 x 24 | 296 x 11 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7 | 11.7 | 11 | 11 | 11 | 11 |
| Overall length [mm] | 4580 | 4580 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1447 | 1447 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2761 | 2761 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1540 | 1540 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1539 | 1539 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 805 | 805 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 318d | 320d | 320d | 320d | 320d | 320d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 105/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 | 380/1900-2750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 210 | 230 | 228 | 224 | 222 | 235 |
| Acceleration 0–100 km/h [s] | 9.3 | 7.9 | 8.0 | 8.2 | 8.3 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 6.0 | 7.1 | 6.7 | 7.9 | 5.9 |
| Out of town [l] | 4.4 | 4.1 | 4.4 | 4.6 | 4.8 | 4.0 |
| Combined [l] | 5.3 | 4.8 | 5.4 | 5.4 | 5.9 | 4.7 |
| CO2 emissions [g/km] | 140 | 128 | 144 | 143 | 156 | 125 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1520 | 1505 | 1520 | 1600 | 1615 | 1505 |
| Overall weight [kg] | 1950 | 1950 | 1965 | 2045 | 2060 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | 300 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11.8 | 11.8 | 11 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 320d | 320d | 320d | 325d | 325d | 325d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 135/4000 | 145/4000 | 145/4000 | 150/3750 |
| Maximum torque [Nm/min-1] | 380/1900-2750 | 380/1900-2750 | 380/1900-2750 | 400/1300-3250 | 400/1300-3250 | 430/1750 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 17,0:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 233 | 230 | 228 | 235 | 233 | 242 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.9 | 8.0 | 7.4 | 7.6 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 6.4 | 7.2 | 7.6 | 8.1 | 7.3 |
| Out of town [l] | 4.4 | 4.5 | 4.8 | 4.6 | 5.1 | 4.8 |
| Combined [l] | 5.3 | 5.2 | 5.7 | 5.7 | 6.2 | 5.7 |
| CO2 emissions [g/km] | 140 | 137 | 150 | 153 | 164 | 151 |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1520 | 1600 | 1615 | 1600 | 1610 | 1600 |
| Overall weight [kg] | 1965 | 2045 | 2060 | 2045 | 2055 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.28 | 0.28 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11 | 11 | 11 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 325d | 330d | 330d | 330d | 330d | 335d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 150/3750 | 180/4000 | 180/4000 | 180/4000 | 180/4000 | 210/4400 |
| Maximum torque [Nm/min-1] | 430/1750 | 520/1750-3000 | 520/1750-3000 | 520/1750-3000 | 520/1750-3000 | 580/1750-2250 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 17,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 240 | 250 | 250 | 247 | 247 | 250 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.1 | 6.2 | 5.9 | 6.0 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 7.3 | 8.0 | 8.3 | 8.8 | 9.0 |
| Out of town [l] | 5.1 | 4.8 | 5.2 | 5.5 | 5.7 | 5.2 |
| Combined [l] | 6.1 | 5.7 | 6.2 | 6.5 | 6.8 | 6.6 |
| CO2 emissions [g/km] | 160 | 152 | 164 | 171 | 178 | 174 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1610 | 1625 | 1710 | 1725 | 1655 |
| Overall weight [kg] | 2055 | 2055 | 2070 | 2155 | 2170 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.3 | 0.3 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11.8 | 11.8 | 11 |
| Overall length [mm] | 4531 | 4531 | 4531 | 4531 | 4531 | 4531 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | 144 | 144 | 144 | 140 | 140 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate
| 316i | 318i | 318i | 320i | 320i | 325i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1599 | 1995 | 1995 | 1995 | 1995 | 2996 |
| Maximum output / speed [kW/min-1] | 90/6000 | 105/6000 | 105/6000 | 125/6700 | 125/6700 | 160/6100 |
| Maximum torque [Nm/min-1] | 160/4250 | 190/4250 | 190/4250 | 210/4250 | 210/4250 | 270/2400-4200 |
| Bore and stroke [mm x mm] | 75,7 x 82,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 205 | 210 | 210 | 226 | 224 | 248 |
| Acceleration 0–100 km/h [s] | 11.1 | 9.5 | 10.4 | 8.4 | 9.2 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 8.1 | 8.9 | 8.3 | 9.5 | 9.9 |
| Out of town [l] | 5.3 | 5.3 | 5.6 | 5.3 | 5.5 | 5.8 |
| Combined [l] | 6.3 | 6.3 | 6.8 | 6.4 | 7.0 | 7.3 |
| CO2 emissions [g/km] | 147 | 147 | 159 | 149 | 164 | 170 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1505 | 1535 | 1505 | 1535 | 1565 |
| Overall weight [kg] | 1960 | 1970 | 2000 | 1970 | 2000 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 695/1100 | 695/1250 | 695/1400 | 695/1400 | 695/1500 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 H |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 H |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | - | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 330 x 24 |
| Brake dimensions rear | - | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11 | 11 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 325i | 325i | 325i | 330i | 330i | 330i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 2996 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 160/6100 | 160/6100 | 160/6100 | 200/6700 | 200/6700 | 200/6700 |
| Maximum torque [Nm/min-1] | 270/2400-4200 | 270/2400-4200 | 270/2400-4200 | 320/2750-3000 | 320/2750-3000 | 320/2750-3000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 246 | 242 | 240 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.7 | 8.1 | 6.2 | 6.4 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2 | 11.1 | 11.2 | 10.2 | 10.7 | 11.2 |
| Out of town [l] | 6.1 | 6.5 | 6.6 | 6.1 | 6.2 | 6.6 |
| Combined [l] | 7.6 | 8.2 | 8.3 | 7.6 | 7.9 | 8.3 |
| CO2 emissions [g/km] | 178 | 190 | 194 | 177 | 184 | 193 |
| Emission standard | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1715 | 1735 | 1615 | 1630 | 1715 |
| Overall weight [kg] | 2060 | 2180 | 2200 | 2080 | 2095 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.31 | 0.31 | 0.29 | 0.29 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 300 x 20 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11 | 11 | 11.8 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 140 | 140 | 141 | 141 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330i | 335i | 335i | 335i | 335i | 335i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2979 | 2979 | 2979 | 2979 | 2979 |
| Maximum output / speed [kW/min-1] | 200/6700 | 225/5800 | 225/5800 | 225/5800 | 225/5800 | 225/5800 |
| Maximum torque [Nm/min-1] | 320/2750-3000 | 400/1300-5000 | 400/1300-5000 | 400/1300-5000 | 400/1300-5000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 |
| Compression ratio | 12,0:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.6 | 5.7 | 5.9 | 5.6 | 5.7 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.3 | 13.4 | 13.2 | 14.2 | 13.9 | 12.1 |
| Out of town [l] | 6.7 | 6.9 | 7.0 | 7.2 | 7.4 | 6.4 |
| Combined [l] | 8.4 | 9.3 | 9.3 | 9.8 | 9.8 | 8.5 |
| CO2 emissions [g/km] | 195 | 222 | 223 | 235 | 235 | 199 |
| Emission standard | EU4/EU5 | EU4 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1690 | 1705 | 1790 | 1805 | 1670 |
| Overall weight [kg] | 2200 | 2155 | 2170 | 2255 | 2270 | 2135 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1375 | -/1375 | -/1375 | -/1375 | -/1375 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.32 | 0.32 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11 | 11 | 11.8 | 11.8 | 11 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 140 | 141 | 141 | 140 | 140 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 335i | 335i | 335i | 316d | 318d | 318d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 85/4000 | 105/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 260/1750-2500 | 300/1750-2500 | 300/1750-2500 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 16,5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 250 | 250 | 250 | 201 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 5.9 | 5.5 | 5.6 | 11.2 | 9.6 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.6 | 12.4 | 13.2 | 5.4 | 5.8 | 5.8 |
| Out of town [l] | 6.5 | 6.7 | 6.9 | 4.0 | 4.2 | 4.2 |
| Combined [l] | 8.7 | 8.8 | 9.2 | 4.5 | 4.8 | 4.8 |
| CO2 emissions [g/km] | 203 | 206 | 215 | 119 | 125 | 125 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1685 | 1735 | 1750 | 1550 | 1580 | 1580 |
| Overall weight [kg] | 2150 | 2200 | 2215 | 2015 | 2045 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 695/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1375 | -/1375 | -/1375 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.32 | 0.32 | 0.27 | 0.27 | 0.27 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 205/55 R16 H | 205/55 R16 H | 205/55 R16 H |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 300 x 24 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11 | 11 | 11 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 140 | 140 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 318d | 318d | 320d | 320d | 320d | 320d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 | 350/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 210 | 210 | 228 | 226 | 222 | 220 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.6 | 8.1 | 8.3 | 8.5 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 6.9 | 6.1 | 7.3 | 6.9 | 8.0 |
| Out of town [l] | 4.0 | 4.5 | 4.2 | 4.6 | 4.8 | 4.9 |
| Combined [l] | 4.5 | 5.4 | 4.9 | 5.6 | 5.6 | 6.0 |
| CO2 emissions [g/km] | 120 | 142 | 130 | 146 | 146 | 159 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1580 | 1580 | 1595 | 1665 | 1680 |
| Overall weight [kg] | 2030 | 2045 | 2045 | 2060 | 2130 | 2145 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.28 | 0.28 | 0.3 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 205/55 R16 H | 205/55 R16 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11.8 | 11.8 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 320d | 320d | 320d | 320d | 325d | 325d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 135/4000 | 135/4000 | 145/4000 | 145/4000 |
| Maximum torque [Nm/min-1] | 380/1900-2750 | 380/1900-2750 | 380/1900-2750 | 380/1900-2750 | 400/1300-3250 | 400/1300-3250 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 233 | 231 | 228 | 226 | 233 | 231 |
| Acceleration 0–100 km/h [s] | 7.7 | 7.9 | 8.2 | 8.4 | 7.6 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 6.9 | 6.5 | 7.3 | 7.8 | 8.2 |
| Out of town [l] | 4.1 | 4.5 | 4.6 | 4.9 | 4.8 | 5.2 |
| Combined [l] | 4.8 | 5.4 | 5.3 | 5.8 | 5.9 | 6.3 |
| CO2 emissions [g/km] | 128 | 142 | 140 | 153 | 155 | 165 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1580 | 1595 | 1665 | 1680 | 1665 | 1675 |
| Overall weight [kg] | 2045 | 2060 | 2130 | 2145 | 2130 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.29 | 0.29 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 7 J x 16 | 7 J x 16 | 7 J x 16 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 312 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11.8 | 11.8 | 11 | 11 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1500 | 1500 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 325d | 325d | 330d | 330d | 330d | 330d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 150/3750 | 150/3750 | 180/4000 | 180/4000 | 180/4000 | 180/4000 |
| Maximum torque [Nm/min-1] | 430/1750 | 430/1750 | 520/1750-3000 | 520/1750-3000 | 520/1750-3000 | 520/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 240 | 238 | 250 | 250 | 245 | 245 |
| Acceleration 0–100 km/h [s] | 7.2 | 7.3 | 6.2 | 6.3 | 6.0 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 8.0 | 7.5 | 8.1 | 8.4 | 8.9 |
| Out of town [l] | 4.9 | 5.2 | 5.0 | 5.3 | 5.6 | 5.8 |
| Combined [l] | 5.8 | 6.2 | 5.9 | 6.3 | 6.6 | 6.9 |
| CO2 emissions [g/km] | 153 | 163 | 155 | 165 | 174 | 181 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1665 | 1680 | 1675 | 1690 | 1775 | 1790 |
| Overall weight [kg] | 2130 | 2145 | 2140 | 2155 | 2240 | 2255 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.31 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 338 x 22 | 338 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11.8 | 11.8 |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1529 | 1529 | 1529 | 1529 | 1529 | 1529 |
| Forward overhang [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Rear overhang [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 335d | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2993 | |||||
| Maximum output / speed [kW/min-1] | 210/4400 | |||||
| Maximum torque [Nm/min-1] | 580/1750-2250 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 17,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.1 | |||||
| Out of town [l] | 5.3 | |||||
| Combined [l] | 6.7 | |||||
| CO2 emissions [g/km] | 176 | |||||
| Emission standard | EU4/EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1720 | |||||
| Overall weight [kg] | 2185 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 450 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1375 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 61 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | 225/45 R17 W | |||||
| Tyre dimensions rear | 225/45 R17 W | |||||
| Wheel size front | 8 J x 17 | |||||
| Wheel size rear | 8 J x 17 | |||||
| Brake dimensions front | 348 x 30 | |||||
| Brake dimensions rear | 336 x 22 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11 | |||||
| Overall length [mm] | 4527 | |||||
| Overall width without/including mirrors [mm] | 1817/- | |||||
| Overall height [mm] | 1418 | |||||
| Wheelbase [mm] | 2760 | |||||
| Front wheel track [mm] | 1500 | |||||
| Rear wheel track [mm] | 1529 | |||||
| Forward overhang [mm] | 757 | |||||
| Rear overhang [mm] | 1010 | |||||
| Clearance [mm] | 141 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 978 | |||||
| Headroom rear [mm] | 964 | |||||
| Front elbow/shoulder width [mm] | 1459/- | |||||
| Rear elbow/shoulder width [mm] | 1455/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| 318i | 320i | 320i | 325i | 325i | 325i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 105/6000 | 125/6700 | 125/6700 | 160/6100 | 160/6100 | 160/6100 |
| Maximum torque [Nm/min-1] | 190/4250 | 210/4250 | 210/4250 | 270/2400-4200 | 270/2400-4200 | 270/2400-4200 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 210 | 230 | 228 | 250 | 250 | 246 |
| Acceleration 0–100 km/h [s] | 9.1 | 8.1 | 8.8 | 6.7 | 7.1 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 8.6 | 9.3 | 9.8 | 10.0 | 11.0 |
| Out of town [l] | 5.3 | 5.4 | 5.3 | 5.7 | 5.9 | 6.4 |
| Combined [l] | 6.3 | 6.6 | 6.8 | 7.2 | 7.4 | 8.1 |
| CO2 emissions [g/km] | 146 | 154 | 159 | 168 | 174 | 188 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435 | 1435 | 1465 | 1505 | 1535 | 1605 |
| Overall weight [kg] | 1810 | 1810 | 1840 | 1910 | 1940 | 2010 |
| Maximum trailer weight unbraked/braked [kg] | 695/1400 | 695/1400 | 695/1500 | 745/1600 | 745/1600 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.31 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V |
| Tyre dimensions rear | 205/55 R16 H | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V |
| Wheel size front | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 300 x 24 | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11 | 11.8 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | 4612 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- |
| Overall height [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1519 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Forward overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 325i | 330i | 330i | 330i | 330i | 335i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 2996 | 2996 | 2996 | 2979 |
| Maximum output / speed [kW/min-1] | 160/6100 | 200/6700 | 200/6700 | 200/6700 | 200/6700 | 225/5800 |
| Maximum torque [Nm/min-1] | 270/2400-4200 | 320/2750-3000 | 320/2750-3000 | 320/2750-3000 | 320/2750-3000 | 400/1200-5000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 244 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.6 | 6.0 | 6.2 | 6.1 | 6.3 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.1 | 10.0 | 10.2 | 11.1 | 11.2 | 12.0 |
| Out of town [l] | 6.5 | 5.9 | 5.9 | 6.5 | 6.6 | 6.3 |
| Combined [l] | 8.2 | 7.4 | 7.5 | 8.2 | 8.3 | 8.4 |
| CO2 emissions [g/km] | 192 | 173 | 175 | 191 | 193 | 196 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1625 | 1540 | 1555 | 1640 | 1655 | 1600 |
| Overall weight [kg] | 2030 | 1945 | 1960 | 2045 | 2060 | 2005 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.27 | 0.27 | 0.31 | 0.31 | 0.3 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 255/40 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8.5 J x 17 |
| Brake dimensions front | 330 x 24 | 348 x 30 | 348 x 30 | 330 x 24 | 330 x 24 | 348 x 30 |
| Brake dimensions rear | 300 x 20 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11 | 11 | 11.8 | 11.8 | 11 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | 4612 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- |
| Overall height [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | 1507 |
| Forward overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 125 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 335i | 335i | 335i | M3 | M3 | 320d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 2979 | 2979 | 2979 | 3999 | 3999 | 1995 |
| Maximum output / speed [kW/min-1] | 225/5800 | 225/5800 | 225/5800 | 309/8300 | 309/8300 | 135/4000 |
| Maximum torque [Nm/min-1] | 400/1200-5000 | 400/1200-5000 | 400/1200-5000 | 400/3900 | 400/3900 | 380/1900-2750 |
| Bore and stroke [mm x mm] | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | 75,2 x 92,0 | 75,2 x 92,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 12,0:1 | 12,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 237 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.3 | 5.4 | 4.8 | 4.6 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 12.4 | 13.1 | 17.7 | 15.9 | 5.9 |
| Out of town [l] | 6.4 | 6.7 | 6.8 | 9.3 | 8.5 | 4.0 |
| Combined [l] | 8.4 | 8.8 | 9.1 | 12.4 | 11.2 | 4.7 |
| CO2 emissions [g/km] | 196 | 205 | 212 | 290 | 263 | 125 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1680 | 1695 | 1655 | 1675 | 1495 |
| Overall weight [kg] | 2020 | 2085 | 2100 | 2080 | 2080 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | - | - | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 440 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.33 | 0.33 | 0.31 | 0.31 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 245/40 R18 | 245/40 R18 | 225/45 R17 V |
| Tyre dimensions rear | 255/40 R17 W | 255/40 R17 W | 255/40 R17 W | 265/40 R18 | 265/40 R18 | 225/45 R17 V |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8.5 J x 18 | 8.5 J x 18 | 8 J x 17 |
| Wheel size rear | 8.5 J x 17 | 8.5 J x 17 | 8.5 J x 17 | 9.5 J x 18 | 9.5 J x 18 | 8 J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 360 x 30 | 360 x 30 | 312 x 24 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 350 x 24 | 350 x 24 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11.7 | 11.7 | 11 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4615 | 4615 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1804/- | 1804/- | 1782/- |
| Overall height [mm] | 1395 | 1395 | 1395 | 1424 | 1424 | 1395 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2761 | 2761 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1540 | 1539 | 1500 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1539 | 1539 | 1513 |
| Forward overhang [mm] | 800 | 800 | 800 | 805 | 805 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1049 | 1049 | 1052 |
| Clearance [mm] | 125 | 125 | 125 | - | - | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 320d | 320d | 320d | 325d | 325d | 330d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2993 | 2993 | 2993 |
| Maximum output / speed [kW/min-1] | 135/4000 | 135/4000 | 135/4000 | 150/3750 | 150/3750 | 180/4000 |
| Maximum torque [Nm/min-1] | 380/1900-2750 | 380/1900-2750 | 380/1900-2750 | 430/1750 | 430/1750 | 520/1750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 17,0:1 | 17,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 235 | 232 | 230 | 244 | 242 | 250 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.8 | 7.9 | 6.9 | 7.1 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 6.4 | 7.2 | 7.3 | 7.9 | 7.3 |
| Out of town [l] | 4.4 | 4.5 | 4.8 | 4.8 | 5.1 | 4.8 |
| Combined [l] | 5.3 | 5.2 | 5.7 | 5.7 | 6.1 | 5.7 |
| CO2 emissions [g/km] | 140 | 137 | 150 | 151 | 160 | 152 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1590 | 1605 | 1590 | 1605 | 1600 |
| Overall weight [kg] | 1910 | 1995 | 2010 | 1995 | 2010 | 2005 |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 440 | 440 | 440 | 440 | 440 | 440 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.31 | 0.31 | 0.28 | 0.28 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 V | 225/45 R17 V | 225/45 R17 V | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 330 x 24 | 330 x 24 | 348 x 30 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 336 x 22 | 336 x 22 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11 | 11 | 11 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | 4612 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- |
| Overall height [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Forward overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330d | 330d | 330d | 335d | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2993 | 2993 | 2993 | 2993 | ||
| Maximum output / speed [kW/min-1] | 180/4000 | 180/4000 | 180/4000 | 210/4400 | ||
| Maximum torque [Nm/min-1] | 520/1750-3000 | 520/1750-3000 | 520/1750-3000 | 580/1750-2250 | ||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 17,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | 4x4 | Rear | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 250 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 6.1 | 5.8 | 5.9 | 5.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 8.0 | 8.3 | 8.8 | 9.0 | ||
| Out of town [l] | 5.2 | 5.5 | 5.7 | 5.2 | ||
| Combined [l] | 6.2 | 6.5 | 6.8 | 6.6 | ||
| CO2 emissions [g/km] | 164 | 171 | 178 | 174 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1615 | 1700 | 1715 | 1645 | ||
| Overall weight [kg] | 2020 | 2085 | 2100 | 2050 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 440 | 440 | 440 | 430 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.28 | 0.3 | 0.3 | 0.3 | ||
| Front suspension | - | - | - | - | ||
| Rear suspension | - | - | - | - | ||
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | ||
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | ||
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | ||
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | ||
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 348 x 30 | ||
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11 | 11.8 | 11.8 | 11 | ||
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | ||
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | ||
| Overall height [mm] | 1395 | 1395 | 1395 | 1395 | ||
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | ||
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | ||
| Rear wheel track [mm] | 1513 | 1513 | 1513 | 1513 | ||
| Forward overhang [mm] | 800 | 800 | 800 | 800 | ||
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | ||
| Clearance [mm] | 143 | 143 | 143 | 125 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 971 | 971 | 971 | 971 | ||
| Headroom rear [mm] | 930 | 930 | 930 | 930 | ||
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | ||
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Convertible
| 318i | 320i | 320i | 325i | 325i | 330i | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2996 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 105/6000 | 125/6700 | 125/6700 | 160/6100 | 160/6100 | 200/6700 |
| Maximum torque [Nm/min-1] | 190/4250 | 210/4250 | 210/4250 | 270/2400-4200 | 270/2400-4200 | 320/2750-3000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 210 | 228 | 226 | 245 | 243 | 250 |
| Acceleration 0–100 km/h [s] | 10.3 | 9.1 | 9.8 | 7.6 | 8.1 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.8 | 9.8 | 10.2 | 10.6 | 10.5 |
| Out of town [l] | 5.6 | 5.6 | 5.8 | 5.9 | 6.3 | 6.2 |
| Combined [l] | 6.6 | 6.8 | 7.3 | 7.5 | 7.9 | 7.8 |
| CO2 emissions [g/km] | 154 | 159 | 169 | 176 | 185 | 182 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1670 | 1700 | 1730 | 1760 | 1780 |
| Overall weight [kg] | 2025 | 2025 | 2055 | 2085 | 2115 | 2135 |
| Maximum trailer weight unbraked/braked [kg] | 695/1250 | 695/1400 | 695/1500 | 745/1600 | 745/1600 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 210-350 | 210-350 | 210-350 | 210-350 | 210-350 | 210-350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.28 | 0.28 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 Y |
| Tyre dimensions rear | 205/55 R16 H | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 Y |
| Wheel size front | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Wheel size rear | 7 J x 16 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 |
| Brake dimensions front | 312 x 24 | 312 x 24 | 312 x 24 | 330 x 24 | 330 x 24 | 348 x 30 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 336 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11 | 11 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | 4612 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | 1384 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1506 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rear wheel track [mm] | 1519 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Forward overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1320/- | 1320/- | 1320/- | 1320/- | 1320/- | 1320/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 330i | 335i | 335i | M3 | M3 | 320d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 2996 | 2979 | 2979 | 3999 | 3999 | 1995 |
| Maximum output / speed [kW/min-1] | 200/6700 | 225/5800 | 225/5800 | 309/8300 | 309/8300 | 135/4000 |
| Maximum torque [Nm/min-1] | 320/2750-3000 | 400/1200-5000 | 400/1200-5000 | 400/3900 | 400/3900 | 380/1900-2750 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 84,0 x 89,6 | 84,0 x 89,6 | 75,2 x 92,0 | 75,2 x 92,0 | 84,0 x 90,0 |
| Compression ratio | 12,0:1 | 10,2:1 | 10,2:1 | 12,0:1 | 12,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 228 |
| Acceleration 0–100 km/h [s] | 6.7 | 5.8 | 5.7 | 5.3 | 5.1 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.1 | 12.4 | 12.2 | 18.0 | 16.0 | 6.3 |
| Out of town [l] | 6.5 | 6.7 | 6.8 | 9.6 | 8.9 | 4.4 |
| Combined [l] | 8.2 | 8.8 | 8.8 | 12.7 | 11.5 | 5.1 |
| CO2 emissions [g/km] | 190 | 205 | 205 | 297 | 269 | 135 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1795 | 1810 | 1825 | 1830 | 1905 | 1730 |
| Overall weight [kg] | 2150 | 2165 | 2180 | 2280 | 2280 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | - | - | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 210-350 | 210-350 | 210-350 | 210-350 | 210-350 | 210-350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.31 | 0.31 | 0.32 | 0.32 | 0.28 |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/45 R17 Y | 225/45 R17 W | 225/45 R17 W | 245/40 R18 | 245/40 R18 | 225/45 R17 W |
| Tyre dimensions rear | 225/45 R17 Y | 255/40 R17 W | 255/40 R17 W | 265/40 R18 | 265/40 R18 | 225/45 R17 W |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8.5 J x 18 | 8.5 J x 18 | 8 J x 17 |
| Wheel size rear | 8 J x 17 | 8.5 J x 17 | 8.5 J x 17 | 9.5 J x 18 | 9.5 J x 18 | 8 J x 17 |
| Brake dimensions front | 348 x 30 | 348 x 30 | 348 x 30 | 360 x 30 | 360 x 30 | 312 x 24 |
| Brake dimensions rear | 336 x 22 | 336 x 22 | 336 x 22 | 350 x 24 | 350 x 24 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11.7 | 11.7 | 11 |
| Overall length [mm] | 4612 | 4612 | 4612 | 4615 | 4615 | 4612 |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1804/- | 1804/- | 1782/- |
| Overall height [mm] | 1384 | 1384 | 1384 | 1392 | 1392 | 1384 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2761 | 2761 | 2760 |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1540 | 1539 | 1500 |
| Rear wheel track [mm] | 1513 | 1507 | 1507 | 1539 | 1539 | 1513 |
| Forward overhang [mm] | 800 | 800 | 800 | 805 | 805 | 800 |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1049 | 1049 | 1052 |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- |
| Rear elbow/shoulder width [mm] | 1320/- | 1320/- | 1320/- | 1320/- | 1320/- | 1320/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 320d | 325d | 325d | 330d | 330d | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 1995 | 2993 | 2993 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 135/4000 | 150/3750 | 150/3750 | 180/4000 | 180/4000 | |
| Maximum torque [Nm/min-1] | 380/1900-2750 | 430/1750 | 430/1750 | 520/1750-3000 | 520/1750-3000 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16,5:1 | 17,0:1 | 17,0:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | Rear | Rear | Rear | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
| - |
| - |
| |
| Top speed [km/h] | 226 | 238 | 236 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 8.4 | 7.5 | 7.6 | 6.4 | 6.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.1 | 7.7 | 8.2 | 7.7 | 8.2 | |
| Out of town [l] | 4.7 | 5.2 | 5.4 | 5.2 | 5.4 | |
| Combined [l] | 5.6 | 6.1 | 6.4 | 6.1 | 6.4 | |
| CO2 emissions [g/km] | 149 | 160 | 168 | 162 | 170 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1745 | 1815 | 1830 | 1825 | 1840 | |
| Overall weight [kg] | 2100 | 2170 | 2185 | 2180 | 2195 | |
| Maximum trailer weight unbraked/braked [kg] | 745/1600 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 210-350 | 210-350 | 210-350 | 210-350 | 210-350 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | |
| Front suspension | - | - | - | - | - | |
| Rear suspension | - | - | - | - | - | |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 Y | 225/45 R17 Y | |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/45 R17 W | 225/45 R17 Y | 225/45 R17 Y | |
| Wheel size front | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | |
| Wheel size rear | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | 8 J x 17 | |
| Brake dimensions front | 312 x 24 | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | |
| Brake dimensions rear | 300 x 20 | 336 x 22 | 336 x 22 | 336 x 22 | 336 x 22 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11 | 11 | 11 | 11 | 11 | |
| Overall length [mm] | 4612 | 4612 | 4612 | 4612 | 4612 | |
| Overall width without/including mirrors [mm] | 1782/- | 1782/- | 1782/- | 1782/- | 1782/- | |
| Overall height [mm] | 1384 | 1384 | 1384 | 1384 | 1384 | |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | |
| Front wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Rear wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | |
| Forward overhang [mm] | 800 | 800 | 800 | 800 | 800 | |
| Rear overhang [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | |
| Front elbow/shoulder width [mm] | 1460/- | 1460/- | 1460/- | 1460/- | 1460/- | |
| Rear elbow/shoulder width [mm] | 1320/- | 1320/- | 1320/- | 1320/- | 1320/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
