BMW 1
Date of manufacture
2019 – to this day (Five-door hatchback)
Platform
BMW UKL2
Manufacturing locations
Leipzig, Germany
Regensburg, Germany
Designer
-
Tags
C-segment
German cars

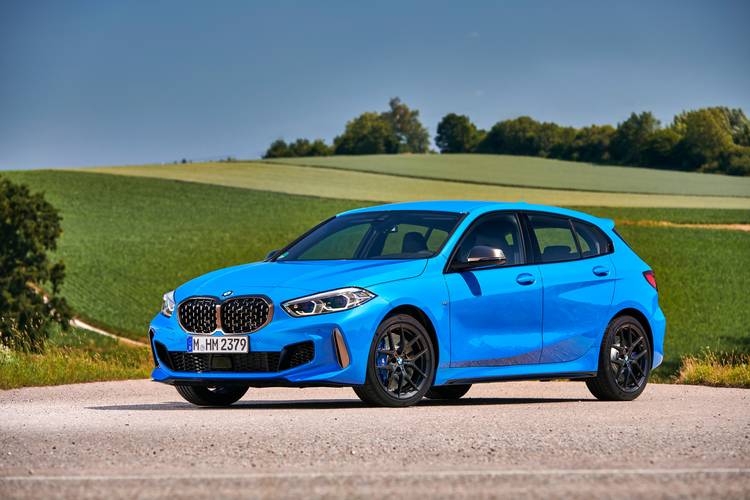

The BMW 1 is a five-door hatchback produced in Germany since 2019. The BMW UKL2 platform allows for a wide range of petrol and diesel engine options. The fastest version, the M135i xDrive 225 kW, has a maximum output of 225 kW and a top speed of 250 km/h. The most fuel-efficient model, the 116d 85 kW, has a combined fuel consumption of 3.8 l/100 km and CO2 emissions of 100 g/km. The luggage compartment volume is 380 l. In 2019, the BMW 1 was tested in the EURONCAP safety area, where it achieved a score of 5 out of 5 points.
Car body style
Five-door hatchback
Date of manufacture
2019 – to this dayInternal designation
F40
Technical data
Five-door hatchback
| 116i 80 kW | 116i 80 kW | 118i 103 kW | 118i 103 kW | 120i 131 kW | 128ti 195 kW | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | - | - | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4 /16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 80/4300-6500 | 80/4300-6500 | 103/4200-6500 | 103/4200-6500 | 131/5000-5500 | 195/4750-6500 |
| Maximum torque [Nm/min-1] | 190/1380-3800 | 190/1380-3800 | 220/1480-4600 | 220/1480-4600 | 280/1350-4200 | 400/1750-4500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 9.5:1 |
| Oil volume [l] | 4.5 | 4.5 | 4.25 | 4.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 200 | 200 | 213 | 213 | 235 | 250 |
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 8.5 | 8.5 | 7.0 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 12.6 | - | 10.6 | - | - | - |
| City [l] | 7.0-6.8 | 6.1-5.8 | 7.0 | 7.0 | 7.0-6.9 | - |
| Out of town [l] | 5.1-4.6 | 5.0-4.6 | 4.3 | 4.3 | 5.1-4.6 | 7.7-7.5 |
| Combined [l] | 5.8-5.4 | 5.5-5.1 | 5.7-5.0 | 5.7-5.0 | 5.8-5.5 | 5.7-5.2 |
| CO2 emissions [g/km] | 133-124 | 125-116 | 129-114 | 129-114 | 134-126 | 6.4-6.1 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 6,6,-5,6 | - | 6,9-6,0 | 7,5-6,9 |
| CO2 emissions [g/km] | - | - | 151-128 | - | 157-137 | 170-157 |
| Emission standard | Euro 6d | Euro 6d | EU6d-TEMP-EU6d | EU6d-TEMP-EU6d | Euro 6d | 148-139 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1415 | 1365 | 1395 | 1465 | 1520 |
| Overall weight [kg] | 1850 | 1870 | 1845 | 1870 | 1920 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 695 /1100 | 705/1100 | 680/1300 | 695/1300 | 730/1300 | - |
| Maximum front/rear axle load [kg] | 980/ 940 | 1005/940 | 980/940 | 1005/940 | 1035/ 955 | 1085/990 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | - |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75/- | 75/- | 75 /- | 75 /- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.26 | 0.26 | 0.28 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94Y XL | 225/40 R18 92Y XL |
| Tyre dimensions rear | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94Y XL | 225/40 R18 92Y XL |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 8J x 18 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4319 | 4319 | 4319 | 4319 | 4319 | 4319 |
| Overall width without/including mirrors [mm] | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1561 | 1560 |
| Rear wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1561 | 1563 |
| Forward overhang [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Rear overhang [mm] | 792 | 792 | 792 | 792 | 792 | 792 |
| Clearance [mm] | 153 | 153 | 153 | 153 | 153 | 153 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1442/- | 1442/- | 1442/- | 1442/- | 1442/- | 1442/- |
| Rear elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - |    | - | - | - |
| Clean Air Index | - | - | 4.5/10 | - | - | - |
| Energy Efficiency Index | - | - | 5.6/10 | - | - | - |
| GHG index | - | - | 4.7/10 | - | - | - |
| M135i xDrive 225 kW | 116d 85 kW | 116d 85 kW | 118d 110 kW | 118d 110 kW | 120d 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1496 | 1496 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 225/4500-6250 | 85/2250-4000 | 85/2250-4000 | 110/2500-4000 | 110/2500-4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 450/1750-5000 | 270/1750-4000 | 270/1750-4000 | 350/1750-4000 | 350/1750-4000 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 9.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 4.8 | 4.8 | 5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 250 | 200 | 200 | 218 | 216 | 231 |
| Acceleration 0–100 km/h [s] | 4.8 | 10.3 | 10.1 | 8.5 | 8.4 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 11.5 | - | 10.6 | - | - |
| City [l] | 8.2 | 4.5 | 4.5 | 4.8 | 4.8 | 5.3-4.9 |
| Out of town [l] | 6.0 | 3.5 | 3.5 | 3.8 | 3.8 | 4.2-3.9 |
| Combined [l] | 7.1-6.8 | 4.2-3.8 | 4.2-3.8 | 4.4-4.1 | 4.4-4.1 | 4.6-4.3 |
| CO2 emissions [g/km] | 162-155 | 110-100 | 110-100 | 116-108 | 116-108 | 121-112 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,8-7,3 | 5,3-4,5 | - | 5,7-4,7 | - | 5,7-4,9 |
| CO2 emissions [g/km] | 178-167 | 140-118 | - | 148-122 | - | 149-129 |
| Emission standard | EU6d-TEMP-EU6d | EU6d | EU6d | EU6d-TEMP-EU6d | EU6d-TEMP-EU6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1600 | 1450 | 1460 | 1480 | 1505 | 1525 |
| Overall weight [kg] | 2085 | 1925 | 1940 | 1950 | 1980 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | - | 725/1300 | 730/1300 | 740/1300 | 750/1300 | 750/1300 |
| Maximum front/rear axle load [kg] | 1120/1020 | 1025 | 1040/980 | 1050 | 1080/980 | 1085/985 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75 /- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 | -/1200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 42 | 42 | 42 | 42 | 50 |
| AdBlue tank volume [l] | - | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 |
| Air resistance [Cd] | 0.34 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/40 R18 92 Y XL | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94Y XL |
| Tyre dimensions rear | 225/40 R18 92 Y XL | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94Y XL |
| Wheel size front | 8J x 18 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Wheel size rear | 8J x 18 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic | Electro-mechanical variable effect power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4319 | 4319 | 4319 | 4319 | 4319 | 4319 |
| Overall width without/including mirrors [mm] | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 | 1799/2081 |
| Overall height [mm] | 1434 | 1434 | 1434 | 1434 | 1434 | 1434 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1560 | 1565 | 1565 | 1565 | 1565 | 1561 |
| Rear wheel track [mm] | 1563 | 1565 | 1565 | 1565 | 1565 | 1561 |
| Forward overhang [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Rear overhang [mm] | 792 | 792 | 792 | 792 | 792 | 792 |
| Clearance [mm] | 153 | 153 | 153 | 153 | 153 | 153 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1442/- | 1442/- | 1442/- | 1442/- | 1442/- | 1442/- |
| Rear elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 120d xDrive 140 kW | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1995 | |||||
| Maximum output / speed [kW/min-1] | 140/2500-4000 | |||||
| Maximum torque [Nm/min-1] | 400/1750-4000 | |||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | |||||
| Compression ratio | 16.5:1 | |||||
| Oil volume [l] | 5.5 | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 230 | |||||
| Acceleration 0–100 km/h [s] | 7.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.1 | |||||
| Out of town [l] | 4.1 | |||||
| Combined [l] | 4.7-4.5 | |||||
| CO2 emissions [g/km] | 124-117 | |||||
| Emission standard | EU6d-TEMP-EU6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1590 | |||||
| Overall weight [kg] | 2065 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | |||||
| Maximum front/rear axle load [kg] | 1105/1020 | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 380 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | 12,5 | |||||
| Air resistance [Cd] | 0.27 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 225/45 R17 41Y XL | |||||
| Tyre dimensions rear | 225/45 R17 41Y XL | |||||
| Wheel size front | 7.5J x 17 | |||||
| Wheel size rear | 7.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering Servotronic | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 4319 | |||||
| Overall width without/including mirrors [mm] | 1799/2081 | |||||
| Overall height [mm] | 1434 | |||||
| Wheelbase [mm] | 2670 | |||||
| Front wheel track [mm] | 1561 | |||||
| Rear wheel track [mm] | 1561 | |||||
| Forward overhang [mm] | 857 | |||||
| Rear overhang [mm] | 792 | |||||
| Clearance [mm] | 153 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1019 | |||||
| Headroom rear [mm] | 956 | |||||
| Front elbow/shoulder width [mm] | 1442/- | |||||
| Rear elbow/shoulder width [mm] | 1430/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

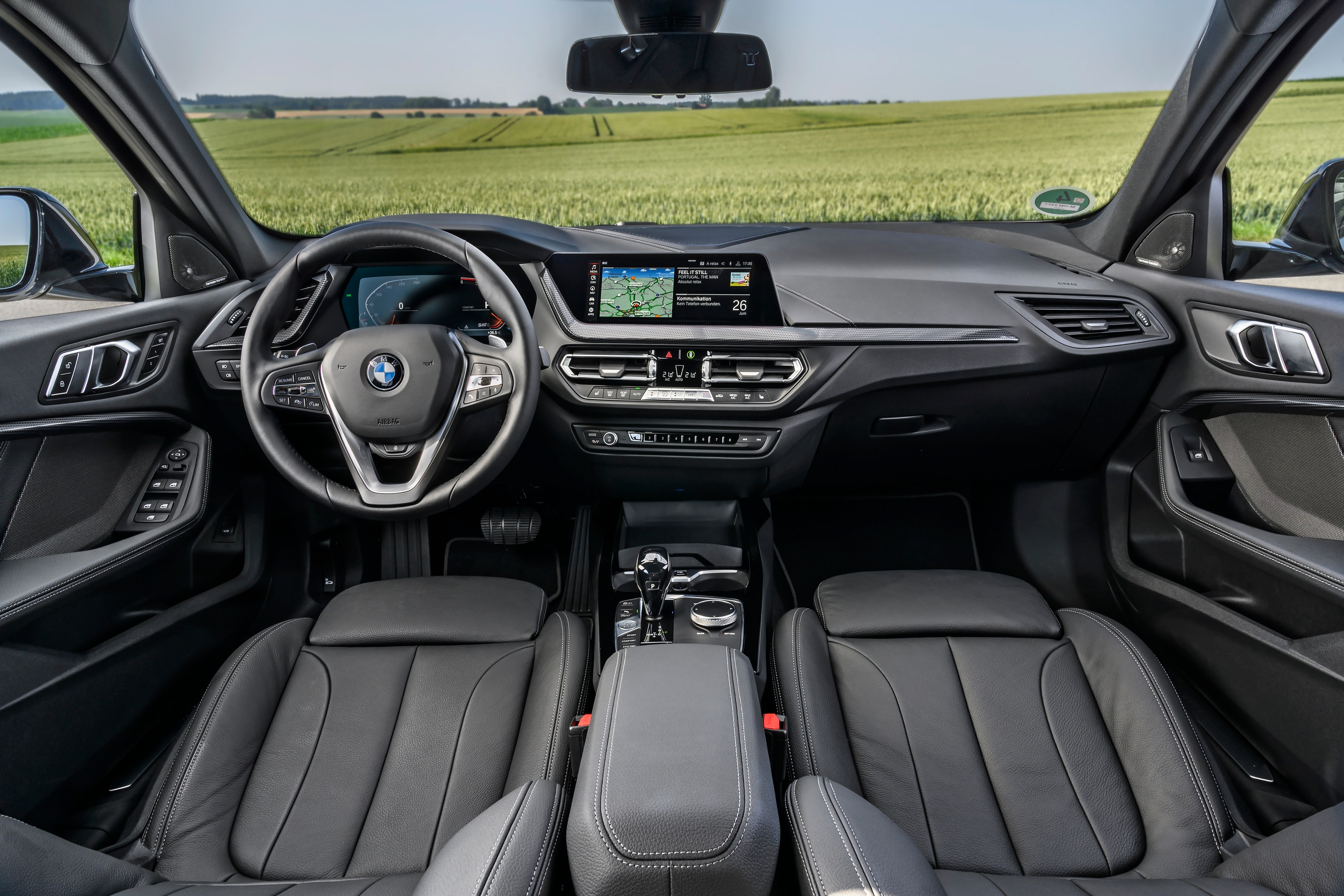

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
