Audi TT
Date of manufacture
8/2014 – 2018 (Coupé)
11/2014 – 2018 (Roadster)
Platform
Volkswagen MQB Platform
Manufacturing locations
Győr, Hungary
Designer
Dany Garand
Tags
S-segment
German cars
The Audi TT is built on the Volkswagen MQB Platform and has been manufactured in Hungary since 2014. It offers coupe and roadster body styles and a wide range of engines, including petrol and diesel variants. The most powerful model is the 2.0 TFSI TT RS with 294 kW, a top speed of 280 km/h and a 0-100 km/h acceleration time of 3.7 seconds. The most fuel-efficient engine is the 2.0 TDI ultra with a consumption of 4.5 l/100 km and emissions of 117 g/km. The coupe offers 305 l of luggage space, while the roadster has 280 l. The EURONCAP safety test rated the Audi TT 4 out of 5 points (tested according to the 2015 methodology).

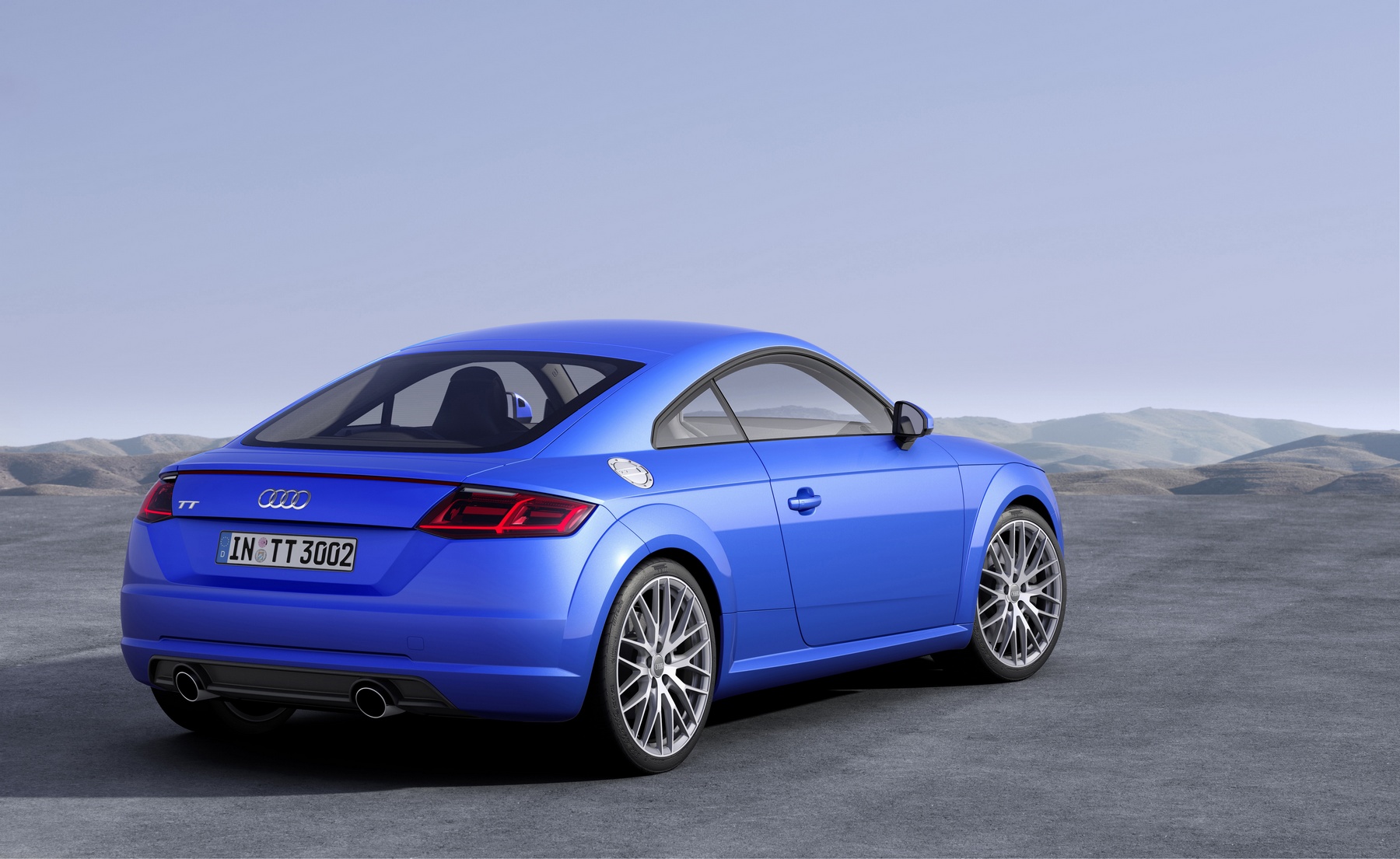

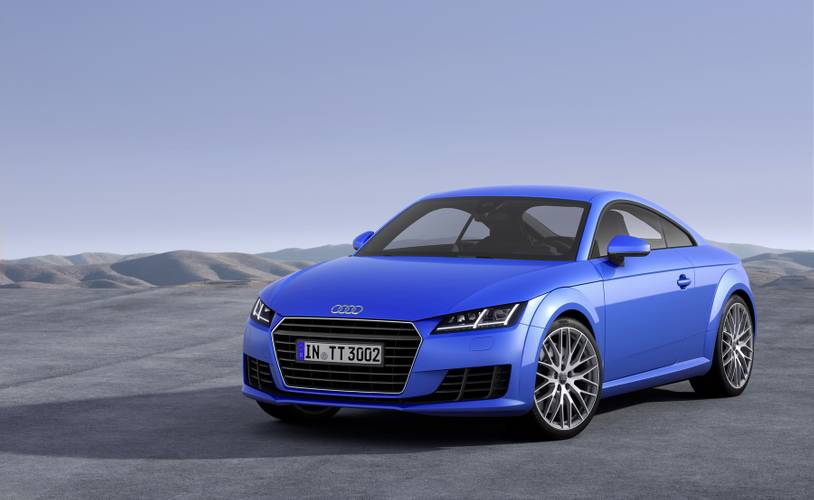

Car body style
Coupé
Date of manufacture
8/2014 – 2018Internal designation
FV/8SEngine size

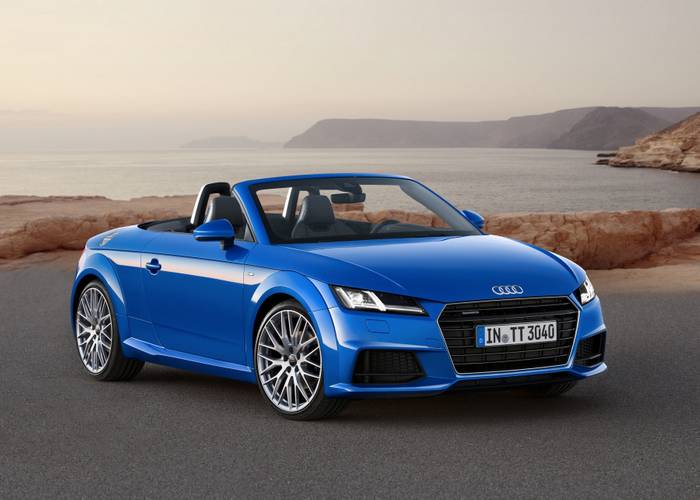

Roadster
Date of manufacture
11/2014 – 2018Internal designation
FV/8SEngine size
Technical data
Coupé
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI TTS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 132/5100-6200 | 132/5100-6200 | 169/4500-6200 | 169/4500-6200 | 169/4500-6200 | 228/5800-6200 |
| Maximum torque [Nm/min-1] | 250/1250-5000 | 250/1250-5000 | 370/1600-4300 | 370/1600-4300 | 370/1600-4300 | 380/1800-5700 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 241 | 241 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.9 | 7,0 | 6.0 | 5.9 | 5.3 | 4.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,4 | 7,2-7,0 | 7,5-7.3 | 8,4-8.2 | 8,5-8.3 | 9,4-9.2 |
| Out of town [l] | 5,1-4,9 | 5,1-4,9 | 5,2-5.0 | 5,4-5.2 | 5,6-5.4 | 6,1-5.9 |
| Combined [l] | 6,0-5,8 | 5,9-5,7 | 6,1-5.9 | 6,5-6.3 | 6,6-6.4 | 7,3-7.1 |
| CO2 emissions [g/km] | 138-134 | 133-129 | 141-137 | 150-146 | 153-149 | 168-164 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1285 | 1305 | 1305 | 1335 | 1410 | 1440 |
| Overall weight [kg] | 1610 | 1630 | 1630 | 1660 | 1735 | 1765 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 305 | 305 | 305 | 305 | 305 | 305 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/712 | -/712 | -/712 | -/712 | -/712 | -/712 |
| Boot length [mm] | 824 | 824 | 824 | 824 | 824 | 824 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 813 | 813 | 813 | 813 | 813 | 803 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.5J x 18 |
| Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.5J x 18 |
| Brake dimensions front | 312 | 312 | 312 | 312 | 312 | - |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/- | 10.96/- | 10.96/- | 10.96/- | 10.96/- | 10.96/- |
| Overall length [mm] | 4177 | 4177 | 4177 | 4177 | 4177 | 4191 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1353 | 1353 | 1353 | 1353 | 1353 | 1343 |
| Wheelbase [mm] | 2505 | 2505 | 2505 | 2505 | 2505 | 2505 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1574 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1553 |
| Forward overhang [mm] | 884 | 884 | 884 | 884 | 884 | 893 |
| Rear overhang [mm] | 788 | 788 | 788 | 788 | 788 | 793 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 858 | 858 | 858 | 858 | 858 | 858 |
| Front elbow/shoulder width [mm] | 1449/1362 | 1449/1362 | 1449/1362 | 1449/1362 | 1449/1362 | 1449/1362 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI TTS | 2.0 TFSI TT RS | 2.0 TDI ultra | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 5/20 | 4/16 | |||
| Engine displacement [cm³] | 1984 | 2480 | 1968 | |||
| Maximum output / speed [kW/min-1] | 228/5800-6200 | 294/5850-7000 | 135/3500-4000 | |||
| Maximum torque [Nm/min-1] | 380/1800-5700 | 480/1700-5850 | 380/1750-3250 | |||
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | |||
| Compression ratio | 9,3:1 | 10,0:1 | 15,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | Front | |||
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear manual | |||
| Drive specifications |
|
| - | |||
| Top speed [km/h] | 250 | 250 [280 subject to a surcharge] | 241 | |||
| Acceleration 0–100 km/h [s] | 4.6 | 3,7 | 7.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 8,4-8.2 | 11,4-11,3 | 5,2-5,1 | |||
| Out of town [l] | 6,0-5,8 | 6,6-6,4 | 4,0-3,9 | |||
| Combined [l] | 6,9-6,7 | 8,4-8,2 | 4,5-4,3 | |||
| CO2 emissions [g/km] | 159-155 | 192-187 | 117-114 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | 94,2 | 75 | |||
| Driving noise [dB] | - | 70 | 74 | |||
| Standby weight [kg] | 1460 | 1515 | 1340 | |||
| Overall weight [kg] | 1785 | 1840 | 1665 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | 985/770 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 305 | 305 | 305 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/712 | -/712 | -/712 | |||
| Boot length [mm] | 824 | 824 | 824 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1000/- | -/1000 | 1000/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 803 | 804 | 813 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 55 | 55 | 50 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | |||
| Tyre dimensions front | 245/40 R18 | 245/35 R19 93 Y XL | 225/50 R17 94W | |||
| Tyre dimensions rear | 245/40 R18 | 245/35 R19 93 Y XL | 225/50 R17 94W | |||
| Wheel size front | 8.5J x 18 | 9,0J x 19 | 8.0J x 17 ET47 | |||
| Wheel size rear | 8.5J x 18 | 9,0J x 19 | 8.0J x 17 ET47 | |||
| Brake dimensions front | - | - | 312 | |||
| Brake dimensions rear | - | - | 272 | |||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.96/- | 10.96/- | 10.96/- | |||
| Overall length [mm] | 4191 | 4191 | 4177 | |||
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | |||
| Overall height [mm] | 1343 | 1344 | 1353 | |||
| Wheelbase [mm] | 2505 | 2505 | 2505 | |||
| Front wheel track [mm] | 1574 | 1564 | 1572 | |||
| Rear wheel track [mm] | 1553 | 1543 | 1552 | |||
| Forward overhang [mm] | 893 | 893 | 884 | |||
| Rear overhang [mm] | 793 | 793 | 788 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 993 | 993 | 993 | |||
| Headroom rear [mm] | 858 | 858 | 858 | |||
| Front elbow/shoulder width [mm] | 1449/1362 | 1449/1362 | 1449/1362 | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

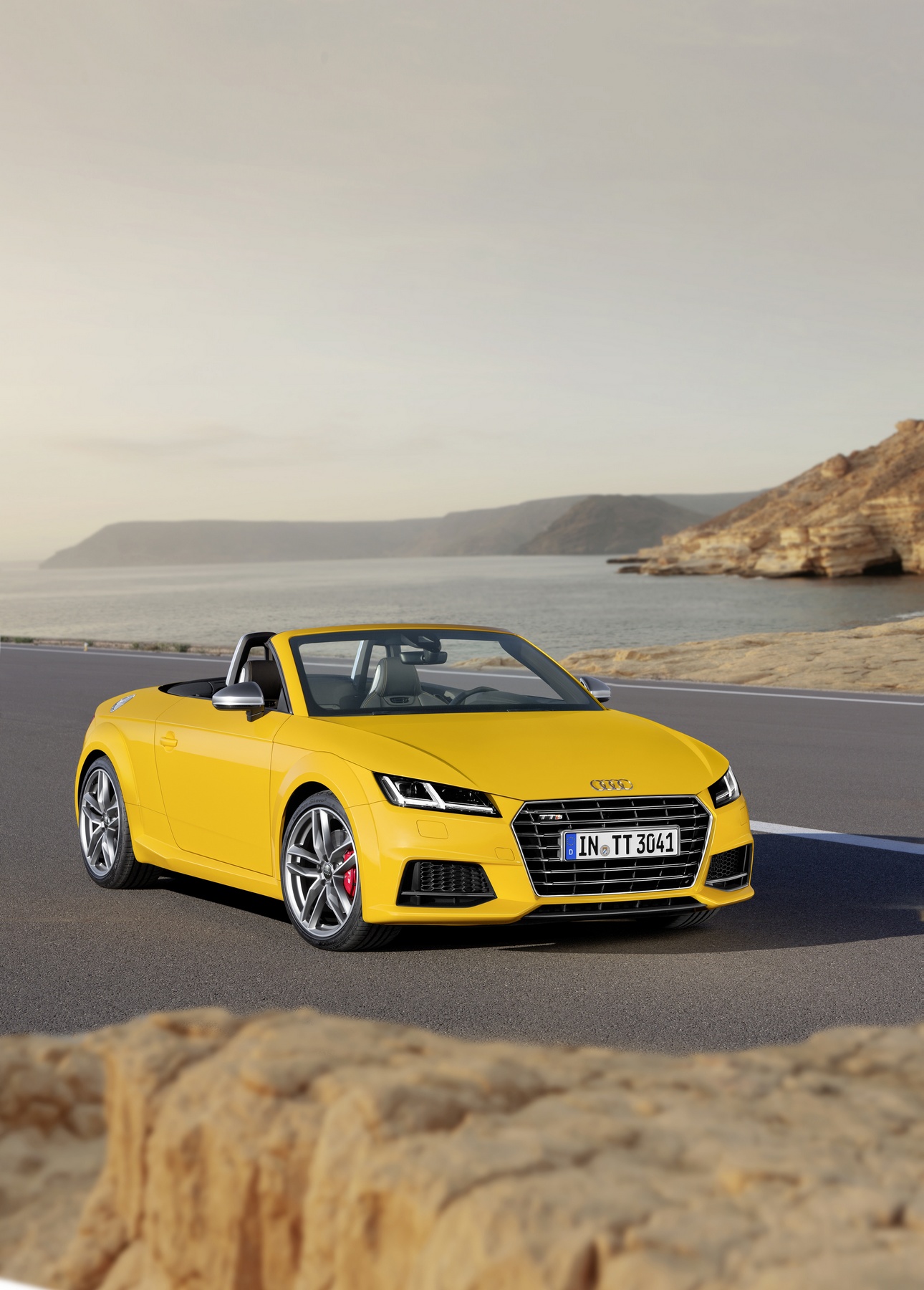

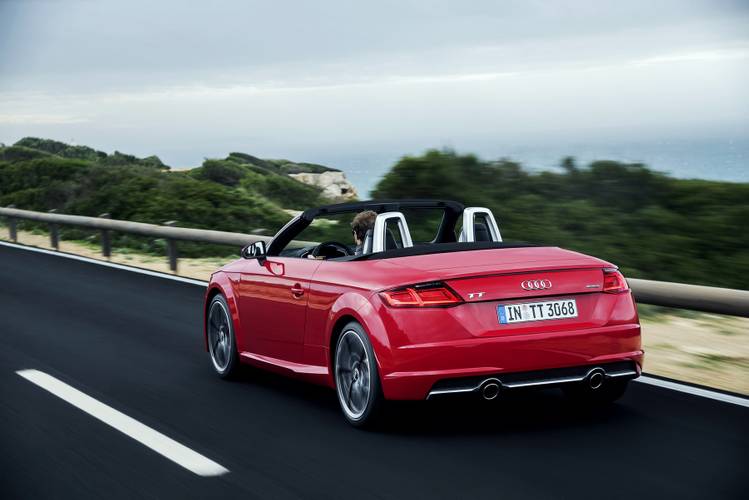

Roadster
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI TTS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 132/5100-6200 | 132/5100-6200 | 169/4500-6200 | 169/4500-6200 | 169/4500-6200 | 228/5800-6200 |
| Maximum torque [Nm/min-1] | 250/1250-5000 | 250/1250-5000 | 370/1600-4300 | 370/1600-4300 | 370/1600-4300 | 380/1800-5700 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 237 | 237 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,2 | 7,3 | 6.2 | 6.1 | 5.6 | 5.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7-7,5 | 7,3-7,1 | 7,7-7.5 | 8,6-8,4 | 8.7-8.5 | 9,5-9.3 |
| Out of town [l] | 5,2-5,0 | 5,2-5,0 | 5,4-5.2 | 5,6-5,4 | 5.8-5.6 | 6,3-6.1 |
| Combined [l] | 6,1-5,9 | 6,0-5,8 | 6,2-6.0 | 6,7-6,5 | 6.9-6.7 | 7,5-7.3 |
| CO2 emissions [g/km] | 142-138 | 136-132 | 144-140 | 155-151 | 158-154 | 173-169 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1395 | 1395 | 1425 | 1500 | 1555 |
| Overall weight [kg] | 1620 | 1640 | 1640 | 1670 | 1745 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 280 | 280 | 280 | 280 | 280 | 280 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 810 | 810 | 810 | 810 | 810 | 810 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 945/- | 945/- | 945/- | 945/- | 945/- | 945/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 50 | 55 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.5J x 18 |
| Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/- | 10.96/- | 10.96/- | 10.96/- | 10.96/- | 10.96/- |
| Overall length [mm] | 4177 | 4177 | 4177 | 4177 | 4177 | 4191 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1355 | 1355 | 1355 | 1355 | 1355 | 1355 |
| Wheelbase [mm] | 2505 | 2505 | 2505 | 2505 | 2505 | 2505 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1574 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1553 |
| Forward overhang [mm] | 884 | 884 | 884 | 884 | 884 | 893 |
| Rear overhang [mm] | 788 | 788 | 788 | 788 | 788 | 793 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1450/1362 | 1450/1362 | 1450/1362 | 1450/1362 | 1450/1362 | 1450/1362 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI TTS | 2.0 TFSI TT RS | 2.0 TDI ultra | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 5/20 | 4/16 | |||
| Engine displacement [cm³] | 1984 | 2480 | 1968 | |||
| Maximum output / speed [kW/min-1] | 228/5800-6200 | 294/5850-7000 | 135/3500-4000 | |||
| Maximum torque [Nm/min-1] | 380/1800-5700 | 480/1700-5850 | 380/1750-3250 | |||
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | |||
| Compression ratio | 9,3:1 | 10,0:1 | 15,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | Front | |||
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear manual | |||
| Drive specifications |
|
| - | |||
| Top speed [km/h] | 250 | 250 [280 subject to a surcharge] | 237 | |||
| Acceleration 0–100 km/h [s] | 4.9 | 3,9 | 7.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 8,6-8.4 | 11,4-11,3 | 5,4-5,3 | |||
| Out of town [l] | 6,2-6.0 | 6,8-6,5 | 4,2-4,1 | |||
| Combined [l] | 7,1-6.9 | 8,5-8,3 | 4,6-4,5 | |||
| CO2 emissions [g/km] | 163-159 | 194-189 | 121-118 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | 75 | |||
| Driving noise [dB] | - | - | 74 | |||
| Standby weight [kg] | 1575 | 1605 | 1435 | |||
| Overall weight [kg] | 1820 | 1850 | 1680 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | 1025/750 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 280 | 280 | 280 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 1013 | 1013 | 1013 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 800 | 800 | 800 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 945/- | 945/- | 945/- | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 2 | 2 | 2 | |||
| Fuel tank volume [l] | 55 | 55 | 50 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.31 | - | 0.32 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | four-link, stabiliser bar | four-link, stabiliser bar | four-link, stabiliser bar | |||
| Tyre dimensions front | 245/40 R18 | 245/35 R19 93 Y XL | 225/50 R17 94W | |||
| Tyre dimensions rear | 245/40 R18 | 245/35 R19 93 Y XL | 225/50 R17 94W | |||
| Wheel size front | 8.5J x 18 | 9,0J x 19 | 8.0J x 17 ET47 | |||
| Wheel size rear | 8.5J x 18 | 9,0J x 19 | 8.0J x 17 ET47 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.96/- | 10.96/- | 10.96/- | |||
| Overall length [mm] | 4191 | 4191 | 4177 | |||
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | |||
| Overall height [mm] | 1355 | 1355 | 1355 | |||
| Wheelbase [mm] | 2505 | 2505 | 2505 | |||
| Front wheel track [mm] | 1574 | 1574 | 1572 | |||
| Rear wheel track [mm] | 1553 | 1553 | 1552 | |||
| Forward overhang [mm] | 893 | 893 | 884 | |||
| Rear overhang [mm] | 793 | 793 | 788 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 986 | 986 | 986 | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | 1450/1362 | 1450/1362 | 1450/1362 | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
