Audi R8

Date of manufacture

2015 – 2018 (Coupé)

2016 – 2018 (Roadster)

Platform

Modular Sports System

Manufacturing locations

Neckarsulm, Germany

Designer

Car body style

Coupé

Date of manufacture

2015 – 2018

Internal designation

Engine size

V10 397 kW

V10 397 kW RWD

V10 449kW plus

Roadster (Spyder)

Date of manufacture

2016 – 2018

Internal designation

Engine size

V10 397 kW

V10 397 kW RWD

Technical data

Coupé

	V10 397 kW	V10 397 kW RWD	V10 449kW plus
Date of sale	-	-	-
Engine type	Petrol	Petrol	Petrol
Number of cylinders/valves	10/40	10/40	10/40
Engine displacement [cm³]	5204	5204	5204
Maximum output / speed [kW/min-1]	397/7800	397/7800	449/8250
Maximum torque [Nm/min-1]	540/6500	540/6500	560/6500
Bore and stroke [mm x mm]	84,5 x 92,8	84,5 x 92,8	84,5 x 92,8
Compression ratio	12,5:1	12,5:1	12,5:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct and indirect injection system variable timing of intake and exhaust valves technology COD (shuts down five cylinders if necessary) start&stop system	direct and indirect injection system variable timing of intake and exhaust valves technology COD (shuts down five cylinders if necessary) start&stop system	direct and indirect injection system variable timing of intake and exhaust valves technology COD (shuts down five cylinders if necessary) start&stop system

Drive axle	4x4	Rear	4x4
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	seven-speed dual-clutch automatic gearbox S tronic	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	320	320	330
Acceleration 0–100 km/h [s]	3,5	3,7	3,2
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	16,7	-	17,5
Out of town [l]	8,4	-	9,3
Combined [l]	11,4	12,4	12,3
CO2 emissions [g/km]	272	286-283	287

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1715	-	1655
Overall weight [kg]	1940	-	1920
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	112	112	112
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	2	2	2
Fuel tank volume [l]	83	-	73
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.36	0.36	0.36
Front suspension	double wishbone	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone	double wishbone
Tyre dimensions front	245/35 R19 ZR 93Y	245/35 R19 ZR 93Y	245/35 R19 ZR 93Y
Tyre dimensions rear	295/35 R19 ZR 102Y	295/35 R19 ZR 102Y	295/35 R19 ZR 102Y
Wheel size front	8.5J x 19	8.5J x 19	8.5J x 19
Wheel size rear	11J x 19	11J x 19	11J x 19
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	Electro-mechanical power steering	Electro-mechanical power steering	Electro-mechanical power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	11,2/-	11,2/-	11,2/-

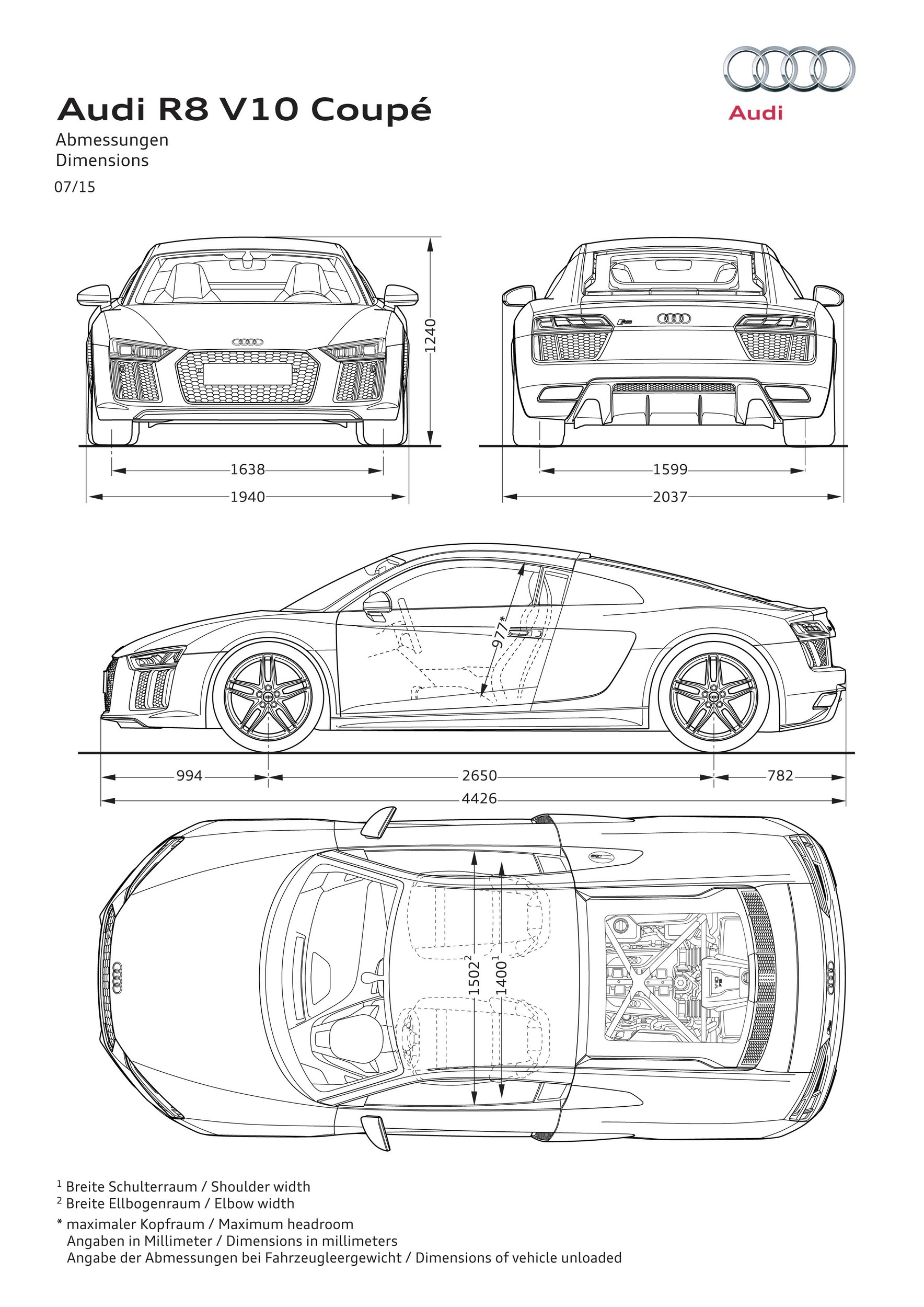

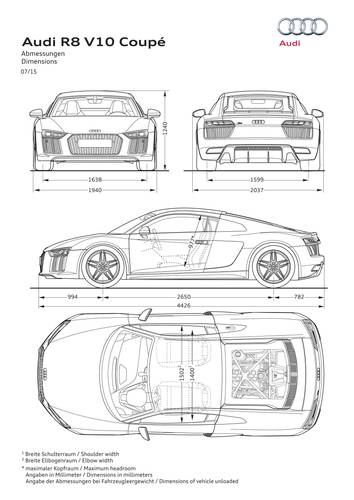

Overall length [mm]	4426	4426	4426
Overall width without/including mirrors [mm]	1940/2037	1940/2037	1940/2037
Overall height [mm]	1240	1240	1240
Wheelbase [mm]	2650	2650	2650
Front wheel track [mm]	1638	1638	1638
Rear wheel track [mm]	1599	1599	1599
Forward overhang [mm]	994	994	994
Rear overhang [mm]	782	782	782
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	977	977	977
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	1502/1400	1502/1400	1502/1400
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Roadster (Spyder)

	V10 397 kW	V10 397 kW RWD
Date of sale	-	-
Engine type	Petrol	Petrol
Number of cylinders/valves	10/40	10/40
Engine displacement [cm³]	5204	5204
Maximum output / speed [kW/min-1]	397/7800	397/7800
Maximum torque [Nm/min-1]	540/6500	540/6500
Bore and stroke [mm x mm]	84,5 x 92,8	84,5 x 92,8
Compression ratio	12,5:1	12,5:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct and indirect injection system variable timing of intake and exhaust valves technology COD (shuts down five cylinders if necessary) start&stop system	direct and indirect injection system variable timing of intake and exhaust valves technology COD (shuts down five cylinders if necessary) start&stop system

Drive axle	4x4	Rear
Gearbox	7 gear automatic	7 gear automatic
Drive specifications	permanent all-wheel drive quattro seven-speed dual-clutch automatic gearbox S tronic	seven-speed dual-clutch automatic gearbox S tronic

Top speed [km/h]	318	318
Acceleration 0–100 km/h [s]	3,6	3,8
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	17,0	-
Out of town [l]	8,7	-
Combined [l]	11,7	12,6
CO2 emissions [g/km]	277	-

Emission standard	EU6	EU6
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1795	-
Overall weight [kg]	2020	-
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	112	112
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	2	2
Number of seats	2	2
Fuel tank volume [l]	80	80
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.36	0.36
Front suspension	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone
Tyre dimensions front	245/35 R19 ZR 93Y	245/35 R19 ZR 93Y
Tyre dimensions rear	295/35 R19 ZR 102Y	295/35 R19 ZR 102Y
Wheel size front	8.5J x 19	8.5J x 19
Wheel size rear	11J x 19	11J x 19
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	Electro-mechanical power steering	Electro-mechanical power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11,2/-	11,2/-

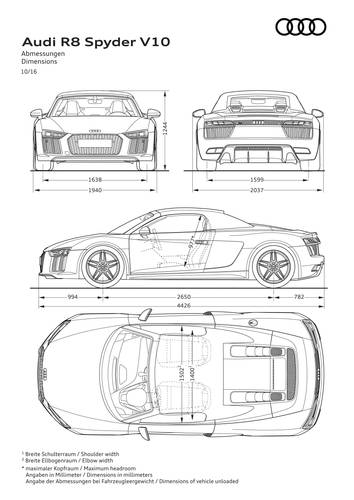

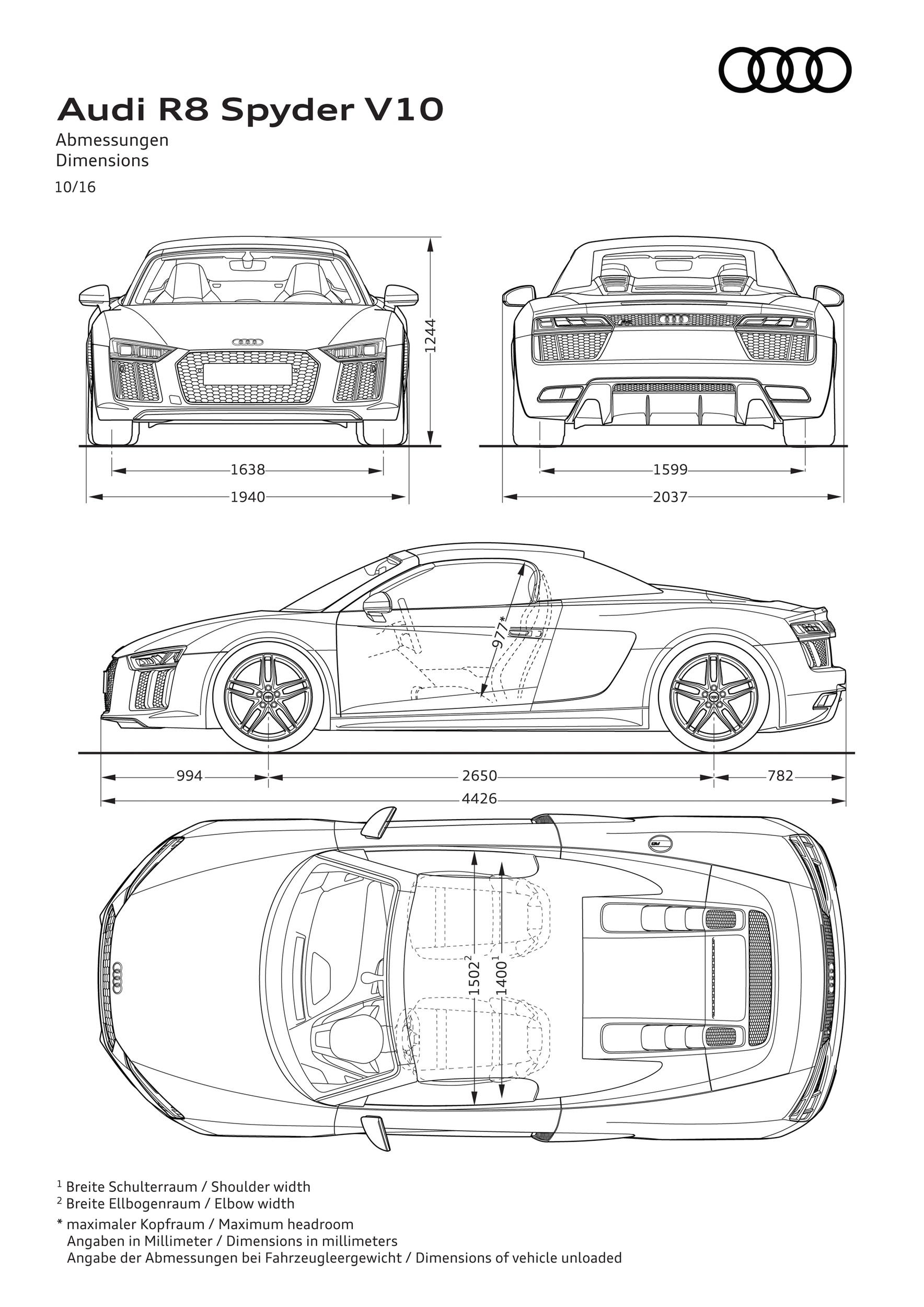

Overall length [mm]	4426	4426
Overall width without/including mirrors [mm]	1940/2037	1940/2037
Overall height [mm]	1244	1244
Wheelbase [mm]	2650	2650
Front wheel track [mm]	1638	1638
Rear wheel track [mm]	1599	1599
Forward overhang [mm]	994	994
Rear overhang [mm]	782	782
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	977	977
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	1502/1400	1502/1400
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

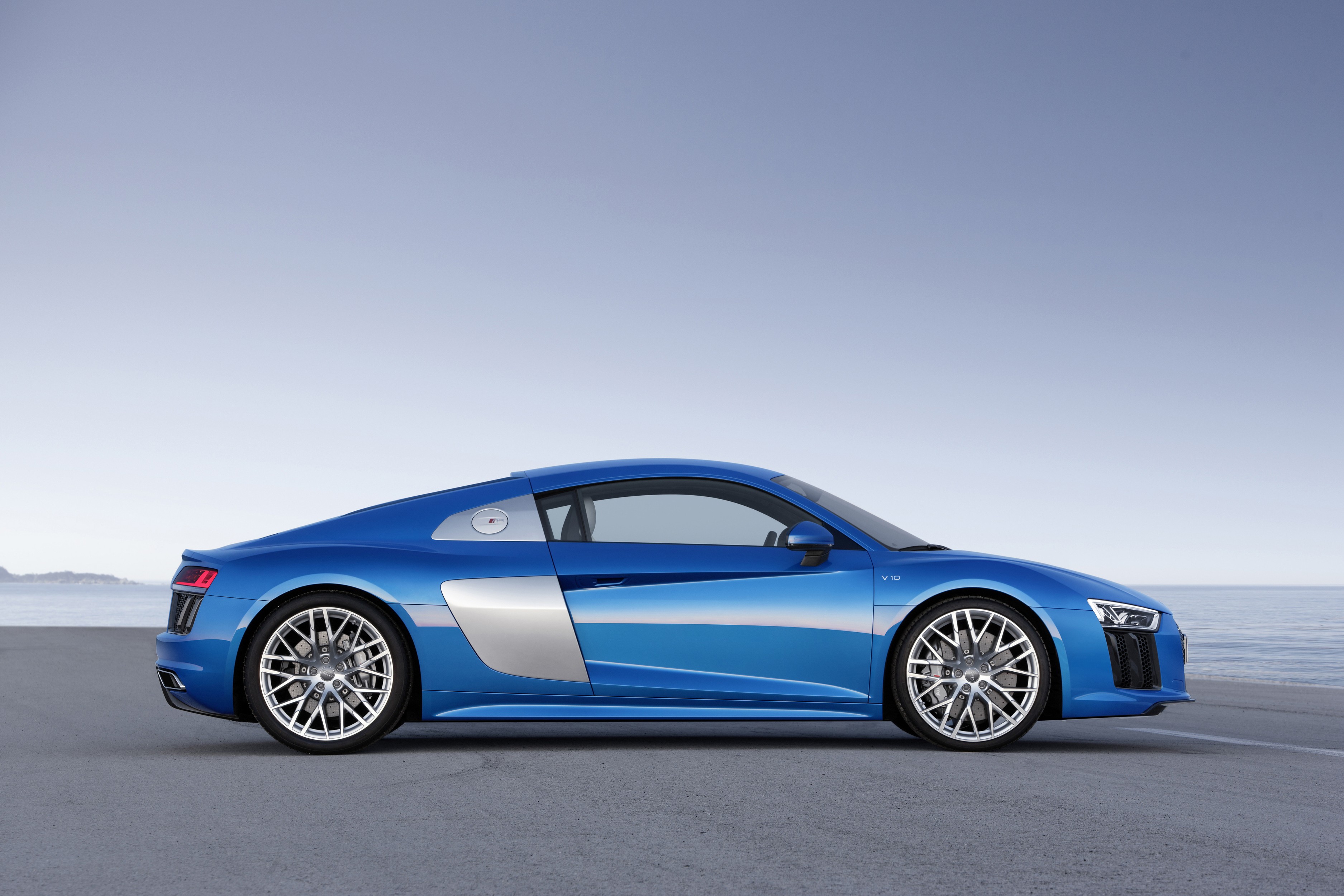

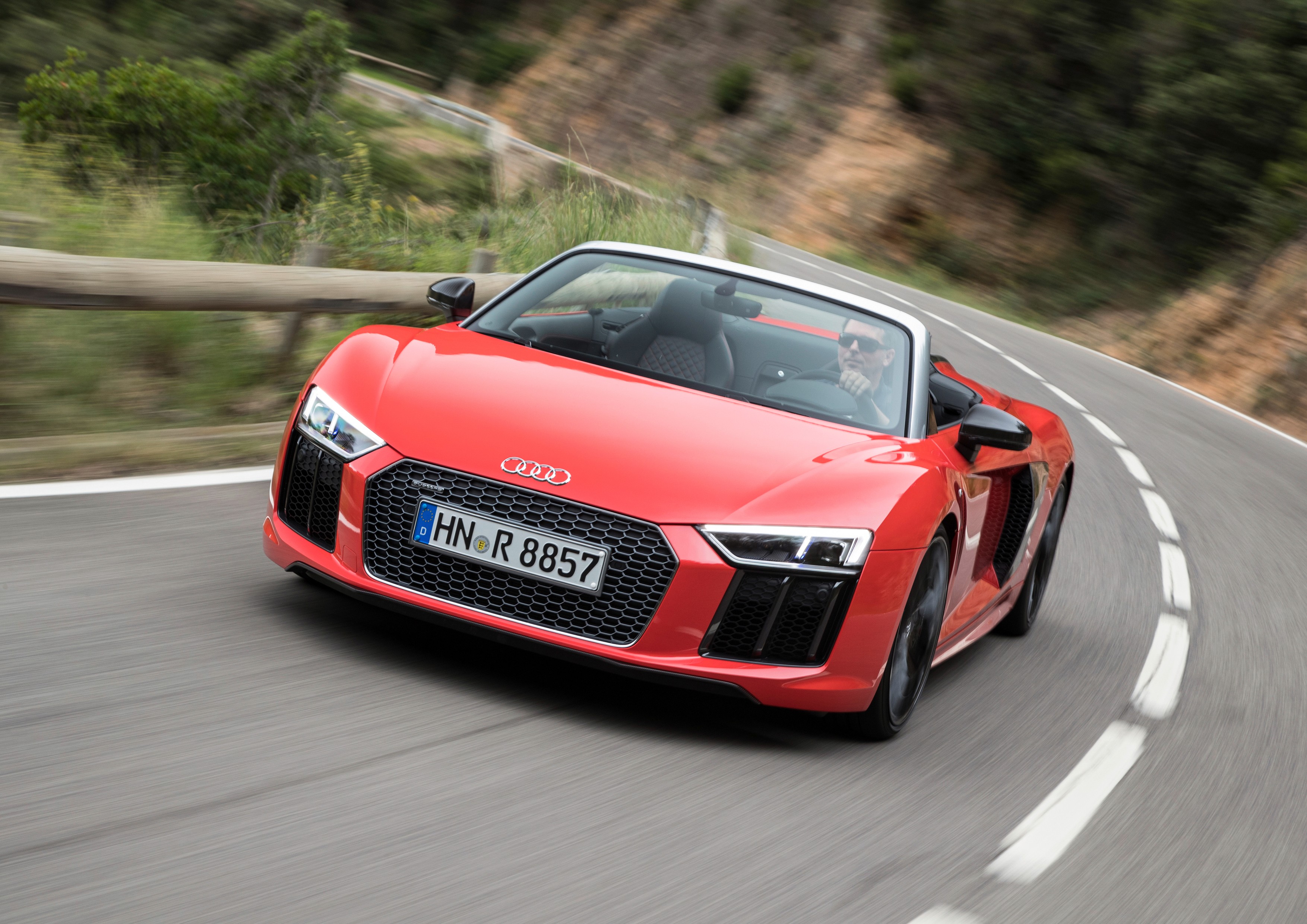

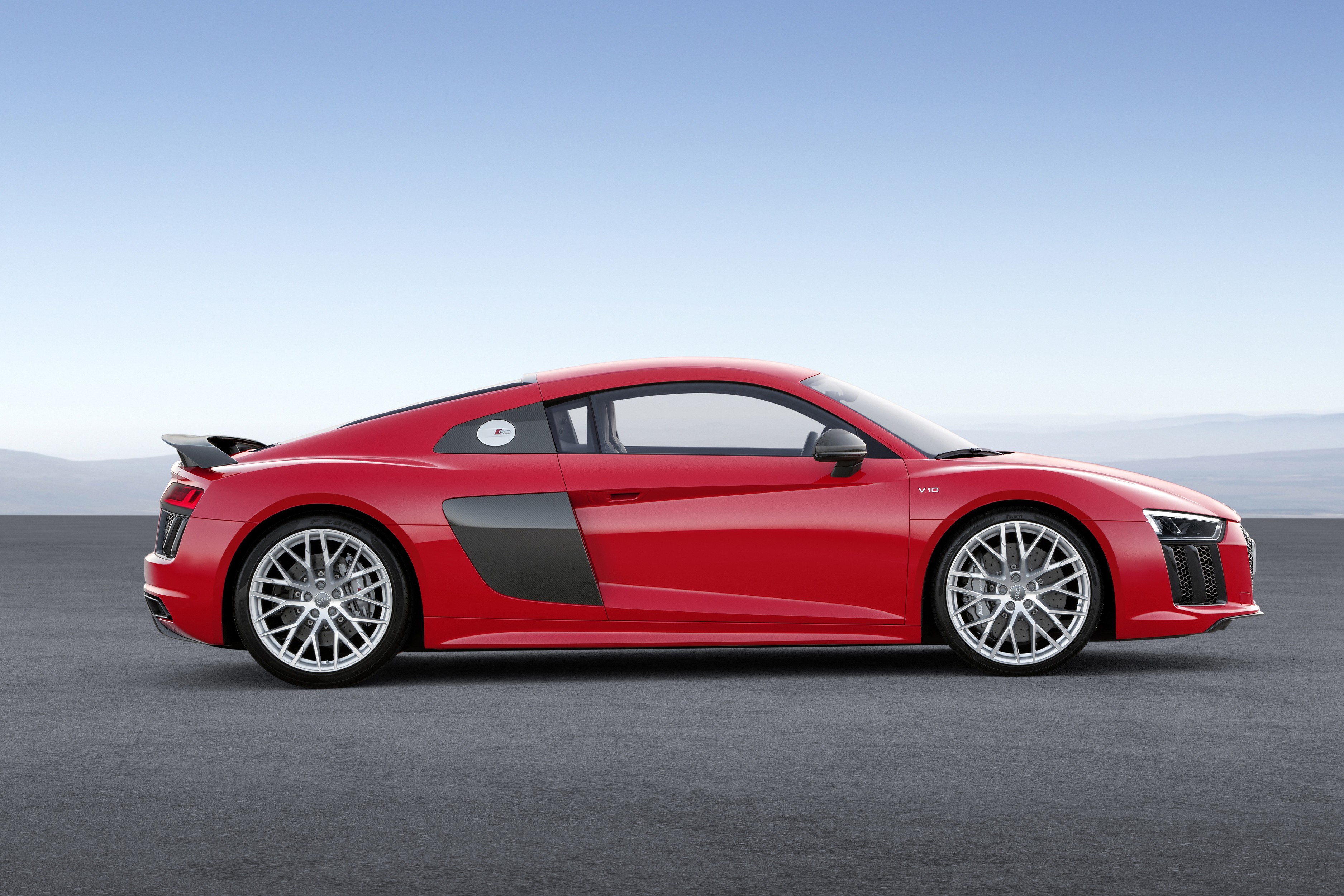

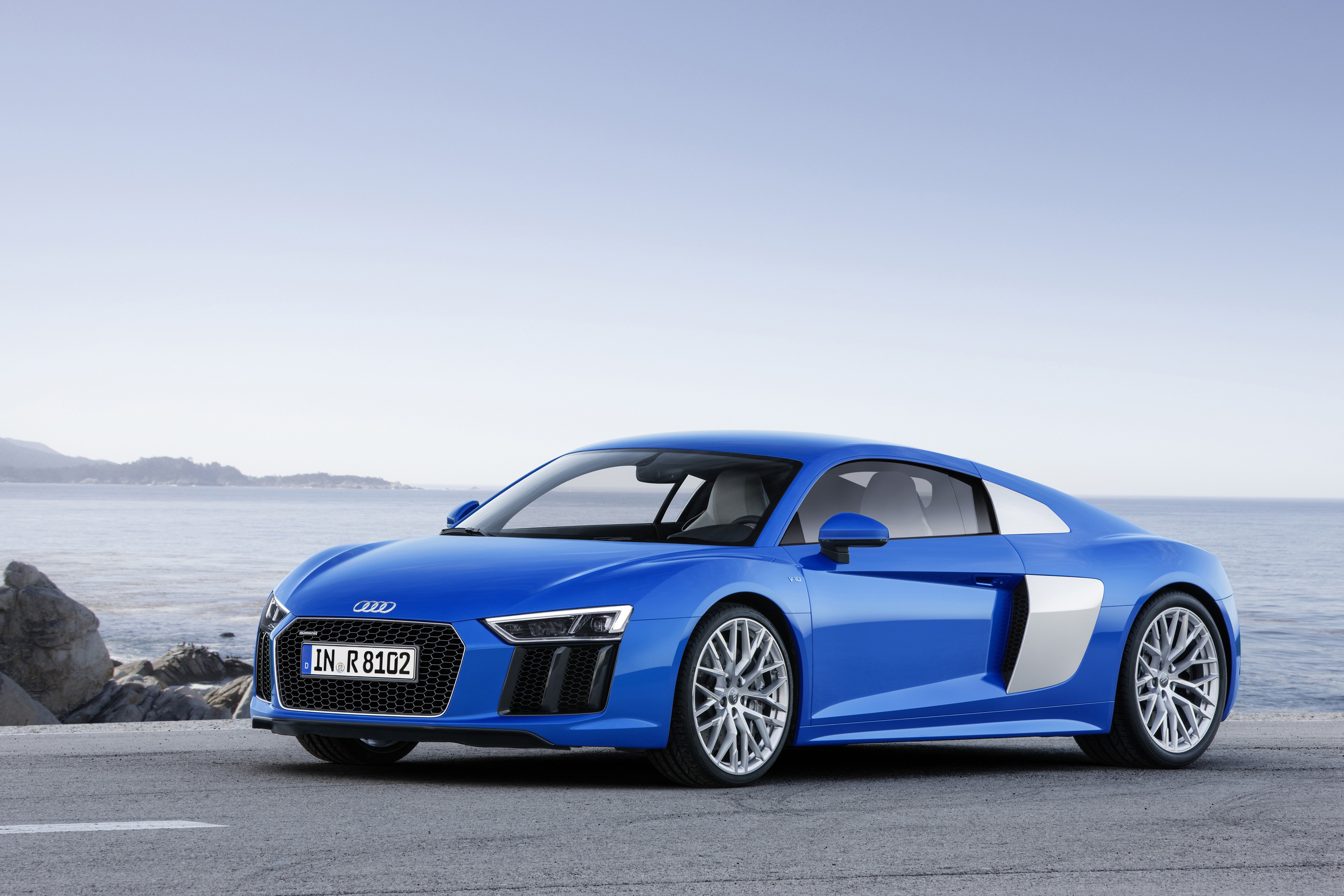

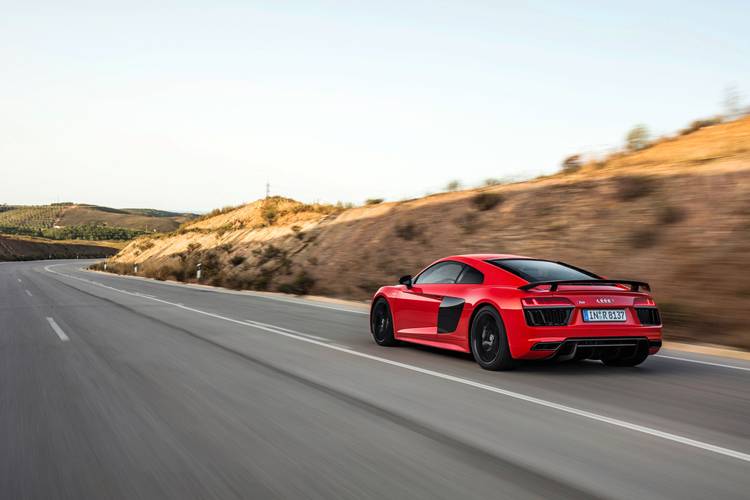

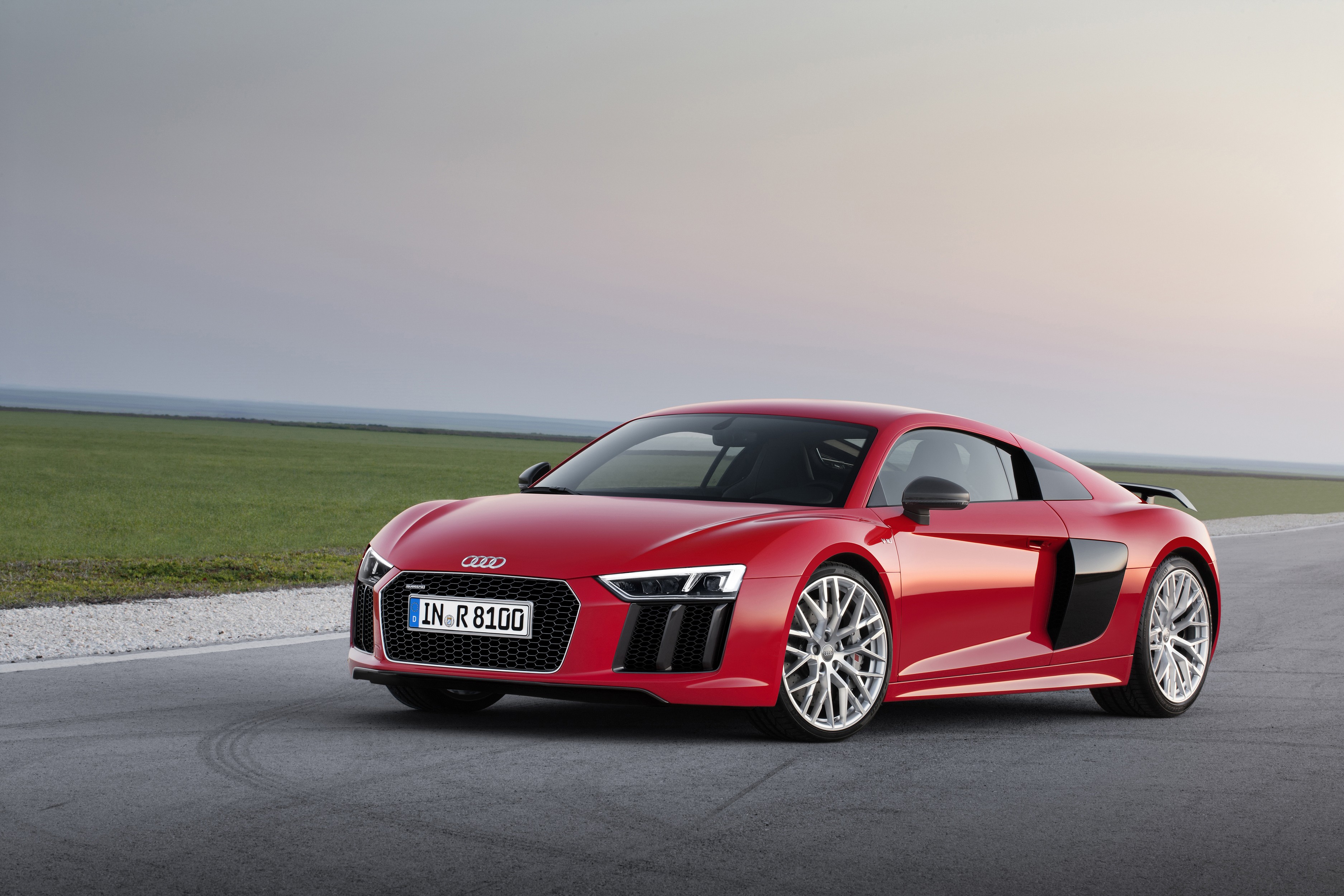

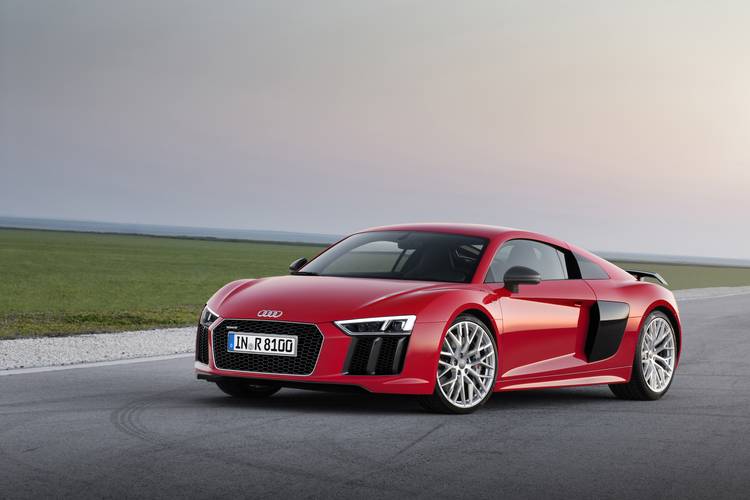

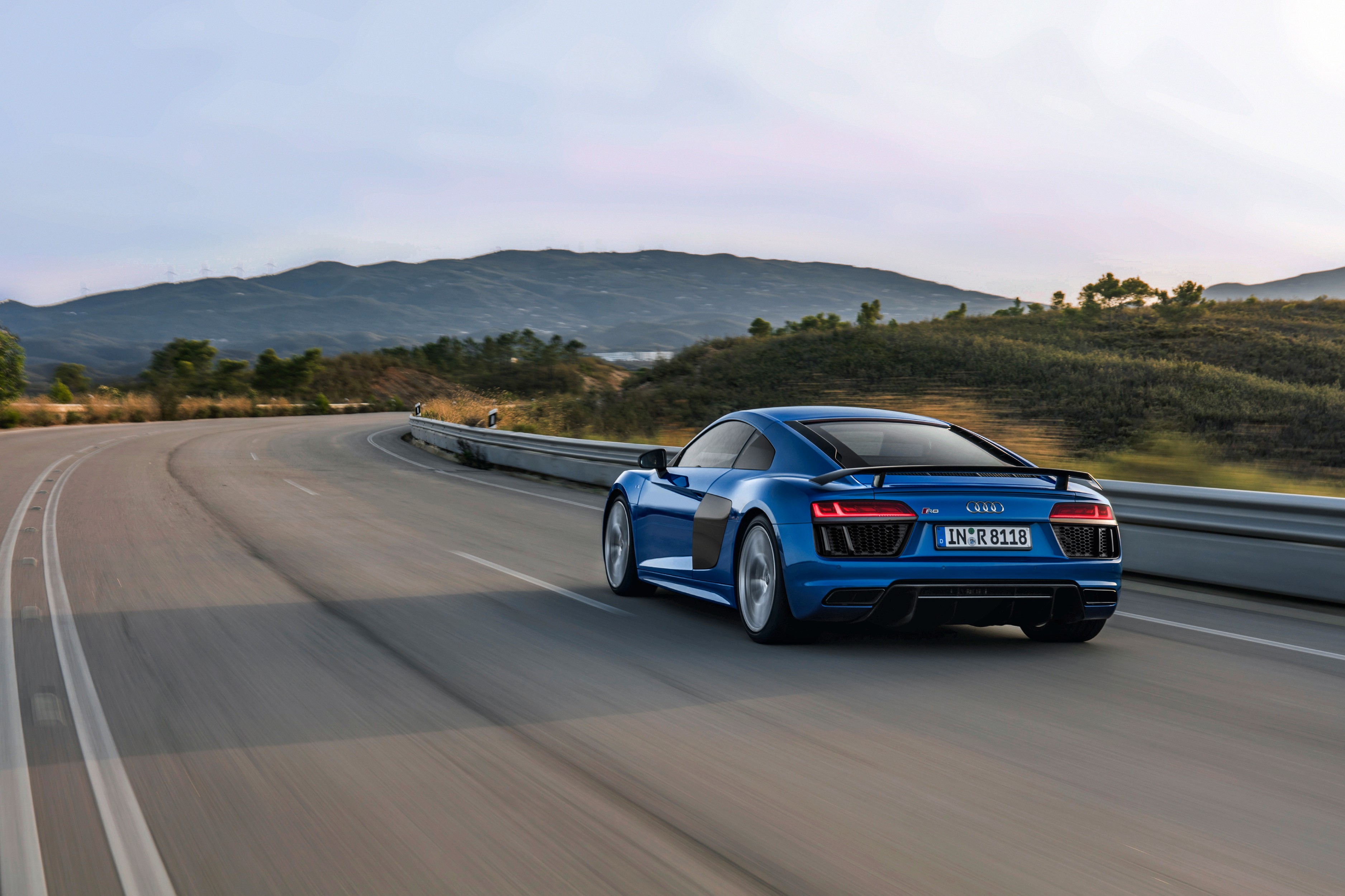

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
