Audi Q5
Date of manufacture
10/2006 – 7/2020 (Medium SUV)
Platform
MLB evo
Manufacturing locations
San José Chiapa, Mexico
Designer
-
Tags
Compact SUV
German cars

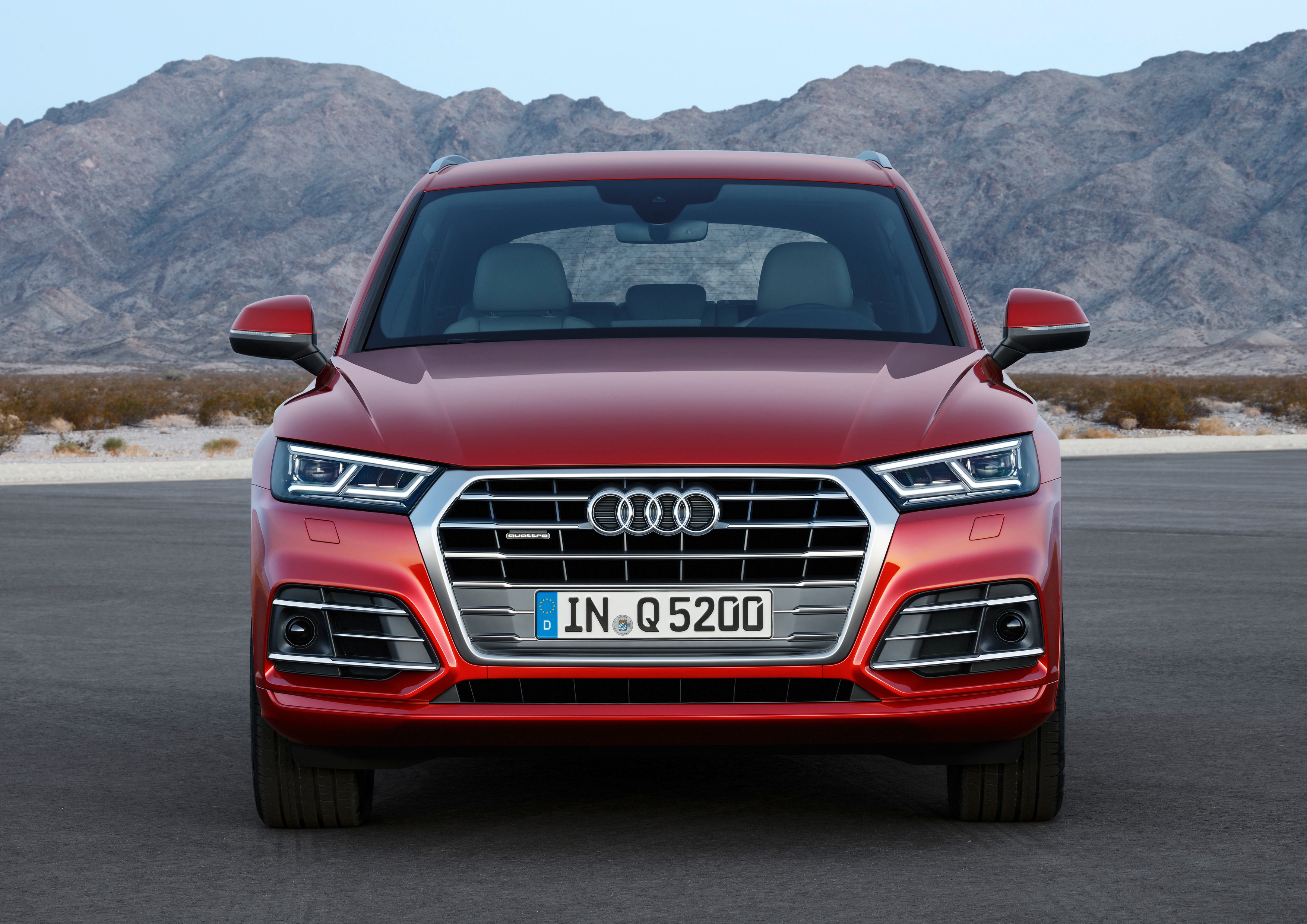

The Audi Q5 is a mid-size SUV that has been produced since 2006. This model is manufactured in Mexico and is built on the MLB evo platform. The engine range includes petrol, diesel and hybrid power units. The highest power output is 55 TFSI e quattro 270 kW (270 kW) and the fastest model is the SQ5 TFSI quattro 260 kW with a top speed of 250 km/h. The best acceleration from 0-100 km/h is 5.1 seconds for the SQ5 TDI quattro 255 kW and the lowest fuel consumption is 2.4 l/100 km for the 55 TFSI e quattro 270 kW. CO2 emissions are 54 g/km. The luggage compartment volume is 465 l and the car was tested by EURONCAP in 2017, where it achieved an overall rating of 5 out of 5. Audi Q5s are also available in hybrid and plug-in hybrid versions.
Car body style
Medium SUV
Date of manufacture
10/2006 – 7/2020Internal designation
FY 80AEngine size
PetrolPetrol + ElectricDiesel
Technical data
Medium SUV
| 45 TFSI quattro 180 kW | 2.0 TFSI quattro 185 kW | SQ5 TFSI quattro 260 kW | 50 TFSI e quattro 220 kW | 55 TFSI e quattro 270 kW | 2.0 TDI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2020 | from 2016 to 2018 | from 2017 to 2018 | from 2019 to 2020 | from 2019 to 2020 | from 2016 to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 2995 | 1984 | 1984 | 1968 |
| Maximum output / speed [kW/min-1] | 180/5000-6000 | 185/5000-6000 | 260/5400-6400 | 185/5000-6000 55 el. 220 total | 185/5000-6000 55 el. 270 total | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 370/1600-4300 | 370/1600-4500 | 500/1370-4500 | 370/1600-4500 350 el. 450 total | 370/1600-4500 350 el. 500 total | 320/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 82.5 x 92.8 | 82.5 x 92.8 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 11,2:1 | 9.6:1 | 9.6:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - | - | - |
| Top speed [km/h] | 237 | 237 | 250 | 239 [135 el.] | 239 [140 el.] | 206 |
| Acceleration 0–100 km/h [s] | 6.4 | 6,3 | 5,4 | 6,1 [14,3 el.] | 5,9 [14,3 el.] | 9,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5-9.0 | 8,6-8,3 | 11,0-11,8 | - | - | 5,5-5,2 |
| Out of town [l] | 6.4-6.0 | 6,4-5,9 | 7,1-6,8 | - | - | 4,4-4,0 |
| Combined [l] | 7.5-7.1 | 7,2-6,8 | 8,5-8,3 | 2,4-2,0 [18.1-17.8 kWh] | 2,4-2,0 [19,1-17,5 kWh] | 4,8-4,5 |
| CO2 emissions [g/km] | 172-162 | 164-154 | 195-189 | 54-46 | 54-46 | 127-117 |
| Emission standard | Euro 6d-TEMPEVAP-ISC | EU6 | EU6 | Euro 6d-Temp-Evap-ISC | Euro 6d-Temp-Evap-ISC | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 72.2 | 72 | - | 70.2 | 70.2 | - |
| Driving noise [dB] | 67 | 72 | - | 68 | 68 | - |
| System voltage [V] | - | - | - | 381 | 381 | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 14.1 kWh | Lithium-Ionen-Akkumulator, 14.1 kWh | - |
| Range with fully charged battery [km] | - | - | - | > 40 | > 40 | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | -/104 | -/104 | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1825 | 1795 | 1945 | 2105 | 2105 | 1735 |
| Overall weight [kg] | 2435 | 2400 | 2500 | 2620 | 2620 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/1750 | 750/1750 | 750/2000 |
| Maximum front/rear axle load [kg] | 1185/1345 | 1190/1335 | - | 1245/1460 | 1245/1460 | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550 | 550-610 | 550 | 465 | 465 | 550-610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | - | - | -/1550 |
| Boot length [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 759 | 759 | 732 | 745 | 745 | 759 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 54 | 54 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | 12 |
| Air resistance [Cd] | - | - | - | 0,31 | 0,31 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 235/65 R17 104W | 235/65 R17 104W | 255/45 R 20 | 235/60 R18 103 W | 235/60 R18 103 W | 235/65 R17 104W |
| Tyre dimensions rear | 235/65 R17 104W | 235/65 R17 104W | 255/45 R 20 | 235/60 R18 103 W | 235/60 R18 103 W | 235/65 R17 104W |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8 J x 20 | 8.0Jx18 | 8.0Jx18 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8 J x 20 | 8.0Jx18 | 8.0Jx18 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 12.0/- | 12.0/- | 11,7/- |

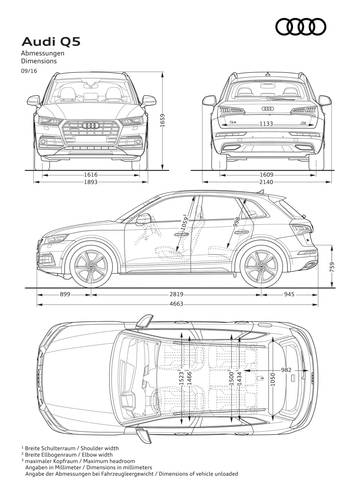

| Overall length [mm] | 4663 | 4663 | 4671 | 4671 | 4671 | 4663 |
| Overall width without/including mirrors [mm] | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 |
| Overall height [mm] | 1659 | 1659 | 1635 | 1609 | 1609 | 1659 |
| Wheelbase [mm] | 2819 | 2819 | 2824 | 2819 | 2819 | 2819 |
| Front wheel track [mm] | 1616 | 1616 | 1624 | 1616 | 1616 | 1616 |
| Rear wheel track [mm] | 1609 | 1609 | 1613 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 899 | 899 | 899 | - | - | 899 |
| Rear overhang [mm] | 945 | 945 | 948 | - | - | 945 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | 20,4 | 20,4 | - |
| Approach angle rear [°] | - | - | - | 21,1 | 21,1 | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Front elbow/shoulder width [mm] | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 |
| Rear elbow/shoulder width [mm] | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI quattro 120 kW | 35 TDI quattro 120 kW | 2.0 TDI quattro 140 kW | 40 TDI quattro 140 kW | 2.0 TDI quattro 140 kW | 40 TDI quattro 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | from 2016 to 2018 | from 2017 to 2020 | from 2017 to 2018 | from 2017 to 2020 | from 2016 to 2018 | from 2017 to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 120/3000-4200 | 120/3000-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 400/1750-2750 | 400/1750-2750 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 211 | 211 | 223 | 223 | 218 | 220 |
| Acceleration 0–100 km/h [s] | 8,9 | 9.1 | 7,6 | 7.6 | 7,9 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,6-5,3 | 6.1-6.0 | 6,1-6,0 | 6.7-6.4 | 5,6-5,3 | 5.8-5.5 |
| Out of town [l] | 5,1-4,7 | 5.5-5.1 | 4,9-4,6 | 5.3-5.0 | 5,1-4,7 | 5.3-4.9 |
| Combined [l] | 5,3-4,9 | 5.7-5.4 | 5,3-5,1 | 5.8-5.5 | 5,3-4,9 | 5.5-5.1 |
| CO2 emissions [g/km] | 138-129 | 149-143 | 139-133 | 153-145 | 138-129 | 144-135 |
| Emission standard | EU6 | Euro 6d-TEMPEVAP-ISC | EU6 | Euro 6d-TEMPEVAP-ISC | EU6 | Euro 6d-TEMPEVAP-ISC |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 70 | 73.6 | - | 67.1 | 70 | 73.6 |
| Driving noise [dB] | 72 | 67 | - | 67 | 72 | 67 |
| Standby weight [kg] | 1845 | 1845 | 1820 | 1820 | 1845 | 1845 |
| Overall weight [kg] | 2440 | 2475 | 2415 | 2430 | 2440 | 2475 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2400 | 750/2400 |
| Maximum front/rear axle load [kg] | 1240/1360 | 1240/1360 | - | 1215/1345 | 1240/1360 | 1240/1360 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550-610 | 550-610 | 550-610 | 550-610 | 550-610 | 550-610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 759 | 759 | 759 | 759 | 759 | 759 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 [70 subject to a surcharge] | 65 | 65 [70 subject to a surcharge] | 65 | 65 [70 subject to a surcharge] |
| AdBlue tank volume [l] | 12 | 12 [24 subject to a surcharge] | 12 | 12 [24 subject to a surcharge] | 12 | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W |
| Tyre dimensions rear | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4663 | 4663 | 4663 | 4663 | 4663 | 4663 |
| Overall width without/including mirrors [mm] | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 |
| Overall height [mm] | 1659 | 1659 | 1659 | 1659 | 1659 | 1659 |
| Wheelbase [mm] | 2819 | 2819 | 2819 | 2819 | 2819 | 2819 |
| Front wheel track [mm] | 1616 | 1616 | 1616 | 1616 | 1616 | 1616 |
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Front elbow/shoulder width [mm] | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 |
| Rear elbow/shoulder width [mm] | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TDI quattro 170 kW | 3.0 TDI quattro 210 kW | 50 TDI quattro 210 kW | SQ5 TDI quattro 255 kW | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2020 | from 2017 to 2018 | from 2017 to 2020 | from 2019 to 2020 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | ||
| Maximum output / speed [kW/min-1] | 170/3250-4750 | 210/3750-4000 | 210/3750-4000 | 255/3850 | ||
| Maximum torque [Nm/min-1] | 500/1750-3250 | 620/1500-3000 | 620/1500-3000 | 700/2500-3100 | ||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83.0 x 91.4 | ||
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 228 | 237 | 237 | 250 | ||
| Acceleration 0–100 km/h [s] | 6,7 | 5,8 | 5.9 | 5.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6,8 | 6,9-6,4 | 6.9-6.8 | 7,7-7,5 | ||
| Out of town [l] | 5,8 | 5,8-5,3 | 5.7-5.6 | 6,2-6,0 | ||
| Combined [l] | 6,2 | 6,2-5,7 | 6.2-6.1 | 6,8-6,6 | ||
| CO2 emissions [g/km] | 162 | 162-149 | 162-159 | 177-172 | ||
| Low speed [l] | 10,7 | - | - | - | ||
| Medium speed [l] | 8,3 | - | - | - | ||
| High speed [l] | 7,3 | - | - | - | ||
| Extra high speed [l] | 8,4 | - | - | - | ||
| Combined speed [l] | 8,3 | - | - | - | ||
| CO2 emissions [g/km] | 218 | - | - | - | ||
| Emission standard | Euro 6d-TEMPEVAP-ISC | EU6 | Euro 6d-TEMPEVAP-ISC | Euro 6d-TEMPEVAP-ISC | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | 68.4 | - | ||
| Driving noise [dB] | - | - | 68 | - | ||
| Standby weight [kg] | 2130 | 1945 | 1945 | 2055 | ||
| Overall weight [kg] | 2565 | 2550 | 2565 | 2625 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2400 | 750/2400 | ||
| Maximum front/rear axle load [kg] | - | 1295/1370 | 1295/1370 | - | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 550-610 | 550-610 | 550-610 | 550 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | ||
| Boot length [mm] | 982 | 982 | 982 | 982 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 759 | 759 | 759 | 732 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | 1133/- | 1133/- | 1133/- | 1133/- | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 65 [70 subject to a surcharge] | 65 | 65 [70 subject to a surcharge] | 70 | ||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 | 12 [24 subject to a surcharge] | 24 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | ||
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | ||
| Tyre dimensions front | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 255/45 R 20 | ||
| Tyre dimensions rear | 235/65 R17 104W | 235/65 R17 104W | 235/65 R17 104W | 255/45 R 20 | ||
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8 J x 20 | ||
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8 J x 20 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | ||
| Overall length [mm] | 4663 | 4663 | 4663 | 4671 | ||
| Overall width without/including mirrors [mm] | 1893/2140 | 1893/2140 | 1893/2140 | 1893/2140 | ||
| Overall height [mm] | 1659 | 1659 | 1659 | 1635 | ||
| Wheelbase [mm] | 2819 | 2819 | 2819 | 2824 | ||
| Front wheel track [mm] | 1616 | 1616 | 1616 | 1624 | ||
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1613 | ||
| Forward overhang [mm] | 899 | 899 | 899 | 899 | ||
| Rear overhang [mm] | 945 | 945 | 945 | 948 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | ||
| Headroom rear [mm] | 998 | 998 | 998 | 998 | ||
| Front elbow/shoulder width [mm] | 1523/1466 | 1523/1466 | 1523/1466 | 1523/1466 | ||
| Rear elbow/shoulder width [mm] | 1500/1434 | 1500/1434 | 1500/1434 | 1500/1434 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
