Audi Q3
Date of manufacture
9/2018 – to this day (Small SUV)
Platform
MQB
Manufacturing locations
Győr, Hungary
Designer
-
Tags
Small SUV
German cars
The Audi Q3 is a small SUV produced by Audi since 2018. The car is manufactured in Győr, Hungary, on the MQB platform and offers a wide range of petrol and diesel engines. The most powerful model is the RS Q3 quattro 294 kW Sportback with a top speed of 250 km/h and the best acceleration from 0-100 km/h in 4.5 seconds. The most efficient variant, the 40 TDI quattro 140 kW, has a combined fuel consumption of 5.6 l/100 km and CO2 emissions of 149 g/km. The vehicle has a 530-litre luggage compartment and achieved a 5 out of 5 EURONCAP safety rating (testing methodology from 2018).
Car body style
Small SUV
Date of manufacture
9/2018 – to this dayInternal designation
F3Engine size
Petrol
Technical data
Small SUV
35 TFSI 110 kW | 35 TFSI 110 kW Sportback | 35 TFSI 110 kW | 35 TFSI 110 kW Sportback | 40 TFSI 140 kW | 40 TFSI 140 kW Sportback | |
---|---|---|---|---|---|---|
Date of sale | from to 10/2020 | from 2019 to 10/2020 | from 2018 to 2020 | from 2019 to 2020 | from 2018 to 2020 | from 2019 to 2020 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1498 | 1498 | 1498 | 1498 | 1984 | 1984 |
Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 140/4200-6700 | 140/4200-6700 |
Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 320/1500-4200 | 320/1500-4200 |
Bore and stroke [mm x mm] | 74.5 x 85.9 | 74.5 x 85.9 | 74.5 x 85.9 | 74.5 x 85.9 | 82.5 x 92.8 | 82.5 x 92.8 |
Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9.6:1 | 9.6:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
Drive specifications | - | - |
|
|
|
|
Top speed [km/h] | 208 | 207 | 207 | 201 | 220 | 220 |
Acceleration 0–100 km/h [s] | 9.5 | 9.5 | 9,2 | 9.5 | 7,4 | 7.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.8-6.7 | 6.8-6.7 | 6,9-6,8 | 7.1-6.9 | 9.4-9.2 | 9.4-9.2 |
Out of town [l] | 5.5-4.9 | 5.5-5.0 | 5,3-5,1 | 5.5-5.3 | 6.4-6.1 | 6.4-6.1 |
Combined [l] | 6.0-5.6 | 6.0-5.6 | 5,9-5,7 | 6.1-5.9 | 7.5-7.2 | 7.5-7.2 |
CO2 emissions [g/km] | 137-128 | 137-129 | 134-130 | 139-134 | 171-165 | 171-165 |
Low speed [l] | 8,2 | 8,2 | - | - | - | - |
Medium speed [l] | 6,2 | 6,2 | - | - | - | - |
High speed [l] | 5,5 | 5,5 | - | - | - | - |
Extra high speed [l] | 6,8 | 6,8 | - | - | - | - |
Combined speed [l] | 7,1-6,4 | 7,2-6,5 | - | - | - | - |
CO2 emissions [g/km] | 161-146 | 163-147 | - | - | - | - |
Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | 76.1 | 76.1 | 76,0 | 75.4 | 77.1 | 77.1 |
Driving noise [dB] | 68 | 68 | 67 | 68 | 66 | 66 |
Standby weight [kg] | 1525 | 1525 | 1570 | 1605 | 1695 | 1695 |
Overall weight [kg] | 2045 | 2045 | 2070 | 2080 | 2200 | 2200 |
Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/2100 | 750/2100 |
Maximum front/rear axle load [kg] | 1040/1030 | 1040/1030 | 1070/1030 | 1095/1030 | 1150/1080 | 1150/1080 |
Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1400 | -/1525 | -/1400 | -/1525 | -/1400 |
Boot length [mm] | 965 | 936 | 965 | 936 | 965 | 936 |
Boot length with rear seats folded [mm] | 1718 | 1714 | 1718 | 1714 | 1718 | 1714 |
Boot width between wheels/max [mm] | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | 748 | 790 | 748 | 790 | 748 | 790 |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | 1129/- | 1139/- | 1129/- | 1139/- | 1129/- | 1139/- |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 58 | 58 | 58 | 58 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.32 | 0.33 | 0.32 | 0.34 | 0.32 | 0.35 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Tyre dimensions front | 215/65 R17 99V | 215/65 R17 99V | 215/65 R17 | 215/65 R17 99 V | 215/65 R17 99 V | 215/65 R17 99 V |
Tyre dimensions rear | 215/65 R17 99V | 215/65 R17 99V | 215/65 R17 | 215/65 R17 99 V | 215/65 R17 99 V | 215/65 R17 99 V |
Wheel size front | 7J x 17 | 7J x 17 | 7J x 17 | 7J x 17 | 6.5J x 17 | 6.5J x 17 |
Wheel size rear | 7J x 17 | 7J x 17 | 7J x 17 | 7J x 17 | 6.5J x 17 | 6.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- 11.8/- | 11.8/- | 11.8/- |

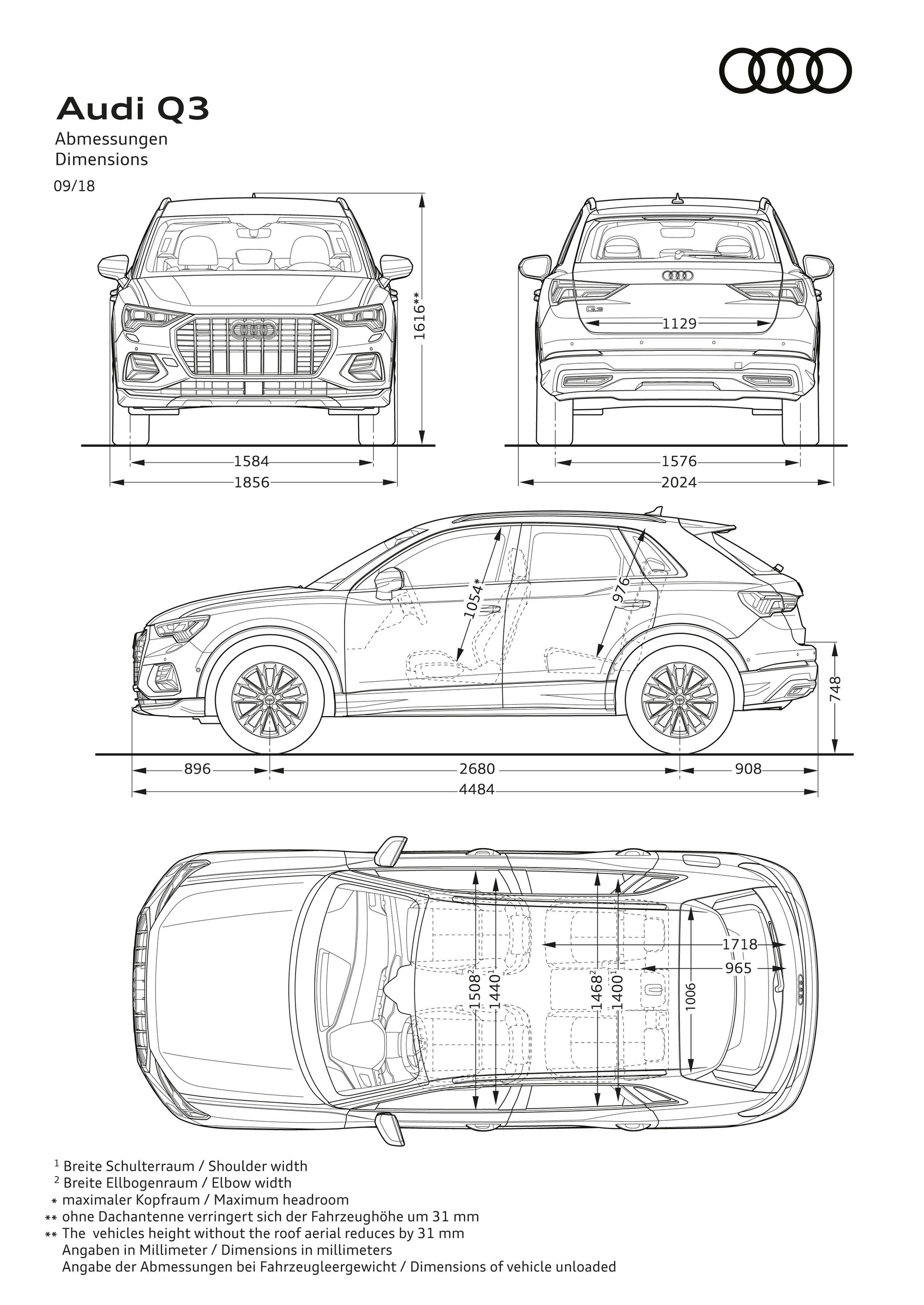

Overall length [mm] | 4484 | 4500 | 4484 | 4500 | 4484 | 4500 |
Overall width without/including mirrors [mm] | 1849/2024 | 1843/2022 | 1849/2024 | 1843/2022 | 1849/2024 | 1843/2022 |
Overall height [mm] | 1616 | 1567 | 1616 | 1567 | 1616 | 1567 |
Wheelbase [mm] | 2680 | 2680 | 2680 | 2680 | 2680 | 2680 |
Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
Forward overhang [mm] | 896 | 905 | 896 | 905 | 896 | 905 |
Rear overhang [mm] | 908 | 915 | 908 | 915 | 908 | 915 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 18.80 | 19.60 | 18.80 | 19.60 | 18.80 | 19.60 |
Approach angle rear [°] | 16.20 | 16.70 | 16.20 | 16.70 | 16.20 | 16.70 |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |

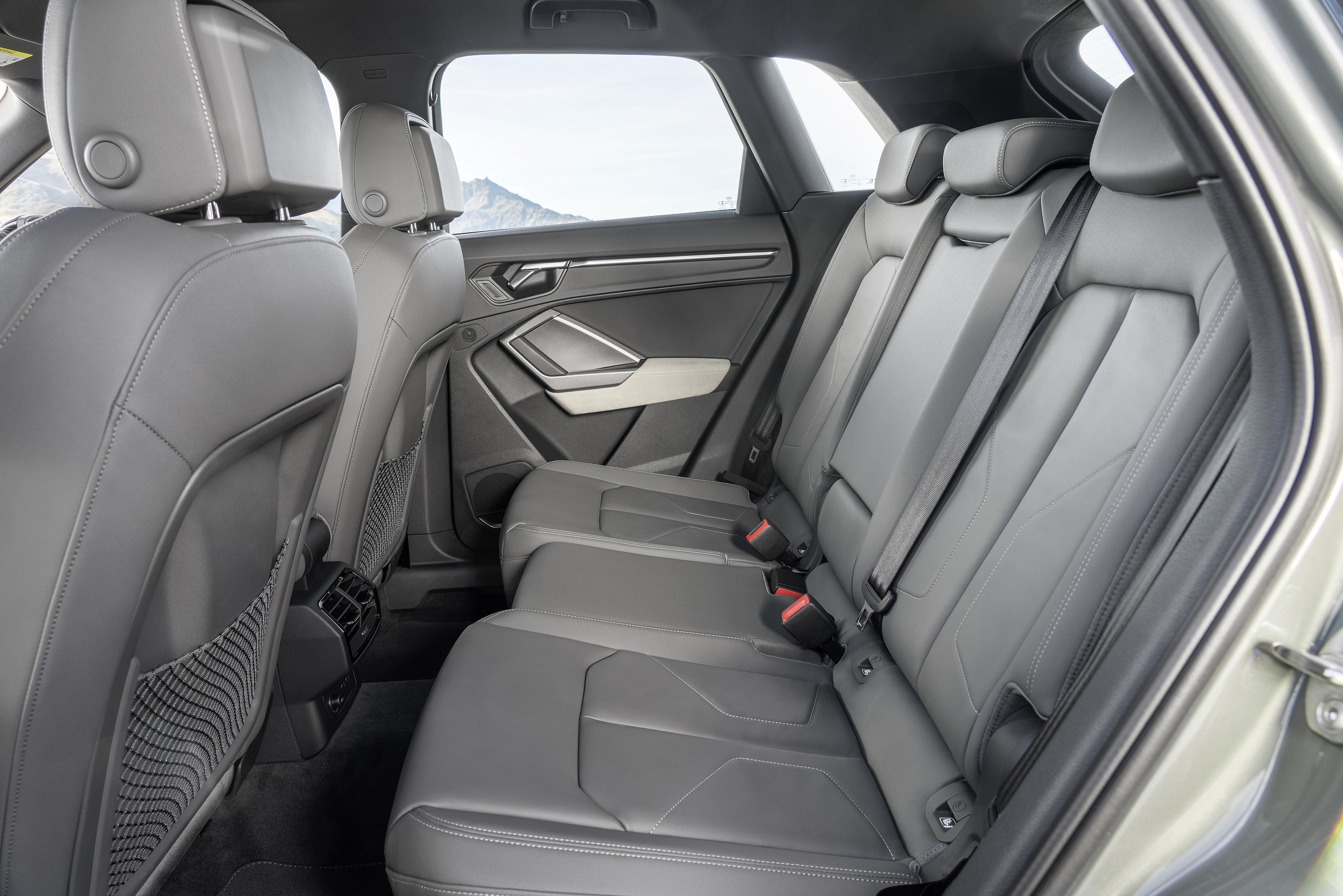

Headroom front [mm] | 1054 | 1031 | 1054 | 1031 | 1054 | 1031 |
Headroom rear [mm] | 976 | 928 | 976 | 928 | 976 | 928 |
Front elbow/shoulder width [mm] | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 |
Rear elbow/shoulder width [mm] | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |

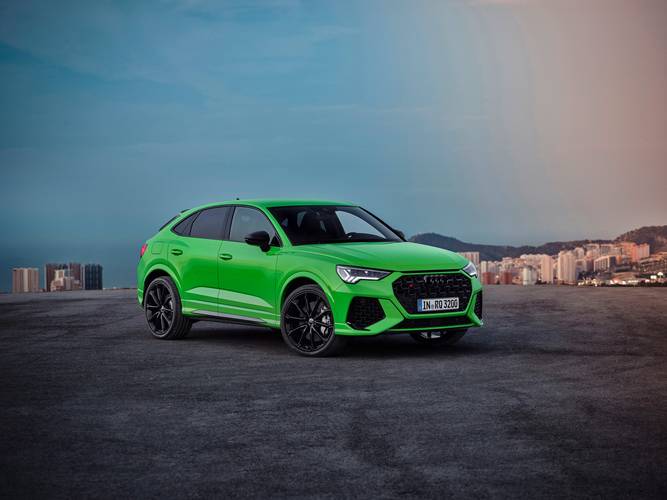

45 TFSI quattro 169 kW | 45 TFSI quattro 169 kW Sportback | RS Q3 quattro 294 kW | RS Q3 quattro 294 kW Sportback | 35 TDI 110 kW | 35 TDI 110 kW Sportback | |
---|---|---|---|---|---|---|
Date of sale | from 2018 to 2020 | from 2019 to 2020 | from 2020 to | from 2020 to | from 2018 to 2020 | from 2019 to 2020 |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 |
Engine displacement [cm³] | 1984 | 1984 | 2480 | 2480 | 1968 | 1968 |
Maximum output / speed [kW/min-1] | 169/5000-6700 | 169/5000-6700 | 294/5850-7000 | 294/5850-7000 | 110/3000-4200 | 110/3000-4200 |
Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1500-4400 | 480/1950-5850 | 480/1950-5850 | 360/1600-2750 | 360/1600-2750 |
Bore and stroke [mm x mm] | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 82.5 x 92.8 | 81.0 x 95.5 | 81.0 x 95.5 |
Compression ratio | 9.6:1 | 9.6:1 | 10.0:1 | 10.0:1 | 16.0:1 | 16.0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 233 | 233 | 250 | 250 | 206 | 202 |
Acceleration 0–100 km/h [s] | 6.3 | 6.5 | 4.5 | 4.5 | 9,3 | 9.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.7-9.5 | 9.7-9.5 | 11.0-10.8 | 11.0-10.8 | 5.6-5.5 | 5.6-5.5 |
Out of town [l] | 6.4-6.1 | 6.5-6.1 | 7.8-7.6 | 7.9-7.7 | 4.3-4.0 | 4.2-4.1 |
Combined [l] | 7.6-7.4 | 7.7-7.3 | 9.0-8.8 | 9.0-8.8 | 4.8-4.6 | 4.7-4.6 |
CO2 emissions [g/km] | 174-168 | 174 -166 | 205-201 | 206-201 | 125-120 | 125-121 |
Low speed [l] | - | - | 13,8 | 13,8 | 7,3 | 7,3 |
Medium speed [l] | - | - | 9,5 | 9,5 | 5,2 | 5,2 |
High speed [l] | - | - | 8,3 | 8,3 | 4,6 | 4,6 |
Extra high speed [l] | - | - | 9,1 | 9,2 | 5,5 | 5,5 |
Combined speed [l] | - | - | 9,6 | 9,6 | 5,8-5,4 | 5,9-5,4 |
CO2 emissions [g/km] | - | - | 217 | 218 | 153-141 | 155-142 |
Emission standard | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | 77.6 | 77.6 | 88.0 | 88.0 | 73.8 | 73.8 |
Driving noise [dB] | 67 | 66 | 71 | 71 | 67 | 67 |
Standby weight [kg] | 1695 | 1700 | 1790 | 1775 | 1655 | 1655 |
Overall weight [kg] | 2200 | 2210 | 2250 | 2250 | 2155 | 2155 |
Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/1900 | 750/1900 | 750/2000 | 750/2000 |
Maximum front/rear axle load [kg] | 1150/1080 | 1160/1080 | 1140/1195 | 1140/1195 | 1145/1030 | 1145/1030 |
Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1400 | -/1525 | -/1400 | -/1525 | -/1400 |
Boot length [mm] | 965 | 936 | 965 | 936 | 965 | 936 |
Boot length with rear seats folded [mm] | 1718 | 1714 | 1718 | 1714 | 1718 | 1714 |
Boot width between wheels/max [mm] | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | 748 | 790 | 738 | 780 | 748 | 790 |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | 1129/- | 1139/- | 1129/- | 1139/- | 1129/- | 1139/- |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 63 | 63 | 58 | 58 |
AdBlue tank volume [l] | - | - | - | - | 18 | 18 |
Air resistance [Cd] | 0.33 | 0.35 | 0.35 | 0.37 | 0.32 | 0.33 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Tyre dimensions front | 215/65 R17 99 V | 215/65 R 17 99 V | 255/40 R 20 | 255/40 R 20 | 215/65 R17 99V | 215/65 R17 99V |
Tyre dimensions rear | 215/65 R17 99 V | 215/65 R 17 99 V | 255/40 R 20 | 255/40 R 20 | 215/65 R17 99V | 215/65 R17 99V |
Wheel size front | 6.5J x 17 | 6.5J x 17 | 8.5J x 20 | 8.5J x 20 | 7J x 17 | 7J x 17 |
Wheel size rear | 6.5J x 17 | 6.5J x 17 | 8.5J x 20 | 8.5J x 20 | 7J x 17 | 7J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | - | - | 11.8/- | 11.8/- |
Overall length [mm] | 4484 | 4500 | 4506 | 4507 | 4484 | 4500 |
Overall width without/including mirrors [mm] | 1849/2024 | 1843/2022 | 1851/2024 | 1851/2024 | 1849/2024 | 1843/2022 |
Overall height [mm] | 1585 | 1567 | 1602 | 1557 | 1616 | 1567 |
Wheelbase [mm] | 2680 | 2680 | 2680 | 2681 | 2680 | 2680 |
Front wheel track [mm] | 1584 | - | 1590 | 1590 | 1584 | 1584 |
Rear wheel track [mm] | 1576 | 1584 | 1583 | 1583 | 1576 | 1576 |
Forward overhang [mm] | 896 | 905 | 913 | 913 | 896 | 905 |
Rear overhang [mm] | 908 | 915 | 913 | 914 | 908 | 915 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 18.80 | 19.60 | 19.00 | 19.00 | 18.80 | 19.90 |
Approach angle rear [°] | 16.20 | 16.70 | 15.20 | 15.20 | 16.20 | 16.70 |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1054 | 1031 | 1054 | 1031 | 1054 | 1031 |
Headroom rear [mm] | 976 | 928 | 976 | 928 | 976 | 928 |
Front elbow/shoulder width [mm] | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 |
Rear elbow/shoulder width [mm] | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
35 TDI quattro 110 kW | 35 TDI quattro 110 kW Sportback | 35 TDI quattro 110 kW | 35 TDI quattro 110 kW Sportback | 40 TDI quattro 140 kW | 40 TDI quattro 140 kW Sportback | |
---|---|---|---|---|---|---|
Date of sale | from 2018 to 2020 | from 2019 to 2020 | from 2020 to | from 2020 to | from 2018 to 2020 | from 2019 to 2020 |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3000-4200 | 110/3000-4200 | 140/3500-4000 | 140/3500-4000 |
Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 360/1600-2750 | 360/1600-2750 | 400/1750-3250 | 400/1750-3250 |
Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 |
Compression ratio | 16.2:1 | 16.2:1 | 16.0:1 | 16.0:1 | 15.5:1 | 15.5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 211 | 203 | 205 | 201 | 221 | 217 |
Acceleration 0–100 km/h [s] | 9.3 | 9.3 | 9.4 | 9.4 | 8 | 8.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.6-6.5 | 6.6-6.5 | 5,8-5,6 | 5.8-5.7 | 6.6-6.4 | 6.6-6.4 |
Out of town [l] | 5.2-4.9 | 5.2-4.9 | 4,8-4,4 | 4.8-4.6 | 5.2-5.0 | 5.2-4.9 |
Combined [l] | 5.7-5.5 | 5.7-5.5 | 5,2-4,8 | 5.1-5.0 | 5.6-5.5 | 5.7-5.5 |
CO2 emissions [g/km] | 150-145 | 151-144 | 136-128 | 135-131 | 149-146 | 149-145 |
Low speed [l] | - | - | 7,6 | - | - | - |
Medium speed [l] | - | - | 5,7 | - | - | - |
High speed [l] | - | - | 5,1 | - | - | - |
Extra high speed [l] | - | - | 6,1 | - | - | - |
Combined speed [l] | - | - | 6,4-5,9 | 6,4-5,9 | - | - |
CO2 emissions [g/km] | - | - | 167-154 | 168 | - | - |
Emission standard | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | 72.6 | 72.6 | 71.9 | 71.9 | 72.6 | 75.9 |
Driving noise [dB] | 67 | 67 | 68 | 68 | 67 | 67 |
Standby weight [kg] | 1700 | 1710 | 1735 | 1735 | 1770 | 1770 |
Overall weight [kg] | 2175 | 2220 | 2250 | 2250 | 2280 | 2280 |
Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2200 | 750/2200 | 750/2200 | 750/2200 |
Maximum front/rear axle load [kg] | 1150/1080 | 1150/1080 | 1180/1080 | 1180/1080 | 1210/1080 | 1210/1080 |
Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1400 | -/1525 | -/1400 | -/1525 | -/1400 |
Boot length [mm] | 965 | 936 | 965 | 936 | 965 | 936 |
Boot length with rear seats folded [mm] | 1718 | 1714 | 1718 | 1714 | 1718 | 1714 |
Boot width between wheels/max [mm] | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- | 1006/- |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | 748 | 790 | 748 | 790 | 748 | 790 |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | 1129/- | 1139/- | 1129/- | 1139/- | 1129/- | 1139/- |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 60 | 60 | 58 | 58 | 63 | 60 |
AdBlue tank volume [l] | - | 18 | 18 | 18 | 18 | 18 |
Air resistance [Cd] | 0.32 | 0.34 | 0.32 | 0.33 | 0.32 | 0.34 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
Tyre dimensions front | 215/65 R 17 99V | 215/65 R 1799 V | 215/65 R17 | 215/65 R 17 | 215/65 R17 99 V | 215/65 R 17 99 V |
Tyre dimensions rear | 215/65 R 17 99V | 215/65 R 1799 V | 215/65 R17 | 215/65 R 17 | 215/65 R17 99 V | 215/65 R 17 99 V |
Wheel size front | 6.5Jx17 | 6.5Jx17 | 7J x 17 | 7J x 17 | 6.5J x 17 | 6.5J x 17 |
Wheel size rear | 6.5Jx17 | 6.5Jx17 | 7J x 17 | 7J x 17 | 6.5J x 17 | 6.5J x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.8/- | 11,8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- |
Overall length [mm] | 4484 | 4500 | 4484 | 4500 | 4484 | 4500 |
Overall width without/including mirrors [mm] | 1849/2024 | 1843/2022 | 1849/2024 | 1843/2022 | 1849/2024 | 1843/2022 |
Overall height [mm] | 1585 | 1567 | 1616 | 1567 | 1858 | 1567 |
Wheelbase [mm] | 2680 | 2680 | 2680 | 2680 | 2680 | 2680 |
Front wheel track [mm] | 1584 | - | 1584 | 1584 | 1584 | 1584 |
Rear wheel track [mm] | 1576 | 1584 | 1576 | 1576 | 1576 | 1576 |
Forward overhang [mm] | 896 | 905 | 896 | 905 | 896 | 905 |
Rear overhang [mm] | 908 | 915 | 908 | 915 | 908 | 915 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | 18.80 | 18.80 | 18.80 | 19.90 | 18.80 | 19.60 |
Approach angle rear [°] | 16.20 | 16.20 | 16.20 | 16.70 | 16.20 | 16.70 |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1054 | 1031 | 1054 | 1031 | 1054 | 1031 |
Headroom rear [mm] | 976 | 928 | 976 | 928 | 976 | 928 |
Front elbow/shoulder width [mm] | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 | 1508/1440 |
Rear elbow/shoulder width [mm] | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 | 1468/1400 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
40 TDI quattro 147 kW | 40 TDI quattro 147 kW Sportback | |||||
---|---|---|---|---|---|---|
Date of sale | from 2020 to | from 2020 to | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 1968 | 1968 | ||||
Maximum output / speed [kW/min-1] | 147/3600-4100 | 147/3600-4100 | ||||
Maximum torque [Nm/min-1] | 400/1750-3500 | 400/1750-3500 | ||||
Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | ||||
Compression ratio | 15.5:1 | 15.5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | 4x4 | 4x4 | ||||
Gearbox | 7 gear automatic | 7 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 225 | 224 | ||||
Acceleration 0–100 km/h [s] | 7,3 | 7.3 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 6,5-6,2 | 6.5-6.3 | ||||
Out of town [l] | 4,8-4,5 | 4.9-4.7 | ||||
Combined [l] | 5,4-5,1 | 5.5-5.3 | ||||
CO2 emissions [g/km] | 143-135 | 144-139 | ||||
Low speed [l] | 8,2 | 8,2 | ||||
Medium speed [l] | 5,9 | 5,9 | ||||
High speed [l] | 5,2 | 5,3 | ||||
Extra high speed [l] | 6,3 | 6,4 | ||||
Combined speed [l] | 6,8-6,1 | 6,9-6,2 | ||||
CO2 emissions [g/km] | 178-161 | 181-162 | ||||
Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | 72.2 | 72.2 | ||||
Driving noise [dB] | 68 | 68 | ||||
Standby weight [kg] | 1735 | 1735 | ||||
Overall weight [kg] | 2250 | 2250 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | ||||
Maximum front/rear axle load [kg] | 1180/1080 | 1180/1080 | ||||
Maximum vertical load on the tow bar [kg] | 90 | 90 | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 530 | 530 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1525 | -/1400 | ||||
Boot length [mm] | 965 | 936 | ||||
Boot length with rear seats folded [mm] | 1718 | 1714 | ||||
Boot width between wheels/max [mm] | 1006/- | 1006/- | ||||
Boot height to headliner/ceiling [mm] | - | - | ||||
Loading edge height [mm] | 748 | 790 | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | 1129/- | 1139/- | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 58 | 58 | ||||
AdBlue tank volume [l] | 18 | 18 | ||||
Air resistance [Cd] | 0.33 | 0.34 | ||||
Front suspension | MacPherson | MacPherson | ||||
Rear suspension | four-link | four-link | ||||
Tyre dimensions front | 215/65 R17 99V | 215/65 R17 99V | ||||
Tyre dimensions rear | 215/65 R17 99V | 215/65 R17 99V | ||||
Wheel size front | 7J x 17 | 7J x 17 | ||||
Wheel size rear | 7J x 17 | 7J x 17 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 11.8/- | 11.8/- | ||||
Overall length [mm] | 4484 | 4500 | ||||
Overall width without/including mirrors [mm] | 1849/2024 | 1843/2022 | ||||
Overall height [mm] | 1616 | 1567 | ||||
Wheelbase [mm] | 2680 | 2680 | ||||
Front wheel track [mm] | 1584 | 1584 | ||||
Rear wheel track [mm] | 1576 | 1576 | ||||
Forward overhang [mm] | 896 | 905 | ||||
Rear overhang [mm] | 908 | 915 | ||||
Clearance [mm] | - | - | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | 18.80 | 19.90 | ||||
Approach angle rear [°] | 16.20 | 16.70 | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 1054 | 1031 | ||||
Headroom rear [mm] | 976 | 928 | ||||
Front elbow/shoulder width [mm] | 1508/1440 | 1508/1440 | ||||
Rear elbow/shoulder width [mm] | 1468/1400 | 1468/1400 | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
