Basic information Technical Specifications Gallery

Audi Q2

Date of manufacture

10/2020 – to this day (Small SUV)

Platform

Volkswagen Group MQB platform

Manufacturing locations

Ingolstadt, Germany

Relizane, Algeria

Designer

Marc Lichte

Car body style

Small SUV

after upgrade (facelift)

Date of manufacture

10/2020 – to this day

Internal designation

Engine size

Petrol

35 TFSI 110kW

Diesel

35 TDI 110kW quattro

Euro NCAP

Test year 2016

pre-facelift version (2006)

Technical data

Small SUV

	35 TFSI 110kW	35 TFSI 110kW	35 TDI 110kW quattro
Date of sale	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1498	1498	1968
Maximum output / speed [kW/min-1]	110/5000-6000	110/5000-6000	110/3500-4200
Maximum torque [Nm/min-1]	250/1500-3500	250/1500-3500	360/1600-2750
Bore and stroke [mm x mm]	74,5 x 85,9	74,5 x 85,9	81,0 x 95,5
Compression ratio	10,5:1	10,5:1	16,2:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection turbo-supercharged technology COD (shuts down two cylinders if necessary) variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection turbo-supercharged technology COD (shuts down two cylinders if necessary) variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry Intercooler particulate filter DPF SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	4x4
Gearbox	6 gear manual	7 gear automatic	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox S tronic	seven-speed dual-clutch automatic gearbox S tronic permanent all-wheel drive quattro

Top speed [km/h]	218	218	210
Acceleration 0–100 km/h [s]	8,6	8,6	8,2
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	6,3-6,2	6,1-5,9	5,6-5,4
Out of town [l]	4,9-4,5	4,8-4,6	4,4-4,2
Combined [l]	5,4-5,1	5,3-5,1	4,8-4,6
CO2 emissions [g/km]	124-120	121-118	128-122

Emission standard	Euro 6d-ISC-FCM	Euro 6d-ISC-FCM	Euro 6d-ISC-FCM
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	79,0	78,9	76,7
Driving noise [dB]	67	66	68

Standby weight [kg]	1365	1380	1570
Overall weight [kg]	1855	1870	2060
Maximum trailer weight unbraked/braked [kg]	650/1500	690/1500	750/1800
Maximum front/rear axle load [kg]	985/945	1000/945	1105/1030
Maximum vertical load on the tow bar [kg]	75	75	75
Maximum load on roof/carrier [kg]	60/-	60/-	60/-

Boot volume [l]	405	405	355
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1050	-/1050	-/1000
Boot length [mm]	815	815	815
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	1000/-	1000/-	1000/-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	740	740	740
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	940/-	940/-	940/-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	50	50	55
AdBlue tank volume [l]	-	-	12
Air resistance [Cd]	0,31	0,31	0,32
Front suspension	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser	MacPherson, lower cross arms, torsion stabiliser
Rear suspension	twist beam axle with torsion bar	twist beam axle with torsion bar	four-link
Tyre dimensions front	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Tyre dimensions rear	205/60 R16 92V	205/60 R16 92V	205/60 R16 92V
Wheel size front	6.0J x 16	6.0J x 16	6.0J x 16
Wheel size rear	6.0J x 16	6.0J x 16	6.0J x 16
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering	Electro-mechanical variable effect power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	11,1/-	11,1/-	11,1/-

Overall length [mm]	4208	4208	4208
Overall width without/including mirrors [mm]	1794/2009	1794/2009	1794/2009
Overall height [mm]	1508	1508	1508
Wheelbase [mm]	2601	2601	2595
Front wheel track [mm]	1546	1546	1546
Rear wheel track [mm]	1542	1542	1542
Forward overhang [mm]	830	830	830
Rear overhang [mm]	777	777	777
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1029	1029	1029
Headroom rear [mm]	967	967	967
Front elbow/shoulder width [mm]	1445/1389	1445/1389	1445/1389
Rear elbow/shoulder width [mm]	1415/1345	1415/1345	1415/1345
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Gallery

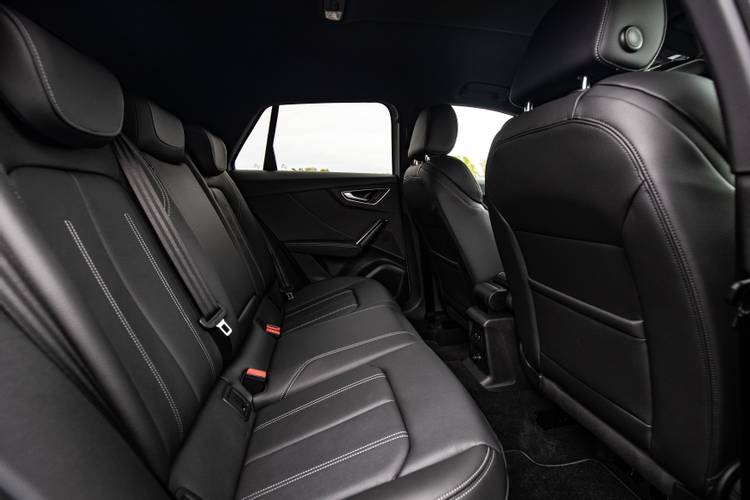

Audi Q2 facelift 2020 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
