Audi e-tron
Date of manufacture
9/2018 – to this day (Large SUV)
Platform
MLBevo
Manufacturing locations
Forest, Belgium
Designer
-
Tags
Large SUV
Electric car
German cars
The Audi e-tron is currently offered only in a large SUV style. The vehicle was first introduced to the market in 2018 and is built on the MLBevo platform. The engine range consists only of electric motors, the most powerful version 50 quattro Sportback achieves 230 kW. The fastest variant e-tron S Sportback has a maximum speed of 210 km/h and accelerates from 0-100 km/h in 5.7 seconds. The most economical model 55 quattro Sportback consumes 26 kWh/100 km. The car's trunk has a volume of 615 l. In 2019, the Audi e-tron underwent the EURONCAP safety test, where it achieved a rating of 5 out of 5. The vehicle is manufactured by Audi AG in Belgium.
Car body style
Large SUV
Date of manufacture
9/2018 – to this dayInternal designation
-
Technical data
Large SUV
| 50 quattro | 50 quattro Sportback | 55 quattro | 55 quattro | 55 quattro Sportback | e-tron S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | - | from 2020 to |
| Engine type | Electric | Electric | Electric | Electric | Electric | Electric |
| Number of cylinders/valves | - | - | - | - | - | - |
| Engine displacement [cm³] | - | - | - | - | - | - |
| Maximum output / speed [kW/min-1] | 230 | 230 | 265 (300 mode Boost) | 265 (300 mode Boost) | 265 (300 mode Boost) | 320 (370 mode Boost) |
| Maximum torque [Nm/min-1] | 540 | 540 | 561 (664 mode Boost) | 561 (664 mode Boost) | 561 (664 mode Boost) | 808 (973 mode Boost) |
| Bore and stroke [mm x mm] | - | - | - | - | - | - |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 190 | 190 | 200 | 200 | 200 | 210 |
| Acceleration 0–100 km/h [s] | 6,8 | 6,8 | 6,6 (5,7 mode Boost) | 6,6 (5,7 mode Boost) | 6,6 (5,7 mode Boost) | 5,1 (4,5 mode Boost) |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | 24,3-21,9 kWh | 23,9-21,4 kWh | 24,6-23,7 kWh | 23,1-21,0 kWh | 22,7-20,6 kWh | 28,2 kWh |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 26,6-22,4 kWh | 26,3-21,6 kWh | 26,2-22,6 kWh | 26,4-22,4 kWh | 26,0-21,9 kWh | 28,4-26,8 kWh |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Emission standard | - | - | - | - | - | - |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | 68 |
| System voltage [V] | - | - | - | - | - | 397 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 71 kWh | Lithium-Ionen-Akkumulator, 71 kWh | Lithium-Ionen-Akkumulator, 95 kWh | Lithium-Ionen-Akkumulator, 95 kWh | Lithium-Ionen-Akkumulator, 95 kWh | Lithium-Ionen-Akkumulator, 95 kWh |
| Range with fully charged battery [km] | 276-336 | 280-347 | 417 | 364-436 | 369-446 | 343-364 |
| Charging time | - | - |
|
|
| - |
| Number of modules/cells | 27/324 | 27/324 | - | - | - | 32/432 |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2445 | 2445 | 2565 | 2555 | 2555 | 2695 |
| Overall weight [kg] | 3040 | 3040 | 3130 | 3130 | 3150 | 3245 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1510/1690 | 1510/1690 | 1515/1740 | 1515/1740 | 1515/1740 | 1565/1750 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 660 | 615 | 660 | 660 | 615 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1725 | -/1665 | -/1725 | -/1725 | -/1665 | -/1725 |
| Boot length [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Boot length with rear seats folded [mm] | 1910 | 1910 | 1910 | 1910 | 1910 | 1910 |
| Boot width between wheels/max [mm] | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 800 | 801 | 800 | 800 | 801 | 800 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1061 | -/1061 | -/1061 | -/1061 | -/1061 | -/1061 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,28 | 0,25 | 0,28 | 0,28 | 0,25 | 0,28 |
| Front suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension |
| Rear suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension | five-link, stabiliser bar, pneumatic suspension |
| Tyre dimensions front | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 285/45 R 20 112 H XL |
| Tyre dimensions rear | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 255/55 R 19 111 H XL | 285/45 R 20 112 H XL |
| Wheel size front | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 10,0J x 20 |
| Wheel size rear | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 8,5J x 19 | 10,0J x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,2/- | 12,2/- | 12,2/- | 12,2/- | 12,2/- | 12,2/- |
| Overall length [mm] | 4901 | 4901 | 4901 | 4901 | 4901 | 4902 |
| Overall width without/including mirrors [mm] | 1935/2043 | 1935/2043 | 1935/2043 | 1935/2043 | 1935/2043 | 1976/2043 |
| Overall height [mm] | 1629 | 1616 | 1629 | 1629 | 1616 | 1629 |
| Wheelbase [mm] | 2928 | 2928 | 2928 | 2928 | 2928 | 2928 |
| Front wheel track [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1683 |
| Rear wheel track [mm] | 1652 | 1652 | 1652 | 1652 | 1652 | 1683 |
| Forward overhang [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Rear overhang [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1046 |
| Clearance [mm] | 172 | - | 172 | 172 | - | - |
| Wading depth [mm] | 300 | - | 300 | 300 | - | - |
| Approach angle front [°] | 15,3 | 15,3 | 15,3 | 15,3 | - | 15,4 |
| Approach angle rear [°] | 21,5 | 21,5 | 21,5 | 21,5 | 21,5 | 20,0 |
| Transition angle [°] | 13,8 | - | 13,8 | 13,8 | - | - |
| Climbing rate [°] | 27 | - | 27 | 27 | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Headroom rear [mm] | 996 | 976 | 996 | 996 | 976 | 996 |
| Front elbow/shoulder width [mm] | 1547/1489 | 1547/1489 | 1547/1489 | 1547/1489 | 1547/1489 | 1547/1489 |
| Rear elbow/shoulder width [mm] | 1524/1454 | 1524/1454 | 1524/1454 | 1524/1454 | 1524/1454 | 1524/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

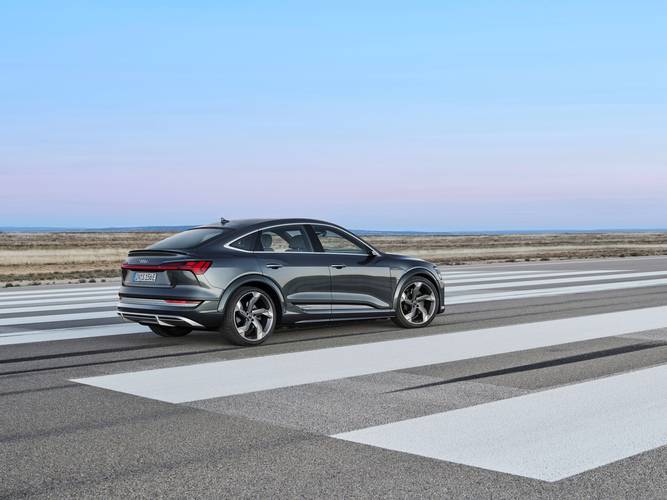

| e-tron S Sportback | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | |||||
| Engine type | Electric | |||||
| Number of cylinders/valves | - | |||||
| Engine displacement [cm³] | - | |||||
| Maximum output / speed [kW/min-1] | 320 (370 mode Boost) | |||||
| Maximum torque [Nm/min-1] | 808 (973 mode Boost) | |||||
| Bore and stroke [mm x mm] | - | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 1 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 210 | |||||
| Acceleration 0–100 km/h [s] | 5,1 (4,5 mode Boost) | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 27,6-27,5 kWh | |||||
| CO2 emissions [g/km] | - | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 28,1-26,4 kWh | |||||
| CO2 emissions [g/km] | - | |||||
| Emission standard | - | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | 68 | |||||
| System voltage [V] | 397 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 95 kWh | |||||
| Range with fully charged battery [km] | 347-370 | |||||
| Charging time | - | |||||
| Number of modules/cells | 32/432 | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2695 | |||||
| Overall weight [kg] | 3245 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | 1565/1750 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 615 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | |||||
| Boot length [mm] | 1080 | |||||
| Boot length with rear seats folded [mm] | 1910 | |||||
| Boot width between wheels/max [mm] | 1053/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 800 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | -/1061 | |||||
| Number of doors | 5 | |||||
| Number of seats | 4 + 1 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0,26 | |||||
| Front suspension | five-link, stabiliser bar, pneumatic suspension | |||||
| Rear suspension | five-link, stabiliser bar, pneumatic suspension | |||||
| Tyre dimensions front | 285/45 R 20 112 H XL | |||||
| Tyre dimensions rear | 285/45 R 20 112 H XL | |||||
| Wheel size front | 10,0J x 20 | |||||
| Wheel size rear | 10,0J x 20 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12,2/- | |||||
| Overall length [mm] | 4902 | |||||
| Overall width without/including mirrors [mm] | 1976/2043 | |||||
| Overall height [mm] | 1615 | |||||
| Wheelbase [mm] | 2928 | |||||
| Front wheel track [mm] | 1683 | |||||
| Rear wheel track [mm] | 1683 | |||||
| Forward overhang [mm] | 928 | |||||
| Rear overhang [mm] | 1046 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 15,4 | |||||
| Approach angle rear [°] | 20, | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1047 | |||||
| Headroom rear [mm] | 976 | |||||
| Front elbow/shoulder width [mm] | 1547/1489 | |||||
| Rear elbow/shoulder width [mm] | 1524/1454 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
