Audi A5
Date of manufacture
2016 – 2019 (Liftback)
2016 – 2019 (Coupé)
2017 – 2019 (Convertible)
Platform
MLBevo platform
Manufacturing locations
Ingolstadt, Germany
Neckarsulm, Germany
Designer
-
Tags
D-segment
German cars
Convertible
The Audi A5 has been manufactured in Germany since 2016 and is based on the MLBevo platform. Both petrol and diesel engines are available, with the highest performance coming from the RS5 2.9 TFSI 331 kW with a top speed of 250 km/h. The most economical model is the 2.0 TFSI g-tron with a consumption of 4.1 kg/100 km and CO2 emissions of 111 g/km. The size of the luggage compartment varies depending on the body version - the liftback has a volume of 480 l, the coupe 465 l and the convertible 320 l. The Audi A5 was tested in the EURONCAP safety area and achieved an overall rating of 5 out of 5.
Car body style
Liftback (Sportback)
Date of manufacture
2016 – 2019Internal designation
F5 (8W6)Engine size
Petrol
Diesel
Coupé
Date of manufacture
2016 – 2019Internal designation
F5 (8W6)Engine size
Petrol
Diesel
Convertible
Date of manufacture
2017 – 2019Internal designation
F5 (8W6)Engine size
PetrolDiesel
Technical data
Liftback (Sportback)
| 1.4 TFSI 110 kW | 35 TFSI 110 kW | 2.0 TFSI 140 kW | 2.0 TFSI 140 kW | 40 TFSI 140 kW | 40 TFSI 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | - | - | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/3900-6000 | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 270/1350-3900 | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 210 | 223 | 240 | 239 | 241 | 241 |
| Acceleration 0–100 km/h [s] | 8,9 | 9,1 | 7,5 | 7,5 | 7,5 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0-6,9 | 7,5-7,3 | 7,6-7,4 | 7,1-6,8 | 7,6-7,3 | 7,6-7,4 |
| Out of town [l] | 4,9-4,5 | 5,0-4,7 | 5,0-4,7 | 5,0-4,6 | 5,1-4,8 | 5,1-4,8 |
| Combined [l] | 5,6-5,4 | 5,9-5,7 | 5,9-5,7 | 5,7-5,4 | 6,0-5,7 | 5,9-5,8 |
| CO2 emissions [g/km] | 130-124 | 135-129 | 134-129 | 133-122 | 137-131 | 137-133 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1500 | 1560 | 1505-1520 | 1535-1550 | 1530 | 1560 |
| Overall weight [kg] | 1995 | 2065 | 2010-2025 | 2040-2055 | 2035 | 2055 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | 1035/1115 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |

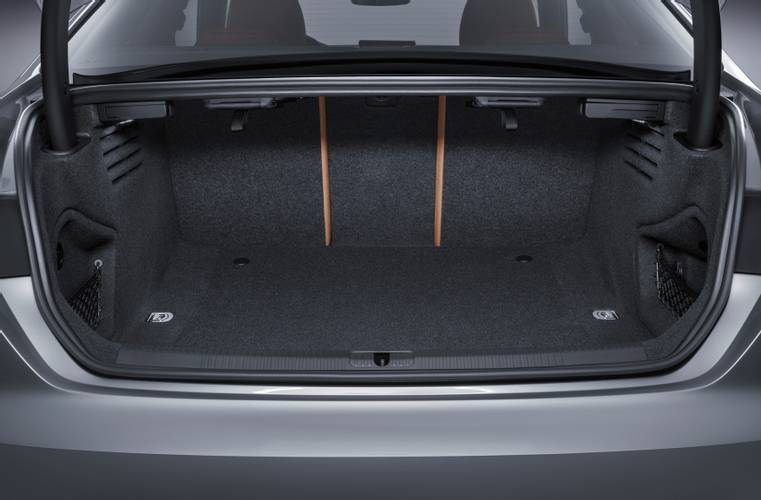

| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0,28 | 0,28 | 0,28 | 0,28 | 0,28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4733 | 4733 | 4733 | 4733 | 4733 | 4733 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TFSI 180 kW | 45 TFSI 180 kW quattro | 2.0 TFSI 185 kW | 2.0 TFSI 185 kW quattro | 2.0 TFSI 185 kW quattro | S5 3.0 TFSI 260 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 2995 |
| Maximum output / speed [kW/min-1] | 180/5000-6500 | 180/5000-6500 | 185/5000-6000 | 185/5000-6000 | 185/5000-6000 | 260/5400-6400 |
| Maximum torque [Nm/min-1] | 370/1600-4300 | 370/1600-4300 | 370/1600-4500 | 370/1600-4500 | 370/1600-4500 | 500/1370-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6,5 | 6,0 | 6,5 | 6,0 | 6,0 | 4,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,4-8,3 | 8,7-8,5 | 7,6-7,5 | 8,3-8,1 | 8,0-7,9 | 10,2-9,8 |
| Out of town [l] | 5,5-5,2 | 5,7-5,3 | 5,2-4,9 | 5,5-5,2 | 5,7-5,5 | 6,2-5,9 |
| Combined [l] | 6,6-6,3 | 6,8-6,5 | 6,1-5,8 | 6,5-6,3 | 6,5-6,4 | 7,7-7,3 |
| CO2 emissions [g/km] | 149-143 | 155-147 | 137-132 | 149-143 | 148-144 | 174-166 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1580 | 1645 | 1565 | 1610 | 1630 | 1705-1735 |
| Overall weight [kg] | 2085 | 2150 | 2065 | 2105 | 2130 | 2200-2230 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 58 | 54 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4733 | 4733 | 4733 | 4733 | 4733 | 4733 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

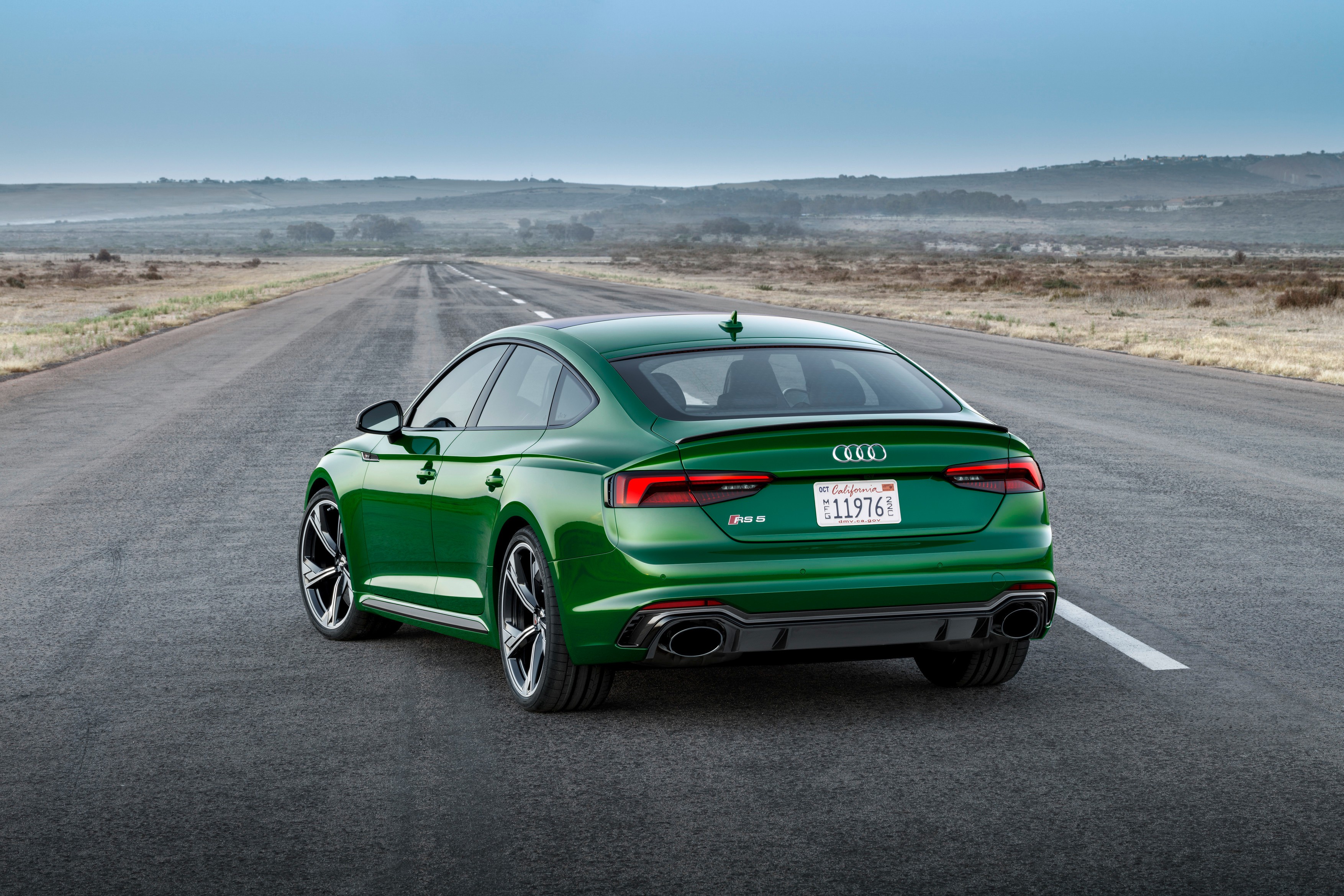

| RS5 2.9 TFSI 331 kW | 2.0 TFSI g-tron | 2.0 TFSI g-tron | 2.0 TDI 110 kW | 2.0 TDI 110 kW | 35 TDI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | - | - | - | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2894 | 1984 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 331/5700-6700 | 125/4450-6000 | 125/4450-6000 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 600/1900-5000 | 270/1650-4400 | 270/1650-4400 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,0:1 | 12,6:1 | 12,6:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 250 | 226 | 224 | 219 | 217 | 217 |
| Acceleration 0–100 km/h [s] | 3,9 | 8,5 | 8,4 | 9,0 | 8,9 | 9,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,4 | 8,3-7,8 [5,6-5,4 kg] | 7,4-7,2 [5,3-5,1 kg] | 5,0 | 5,0-4,9 | 5,0-4,9 |
| Out of town [l] | 7,1 | 5,3-4,8 [3,5-3,2 kg] | 5,1-4,6 [3,5-3,1 kg] | 3,9-3,8 | 4,0-3,8 | 4,3-4,0 |
| Combined [l] | 9,1 | 6,4-5,9 [4,3-4,0 kg] | 6,0-5,6 [4,1-3,8 kg] | 4,3-4,2 | 4,4-4,2 | 4,6-4,3 |
| CO2 emissions [g/km] | 207 | 144-135 [115-108 CNG] | 136-126 [111-102 CNG] | 112-109 | 115-110 | 119-113 |
| Emission standard | Euro 6d-Temp | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1795 | 1615 | 1655 | 1545 | 1590 | 1590 |
| Overall weight [kg] | 2320 | 2090 | 2130 | 2075 | 2110 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | 1075/1125 | - | - |
| Maximum vertical load on the tow bar [kg] | - | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 465 | 390 | 390 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1072 | 1056 | 1056 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 660 | 680 | 680 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 25 [19 kg] | 25 [19 kg] | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | 0,28 | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 265/35 R19 98Y | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 265/35 R19 98Y | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 9,0J x 19 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 9,0J x 19 | 7,5J x 17 | 7,5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4782 | 4733 | 4733 | 4733 | 4733 | 4733 |
| Overall width without/including mirrors [mm] | 1861/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1360 | 1392 | 1392 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2825 | 2823 | 2823 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1598 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1588 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 918 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1039 | 1032 | 1032 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 110 kW quattro | 2.0 TDI 140 kW | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3250-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 320/1500-3250 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - | - |
|
| - |
| Top speed [km/h] | 217 | 238 | 210 | 235 | 235 | 234 |
| Acceleration 0–100 km/h [s] | 8,9 | 7,9 | 8,0 | 7,9 | 7,9 | 7,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,2 | 5,4-5,2 | 5,1-5,0 | 5,0-4,9 | 4,9-4,8 | 5,5-5,4 |
| Out of town [l] | 4,2-3,9 | 4,1-3,8 | 3,9-3,7 | 4,1-3,8 | 4,0-3,7 | 4,4-4,1 |
| Combined [l] | 4,6-4,4 | 4,6-4,4 | 4,3-4,1 | 4,4-4,2 | 4,3-4,1 | 4,8-4,6 |
| CO2 emissions [g/km] | 120-114 | 120-114 | 113-108 | 115-109 | 112-106 | 125-119 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1575 | 1575 | 1595 | 1595 | 1640 |
| Overall weight [kg] | 2150 | 2095 | 2095 | 2115 | 2115 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1700 | 750/1400 | 750/1700 | 750/1400 | 750/1800 |
| Maximum front/rear axle load [kg] | 1100/1185 | 1095/1115 | - | - | - | 1110/1175 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 40 | 40 | 40 | 40 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0,26 | 0,28 | - | - | - | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4733 | 4733 | 4733 | 4733 | 4733 | 4733 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW quattro | 3.0 TDI 160 kW | 3.0 TDI 160 kW quattro | 45 TDI 170 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | from 2018 to | - | - | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 160/4000-5000 | 160/4000-5000 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3750 | 400/1250-3750 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 235 | 241 | 235 | 250 | 245 | 250 |
| Acceleration 0–100 km/h [s] | 7,4 | 7,9 | 7,6 | 6,6 | 6,4 | 6,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,2 | 5,1-4,8 | 5,9-5,8 | 5,0-4,9 | 5,1-5,0 | 6,9-6,6 |
| Out of town [l] | 4,4-4,1 | 4,2-3,8 | 4,9-4,6 | 4,3-4,1 | 4,7-4,3 | 4,7-4,4 |
| Combined [l] | 4,7-4,5 | 4,5-4,2 | 5,3-5,0 | 4,5-4,4 | 4,8-4,6 | 5,5-5,2 |
| CO2 emissions [g/km] | 124-117 | 119-110 | 139-133 | 118-115 | 126-119 | 144-138 |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1675 | 1595 | 1680 | 1645 | 1715 | 1775 |
| Overall weight [kg] | 2185 | 2125 | 2020 | 2140 | 2220 | 2310 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1700 | 750/1800 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1140/1165 | - | - | - | 1160/1180 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1072 | 1072 | 1072 | 1072 | 1072 | 1072 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | 951/- | 951/- | 951/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 40 | 58 | 54 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | 0,28 | - | - | - | 0,28 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- | 11,7/- |
| Overall length [mm] | 4733 | 4733 | 4733 | 4733 | 4733 | 4733 |
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 | 1843/2029 |
| Overall height [mm] | 1386 | 1386 | 1386 | 1386 | 1386 | 1386 |
| Wheelbase [mm] | 2824 | 2824 | 2824 | 2824 | 2824 | 2824 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 | 1477/1414 |
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 | 1448/1385 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI 210 kW quattro | 50 TDI 210 kW quattro | S5 TDI 255 kW quattro | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | from 2018 to | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | |||
| Maximum output / speed [kW/min-1] | 210/3750-4000 | 210/3750-4000 | 255/3850 | |||
| Maximum torque [Nm/min-1] | 620/1500-3000 | 620/1500-3000 | 700/2500-3100 | |||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83.0 x 91.4 | |||
| Compression ratio | 16,0:1 | 16,0:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5,3 | 5,3 | 4,9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6,5-6,3 | 7,2-7,0 | 7,2 | |||
| Out of town [l] | 5,2-4,9 | 5,4-5,1 | 5,6 | |||
| Combined [l] | 5,7-5,4 | 6,1-5,8 | 6,2 | |||
| CO2 emissions [g/km] | 148-141 | 159-153 | 163-161 | |||
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | - | - | 48 | |||
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 0,5 kWh | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1775 | 1775 | 1870 | |||
| Overall weight [kg] | 2285 | 2315 | 2380 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | |||
| Maximum front/rear axle load [kg] | 1220/1190 | - | - | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 75/- | |||
| Boot volume [l] | 480 | 480 | 480 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 1072 | 1072 | 1072 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 669 | 669 | 666 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 951/- | 951/- | 951/- | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 58 | 58 | 58 | |||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | |||
| Air resistance [Cd] | 0,28 | - | - | |||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |||
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |||
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | |||
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | |||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 18 | |||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11,7/- | 11,7/- | 11,7/- | |||
| Overall length [mm] | 4733 | 4733 | 4752 | |||
| Overall width without/including mirrors [mm] | 1843/2029 | 1843/2029 | 1843/2029 | |||
| Overall height [mm] | 1386 | 1386 | 1384 | |||
| Wheelbase [mm] | 2824 | 2824 | 2825 | |||
| Front wheel track [mm] | 1587 | 1587 | 1587 | |||
| Rear wheel track [mm] | 1568 | 1568 | 1568 | |||
| Forward overhang [mm] | 878 | 878 | 883 | |||
| Rear overhang [mm] | 1031 | 1031 | 1044 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1015 | 1015 | 1015 | |||
| Headroom rear [mm] | 945 | 945 | 945 | |||
| Front elbow/shoulder width [mm] | 1477/1414 | 1477/1414 | 1477/1414 | |||
| Rear elbow/shoulder width [mm] | 1448/1385 | 1448/1385 | 1448/1385 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Coupé
| 1.4 TFSI 110 kW | 35 TFSI 110 kW | 2.0 TFSI 140 kW | 2.0 TFSI 140 kW | 40 TFSI 140 kW | 40 TFSI 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | - | - | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/3900-6000 | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 270/1350-3900 | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 210 | 225 | 240 | 240 | 241 | 241 |
| Acceleration 0–100 km/h [s] | 8,7 | 8,9 | 7,2 | 7,3 | 7,2 | 7,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,8-6,7 | 7,5-7,3 | 7,6-7,3 | 6,7-6,5 | 7,6-7,3 | 7,6-7,4 |
| Out of town [l] | 4,8-4,4 | 5,0-4,8 | 4,9-4,6 | 4,7-4,3 | 5,0-4,8 | 5,1-4,9 |
| Combined [l] | 5,5-5,3 | 5,9-5,7 | 5,9-5,6 | 5,4-5,1 | 6,0-5,7 | 5,9 |
| CO2 emissions [g/km] | 127-122 | 135-130 | 134-127 | 123-117 | 136-130 | 137-133 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1465 | 1525 | 1480 | 1525 | 1490 | 1525 |
| Overall weight [kg] | 1890 | 1965 | 1915 | 1960 | 1925 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | 730/1400 | 750/1500 | 740/1500 | 750/1500 | 740/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0,28 | 0,28 | 0,28 | 0,28 | 0,28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1371 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TFSI 180 kW | 45 TFSI 180 kW quattro | 2.0 TFSI 185 kW | 2.0 TFSI 185 kW quattro | 2.0 TFSI 185 kW quattro | S5 3.0 TFSI 260 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | - | from 2017 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 2995 |
| Maximum output / speed [kW/min-1] | 180/5000-6500 | 180/5000-6500 | 185/5000-6000 | 185/5000-6000 | 185/5000-6000 | 260/5400-6400 |
| Maximum torque [Nm/min-1] | 370/1600-4300 | 370/1600-4300 | 370/1600-4500 | 370/1600-4500 | 370/1600-4500 | 500/1370-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6,4 | 5,8 | 6,3 | 6,0 | 5,8 | 4,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,4-8,3 | 8,7-8,5 | 7,6-7,4 | 8,3-8,1 | 7,9-7,4 | 9,9-9,8 |
| Out of town [l] | 5,5-5,2 | 5,7-5,2 | 5,1-4,8 | 5,5-5,2 | 5,5-4,8 | 6,0-5,8 |
| Combined [l] | 6,6-6,3 | 6,8-6,4 | 6,0-5,8 | 6,5-6,3 | 6,4-5,9 | 7,4-7,3 |
| CO2 emissions [g/km] | 149-143 | 155-146 | 137-131 | 148-142 | 145-136 | 170-166 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1605 | 1520 | 1.570 | 1595 | 1690 |
| Overall weight [kg] | 1980 | 2035 | 1945 | 1.995 | 2020 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1.700 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 666 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 54 | 58 | 54 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4692 |
| Overall width without/including mirrors [mm] | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1368 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 883 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1044 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| RS5 2.9 TFSI 331 kW | 2.0 TDI 110 kW | 35 TDI 110 kW | 2.0 TDI 110 kW quattro | 2.0 TDI 140 kW | 2.0 TDI 140 kW ultra | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from 2017 to | from 2018 to | from 2017 to | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2894 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 331/5700-6700 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 600/1900-5000 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,0:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 250 | 219 | 219 | - | 240 | 210 |
| Acceleration 0–100 km/h [s] | 3,9 | 8,7 | 8,9 | - | 7,7 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,5 | 5,0-4,9 | 5,0-4,9 | - | 5,4-5,1 | 5,1-5,0 |
| Out of town [l] | 7,1 | 4,0-3,8 | 4,3-3,9 | - | 4,1-3,8 | 3,8-3,7 |
| Combined [l] | 8,7 | 4,3-4,2 | 4,6-4,3 | - | 4,6-4,3 | 4,2-4,1 |
| CO2 emissions [g/km] | 197 | 114-109 | 118-113 | - | 119-111 | 111-106 |
| Emission standard | Euro 6d-Temp | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1730 | 1550 | 1550 | - | 1535 | 1535 |
| Overall weight [kg] | 2195 | 2000 | 2010 | - | 1985 | 1985 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1700 | 750/1700 | - | 750/1700 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 660 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 58 | 40 | 40 | 58 | 40 | 40 |
| AdBlue tank volume [l] | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | 0,26 | 0,28 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 265/35 R19 98Y | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 265/35 R19 98Y | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 9,0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 9,0J x 19 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4723 | 4673 | 4673 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1866/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 |
| Overall height [mm] | 1372 | 1371 | 1371 | 1371 | 1371 | 1371 |
| Wheelbase [mm] | 2766 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1598 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1588 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 918 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1039 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW | 2.0 TDI 140 kW ultra | 2.0 TDI 140 kW quattro | 2.0 TDI 140 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2017 to | - | from 2018 to | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 238 | 210 | 239 | 235 | 241 | 235 |
| Acceleration 0–100 km/h [s] | 7,7 | 7,7 | 7,2 | 7,2 | 7,7 | 7,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,0-4,8 | 4,9-4,7 | 5,4-5,3 | 5,3-5,1 | 5,1-4,8 | 5,9-5,8 |
| Out of town [l] | 4,1-3,7 | 3,8-3,6 | 4,3-4,0 | 4,4-4,0 | 4,2-3,8 | 4,8-4,6 |
| Combined [l] | 4,4-4,1 | 4,2-4,0 | 4,7-4,4 | 4,7-4,4 | 4,5-4,2 | 5,2-5,0 |
| CO2 emissions [g/km] | 115-107 | 111-105 | 122-116 | 124-114 | 118-109 | 138-133 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1565 | 1605 | 1640 | 1565 | 1645 |
| Overall weight [kg] | 2015 | 2015 | 2045 | 2080 | 2015 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1400 | 750/1800 | 750/1800 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 40 | 40 | 58 | 58 | 40 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | 0,29 | 0,28 | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1371 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2764 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI 160 kW | 3.0 TDI 160 kW quattro | 45 TDI 170 kW quattro | 3.0 TDI 210 kW quattro | 50 TDI 210 kW quattro | S5 TDI 255 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | from 2018 to | from 2017 to | from 2018 to | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 160/4000-5000 | 160/4000-5000 | 170/3250-4750 | 210/3750-4000 | 210/3750-4000 | 255/3850 |
| Maximum torque [Nm/min-1] | 400/1250-3750 | 400/1250-3750 | 500/1750-3250 | 620/1500-3000 | 620/1500-3000 | 700/2500-3100 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83.0 x 91.4 |
| Compression ratio | 16,8:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6,6 | 6,2-6,6 | 6,0 | 5,2 | 5,2 | 4,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,9-4,8 | 5,2-4,8 | 6,8-6,6 | 6,3-6,2 | 7,2-7,0 | 7,2 |
| Out of town [l] | 4,2-3,9 | 4,7-3,9 | 4,6-4,4 | 5,0-4,7 | 5,4-5,1 | 5,6 |
| Combined [l] | 4,5-4,3 | 4,8-4,3 | 5,4-5,2 | 5,5-5,3 | 6,0-5,8 | 6,2 |
| CO2 emissions [g/km] | 115-111 | 127-111 | 143-138 | 143-137 | 158-152 | 163-161 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 48 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 0,5 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1610 | 1735 | 1735 | 1735 | 1835 |
| Overall weight [kg] | 2035 | 2035 | 2200 | 2165 | 2200 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1800 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 465 | 465 | 465 | 465 | 465 | 465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 666 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 955/- | 955/- | 955/- | 955/- | 955/- | 955/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 54 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | 0,28 | - | 0,28 | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4692 |
| Overall width without/including mirrors [mm] | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 | 1845/2029 |
| Overall height [mm] | 1371 | 1371 | 1371 | 1371 | 1371 | 1368 |
| Wheelbase [mm] | 2764 | 2764 | 2764 | 2764 | 2764 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 883 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1044 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 | 1378/1287 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Convertible
| 2.0 TFSI 140 kW | 2.0 TFSI 140 kW | 40 TFSI 140 kW | 40 TFSI 140 kW | 45 TFSI 180 kW | 45 TFSI 180 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2018 to | from 2018 to | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 | 140/4200-6000 | 180/5000-6500 | 180/5000-6500 |
| Maximum torque [Nm/min-1] | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 | 320/1450-4200 | 370/1600-4300 | 370/1600-4300 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 11,7:1 | 11,7:1 | 11,7:1 | 11,7:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 239 | 237 | 241 | 237 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,9 | 7,9 | 7,9 | 7,9 | 6,8 | 6,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8-7,7 | 7,3 | 7,7-7,6 | 7,6-7,4 | 8,9-8,6 | 8,7 |
| Out of town [l] | 5,1-4,9 | 5,1-4,8 | 5,3-5,0 | 5,4-5,1 | 5,9-5,6 | 6,0-5,6 |
| Combined [l] | 6,1-5,9 | 5,9-5,7 | 6,1-6,0 | 6,2-5,9 | 7,0-6,7 | 7,0-6,7 |
| CO2 emissions [g/km] | 138-135 | 134-129 | 140-136 | 141-136 | 159-152 | 159-153 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1720 | 1695 | 1730 | 1745 | 1810 |
| Overall weight [kg] | 2125 | 2155 | 2130 | 2160 | 2170 | 2235 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 320 | 320 | 320 | 320 | 320 | 320 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2765 | 2765 | 2765 | 2765 | 2765 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI 185 kW | 2.0 TFSI 185 kW quattro | S5 3.0 TFSI 260 kW quattro | 2.0 TDI 110 kW | 2.0 TDI 110 kW | 35 TDI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2017 to | from 2017 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 2995 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 185/5000-6000 | 185/5000-6000 | 260/5400-6400 | 110/3250-4200 | 110/3250-4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 370/1600-4500 | 370/1600-4500 | 500/1370-4500 | 320/1500-3250 | 320/1500-3250 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 11,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 250 | 250 | 250 | 215 | 213 | 213 |
| Acceleration 0–100 km/h [s] | 6,7 | 6,3 | 5,1 | 9,7 | 9,6 | 9,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8-7,7 | 8,2-8,1 | 10,5 | 5,1 | 5,3-5,2 | 5,4-5,2 |
| Out of town [l] | 5,5-5,2 | 5,9-5,7 | 6,5-6,4 | 4,1-4,0 | 4,3-4,0 | 4,5-4,3 |
| Combined [l] | 6,3-6,1 | 6,7-6,6 | 8,0-7,9 | 4,5-4,4 | 4,6-4,5 | 4,8-4,6 |
| CO2 emissions [g/km] | 143-138 | 152-149 | 181-179 | 117-114 | 122-116 | 128-122 |
| Emission standard | EU6 | EU6 | EU6 | - | - | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1800 | 1915 | 1710 | 1750 | 1750 |
| Overall weight [kg] | 2160 | 2225 | 2340 | 2165 | 2200 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1900 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 320 | 320 | 320 | 320 | 320 | 320 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 664 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 54 | 58 | 58 | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4692 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1383 | 1383 | 1382 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2765 | 2765 | 2765 | 2765 | 2765 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 883 | 878 | 878 | 878 |
| Rear overhang [mm] | 1030 | 1030 | 1044 | 1030 | 1030 | 1030 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 140 kW | 2.0 TDI 140 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW | 3.0 TDI 160 kW | 3.0 TDI 160 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2018 to | from 2018 to | from 2017 to | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 160/4000-5000 | 160/4000-5000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3750 | 400/1250-3750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | Front | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 232 | 233 | 241 | 233 | 246 | 241 |
| Acceleration 0–100 km/h [s] | 8,3 | 7,8 | 8,4 | 8,0 | 7,0 | 6,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,2 | 5,5-5,4 | 5,4-5,3 | 6,0-5,9 | 5,2-5,1 | 5,6-5,3 |
| Out of town [l] | 4,4-4,1 | 4,6-4,3 | 4,6-4,3 | 5,1-4,8 | 4,5-4,3 | 5,0-4,7 |
| Combined [l] | 4,7-4,5 | 4,9-4,7 | 4,9-4,7 | 5,4-5,2 | 4,8-4,6 | 5,2-4,9 |
| CO2 emissions [g/km] | 124-118 | 128-122 | 129-123 | 143-138 | 124-120 | 137-128 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1765 | 1840 | 1765 | 1835 | 1825 | 1895 |
| Overall weight [kg] | 2215 | 2280 | 2215 | 2280 | 2250 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1800 | 750/1700 | 750/1800 | 750/1700 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 320 | 320 | 320 | 320 | 320 | 320 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 953/- | 953/- | 953/- | 953/- | 953/- | 953/- |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 40 | 58 | 40 | 58 | 54 | 58/12 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- | 11,5/- |
| Overall length [mm] | 4673 | 4673 | 4673 | 4673 | 4673 | 4673 |
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 | 1846/2029 |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2765 | 2765 | 2765 | 2765 | 2765 | 2765 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 | 1496/1404 |
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 | 1243/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI 210 kW quattro | 50 TDI 210 kW quattro | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from 2018 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2967 | 2967 | ||||
| Maximum output / speed [kW/min-1] | 210/3750-4000 | 210/3750-4000 | ||||
| Maximum torque [Nm/min-1] | 620/1500-3000 | 620/1500-3000 | ||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5,7 | 5,7 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6,8-6,6 | 7,3-7,2 | ||||
| Out of town [l] | 5,4-5,1 | 5,6-5,3 | ||||
| Combined [l] | 5,9-5,7 | 6,2-6,0 | ||||
| CO2 emissions [g/km] | 154-148 | 164-158 | ||||
| Emission standard | EU6 | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1955 | 1935 | ||||
| Overall weight [kg] | 2380 | 2380 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 320 | 320 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1079 | 1079 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 665 | 665 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 953/- | 953/- | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 58 | 58 | ||||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | ||||
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | ||||
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | ||||
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | ||||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | ||||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11,5/- | 11,5/- | ||||
| Overall length [mm] | 4673 | 4673 | ||||
| Overall width without/including mirrors [mm] | 1846/2029 | 1846/2029 | ||||
| Overall height [mm] | 1383 | 1383 | ||||
| Wheelbase [mm] | 2765 | 2765 | ||||
| Front wheel track [mm] | 1587 | 1587 | ||||
| Rear wheel track [mm] | 1568 | 1568 | ||||
| Forward overhang [mm] | 878 | 878 | ||||
| Rear overhang [mm] | 1030 | 1030 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1015 | 1015 | ||||
| Headroom rear [mm] | 923 | 923 | ||||
| Front elbow/shoulder width [mm] | 1496/1404 | 1496/1404 | ||||
| Rear elbow/shoulder width [mm] | 1243/1190 | 1243/1190 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
