Audi A5
Date of manufacture
2011 – 2016 (Liftback)
2011 – 2016 (Coupé)
2011 – 2016 (Convertible)
Platform
MLB/MLP
Manufacturing locations
Ingolstadt, Germany
Designer
Achim Badstübner
Tags
D-segment
German cars
The Audi A5 has been manufactured since 2011 and is built on the MLB/MLP platform. Germany is the country in which this car is produced. The Audi A5 model offers three body versions: liftback, coupe and cabriolet. The list of engines includes petrol and diesel engines, the most powerful model being the RS5 quattro with a maximum power of 331 kW, the highest speed reaching 250 km/h and the best acceleration 0-100 km/h being 4.5 seconds. The most economical engine is the 2.0 TDI ultra clean diesel with a combined fuel consumption of 4.2 l/100 km and CO2 emissions of 109 g/km. The luggage compartment volume of the A5 with a liftback body is 480 l, for the coupe version 455 l and for the cabriolet version 380 l.
Car body style
Liftback (Sportback)
after upgrade (facelift)
Date of manufacture
2011 – 2016Internal designation
8T Engine size
Petrol
Diesel
Coupé
after upgrade (facelift)
Date of manufacture
2011 – 2016Internal designation
8T Engine size
Petrol
Diesel

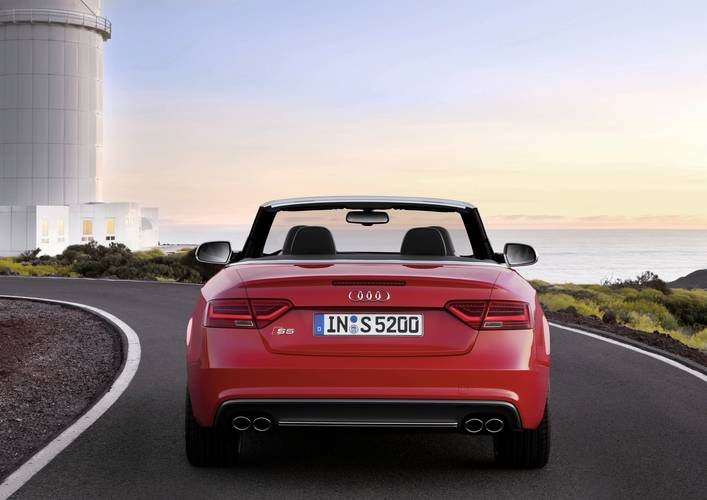

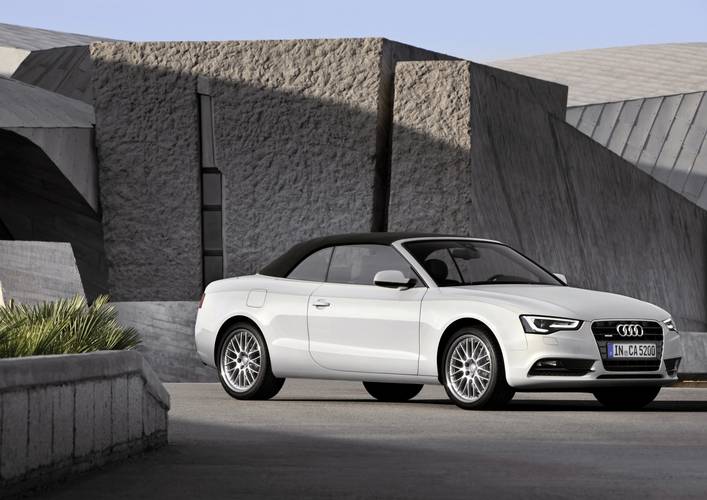

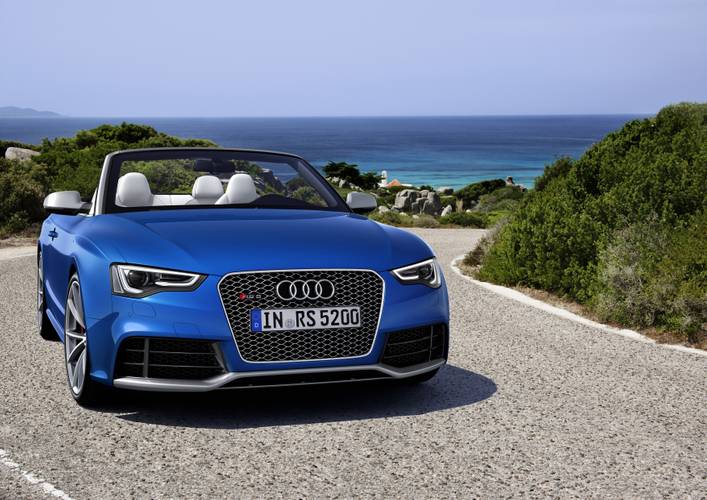

Convertible
after upgrade (facelift)
Date of manufacture
2011 – 2016Internal designation
8T Engine size
Petrol
Diesel
Technical data
Liftback (Sportback)
| 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1798 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 106/3700-6200 | 106/3700-6200 | 125/3800-6200 | 125/3800-6200 | 130/4000-6200 | 130/4000-6200 |
| Maximum torque [Nm/min-1] | 280/1300-3600 | 280/1300-3600 | 320/1400-3700 | 320/1400-3700 | 320/1400-3850 | 320/1400-3850 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 220 | 210 | 230 | 220 | 231 | 221 |
| Acceleration 0–100 km/h [s] | 9,3 | 9,6 | 8.2 | 8.4 | 8,2 | 8,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8-7,3 | 7,6-7,2 | 7.5 | 7.0 | 7,8-7,3 | 7,6-7,2 |
| Out of town [l] | 5,6-4,9 | 5,8-5,2 | 4.9 | 5.2 | 5,6-4,9 | 5,8-5,2 |
| Combined [l] | 6,4-5,8 | 6,4-5,9 | 5.8 | 5.9 | 6,4-5,8 | 6,4-5,9 |
| CO2 emissions [g/km] | 148-134 | 149-136 | 136 | 136 | 148-134 | 149-136 |
| Emission standard | EU6 | EU6 | EU5/EU6 | EU5/EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1600 | 1565 | 1600 | 1565 | 1600 |
| Overall weight [kg] | 2040 | 2075 | 2040 | 2075 | 2040 | 2075 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1300 | 750/1500 | 750/1300 | 750/1500 | 750/1300 |
| Maximum front/rear axle load [kg] | 1035/1095 | 1065/1100 | 1035/1095 | 1065/1100 | - | 1065/1100 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4712 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 169/4700-6200 | 169/4700-6200 |
| Maximum torque [Nm/min-1] | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4600 | 350/1500-4600 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 250 | 236 | 245 | 245 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.0 | 7.2 | 6.5 | 6.5 | 7.0 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 7.5 | 8.8 | 8.5 | 8,3-7,9 | 7,9-7,4 |
| Out of town [l] | 4.8 | 5.1 | 5.3 | 5.6 | 5,5-4,9 | 5,6-5,0 |
| Combined [l] | 5.9 | 6.0 | 6.6 | 6.7 | 6,5-6,0 | 6,4-5,9 |
| CO2 emissions [g/km] | 138 | 139 | 152 | 155 | 149-138 | 149-136 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1575 | 1605 | 1645 | 1690 | 1575 | 1605 |
| Overall weight [kg] | 2050 | 2080 | 2120 | 2165 | 2050 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | 1065/1155 | - | 1050/1100 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4712 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI quattro | 2.0 TFSI quattro | 3.0 TFSI quattro | S5 quattro | 2.0 TDI ultra clean diesel | 2.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 2995 | 2995 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 169/4700-6200 | 169/4700-6200 | 200/4780-6500 | 245/5500-6500 | 100/3000-4400 | 100/3000-4400 |
| Maximum torque [Nm/min-1] | 350/1500-4600 | 350/1500-4600 | 400/2150-4780 | 440/2900-5300 | 320/1500-3000 | 320/1500-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 11,0:1 | 11,0:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 246 | 246 | 250 | 250 | 212 | 204 |
| Acceleration 0–100 km/h [s] | 6,5 | 6,5 | 6.0 | 5.1 | 9.5 | 9,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,2-8,8 | 9,0-8,3 | 10.7-10,1 | 10.7-10,2 | 4,9 | 5,7-5,3 |
| Out of town [l] | 5,9-5,3 | 6,2-5,5 | 6.6-6,2 | 6.6-6,3 | 3,7 | 4,6-4,1 |
| Combined [l] | 7,1-6,6 | 7,2-6,6 | 8.1-7,6 | 8.1-7,7 | 4,2 | 5,0-4,6 |
| CO2 emissions [g/km] | 164-152 | 166-153 | 190-177 | 190-179 | 109 | 131-119 |
| Emission standard | EU6 | EU6 | EU5 | EU5/EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1690 | 1790 | 1820 | 1655 | 1680 |
| Overall weight [kg] | 2120 | 2165 | 2265 | 2295 | 2130 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1500 | 750/1900 | 750/1900 | 750/1300 | 750/1700 |
| Maximum front/rear axle load [kg] | - | 1105/1155 | 1175/1180 | 1180/1200 | 1115/1115 | 1130/1130 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 663 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | 20,5 | 20,5 |
| Air resistance [Cd] | 0.29 | 0.29 | - | 0,30 | 0.28 | 0.29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | 245/40 R18 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | 245/40 R18 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4718 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1382 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2811 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1588 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 862 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1045 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI clean diesel | 2.0 TDI clean diesel | 2.0 TDI ultra clean diesel | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/4200 | 110/4200 | 110/3250-4200 | 110/3250-4200 | 120/3000-4200 | 130/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1500-3250 | 320/1500-3250 | 400/1750-2750 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 212 | 205 | 212 | 205 | 221 | 228 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.4 | 9.4 | 9,4 | 8,6 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.7 | 5,7-5,4 | 5,7-5,3 | 5,0 | 5.5 |
| Out of town [l] | 4.0 | 4.4 | 4,3-3,9 | 4,6-4,1 | 3,8 | 4.1 |
| Combined [l] | 4.5 | 4.8 | 4,8-4,5 | 5,0-4,6 | 4,3 | 4.6 |
| CO2 emissions [g/km] | 119 | 127 | 127-118 | 131-119 | 111 | 120 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1615 | 1655 | 1680 | 1660 | 1590 |
| Overall weight [kg] | 2065 | 2090 | 2130 | 2155 | 2135 | 2065 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1300 | 750/1600 |
| Maximum front/rear axle load [kg] | - | 1105/1095 | 1115/1115 | 1130/1130 | 1115/1115 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | 20,5 | 20,5 | 20,5 | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.28 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4712 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI quattro | 2.0 TDI quattro | 2.0 TDI clean diesel | 2.0 TDI clean diesel | 2.0 TDI quattro clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 130/4200 | 130/4200 | 130/4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 225 | 223 | 222 | 238 | 230 | 235 |
| Acceleration 0–100 km/h [s] | 7.9 | 8.2 | 7.9 | 7,8 | 7,8 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 6.1 | 6.4 | 5,9-5,5 | 5,7-5,4 | 6,2-5,9 |
| Out of town [l] | 4.4 | 4.5 | 4.7 | 4,5-4,0 | 4,5-4,1 | 4,8-4,4 |
| Combined [l] | 4.8 | 5.1 | 5.3 | 5,0-4,6 | 5,0-4,5 | 5,3-4,9 |
| CO2 emissions [g/km] | 127 | 134 | 139 | 132-119 | 131-119 | 141-128 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1670 | 1700 | 1655 | 1680 | 1725 |
| Overall weight [kg] | 2090 | 2145 | 2175 | 2130 | 2155 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1600 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | - | 1085/1150 | 1120/1155 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 63 | 61 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | 20,5 | 20,5 | 20,5 |
| Air resistance [Cd] | - | 0,29 | 0,29 | 0.29 | 0.29 | 0.29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4712 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI quattro clean diesel | 3.0 TDI | 3.0 TDI | 3.0 TDI quattro | 3.0 TDI quattro | 3.0 TDI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 2967 | 2967 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 150/3750-4500 | 150/3750-4500 | 160/3250-4500 | 180/4000-4500 | 180/4000-4500 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1250-3500 | 400/1250-3500 | 500/1400-3000 | 500/1400-3250 | 500/1400-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 232 | 240 | 235 | 240 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7,4 | 7.8 | 7.1 | 6,4 | 6.2 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,4-6,1 | 6.4 | 5.5 | 7,5-7,3 | 7.2 | 6.8 |
| Out of town [l] | 5,1-4,6 | 4.3 | 4.6 | 5,7-5,4 | 4.9 | 5.1 |
| Combined [l] | 5,6-5,1 | 5.1 | 4.9 | 6,3-4,1 | 5.8 | 5.7 |
| CO2 emissions [g/km] | 147-135 | 133 | 129 | 164-159 | 152 | 149 |
| Emission standard | EU6 | EU5 | EU5 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1760 | 1670 | 1695 | 1810 | 1735 | 1770 |
| Overall weight [kg] | 2235 | 2145 | 2170 | 2285 | 2210 | 2245 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1700 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | 1145/1180 | 1150/1095 | 1160/1105 | 1190/1210 | - | 1190/1170 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 | -/1283 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 61 | 61 |
| AdBlue tank volume [l] | 20,5 | - | - | 20,5 | - | - |
| Air resistance [Cd] | 0.29 | 0,30 | 0,29 | 0,29 | - | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4712 | 4712 | 4712 | 4712 | 4712 | 4712 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 | 1462/1405 |
| Rear elbow/shoulder width [mm] | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 | 1443/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro clean diesel | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 180/4000-4500 | |||||
| Maximum torque [Nm/min-1] | 580/1750-2500 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 16,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 5.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,5-6.8 | |||||
| Out of town [l] | 5,7-5.0 | |||||
| Combined [l] | 6,3-5.7 | |||||
| CO2 emissions [g/km] | 164-149 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1825 | |||||
| Overall weight [kg] | 2300 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | 1190/1215 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 90/- | |||||
| Boot volume [l] | 480 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1283 | |||||
| Boot length [mm] | 1068 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | -/1000 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 679 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 941/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 4 or 5 | |||||
| Fuel tank volume [l] | 61 | |||||
| AdBlue tank volume [l] | 20,5 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | five-link, stabiliser bar | |||||
| Rear suspension | double wishbone with stabiliser | |||||
| Tyre dimensions front | 245/40 R18 | |||||
| Tyre dimensions rear | 245/40 R18 | |||||
| Wheel size front | 8.5J x 18 | |||||
| Wheel size rear | 8.5J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.5/- | |||||
| Overall length [mm] | 4712 | |||||
| Overall width without/including mirrors [mm] | 1854/2020 | |||||
| Overall height [mm] | 1391 | |||||
| Wheelbase [mm] | 2810 | |||||
| Front wheel track [mm] | 1590 | |||||
| Rear wheel track [mm] | 1575 | |||||
| Forward overhang [mm] | 861 | |||||
| Rear overhang [mm] | 1041 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1014 | |||||
| Headroom rear [mm] | 947 | |||||
| Front elbow/shoulder width [mm] | 1462/1405 | |||||
| Rear elbow/shoulder width [mm] | 1443/1374 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1798 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 125/3800-6200 | 125/3800-6200 | 130/4000-6200 | 130/4000-6200 | 155/4300-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 320/1400-3700 | 320/1400-3700 | 320/1400-3850 | 320/1400-3850 | 350/1500-4200 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 230 | 228 | 231 | 229 | 250 | 245 |
| Acceleration 0–100 km/h [s] | 7.9 | 8.2 | 7,9 | 8,2 | 6.9 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 6.9 | 7,6-7,1 | 7,5-7,2 | 8.3 | 8.8 |
| Out of town [l] | 4.8 | 5.1 | 5,3-4,9 | 5,5-4,9 | 5.1 | 5.8 |
| Combined [l] | 5.7 | 5.8 | 6,1-5,5 | 6,2-5,7 | 6,3 | 7.0 |
| CO2 emissions [g/km] | 134 | 134 | 142-128 | 144-132 | 144 | 159 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1500 | 1530 | 1500 | 1530 | 1505 | 1625 |
| Overall weight [kg] | 1925 | 1955 | 1925 | 1955 | 1930 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1300 | 750/1500 | 750/1300 | 750/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | 1020/1010 | 1050/1020 | - | 1050/1020 | 1030/1010 | 1080/1075 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 61 | 61 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI quattro | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 169/4700-6200 | 169/4700-6200 |
| Maximum torque [Nm/min-1] | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4600 | 350/1500-4600 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 250 | 242 | 250 | 250 | 250 | 243 |
| Acceleration 0–100 km/h [s] | 6.8 | 6.9 | 6.4 | 6.4 | 6.8 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.4 | 8.8 | 8.5 | 8,1-7.7 | 7,9-7,4 |
| Out of town [l] | 4.8 | 5.0 | 5.3 | 5.6 | 5,4-4,8 | 5,6-5,0 |
| Combined [l] | 5.9 | 5.8 | 6.6 | 6.7 | 6,4-5,9 | 6,4-5,9 |
| CO2 emissions [g/km] | 138 | 136 | 152 | 155 | 147-136 | 149-136 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1550 | 1585 | 1615 | 1505 | 1550 |
| Overall weight [kg] | 1930 | 1975 | 2010 | 2040 | 1930 | 1975 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | 1065/1020 | 1040/1070 | 1080/1075 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 61 | 61 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI quattro | 2.0 TFSI quattro | 3.0 TFSI quattro | S5 quattro | RS5 quattro | 2.0 TDI ultra clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 2995 | 2995 | 4163 | 1968 |
| Maximum output / speed [kW/min-1] | 169/4700-6200 | 169/4700-6200 | 200/4780-6500 | 245/5500-6500 | 331/8250 | 120/3000-4200 |
| Maximum torque [Nm/min-1] | 350/1500-4600 | 350/1500-4600 | 400/2150-4780 | 440/2900-5300 | 430/4000-6000 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 92,8 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 11,0:1 | 11,0:1 | 12,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 225 |
| Acceleration 0–100 km/h [s] | 6.4 | 6.4 | 5.8 | 4.9 | 4.5 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,2-8,6 | 9,1-8,3 | 10.7-9,9 | 10.7-10,1 | 14.4 | 5,0 |
| Out of town [l] | 5,8-5,2 | 5,3-5,5 | 6.6-5,5 | 6.6-6,2 | 8.3 | 3,8 |
| Combined [l] | 7,0-6,4 | 7,3-6,6 | 8.1-6,6 | 8.1-7,7 | 10.5 | 4,2 |
| CO2 emissions [g/km] | 161-149 | 168-153 | 190 | 190-178 | 246 | 109 |
| Emission standard | EU6 | EU6 | EU5/EU6 | EU5/EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1585 | 1615 | 1725 | 1750 | 1790 | 1605 |
| Overall weight [kg] | 2010 | 2040 | 2150 | 2175 | 2215 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1900 | 750/1900 | - | 750/1300 |
| Maximum front/rear axle load [kg] | - | 1080/1075 | 1155/1095 | 1160/1120 | 1180/114 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | - | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 663 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 61 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | 0,29 | 0,29 | 0,30 | 0,30 | 0,32 | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 98Y XL | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 98Y XL | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 9Jx19 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 9Jx19 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.6/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4640 | 4649 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1860/2020 | 1854/2020 |
| Overall height [mm] | 1372 | 1372 | 1372 | 1369 | 1366 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1588 | 1586 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1575 | 1582 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 862 | 873 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1027 | 1025 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI quattro | 2.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 120/4200 | 130/4200 | 130/4200 | 130/4200 | 130/4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 216 | 230 | 225 | 228 | 225 | 240 |
| Acceleration 0–100 km/h [s] | 8,4 | 8.2 | 7.8 | 7.8 | 7.8 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5 | 5.5 | 5.5 | 6.1 | 6.4 | 5,4 |
| Out of town [l] | 4,3 | 4.1 | 4.3 | 4.5 | 4.7 | 3,9 |
| Combined [l] | 4,7 | 4.6 | 4.7 | 5.1 | 5.3 | 4,5 |
| CO2 emissions [g/km] | 123 | 120 | 123 | 134 | 139 | 117 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1570 | 1545 | 1570 | 1610 | 1650 | 1600 |
| Overall weight [kg] | 1995 | 1970 | 1995 | 2035 | 2075 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1600 |
| Maximum front/rear axle load [kg] | 1095/1020 | 1065/1020 | 1095/1020 | 1070/1070 | - | 1085/1040 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 61 | 61 | 63 |
| AdBlue tank volume [l] | 20 | - | - | - | - | 20 |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | 2.0 TDI clean diesel quattro | 3.0 TDI | 3.0 TDI | 3.0 TDI clean diesel quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 150/3750-4500 | 150/3750-4500 | 160/3250-4500 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1250-3500 | 400/1250-3500 | 500/1400-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 1 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 230 | 235 | 235 | 244 | 235 | 243 |
| Acceleration 0–100 km/h [s] | 7,8 | 7,4 | 7,3 | 7.6 | 7.1 | 6,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3 | 5,9 | 5,9 | 6.4 | 5.5 | 7,4-7,3 |
| Out of town [l] | 4,1 | 4,4 | 4,5 | 4.3 | 4.6 | 5,6-5,4 |
| Combined [l] | 4,5 | 4,9 | 5,0 | 5.1 | 4.9 | 7,4-6,3 |
| CO2 emissions [g/km] | 119 | 128 | 132 | 133 | 129 | 162-158 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1665 | 1705 | 1615 | 1640 | 1755 |
| Overall weight [kg] | 2060 | 2090 | 2130 | 2040 | 2065 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1700 | 750/1600 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | 1095/1020 | - | 1130/1100 | - | - | 1190/1110 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 61 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | 20 | 20 | 20 | - | - | 20 |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 | 1395/1342 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI quattro | 3.0 TDI quattro | 3.0 TDI clean diesel quattro | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2967 | 2967 | 2967 | |||
| Maximum output / speed [kW/min-1] | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 | |||
| Maximum torque [Nm/min-1] | 500/1400-3250 | 500/1400-3250 | 580/1750-2500 | |||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | |||
| Compression ratio | 16,8:1 | 16,8:1 | 16,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5.9 | 5.8 | 5.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.3 | 6.8 | 6.8 | |||
| Out of town [l] | 4.9 | 5.1 | 5.0 | |||
| Combined [l] | 5.8 | 5.7 | 5.7 | |||
| CO2 emissions [g/km] | 151 | 149 | 149 | |||
| Emission standard | EU5 | EU5 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1680 | 1715 | 1770 | |||
| Overall weight [kg] | 2105 | 2140 | 2195 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | |||
| Maximum front/rear axle load [kg] | 1145/1065 | - | 1195/1115 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 455 | 455 | 455 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | |||
| Boot length [mm] | 1068 | 1068 | 1068 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 669 | 669 | 669 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 61 | 61 | 61 | |||
| AdBlue tank volume [l] | - | - | 20,5 | |||
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | |||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |||
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | |||
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | |||
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | |||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | |||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | |||
| Overall length [mm] | 4626 | 4626 | 4626 | |||
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | |||
| Overall height [mm] | 1372 | 1372 | 1372 | |||
| Wheelbase [mm] | 2751 | 2751 | 2751 | |||
| Front wheel track [mm] | 1590 | 1590 | 1590 | |||
| Rear wheel track [mm] | 1577 | 1577 | 1577 | |||
| Forward overhang [mm] | 861 | 861 | 861 | |||
| Rear overhang [mm] | 1014 | 1014 | 1014 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 993 | 993 | 993 | |||
| Headroom rear [mm] | 914 | 914 | 914 | |||
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | |||
| Rear elbow/shoulder width [mm] | 1395/1342 | 1395/1342 | 1395/1342 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Convertible
| 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1798 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 125/3800-6200 | 125/3800-6200 | 130/4000-6200 | 130/4000-6200 | 155/4300-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 320/1400-3700 | 320/1400-3700 | 320/1400-3850 | 320/1400-3850 | 350/1500-4200 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 222 | 213 | 223 | 214 | 241 | 233 |
| Acceleration 0–100 km/h [s] | 8.7 | 8.9 | 8.7 | 8.9 | 7.5 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 7.2 | 8,1-7,5 | 7,8-7,3 | 8,6 | 7.8 |
| Out of town [l] | 5.1 | 5.6 | 5,8-5,1 | 6,0-5,2 | 5,4 | 5.6 |
| Combined [l] | 6.2 | 6.2 | 6,4-5,9 | 6,7-6,0 | 6,6 | 6.4 |
| CO2 emissions [g/km] | 143 | 143 | 154-137 | 154-139 | 154 | 149 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1695 | 1730 | 1695 | 1730 | 1705 | 1735 |
| Overall weight [kg] | 2120 | 2155 | 2120 | 2155 | 2130 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1300 | 750/1500 | 750/1300 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | 1060/1160 | 1085/1165 | 1075/1150 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | -/934 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 63 | 63 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | 0,31 | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI quattro | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI quattro | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 155/4300-6000 | 165/4500-6250 | 165/4500-6250 | 165/4500-6250 | 169/4700-6200 | 169/4700-6200 |
| Maximum torque [Nm/min-1] | 350/1500-4200 | 350/1500-4500 | 350/1500-4500 | 350/1500-4500 | 350/1500-4600 | 350/1500-4600 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 238 | 245 | 235 | 240 | 246 | 236 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.4 | 7.6 | 7.2 | 7.4 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 8.1 | 7.6 | 8.6 | 8,6-8,1 | 8,2-7,7 |
| Out of town [l] | 6.1 | 5.2 | 5.3 | 5.9 | 5,9-5,2 | 5,9-5,4 |
| Combined [l] | 7.2 | 6.3 | 6.2 | 6.9 | 6,9-6,3 | 6,7-6,2 |
| CO2 emissions [g/km] | 164 | 148 | 145 | 159 | 157-144 | 159-144 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1810 | 1705 | 1550 | 1810 | 1705 | 1735 |
| Overall weight [kg] | 2235 | 2130 | 1975 | 2235 | 2130 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1500 | 750/1500 | 750/1700 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1120/1205 | - | - | 1120/1205 | 1075/1150 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | -/934 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 61 | 63 | 63 | 61 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,31 | - | - | - | - | - |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI quattro | 3.0 TFSI quattro | S5 quattro | RS5 quattro | 2.0 TDI | 2.0 TDI clean diesel | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 8/32 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 2995 | 2995 | 4163 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 169/4700-6200 | 200/4780-6500 | 245/5500-6500 | 331/8250 | 110/4200 | 110/3250-4200 |
| Maximum torque [Nm/min-1] | 350/1500-4600 | 400/2150-4780 | 440/2900-5300 | 430/4000-6000 | 320/1750-2500 | 320/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 84,5 x 89,0 | 84,5 x 89,0 | 84,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 11,0:1 | 11,0:1 | 12,5:1 | 16,0:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 241 | 250 | 250 | 250 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.3 | 5.4 | 4.9 | 10.2 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,3-8,6 | 11.2-10,2 | 11.2-10,3 | 14.6 | 5.6 | 5.6 |
| Out of town [l] | 6,6-5,9 | 6.9-6,5 | 6.9-6,5 | 8.5 | 4.2 | 4.2 |
| Combined [l] | 7,6-6,9 | 8.5-7,8 | 8.5-7,9 | 10.7 | 4.7 | 4.7 |
| CO2 emissions [g/km] | 175-160 | 199-181 | 199-184 | 249 | 124 | 123 |
| Emission standard | EU6 | EU5/EU6 | EU5/EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1810 | 1925 | 1955 | 1995 | 1730 | 1785 |
| Overall weight [kg] | 2235 | 2350 | 2380 | 2420 | 2155 | 2210 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1900 | 750/1900 | - | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | 1120/1205 | 1210/1220 | 1230/1240 | 1260/1250 | 1090/1150 | 1120/1175 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | -/934 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 662 | 662 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 61 | 61 | 61 | 61 | 63 | 63 |
| AdBlue tank volume [l] | - | - | - | - | - | 20 |
| Air resistance [Cd] | - | 0,32 | - | 0,34 | 0,31 | 0,31 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 9J x 19 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.5J x18 | 8.5J x18 | 9J x 19 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4640 | 4649 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1860/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1383 | 1383 | 1380 | 1380 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1588 | 1586 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1575 | 1582 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 862 | 873 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1027 | 1025 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI quattro | 2.0 TDI clean diesel | 2.0 TDI clean diesel | 2.0 TDI clean diesel quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 130/4200 | 130/4200 | 130/4200 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 222 | 220 | 221 | 234 | 226 | 231 |
| Acceleration 0–100 km/h [s] | 8.8 | 8.3 | 8.5 | 8,2 | 8,3 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8 | 5.8 | 6.5 | 5,7 | 5,5 | 6,0 |
| Out of town [l] | 4.4 | 4.6 | 4.9 | 4,3 | 4,3 | 4,6 |
| Combined [l] | 4.9 | 5.0 | 5.4 | 4,8 | 4,7 | 5,1 |
| CO2 emissions [g/km] | 127 | 132 | 142 | 125 | 124 | 134 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1730 | 1755 | 1795 | 1785 | 1820 | 1850 |
| Overall weight [kg] | 2155 | 2180 | 2220 | 2210 | 2245 | 2275 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1700 | 750/1700 | 750/1600 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1090/1150 | 1120/1155 | 1105/1205 | - | - | 1130/1230 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | -/934 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 63 | 63 | 61 | 63 | 63 | 61 |
| AdBlue tank volume [l] | - | - | - | 20 | 20 | 20 |
| Air resistance [Cd] | 0,31 | 0,31 | 0,31 | 0,31 | 0,31 | 0,31 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 |
| Rear elbow/shoulder width [mm] | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI | 3.0 TDI quattro | 3.0 TDI quattro | 3.0 TDI quattro | 3.0 TDI clean diesel quattro | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2967 | 2967 | 2967 | 2967 | 2967 | |
| Maximum output / speed [kW/min-1] | 150/3750-4500 | 160/3250-4500 | 180/4000-4500 | 180/4000-4500 | 180/4000-4500 | |
| Maximum torque [Nm/min-1] | 400/1250-3500 | 500/1400-3250 | 500/1400-3250 | 500/1400-3250 | 580/1750-2500 | |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 | |
| Compression ratio | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 1 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
| - |
|
| |
| Top speed [km/h] | 230 | 235 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 7.6 | 6,8 | 5.9 | 6.3 | 6.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.8 | 7,6-7,5 | 7.3 | 7.0 | 7.0 | |
| Out of town [l] | 4.9 | 5,8-5,6 | 4.9 | 5.2 | 5.3 | |
| Combined [l] | 5.2 | 6,5-6,2 | 5.8 | 5.9 | 5.9 | |
| CO2 emissions [g/km] | 138 | 170-164 | 151 | 154 | 155 | |
| Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1835 | 1955 | 1680 | 1920 | 1975 | |
| Overall weight [kg] | 2260 | 2380 | 2105 | 2345 | 2400 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | |
| Maximum front/rear axle load [kg] | 1190/1160 | 1245/1230 | - | - | 1250/1240 | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 63 | 61 | 61 | 61 | 61 | |
| AdBlue tank volume [l] | - | 20 | - | - | 20 | |
| Air resistance [Cd] | 0,31 | - | - | - | 0,31 | |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | |
| Rear suspension | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | double wishbone with stabiliser | |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 | |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | |
| Overall width without/including mirrors [mm] | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | 1854/2020 | |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | |
| Forward overhang [mm] | 861 | 861 | 861 | 861 | 861 | |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | |
| Headroom rear [mm] | 923 | 923 | 923 | 923 | 923 | |
| Front elbow/shoulder width [mm] | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | 1458/1378 | |
| Rear elbow/shoulder width [mm] | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | 1245/1190 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
