Audi A5
Date of manufacture
9/2009 – 2011 (Liftback)
6/2007 – 2011 (Coupé)

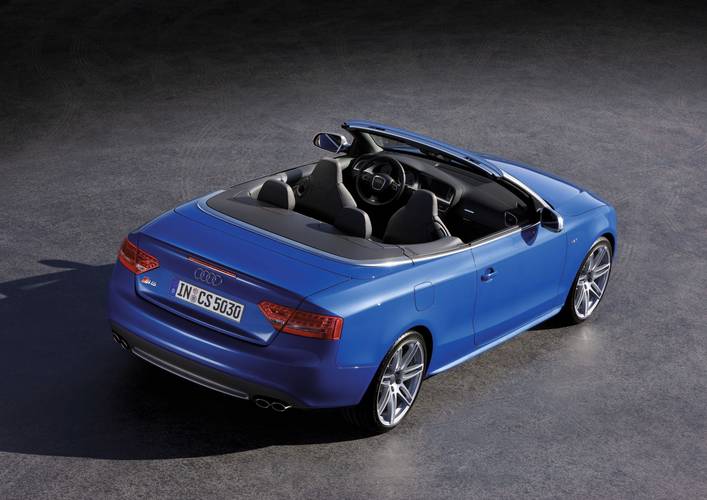

3/2009 – 2011 (Convertible)
Platform
MLB/MLP
Manufacturing locations
Ingolstadt, Germany
Designer
Walter de Silva
Satoshi Wada
Tags
D-segment
German cars
The Audi A5 is available in three body styles - liftback, coupe and cabriolet. The car was first manufactured in 2007 in Germany on the MLB/MLP platform. The engine range includes petrol and diesel engines with a maximum power of 331 kW for the RS5 model, a top speed of 250 km/h and the best acceleration from 0-100 km/h in 4.5 seconds. The 2.0 TDI model has the lowest fuel consumption of 5.1 l/100 km and CO2 emissions of 134 g/km. The size of the luggage compartment varies depending on the body style: 455 l (coupe), 480 l (liftback) and 380 l (cabriolet).
Car body style
Liftback
Date of manufacture
9/2009 – 2011Internal designation
8TCoupé (Sportback)
Date of manufacture
6/2007 – 2011Internal designation
8TTechnical data
Liftback
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 118/4500-6200 | 132/4000-6000 | 132/4000-6000 | 155/4300-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 250/1500-4500 | 320/1500-3900 | 320/1500-3900 | 350/1500-4200 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 223 | 214 | 233 | 222 | 245 | 234 |
| Acceleration 0–100 km/h [s] | 8.9 | 8.9 | 8.1 | 8.6 | 7.1 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6 | 9.4 | 8.4 | 9.5 | 8.4 | 9.5 |
| Out of town [l] | 5.8 | 5.9 | 5.4 | 5.8 | 5.4 | 5.8 |
| Combined [l] | 7.2 | 7.2 | 6.5 | 7.2 | 6.5 | 7.2 |
| CO2 emissions [g/km] | 169 | 169 | 152 | 169 | 152 | 169 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1595 | 1575 | 1600 | 1580 | 1605 |
| Overall weight [kg] | 2020 | 2050 | 2030 | 2055 | 2035 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1300 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4711 | 4711 | 4711 | 4711 | 4711 | 4711 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI | 2.0 TFSI | 3.2 FSI | S5 | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 3197 | 2995 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 155/4300-6000 | 155/4300-6000 | 195/6500 | 245/5500-7000 | 105/4200 | 105/4200 |
| Maximum torque [Nm/min-1] | 350/1500-4200 | 350/1500-4200 | 330/3000-5000 | 440/2900-5300 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 99,5 x 79,0 | 99,5 x 79,0 | 85,5 x 92,8 | 84,5 x 89,1 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 12,5:1 | 11,0:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 1 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 242 | 241 | 250 | 250 | 212 | 205 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.6 | 6.6 | 5.4 | 9.7 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.8 | 9.4 | 13.5 | 13.5 | 6.4 | 7.5 |
| Out of town [l] | 5.9 | 6.4 | 6.8 | 7.0 | 4.5 | 4.8 |
| Combined [l] | 7.3 | 7.5 | 9.3 | 9.4 | 5.2 | 5.8 |
| CO2 emissions [g/km] | 172 | 175 | 216 | 219 | 135 | 152 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1690 | 1725 | 1830 | 1605 | 1630 |
| Overall weight [kg] | 2105 | 2145 | 2180 | 2285 | 2060 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1900 | 750/1900 | 750/1600 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4711 | 4711 | 4711 | 4713 | 4711 | 4711 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1391 | 1391 | 1391 | 1382 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2811 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1588 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1042 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.7 TDI | 2.7 TDI | 3.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 2698 | 2698 | 2967 |
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | 125/4200 | 140/3500-4000 | 140/3500-4000 | 176/4000-4400 |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 400/1400-3500 | 400/1400-3500 | 500/1500-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 83,1 | 83,0 x 83,1 | 83,0 x 91,4 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 228 | 223 | 228 | 235 | 224 | 250 |
| Acceleration 0–100 km/h [s] | 8.7 | 8.6 | 8.2 | 8.2 | 7.9 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 7.0 | 6.9 | 8.1 | 8.0 | 8.9 |
| Out of town [l] | 4.4 | 4.8 | 4.7 | 4.8 | 5.6 | 5.4 |
| Combined [l] | 5.1 | 5.6 | 5.5 | 6.0 | 6.5 | 6.7 |
| CO2 emissions [g/km] | 134 | 147 | 144 | 159 | 169 | 176 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1675 | 1615 | 1695 | 1715 | 1760 |
| Overall weight [kg] | 2045 | 2130 | 2040 | 2150 | 2170 | 2215 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 679 | 679 | 679 | 679 | 679 | 679 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/- | 941/- | 941/- | 941/- | 941/- | 941/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 64 | 64 | 65 | 65 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 | 0,29 |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4711 | 4711 | 4711 | 4711 | 4711 | 4711 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1391 | 1391 | 1391 | 1391 | 1391 | 1391 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- | 1405/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 176/4000-4400 | |||||
| Maximum torque [Nm/min-1] | 500/1500-3000 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 16,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 8.3 | |||||
| Out of town [l] | 5.7 | |||||
| Combined [l] | 6.6 | |||||
| CO2 emissions [g/km] | 174 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1795 | |||||
| Overall weight [kg] | 2250 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 90/- | |||||
| Boot volume [l] | 480 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/980 | |||||
| Boot length [mm] | 1068 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | -/1000 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 679 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 941/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 64 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0,29 | |||||
| Front suspension | five-link | |||||
| Rear suspension | double wishbone | |||||
| Tyre dimensions front | 225/50 R17 | |||||
| Tyre dimensions rear | 225/50 R17 | |||||
| Wheel size front | 7.5J x 17 | |||||
| Wheel size rear | 7.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.5/- | |||||
| Overall length [mm] | 4711 | |||||
| Overall width without/including mirrors [mm] | 1854/- | |||||
| Overall height [mm] | 1391 | |||||
| Wheelbase [mm] | 2810 | |||||
| Front wheel track [mm] | 1590 | |||||
| Rear wheel track [mm] | 1575 | |||||
| Forward overhang [mm] | 860 | |||||
| Rear overhang [mm] | 1041 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1014 | |||||
| Headroom rear [mm] | 947 | |||||
| Front elbow/shoulder width [mm] | 1405/- | |||||
| Rear elbow/shoulder width [mm] | 1374/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé (Sportback)
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 118/4500-6200 | 132/4000-6000 | 132/4000-6000 | 132/4000-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 250/1500-4500 | 320/1500-3900 | 320/1500-3900 | 320/1500-3900 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 226 | 216 | 236 | 236 | 226 | 250 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.6 | 7.8 | 7.8 | 8.1 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5 | 9.4 | 9.0 | 8.3 | 9.4 | 9.0 |
| Out of town [l] | 5.6 | 5.9 | 5.2 | 5.3 | 5.7 | 5.2 |
| Combined [l] | 7.1 | 7.2 | 6.6 | 6.4 | 7.1 | 6.6 |
| CO2 emissions [g/km] | 164 | 169 | 154 | 149 | 167 | 154 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1530 | 1595 | 1505 | 1535 | 1495 |
| Overall weight [kg] | 1920 | 1955 | 1920 | 1930 | 1960 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 740/1300 | 750/1300 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4625 | 4625 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 3.2 FSI | 3.2 FSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 3197 | 3197 |
| Maximum output / speed [kW/min-1] | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 | 195/6500 | 195/6500 |
| Maximum torque [Nm/min-1] | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 | 330/3000-5000 | 330/3000-5000 |
| Bore and stroke [mm x mm] | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 | 85,5 x 92,8 | 85,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 6 gear manual | 7 gear automatic | 1 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 250 | 240 | 246 | 245 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.9 | 6.5 | 6.5 | 6.4 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 9.4 | 9.7 | 9.4 | 11.6 | 13.4 |
| Out of town [l] | 5.3 | 5.7 | 5.8 | 6.4 | 6.2 | 6.7 |
| Combined [l] | 6.4 | 7.1 | 7.3 | 7.5 | 8.2 | 9.1 |
| CO2 emissions [g/km] | 149 | 167 | 169 | 175 | 192 | 214 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4/EU5 | EU4/EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1540 | 1575 | 1625 | 1575 | 1615 |
| Overall weight [kg] | 1930 | 1965 | 2000 | 2050 | 2000 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 65 | 64 | 64 | 65 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4625 | 4625 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.2 FSI | S5 | S5 | RS5 | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 8/32 | 4/16 | 4/16 |
| Engine displacement [cm³] | 3197 | 4163 | 4163 | 4163 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 195/6500 | 260/7000 | 260/7000 | 331/8250 | 125/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 330/3000-5000 | 440/3500 | 440/3500 | 430/4000-6000 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 85,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 84,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 12,5:1 | 11,0:1 | 11,0:1 | 12,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 6.4 | 5.1 | 5.4 | 4.5 | 8.3 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.0 | 18.1 | 15.7 | - | 7.1 | 6.2 |
| Out of town [l] | 6.9 | 8.7 | 7.9 | - | 4.2 | 4.4 |
| Combined [l] | 9.2 | 12.1 | 10.8 | 10.8 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 213 | 288 | 256 | 252 | 139 | 134 |
| Emission standard | EU4/EU5 | EU4 | EU4 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1650 | 1715 | 1750 | - | 1545 | 1550 |
| Overall weight [kg] | 2075 | 2140 | 2175 | - | 1970 | 1975 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | - | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 245/40 R18 | 245/40 R18 | 265/35 R19 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 | 9Jx19 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 | 9Jx19 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4635 | 4635 | - | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | - | 1854/- | 1854/- |
| Overall height [mm] | 1372 | 1369 | 1369 | - | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | - | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1594 | 1594 | - | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1581 | 1581 | - | 1577 | 1577 |
| Forward overhang [mm] | 860 | 860 | 860 | - | 860 | 860 |
| Rear overhang [mm] | 1014 | 1024 | 1024 | - | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.7 TDI | 2.7 TDI | 3.0 TDI | 3.0 TDI | 3.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 2698 | 2698 | 2967 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 125/4200 | 140/3500-4000 | 140/3500-4000 | 176/4000-4400 | 176/4000-4400 | 176/4000-4400 |
| Maximum torque [Nm/min-1] | 350/1750-2500 | 400/1400-3500 | 400/1400-3500 | 500/1500-3000 | 500/1500-3000 | 500/1500-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 83,0 x 83,1 | 83,0 x 83,1 | 83,0 x 91,4 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 16,5:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 228 | 239 | 232 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 7.9 | 7.6 | 5.9 | 6.1 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 8.1 | 7.9 | 8.8 | 8.8 | 8.3 |
| Out of town [l] | 4.9 | 4.8 | 5.5 | 5.3 | 5.9 | 5.7 |
| Combined [l] | 5.9 | 6.0 | 6.4 | 6.6 | 6.9 | 6.6 |
| CO2 emissions [g/km] | 155 | 159 | 167 | 173 | 182 | 174 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1610 | 1625 | 1650 | 1695 | 1725 | 1735 |
| Overall weight [kg] | 2035 | 2050 | 2075 | 2120 | 2150 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1700 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 455 | 455 | 455 | 455 | 455 | 455 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/829 | -/829 | -/829 | -/829 | -/829 | -/829 |
| Boot length [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 954/- | 954/- | 954/- | 954/- | 954/- | 954/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 65 | 65 | 64 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4625 | 4625 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1594 | 1594 | 1594 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- | 1342/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Convertible
| 1.8 TFSI | 1.8 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | 2.0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 118/4500-6200 | 132/4000-6000 | 155/4300-6000 | 155/4300-6000 | 155/4300-6000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 250/1500-4500 | 320/1500-3900 | 350/1500-4200 | 350/1500-4200 | 350/1500-4200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 | 99,5 x 79,0 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 1 gear automatic | 1 gear automatic | 6 gear manual | 1 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 218 | 216 | 219 | 241 | 233 | 238 |
| Acceleration 0–100 km/h [s] | 9.9 | 8.6 | 8.9 | 7.5 | 7.9 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 9.4 | 9.9 | 9.1 | 9.9 | 9.5 |
| Out of town [l] | 5.9 | 5.9 | 6.0 | 5.4 | 6.0 | 6.6 |
| Combined [l] | 7.4 | 7.2 | 7.4 | 6.8 | 7.4 | 7.7 |
| CO2 emissions [g/km] | 172 | 169 | 174 | 159 | 174 | 179 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1685 | 1530 | 1730 | 1705 | 1730 | 1810 |
| Overall weight [kg] | 2110 | 1955 | 2155 | 2130 | 2155 | 2235 |
| Maximum trailer weight unbraked/braked [kg] | 740/1300 | 750/1300 | 750/1500 | 750/1500 | 750/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 934/- | 934/- | 934/- | 934/- | 934/- | 934/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4625 | 4625 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1383 | 1383 | 1383 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1590 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 922 | 922 | 922 | 922 | 922 | 922 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.2 FSI | 3.2 FSI | S5 | 2.0 TDI | 2.7 TDI | 2.7 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 3197 | 3197 | 2995 | 1968 | 2698 | 2698 |
| Maximum output / speed [kW/min-1] | 195/6500 | 195/6500 | 245/5500-7000 | 125/4200 | 140/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 330/3000-5000 | 330/3000-5000 | 440/2900-5300 | 350/1750-2500 | 400/1400-3500 | 400/1400-3500 |
| Bore and stroke [mm x mm] | 85,5 x 92,8 | 85,5 x 92,8 | 84,5 x 89,1 | 81,0 x 95,5 | 83,0 x 83,1 | 83,0 x 83,1 |
| Compression ratio | 12,5:1 | 12,5:1 | 11,0:1 | 16,5:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 1 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 246 | 250 | 250 | 222 | 230 | 222 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.9 | 5.6 | 9.3 | 8.6 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.1 | 13.8 | 13.8 | 6.7 | 8.1 | 7.7 |
| Out of town [l] | 6.5 | 7.0 | 7.3 | 4.7 | 5.2 | 5.8 |
| Combined [l] | 8.6 | 9.5 | 9.7 | 5.5 | 6.2 | 6.5 |
| CO2 emissions [g/km] | 199 | 219 | 224 | 144 | 164 | 169 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1785 | 1860 | 1950 | 1730 | 1835 | 1860 |
| Overall weight [kg] | 2210 | 2285 | 2375 | 2155 | 2260 | 2285 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1900 | 750/1900 | 750/1600 | 750/1600 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | -/750 | -/750 | -/750 | -/750 | -/750 |
| Boot length [mm] | 1066 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 934/- | 934/- | 934/- | 934/- | 934/- | 934/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 665 | 665 | 665 | 665 | 665 | 665 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 952/- | 952/- | 952/- | 952/- | 952/- | 952/- |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 65 | 64 | 64 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 245/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4625 | 4625 | 4635 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- | 1854/- |
| Overall height [mm] | 1383 | 1383 | 1380 | 1383 | 1383 | 1383 |
| Wheelbase [mm] | 2751 | 2751 | 2751 | 2751 | 2751 | 2751 |
| Front wheel track [mm] | 1590 | 1590 | 1588 | 1590 | 1590 | 1590 |
| Rear wheel track [mm] | 1577 | 1577 | 1575 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 1014 | 1014 | 1024 | 1014 | 1014 | 1014 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 922 | 922 | 922 | 922 | 922 | 922 |
| Front elbow/shoulder width [mm] | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- | 1378/- |
| Rear elbow/shoulder width [mm] | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- | 1190/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 176/4000-4400 | |||||
| Maximum torque [Nm/min-1] | 500/1500-3000 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 16,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 247 | |||||
| Acceleration 0–100 km/h [s] | 6.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 8.5 | |||||
| Out of town [l] | 5.8 | |||||
| Combined [l] | 6.8 | |||||
| CO2 emissions [g/km] | 179 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1935 | |||||
| Overall weight [kg] | 2360 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 380 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/750 | |||||
| Boot length [mm] | 1066 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 934/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 665 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 952/- | |||||
| Number of doors | 2 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 64 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | five-link | |||||
| Rear suspension | double wishbone | |||||
| Tyre dimensions front | 225/50 R17 | |||||
| Tyre dimensions rear | 225/50 R17 | |||||
| Wheel size front | 7.5J x 17 | |||||
| Wheel size rear | 7.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 4625 | |||||
| Overall width without/including mirrors [mm] | 1854/- | |||||
| Overall height [mm] | 1383 | |||||
| Wheelbase [mm] | 2751 | |||||
| Front wheel track [mm] | 1594 | |||||
| Rear wheel track [mm] | 1581 | |||||
| Forward overhang [mm] | 860 | |||||
| Rear overhang [mm] | 1014 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1014 | |||||
| Headroom rear [mm] | 922 | |||||
| Front elbow/shoulder width [mm] | 1378/- | |||||
| Rear elbow/shoulder width [mm] | 1190/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
