Audi A4
Date of manufacture
2019 – to this day (Sedan)
2019 – to this day (Estate)
Platform
Volkswagen Group MLBevo
Manufacturing locations
Ingolstadt, Germany
Neckarsulm, Germany
Designer
Frank Rimili
Rüdiger Müller
Tags
D-segment
German cars
The Audi A4 is available in two body styles - sedan and estate. The car was launched in 2019 and is produced in Germany. The Audi A4 is based on the Volkswagen Group MLBevo platform and offers petrol, diesel and hybrid engines. The most powerful model is the RS4 2.9 TFSI quattro with a maximum power output of 331 kW, a top speed of 250 km/h and a 0-100 km/h acceleration time of 4.1 seconds. The most economical model is the 30 TDI 90 kW with a fuel consumption of 4.9 l/100 km and emissions of 128 g/km. The boot capacity of the sedan is 460 l, and of the estate 495 l. The car's safety was tested by EURONCAP 2015 with a rating of 5 out of 5 points.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
B9/8WEngine size
Petrol + ElectricDiesel
Diesel + Electric

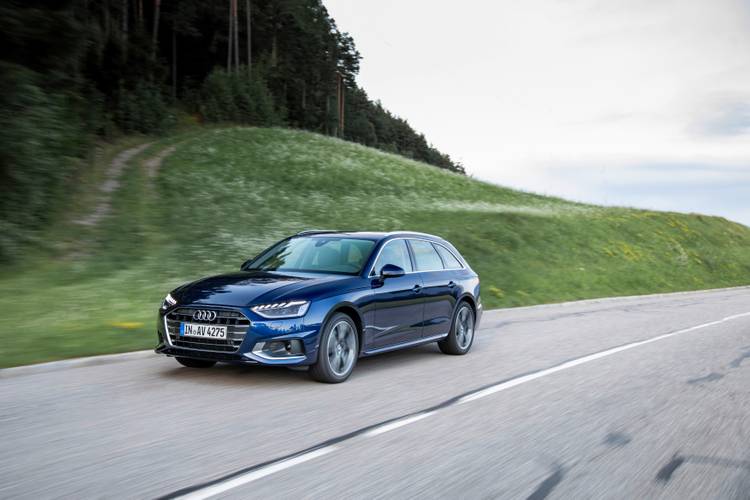

Estate (Avant)
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
B9/8WEngine size
PetrolPetrol + Electric
Diesel
Diesel + Electric
Technical data
Sedan
| 35 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 40 TFSI 140 kW | 40 TFSI 150 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 10/2020 to | - | from 10/2020 to | - | from 10/2020 to |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/3900-6000 | 110/4000-6000 | 110/3900-6000 | 110/4000-6000 | 140/4200-6000 | 150/4475-6000 |
| Maximum torque [Nm/min-1] | 270/1350-3900 | 270/1300-3850 | 270/1350-3900 | 270/1300-3850 | 320/1450-4200 | 320/1450-4475 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82.5 x 92.8 | 82,5 x 92,8 | 82.5 x 92.8 | 82,5 x 92,8 | 82.5 x 92.8 |
| Compression ratio | 11,7:1 | 12.2:1 | 11,7:1 | 12.2:1 | 11,7:1 | 12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 224 | 210 | 225 | 210 | 241 | 210 |
| Acceleration 0–100 km/h [s] | 8,6 | 8.6 | 8,9 | 8.9 | 7,3 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,8-7,4 | 8.0-7.6 | 7,5-7,1 | 7.5-7.2 | 7,7-7,4 | 7.3-7.1 |
| Out of town [l] | 4,9-4,5 | 5.0-4.6 | 5,0-4,6 | 5.0-4.6 | 5,1-4,7 | 5.1-4.8 |
| Combined [l] | 6,0-5,6 | 6.1-5.7 | 5,9-5,5 | 5.9-5.5 | 5,9-5,8 | 5.9-5.6 |
| CO2 emissions [g/km] | 136-127 | 139-130 | 134-125 | 135-126 | 136-132 | 135-128 |
| Low speed [l] | 8,8 | 7,9 | 9,3 | 8,3 | 9,0 | 8,8 |
| Medium speed [l] | 6,6 | 6,2 | 6,6 | 6,3 | 6,7 | 6,5 |
| High speed [l] | 5,6 | 5,2 | 5,6 | 5,2 | 5,8 | 5,2 |
| Extra high speed [l] | 6,3 | 5,8 | 6,1 | 5,8 | 6,4 | 5,9 |
| Combined speed [l] | 6,5 | 6,9-5,9 | 6,5 | 7,0-5,9 | 6,6 | 7,0-6,1 |
| CO2 emissions [g/km] | 147 | 156-134 | 147 | 160-135 | 150 | 160-138 |
| Emission standard | Euro 6d-TEMP | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 70.3 | - | 70.1 | - | 70.1 |
| Driving noise [dB] | - | 68 | - | 69 | - | 68 |
| System voltage [V] | 12 | 12 | 12 | 12 | 12 | 12 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1490 | 1510 | 1515 | 1545 | 1530 | 1560 |
| Overall weight [kg] | 2005 | 2005 | 2035 | 2040 | 2040 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1400 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1030/1060 | 1035/1065 | 1060/1065 | 1065/1070 | 1065/1080 | 1070/1080 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |

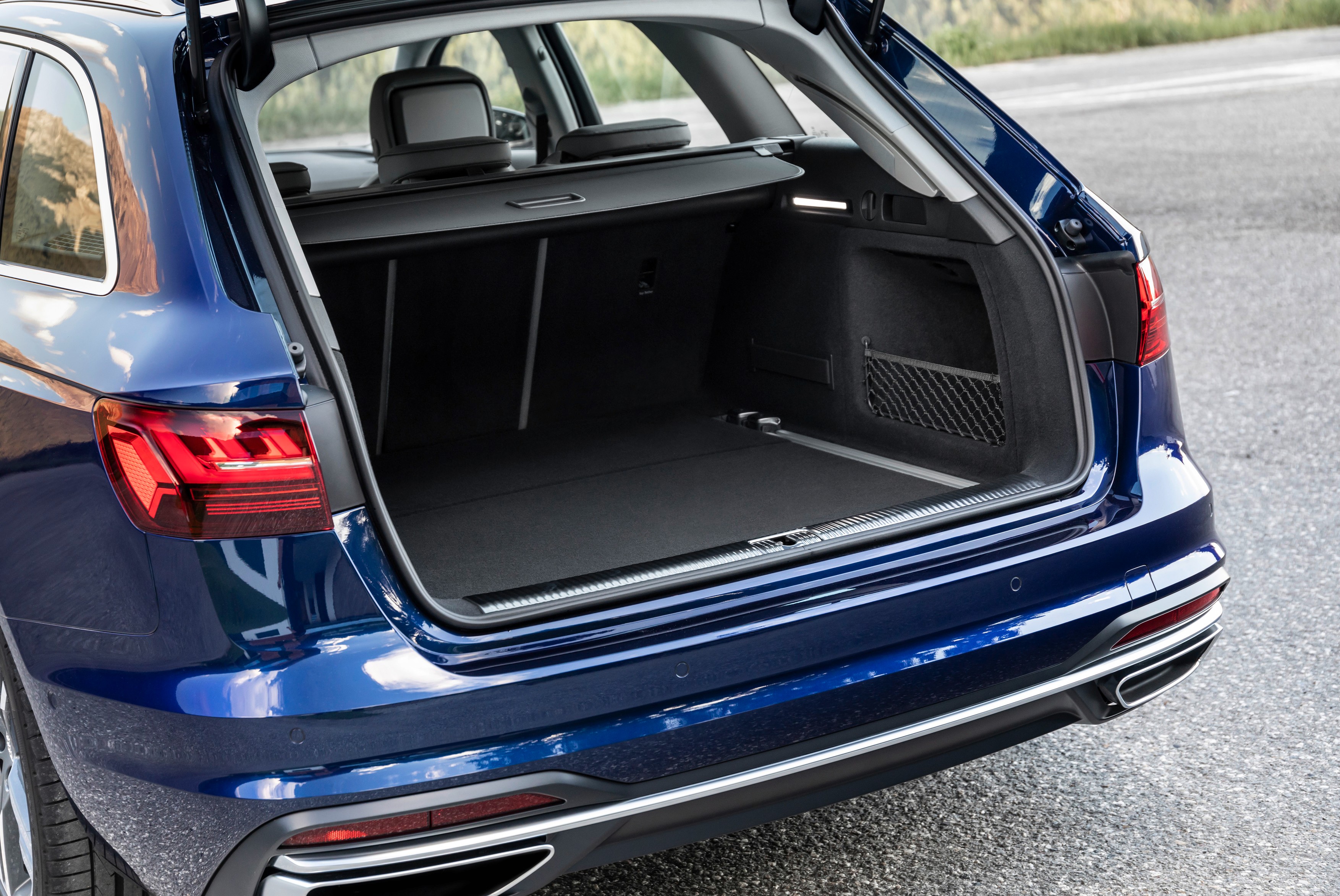

| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,26 | 0.25 | 0,25 | 0,25 | 0.25 | 0.25 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 94Y | 225/50 R17 94Y |
| Tyre dimensions rear | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 225/50 R17 94Y | 225/50 R17 94Y |
| Wheel size front | 7J x 16 | 7.0J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7.0J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1428 | 1431 | 1428 | 1431 | 1428 | 1431 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | 12.50 | - | 12.50 | - | 12.50 |
| Approach angle rear [°] | - | 15.30 | - | 15.30 | - | 15.30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TFSI 150 kW quattro | 45 TFSI 180 kW quattro | 45 TFSI 195 kW quattro | 40 TDI 140 kW | 40 TDI 140 kW quattro | 45 TDI 170 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | - | from 10/2020 to | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1968 | 1968 | 2967 |
| Maximum output / speed [kW/min-1] | 150/4475-6000 | 180/5000-6500 | 195/5250-6500 | 140/3800-4200 | 140/3800-4200 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 320/1450-4475 | 370/1600-4300 | 370/1600-4500 | 400/1750-3000 | 400/1750-3000 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 82.5 x 92.8 | 82,5 x 92,8 | 82.5 x 92.8 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 |
| Compression ratio | 12.2:1 | 9,6:1 | 9.6:1 | 15,5:1 | 15,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210 | 250 | 250 | 241 | 235 | 250 |
| Acceleration 0–100 km/h [s] | 6.7 | 5,8 | 5.5 | 7,7 | 7,4 | 6,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9-7.5 | 8,7-8,3 | 9.2-8.9 | 5,1-4,8 | 5,9-5,6 | 6,9-6,7 |
| Out of town [l] | 5.2-4.8 | 5,6-4,9 | 5.9-5.6 | 4,1-3,8 | 4,8-4,4 | 4,7-4,5 |
| Combined [l] | 6.2-5.8 | 6,7-6,2 | 7.1-6.8 | 4,5-4,2 | 5,2-4,8 | 5,5-5,3 |
| CO2 emissions [g/km] | 141-132 | 153-141 | 163-156 | 118-110 | 137-129 | 144-139 |
| Low speed [l] | 9,1 | 10,5 | 10,9 | 6,2 | 7,4 | - |
| Medium speed [l] | 6,7 | 7,3 | 7,8 | 5,3 | 6,0 | - |
| High speed [l] | 5,4 | 6,3 | 6,5 | 4,6 | 5,0 | - |
| Extra high speed [l] | 6,0 | 7,1 | 7,3 | 5,2 | 5,6 | - |
| Combined speed [l] | 7,1-6,3 | 7,4 | 8,3-7,4 | 5,2 | 5,7 | - |
| CO2 emissions [g/km] | 162-142 | 167 | 189-167 | 135 | 151 | - |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 70 | - | 69.2 | - | - | - |
| Driving noise [dB] | 68 | - | 67 | - | - | - |
| System voltage [V] | 12 | 12 | 12 | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1620 | 1645 | 1565 | 1660 | 1765 |
| Overall weight [kg] | 2140 | 2110 | 2135 | 2100 | 2160 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1700 | 750/1700 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/1140 | 1080/1150 | 1100/1150 | 1100/1080 | 1120/1145 | 1195/1170 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 40 [54 subject to a surcharge] | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 |
| Air resistance [Cd] | 0.25 | 0.27 | 0.27 | 0.25 | 0.25 | 0.27 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94W | 225/50 R17 94Y |
| Tyre dimensions rear | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94W | 225/50 R17 94Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1431 | 1428 | 1431 | 1428 | 1428 | 1428 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.50 | - | 12.50 | - | - | - |
| Approach angle rear [°] | 15.30 | - | 15.30 | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 50 TDI 210 kW quattro | 30 TDI 90 kW | 30 TDI 100 kW | 30 TDI 100 kW | 35 TDI 120 kW | 35 TDI 120 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 10/2020 to | - | from 10/2020 to |
| Engine type | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2967 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 210/3500-4000 | 90/3500-4000 | 100/3000-4400 | 100/3000-4200 | 120/3250-4200 | 120/3250-4200 |
| Maximum torque [Nm/min-1] | 620/2250-3000 | 270/1500-3000 | 320/1500-2750 | 320/1500-2750 | 380/1500-2750 | 370/1500-3000 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 81,0 x 95,5 | 81,0 x 95,5 | 81.0 x 95.5 | 81,0 x 95,5 | 81.0 x 95.5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16.0:1 | 16,0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 250 | 205 | 214 | 210 | 228 | 210 |
| Acceleration 0–100 km/h [s] | 5,2 | 10,9 | 9,5 | 9.5 | 8,2 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,1-6,8 | 5,0-4,8 | 4,6-4,3 | 5.2-5.0 | 4,5-4,2 | 5.1-4.9 |
| Out of town [l] | 5,3-4,9 | 3,9-3,6 | 3,9-3,5 | 3.8-3.5 | 3,8-3,4 | 3.7-3.4 |
| Combined [l] | 6,0-5,6 | 4,3-4,0 | 4,2-3,8 | 4.3-4.0 | 4,1-3,7 | 4.3-4.0 |
| CO2 emissions [g/km] | 157-148 | 114-106 | 109-100 | 114-106 | 106-98 | 112-104 |
| Low speed [l] | 9,5 | 6,1 | 6,1 | 6,2 | 6,2 | 6,3 |
| Medium speed [l] | 7,1 | 5,0 | 5,2 | 4,6 | 5,2 | 4,6 |
| High speed [l] | 5,9 | 4,3 | 4,3 | 3,9 | 4,3 | 4,0 |
| Extra high speed [l] | 6,7 | 4,9 | 5,0 | 4,6 | 5,0 | 4,6 |
| Combined speed [l] | 6,9 | 4,9 | 5,0 | 5,4-4,5 | 5,0 | 5,4-4,6 |
| CO2 emissions [g/km] | 181 | 128 | 131 | 141-119 | 131 | 142-119 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | 74.3 | - | 71.6 |
| Driving noise [dB] | - | - | - | 68 | - | 68 |
| System voltage [V] | - | 12 | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1765 | 1505 | 1565 | 1550 | 1570 | 1560 |
| Overall weight [kg] | 2295 | 2060 | 2090 | 2090 | 2095 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1300 | 750/1500 | 750/1500 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | 1080/1100 | 1080/1100 | 1080/1100 | 1080/1100 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | 985/- | 985/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] |
| AdBlue tank volume [l] | 12 | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Tyre dimensions rear | 225/50 R17 | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Wheel size front | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1428 | 1428 | 1428 | 1431 | 1428 | 1431 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | 12.50 | - | 12.50 |
| Approach angle rear [°] | - | - | - | 15.30 | - | 15.30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TDI 150 kW | 40 TDI 150 kW quattro | 50 TDI 210 kW quattro | S4 TDI 255 kW quattro | |||
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | from 10/2020 to | from 10/2020 to | - | ||
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | ||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 1968 | 1968 | 2967 | 2967 | ||
| Maximum output / speed [kW/min-1] | 150/3800-4200 | 150/3800-4200 | 210/3500-4000 | 255/3850 | ||
| Maximum torque [Nm/min-1] | 400/1750-3250 | 400/1750-3250 | 620/1750-3000 | 700/2500-3100 | ||
| Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | 83.0 x 91.4 | 83,0 x 91,4 | ||
| Compression ratio | 15.5:1 | 15.5:1 | 16.3:1 | 15,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 210 | 210 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 7.4 | 6.9 | 5,2 | 4,8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.5-5.3 | 5.6-5.4 | 8.0-7.6 | 7,2 | ||
| Out of town [l] | 4.4-4.0 | 4.3-3.9 | 5.1-4.8 | 5,5 | ||
| Combined [l] | 4.8-4.5 | 4.8-4.5 | 6.2-5.9 | 6,1 | ||
| CO2 emissions [g/km] | 126-118 | 126-118 | 162-154 | 160 | ||
| Low speed [l] | 6,6 | 6,8 | 10,3 | 9,1 | ||
| Medium speed [l] | 5,1 | 5,2 | 7,3 | 7,1 | ||
| High speed [l] | 4,3 | 4,4 | 5,5 | 5,8 | ||
| Extra high speed [l] | 5,1 | 5,2 | 6,0 | 6,8 | ||
| Combined speed [l] | 5,8-5,0 | 5,8-5,1 | 7,2-6,4 | 6,9 | ||
| CO2 emissions [g/km] | 152-131 | 152-133 | 188-168 | 180 | ||
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | 71.6 | 70.4 | 72.5 | - | ||
| Driving noise [dB] | 68 | 68 | 68 | - | ||
| System voltage [V] | 12 | 12 | 48 | 48 | ||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 0.5 kWh | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1575 | 1665 | 1825 | 1860 | ||
| Overall weight [kg] | 2100 | 2160 | 2320 | 2315 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1800 | 750/1900 | 750/1900 | ||
| Maximum front/rear axle load [kg] | 1100/1100 | 1120/1165 | 1220/1185 | 1240/1215 | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | ||
| Boot volume [l] | 460 | 460 | 460 | 420 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 1080 | 1080 | 1080 | 1080 | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 684 | 684 | 684 | 657 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | 985/- | 985/- | 985/- | 985/- | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 58 | 58 | 58 | ||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | ||
| Air resistance [Cd] | 0.25 | 0.25 | 0.26 | 0.28 | ||
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | ||
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | ||
| Tyre dimensions front | 225/50 R17 94Y | 225/50 R17 94W | 225/50 R17 | 245/40 R 18 97 Y XL | ||
| Tyre dimensions rear | 225/50 R17 94Y | 225/50 R17 94W | 225/50 R17 | 245/40 R 18 97 Y XL | ||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8,0J x 18 | ||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8,0J x 18 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,9/- | ||
| Overall length [mm] | 4762 | 4762 | 4762 | 4770 | ||
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | ||
| Overall height [mm] | 1431 | 1431 | 1431 | 1404 | ||
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2825 | ||
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1565 | ||
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1546 | ||
| Forward overhang [mm] | 899 | 899 | 899 | 906 | ||
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1039 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 12.50 | 12.50 | 12.50 | - | ||
| Approach angle rear [°] | 15.30 | 15.30 | 15.30 | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | ||
| Headroom rear [mm] | 953 | 953 | 953 | 953 | ||
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | ||
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

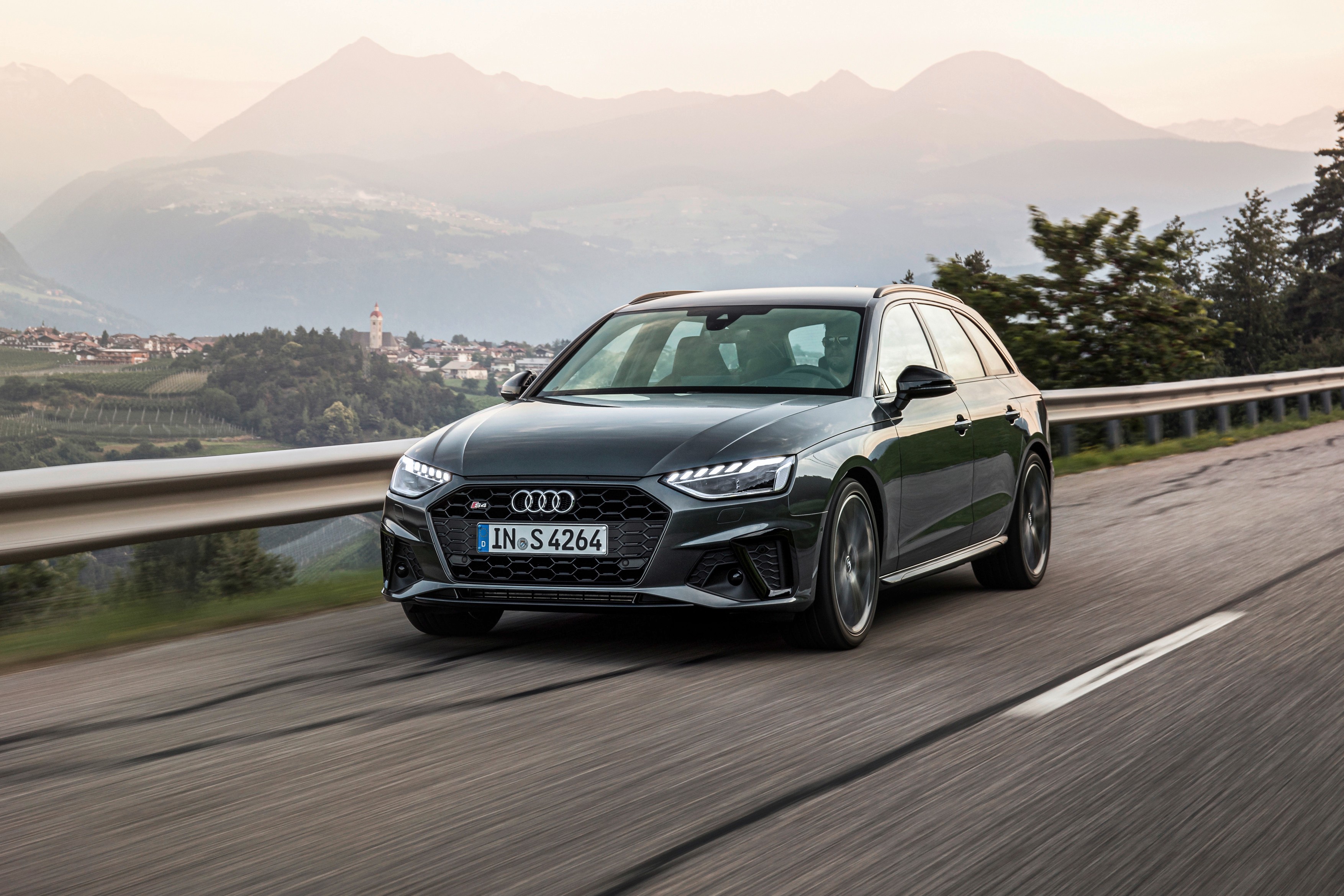

Estate (Avant)
| RS4 2.9 TFSI 331 kW quattro | 40 g-tron 125 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 10/2020 to | - | from 10/2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2894 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 331/5700-6700 | 125/4450-6000 | 110/3900-6000 | 110/4000-6000 | 110/3900-6000 | 110/4000-6000 |
| Maximum torque [Nm/min-1] | 600/1900-5000 | 270/1650-4400 | 270/1350-3900 | 270/1300-3850 | 270/1350-3900 | 270/1300-3850 |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82.5 x 92.8 | 82,5 x 92,8 | 82.5 x 92.8 |
| Compression ratio | 10,0:1 | 12,6:1 | 11,7:1 | 12.2:1 | 11,7:1 | 12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - | - |
|
|
| Top speed [km/h] | 250 | 221 | 219 | 210 | 220 | 210 |
| Acceleration 0–100 km/h [s] | 4,1 | 8,4 | 8,9 | 8.6 | 9,2 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,2 | - [5,3-5,0 kg] | 7,8-7,5 | 8.0-7.7 | 7,5-7,1 | 7.5-7.2 |
| Out of town [l] | 7,5 | - [3,5-3,1 kg] | 5,0-4,6 | 5.1-4.7 | 5,1-4,7 | 5.1-4.7 |
| Combined [l] | 9,2 | - [4,1-3,9 kg] | 6,0-5,7 | 6.2-5.8 | 6,0-5,6 | 6.0-5.6 |
| CO2 emissions [g/km] | 210 | - [113-105 CNG] | 138-129 | 141-132 | 136-127 | 137-129 |
| Low speed [l] | 14,1 | - [6,5 kg] | 8,9 | 8,1 | 9,4 | 8,4 |
| Medium speed [l] | 10,0 | - [4,5 kg] | 6,8 | 6,4 | 6,8 | 6,5 |
| High speed [l] | 8,2 | - [3,9 kg] | 5,8 | 5,4 | 5,8 | 5,5 |
| Extra high speed [l] | 8,9 | - [4,3 kg] | 6,6 | 6,1 | 6,4 | 6,1 |
| Combined speed [l] | 9,6 | - [4,5 kg] | 6,7 | 7,1-6,1 | 6,7 | 7,3-6,2 |
| CO2 emissions [g/km] | 218 | - [123 CNG] | 152 | 161-138 | 152 | 165-141 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-ISCFCM | Euro 6d-TEMP | Euro 6d-ISCFCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | 70.3 | - | 70.7 |
| Driving noise [dB] | - | - | - | 68 | - | 69 |
| System voltage [V] | - | - | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1820 | 1665 | 1540 | 1560 | 1575 | 1595 |
| Overall weight [kg] | 2350 | 2140 | 2070 | 2085 | 2100 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1500 | 740/1400 | 750/1400 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1235/1235 | - | 1030/1145 | 1035/1145 | 1065/1145 | 1065/1150 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 495 | 415 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1510 | -/1415 | -/1495 | -/1495 | -/1495 | -/1495 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 600 | 630 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | - [17,3 kg] | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | 0,28 | 0,28 | 0,28 | 0,28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 265/35 ZR 19 98 Y XL | 205/60 R16 | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Tyre dimensions rear | 265/35 ZR 19 98 Y XL | 205/60 R16 | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Wheel size front | 9,0J x 19 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 9,0J x 19 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4782 | 4762 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1866/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1414 | 1435 | 1435 | 1460 | 1435 | 1460 |
| Wheelbase [mm] | 2826 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1580 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1575 | 1555 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 918 | 899 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 1038 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17,0 | 12,5 | 12,5 | 12,5 | 12,5 | 12,5 |
| Approach angle rear [°] | 12,6 | 15,3 | 15,3 | 15,3 | 15,3 | 15,3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - |   | - | - | - | - |
| Clean Air Index | - | 4.0/10 | - | - | - | - |
| Energy Efficiency Index | - | 3.0/10 | - | - | - | - |
| GHG index | - | - | - | - | - | - |
| 40 TFSI 140 kW | 40 TFSI 150 kW | 40 TFSI 150 kW quattro | 45 TFSI 180 kW quattro | 45 TFSI 180 kW allroad quattro | 45 TFSI 195 kW quattro | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 10/2020 to | from 10/2020 to | - | - | from 10/2020 to |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 150/4475-6000 | 150/4475-6000 | 180/5000-6500 | 180/5000-6500 | 195/5250-6500 |
| Maximum torque [Nm/min-1] | 320/1450-4200 | 320/1450-4475 | 320/1450-4475 | 370/1600-4300 | 370/1600-4300 | 370/1600-4500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82.5 x 92.8 | 82.5 x 92.8 | 82,5 x 92,8 | 82,5 x 92,8 | 82.5 x 92.8 |
| Compression ratio | 11,7:1 | 12.2:1 | 12.2:1 | 9,6:1 | 9,6:1 | 9.6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 238 | 210 | 210 | 250 | 247 | 250 |
| Acceleration 0–100 km/h [s] | 7,5 | 7.3 | 6.9 | 6,0 | 6,1 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,4 | 7.4-7.1 | 7.9-7.6 | 8,7-8,3 | 8,6-8,4 | 9.2-9.0 |
| Out of town [l] | 5,2-4,8 | 5.3-4.9 | 5.4-4.9 | 5,7-5,1 | 5,8-5,5 | 6.1-5.7 |
| Combined [l] | 6,0-5,8 | 6.0-5.7 | 6.3-5.9 | 6,8-6,3 | 6,8-6,6 | 7.2-6.9 |
| CO2 emissions [g/km] | 137-133 | 138-130 | 144-134 | 155-142 | 155-150 | 166-157 |
| Low speed [l] | 9,1 | 8,9 | 9,2 | 10,5 | 10,8 | 11,0 |
| Medium speed [l] | 6,9 | 6,7 | 6,8 | 7,4 | 7,8 | 8,0 |
| High speed [l] | 5,9 | 5,4 | 5,5 | 6,5 | 6,6 | 6,6 |
| Extra high speed [l] | 6,6 | 6,2 | 6,2 | 7,4 | 7,7 | 7,6 |
| Combined speed [l] | 6,8 | 7,3-6,3 | 7,4-6,4 | 7,5 | 7,8 | 8,6-7,6 |
| CO2 emissions [g/km] | 154 | 165-143 | 168-146 | 170 | 177 | 195-172 |
| Emission standard | Euro 6d-TEMP | Euro 6d-ISCFCM | Euro 6d-ISCFCM | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-ISCFCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | 70.1 | 70 | - | - | 69.2 |
| Driving noise [dB] | - | 68 | 68 | - | - | 67 |
| System voltage [V] | 12 | 12 | 12 | 12 | 12 | 12 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1585 | 1610 | 1675 | 1665 | 1690 | 1685 |
| Overall weight [kg] | 2115 | 2140 | 2200 | 2175 | 2200 | 2195 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1700 | 750/1700 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1070/1160 | 1075/1155 | 1090/1205 | 1085/1200 | 1085/1215 | 1105/1205 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 663 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.29 | 0.32 | 0,28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 94Y |
| Tyre dimensions rear | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 94Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,6/- | 11,7/- | 11,6/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4762 | 4750 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1842/2022 | 1847/2022 |
| Overall height [mm] | 1435 | 1460 | 1460 | 1435 | 1493 | 1460 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2820 | 2818 | 2820 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1578 | 1572 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1555 | 1566 | 1555 |
| Forward overhang [mm] | 899 | 899 | 899 | 899 | 894 | 899 |
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1043 | 1038 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,5 | 12,5 | 12,5 | 12,5 | 14,7 | 12,5 |
| Approach angle rear [°] | 15,3 | 15,3 | 15,3 | 15,3 | 16,8 | 15,3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 45 TFSI 195 kW allroad quattro | 40 TDI 140 kW | 40 TDI 140 kW quattro | 40 TDI 140 kW allroad quattro | 45 TDI 170 kW quattro | 45 TDI 170 kW allroad quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1984 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 195/5250-6500 | 140/3800-4200 | 140/3800-4200 | 140/3800-4200 | 170/3250-4750 | 170/3250-4750 |
| Maximum torque [Nm/min-1] | 370/1600-4500 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 500/1750-3250 | 500/1750-3250 |
| Bore and stroke [mm x mm] | 82.5 x 92.8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 83,0 x 91,4 | 83,0 x 91,4 |
| Compression ratio | 9.6:1 | 15,5:1 | 15,5:1 | 15,5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 231 | 230 | 220 | 249 | 241 |
| Acceleration 0–100 km/h [s] | 5.8 | 7,9 | 7,6 | 7,9 | 6,1 | 6,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3-9.1 | 5,1-4,7 | 5,9-5,7 | 5,7-5,6 | 6,9-6,7 | 7,2-7,0 |
| Out of town [l] | 6.2-6.0 | 4,3-3,9 | 4,9-4,5 | 4,9-4,7 | 4,8-4,5 | 5,5-5,4 |
| Combined [l] | 7.3-7.2 | 4,6-4,2 | 5,3-4,9 | 5,2-5,0 | 5,6-5,3 | 6,1-6,0 |
| CO2 emissions [g/km] | 168-164 | 120-111 | 137-131 | 137-132 | 145-140 | 161-157 |
| Low speed [l] | 11,1 | 6,3 | 7,4 | 7,6 | - | - |
| Medium speed [l] | 8,1 | 5,4 | 6,1 | 6,3 | - | - |
| High speed [l] | 6,8 | 4,7 | 5,2 | 5,6 | - | - |
| Extra high speed [l] | 7,9 | 5,4 | 5,8 | 6,4 | - | - |
| Combined speed [l] | 8,6-8,0 | 5,3 | 5,9 | 6,3 | - | - |
| CO2 emissions [g/km] | 194-182 | 138 | 154 | 165 | - | - |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 69.2 | - | - | - | - | - |
| Driving noise [dB] | 67 | - | - | - | - | - |
| System voltage [V] | 12 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1705 | 1615 | 1700 | 1720 | 1805 | 1830 |
| Overall weight [kg] | 2220 | 2170 | 2230 | 2250 | 2320 | 2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1105/1220 | 1100/1155 | 1120/1215 | 1125/1225 | 1195/1230 | 1200/1240 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 663 | 630 | 630 | 663 | 630 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 40 [54 subject to a surcharge] | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 | 12 |
| Air resistance [Cd] | 0.32 | 0.28 | 0.28 | 0.32 | 0.29 | 0,32 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/55 R 17 97 Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 94Y | 225/55 R 17 97 Y |
| Tyre dimensions rear | 225/55 R 17 97 Y | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 94Y | 225/55 R 17 97 Y |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,7/- | 11,6/- | 11,6/- | 11,7/- | 11,6/- | 11,7/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4750 | 4762 | 4750 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1842/2022 | 1847/2022 | 1842/2022 |
| Overall height [mm] | 1493 | 1435 | 1435 | 1493 | 1435 | 1493 |
| Wheelbase [mm] | 2818 | 2820 | 2820 | 2818 | 2820 | 2818 |
| Front wheel track [mm] | 1578 | 1572 | 1572 | 1578 | 1572 | 1578 |
| Rear wheel track [mm] | 1566 | 1555 | 1555 | 1566 | 1555 | 1566 |
| Forward overhang [mm] | 894 | 899 | 899 | 894 | 899 | 894 |
| Rear overhang [mm] | 1038 | 1043 | 1043 | 1038 | 1043 | 1038 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14,7 | 12,5 | 12,5 | 14,7 | 12,5 | 14,7 |
| Approach angle rear [°] | 16,8 | 15,3 | 15,3 | 16,8 | 15,3 | 16,8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 50 TDI 210 kW quattro | 50 TDI 210 kW allroad quattro | 30 TDI 90 kW | 30 TDI 100 kW | 30 TDI 100 kW | 35 TDI 120 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 10/2020 to | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2967 | 2967 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 210/3500-4000 | 210/3500-4000 | 90/3500-4000 | 100/3000-4400 | 100/3000-4200 | 120/3250-4200 |
| Maximum torque [Nm/min-1] | 620/2250-3000 | 620/2250-3000 | 270/1500-3000 | 320/1500-2750 | 320/1500-2750 | 380/1500-2750 |
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 91,4 | 81,0 x 95,5 | 81,0 x 95,5 | 81.0 x 95.5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16.0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 250 | 250 | 200 | 211 | 210 | 223 |
| Acceleration 0–100 km/h [s] | 5,3 | 5,3 | 11,3 | 9,8 | 9.8 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,2-6,8 | 7,3-7,1 | 5,1-4,8 | 4,7-4,4 | 5.3-5.0 | 4,5-4,3 |
| Out of town [l] | 5,4-5,0 | 5,7-5,5 | 4,0-3,7 | 4,0-3,6 | 4.0-3.6 | 3,8-3,5 |
| Combined [l] | 6,1-5,7 | 6,3-6,1 | 4,4-4,1 | 4,3-3,9 | 4.4-4.1 | 4,1-3,8 |
| CO2 emissions [g/km] | 160-150 | 164-160 | 115-108 | 111-102 | 117-109 | 108-100 |
| Low speed [l] | 9,6 | 10,1 | 6,1 | 6,2 | 6,3 | 6,3 |
| Medium speed [l] | 7,2 | 7,1 | 5,0 | 5,3 | 4,7 | 5,3 |
| High speed [l] | 6,1 | 6,2 | 4,3 | 4,5 | 4,1 | 4,5 |
| Extra high speed [l] | 7,0 | 7,2 | 4,9 | 5,3 | 4,9 | 5,3 |
| Combined speed [l] | 7,1 | 7,3 | 4,9 | 5,2 | 5,6-4,7 | 5,2 |
| CO2 emissions [g/km] | 186 | 190 | 128 | 135 | 146-124 | 135 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-ISCFCM | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | 74.3 | - |
| Driving noise [dB] | - | - | - | - | 68 | - |
| System voltage [V] | - | - | 12 | 12 | 12 | 12 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1805 | 1830 | 1550 | 1610 | 1595 | 1615 |
| Overall weight [kg] | 2355 | 2370 | 2125 | 2160 | 2160 | 2165 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1300 | 750/1500 | 750/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | 1085/1175 | 1085/1175 | 1085/1175 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 663 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] |
| AdBlue tank volume [l] | 12 | 12 | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] |
| Air resistance [Cd] | - | 0,32 | 0.28 | 0.28 | 0,27 | 0.28 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 225/50 R17 | 225/55 R 17 97 Y | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Tyre dimensions rear | 225/50 R17 | 225/55 R 17 97 Y | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W | 205/60 R16 92W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,7/- | 11,6/- | 11,6/- | 11,6/- | 11,6/- |
| Overall length [mm] | 4762 | 4750 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1842/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1435 | 1493 | 1435 | 1435 | 1460 | 1435 |
| Wheelbase [mm] | 2820 | 2818 | 2820 | 2820 | 2820 | 2820 |
| Front wheel track [mm] | 1572 | 1578 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1555 | 1566 | 1555 | 1555 | 1555 | 1555 |
| Forward overhang [mm] | 899 | 894 | 899 | 899 | 899 | 899 |
| Rear overhang [mm] | 1043 | 1038 | 1043 | 1043 | 1043 | 1043 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,5 | 14,7 | 12,5 | 12,5 | 12,5 | 12,5 |
| Approach angle rear [°] | 15,3 | 16,8 | 15,3 | 15,3 | 15,3 | 15,3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 35 TDI 120 kW | 40 TDI 150 kW | 40 TDI 150 kW quattro | 40 TDI 150 kW allroad quattro | 50 TDI 210 kW quattro | 50 TDI 210 kW allroad quattro | |
|---|---|---|---|---|---|---|
| Date of sale | from 10/2020 to | from 10/2020 to | from 10/2020 to | from 10/2020 to | from 10/2020 to | from 10/2020 to |
| Engine type | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric | Diesel supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 2967 | 2967 |
| Maximum output / speed [kW/min-1] | 120/3250-4200 | 150/3800-4200 | 150/3800-4200 | 150/3800-4200 | 210/3500-4000 | 210/3500-4000 |
| Maximum torque [Nm/min-1] | 370/1500-3000 | 400/1750-3250 | 400/1750-3250 | 400/1750-3250 | 620/1750-3000 | 620/1750-3000 |
| Bore and stroke [mm x mm] | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 81.0 x 95.5 | 83.0 x 91.4 | 83.0 x 91.4 |
| Compression ratio | 16.0:1 | 15.5:1 | 15.5:1 | 15.5:1 | 16.3:1 | 16.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210 | 210 | 210 | 232 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.5 | 7.6 | 7,1 | 7.3 | 5,3 | 5,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2-4.9 | 5.6-5.4 | 5,7-5,4 | 5.7-5.6 | 8.2-7.8 | 8.3-8.1 |
| Out of town [l] | 3.9-3.5 | 4.6-4.2 | 4,4-4,0 | 4.5-4.3 | 5.3-5.0 | 5.3-5.2 |
| Combined [l] | 4.3-4.0 | 5.0-4.7 | 4,9-4,5 | 4.9-4.8 | 6.3-6.0 | 6.4-6.3 |
| CO2 emissions [g/km] | 114-106 | 131-123 | 128-120 | 130-126 | 167-158 | 168-165 |
| Low speed [l] | 6,4 | 6,7 | 6,8 | 6,9 | 10,3 | 10,2 |
| Medium speed [l] | 4,7 | 5,3 | 5,3 | 5,5 | 7,5 | 7,6 |
| High speed [l] | 4,2 | 4,5 | 4,5 | 4,8 | 5,7 | 5,8 |
| Extra high speed [l] | 4,9 | 5,3 | 5,4 | 5,8 | 6,3 | 6,5 |
| Combined speed [l] | 5,6-4,8 | 6,0-5,2 | 6,0-5,2 | 6,0-5,6 | 7,4-6,6 | 7,4-7,0 |
| CO2 emissions [g/km] | 147-125 | 157-136 | 157-137 | 157-146 | 193-174 | 193-183 |
| Emission standard | Euro 6d-ISCFCM | Euro 6d-ISCFCM | Euro 6d-ISCFCM | Euro 6d-ISC-FCM | Euro 6d-ISCFCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 72.6 | 71.6 | - | 70.4 | 72.5 | 72.5 |
| Driving noise [dB] | 68 | 68 | - | 68 | 68 | 68 |
| System voltage [V] | 12 | 12 | 12 | 12 | 48 | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1625 | 1700 | 1720 | 1860 | 1885 |
| Overall weight [kg] | 2165 | 2175 | 2230 | 2250 | 2385 | 2385 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 750/1800 | 750/1800 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | 1085/1175 | 1100/1175 | - | 1125/1235 | 1220/1250 | 1225/1250 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 | -/1495 |
| Boot length [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 630 | 663 | 630 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Boot opening width min/max [mm] | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- | 1001/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 [54 subject to a surcharge] | 40 [54 subject to a surcharge] | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 [24 subject to a surcharge] | 12 | 12 |
| Air resistance [Cd] | 0,27 | 0,27 | 0,27 | 0.32 | 0.28 | 0.32 |
| Front suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Rear suspension | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar | five-link, stabiliser bar |
| Tyre dimensions front | 205/60 R16 92W | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 | 225/55 R 17 97 Y |
| Tyre dimensions rear | 205/60 R16 92W | 225/50 R17 94Y | 225/50 R17 94Y | 225/55 R 17 97 Y | 225/50 R17 | 225/55 R 17 97 Y |
| Wheel size front | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,6/- | 11,6/- | 11,6/- | 11,7/- | 11,6/- | 11,7/- |
| Overall length [mm] | 4762 | 4762 | 4762 | 4762 | 4762 | 4762 |
| Overall width without/including mirrors [mm] | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 | 1847/2022 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1493 | 1460 | 1493 |
| Wheelbase [mm] | 2820 | 2820 | 2820 | 2818 | 2820 | 2818 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1578 | 1572 | 1578 |
| Rear wheel track [mm] | 1555 | 1555 | 1555 | 1566 | 1555 | 1566 |
| Forward overhang [mm] | 899 | 899 | 899 | 894 | 899 | 894 |
| Rear overhang [mm] | 1043 | 1043 | 1043 | 1038 | 1043 | 1038 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12,5 | 12,5 | 12,5 | 14,7 | 12,5 | 14,7 |
| Approach angle rear [°] | 15,3 | 15,3 | 15,3 | 16,8 | 15,3 | 16,8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 | 1476/1421 |
| Rear elbow/shoulder width [mm] | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 | 1446/1384 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S4 TDI 255 kW quattro | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2967 | |||||
| Maximum output / speed [kW/min-1] | 255/3850 | |||||
| Maximum torque [Nm/min-1] | 700/2500-3100 | |||||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4,9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,2 | |||||
| Out of town [l] | 5,5 | |||||
| Combined [l] | 6,1 | |||||
| CO2 emissions [g/km] | 160 | |||||
| Low speed [l] | 9,2 | |||||
| Medium speed [l] | 7,2 | |||||
| High speed [l] | 6,0 | |||||
| Extra high speed [l] | 7,0 | |||||
| Combined speed [l] | 7,0 | |||||
| CO2 emissions [g/km] | 184 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.5 kWh | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 1900 | |||||
| Overall weight [kg] | 2375 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | 1240/1250 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 90/- | |||||
| Boot volume [l] | 420 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1435 | |||||
| Boot length [mm] | 1050 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 630 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 603 | |||||
| Boot opening width min/max [mm] | 1001/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 58 | |||||
| AdBlue tank volume [l] | 12 [24 subject to a surcharge] | |||||
| Air resistance [Cd] | 0.31 | |||||
| Front suspension | five-link, stabiliser bar | |||||
| Rear suspension | five-link, stabiliser bar | |||||
| Tyre dimensions front | 245/40 R 18 97 Y XL | |||||
| Tyre dimensions rear | 245/40 R 18 97 Y XL | |||||
| Wheel size front | 8,0J x 18 | |||||
| Wheel size rear | 8,0J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11,9/- | |||||
| Overall length [mm] | 4770 | |||||
| Overall width without/including mirrors [mm] | 1847/2022 | |||||
| Overall height [mm] | 1408 | |||||
| Wheelbase [mm] | 2825 | |||||
| Front wheel track [mm] | 1565 | |||||
| Rear wheel track [mm] | 1546 | |||||
| Forward overhang [mm] | 906 | |||||
| Rear overhang [mm] | 1039 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1039 | |||||
| Headroom rear [mm] | 971 | |||||
| Front elbow/shoulder width [mm] | 1476/1421 | |||||
| Rear elbow/shoulder width [mm] | 1446/1384 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
