Audi A3
Date of manufacture
3/2020 – to this day (Five-door hatchback)
4/2020 – to this day (Sedan)
Platform
Volkswagen Group MQB platform
Manufacturing locations
Ingolstadt, Germany
Designer
-
Tags
C-segment
German cars
The Audi A3 is available as a five-door hatchback and sedan. The vehicle was developed on the Volkswagen Group MQB platform and has been manufactured in Germany since 2020. The engine range includes petrol, diesel and hybrid engines. The most powerful model is the S3 TFSI 228 kW with 228 kW of power, the fastest model reaches a top speed of 250 km/h and the best acceleration from 0-100 km/h is 4.8 seconds. The most economical model 40 TFSI e 150 kW consumes 1.4 l/100 km and emits 34 g/km CO2. The five-door hatchback offers 380 l of luggage capacity, the sedan 425 l. The Audi A3 underwent EURONCAP safety tests in 2020 and received a rating of 5 out of 5.
Car body style
Five-door hatchback (Sportback)
Date of manufacture
3/2020 – to this dayInternal designation
8YEngine size
Sedan
Date of manufacture
4/2020 – to this dayInternal designation
8YEngine size
Technical data
Five-door hatchback (Sportback)
| 30 TFSI 81 kW | 30 TFSI 81 kW | 35 TFSI 110 kW | 30 g-tron 96 kW | S3 TFSI 228 kW | 35 TFSI 110 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 10/2020 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1984 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 110/5000-6000 | 96/5000-6000 | 228/5450-6500 | 110/5000-6000 9 el. |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 250/1500-3500 | 200/1400-4000 | 400/2000-5450 | 250/1500-3500 50 el. |
| Bore and stroke [mm x mm] | 74.5 x 76.4 | 74.5 x 76.4 | 74,5 x 85,9 | 74.5 x 85.9 | 82.5 x 92.8 | 74.5 x 85.9 |
| Compression ratio | 11.5:1 | 11.5:1 | 10,5:1 | 12.5:1 | 9.3:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - | - |
|
|
|
| Top speed [km/h] | 204 | 204 | 224 | 211 | 250 | 224 |
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 8,4 | 9.7 | 4.8 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2-5.1 | 5.9-5.7 | 6,3-6,2 | [4.5-4.4 kg] | 9,1 | 6,2-6,0 |
| Out of town [l] | 4.1-3.9 | 4.2-4.0 | 4,3-4,0 | [3.1-2.9 kg] | 6,4 | 4,3-4,0 |
| Combined [l] | 4.5-4.3 | 4.8-4.6 | 5,1-4,8 | [3.6-3.5 kg] | 7,4 | 5,0-4,7 |
| CO2 emissions [g/km] | 104-99 | 111-106 | 116-111 | 99-96 | 170-169 | 115-109 |
| Low speed [l] | 6,3 | 7,0 | 7,9 | [5,8 kg] | 11,6 | - |
| Medium speed [l] | 4,9 | 5,4 | 5,8 | [4,0 kg] | 8,0 | - |
| High speed [l] | 4,4 | 4,6 | 4,9 | [3,3 kg] | 7,0 | - |
| Extra high speed [l] | 5,4 | 5,6 | 5,8 | [3,7 kg] | 7,6 | - |
| Combined speed [l] | 5,7-5,1 | 6,0-5,4 | 5,8 | [4,3-3,9 kg] | 8,3-8,0 | - |
| CO2 emissions [g/km] | 130-116 | 136-123 | 132 | 116-108 | 188-183 | - |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 68.4 | 68.5 | 74,6 | 81.5 | 81.7 | 75.0 |
| Driving noise [dB] | 68 | 68 | 69 | 67 | 70 | 68 |
| System voltage [V] | - | - | - | - | - | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1355 | 1295 | 1355 | 1430 | 1575 | 1395 |
| Overall weight [kg] | 1835 | 1770 | 1830 | 1885 | 2020 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 670/1300 | 640/1300 | 670/1500 | 710/1400 | - | 690/1500 |
| Maximum front/rear axle load [kg] | 985/935 | 935/925 | 965/960 | 985/1000 | 1095/1025 | 995/965 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | - | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 280 | 325 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1200 | -/1200 | -/1200 | -/1100 | -/1145 | -/1200 |
| Boot length [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 671 | 671 | 671 | 671 | 660 | 671 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 975/- | 975/- | 975/- | 975/- | 975/- | 975/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 50 | 9 [17.3 kg] | 55 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.30 | 0,29 | 0.30 | 0.34 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | four-link | twist beam axle with torsion bar | four-link | four-link |
| Tyre dimensions front | 205/55 R 16 91 V | 205/55 R16 91 V | 205/55 R 16 91 V | 205/55 R16 91 V | 225/40 R18 92 Y XL | 205/55 R 16 91 V |
| Tyre dimensions rear | 205/55 R 169 1 V | 205/55 R16 91 V | 205/55 R 16 91 V | 205/55 R16 91 V | 225/40 R18 92 Y XL | 205/55 R 16 91 V |
| Wheel size front | 7J x 16 | 7J x 16 | 7,0J x 16 | 7.0J x 16 | 8.0J x 18 | 7J x 16 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7,0J x 16 | 7.0J x 16 | 8.0J x 18 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.6/- | 11,1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4343 | 4343 | 4343 | 4343 | 4351 | 4343 |
| Overall width without/including mirrors [mm] | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 |
| Overall height [mm] | 1449 | 1449 | 1449 | 1449 | 1438 | 1449 |
| Wheelbase [mm] | 2636 | 2636 | 2636 | 2636 | 2630 | 2636 |
| Front wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1545 | 1554 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1519 | 1525 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 802 | 802 | 802 | 905 | 816 | 802 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.00 | 12.50 | - | 16.00 | - | - |
| Approach angle rear [°] | 13.90 | 15.30 | - | 13.90 | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 |
| Rear elbow/shoulder width [mm] | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 40 TFSI e 150 kW | 30 TDI 85 kW | 35 TDI 110 kW | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Petrol + Electric | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1395 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 110/5000-6000 80 el. 150 total | 85/2750-4250 | 110/3000-4200 | |||
| Maximum torque [Nm/min-1] | 250/1550-3500 330 el. 350 el. | 300/1600-2500 | 360/1600-2750 | |||
| Bore and stroke [mm x mm] | 74.5 x 80.0 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 10.0:1 | 16,0:1 | 16,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | |||
| Drive specifications |
| - |
| |||
| Top speed [km/h] | 227 [140 el.] | 206 | 224 | |||
| Acceleration 0–100 km/h [s] | 7.6 | 10,1 | 8,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | 5,2-5,0 | 4,8-4,6 | |||
| Out of town [l] | - | 3,4-3,3 | 3,7-3,4 | |||
| Combined [l] | 1,4-1,4 [13.8-13.0 kWh] | 4,1-3,9 | 4,1-3,9 | |||
| CO2 emissions [g/km] | 34-30 | 107-102 | 107-102 | |||
| Low speed [l] | - | 6,0 | 6,4 | |||
| Medium speed [l] | - | 4,2 | 4,6 | |||
| High speed [l] | - | 3,7 | 3,8 | |||
| Extra high speed [l] | - | 4,5 | 4,5 | |||
| Combined speed [l] | - | 4,8-4,4 | 5,0-4,5 | |||
| CO2 emissions [g/km] | - | 127-115 | 132-119 | |||
| Emission standard | Euro 6 d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | 71.0 | 69,1 | 72,8 | |||
| Driving noise [dB] | 69 | 70 | 70 | |||
| System voltage [V] | - | - | - | |||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 13 kWh | - | - | |||
| Range with fully charged battery [km] | 67-58 | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | -/96 | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1635 | 1425 | 1490 | |||
| Overall weight [kg] | 2065 | 1905 | 1960 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 710/1500 | 740/1600 | |||
| Maximum front/rear axle load [kg] | 1065/1065 | 1040/945 | 1090/965 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 280 | 380 | 380 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1100 | -/1200 | -/1200 | |||
| Boot length [mm] | 775 | 775 | 775 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 682 | 671 | 671 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 975/- | 975/- | 975/- | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 40 | 45 | 50 | |||
| AdBlue tank volume [l] | - | 13 | 12 | |||
| Air resistance [Cd] | 0.30 | 0,29 | 0,28 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | four-link | twist beam axle with torsion bar | four-link | |||
| Tyre dimensions front | 205/55 R16 94 V XL | 205/55 R 16 91 V | 205/55 R 16 91 V | |||
| Tyre dimensions rear | 205/55 R16 94 V XL | 205/55 R 16 91 V | 205/55 R 16 91 V | |||
| Wheel size front | 7.5Jx16 | 7,0J x 16 | 7,0J x 16 | |||
| Wheel size rear | 7.5Jx16 | 7,0J x 16 | 7,0J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.1/- | 11,1/- | 11,1/- | |||
| Overall length [mm] | 4343 | 4343 | 4343 | |||
| Overall width without/including mirrors [mm] | 1816/1984 | 1816/1984 | 1816/1984 | |||
| Overall height [mm] | 1458 | 1449 | 1449 | |||
| Wheelbase [mm] | 2630 | 2636 | 2636 | |||
| Front wheel track [mm] | 1548 | 1554 | 1554 | |||
| Rear wheel track [mm] | 1516 | 1525 | 1525 | |||
| Forward overhang [mm] | 905 | 905 | 905 | |||
| Rear overhang [mm] | 802 | 802 | 802 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1028 | 1028 | 1028 | |||
| Headroom rear [mm] | 955 | 955 | 955 | |||
| Front elbow/shoulder width [mm] | 1459/1392 | 1459/1392 | 1459/1392 | |||
| Rear elbow/shoulder width [mm] | 1425/1346 | 1425/1346 | 1425/1346 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - | |||
| Rating | - | - |   | |||
| Clean Air Index | - | - | 7.0/10 | |||
| Energy Efficiency Index | - | - | 6.6/10 | |||
| GHG index | - | - | 3.6/10 |
Sedan
| 30 TFSI 81 kW | 30 TFSI 81 kW | 35 TFSI 110 kW | 35 TFSI 110 kW | S3 TFSI 228 kW | 30 TDI 85 kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 10/2020 | from to 10/2020 | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1984 | 1968 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 110/5000-6000 | 110/5000-6000 | 228/5450-6500 | 85/2750-4250 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 250/1500-3500 | 250/1500-3500 | 400/2000-5450 | 300/1600-2500 |
| Bore and stroke [mm x mm] | 74.5 x 76.4 | 74.5 x 76.4 | 74,5 x 85,9 | 74,5 x 85,9 | 82.5 x 92.8 | 81,0 x 95,5 |
| Compression ratio | 11.5:1 | 11.5:1 | 10,5:1 | 10,5:1 | 9.3:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 210 | 210 | 232 | 232 | 250 | 210 |
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 8.4 | 8.4 | 4.8 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-5.7 | 5.2-5.1 | 6.3-6.2 | 6.2-6.0 | 9,1 | 5,2-5,0 |
| Out of town [l] | 4.0-3.8 | 4.0-3.8 | 4.2-3.9 | 4.2-3.9 | 6,2 | 3,3-3,1 |
| Combined [l] | 4.7-4.5 | 4.5-4.2 | 5.0-4.7 | 4.9-4.7 | 7,3-7,2 | 4,0-3,8 |
| CO2 emissions [g/km] | 108-104 | 102-97 | 114-108 | 113-107 | 166-165 | 106-100 |
| Low speed [l] | 7,0 | 6,2 | - | - | 11,6 | 6,0 |
| Medium speed [l] | 5,3 | 4,8 | - | - | 7,9 | 4,1 |
| High speed [l] | 4,5 | 4,3 | - | - | 6,8 | 3,6 |
| Extra high speed [l] | 5,3 | 5,1 | - | - | 7,2 | 4,3 |
| Combined speed [l] | 5,8-5,3 | 5,6-4,9 | - | - | 8,0-7,8 | 4,7-4,3 |
| CO2 emissions [g/km] | 133-120 | 127-112 | - | - | 183-177 | 124-112 |
| Emission standard | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM | Euro 6d-TEMP-EVAP-ISC | Euro 6d-TEMP-EVAP-ISC | Euro 6d-ISC-FCM | Euro 6d-ISC-FCM |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 68.5 | 68.4 | 74.6 | 75.0 | 81.7 | 69.1 |
| Driving noise [dB] | 68 | 68 | 69 | 68 | 70 | 70 |
| Standby weight [kg] | 1300 | 1360 | 1360 | 1395 | 1580 | 1430 |
| Overall weight [kg] | 1775 | 1840 | 1835 | 1875 | 2025 | 1905 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 680/1300 | 680/1500 | 690/1500 | - | 710/1500 |
| Maximum front/rear axle load [kg] | 935/930 | 985/940 | 965/965 | 995/970 | 1095/1030 | 1040/950 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | - | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 425 | 425 | 425 | 425 | 325 | 425 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 688 | 688 | 688 | 688 | 677 | 688 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 933/- | 933/- | 933/- | 933/- | 933/- | 933/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 50 | 50 | 55 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | 13 |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0,27 | 0.29 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | four-link | four-link | four-link | twist beam axle with torsion bar |
| Tyre dimensions front | 205/55 R16 91 V | 205/55 R 16 91 V | 205/55 R 16 91 V | 205/55 R 16 91 V | 225/40 R18 92 Y XL | 205/55 R 16 91 V |
| Tyre dimensions rear | 205/55 R16 91 V | 205/55 R 169 1 V | 205/55 R 16 91 V | 205/55 R 16 91 V | 225/40 R18 92 Y XL | 205/55 R 16 91 V |
| Wheel size front | 7J x 16 | 7J x 16 | 7,0J x 16 | 7,0J x 16 | 8.0J x 18 | 7,0J x 16 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7,0J x 16 | 7,0J x 16 | 8.0J x 18 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11,1/- | 11,1/- | 11.1/- | 11,1/- |
| Overall length [mm] | 4495 | 4495 | 4495 | 4495 | 4504 | 4495 |
| Overall width without/including mirrors [mm] | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 | 1816/1984 |
| Overall height [mm] | 1425 | 1425 | 1425 | 1425 | 1415 | 1425 |
| Wheelbase [mm] | 2636 | 2636 | 2636 | 2636 | 2630 | 2636 |
| Front wheel track [mm] | 1554 | 1554 | 1554 | 1554 | 1545 | 1554 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1519 | 1525 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 954 | 954 | 954 | 954 | 969 | 954 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.70 | 13.10 | - | - | - | 19.70 |
| Approach angle rear [°] | 13.80 | 13.90 | - | - | - | 13.80 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Headroom rear [mm] | 933 | 933 | 933 | 933 | 933 | 933 |
| Front elbow/shoulder width [mm] | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 | 1459/1392 |
| Rear elbow/shoulder width [mm] | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 | 1425/1346 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 35 TDI 110 kW | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 110/3000-4200 | |||||
| Maximum torque [Nm/min-1] | 360/1600-2750 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 228 | |||||
| Acceleration 0–100 km/h [s] | 8.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4,8-4,6 | |||||
| Out of town [l] | 3,6-3,4 | |||||
| Combined [l] | 4,0-3,8 | |||||
| CO2 emissions [g/km] | 106-101 | |||||
| Low speed [l] | 6,4 | |||||
| Medium speed [l] | 4,6 | |||||
| High speed [l] | 3,8 | |||||
| Extra high speed [l] | 4,3 | |||||
| Combined speed [l] | 4,9-4,5 | |||||
| CO2 emissions [g/km] | 130-117 | |||||
| Emission standard | Euro 6d-ISC-FCM | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | 72.8 | |||||
| Driving noise [dB] | 70 | |||||
| Standby weight [kg] | 1490 | |||||
| Overall weight [kg] | 1965 | |||||
| Maximum trailer weight unbraked/braked [kg] | 740/1600 | |||||
| Maximum front/rear axle load [kg] | 1090/970 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 425 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 951 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1000/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 688 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | 933/- | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | 12 | |||||
| Air resistance [Cd] | 0.25 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 205/55 R 16 91 V | |||||
| Tyre dimensions rear | 205/55 R 16 91 V | |||||
| Wheel size front | 7,0J x 16 | |||||
| Wheel size rear | 7,0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical variable effect power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11,1/- | |||||
| Overall length [mm] | 4495 | |||||
| Overall width without/including mirrors [mm] | 1816/1984 | |||||
| Overall height [mm] | 1425 | |||||
| Wheelbase [mm] | 2636 | |||||
| Front wheel track [mm] | 1554 | |||||
| Rear wheel track [mm] | 1525 | |||||
| Forward overhang [mm] | 905 | |||||
| Rear overhang [mm] | 954 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1028 | |||||
| Headroom rear [mm] | 933 | |||||
| Front elbow/shoulder width [mm] | 1459/1392 | |||||
| Rear elbow/shoulder width [mm] | 1425/1346 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

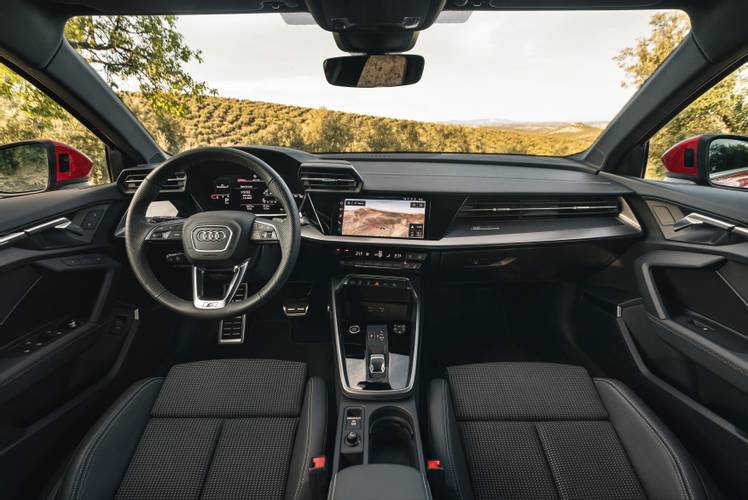

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
