Audi A3
Date of manufacture
2008 – 8/2012 (Three-door hatchback)
2008 – 2012 (Five-door hatchback)
4/2008 – 2012 (Convertible)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Ingolstadt, Germany
Brussels, Belgium
Győr, Hungary
Designer
Gary Telaak
Tags
C-segment
German cars
The Audi A3 is a highly popular model that has been produced since 2008. Three different body styles are available - three-door hatchback, five-door hatchback and cabriolet. The vehicle is built on the Volkswagen Group A5 (PQ35) platform and offers a wide range of petrol and diesel engines. The most powerful model is the RS3 with a 250 kW engine, the fastest version has a top speed of 250 km/h and the best acceleration from 0-100 km/h in 4.6 seconds. The most fuel-efficient engine, the 1.6 TDI, has a combined fuel consumption of 4.1 l/100 km and CO2 emissions of 109 g/km. The luggage compartment volume varies depending on the body type - 350 l for the three-door hatchback, 370 l for the five-door hatchback and 260 l for the cabriolet.
Car body style
Three-door hatchback
after upgrade (facelift)
Date of manufacture
2008 – 8/2012Internal designation

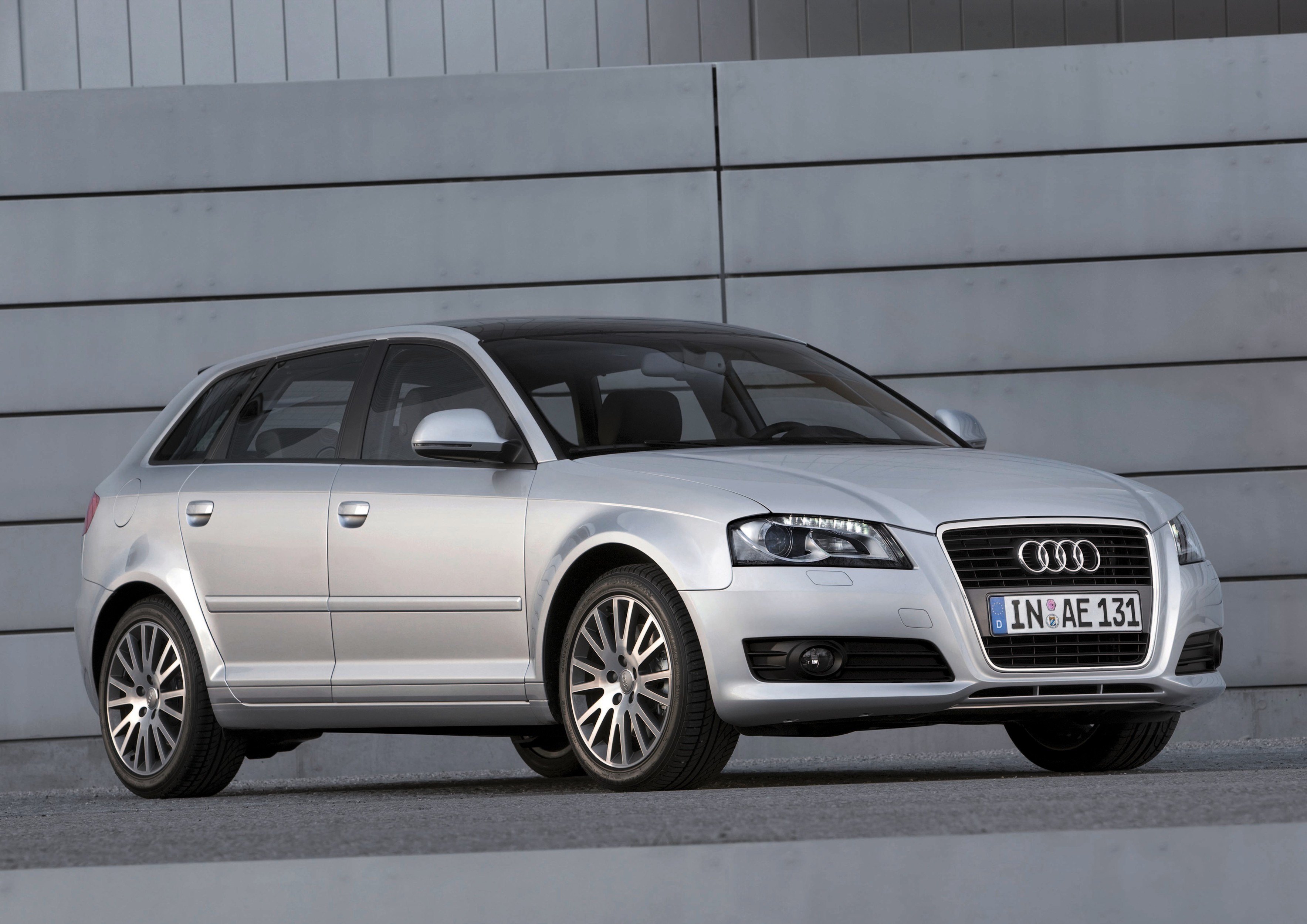

8P Five-door hatchback (Sportback)
after upgrade (facelift)
Date of manufacture
2008 – 2012Internal designation
8P Technical data
Three-door hatchback
| 1,6 | 1,6 | 1,2 TFSI | 1,2 TFSI | 1,4 TFSI | 1,4 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1197 | 1197 | 1390 | 1390 |
| Maximum output / speed [kW/min-1] | 75/5600 | 75/5600 | 77/5000 | 77/5000 | 92/5000 | 92/5000 |
| Maximum torque [Nm/min-1] | 148/3800 | 148/3800 | 175/1550-4100 | 175/1550-4100 | 200/1500-4000 | 200/1500-4000 |
| Bore and stroke [mm x mm] | 81,0 x 77,4 | 81,0 x 77,4 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 185 | 185 | 192 | 192 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 11.8 | 11.7 | 11.0 | 10.5 | 9.4 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5 | 9.4 | 6.7 | 6.5 | 7.8 | 7.1 |
| Out of town [l] | 5.3 | 5.1 | 4.7 | 4.6 | 4.9 | 4.8 |
| Combined [l] | 6.8 | 6.7 | 5.5 | 5.3 | 5.9 | 5.6 |
| CO2 emissions [g/km] | 162 | 154 | 127 | 123 | 140 | 133 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1185 | 1220 | 1205 | 1230 | 1245 | 1270 |
| Overall weight [kg] | 1765 | 1780 | 1765 | 1790 | 1808 | 1830 |
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 640/1200 | 640/1200 | 650/1200 | 660/1200 | 670/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,4 TFSI | 1,4 TFSI | 1,8 TFSI | 1,8 TFSI | 1,8 TFSI | 1,8 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1798 | 1798 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000 | 92/5000 | 118/5000-6200 | 118/5000-6200 | 118/5000-6200 | 118/5000-6200 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 200/1500-4000 | 250/1500-4200 | 250/1500-4200 | 250/1500-4200 | 250/1500-4200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 |
| Compression ratio | 10,0:1 | 10,0:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 203 | 203 | 222 | 222 | 222 | 222 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.3 | 7.6 | 7.5 | 7.6 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 6.4 | 9.1 | 8.9 | 8.7 | 8.5 |
| Out of town [l] | 4.8 | 4.7 | 5.3 | 5.3 | 5.3 | 5.2 |
| Combined [l] | 5.7 | 5.3 | 6.7 | 6.6 | 6.6 | 6.5 |
| CO2 emissions [g/km] | 132 | 124 | 155 | 153 | 152 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1255 | 1270 | 1280 | 1295 | 1280 | 1295 |
| Overall weight [kg] | 1815 | 1830 | 1840 | 1855 | 1840 | 1855 |
| Maximum trailer weight unbraked/braked [kg] | 660/1200 | 670/1200 | 670/1400 | 680/1400 | 670/1400 | 680/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,8 TFSI | 1,8 TFSI | 2,0 TFSI | 2,0 TFSI | 2,0 TFSI | 3,2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 3189 |
| Maximum output / speed [kW/min-1] | 118/5000-6200 | 118/5000-6200 | 147/5100-6000 | 147/5100-6000 | 147/5100-6000 | 184/6300 |
| Maximum torque [Nm/min-1] | 250/1500-4200 | 250/1500-4200 | 280/1700-5000 | 280/1700-5000 | 280/1700-5000 | 320/2500-3000 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,0 x 95,9 |
| Compression ratio | 9,6:1 | 9,6:1 | 10,5:1 | 10,5:1 | 10,5:1 | 11,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 220 | 220 | 238 | 238 | 236 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 7.8 | 7.0 | 6.8 | 6.6 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 9.7 | 9.8 | 9.9 | 9.9 | 13.0 |
| Out of town [l] | 6.1 | 6.0 | 5.5 | 5.8 | 6.1 | 7.3 |
| Combined [l] | 7.5 | 7.3 | 7.1 | 7.3 | 7.5 | 9.4 |
| CO2 emissions [g/km] | 174 | 170 | 164 | 168 | 174 | 224 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1375 | 1295 | 1330 | 1415 | 1510 |
| Overall weight [kg] | 1935 | 1935 | 1855 | 1890 | 1975 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 720/1400 | 720/1400 | 680/1500 | 700/1500 | 740/1500 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 281 | 281 | 350 | 350 | 281 | 281 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1011 | -/1011 | -/1080 | -/1080 | -/1011 | -/1011 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 55 | 55 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 7.5Jx17 | 7.5Jx17 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 7.5Jx17 | 7.5Jx17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S3 | S3 | 1,6 TDI | 1,6 TDI | 1,6 TDI | 1,9 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1984 | 1984 | 1598 | 1598 | 1598 | 1896 |
| Maximum output / speed [kW/min-1] | 195/6000 | 195/6000 | 66/4200 | 77/4400 | 77/4400 | 77/4000 |
| Maximum torque [Nm/min-1] | 350/2500-5000 | 350/2500-5000 | 230/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1900 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5x95,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 16,5:1 | 16,5:1 | 16,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications |
|
| - | - |
| - |
| Top speed [km/h] | 250 | 250 | 180 | 194 | 194 | 187 |
| Acceleration 0–100 km/h [s] | 5.7 | 5.5 | 12.9 | 11.4 | 11.4 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 11.1 | 5.6 | 5.0 | 4.5 | 7.2 |
| Out of town [l] | 6.6 | 6.7 | 3.7 | 3.7 | 3.9 | 4.5 |
| Combined [l] | 8.5 | 8.3 | 4.4 | 4.1 | 4.2 | 5.5 |
| CO2 emissions [g/km] | 198 | 193 | 114 | 109 | 109 | 144 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1455 | 1475 | 1280 | 1280 | 1300 | 1315 |
| Overall weight [kg] | 2015 | 2035 | 1840 | 1840 | 1860 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 670/1400 | 670/1400 | 680/1400 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 281 | 281 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1011 | -/1011 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/40 R18 | 225/40 R18 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R16 |
| Tyre dimensions rear | 225/40 R18 | 225/40 R18 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R16 |
| Wheel size front | 7.5Jx18 | 7.5Jx18 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 7.5Jx18 | 7.5Jx18 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4230 | 4230 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1399 | 1399 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1522 | 1522 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1506 | 1506 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 892 | 892 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 760 | 760 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,9 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1896 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4000 | 103/4200 | 103/4200 | 103/4200 | 103/4200 | 103/4000 |
| Maximum torque [Nm/min-1] | 250/1900 | 320/1750 - 2500 | 320/1750 - 2500 | 320/1750 - 2500 | 320/1750 - 2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 79,5x95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 187 | 207 | 207 | 210 | 210 | 205 |
| Acceleration 0–100 km/h [s] | 11.4 | 9.4 | 8.9 | 8.9 | 8.7 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 6.6 | 7.2 | 5.5 | 5.8 | 7.3 |
| Out of town [l] | 3.9 | 4.3 | 4.4 | 3.8 | 4.4 | 4.6 |
| Combined [l] | 4.7 | 5.1 | 5.4 | 4.4 | 4.9 | 5.6 |
| CO2 emissions [g/km] | 124 | 134 | 143 | 115 | 129 | 146 |
| Emission standard | EU4 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1320 | 1345 | 1320 | 1355 | 1420 |
| Overall weight [kg] | 1840 | 1880 | 1905 | 1880 | 1905 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 690/1400 | 690/1400 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 250 | 250 | 350 | 350 | 281 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1011 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4000 | 125/4200 | 125/4200 | 125/4200 | 125/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 208 | 224 | 224 | 224 | 224 | 222 |
| Acceleration 0–100 km/h [s] | 9.2 | 8.0 | 7.6 | 8.0 | 7.6 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.9 | 7.2 | 5.7 | 5.6 | 7.2 |
| Out of town [l] | 4.2 | 4.2 | 4.6 | 4.2 | 4.5 | 4.7 |
| Combined [l] | 5.0 | 5.2 | 5.6 | 4.7 | 4.9 | 5.6 |
| CO2 emissions [g/km] | 129 | 139 | 147 | 123 | 128 | 148 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1420 | 1320 | 1345 | 1335 | 1355 | 1425 |
| Overall weight [kg] | 1980 | 1880 | 1905 | 1895 | 1915 | 1985 |
| Maximum trailer weight unbraked/braked [kg] | 740/1600 | - | - | 700/1400 | 710/1400 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 281 | 350 | 350 | 350 | 350 | 281 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1011 | -/1080 | -/1080 | -/1080 | -/1080 | -/1011 |
| Boot length [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Boot length with rear seats folded [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 624 | 624 | 624 | 624 | 624 | 624 |
| Boot opening width min/max [mm] | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 | 871/884 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 55 | 55 | 55 | 55 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R 16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R 16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 | 1765/2025 |
| Overall height [mm] | 1421 | 1421 | 1421 | 1421 | 1421 | 1421 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Front elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 125/4200 | |||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 18,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 222 | |||||
| Acceleration 0–100 km/h [s] | 7.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.1 | |||||
| Out of town [l] | 4.6 | |||||
| Combined [l] | 5.2 | |||||
| CO2 emissions [g/km] | 135 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1425 | |||||
| Overall weight [kg] | 1985 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 281 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1011 | |||||
| Boot length [mm] | 796 | |||||
| Boot length with rear seats folded [mm] | 1511 | |||||
| Boot width between wheels/max [mm] | -/1000 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 685 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 624 | |||||
| Boot opening width min/max [mm] | 871/884 | |||||
| Number of doors | 3 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.33 | |||||
| Front suspension | MacPherson, lower triangular arms | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 205/55 R16 | |||||
| Tyre dimensions rear | 205/55 R16 | |||||
| Wheel size front | 6.5Jx16 | |||||
| Wheel size rear | 6.5Jx16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.7 | |||||
| Overall length [mm] | 4238 | |||||
| Overall width without/including mirrors [mm] | 1765/2025 | |||||
| Overall height [mm] | 1421 | |||||
| Wheelbase [mm] | 2578 | |||||
| Front wheel track [mm] | 1534 | |||||
| Rear wheel track [mm] | 1507 | |||||
| Forward overhang [mm] | 881 | |||||
| Rear overhang [mm] | 779 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1005 | |||||
| Headroom rear [mm] | 935 | |||||
| Front elbow/shoulder width [mm] | 1458/- | |||||
| Rear elbow/shoulder width [mm] | 1410/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback (Sportback)
| 1,6 | 1,6 | 1,2 TFSI | 1,2 TFSI | 1,4 TFSI | 1,4 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1197 | 1197 | 1390 | 1390 |
| Maximum output / speed [kW/min-1] | 75/5600 | 75/5600 | 77/5000 | 77/5000 | 92/5000 | 92/5000 |
| Maximum torque [Nm/min-1] | 148/3800 | 148/3800 | 175/1550-4100 | 175/1550-4100 | 200/1500-4000 | 200/1500-4000 |
| Bore and stroke [mm x mm] | 81,0 x 77,4 | 81,0 x 77,4 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 185 | 185 | 192 | 192 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 12.1 | 12.0 | 11.3 | 10.8 | 9.6 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 9.4 | 6.7 | 6.5 | 7.9 | 7.4 |
| Out of town [l] | 5.6 | 5.1 | 4.7 | 4.6 | 5.0 | 4.8 |
| Combined [l] | 7.0 | 6.7 | 5.5 | 5.3 | 6.0 | 5.8 |
| CO2 emissions [g/km] | 164 | 159 | 127 | 123 | 143 | 137 |
| Emission standard | EU4/5 | EU4 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1225 | 1260 | 1245 | 1270 | 1285 | 1310 |
| Overall weight [kg] | 1785 | 1820 | 1805 | 1730 | 1845 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 660/1200 | 660/1200 | 670/1200 | 680/1200 | 690/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 833 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,4 TFSI | 1,4 TFSI | 1,8 TFSI | 1,8 TFSI | 1,8 TFSI | 1,8 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1798 | 1798 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000 | 92/5000 | 118/5000-6200 | 118/5000-6200 | 118/5000-6200 | 118/5000-6200 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 200/1500-4000 | 250/1500-4200 | 250/1500-4200 | 250/1500-4200 | 250/1500-4200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 |
| Compression ratio | 10,0:1 | 10,0:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 203 | 203 | 222 | 222 | 222 | 222 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.5 | 7.8 | 7.7 | 7.8 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 6.6 | 9.1 | 9.0 | 8.7 | 8.5 |
| Out of town [l] | 4.9 | 4.8 | 5.4 | 5.3 | 5.3 | 5.2 |
| Combined [l] | 5.8 | 5.5 | 6.7 | 6.6 | 6.6 | 6.5 |
| CO2 emissions [g/km] | 134 | 127 | 157 | 154 | 153 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295 | 1310 | 1320 | 1335 | 1320 | 1335 |
| Overall weight [kg] | 1855 | 1870 | 1880 | 1895 | 1880 | 1895 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 690/1200 | 690/1400 | 700/1400 | 690/1400 | 700/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 833 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,8 TFSI | 1,8 TFSI | 2,0 TFSI | 2,0 TFSI | 2,0 TFSI | 3,2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 3189 |
| Maximum output / speed [kW/min-1] | 118/5000-6200 | 118/5000-6200 | 147/5100-6000 | 147/5100-6000 | 147/5100-6000 | 184/6300 |
| Maximum torque [Nm/min-1] | 250/1500-4200 | 250/1500-4200 | 280/1700-5000 | 280/1700-5000 | 280/1700-5000 | 320/2500-3000 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 84,0 x 95,9 |
| Compression ratio | 9,6:1 | 9,6:1 | 10,5:1 | 10,5:1 | 10,5:1 | 11,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 220 | 220 | 238 | 238 | 236 | 250 |
| Acceleration 0–100 km/h [s] | 8.0 | 8.0 | 7.1 | 6.9 | 6.7 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 9.8 | 9.9 | 9.9 | 10.0 | 13.0 |
| Out of town [l] | 6.2 | 6.1 | 5.6 | 5.8 | 6.2 | 7.3 |
| Combined [l] | 7.5 | 7.4 | 7.2 | 7.3 | 7.6 | 9.4 |
| CO2 emissions [g/km] | 176 | 173 | 168 | 168 | 176 | 224 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1415 | 1415 | 1335 | 1370 | 1455 | 1550 |
| Overall weight [kg] | 1975 | 1975 | 1895 | 1930 | 2015 | 2125 |
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 740/1400 | 700/1500 | 720/1500 | 750/1500 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 302 | 302 | 370 | 370 | 302 | 302 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1100 | -/1100 | -/1032 | -/1032 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 55 | 55 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 833 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S3 | S3 | RS3 | 1,6 TDI | 1,6 TDI | 1,6 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 2480 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 195/6000 | 195/6000 | 250/5400-6500 | 66/4200 | 77/4400 | 77/4400 |
| Maximum torque [Nm/min-1] | 350/2500-5000 | 350/2500-5000 | 450/1600-5300 | 230/1500-2500 | 250/1500-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 10,0:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 7 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 250 | 250 | 250 | 180 | 194 | 194 |
| Acceleration 0–100 km/h [s] | 5.8 | 5.6 | 4.6 | 13.3 | 11.4 | 11.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 11.2 | 13.1 | 5.3 | 5.1 | 4.9 |
| Out of town [l] | 6.7 | 6.8 | 6.8 | 3.9 | 3.8 | 3.9 |
| Combined [l] | 8.5 | 8.4 | 9.1 | 4.4 | 4.2 | 4.3 |
| CO2 emissions [g/km] | 199 | 195 | 212 | 116 | 112 | 112 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1515 | 1575 | 1320 | 1320 | 1340 |
| Overall weight [kg] | 2055 | 2075 | 2135 | 1880 | 1880 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 690/1400 | 690/1400 | 700/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 302 | 302 | 302 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1100 | -/1100 | -/1100 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.362 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/40 R18 | 225/40 R18 | 235/35 R19 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/40 R18 | 225/40 R18 | 225/35 R19 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.5 J x 18 | 7.5 J x 18 | 8Jx19 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 7.5 J x 18 | 7.5 J x 18 | 8Jx19 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | 370x32 | - | - | - |
| Brake dimensions rear | - | - | 310x22 | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4302 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1766/- | 1766/- | 1794/- | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1402 | 1402 | 1402 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1564 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1528 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 892 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 832 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1,9 TDI | 1,9 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1896 | 1896 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 103/4200 | 103/4200 | 103/4200 | 103/4200 |
| Maximum torque [Nm/min-1] | 250/1900 | 250/1900 | 320/1750-2500 | 320/1750-2500 | 320/1750 - 2500 | 320/1750 - 2500 |
| Bore and stroke [mm x mm] | 79,5 x 95,5 | 79,5 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 187 | 187 | 207 | 207 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.4 | 9.6 | 9.1 | 9.1 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 7.5 | 6.6 | 7.2 | 5.5 | 5.8 |
| Out of town [l] | 4.0 | 4.5 | 4.3 | 4.4 | 3.8 | 4.4 |
| Combined [l] | 4.8 | 5.5 | 5.1 | 5.4 | 4.4 | 4.9 |
| CO2 emissions [g/km] | 127 | 144 | 134 | 143 | 115 | 129 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1320 | 1360 | 1360 | 1385 | 1360 | 1385 |
| Overall weight [kg] | 1880 | 1920 | 1920 | 1945 | 1920 | 145 |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 710/1400 | 710/1400 | 730/1400 | 710/1400 | 730/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 | -/1100 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 833 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | 2,0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4000 | 103/4000 | 125/4200 | 125/4200 | 125/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 205 | 208 | 224 | 224 | 224 | 224 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.4 | 8.1 | 7.7 | 8.1 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 6.3 | 6.9 | 7.4 | 5.7 | 5.6 |
| Out of town [l] | 5.0 | 4.2 | 4.2 | 4.7 | 4.2 | 4.6 |
| Combined [l] | 5.9 | 5.0 | 5.2 | 5.7 | 4.7 | 5.0 |
| CO2 emissions [g/km] | 159 | 129 | 139 | 149 | 123 | 130 |
| Emission standard | EU4 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1460 | 1375 | 1395 | 1375 | 1395 |
| Overall weight [kg] | 2030 | 2020 | 1935 | 1945 | 1935 | 1955 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 720/1400 | 730/1400 | 720/1400 | 730/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 302 | 302 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1100 | -/1100 | -/1100 | -/1100 |
| Boot length [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Boot length with rear seats folded [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 | -/1000 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 623 | 623 | 623 | 623 | 623 | 623 |
| Boot opening width min/max [mm] | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 | 873/907 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4292 | 4292 | 4292 | 4292 | 4292 | 4292 |
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 | 1765/2023 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 833 | 833 | 833 | 833 | 833 | 833 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 938 | 938 | 938 | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- | 1430/- |
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- | 1419/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 TDI | 2,0 TDI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | ||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 18,5:1 | 18,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 222 | 222 | ||||
| Acceleration 0–100 km/h [s] | 7.9 | 7.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.2 | 6.1 | ||||
| Out of town [l] | 4.7 | 4.6 | ||||
| Combined [l] | 5.6 | 5.2 | ||||
| CO2 emissions [g/km] | 148 | 135 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1465 | 1465 | ||||
| Overall weight [kg] | 2025 | 2025 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 302 | 302 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | ||||
| Boot length [mm] | 831 | 831 | ||||
| Boot length with rear seats folded [mm] | 1544 | 1544 | ||||
| Boot width between wheels/max [mm] | -/1000 | -/1000 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 685 | 685 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 623 | 623 | ||||
| Boot opening width min/max [mm] | 873/907 | 873/907 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.33 | 0.33 | ||||
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | ||||
| Rear suspension | four-link | four-link | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5Jx16 | 6.5Jx16 | ||||
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.7 | 10.7 | ||||
| Overall length [mm] | 4292 | 4292 | ||||
| Overall width without/including mirrors [mm] | 1765/2023 | 1765/2023 | ||||
| Overall height [mm] | 1423 | 1423 | ||||
| Wheelbase [mm] | 2578 | 2578 | ||||
| Front wheel track [mm] | 1534 | 1534 | ||||
| Rear wheel track [mm] | 1507 | 1507 | ||||
| Forward overhang [mm] | 881 | 881 | ||||
| Rear overhang [mm] | 833 | 833 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 999 | 999 | ||||
| Headroom rear [mm] | 938 | 938 | ||||
| Front elbow/shoulder width [mm] | 1430/- | 1430/- | ||||
| Rear elbow/shoulder width [mm] | 1419/- | 1419/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Convertible
| 1,6 | 1,2 TFSI | 1,4 TFSI | 1,8 TFSI | 1,8 TFSI | 2,0 TFSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1197 | 1390 | 1798 | 1798 | 1984 |
| Maximum output / speed [kW/min-1] | 75/5600 | 77/5000 | 92/5000 | 118/5000-6200 | 118/5000-6200 | 147/5100-6000 |
| Maximum torque [Nm/min-1] | 148/3800 | 175/1550-4100 | 200/1500-4000 | 250/1500-4200 | 250/1500-4200 | 280/1700-5000 |
| Bore and stroke [mm x mm] | 81,0 x 77,4 | 71,0 x 75,6 | 76,5x75,6 | 82,5 x 84,1 | 82,5 x 84,1 | 82,5 x 92,8 |
| Compression ratio | - | 10,5:1 | 10,0:1 | 9,6:1 | 9,6:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 183 | 190 | 200 | 220 | 220 | 236 |
| Acceleration 0–100 km/h [s] | 12.5 | 12.2 | 10.7 | 8.2 | 8.0 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6 | 7.0 | 7.4 | 8.9 | 8.7 | 10.0 |
| Out of town [l] | 5.5 | 5.0 | 5.2 | 5.5 | 5.4 | 5.6 |
| Combined [l] | 7.0 | 5.7 | 6.0 | 6.7 | 6.6 | 7.2 |
| CO2 emissions [g/km] | 167 | 132 | 139 | 156 | 154 | 169 |
| Emission standard | EU4 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1330 | 1360 | 1410 | 1425 | 1455 | 1435 |
| Overall weight [kg] | 1830 | 1860 | 1910 | 1925 | 1955 | 1935 |
| Maximum trailer weight unbraked/braked [kg] | 700/1200 | 710/1200 | 740/1200 | 750/1400 | 750/1400 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/75 | -/75 | -/75 | -/75 | -/75 | -/75 |
| Boot volume [l] | 260 | 260 | 260 | 260 | 260 | 260 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/674 | -/674 | -/674 | -/674 | -/674 | -/674 |
| Boot length [mm] | 821 | 821 | 821 | 821 | 821 | 821 |
| Boot length with rear seats folded [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
| Boot width between wheels/max [mm] | -/687 | -/687 | -/687 | -/687 | -/687 | -/687 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | 4238 |
| Overall width without/including mirrors [mm] | 1765/- | 1765/- | 1765/- | 1765/- | 1765/- | 1765/- |
| Overall height [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | 779 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Headroom rear [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2,0 TFSI | 1,6 TDI | 1,9 TDI | 2,0 TDI | 2,0 TDI | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1984 | 1598 | 1896 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 147/5100-6000 | 77/4400 | 77/4000 | 103/4200 | 103/4200 | |
| Maximum torque [Nm/min-1] | 280/1700-5000 | 250/1500-2500 | 250/1900 | 320/1750-2500 | 320/1750-2500 | |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 10,5:1 | 16,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | |
| Drive specifications |
| - | - | - |
| |
| Top speed [km/h] | 236 | 190 | 185 | 208 | 208 | |
| Acceleration 0–100 km/h [s] | 7.3 | 12.2 | 12.3 | 9.6 | 9.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 9.9 | 5.2 | 6.4 | 5.7 | 6.0 | |
| Out of town [l] | 5.9 | 3.9 | 4.3 | 3.9 | 4.6 | |
| Combined [l] | 7.4 | 4.3 | 5.1 | 4.6 | 5.1 | |
| CO2 emissions [g/km] | 171 | 114 | 134 | 119 | 134 | |
| Emission standard | EU5 | EU5 | EU4 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1485 | 1430 | 1425 | 1475 | 1495 | |
| Overall weight [kg] | 1985 | 1930 | 1925 | 1975 | 1995 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | - | 750/1400 | 750/1400 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | -/75 | -/75 | -/75 | -/75 | -/75 | |
| Boot volume [l] | 260 | 260 | 260 | 260 | 260 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/674 | -/674 | -/674 | -/674 | -/674 | |
| Boot length [mm] | 821 | 821 | 821 | 821 | 821 | |
| Boot length with rear seats folded [mm] | 1508 | 1508 | 1508 | 1508 | 1508 | |
| Boot width between wheels/max [mm] | -/687 | -/687 | -/687 | -/687 | -/687 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | - | - | - | - | - | |
| Rear suspension | - | - | - | - | - | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | |
| Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | Electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | |
| Overall length [mm] | 4238 | 4238 | 4238 | 4238 | 4238 | |
| Overall width without/including mirrors [mm] | 1765/- | 1765/- | 1765/- | 1765/- | 1765/- | |
| Overall height [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | |
| Rear wheel track [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | |
| Rear overhang [mm] | 779 | 779 | 779 | 779 | 779 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | |
| Headroom rear [mm] | 948 | 948 | 948 | 948 | 948 | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
