Audi A1
Date of manufacture
2014 – 2018 (Five-door hatchback)
2014 – 2018 (Three-door hatchback)
Platform
Volkswagen Group PQ25
Manufacturing locations
Brussels, Belgium
Designer
Stefan Sielaff
Tags
B-segment
German cars
The Audi A1 is available in two body styles - a five-door hatchback and a three-door hatchback. It has been manufactured in Belgium since 2014 on the Volkswagen Group PQ25 platform. It offers a wide range of petrol and diesel engines, the highest power being the S1 2.0 TFSI 170kW (170 kW) with a maximum speed of 250 km/h and the best acceleration 0-100 km/h in 5.8 seconds. The most economical engine 1.4 TDI ultra 66kW has a consumption of 3.4 l/100 km and emissions of 89 g/km. The luggage compartment volume is 270 l for both body styles of the car. The Audi A1 was tested in the safety area according to EURONCAP in 2010, where it received a rating of 5 out of 5 points.
Car body style

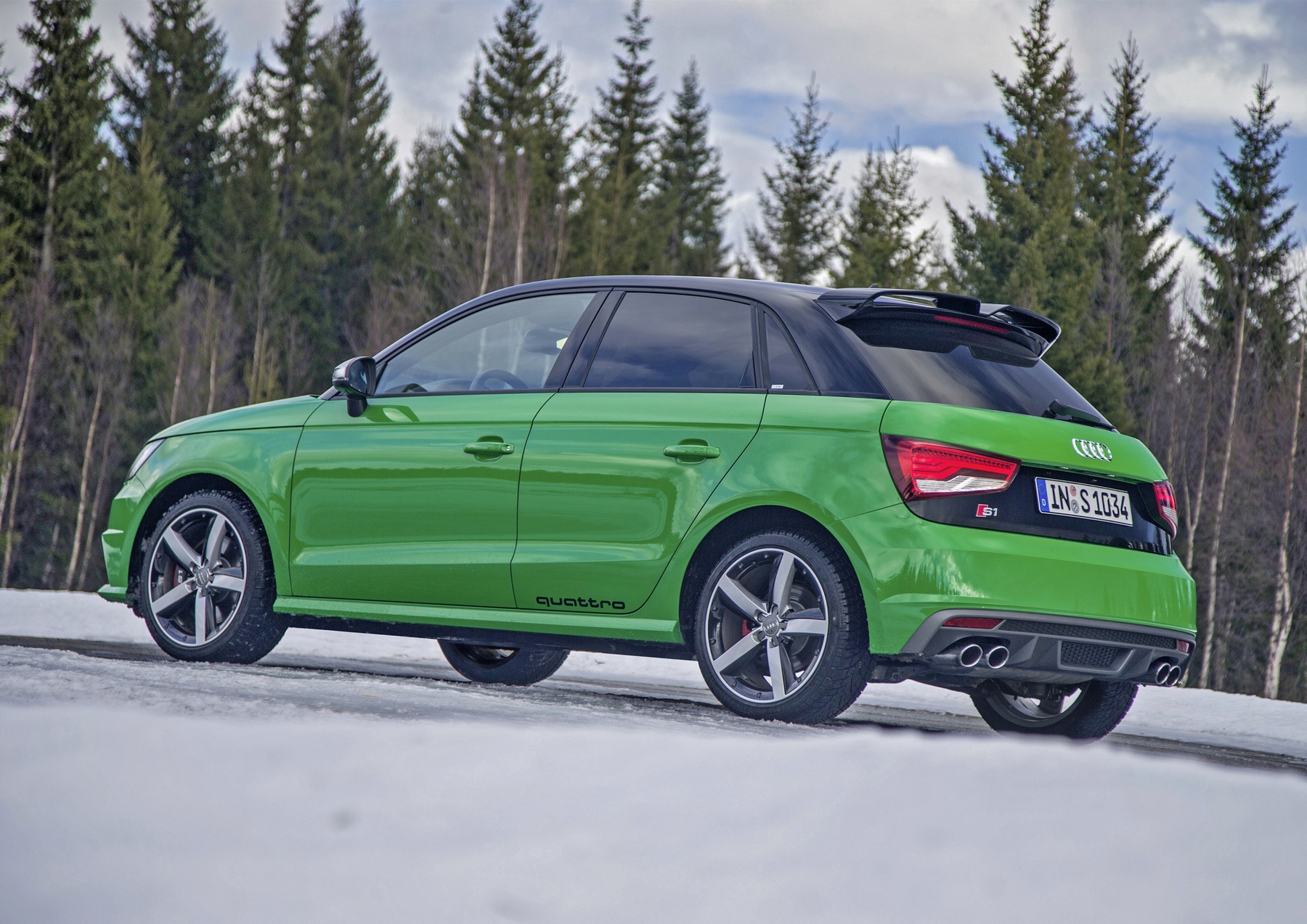

Five-door hatchback (Sportback)
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
8X Three-door hatchback
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
8X
Technical data
Five-door hatchback (Sportback)
| 1.0 TFSI ultra 70kW | 1.0 TFSI ultra 70kW | 1.4 TFSI 92kW | 1.4 TFSI 92kW | 1.4 TFSI COD 110kW | 1.4 TFSI COD 110kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 70/5000-5500 | 70/5000-5500 | 92/5000 | 92/5000 | 110/5000 | 110/5000 |
| Maximum torque [Nm/min-1] | 160/1500-3500 | 160/1500-3500 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 75,4 | 74,5 x 75,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 186 | 186 | 204 | 204 | 215 | 215 |
| Acceleration 0–100 km/h [s] | 11.1 | 11.1 | 8.9 | 8.9 | 7.9 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0-5.2 | 5.4-5.6 | 6.6-6.7 | 6.2-6.3 | 5.9-6.1 | 5.8-6.1 |
| Out of town [l] | 3.7-3.9 | 3.8-4.0 | 4.2-4.4 | 4.2-4.4 | 4.0-4.3 | 4.1-4.4 |
| Combined [l] | 4.2-4.4 | 4.4-4.6 | 5.1-5.2 | 4.9-5.1 | 4.7-5.0 | 4.7-5.0 |
| CO2 emissions [g/km] | 97-102 | 102-107 | 118-123 | 112-117 | 109-117 | 109-116 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1135 | 1165 | 1180 | 1215 | 1220 | 1230 |
| Overall weight [kg] | 1580 | 1610 | 1625 | 1660 | 1645 | 1655 |
| Maximum trailer weight unbraked/braked [kg] | 560/1000 | 580/1000 | 590/1200 | 600/1200 | 610/1200 | 610/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 50 | 50 | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

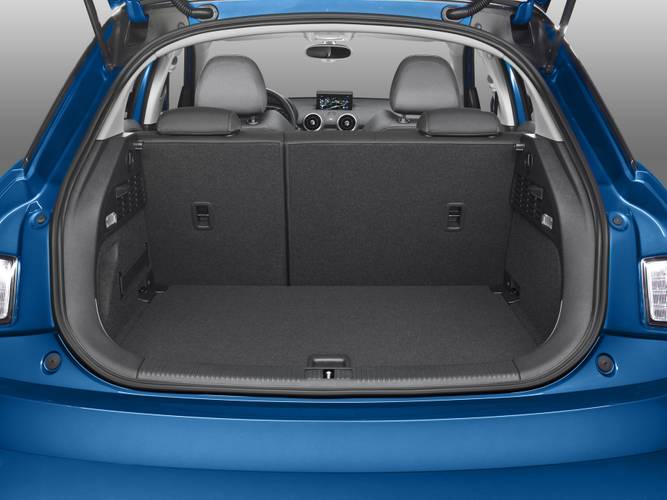

| Boot volume [l] | 270 | 270 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/920 | -/920 | -/920 | -/920 | -/920 | -/920 |
| Boot length [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/921 | -/921 | -/921 | -/921 | -/921 | -/921 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 663 | 663 | 663 | 663 | 663 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/992 | -/992 | -/992 | -/992 | -/992 | -/992 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/45 R16 | 215/45 R16 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/45 R16 | 215/45 R16 |
| Wheel size front | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 7J x 16 | 7J x 16 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 3973 | 3973 | 3973 | 3973 | 3973 | 3973 |
| Overall width without/including mirrors [mm] | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 |
| Overall height [mm] | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 691 | 691 | 691 | 691 | 691 | 691 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 937 | 937 | 937 | 937 | 937 | 937 |
| Front elbow/shoulder width [mm] | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 |
| Rear elbow/shoulder width [mm] | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.8 TFSI 141kW | S1 2.0 TFSI 170kW | 1.4 TDI ultra 66kW | 1.4 TDI ultra 66kW | 1.6 TDI 85kW | 1.6 TDI 85kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1984 | 1422 | 1422 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 141/5400 | 170/6000 | 66/3250 | 66/3250 | 85/3500-4000 | 85/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1250-5300 | 370/1600-3000 | 230/1500-2500 | 230/1500-2500 | 250/1500-3000 | 250/1500-3000 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 16,1:1 | 16,1:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 234 | 250 | 182 | 182 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 6.9 | 5.9 | 11.6 | 11.6 | 9.5 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1-7.4 | 9.2-9.3 | 3.9-4.0 | 4.0-4.2 | 4.3-4.4 | 4.3-4.5 |
| Out of town [l] | 4.7-4.9 | 5.9-6.0 | 3.1-3.3 | 3.3-3.6 | 3.1-3.3 | 3.4-3.6 |
| Combined [l] | 5.6-5.8 | 7.1-7.3 | 3.4-3.6 | 3.6-3.8 | 3.5-3.7 | 3.7-3.9 |
| CO2 emissions [g/km] | 129-134 | 166-168 | 91-95 | 94-99 | 92-97 | 97-103 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1415 | 1205 | 1220 | 1250 | 1275 |
| Overall weight [kg] | 1705 | 1790 | 1640 | 1665 | 1695 | 1720 |
| Maximum trailer weight unbraked/braked [kg] | 640/1200 | - | 600/1200 | 610/1200 | 620/1200 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 50 | 50 | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 270 | 210 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/920 | -/860 | -/920 | -/920 | -/920 | -/920 |
| Boot length [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/921 | -/921 | -/921 | -/921 | -/921 | -/921 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 663 | 663 | 663 | 663 | 663 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/992 | -/992 | -/992 | -/992 | -/992 | -/992 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.34 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with torsion bar | four-link, stabiliser bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 215/45 R16 | 215/40 R17 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 215/45 R16 | 215/40 R17 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 7J x 16 | 7.5J x 17 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Wheel size rear | 7J x 16 | 7.5J x 17 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 3973 | 3975 | 3973 | 3973 | 3973 | 3973 |
| Overall width without/including mirrors [mm] | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 | 1746/1906 |
| Overall height [mm] | 1422 | 1423 | 1422 | 1422 | 1422 | 1422 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1477 | 1474 | 1477 | 1477 | 1477 | 1477 |
| Rear wheel track [mm] | 1471 | 1452 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 813 | 816 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 691 | 690 | 691 | 691 | 691 | 691 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 937 | 937 | 937 | 937 | 937 | 937 |
| Front elbow/shoulder width [mm] | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 | 1396/1330 |
| Rear elbow/shoulder width [mm] | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 | 1351/1279 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Three-door hatchback
| 1.0 TFSI ultra 70kW | 1.0 TFSI ultra 70kW | 1.4 TFSI 92kW | 1.4 TFSI 92kW | 1.4 TFSI COD 110kW | 1.4 TFSI COD 110kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 70/5000-5500 | 70/5000-5500 | 92/5000 | 92/5000 | 110/5000 | 110/5000 |
| Maximum torque [Nm/min-1] | 160/1500-3500 | 160/1500-3500 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 75,4 | 74,5 x 75,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 186 | 186 | 204 | 204 | 215 | 215 |
| Acceleration 0–100 km/h [s] | 10,9 | 10,9 | 8.8 | 8.8 | 7.8 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0-5.2 | 5.4-5.6 | 6,4-6,6 | 6.2-6.3 | 5.9-6.1 | 5.8-6.1 |
| Out of town [l] | 3.7-3.9 | 3.8-4.0 | 4,1-4,3 | 4.2-4.4 | 4.0-4.3 | 4.1-4.4 |
| Combined [l] | 4.2-4.4 | 4.4-4.6 | 4,9-5,1 | 4.9-5.1 | 4.7-5.0 | 4.7-5.0 |
| CO2 emissions [g/km] | 97-102 | 102-107 | 115-120 | 112-117 | 109-117 | 109-116 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1110 | 1140 | 1155 | 1190 | 1195 | 1205 |
| Overall weight [kg] | 1485 | 1515 | 1530 | 1565 | 1570 | 1580 |
| Maximum trailer weight unbraked/braked [kg] | 550/1000 | 570/1000 | 570/1200 | 590/1200 | 590/1200 | 600/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 50 | 50 | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 270 | 270 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/920 | -/920 | -/920 | -/920 | -/920 | -/920 |
| Boot length [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/921 | -/921 | -/921 | -/921 | -/921 | -/921 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 663 | 663 | 663 | 663 | 663 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/992 | -/992 | -/992 | -/992 | -/992 | -/992 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/45 R16 | 215/45 R16 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/45 R16 | 215/45 R16 |
| Wheel size front | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 7J x 16 | 7J x 16 |
| Wheel size rear | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 3973 | 3973 | 3973 | 3973 | 3973 | 3973 |
| Overall width without/including mirrors [mm] | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 |
| Overall height [mm] | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 691 | 691 | 691 | 691 | 691 | 691 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Front elbow/shoulder width [mm] | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 |
| Rear elbow/shoulder width [mm] | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.8 TFSI 141kW | S1 2.0 TFSI 170kW | 1.4 TDI ultra 66kW | 1.4 TDI ultra 66kW | 1.6 TDI 85kW | 1.6 TDI 85kW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1984 | 1422 | 1422 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 141/5400 | 170/6000 | 66/3250 | 66/3250 | 85/3500-4000 | 85/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1250-5300 | 370/1600-3000 | 230/1500-2500 | 230/1500-2500 | 250/1500-3000 | 250/1500-3000 |
| Bore and stroke [mm x mm] | 82,5 x 84,1 | 82,5 x 84,1 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 16,1:1 | 16,1:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 234 | 250 | 182 | 182 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 6.8 | 5.8 | 11.4 | 11.4 | 9.4 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1-7.4 | 9.1-9.2 | 3.9 | 4.0-4.2 | 4.3-4.4 | 4.3-4.5 |
| Out of town [l] | 4.7-4.9 | 5.8-5,9 | 3.1-3.3 | 3.3-3.6 | 3.1-3.3 | 3.4-3.6 |
| Combined [l] | 5.6-5.8 | 7,0-7,2 | 3.4-3.5 | 3.6-3.8 | 3.5-3.7 | 3.7-3.9 |
| CO2 emissions [g/km] | 129-134 | 162-166 | 89-93 | 94-99 | 92-97 | 97-103 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1255 | 1390 | 1165 | 1195 | 1225 | 1250 |
| Overall weight [kg] | 1630 | 1765 | 1540 | 1570 | 1600 | 1625 |
| Maximum trailer weight unbraked/braked [kg] | 620/1200 | - | 580/1200 | 590/1200 | 610/1200 | 620/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 50 | 50 | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 270 | 210 | 270 | 270 | 270 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/920 | -/860 | -/920 | -/920 | -/920 | -/920 |
| Boot length [mm] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/921 | -/921 | -/921 | -/921 | -/921 | -/921 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 663 | 663 | 663 | 663 | 663 | 663 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/992 | -/992 | -/992 | -/992 | -/992 | -/992 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.34 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with torsion bar | four-link, stabiliser bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 215/45 R16 | 215/40 R17 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 215/45 R16 | 215/40 R17 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 7J x 16 | 7.5J x 17 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Wheel size rear | 7J x 16 | 7.5J x 17 | 6J x 15 | 6J x 15 | 6J x 15 | 6J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering | Electro-mechanical variable effect power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 3973 | 3975 | 3973 | 3973 | 3973 | 3973 |
| Overall width without/including mirrors [mm] | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 | 1740/1906 |
| Overall height [mm] | 1422 | 1417 | 1422 | 1422 | 1422 | 1422 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1477 | 1474 | 1477 | 1477 | 1477 | 1477 |
| Rear wheel track [mm] | 1471 | 1452 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 813 | 816 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 691 | 690 | 691 | 691 | 691 | 691 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Front elbow/shoulder width [mm] | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 | 1404/1335 |
| Rear elbow/shoulder width [mm] | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 | 1349/1266 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
