Kia Cee'd

Cee'd JD 2015

Date of manufacture

6/2015 – 2018 (Three-door hatchback)

6/2015 – 2018 (Five-door hatchback)

6/2015 – 2018 (Estate)

Platform

Hyundai-Kia J5

Manufacturing locations

Žilina, Slovakia

Designer

Peter Schreyer

Gregory Guillaume

Tags

C-segment

Korean cars

The new Kia Cee'd has been manufactured since 2015 and is based on the Hyundai-Kia J5 platform. It is available in three body styles - three-door hatchback, five-door hatchback and estate. All models are produced in Slovakia. The engine range includes only petrol engines with a maximum power of 150 kW in the 1.6 T-GDI GT version. The same version has the highest speed of 230 km/h, and the best acceleration from 0-100 km/h in 7.7 seconds is again provided by the 1.6 T-GDI GT. The most economical engine is the 1.6 CRDi with a combined consumption of 4 l/100 km and CO2 emissions of 104 g/km. The luggage compartment size is 380 l for the five-door hatchback and three-door hatchback body styles, and 528 l for the estate body style. The car received a 5 out of 5 rating from EURONCAP in 2012 in the safety area.

Car body style

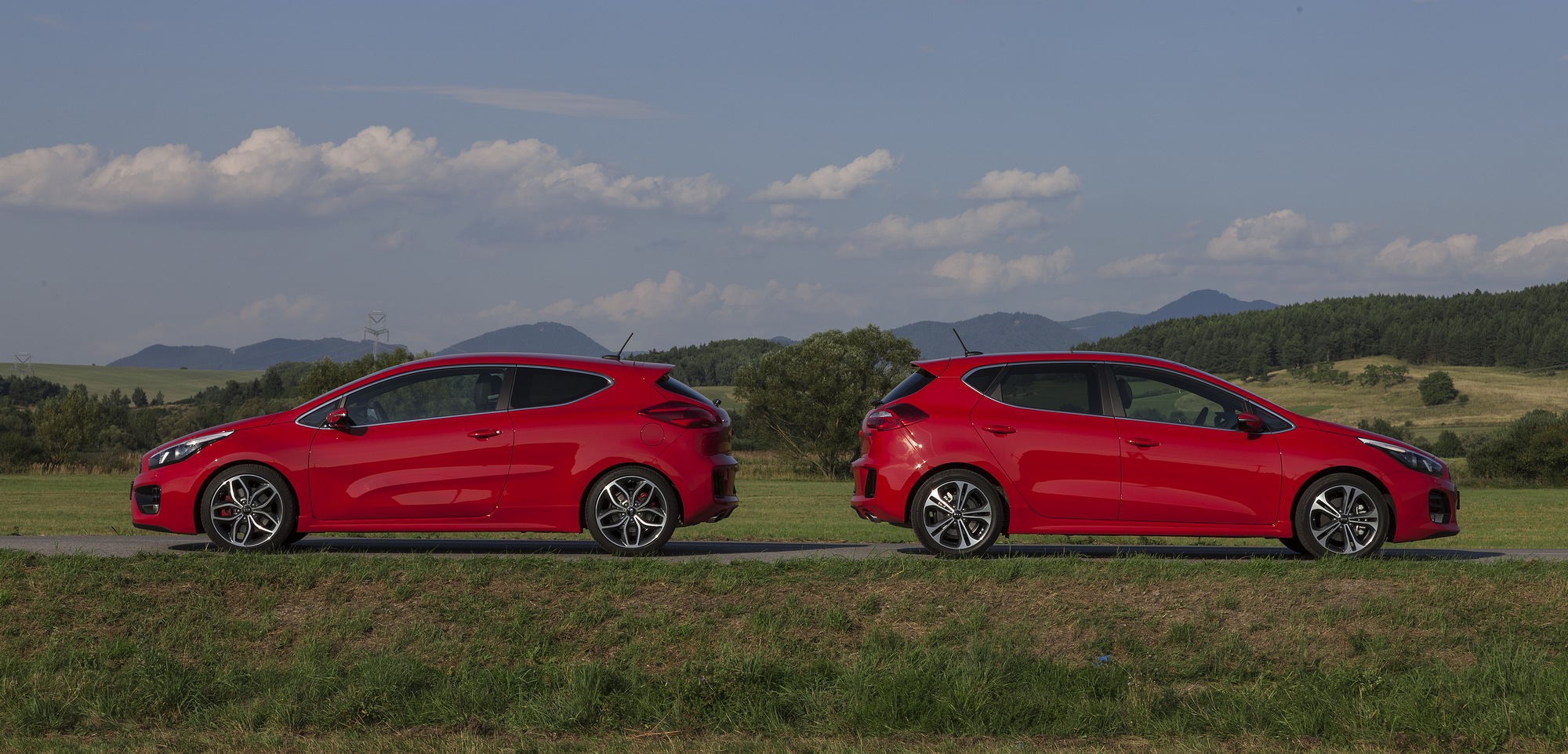

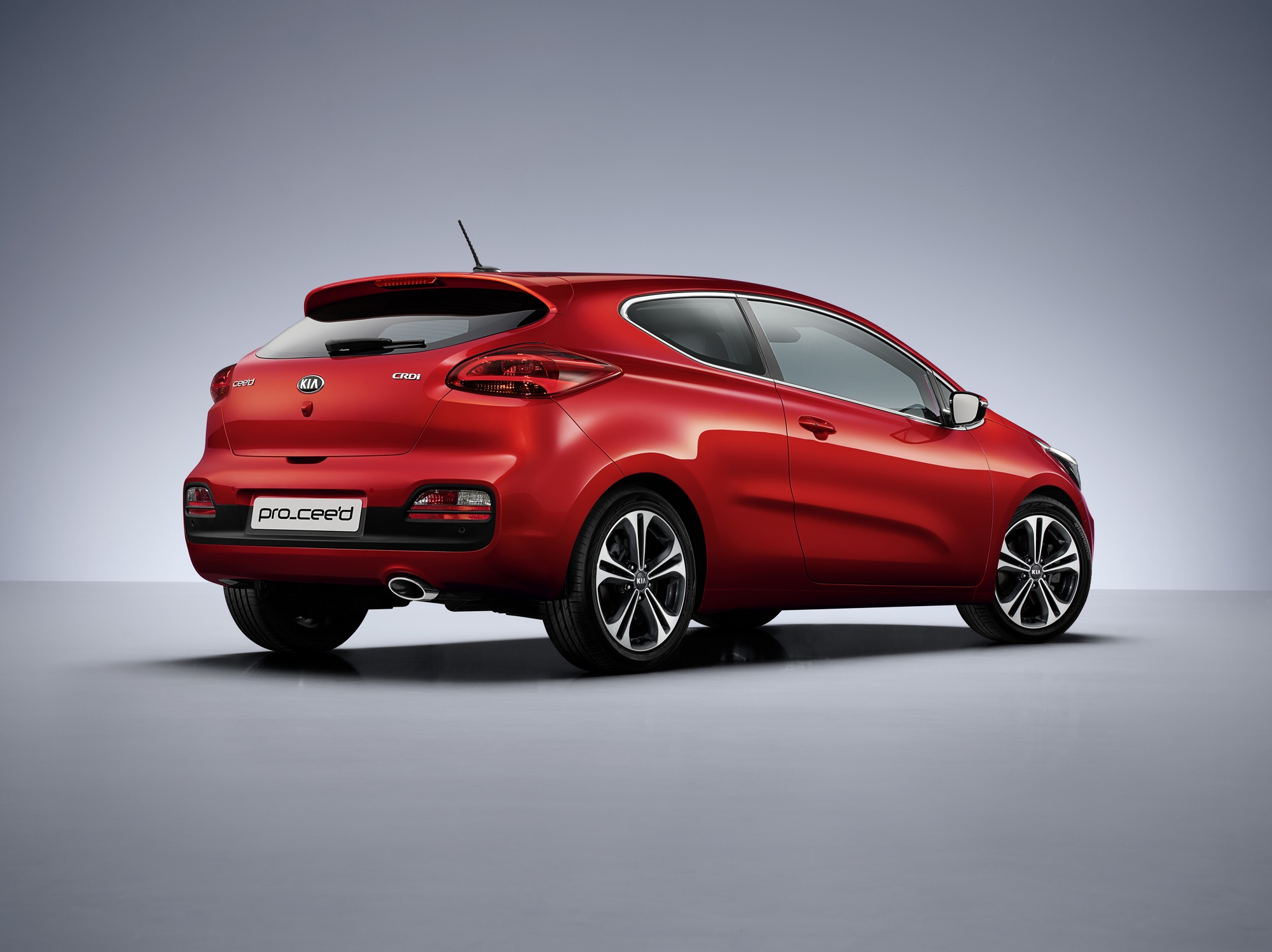

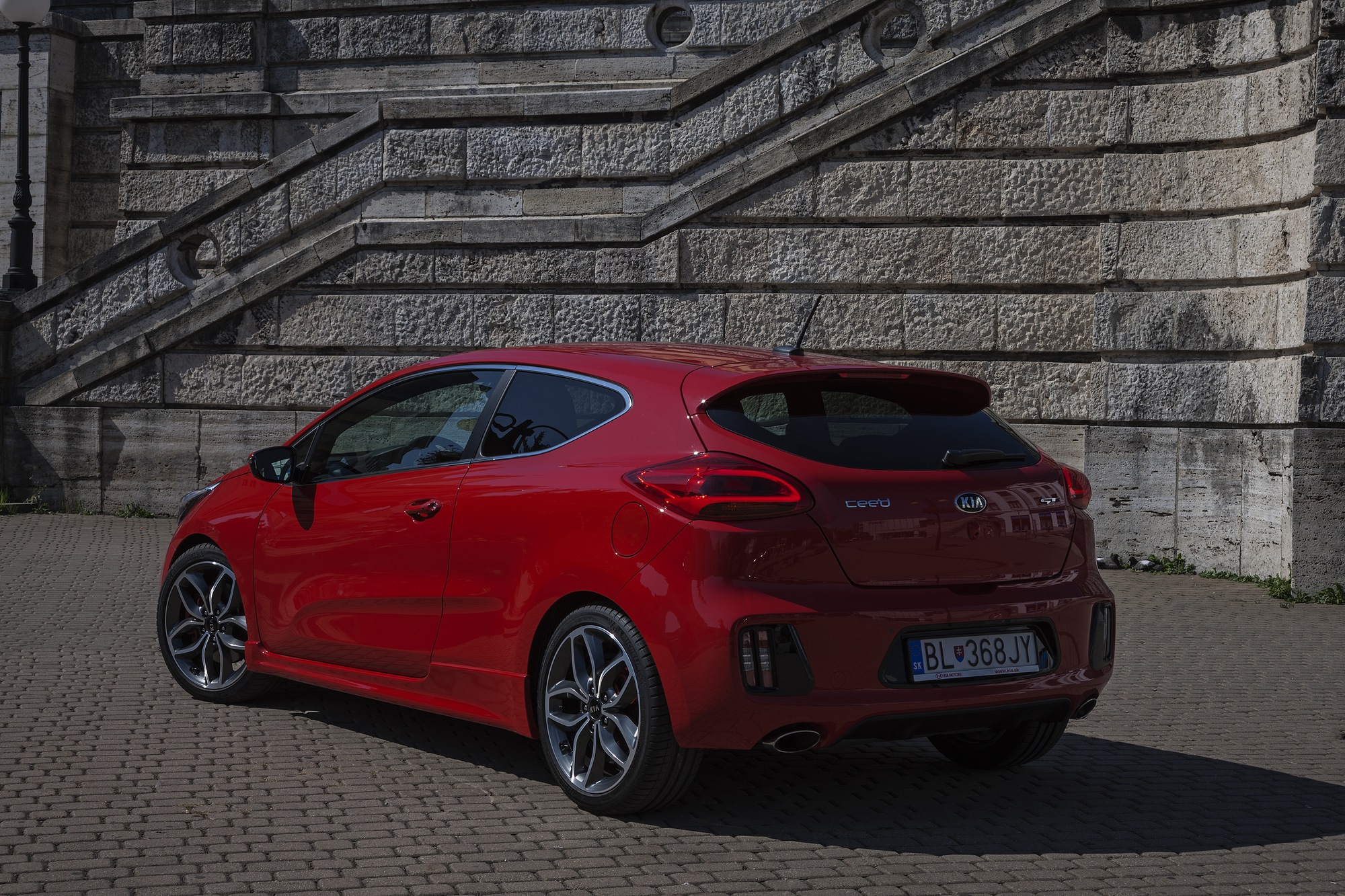

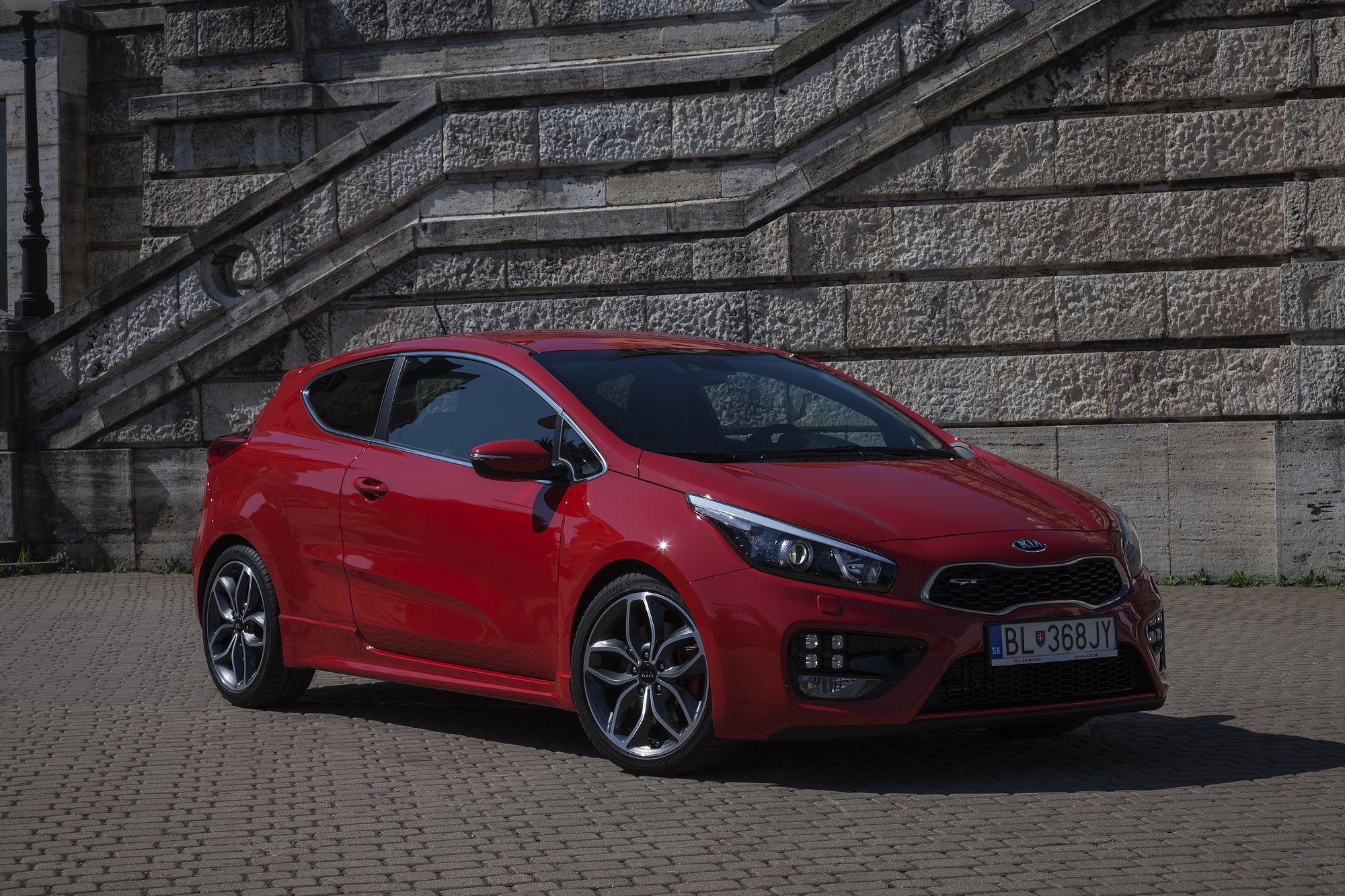

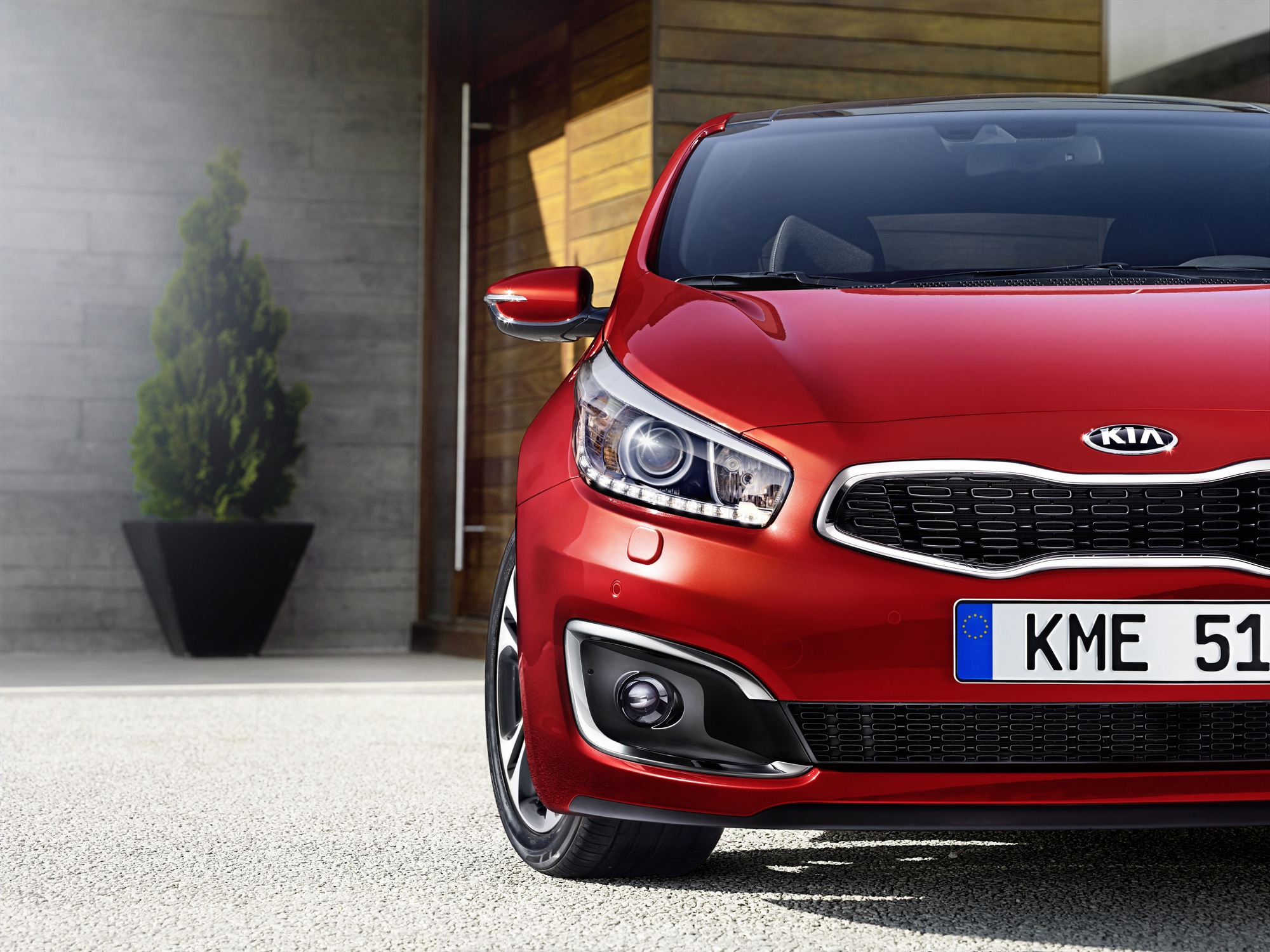

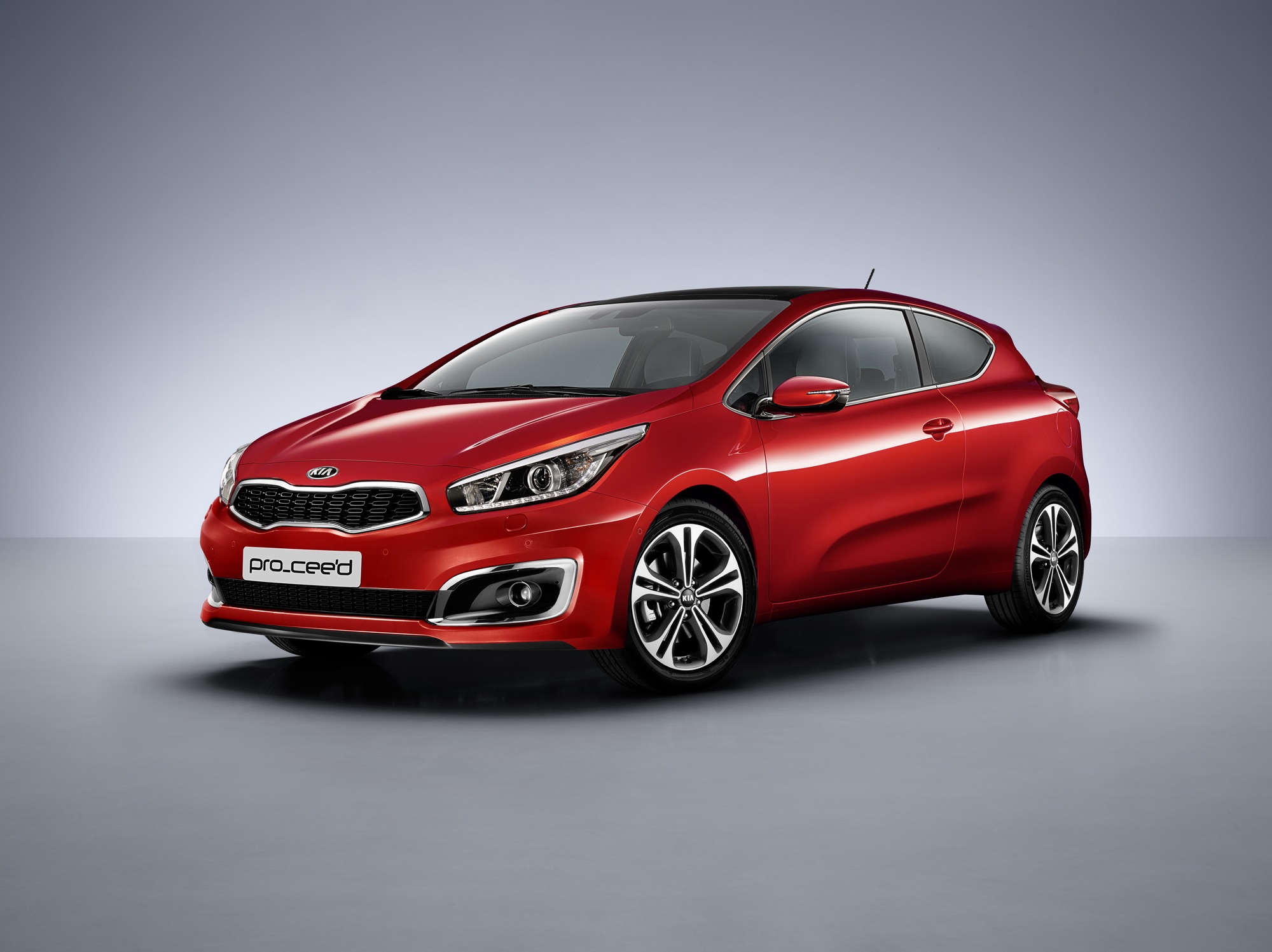

Three-door hatchback (Pro_Cee'd)

after upgrade (facelift)

Date of manufacture

6/2015 – 2018

Internal designation

JD

Engine size

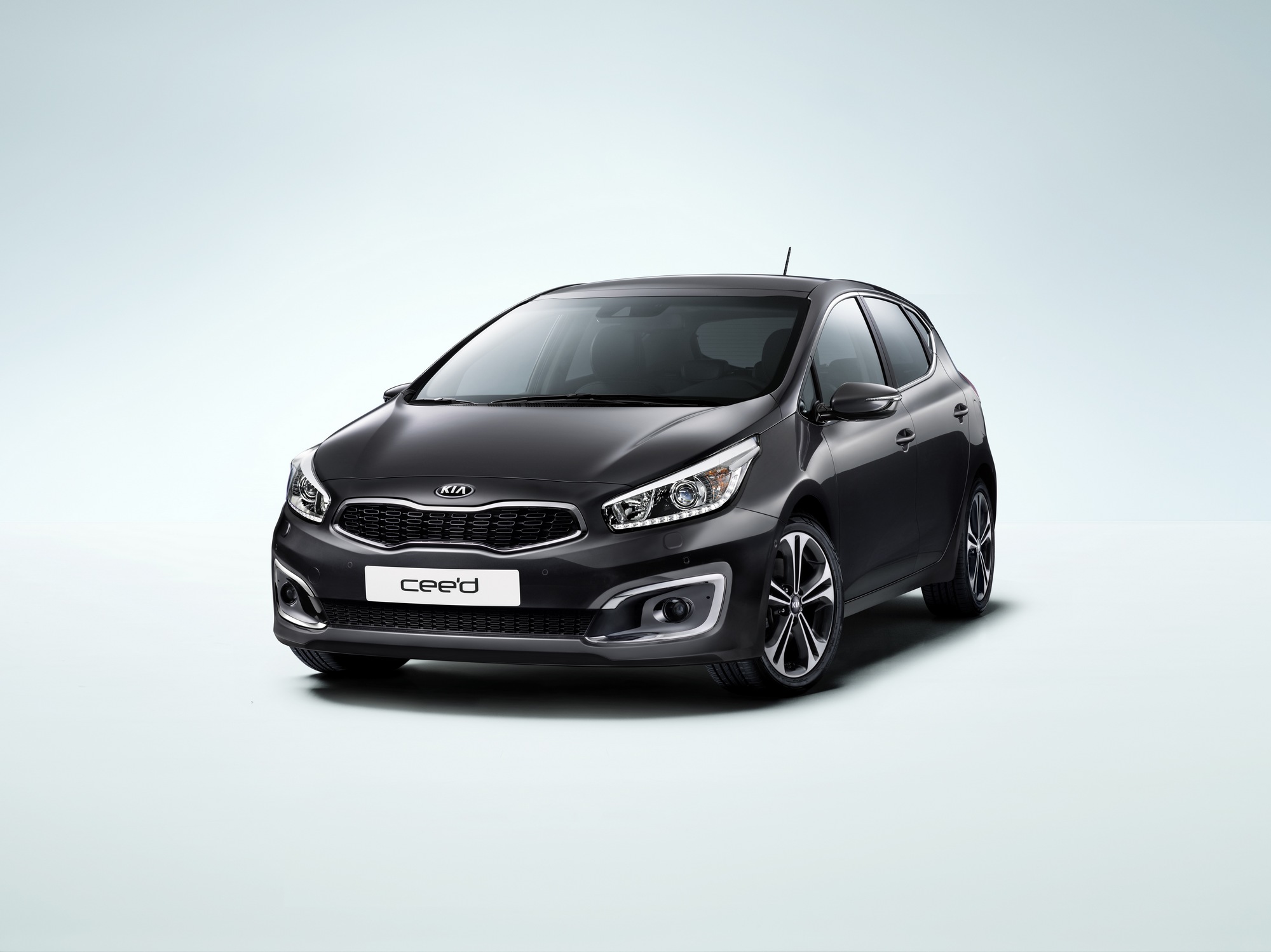

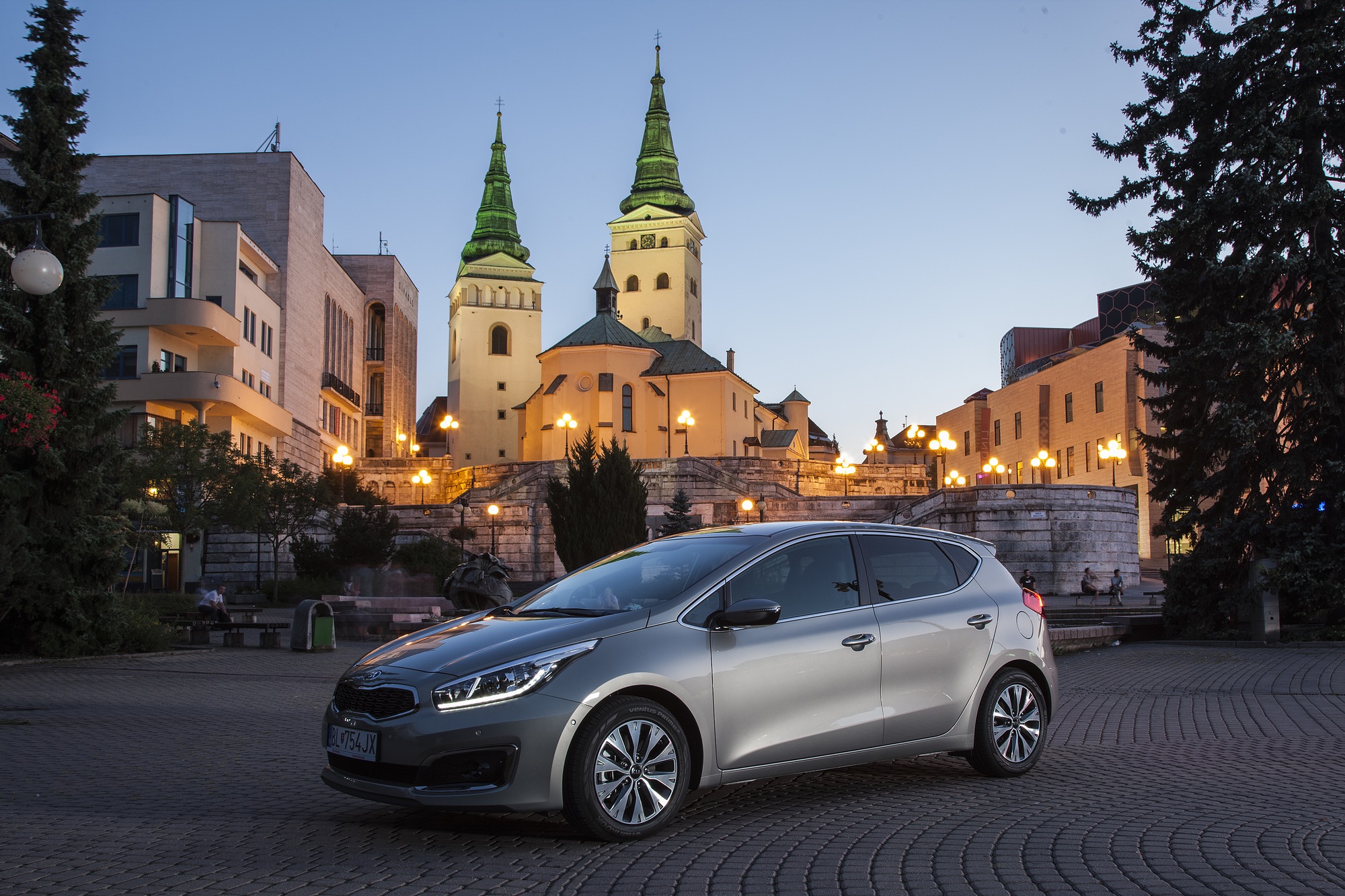

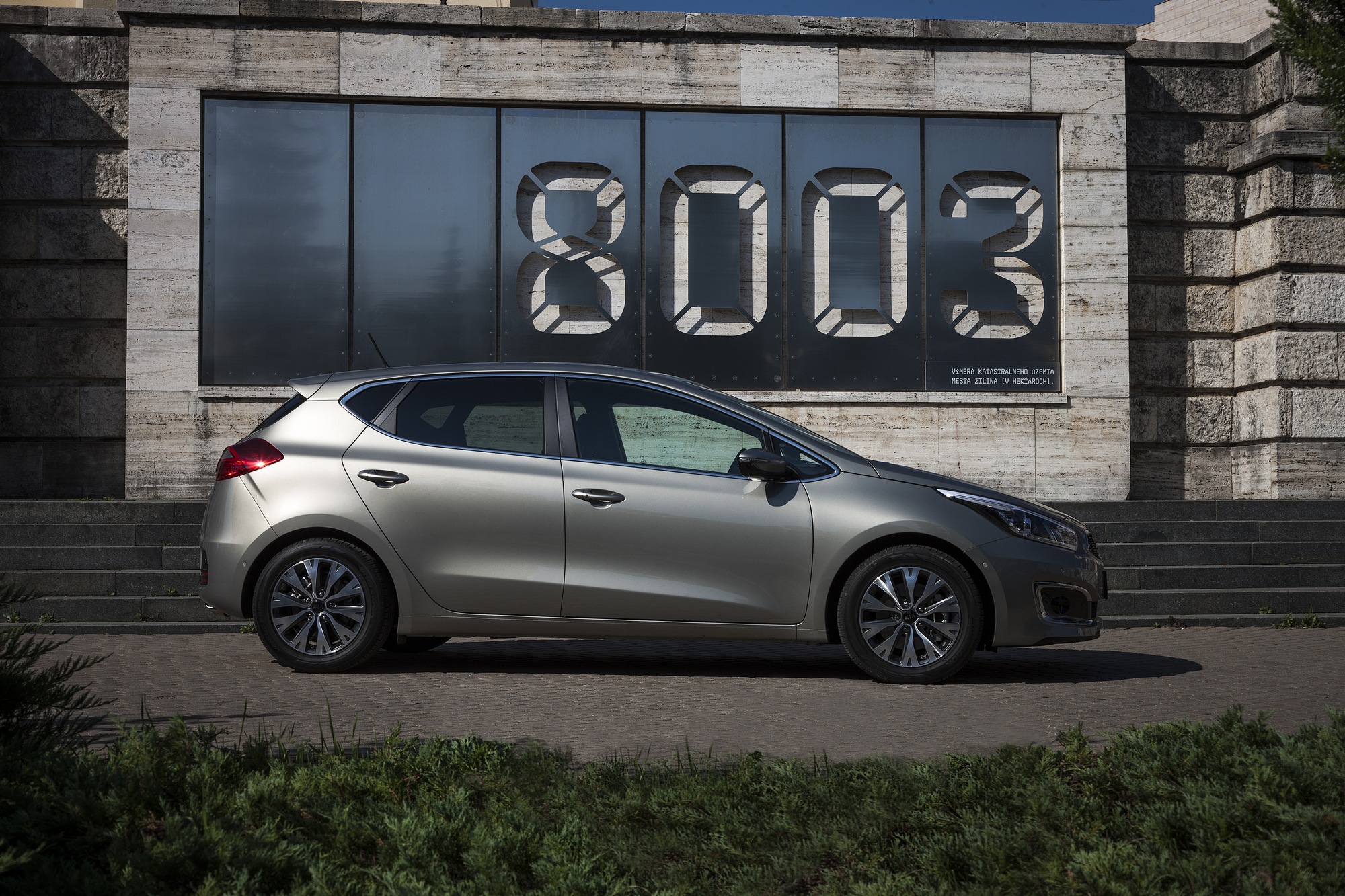

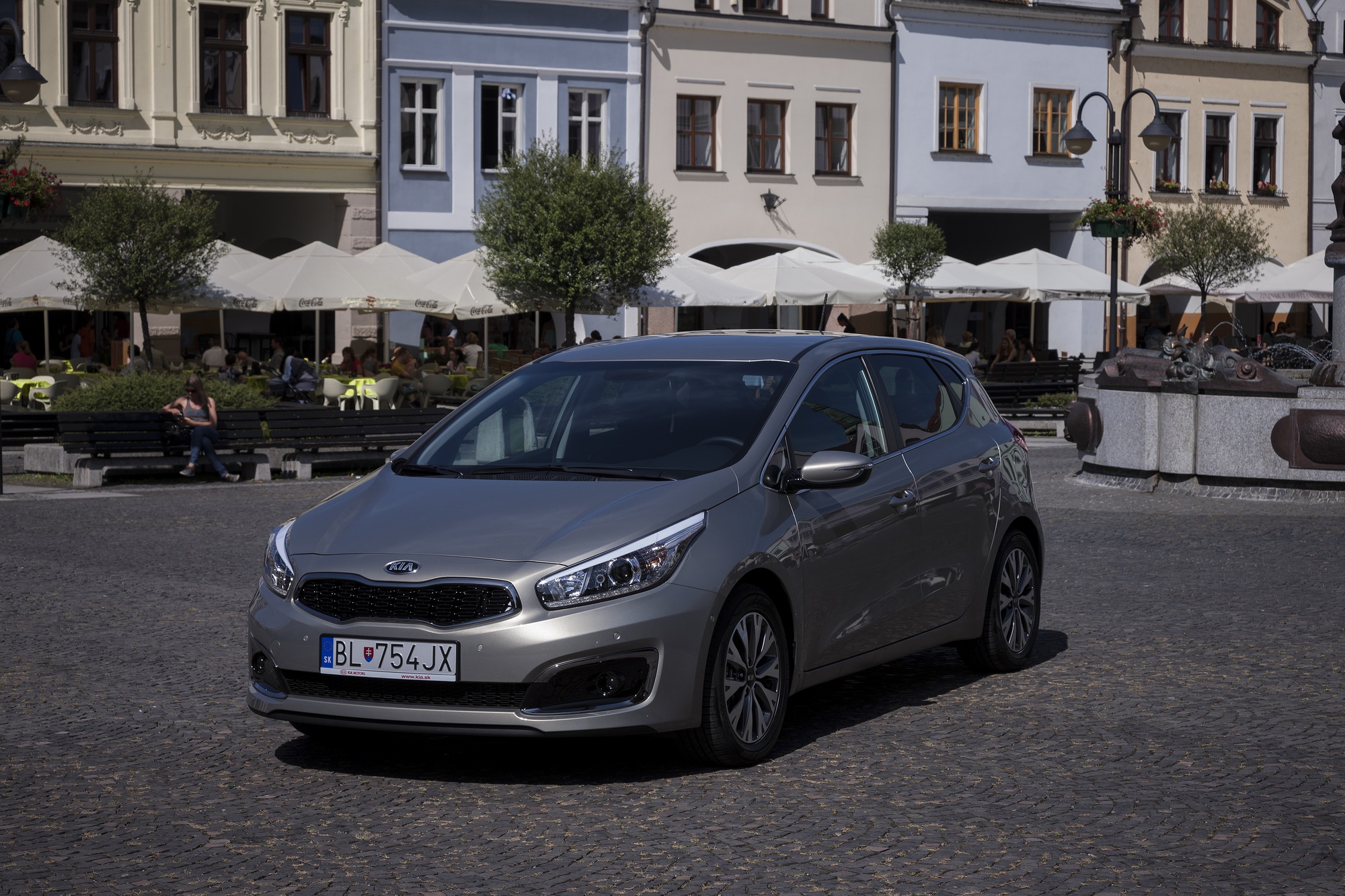

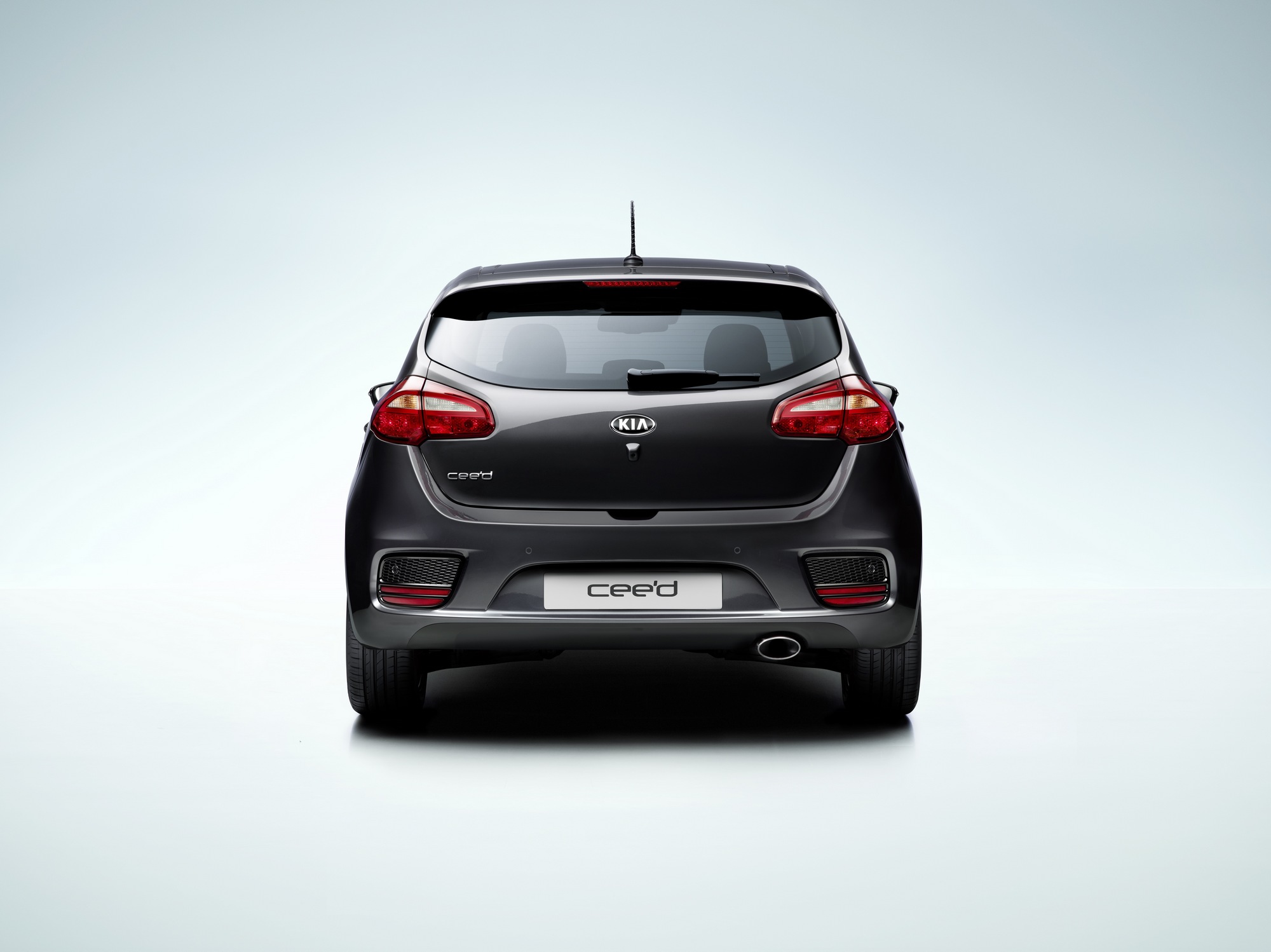

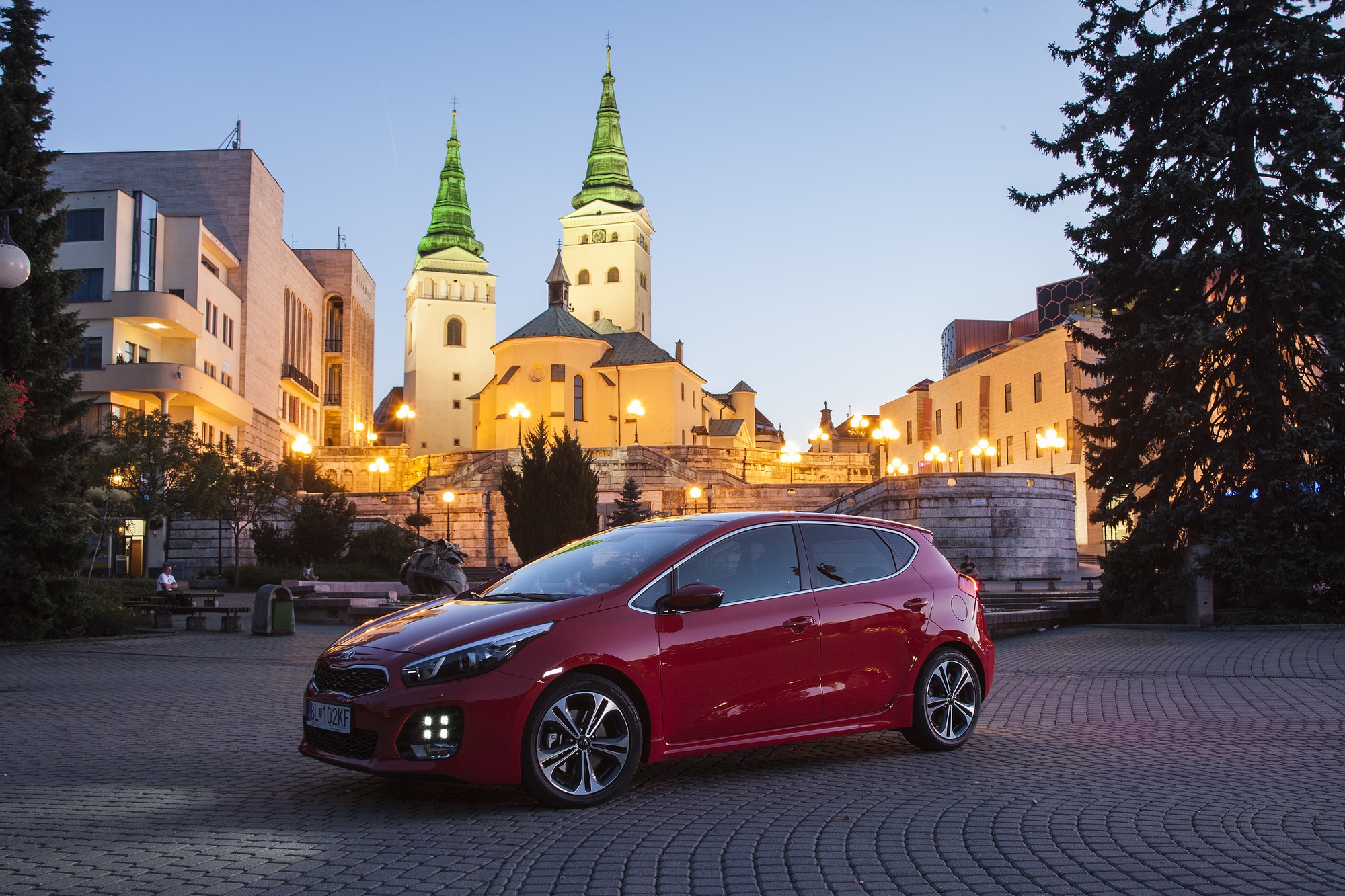

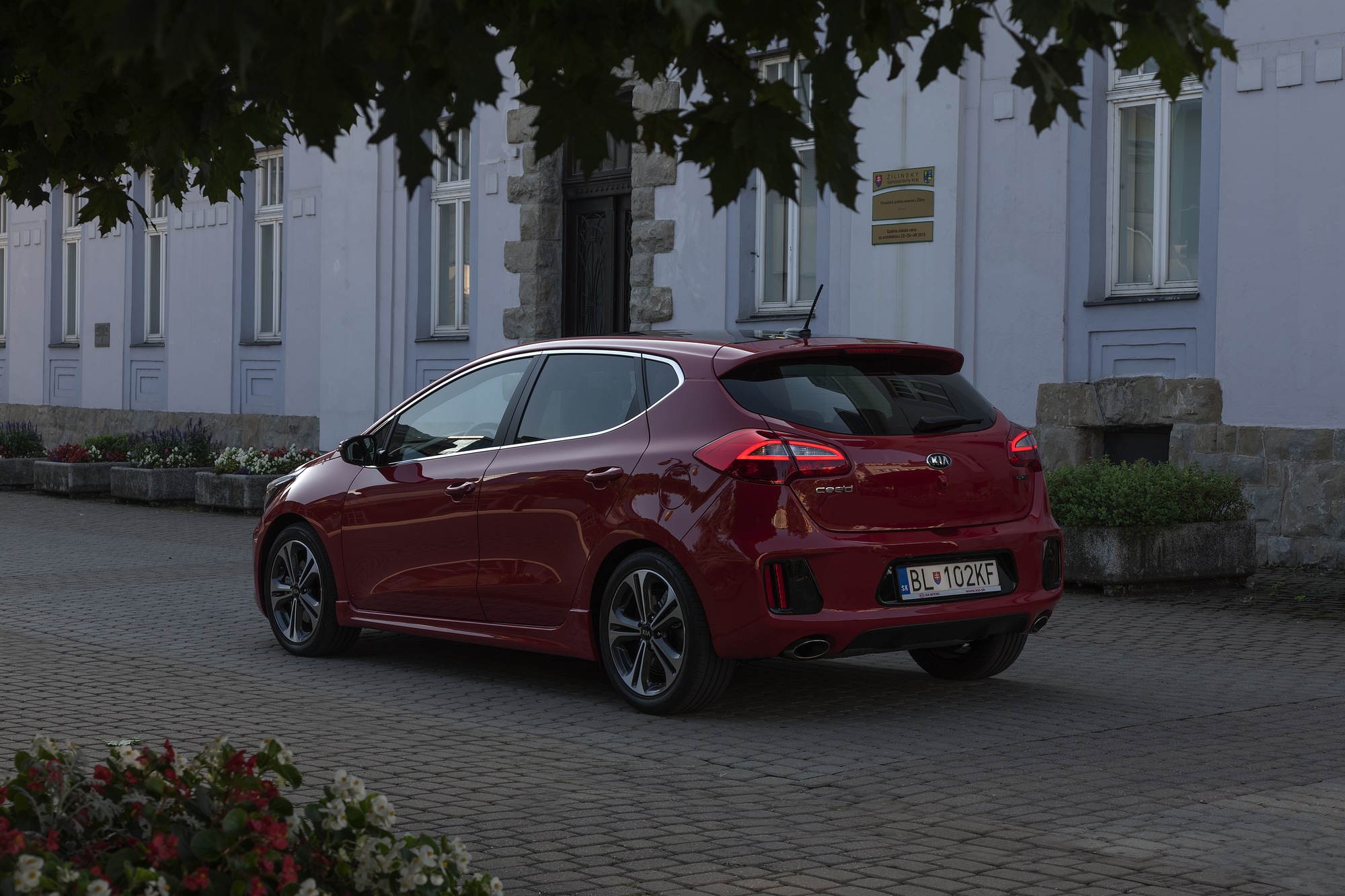

Five-door hatchback

after upgrade (facelift)

Date of manufacture

6/2015 – 2018

Internal designation

JD

Engine size

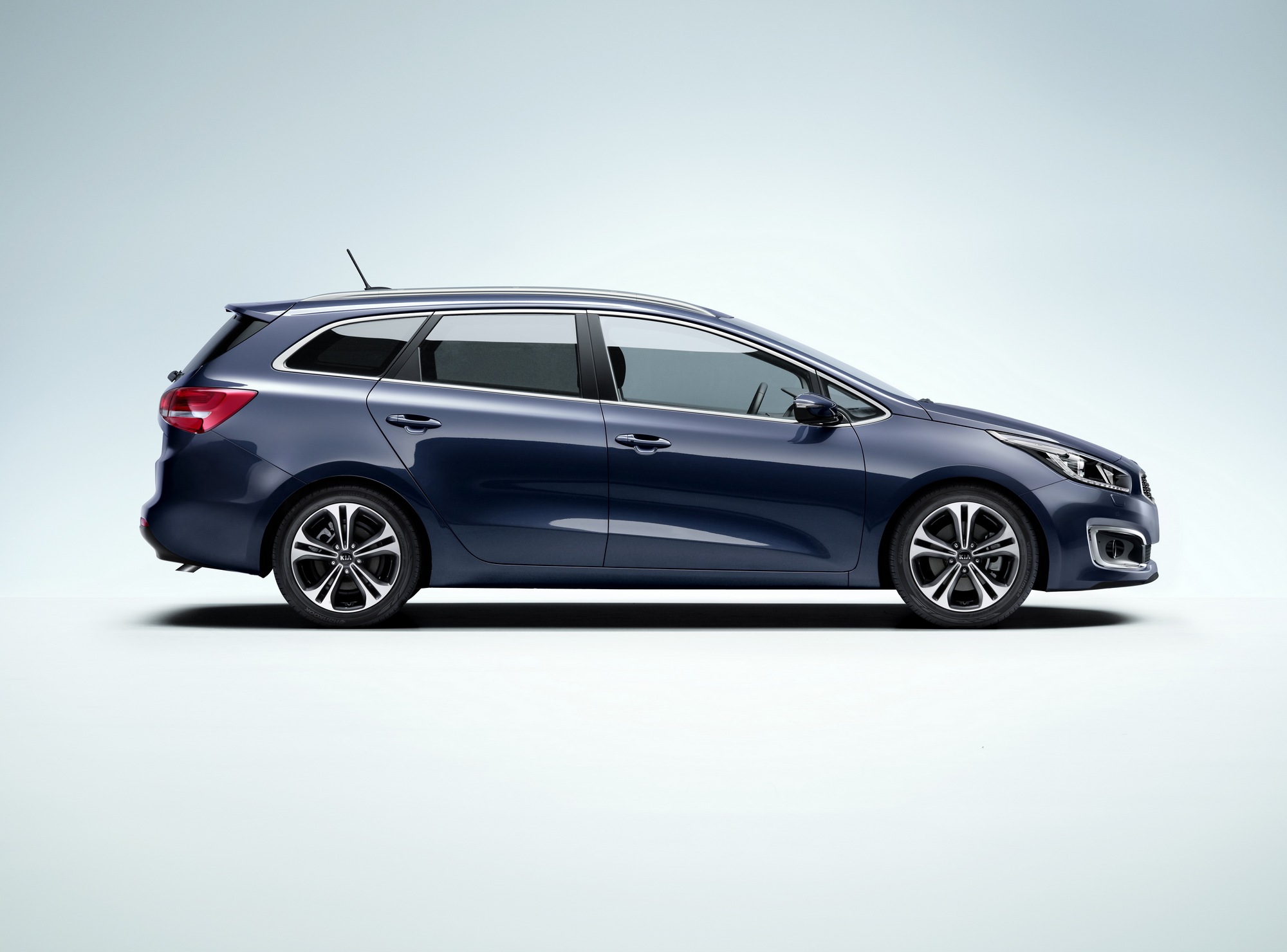

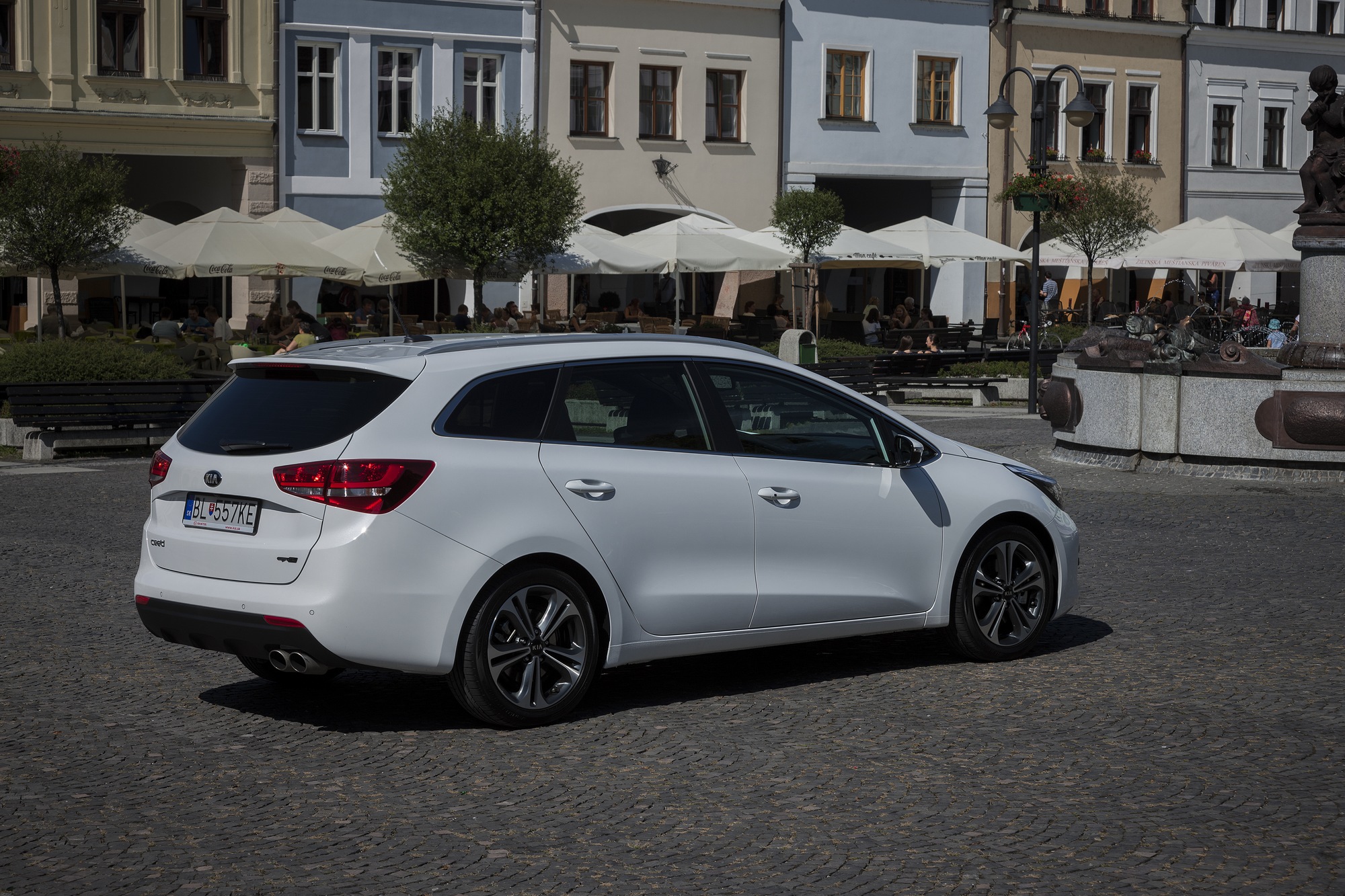

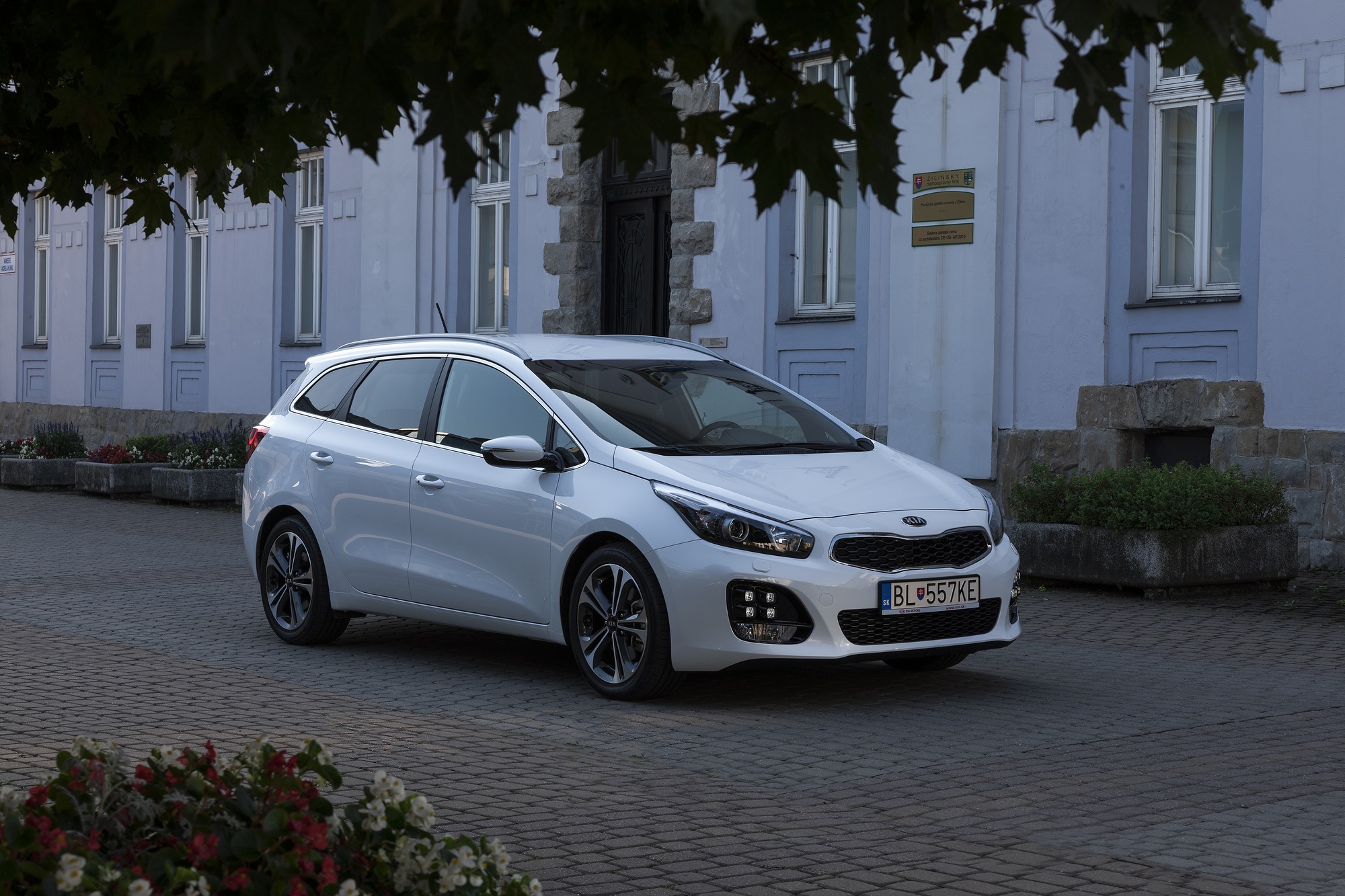

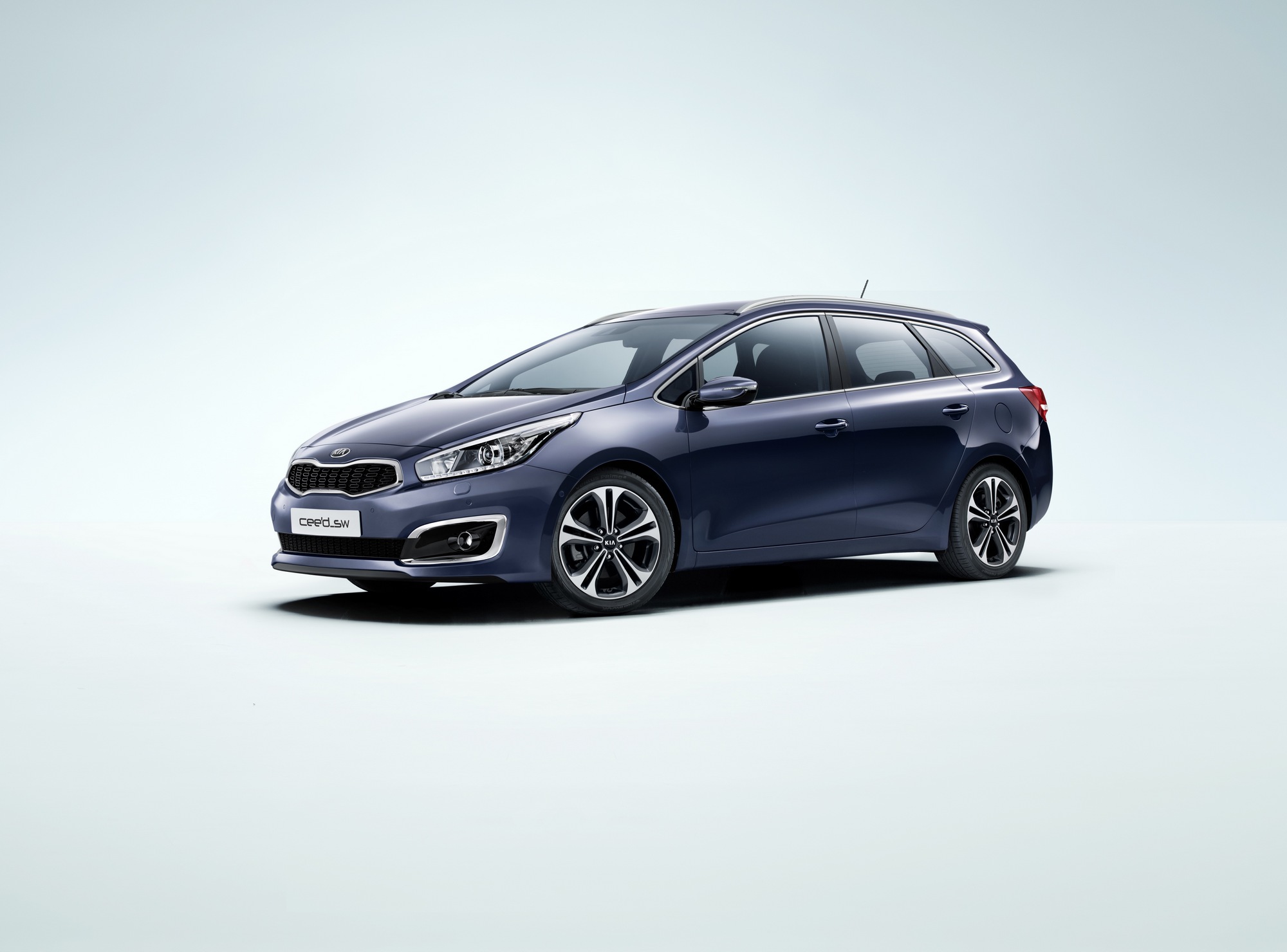

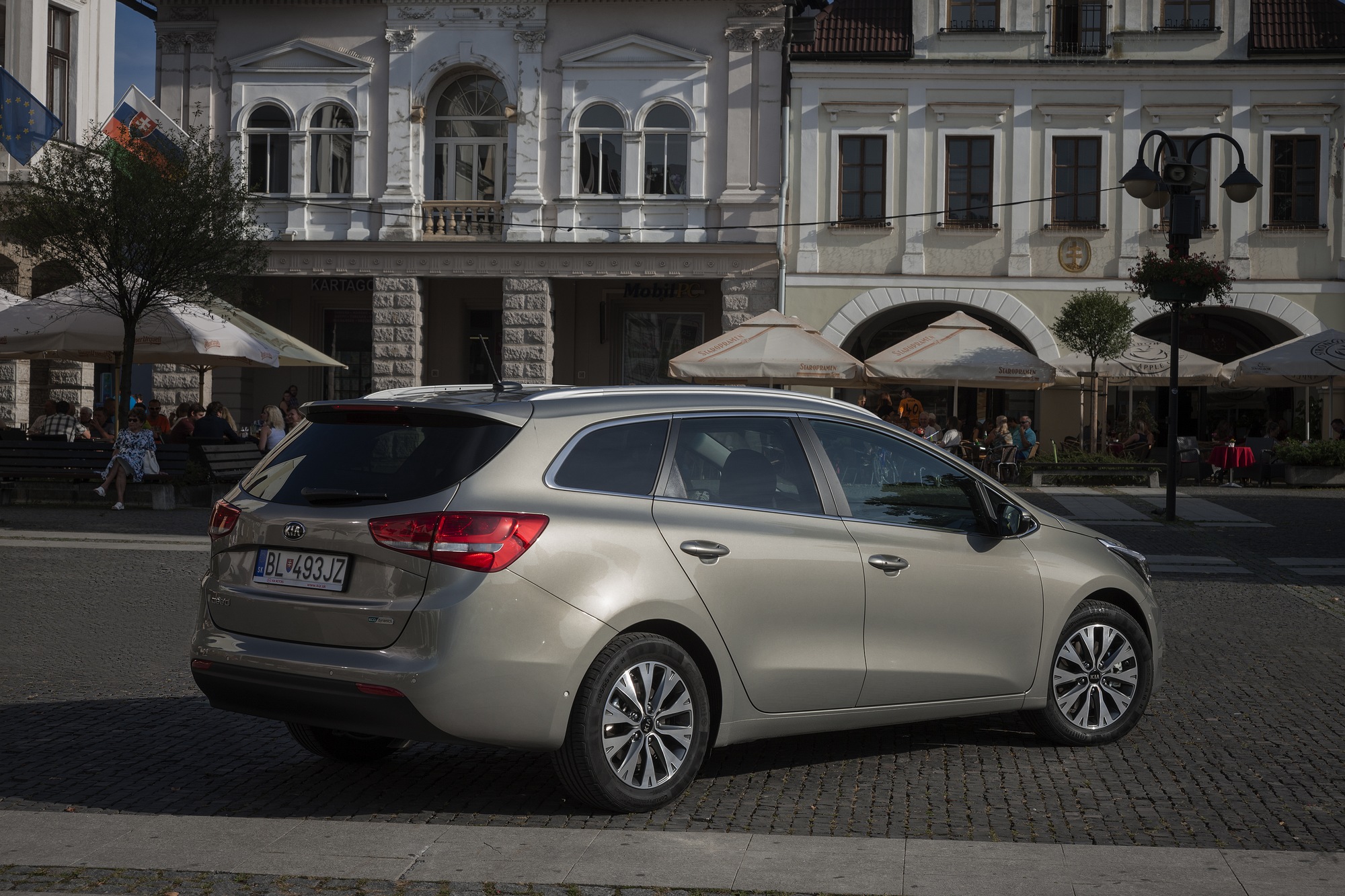

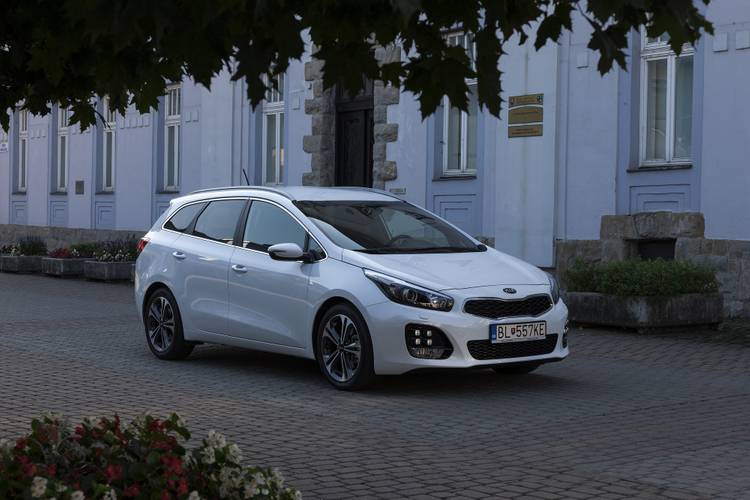

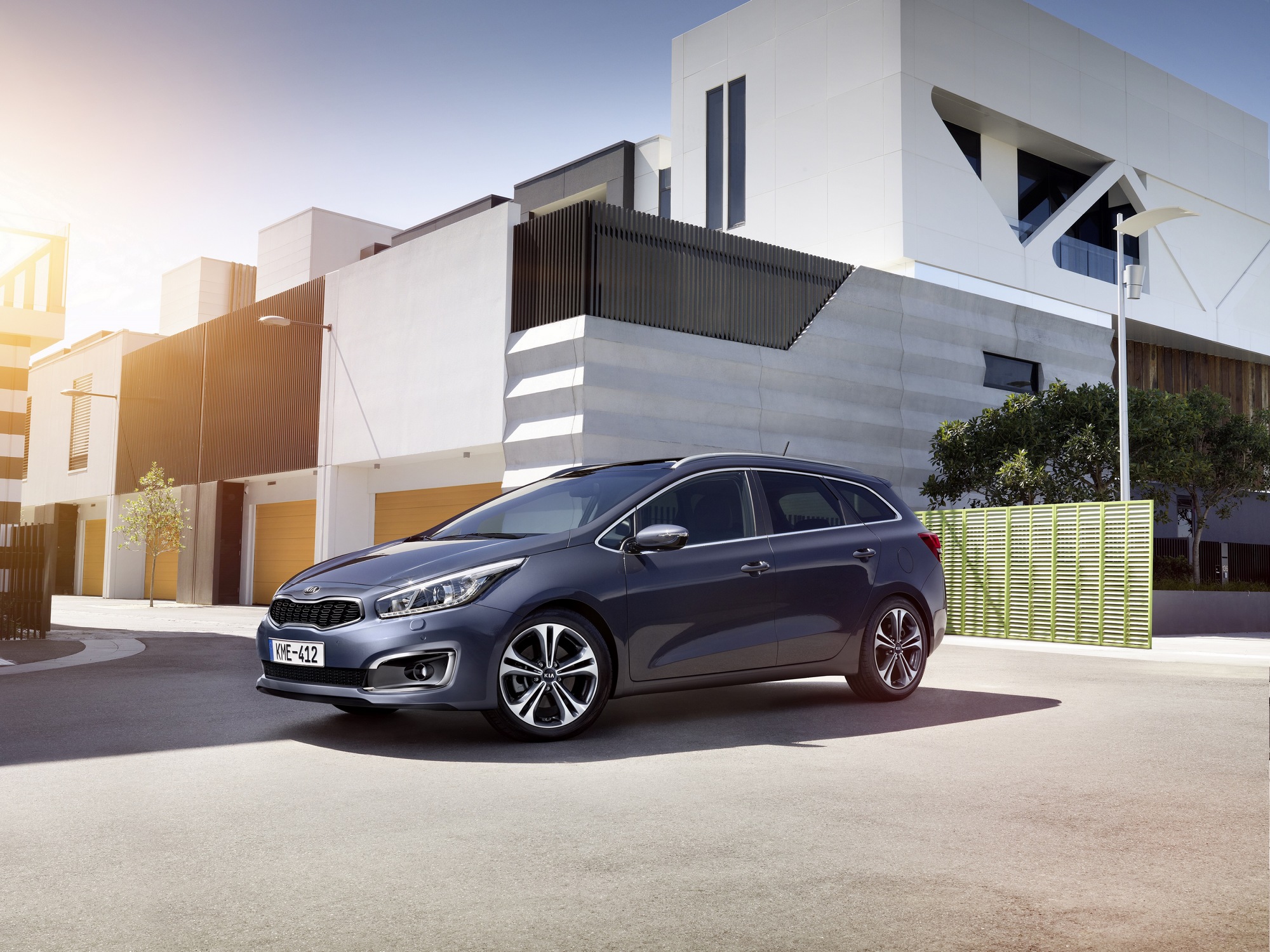

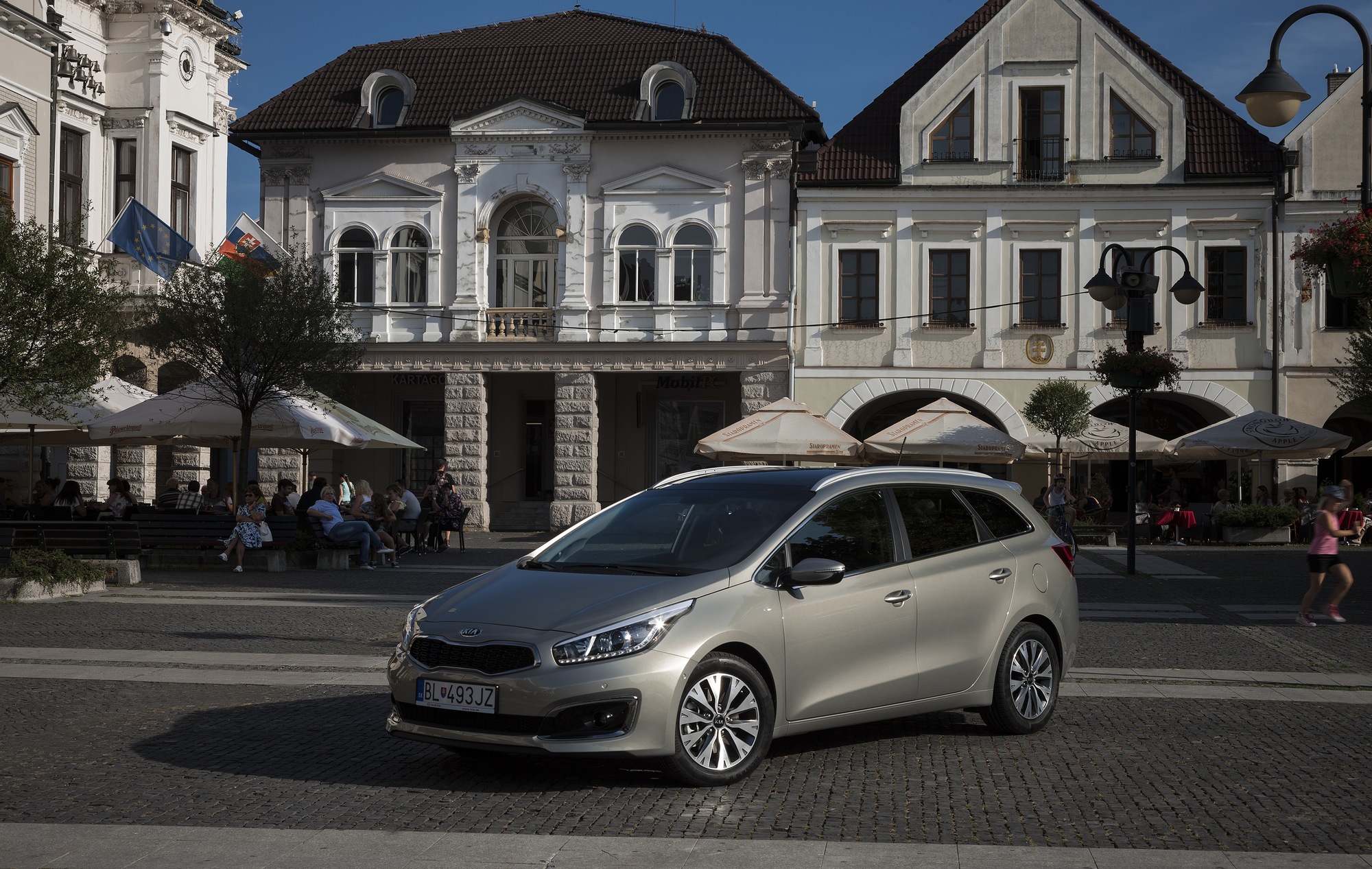

Estate (SW)

after upgrade (facelift)

Date of manufacture

6/2015 – 2018

Internal designation

JD

Engine size

Euro NCAP

předfaceliftová verze (2012)

Technical data

Three-door hatchback (Pro_Cee'd)

	1.4 CVVT	1.0 T-GDI	1.0 T-GDI	1.6 GDI	1.6 GDI	1.6 T-GDI GT
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	1368	998	998	1591	1591	1591
Maximum output / speed [kW/min-1]	73,3/6000	73,6/6000	88,3/6000	99/6300	99/6300	150/6000
Maximum torque [Nm/min-1]	134,4/4000	171,1/1500-4000	171,1/1500-4000	164/4850	164/4850	265/1750-4500
Bore and stroke [mm x mm]	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44
Compression ratio	10,5:1	10,0:1	10,0:1	11,0:1	11,0:1	9,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable valve timing CVVT turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	dual-clutch automatic gearbox DCT	-

Top speed [km/h]	183	185	190	195	195	230
Acceleration 0–100 km/h [s]	12.7	12.8	11.1	9.9	10.8	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.8	6.1	6.2	7.8	7.5	9.7
Out of town [l]	4.9	3.9	4.2	4.7	4.9	6.1
Combined [l]	6.0	4.7	4.9	5.8	5.9	7.4
CO2 emissions [g/km]	138	109	115	135	136	171

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1247-1375	1271-1348	1271-1389	1263-1391	1295-1416	1359-1470
Overall weight [kg]	1820	1820	1820	1820	1840	1850
Maximum trailer weight unbraked/braked [kg]	600/1200	500/1000	600/1200	600/1400	600/1300	600/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1225	-/1225	-/1225	-/1225	-/1225	-/1225
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	225/40 R18
Tyre dimensions rear	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	225/40 R18
Wheel size front	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	7.5 x 18
Wheel size rear	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	7.5 x 18
Brake dimensions front	280 x 23	280 x 23	280 x 23	280 x 23	280 x 23	300 x 28
Brake dimensions rear	262 x 10	262 x 10	262 x 10	262 x 10	262 x 10	284 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4310	4310	4310	4310	4310	4310
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1430	1430	1430	1430	1430	1430
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1555	1563	1563	1545
Rear wheel track [mm]	1571	1571	1563	1571	1571	1553
Forward overhang [mm]	900	900	900	900	900	900
Rear overhang [mm]	760	760	760	760	760	760
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	986	986	986	986	986	986
Headroom rear [mm]	939	939	939	939	939	939
Front elbow/shoulder width [mm]	1362/1420	1362/1420	1362/1420	1362/1420	1362/1420	1362/1420
Rear elbow/shoulder width [mm]	1308/1372	1308/1372	1308/1372	1308/1372	1308/1372	1308/1372
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 CRDi	1.6 CRDi	1.6 CRDi
Date of sale	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1396	1582	1582
Maximum output / speed [kW/min-1]	66/4000	100/4000	100/4000
Maximum torque [Nm/min-1]	240/1500-2500	280/1500-3000	300/1750-2500
Bore and stroke [mm x mm]	75,0 x 79,0	77,2 x 84,5	77,2 x 84,5
Compression ratio	16,0:1	16,0:1	16,0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	7 gear automatic
Drive specifications	-	-	dual-clutch automatic gearbox DCT

Top speed [km/h]	173	197	200
Acceleration 0–100 km/h [s]	13.5	10.2	10.6
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	5.1	4.7	5.1
Out of town [l]	3.7	3.6	4.0
Combined [l]	4.2	4.0	4.4
CO2 emissions [g/km]	109	104	115

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1349-1473	1356-1480	1383-1501
Overall weight [kg]	1910	1920	1940
Maximum trailer weight unbraked/braked [kg]	650/1500	650/1500	650/1500
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-

Boot volume [l]	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1225	-/1225	-/1225
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	3	3	3
Number of seats	5	5	5
Fuel tank volume [l]	53	53	53
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0 x 15	6.0 x 15	6.0 x 15
Wheel size rear	6.0 x 15	6.0 x 15	6.0 x 15
Brake dimensions front	280 x 23	280 x 23	280 x 23
Brake dimensions rear	262 x 10	262 x 10	262 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-

Overall length [mm]	4310	4310	4310
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-
Overall height [mm]	1430	1430	1430
Wheelbase [mm]	2650	2650	2650
Front wheel track [mm]	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571
Forward overhang [mm]	900	900	900
Rear overhang [mm]	760	760	760
Clearance [mm]	140	140	140
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	986	986	986
Headroom rear [mm]	939	939	939
Front elbow/shoulder width [mm]	1362/1420	1362/1420	1362/1420
Rear elbow/shoulder width [mm]	1308/1372	1308/1372	1308/1372
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Five-door hatchback

	1.4 CVVT	1.0 T-GDI	1.0 T-GDI	1.6 GDI	1.6 GDI	1.6 T-GDI GT
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	1368	998	998	1591	1591	1591
Maximum output / speed [kW/min-1]	73,3/6000	73,6/6000	88,3/6000	99/6300	99/6300	150/6000
Maximum torque [Nm/min-1]	134,4/4000	171,1/1500-4000	171,1/1500-4000	164/4850	164/4850	265/1750-4500
Bore and stroke [mm x mm]	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0	77,0 x 85,44	77,0 x 85,44	77,0 x 85,44
Compression ratio	10,5:1	10,0:1	10,0:1	11,0:1	11,0:1	9,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable valve timing CVVT turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	dual-clutch automatic gearbox DCT	-

Top speed [km/h]	183	185	190	195	195	230
Acceleration 0–100 km/h [s]	12.7	12.8	11.1	9.9	10.8	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.8	6.1	6.2	7.8	7.5	9.7
Out of town [l]	4.9	3.9	4.2	4.7	4.9	6.1
Combined [l]	6.0	4.7	4.9	5.8	5.9	7.4
CO2 emissions [g/km]	138	109	115	135	136	171

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1254-1388	1279-1361	1279-1402	1271-1405	1302-1428	1367-1485
Overall weight [kg]	1820	1820	1820	1820	1840	1870
Maximum trailer weight unbraked/braked [kg]	600/1200	500/1000	600/1200	600/1400	600/1300	600/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1318	-/1318	-/1318	-/1318	-/1318	-/1318
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	225/40 R18
Tyre dimensions rear	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	225/40 R18
Wheel size front	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	7.5 x 18
Wheel size rear	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	7.5 x 18
Brake dimensions front	280 x 23	280 x 23	280 x 23	280 x 23	280 x 23	300 x 28
Brake dimensions rear	262 x 10	262 x 10	262 x 10	262 x 10	262 x 10	284 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4310	4310	4310	4310	4310	4310
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1470	1470	1470	1470	1470	1470
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1555	1563	1563	1545
Rear wheel track [mm]	1571	1571	1563	1571	1571	1553
Forward overhang [mm]	900	900	900	900	900	900
Rear overhang [mm]	760	760	760	760	760	760
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1018	1018	1018	1018	1018	1018
Headroom rear [mm]	976	976	976	976	976	976
Front elbow/shoulder width [mm]	1360/1420	1360/1420	1360/1420	1360/1420	1360/1420	1360/1420
Rear elbow/shoulder width [mm]	1295/1392	1295/1392	1295/1392	1295/1392	1295/1392	1295/1392
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 CRDi	1.6 CRDi	1.6 CRDi
Date of sale	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1396	1582	1582
Maximum output / speed [kW/min-1]	66/4000	100/4000	100/4000
Maximum torque [Nm/min-1]	240/1500-2500	280/1500-3000	300/1750-2500
Bore and stroke [mm x mm]	75,0 x 79,0	77,2 x 84,5	77,2 x 84,5
Compression ratio	16,0:1	16,0:1	16,0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	7 gear automatic
Drive specifications	-	-	dual-clutch automatic gearbox DCT

Top speed [km/h]	173	197	200
Acceleration 0–100 km/h [s]	13.5	10.2	10.6
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	5.1	4.7	5.1
Out of town [l]	3.7	3.6	4.0
Combined [l]	4.2	4.0	4.4
CO2 emissions [g/km]	109	104	115

Emission standard	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1357-1486	1364-1493	1391-1513
Overall weight [kg]	1910	1920	1940
Maximum trailer weight unbraked/braked [kg]	650/1500	650/1500	650/1500
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-

Boot volume [l]	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1318	-/1318	-/1318
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	53	53	53
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0 x 15	6.0 x 15	6.0 x 15
Wheel size rear	6.0 x 15	6.0 x 15	6.0 x 15
Brake dimensions front	280 x 23	280 x 23	280 x 23
Brake dimensions rear	262 x 10	262 x 10	262 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-

Overall length [mm]	4310	4310	4310
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-
Overall height [mm]	1470	1470	1470
Wheelbase [mm]	2650	2650	2650
Front wheel track [mm]	1563	1563	1563
Rear wheel track [mm]	1571	1571	1571
Forward overhang [mm]	900	900	900
Rear overhang [mm]	760	760	760
Clearance [mm]	140	140	140
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1018	1018	1018
Headroom rear [mm]	976	976	976
Front elbow/shoulder width [mm]	1360/1420	1360/1420	1360/1420
Rear elbow/shoulder width [mm]	1295/1392	1295/1392	1295/1392
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Estate (SW)

	1.4 CVVT	1.0 T-GDI	1.0 T-GDI	1.6 GDI	1.6 GDI	1.4 CRDi
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	1368	998	998	1591	1591	1396
Maximum output / speed [kW/min-1]	73,3/6000	73,6/6000	88,3/6000	99/6300	99/6300	66/4000
Maximum torque [Nm/min-1]	134,4/4000	171,1/1500-4000	171,1/1500-4000	164/4850	164/4850	240/1500-2500
Bore and stroke [mm x mm]	72,0 x 84,0	71,0 x 84,0	71,0 x 84,0	77,0 x 85,44	77,0 x 85,44	75,0 x 79,0
Compression ratio	10,5:1	10,0:1	10,0:1	11,0:1	11,0:1	16,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI turbo-supercharged variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection GDI variable timing of intake and exhaust valves D‐CVVT	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	-	-	-	dual-clutch automatic gearbox DCT	-

Top speed [km/h]	181	182	187	192	192	172
Acceleration 0–100 km/h [s]	13.0	13.1	11.4	10.2	11.1	13.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.8	6.3	6.4	8.2	7.5	5.1
Out of town [l]	4.9	4.3	4.4	5.1	4.9	3.7
Combined [l]	6.0	5.0	5.2	6.3	5.9	4.2
CO2 emissions [g/km]	138	117	120	141	136	109

Emission standard	EU6	EU6	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1279-1424	1305-1398	1305	1296-1441	1330-1467	1382-1522
Overall weight [kg]	1820	1820	1820	1820	1850	1910
Maximum trailer weight unbraked/braked [kg]	600/1200	500/1000	600/1200	600/1400	600/1300	650/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	528	528	528	528	528	528
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1642	-/1642	-/1642	-/1642	-/1642	-/1642
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	53	53	53	53	53	53
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	205/55 R16	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	6.0 x 15
Wheel size rear	6.0 x 15	6.0 x 15	-	6.0 x 15	6.0 x 15	6.0 x 15
Brake dimensions front	280 x 23	280 x 23	280 x 23	280 x 23	280 x 23	280 x 23
Brake dimensions rear	262 x 10	262 x 10	262 x 10	262 x 10	262 x 10	262 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4505	4505	4505	4505	4505	4505
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1485	1485	1485	1485	1485	1485
Wheelbase [mm]	2650	2650	2650	2650	2650	2650
Front wheel track [mm]	1563	1563	1555	1563	1563	1563
Rear wheel track [mm]	1571	1571	1563	1571	1571	1571
Forward overhang [mm]	900	900	900	900	900	900
Rear overhang [mm]	955	955	955	955	955	955
Clearance [mm]	140	140	140	140	140	140
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1024	1024	1024	1024	1024	1024
Headroom rear [mm]	996	996	996	996	996	996
Front elbow/shoulder width [mm]	1360/1420	1360/1420	1360/1420	1360/1420	1360/1420	1360/1420
Rear elbow/shoulder width [mm]	1295/1392	1295/1392	1295/1392	1295/1392	1295/1392	1295/1392
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 CRDi	1.6 CRDi
Date of sale	-	-
Engine type	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1582	1582
Maximum output / speed [kW/min-1]	100/4000	100/4000
Maximum torque [Nm/min-1]	280/1500-3000	300/1750-2500
Bore and stroke [mm x mm]	77,2 x 84,5	77,2 x 84,5
Compression ratio	16,0:1	16,0:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front
Gearbox	6 gear manual	7 gear automatic
Drive specifications	-	dual-clutch automatic gearbox DCT

Top speed [km/h]	194	197
Acceleration 0–100 km/h [s]	10.5	10.9
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	4.7	5.1
Out of town [l]	3.6	4.0
Combined [l]	4.0	4.4
CO2 emissions [g/km]	104	115

Emission standard	EU6	EU6
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1389-1529	1416-1550
Overall weight [kg]	1920	1940
Maximum trailer weight unbraked/braked [kg]	650/1500	650/1500
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	80/-	80/-

Boot volume [l]	528	528
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1642	-/1642
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	53	53
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.3	0.3
Front suspension	MacPherson, coil springs, gas shock absorbers, torsion stabiliser	MacPherson, coil springs, gas shock absorbers, torsion stabiliser
Rear suspension	multilink, coil springs, stabiliser bar, gas shock absorbers	multilink, coil springs, stabiliser bar, gas shock absorbers
Tyre dimensions front	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15
Wheel size front	6.0 x 15	6.0 x 15
Wheel size rear	6.0 x 15	6.0 x 15
Brake dimensions front	280 x 23	280 x 23
Brake dimensions rear	262 x 10	262 x 10
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-

Overall length [mm]	4505	4505
Overall width without/including mirrors [mm]	1780/-	1780/-
Overall height [mm]	1485	1485
Wheelbase [mm]	2650	2650
Front wheel track [mm]	1563	1563
Rear wheel track [mm]	1571	1571
Forward overhang [mm]	900	900
Rear overhang [mm]	955	955
Clearance [mm]	140	140
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1024	1024
Headroom rear [mm]	996	996
Front elbow/shoulder width [mm]	1360/1420	1360/1420
Rear elbow/shoulder width [mm]	1295/1392	1295/1392
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Gallery

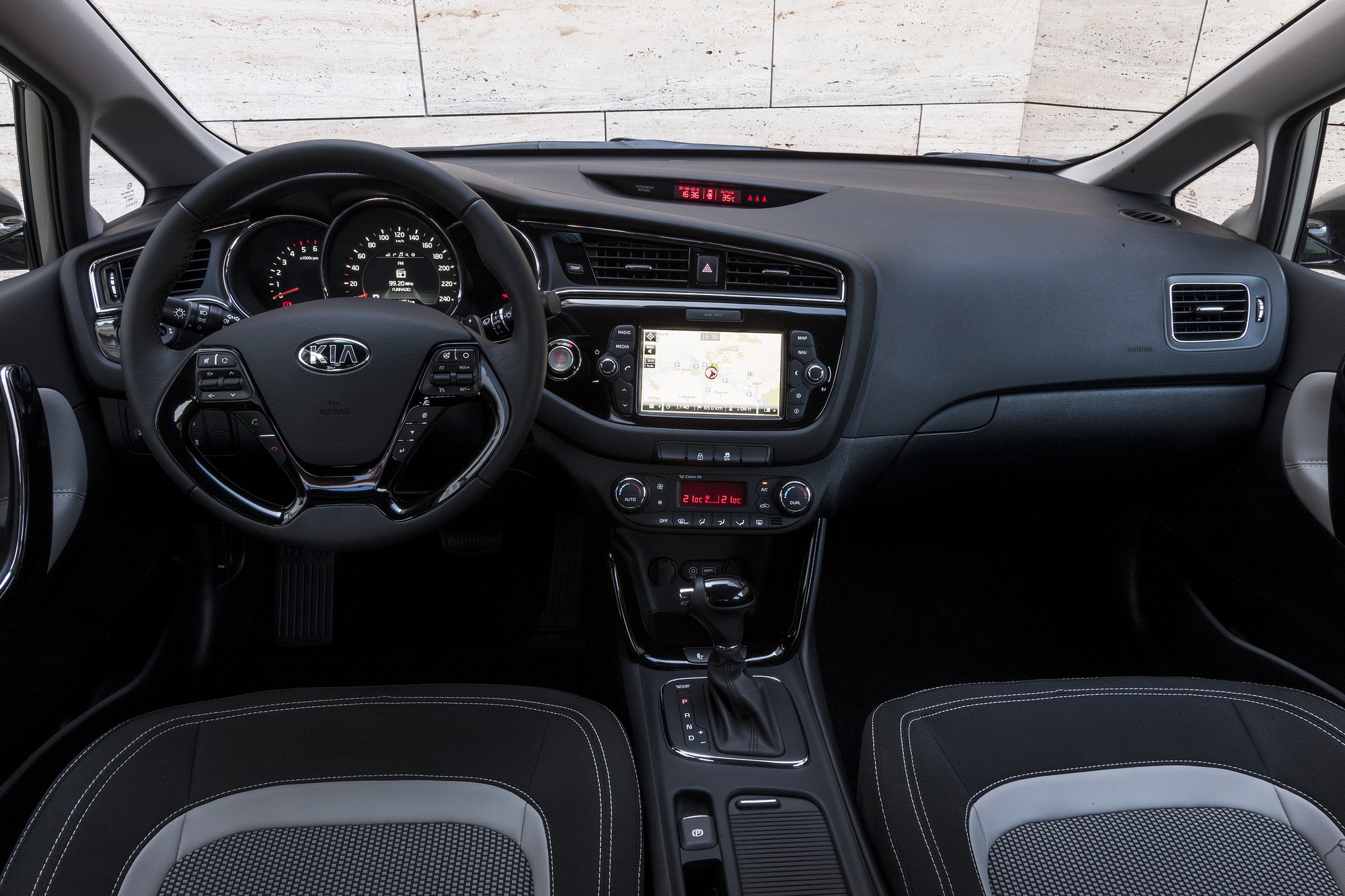

Kia Ceed Facelift 2015 JD interior

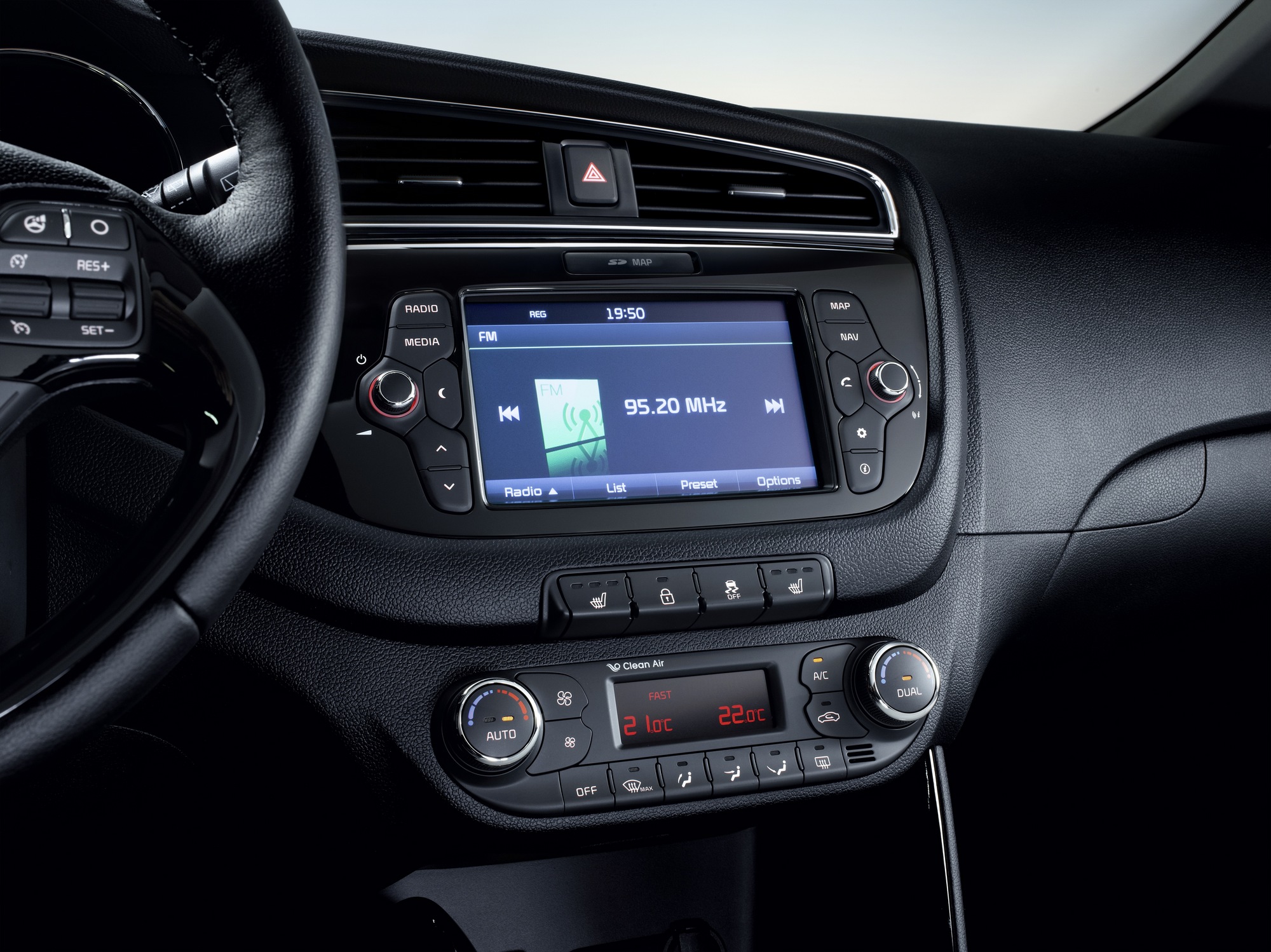

Kia Ceed Facelift 2015 JD infotainment

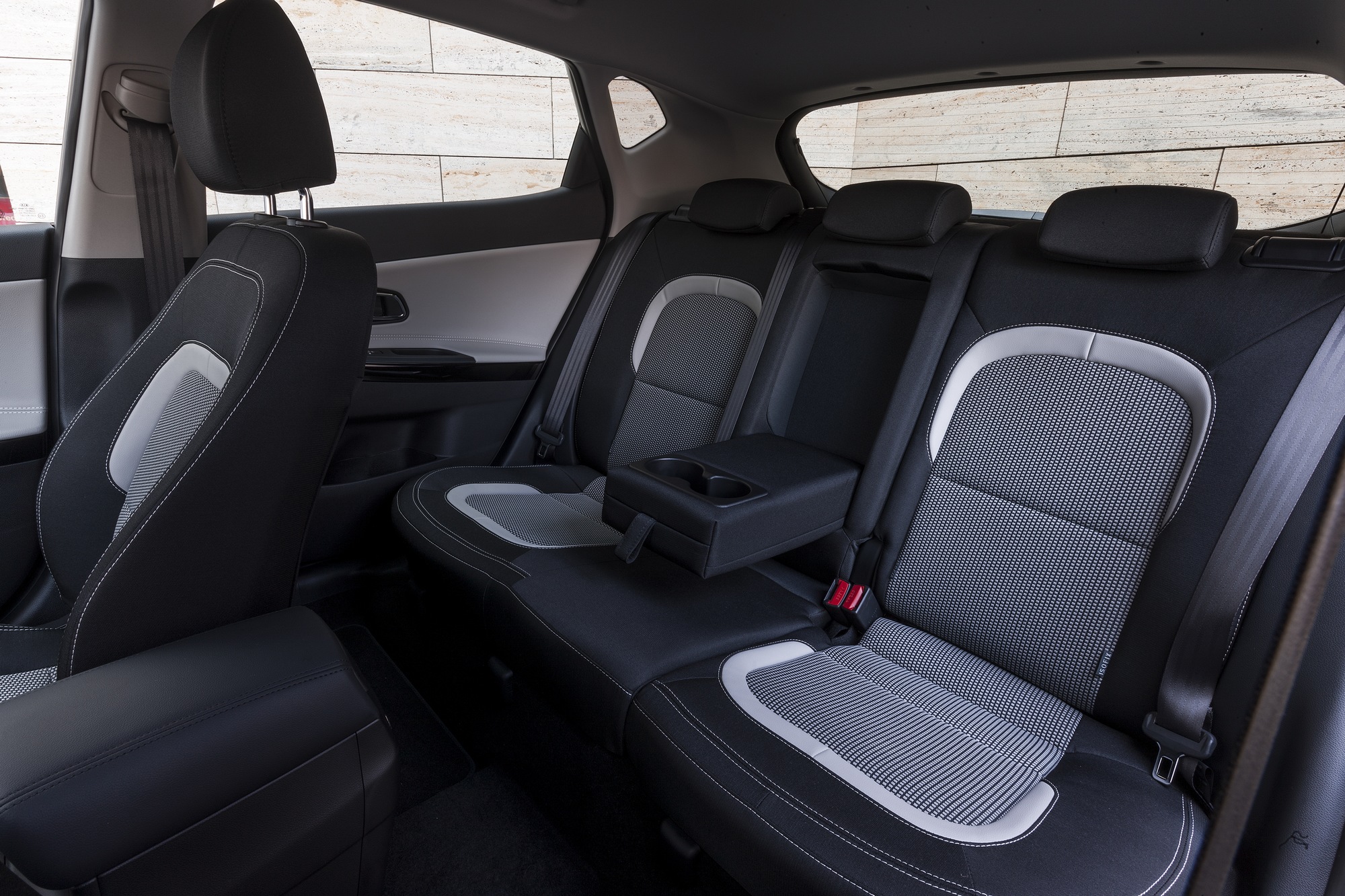

Kia Ceed Facelift 2015 JD rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
