Kia Cee'd
Date of manufacture
2/2013 – 2015 (Three-door hatchback)
4/2012 – 2015 (Five-door hatchback)
8/2012 – 2015 (Estate)
Platform
Hyundai-Kia J5
Manufacturing locations
Žilina, Slovakia
Designer
Peter Schreyer
Gregory Guillaume
Tags
C-segment
Korean cars
The Kia Cee'd has been manufactured since 2012 and its production facility is located in Slovakia. The car is built on the Hyundai-Kia J5 platform and offers only petrol engines. The most powerful model is the 1.6 T-GDI GT with 150 kW of power, which reaches a top speed of 230 km/h and the best acceleration from 0-100 km/h in 7.7 seconds. The most economical version, the 1.6 CRDi ISG, has a combined fuel consumption of 3.7 l/100 km and CO2 emissions of 97 g/km. The Kia Cee'd can be purchased in three body variants - three-door hatchback, five-door hatchback and estate. The size of the luggage compartment varies depending on the type of body: 380 l for hatchbacks and 528 l for estates. The EURONCAP test gave the Kia Cee'd a rating of 5 out of 5 points for safety in 2012.
Car body style

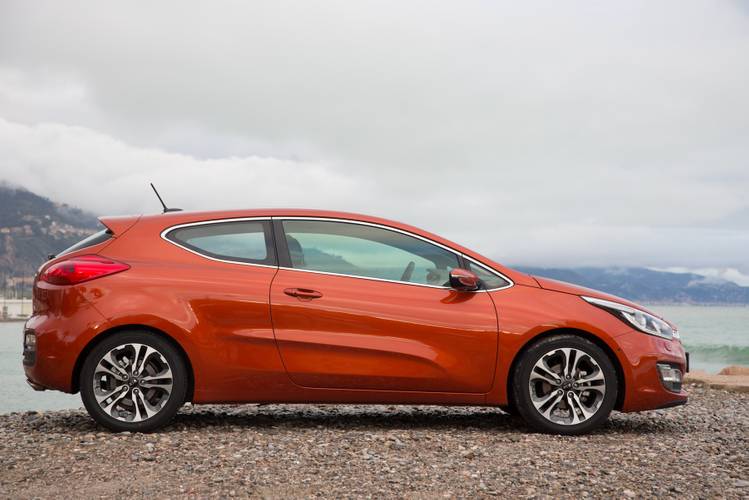

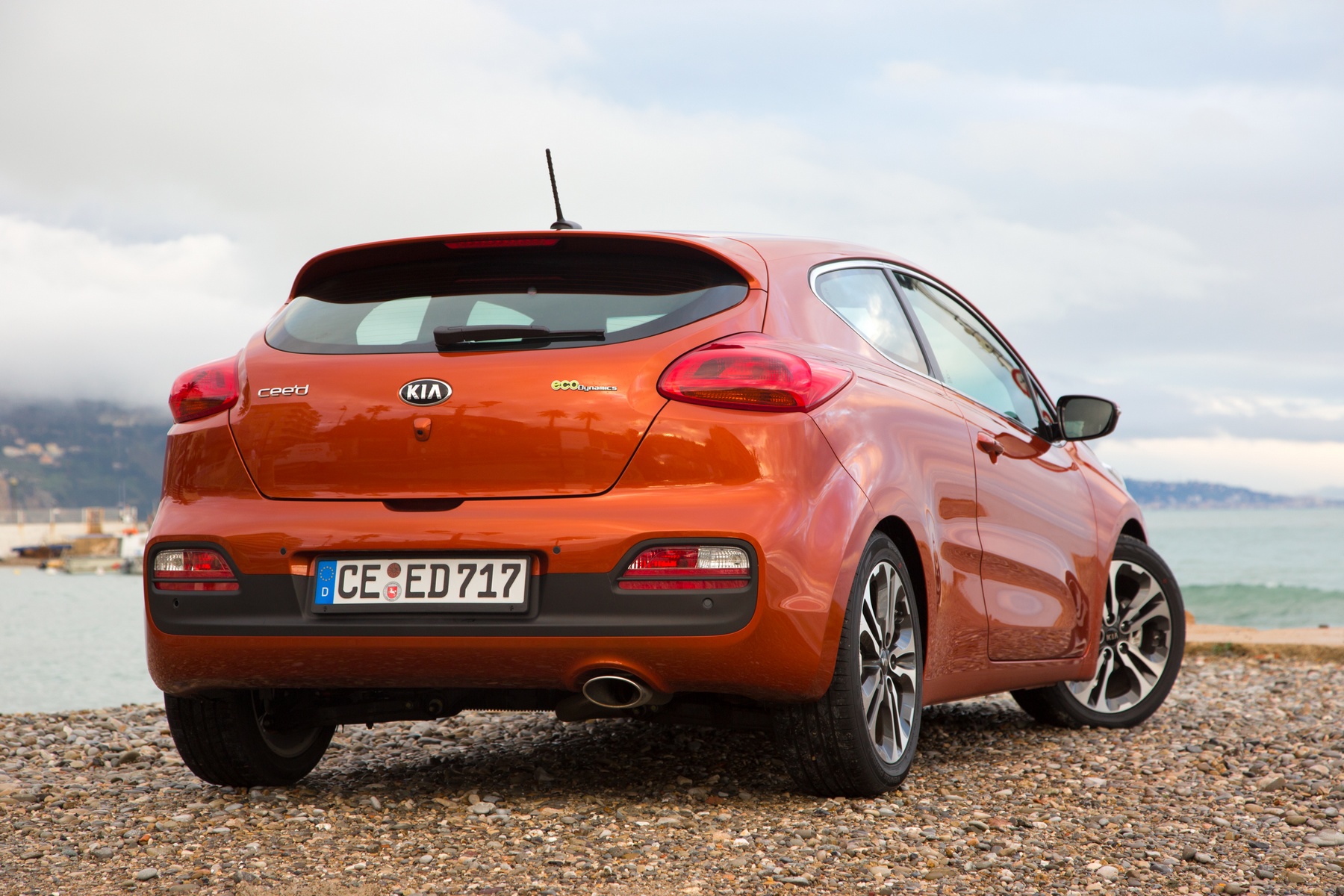

Three-door hatchback (Pro Cee'd)
Date of manufacture
2/2013 – 2015Internal designation

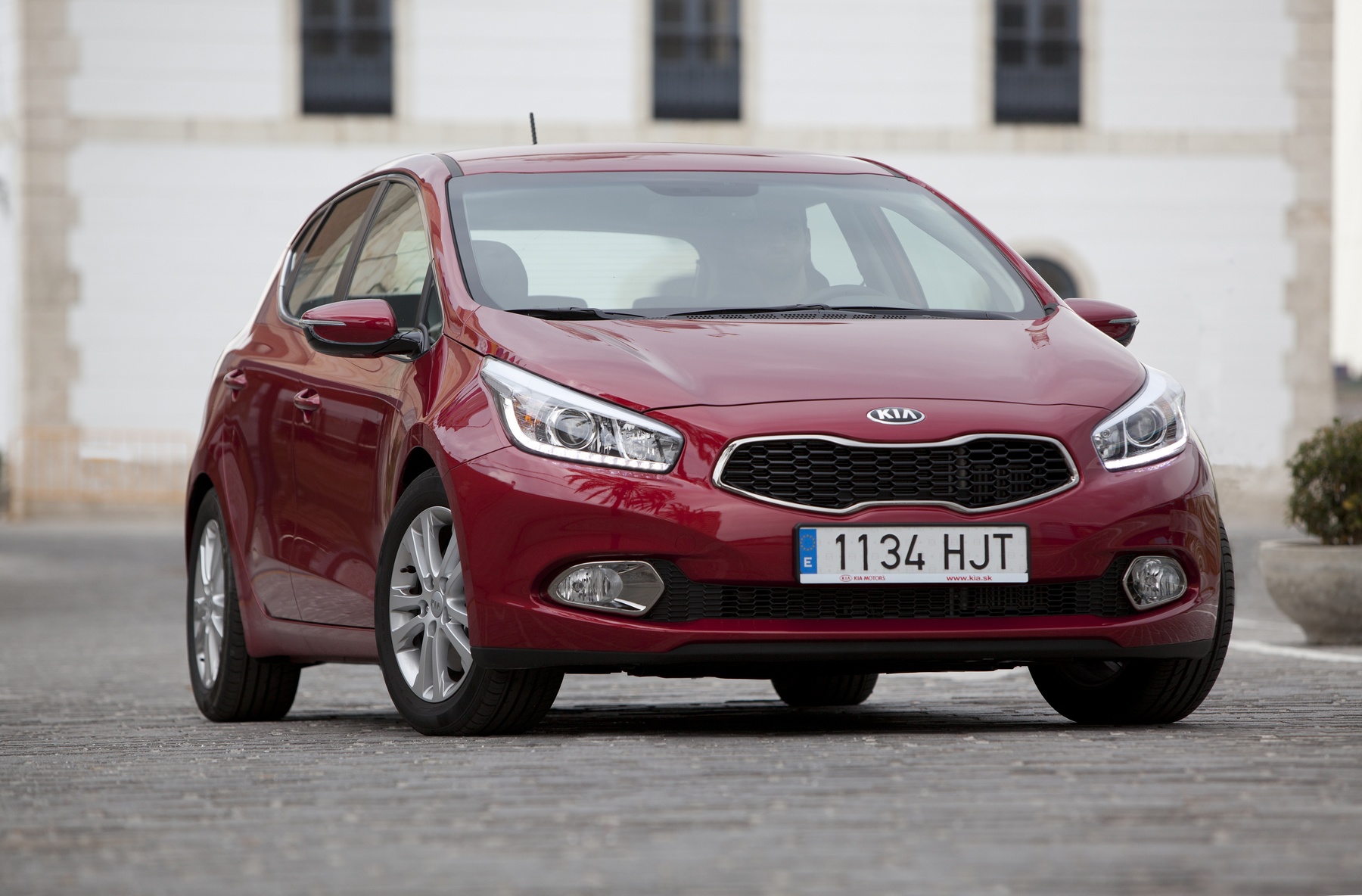

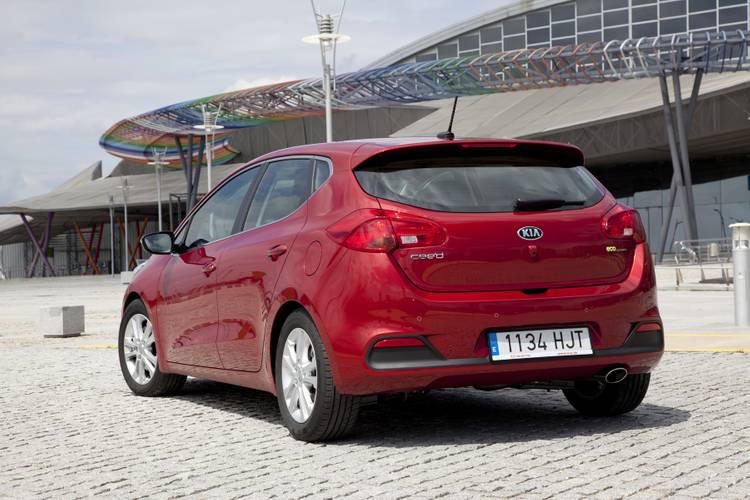

JDFive-door hatchback
Date of manufacture
4/2012 – 2015Internal designation

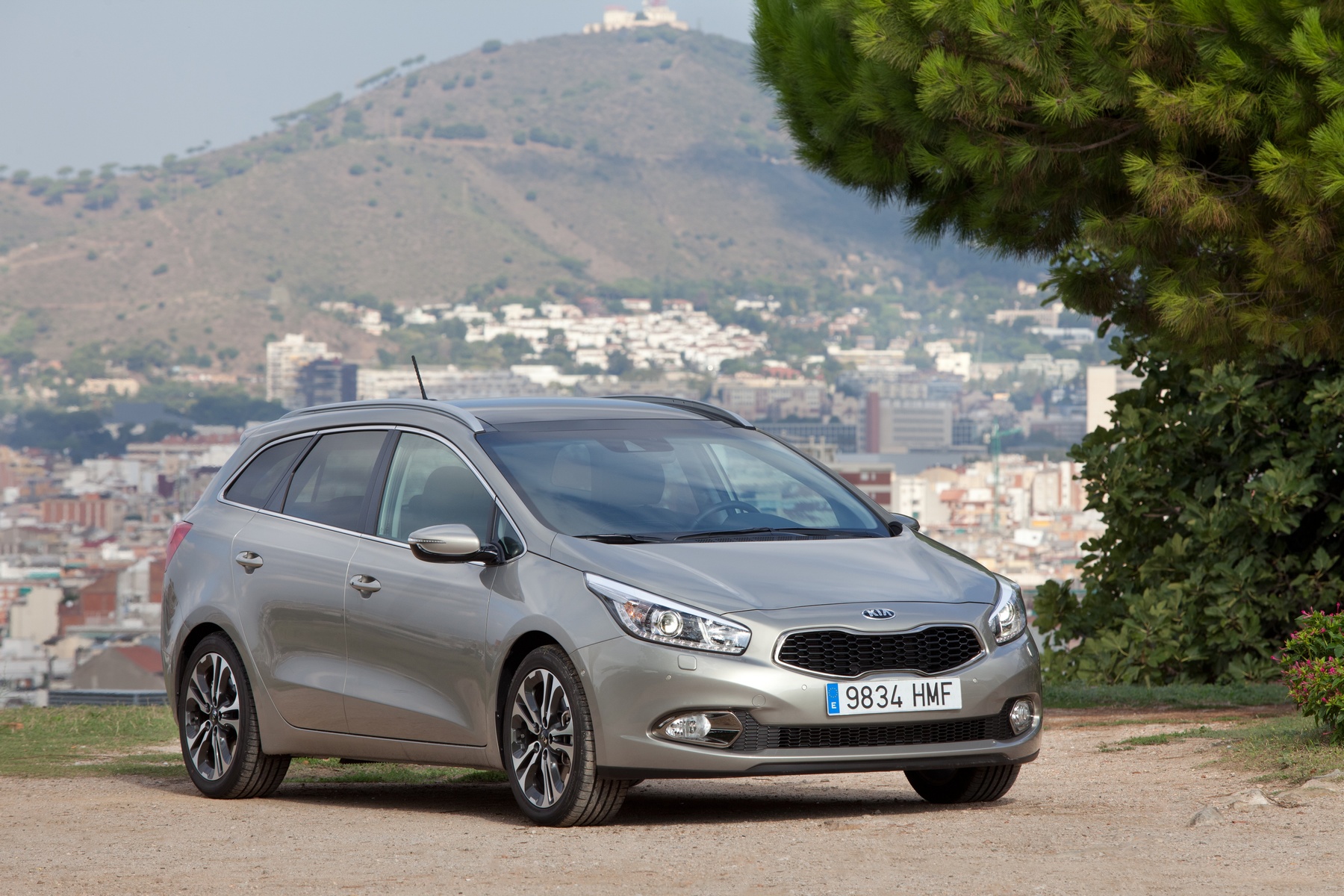

JDEstate (SW)
Date of manufacture
8/2012 – 2015Internal designation
JD
Technical data
Three-door hatchback (Pro Cee'd)
| 1.4 CVVT | 1.4 CVVT ISG | 1.6 GDI | 1.6 GDI ISG | 1.6 GDI | 1.6 T-GDI GT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2013 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 73,2/5500 | 73,2/5500 | 99/6300 | 99/6300 | 99/6300 | 150/6000 |
| Maximum torque [Nm/min-1] | 137/4200 | 137/4200 | 164/4850 | 164/4850 | 164/4850 | 265/1750-4500 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 10,5:1 | 10,5:1 | 11,0:1 | 11,0:1 | 11,0:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 182 | 182 | 195 | 195 | 195 | 230 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.8 | 9.9 | 10.2 | 10.8 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 7.2 | 7.8 | 6.6 | 7.8 | 9.7 |
| Out of town [l] | 4.9 | 4.6 | 4.7 | 4.4 | 4.8 | 6.1 |
| Combined [l] | 6.0 | 5.6 | 5.8 | 5.2 | 6.0 | 7.4 |
| CO2 emissions [g/km] | 139 | 130 | 135 | 119 | 137 | 171 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1259-1369 | 1259-1369 | 1267-1384 | 1267-1384 | 1296-1408 | 1359-1448 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1840 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1400 | 600/1400 | 600/1300 | 600/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1225 | -/1225 | -/1225 | -/1225 | -/1225 | -/1225 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 225/40 R18 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 225/40 R18 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 7.5 x 18 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 7.5 x 18 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 300 x 28 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 284 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.6/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1555 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1563 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 760 | 760 | 760 | 760 | 760 | 760 |
| Clearance [mm] | 140 | 135 | 140 | 135 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | 939 | 939 | 939 | 939 | 939 | 939 |
| Front elbow/shoulder width [mm] | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 |
| Rear elbow/shoulder width [mm] | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 CRDi | 1.4 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 81/4000 | 81/4000 | 94/400 | 94/400 |
| Maximum torque [Nm/min-1] | 220/1500-2750 | 220/1500-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 |
| Bore and stroke [mm x mm] | 75,0 x 79,0 | 75,0 x 79,0 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 17,0:1 | 17,0:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 170 | 170 | 185 | 185 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 13.5 | 13.5 | 12.7 | 12.5 | 10.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 4.7 | 4.7 | 4.1 | 4.9 | 4.1 |
| Out of town [l] | 3.5 | 3.6 | 3.6 | 3.5 | 3.7 | 3.5 |
| Combined [l] | 4.1 | 4.0 | 4.0 | 3.7 | 4.1 | 3.7 |
| CO2 emissions [g/km] | 109 | 105 | 104 | 97 | 109 | 97 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1362-1477 | 1362-1477 | 1375-1490 | 1375-1490 | 1375-1490 | 1375-1490 |
| Overall weight [kg] | 1910 | 1910 | 1920 | 1920 | 1920 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1225 | -/1225 | -/1225 | -/1225 | -/1225 | -/1225 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 760 | 760 | 760 | 760 | 760 | 760 |
| Clearance [mm] | 140 | 135 | 140 | 135 | 140 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | 939 | 939 | 939 | 939 | 939 | 939 |
| Front elbow/shoulder width [mm] | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 | 1362/1420 |
| Rear elbow/shoulder width [mm] | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 | 1308/1372 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Ignition supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1582 | |||||
| Maximum output / speed [kW/min-1] | 94/400 | |||||
| Maximum torque [Nm/min-1] | 260/1900-2750 | |||||
| Bore and stroke [mm x mm] | 77,2 x 84,5 | |||||
| Compression ratio | 17,3:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 186 | |||||
| Acceleration 0–100 km/h [s] | 11.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.2 | |||||
| Out of town [l] | 4.5 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 145 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1385-1495 | |||||
| Overall weight [kg] | 1940 | |||||
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 380 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1225 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 3 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 53 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.3 | |||||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | |||||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | |||||
| Tyre dimensions front | 195/65 R15 | |||||
| Tyre dimensions rear | 195/65 R15 | |||||
| Wheel size front | 6.0 x 15 | |||||
| Wheel size rear | 6.0 x 15 | |||||
| Brake dimensions front | 280 x 23 | |||||
| Brake dimensions rear | 262 x 10 | |||||
| Steering | Rack & pinion with electric power steering m | |||||
| Number of steering wheel turns | 2.85 | |||||
| Turning diameter track/circumference [m] | 10.34/- | |||||
| Overall length [mm] | 4310 | |||||
| Overall width without/including mirrors [mm] | 1780/- | |||||
| Overall height [mm] | 1430 | |||||
| Wheelbase [mm] | 2650 | |||||
| Front wheel track [mm] | 1563 | |||||
| Rear wheel track [mm] | 1571 | |||||
| Forward overhang [mm] | 900 | |||||
| Rear overhang [mm] | 760 | |||||
| Clearance [mm] | 140 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 986 | |||||
| Headroom rear [mm] | 939 | |||||
| Front elbow/shoulder width [mm] | 1362/1420 | |||||
| Rear elbow/shoulder width [mm] | 1308/1372 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback
| 1.4 CVVT | 1.4 CVVT ISG | 1.6 GDI | 1.6 GDI ISG | 1.6 GDI | 1.6 T-GDI GT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2013 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 73,2/5500 | 73,2/5500 | 99/6300 | 99/6300 | 99/6300 | 150/6000 |
| Maximum torque [Nm/min-1] | 137/4200 | 137/4200 | 164/4850 | 164/4850 | 164/4850 | 265/1750-4500 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 10,5:1 | 10,5:1 | 11,0:1 | 11,0:1 | 11,0:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 182 | 182 | 195 | 195 | 195 | 230 |
| Acceleration 0–100 km/h [s] | 12.8 | 12.8 | 9.9 | 10.2 | 10.8 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 7.2 | 7.8 | 6.6 | 7.8 | 9.7 |
| Out of town [l] | 4.9 | 4.6 | 4.7 | 4.4 | 4.8 | 6.1 |
| Combined [l] | 6.0 | 5.6 | 5.8 | 5.2 | 6.0 | 7.4 |
| CO2 emissions [g/km] | 139 | 130 | 135 | 119 | 137 | 171 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1258-1382 | 1258-1382 | 1268-1392 | 1268-1392 | 1301-1421 | 1382-1471 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1840 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1400 | 600/1400 | 600/1300 | 600/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1318 | -/1318 | -/1318 | -/1318 | -/1318 | -/1318 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 225/40 R18 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 225/40 R18 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 7.5 x 18 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 7.5 x 18 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 300 x 28 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 284 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.6/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1470 | 1465 | 1470 | 1465 | 1470 | 1470 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1555 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1563 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 760 | 760 | 760 | 760 | 760 | 760 |
| Clearance [mm] | 140 | 135 | 140 | 135 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 |
| Rear elbow/shoulder width [mm] | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 |
| Legroom front knees/total [mm] | -/1067 | -/1067 | -/1067 | -/1067 | -/1067 | -/1067 |
| Legroom rear knees/total [mm] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| 1.4 CRDi | 1.4 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 81/4000 | 81/4000 | 94/400 | 94/400 |
| Maximum torque [Nm/min-1] | 220/1500-2750 | 220/1500-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 |
| Bore and stroke [mm x mm] | 75,0 x 79,0 | 75,0 x 79,0 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 17,0:1 | 17,0:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 170 | 170 | 185 | 185 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 13.5 | 13.5 | 12.7 | 12.5 | 10.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 4.7 | 4.7 | 4.1 | 4.9 | 4.1 |
| Out of town [l] | 3.5 | 3.6 | 3.6 | 3.5 | 3.7 | 3.5 |
| Combined [l] | 4.1 | 4.0 | 4.0 | 3.7 | 4.1 | 3.7 |
| CO2 emissions [g/km] | 109 | 105 | 104 | 97 | 109 | 97 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365-1489 | 1365-1489 | 1375-1499 | 1375-1499 | 1375-1499 | 1375-1499 |
| Overall weight [kg] | 1910 | 1910 | 1920 | 1920 | 1920 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1318 | -/1318 | -/1318 | -/1318 | -/1318 | -/1318 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4310 | 4310 | 4310 | 4310 | 4310 | 4310 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1470 | 1465 | 1470 | 1465 | 1470 | 1465 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 760 | 760 | 760 | 760 | 760 | 760 |
| Clearance [mm] | 140 | 135 | 140 | 135 | 140 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 |
| Rear elbow/shoulder width [mm] | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 |
| Legroom front knees/total [mm] | -/1067 | -/1067 | -/1067 | -/1067 | -/1067 | -/1067 |
| Legroom rear knees/total [mm] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| 1.6 CRDi | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Ignition supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1582 | |||||
| Maximum output / speed [kW/min-1] | 94/400 | |||||
| Maximum torque [Nm/min-1] | 260/1900-2750 | |||||
| Bore and stroke [mm x mm] | 77,2 x 84,5 | |||||
| Compression ratio | 17,3:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 186 | |||||
| Acceleration 0–100 km/h [s] | 11.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.2 | |||||
| Out of town [l] | 4.5 | |||||
| Combined [l] | 5.5 | |||||
| CO2 emissions [g/km] | 145 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1385-1509 | |||||
| Overall weight [kg] | 1940 | |||||
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 380 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1318 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 53 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.3 | |||||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | |||||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | |||||
| Tyre dimensions front | 195/65 R15 | |||||
| Tyre dimensions rear | 195/65 R15 | |||||
| Wheel size front | 6.0 x 15 | |||||
| Wheel size rear | 6.0 x 15 | |||||
| Brake dimensions front | 280 x 23 | |||||
| Brake dimensions rear | 262 x 10 | |||||
| Steering | Rack & pinion with electric power steering m | |||||
| Number of steering wheel turns | 2.85 | |||||
| Turning diameter track/circumference [m] | 10.34/- | |||||
| Overall length [mm] | 4310 | |||||
| Overall width without/including mirrors [mm] | 1780/- | |||||
| Overall height [mm] | 1470 | |||||
| Wheelbase [mm] | 2650 | |||||
| Front wheel track [mm] | 1563 | |||||
| Rear wheel track [mm] | 1571 | |||||
| Forward overhang [mm] | 900 | |||||
| Rear overhang [mm] | 760 | |||||
| Clearance [mm] | 140 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1018 | |||||
| Headroom rear [mm] | 976 | |||||
| Front elbow/shoulder width [mm] | 1360/1420 | |||||
| Rear elbow/shoulder width [mm] | 1295/1392 | |||||
| Legroom front knees/total [mm] | -/1067 | |||||
| Legroom rear knees/total [mm] | -/894 |
Estate (SW)
| 1.4 CVVT | 1.4 CVVT ISG | 1.6 GDI | 1.6 GDI ISG | 1.6 GDI | 1.4 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1396 |
| Maximum output / speed [kW/min-1] | 73,2/5500 | 73,2/5500 | 99/6300 | 99/6300 | 99/6300 | 66/4000 |
| Maximum torque [Nm/min-1] | 137/4200 | 137/4200 | 164/4850 | 164/4850 | 164/4850 | 220/1500-2750 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 | 77,0 x 85,44 | 75,0 x 79,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 11,0:1 | 11,0:1 | 11,0:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 180 | 180 | 192 | 192 | 192 | 170 |
| Acceleration 0–100 km/h [s] | 13.5 | 13.5 | 10.2 | 10.2 | 11.1 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 7.6 | 8.2 | 7.4 | 8.2 | 5.4 |
| Out of town [l] | 5.3 | 5.2 | 5.1 | 4.9 | 5.1 | 3.9 |
| Combined [l] | 6.5 | 6.1 | 6.3 | 5.9 | 6.3 | 4.4 |
| CO2 emissions [g/km] | 145 | 136 | 141 | 131 | 141 | 113 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1308-1428 | 1308-1428 | 1316-1455 | 1316-1445 | 1348-1472 | 1411-1538 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1850 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | 600/1400 | 600/1400 | 600/1300 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.5 x 16 | 6.0 x 15 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4505 | 4505 | 4505 | 4505 | 4505 | 4505 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1555 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1563 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 140 | 135 | 140 | 135 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 |
| Rear elbow/shoulder width [mm] | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | 1.6 CRDi ISG | 1.6 CRDi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 66/4000 | 81/4000 | 81/4000 | 94/400 | 94/400 | 94/400 |
| Maximum torque [Nm/min-1] | 220/1500-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 |
| Bore and stroke [mm x mm] | 75,0 x 79,0 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 17,0:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 170 | 185 | 185 | 193 | 193 | 185 |
| Acceleration 0–100 km/h [s] | 13.9 | 11.8 | 11.8 | 11.2 | 11.2 | 12.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0 | 5.1 | 5.0 | 5.1 | 5.0 | 7.5 |
| Out of town [l] | 3.8 | 3.9 | 3.8 | 3.9 | 3.8 | 4.6 |
| Combined [l] | 4.2 | 4.3 | 4.2 | 4.3 | 4.2 | 5.6 |
| CO2 emissions [g/km] | 109 | 113 | 110 | 113 | 110 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1411-1538 | 1420-1547 | 1420-1547 | 1420-1547 | 1420-1547 | 1441-1563 |
| Overall weight [kg] | 1910 | 1920 | 1920 | 1920 | 1920 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 | 280 x 23 |
| Brake dimensions rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4505 | 4505 | 4505 | 4505 | 4505 | 4505 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 135 | 140 | 135 | 140 | 135 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Front elbow/shoulder width [mm] | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 | 1360/1420 |
| Rear elbow/shoulder width [mm] | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 | 1295/1392 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

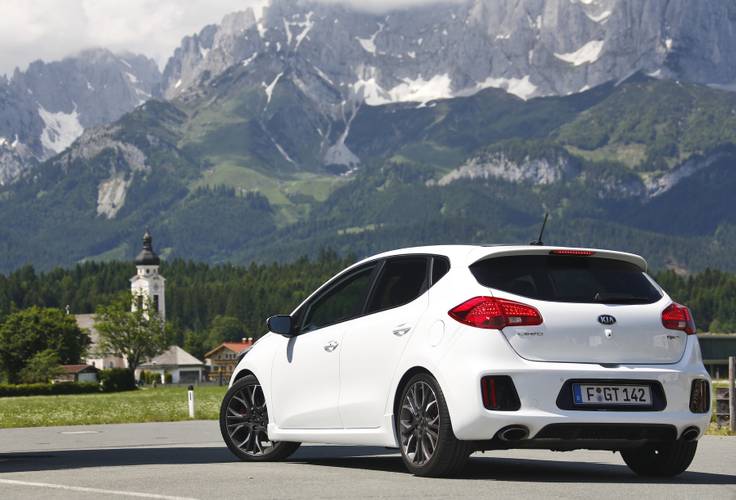

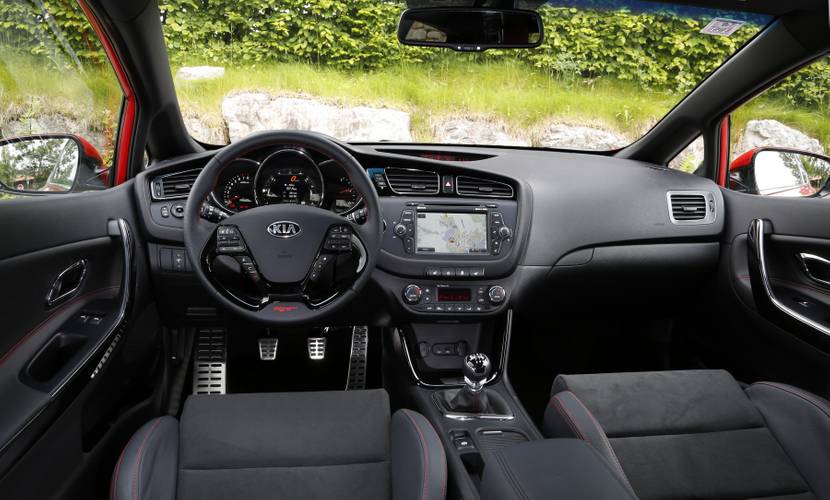

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
