Kia Cee'd
Date of manufacture
12/2010 – 2012 (Three-door hatchback)
7/2009 – 3/2012 (Five-door hatchback)
7/2009 – 2012 (Estate)
Platform
-
Manufacturing locations
Žilina, Slovakia
Designer
Miklós Kovács
Peter Schreyer
Tags
C-segment
Korean cars
The Kia Cee'd is available in three different body styles - as a three-door hatchback, five-door hatchback and estate. It has been produced since 2009 in Slovakia. It offers a wide range of engines including petrol and diesel versions. The most powerful engine is the 2.0 CVVT with 105.2 kW (143 hp). This model has a top speed of 205 km/h and best 0-100 km/h acceleration of 10.3 seconds. The most fuel-efficient engine is the 1.6 CRDi VGT ISG with a fuel consumption of 4.2 l/100 km and emissions of 110 g/km CO2. The luggage capacity is 340 l for the three-door hatchback and 534 l for the estate version. The Kia Cee'd has been awarded a 5-star rating from EURONCAP for passenger safety.
Car body style
Three-door hatchback (Pro_cee'd)
after upgrade (facelift)
Date of manufacture
12/2010 – 2012Internal designation

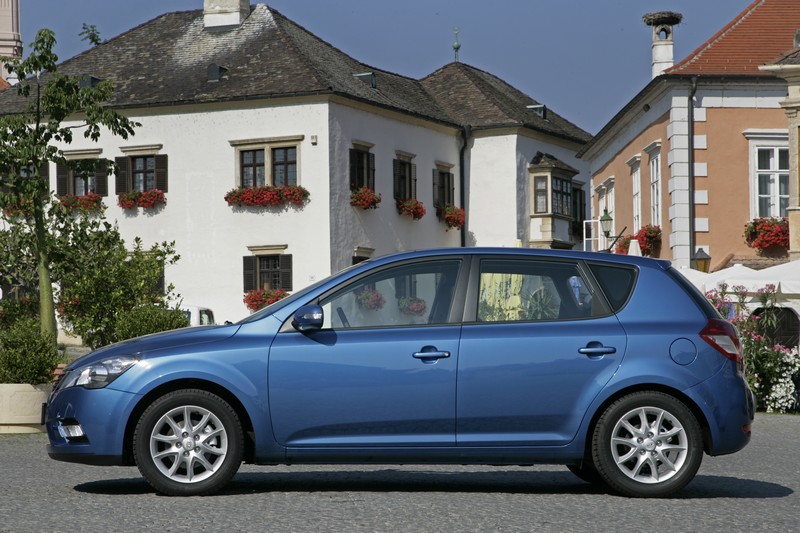

ED Five-door hatchback
after upgrade (facelift)
Date of manufacture
7/2009 – 3/2012Internal designation
ED Estate (Sportswagon)
after upgrade (facelift)
Date of manufacture
7/2009 – 2012Internal designation
ED
Technical data
Three-door hatchback (Pro_cee'd)
| 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.4 CVVT ISG | 1.6 CVVT | 1.6 CVVT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1396 | 1396 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 66,2/6000 | 66,2/6000 | 77/6300 | 77/6300 | 91,9/6300 | 91,9/6300 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 137/5000 | 137/5000 | 154/4200 | 154/4200 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 180 | 180 | 185 | 185 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 13.0 | 13.0 | 12.1 | 12.1 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.6 | 7.2 | 6.6 | 7.8 | 7.2 |
| Out of town [l] | 5.1 | 5.1 | 5.1 | 5.1 | 5.2 | 5.3 |
| Combined [l] | 5.8 | 5.7 | 5.8 | 5.7 | 6.1 | 5.9 |
| CO2 emissions [g/km] | 139 | 132 | 139 | 132 | 146 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1257-1358 | 1257-1358 | 1257-1358 | 1257-1358 | 1257-1338 | 1257-1338 |
| Overall weight [kg] | 1750 | 1750 | 1750 | 1750 | 1750 | 1750 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 |
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4260 | 4260 | 4260 | 4260 | 4260 | 4260 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | -/1360 | -/1360 | -/1360 | -/1360 | -/1360 | -/1360 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 91,9/6300 | 66/4000 | 66/4000 | 85/4000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 154/4200 | 235/1750-2500 | 235/1750-2500 | 255/1900-2750 | 255/1900-2750 | 255/1900-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 4 gear automatic |
| Drive specifications |
| - | - | - | - |
|
| Top speed [km/h] | 187 | 172 | 172 | 188 | 188 | 180 |
| Acceleration 0–100 km/h [s] | 11.9 | 14.0 | 14.0 | 11.5 | 11.5 | 12.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 4.9 | 4.7 | 5.2 | 4.9 | 6.9 |
| Out of town [l] | 5.7 | 4.0 | 3.9 | 4.1 | 4.1 | 4.9 |
| Combined [l] | 6.6 | 4.3 | 4.2 | 4.5 | 4.4 | 5.6 |
| CO2 emissions [g/km] | 158 | 113 | 110 | 118 | 115 | 147 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1285-1356 | 1358-1439 | 1358-1439 | 1358-1439 | 1358-1439 | 1365-1446 |
| Overall weight [kg] | 1770 | 1860 | 1860 | 1860 | 1860 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1400 | 550/1400 | 550/1400 | 550/1400 | 550/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 |
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- | 10.34/- |
| Overall length [mm] | 4260 | 4260 | 4260 | 4260 | 4260 | 4260 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | -/1360 | -/1360 | -/1360 | -/1360 | -/1360 | -/1360 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1582 | 1582 | 1582 | |||
| Maximum output / speed [kW/min-1] | 94/4000 | 94/4000 | 94/4000 | |||
| Maximum torque [Nm/min-1] | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | |||
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | |||
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 4 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 197 | 197 | 186 | |||
| Acceleration 0–100 km/h [s] | 11.0 | 11.0 | 12.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.2 | 4.9 | 6.9 | |||
| Out of town [l] | 4.1 | 4.1 | 4.9 | |||
| Combined [l] | 4.5 | 4.4 | 5.6 | |||
| CO2 emissions [g/km] | 118 | 115 | 147 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1358-1439 | 1358-1439 | 1365-1446 | |||
| Overall weight [kg] | 1860 | 1860 | 1880 | |||
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1400 | 550/1300 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 340 | 340 | 340 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 53 | 53 | 53 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | |||
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | |||
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.34/- | 10.34/- | 10.34/- | |||
| Overall length [mm] | 4260 | 4260 | 4260 | |||
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | |||
| Overall height [mm] | 1450 | 1450 | 1450 | |||
| Wheelbase [mm] | 2650 | 2650 | 2650 | |||
| Front wheel track [mm] | 1546 | 1546 | 1546 | |||
| Rear wheel track [mm] | 1544 | 1544 | 1544 | |||
| Forward overhang [mm] | 875 | 875 | 875 | |||
| Rear overhang [mm] | 725 | 725 | 725 | |||
| Clearance [mm] | 150 | 150 | 150 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 990 | 990 | 990 | |||
| Headroom rear [mm] | 940 | 940 | 940 | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | -/1360 | -/1360 | -/1360 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.4 CVVT ISG | 1.6 CVVT | 1.6 CVVT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1396 | 1396 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 66,2/6000 | 66,2/6000 | 77/6300 | 77/6300 | 91,9/6300 | 91,9/6300 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 137/5000 | 137/5000 | 154/4200 | 154/4200 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 180 | 180 | 185 | 185 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 13.0 | 13.0 | 12.1 | 12.1 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.6 | 7.2 | 6.6 | 7.8 | 7.2 |
| Out of town [l] | 5.1 | 5.1 | 5.1 | 5.1 | 5.2 | 5.3 |
| Combined [l] | 5.8 | 5.7 | 5.8 | 5.7 | 6.1 | 5.9 |
| CO2 emissions [g/km] | 139 | 132 | 139 | 132 | 146 | 139 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1263-1355 | 1263-1355 | 1263-1355 | 1263-1355 | 1263-1355 | 1263-1355 |
| Overall weight [kg] | 1710 | 1710 | 1710 | 1710 | 1710 | 1710 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 |
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 |
| Turning diameter track/circumference [m] | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- |
| Overall length [mm] | 4260 | 4260 | 4260 | 4260 | 4260 | 4260 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| 1.6 CVVT | 2.0 CVVT | 2.0 CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1975 | 1975 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 91,9/6300 | 105,2/6000 | 105,2/6000 | 66/4000 | 66/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 154/4200 | 186/4600 | 186/4600 | 235/1750-2500 | 235/1750-2500 | 255/1900-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 82,0 x 93,5 | 82,0 x 93,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,1:1 | 10,1:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 187 | 205 | 195 | 172 | 172 | 188 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.4 | 10.4 | 14.0 | 14.0 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 9.4 | 10.0 | 4.9 | 4.7 | 5.2 |
| Out of town [l] | 5.7 | 5.6 | 6.0 | 4.0 | 3.9 | 4.1 |
| Combined [l] | 6.6 | 7.0 | 7.5 | 4.3 | 4.2 | 4.5 |
| CO2 emissions [g/km] | 158 | 167 | 178 | 113 | 110 | 118 |
| Emission standard | EU4-EU5 | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1291-1373 | 1341-1413 | 1349-1421 | 1367-1468 | 1367-1468 | 1367-1468 |
| Overall weight [kg] | 1730 | 1770 | 1780 | 1820 | 1820 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1500 | 550/1400 | 550/1400 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 |
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 |
| Turning diameter track/circumference [m] | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- |
| Overall length [mm] | 4260 | 4260 | 4260 | 4260 | 4260 | 4260 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1538 | 1538 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1536 | 1536 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 2.0 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | 1991 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 94/4000 | 94/4000 | 94/4000 | 103/3800 |
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 305/1800-2500 |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 83,0 x 92,0 |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 188 | 180 | 197 | 197 | 186 | 205 |
| Acceleration 0–100 km/h [s] | 11.5 | 12.8 | 11.0 | 11.0 | 12.3 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9 | 6.9 | 5.2 | 4.9 | 6.9 | 7.4 |
| Out of town [l] | 4.1 | 4.9 | 4.1 | 4.1 | 4.9 | 4.3 |
| Combined [l] | 4.4 | 5.6 | 4.5 | 4.4 | 5.6 | 5.4 |
| CO2 emissions [g/km] | 115 | 147 | 118 | 115 | 147 | 142 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1367-1468 | 1374-1475 | 1367-1468 | 1367-1468 | 1374-1475 | 1458-1533 |
| Overall weight [kg] | 1820 | 1840 | 1820 | 1820 | 1840 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1300 | 550/1400 | 550/1400 | 550/1300 | 550/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 | -/1300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Wheel size front | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 | 280 x 26 |
| Wheel size rear | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 | 262 x 10 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 | 2.69 |
| Turning diameter track/circumference [m] | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- | 10,34/- |
| Overall length [mm] | 4260 | 4260 | 4260 | 4260 | 4260 | 4260 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1538 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1536 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
Estate (Sportswagon)
| 1.4 CVVT | 1.4 CVVT ISG | 1.4 CVVT | 1.4 CVVT ISG | 1.6 CVVT | 1.6 CVVT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1396 | 1396 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 66,2/6000 | 66,2/6000 | 77/6300 | 77/6300 | 91,9/6300 | 91,9/6300 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 137/5000 | 137/5000 | 154/4200 | 154/4200 |
| Bore and stroke [mm x mm] | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 74,99 | 77,0 x 85,44 | 77,0 x 85,44 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 180 | 180 | 185 | 185 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 13.4 | 13.4 | 12.4 | 12.4 | 11.1 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.8 | 7.4 | 6.8 | 7.9 | 7.3 |
| Out of town [l] | 5.3 | 5.0 | 5.4 | 5.2 | 5.3 | 5.3 |
| Combined [l] | 6.0 | 5.7 | 6.1 | 5.8 | 6.2 | 6.0 |
| CO2 emissions [g/km] | 143 | 135 | 143 | 135 | 148 | 142 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1317-1399 | 1317-1399 | 1317-1399 | 1317-1399 | 1317-1399 | 1317-1399 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1820 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 534 | 534 | 534 | 534 | 534 | 534 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4490 | 4490 | 4490 | 4490 | 4490 | 4490 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| 1.6 CVVT | 2.0 CVVT | 2.0 CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1975 | 1975 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 91,9/6300 | 105,2/6000 | 105,2/6000 | 66/4000 | 66/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 154/4200 | 186/4600 | 186/4600 | 235/1750-2500 | 235/1750-2500 | 255/1900-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 82,0 x 93,5 | 82,0 x 93,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,1:1 | 10,1:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 187 | 205 | 195 | 172 | 172 | 188 |
| Acceleration 0–100 km/h [s] | 12.2 | 10.4 | 10.4 | 14.0 | 14.0 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 9.4 | 10.2 | 5.3 | 5.2 | 5.3 |
| Out of town [l] | 5.7 | 5.7 | 5.9 | 4.2 | 4.1 | 4.2 |
| Combined [l] | 6.6 | 7.1 | 7.5 | 4.6 | 4.5 | 4.6 |
| CO2 emissions [g/km] | 158 | 168 | 178 | 122 | 119 | 122 |
| Emission standard | EU4-EU5 | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1334-1417 | 1397-1458 | 1409-1470 | 1419-1502 | 1419-1502 | 1419-1502 |
| Overall weight [kg] | 1840 | 1890 | 1900 | 1920 | 1920 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1500 | 550/1400 | 550/1400 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 534 | 534 | 534 | 534 | 534 | 534 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4490 | 4490 | 4490 | 4490 | 4490 | 4490 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1538 | 1538 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1536 | 1536 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 2.0 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | 1991 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 94/4000 | 94/4000 | 94/4000 | 103/3800 |
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 305/1800-2500 |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 83,0 x 92,0 |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 188 | 180 | 197 | 197 | 186 | 205 |
| Acceleration 0–100 km/h [s] | 11.7 | 13.1 | 11.2 | 11.2 | 12.6 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.0 | 7.0 | 5.3 | 5.0 | 7.0 | 7.4 |
| Out of town [l] | 4.2 | 5.0 | 4.2 | 4.2 | 5.0 | 4.5 |
| Combined [l] | 4.5 | 5.7 | 4.6 | 4.5 | 5.7 | 5.5 |
| CO2 emissions [g/km] | 119 | 151 | 119 | 119 | 151 | 146 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1419-1502 | 1426-1509 | 1419-1502 | 1419-1502 | 1426-1509 | 1513-1572 |
| Overall weight [kg] | 1920 | 1940 | 1920 | 1920 | 1940 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1300 | 550/1400 | 550/1400 | 550/1300 | 550/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 534 | 534 | 534 | 534 | 534 | 534 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 | -/1664 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser | MacPherson, coil springs, gas shock absorbers, torsion stabiliser |
| Rear suspension | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers | multilink, coil springs, stabiliser bar, gas shock absorbers |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4490 | 4490 | 4490 | 4490 | 4490 | 4490 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1538 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1536 |
| Forward overhang [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Rear overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 | -/1410 |
| Rear elbow/shoulder width [mm] | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 | -/1385 |
| Legroom front knees/total [mm] | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 | -/1105 |
| Legroom rear knees/total [mm] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
